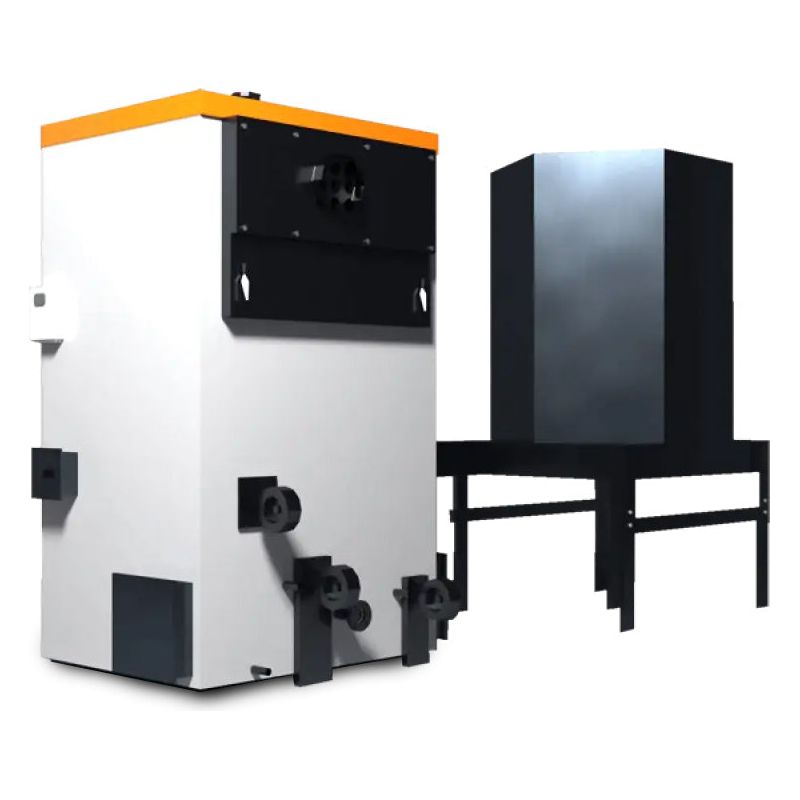

BIO DUO 300 High-Efficiency Wood Chip Boiler 1000K BTU

BIO DUO 300 – High-Efficiency Wood Chip Boiler for Commercial Use

The BIO DUO 300 is a cutting-edge boiler designed for commercial and industrial applications. Offering a heating output of 90 to 300 kW (300k to 1,000k BTU), this boiler is built for performance and flexibility. Its automatic fuel supply system supports burning wood chips and wood waste fuel of any quality, making it a sustainable and powerful heating solution.

Key Features

• Heating Capacity: Covers up to 30,000 ft², perfect for large-scale facilities.
• Hopper Volume:
  • Regular Size: 400 gal – Holds 4,000 lb of wood chips.
  • XL Size: 500 gal – Holds 5,000 lb of wood chips.
• Power Output: 90-300 kW (300k-1,000k BTU).
• Weight: 6,720 lb, ensuring durability and stability.
• Fuel Compatibility: Efficiently burns wood chips and wood waste of varying quality.

Efficiency & Safety

• High Efficiency: Rated efficiency of 86% or more at maximum power.
• Thermal Protection: Equipped with thermal water protection and a sensor-controlled fuel line temperature to prevent ignition in the auto-feed system.
• Low Exhaust Temperature: Exhaust gas temperature is limited to 155°C, ensuring maximum thermal energy recovery.

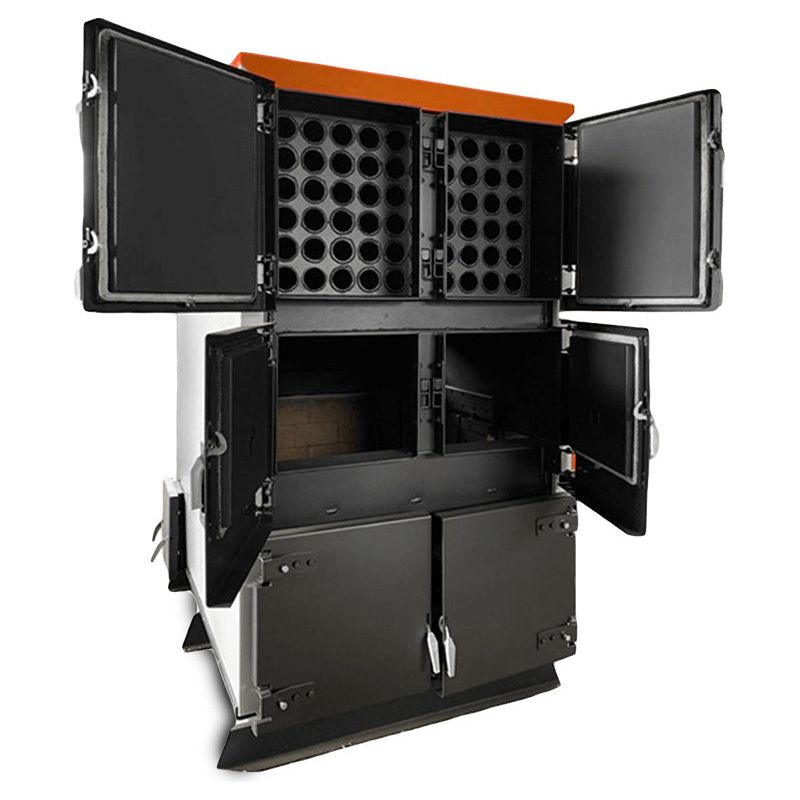

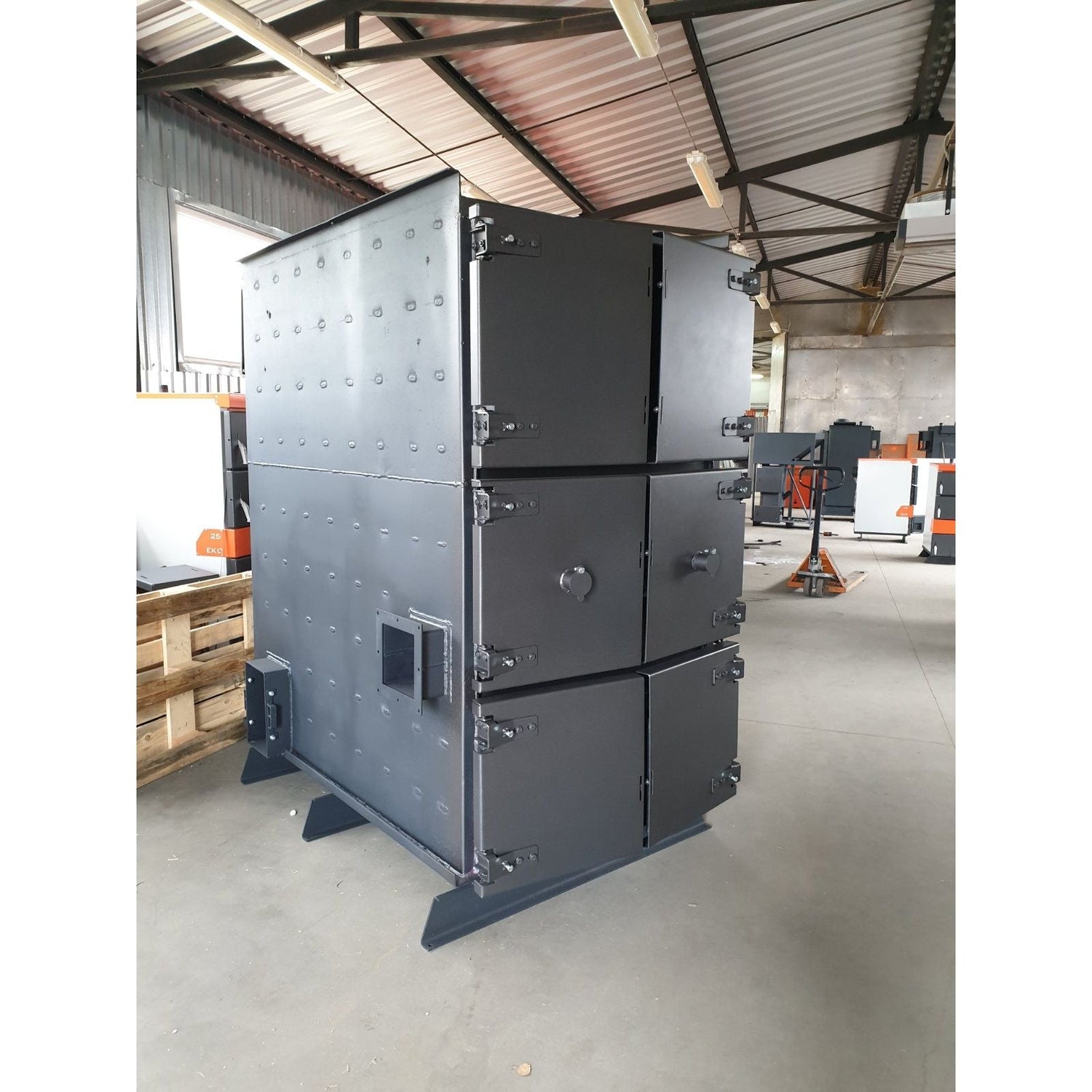

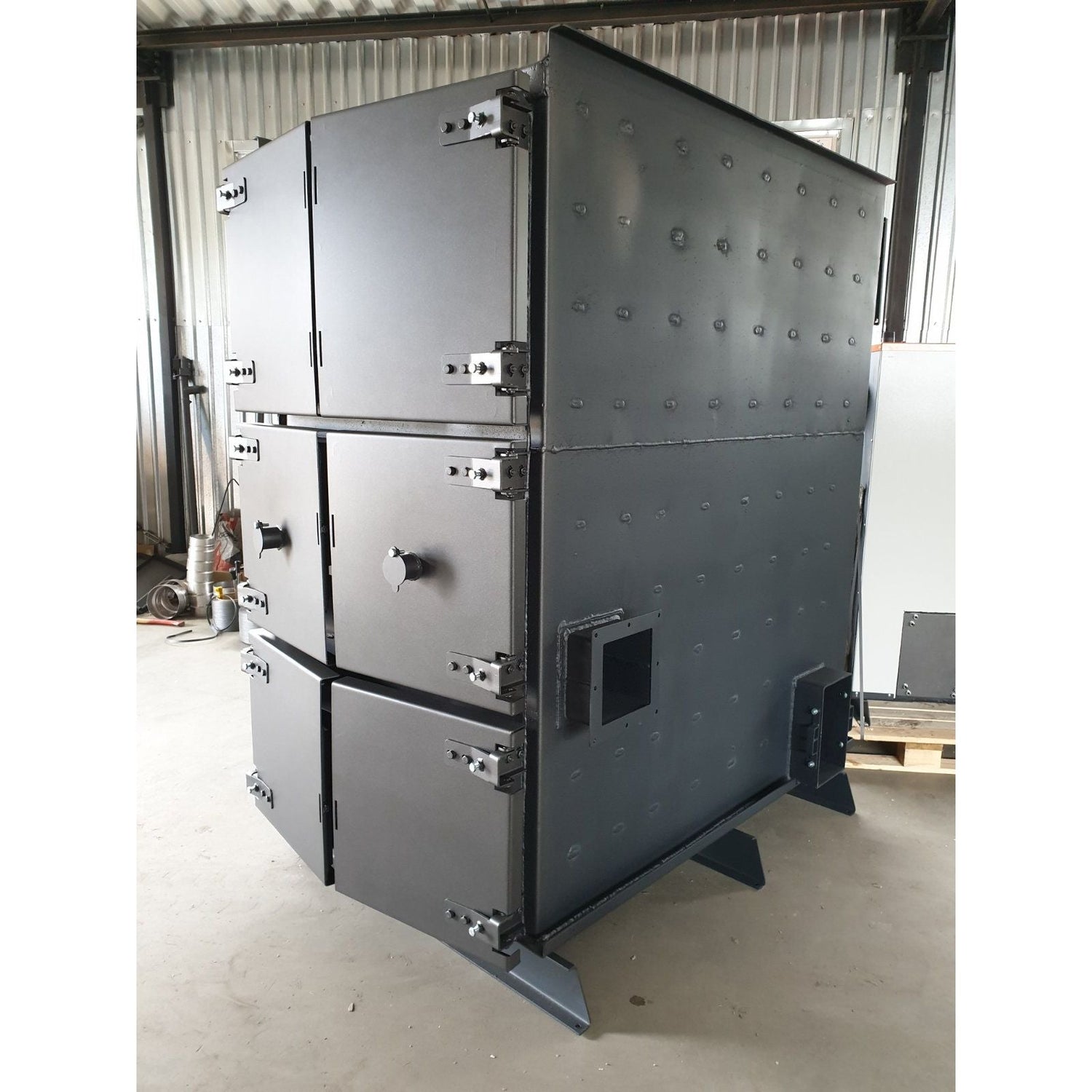

• Wide Door Openings: Designed for easy maintenance and cleaning from the front.

• TIS TRONIC 660HD Controller

  • Fan and Feeder Control: Automatically adjusts for optimized operation.
  • Pump Management: Controls central heating (CH), hot water supply (DHW), hot water circulation, and mixing circuits.
  • Advanced Temperature Control: Includes flue gas temperature monitoring and an outdoor temperature sensor.
  • Seasonal Modes: Offers "winter" and "summer" settings for year-round efficiency.
  • Thermostat & Internet Compatibility: Supports a room thermostat and the TIS TRONIC 501 internet module for remote control.

Additional Features

• Manual and Automatic Fueling Options: Can manually burn wood or be equipped with optional automatic ash removal and automatic igniter systems.

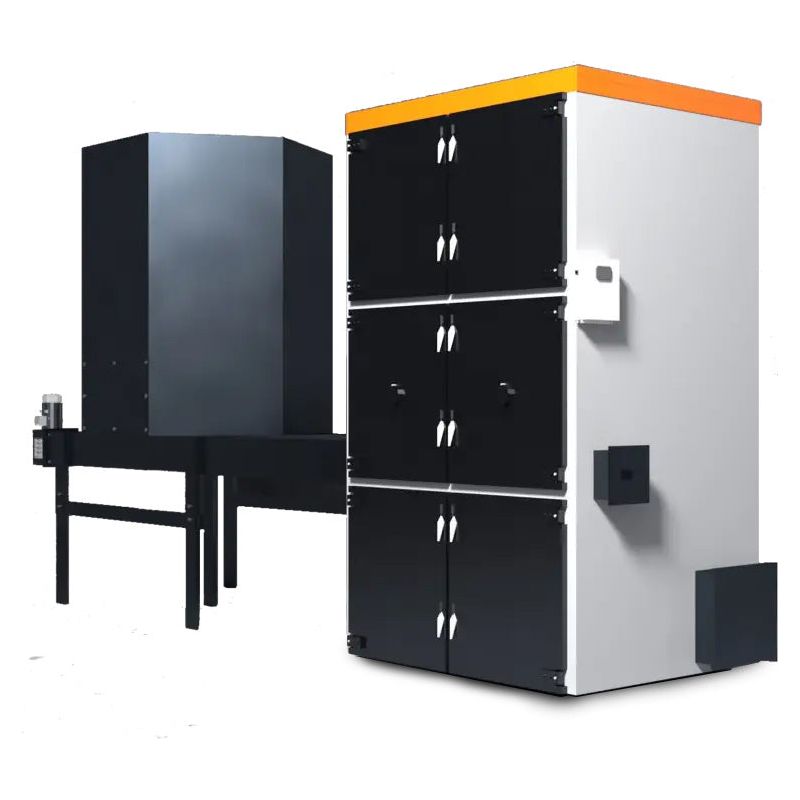

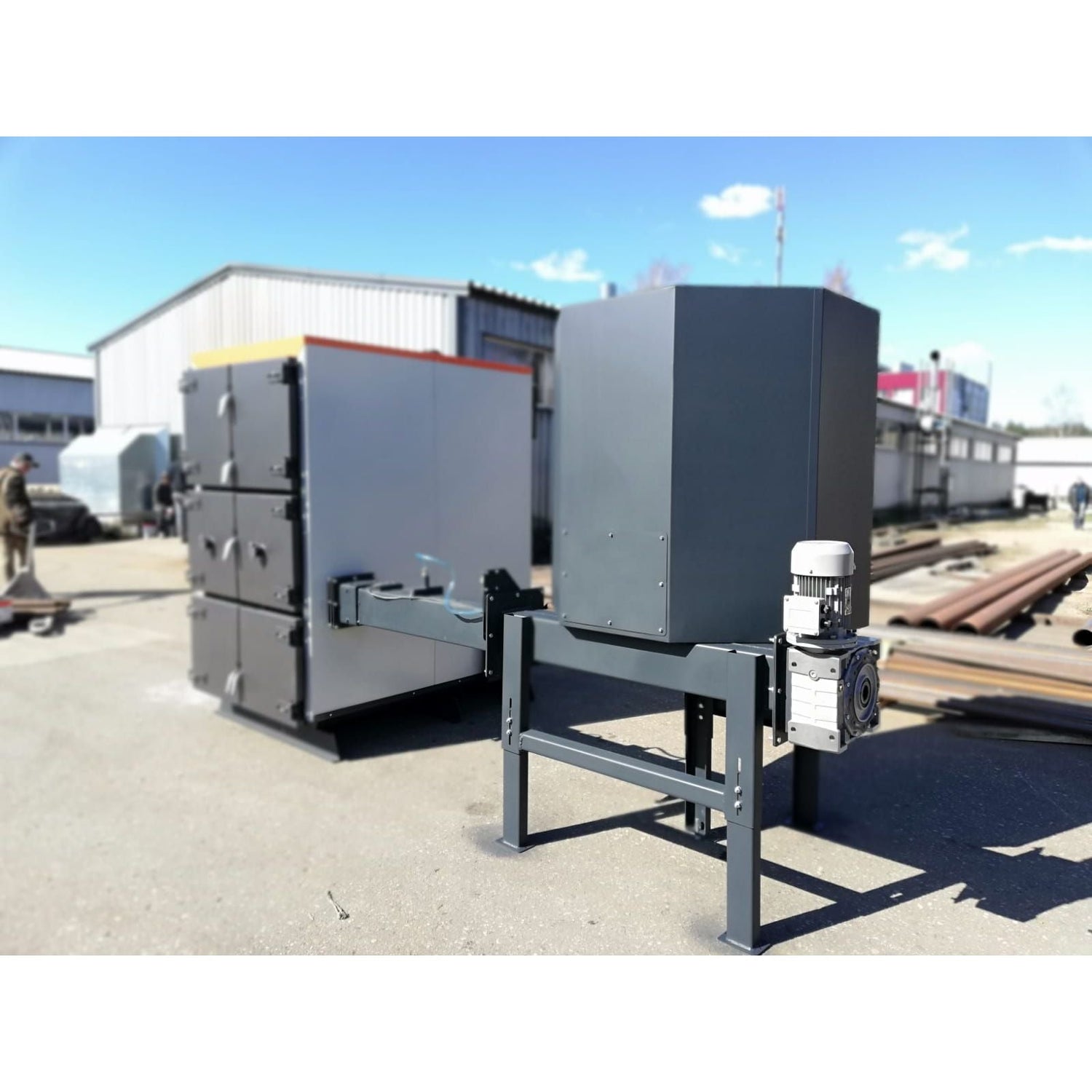

• Customizable Hopper Setup: The hopper can be mounted on the left or right side during installation.
• Built to Last: Constructed from ASTM A106 boiler steel, with a 2" thick thermal insulation and a powder-coated casing resistant to mechanical stress.

Warranty

• Backed by a 10-year warranty, ensuring long-term peace of mind.

The BIO DUO 300 combines powerful performance, sustainability, and ease of use, making it a top choice for commercial and industrial heating systems. Its modern features and customizable options ensure reliable, efficient operation tailored to your needs.
