EKO DUO 150 Hybrid Coal-Pellet Boiler 500K BTU Automatic

Eko Duo 150 – Automated High-Efficiency Coal Boiler for Commercial Use

The Eko Duo 150 is a top-tier, automated coal boiler specifically designed for commercial applications. This boiler offers an advanced solution for heating large facilities, with extended fuel autonomy and a focus on efficiency. Capable of burning coal up to 1", it also has the flexibility to burn pellets and grains, making it a versatile choice for businesses.

Key Features:

• Heating Capacity: Efficiently heats up to 15,000 ft².
• Weight: 5,800 lb, providing stability and durability for heavy-duty use.
• Hopper Volume: Holds 400 gal of coal (equivalent to 4,000 lb), providing long-lasting fuel autonomy.
• Coal Types: Suitable for burning Anthracite and Bituminous coal.
• Coal Sizes: Supports coal sizes such as Rice, Buckwheat, and Pea.

Extended Autonomy:

• Fuel Duration: Can operate continuously for up to 5 days without needing additional attention, allowing for greater convenience and reduced maintenance time.

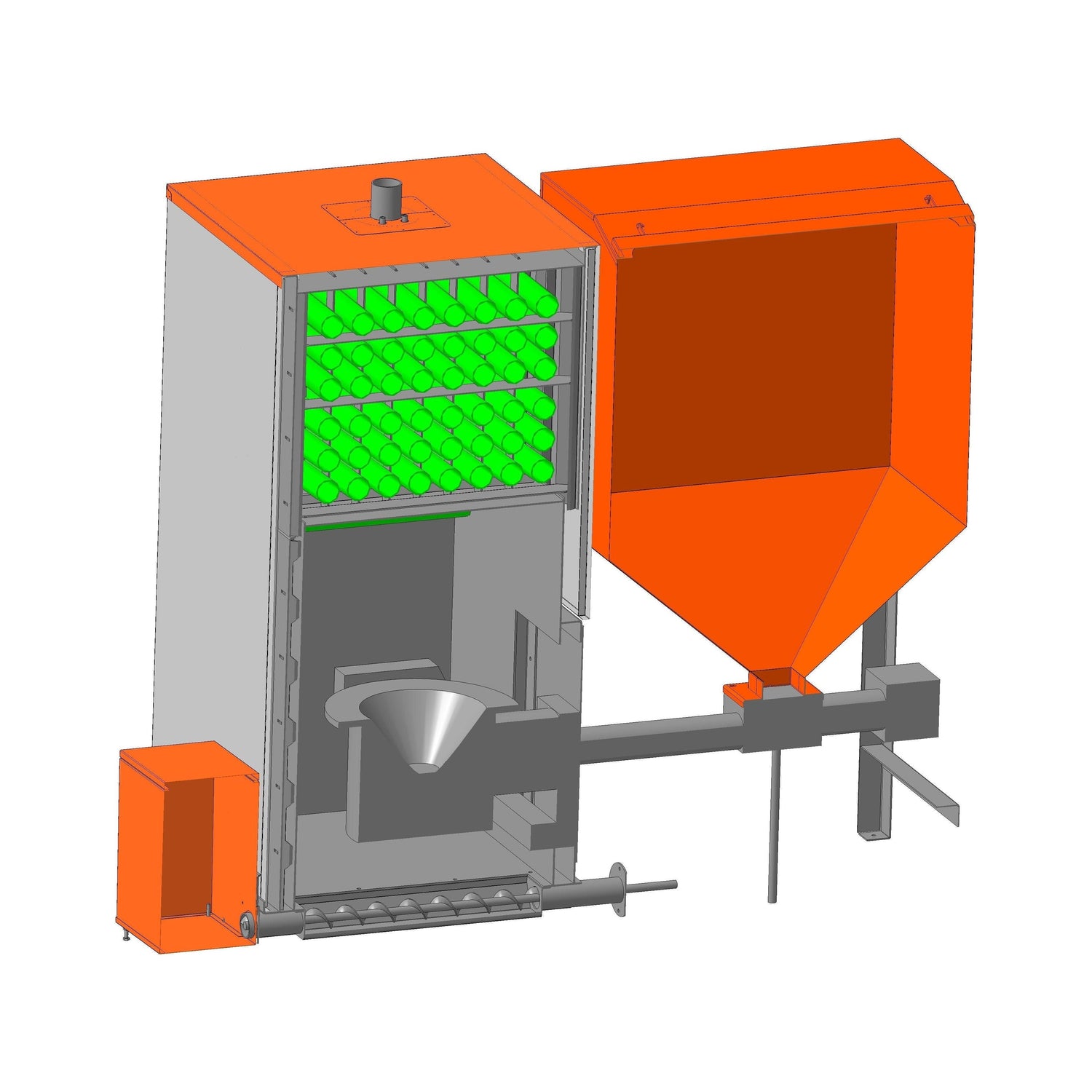

• Automatic Ash Removal (Optional): An optional automatic ash removal screw system ensures smooth operation without the need for manual ash removal.

Design and Customization:

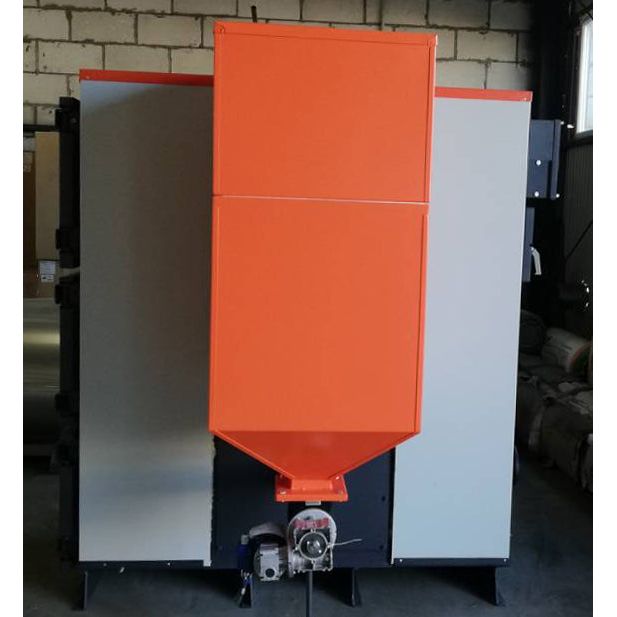

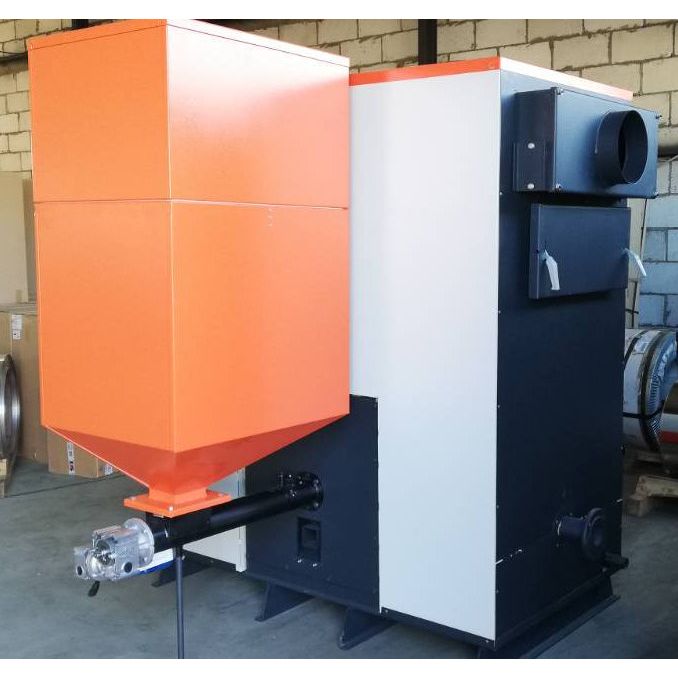

• Hopper Side Selection: Choose the side (left or right) for hopper installation to suit your space requirements.

Safety & Efficiency:

• Fuel Ignition: The boiler is designed to keep hot ashes to ignite the next fire, ensuring continuous, efficient combustion.

Construction:

• Made in Europe: Built with high-quality materials and designed to meet rigorous commercial standards.

Commercial Grade:

• This boiler is intended for commercial use only, making it ideal for large-scale heating needs.

The Eko Duo 150 provides a highly efficient and reliable solution for businesses looking for a powerful, automated coal boiler that offers long-term performance with minimal service requirements.

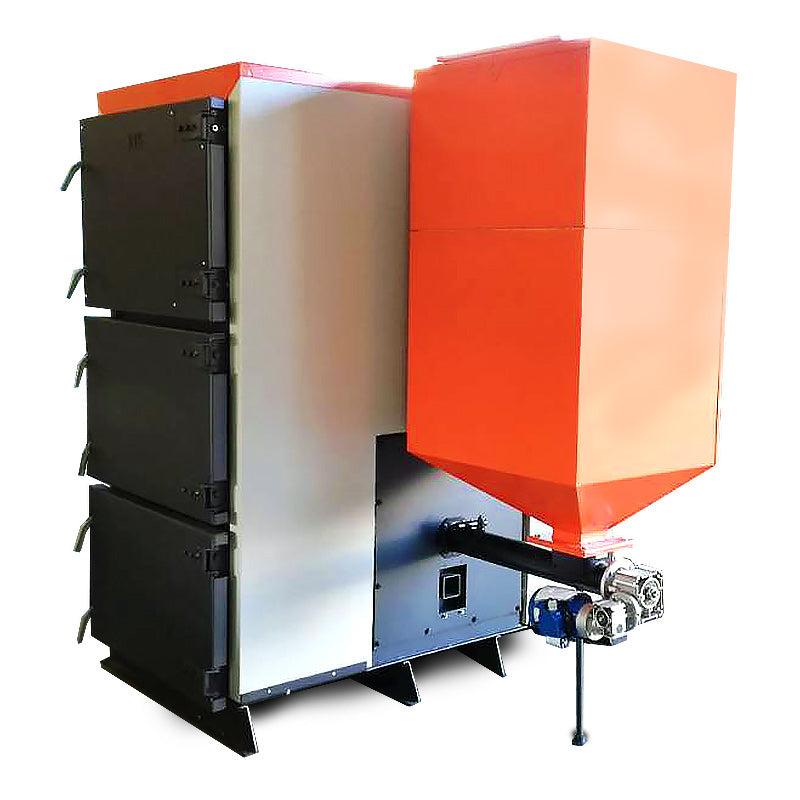

Eko Duo – Advanced Automatic Coal Boiler with High Efficiency

The Eko Duo represents the latest innovation in automatic coal boilers, designed for commercial applications with a focus on efficiency, convenience, and versatility. Equipped with cutting-edge technology and durable construction, this boiler ensures optimal heating performance with minimal maintenance.

Key Features:

• Dual Fuel Options

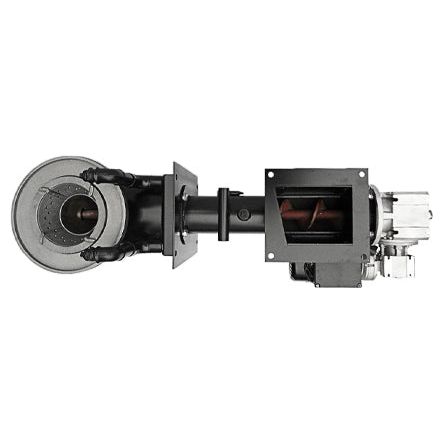

  The automatic rotary cast iron burner efficiently burns coal, pellets, grains, and other biomass up to 1½" in size. The middle chamber allows for manual feeding of coal, wood chips, peat briquettes, and more, offering flexibility and convenience.

• Smart Automation with TIS Tronic 481R
  The advanced controller adjusts combustion based on user settings, weather conditions, exhaust sensors, and fuel quality. It integrates seamlessly with modern hydronic heating systems, supporting domestic hot water, thermal storage, zone mixing, and more.

• Extended Autonomy
  A large capacity hopper ensures autonomy for 4 to 10 days, reducing the need for frequent refueling. The system maintains hot ashes for easy reignition, maximizing fuel efficiency.

• High Efficiency and Heat Recovery
  Featuring a 90% efficiency rating, the boiler is designed for complete heat recovery, ensuring lower fuel consumption and reduced operational costs.

• Easy Maintenance

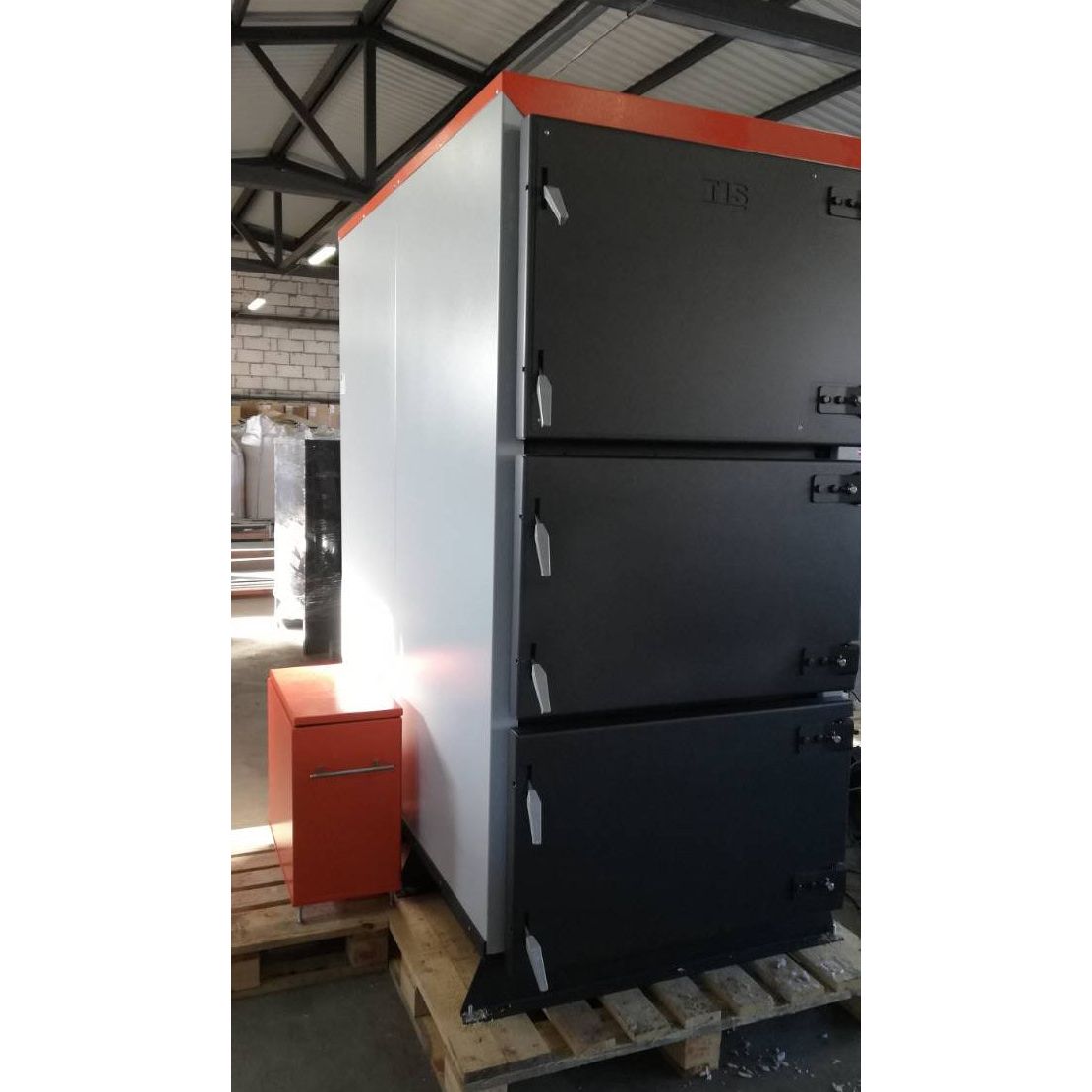

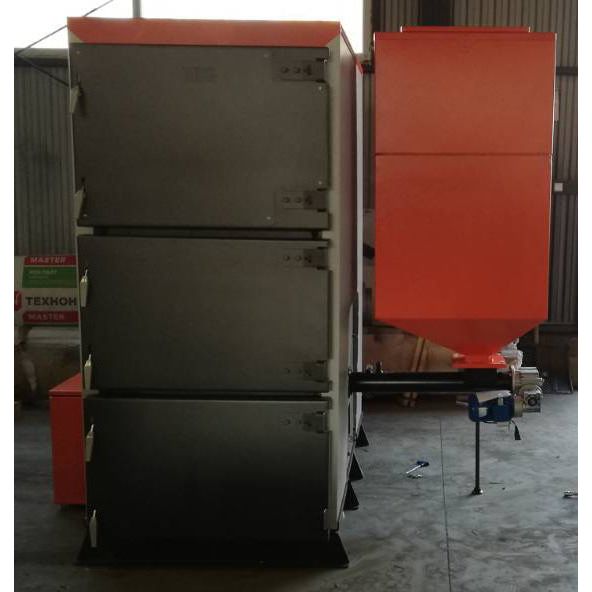

  The wide front-access doors facilitate effortless cleaning of the top heat exchanger, middle biomass loading, and bottom ash removal—no need to disassemble components for regular upkeep.

• Durable Construction
  Built with ASTM A106-certified boiler steel, the Eko Duo is powder-coated for corrosion resistance and insulated with 2-inch non-combustible material, ensuring long-term, safe operation.

The Eko Duo Coal Boiler delivers a powerful and reliable heating solution with automated operation, dual fuel flexibility, and exceptional efficiency, making it an ideal choice for commercial applications.
