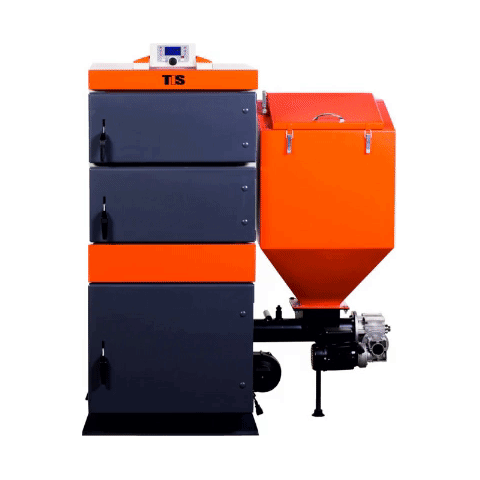

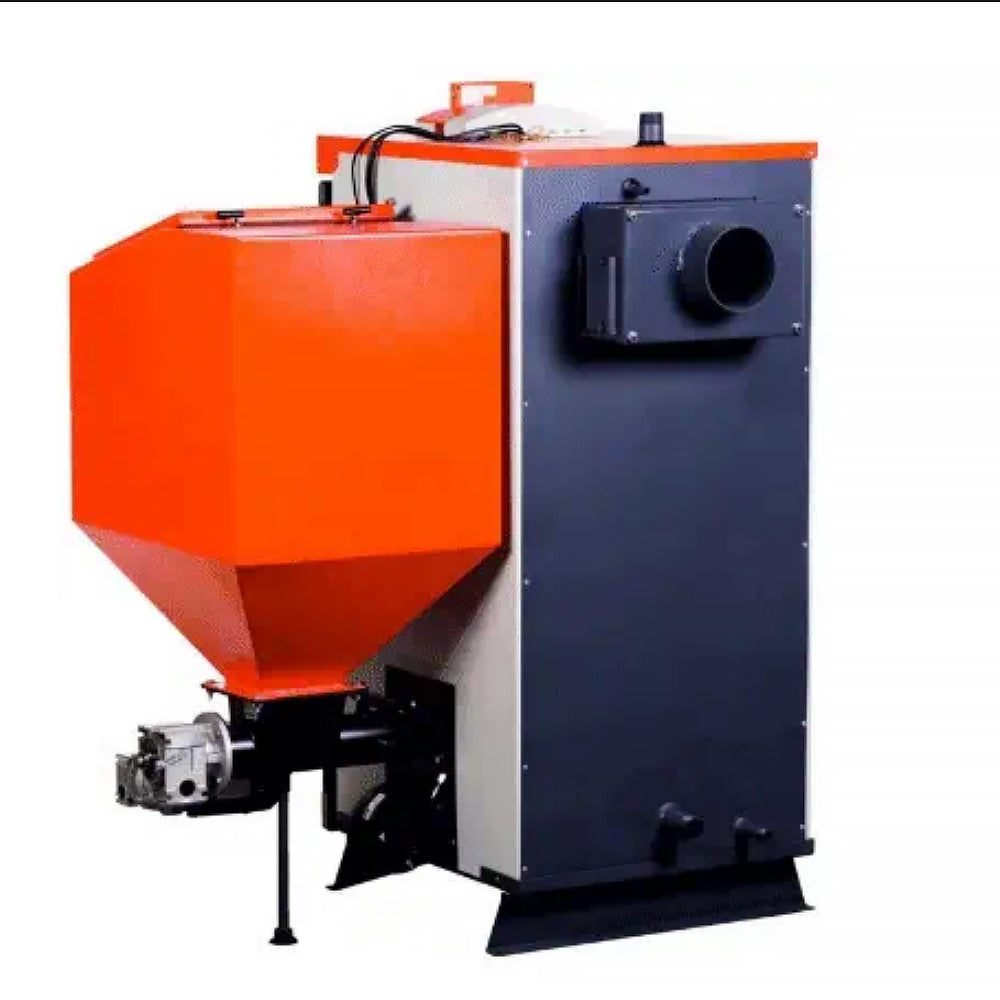

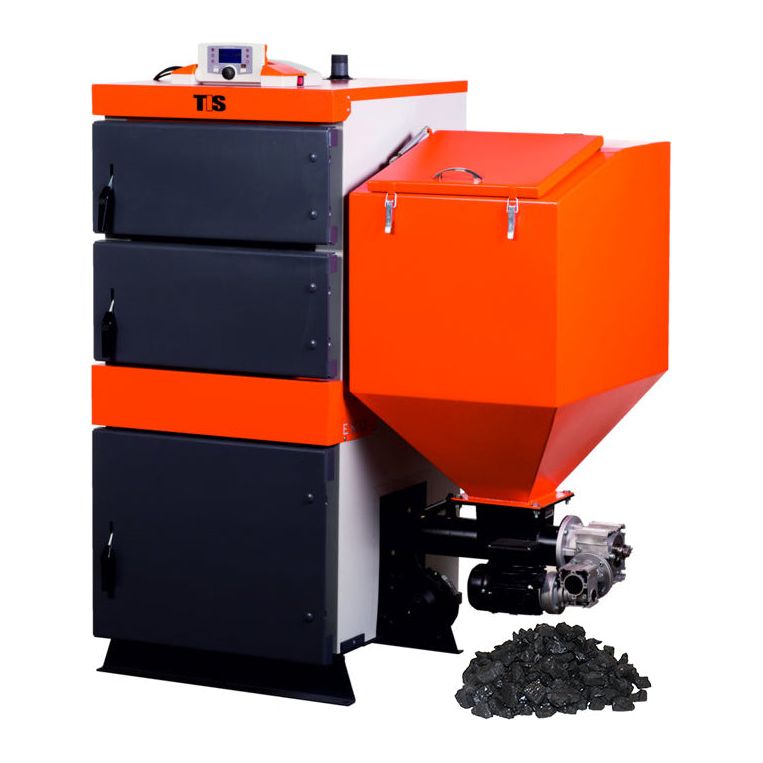

EKO DUO 55 Hybrid Boiler 200K BTU Automated Coal-Pellet Boiler

Automated Efficient Coal Boiler with Extended Autonomy – Eko Duo 55

For commercial use only, the Eko Duo 55 is an advanced, high-performance coal boiler designed for extended autonomy and versatility. Optimized for burning coal up to 1¼" in size, this boiler efficiently maintains heat with a cycle that ensures hot ashes are kept to ignite the next fire. In addition, it offers the flexibility to burn pellets, grains, and other biomass, with a manual feed option for additional fuel types.

Key Features:

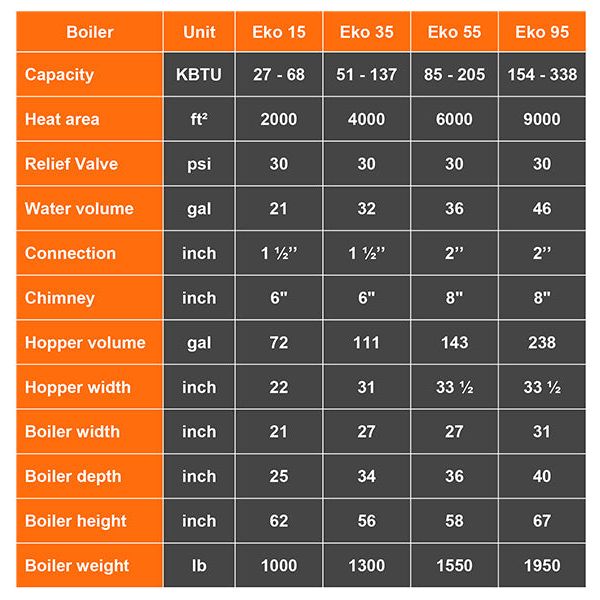

• Heating Area: 6,000 ft², suitable for large-scale commercial applications.
• Weight: 1,550 lb, designed for durability and long-term use.

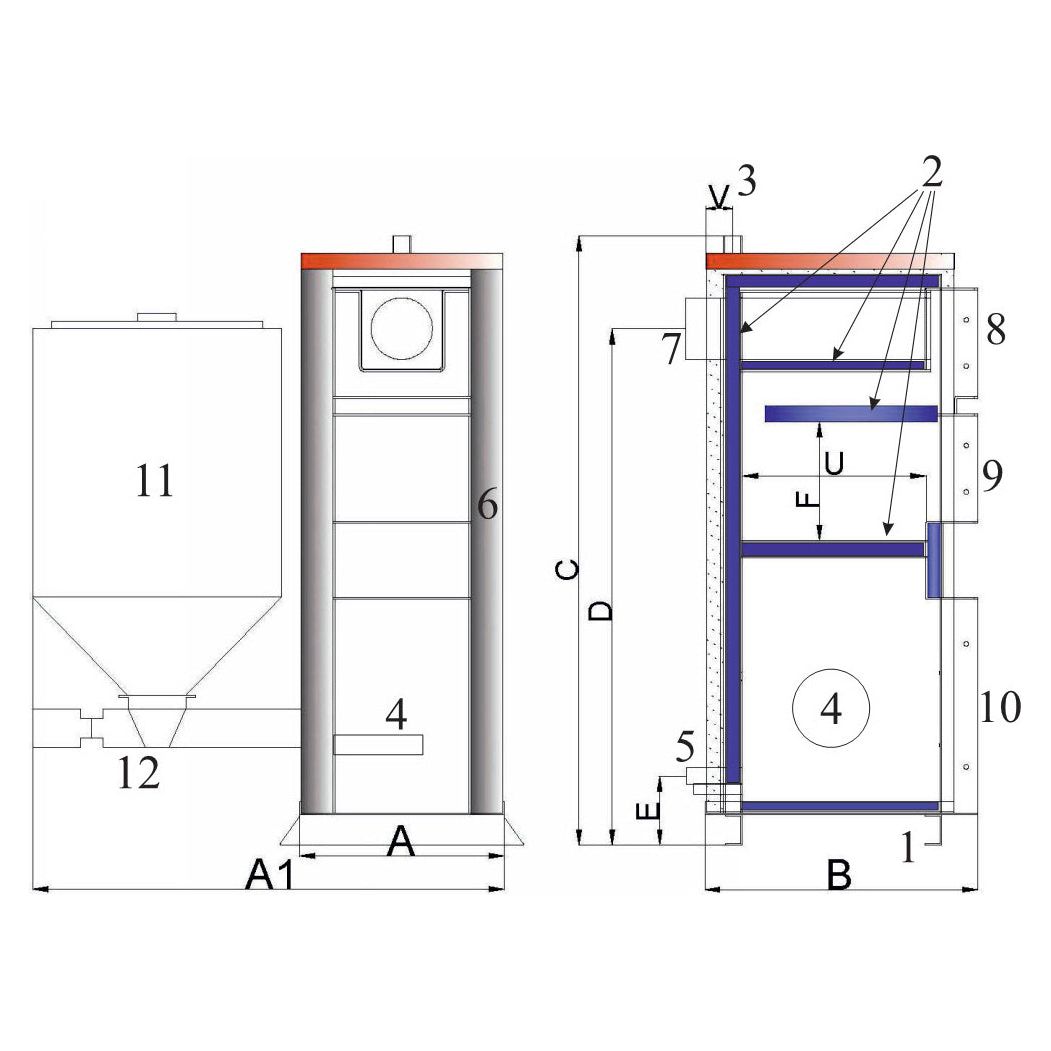

• Dimensions:
  • Width: 60 ½"
  • Depth: 36"
  • Height: 58"
• Manual Firebox: 18-gal capacity with a maximum log length of 15".
• Hopper Volume: 143 gal, holding up to 1,160 lb of coal for extended operation.
• Coal Types: Supports Anthracite and Bituminous coal.
• Coal Sizes: Compatible with Rice, Buckwheat, Pea, and Stoker coal sizes.

Made in Europe

Manufactured to European standards, the Eko Duo 55 is a commercial-grade coal boiler designed for reliability and efficient operation in high-demand environments.

Additional Features:

• Extended Fuel Autonomy: With a fuel hopper capacity that supports up to 2 weeks of operation, the Eko Duo 55 minimizes the need for frequent refueling.
• Versatile Fuel Compatibility: The boiler can burn not only coal but also pellets, grains, and other biomass fuels, providing flexibility for different fuel options.
• Efficient Operation: The boiler is designed to optimize the combustion cycle, keeping hot ashes to ignite the next fire, and maximizing heat output with minimal maintenance.

The Eko Duo 55 offers a high-efficiency solution for commercial and industrial heating needs, providing reliable heat for large spaces while ensuring ease of use, long-term operation, and minimal maintenance.

Eko Duo – Advanced Automated Coal Boiler

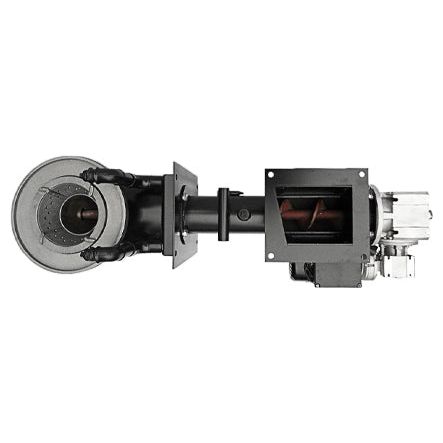

The Eko Duo is the latest generation of automatic coal boilers, designed for both efficiency and ease of use. Equipped with a self-cleaning rotary cast iron burner, feeding auger, electric gear motor, a hopper, and a backdraft prevention system, it is built to offer reliable heating with minimal intervention. The automatic burner in the bottom chamber burns coal, but it can also handle pellets, grains, and other biomass fuels up to 1½". Additionally, the middle chamber allows for manual feeding of coal, wood chips, peat briquettes, and more.

Key Features:

• High Efficiency: The Eko Duo guarantees an efficiency of up to 90%, utilizing a unique design for complete heat recovery.

• TIS Tronic 481R Controller: This advanced controller adjusts the combustion process based on parameters such as user settings, weather, exhaust sensor data, and fuel quality. The controller is adaptable to modern hydronic heating systems and works seamlessly with domestic hot water, thermal storage, direct feeding, zone mixing, and more. Simply set the desired heating water temperature, and the boiler will modulate the combustion to match the load. It will automatically enter standby mode when no load is required and reignite when needed. The system provides 4 to 10 days of autonomy, thanks to a large capacity hopper. It also includes functions for circulation pumps, motorized mixing valve, buffer tank, fuel level monitoring, summer/winter mode, and thermostat feedback.

• Durability and Maintenance: The Eko Duo is built from certified boiler steel (ASTM A106) for maximum strength and longevity. The boiler features wide door openings for easy cleaning of the top heat exchanger, simple loading of biomass, and hassle-free removal of ashes. All maintenance can be performed from the front, and there is no need to unscrew any components. The boiler is insulated with non-combustible 2" insulation and coated with a high-quality multi-layer coating to ensure a long-lasting, trouble-free operation.

• Warranty: 10 years, offering peace of mind and reliable performance over time.

The Eko Duo is an excellent choice for those seeking an automated, highly efficient, and low-maintenance coal boiler for commercial or industrial use.
