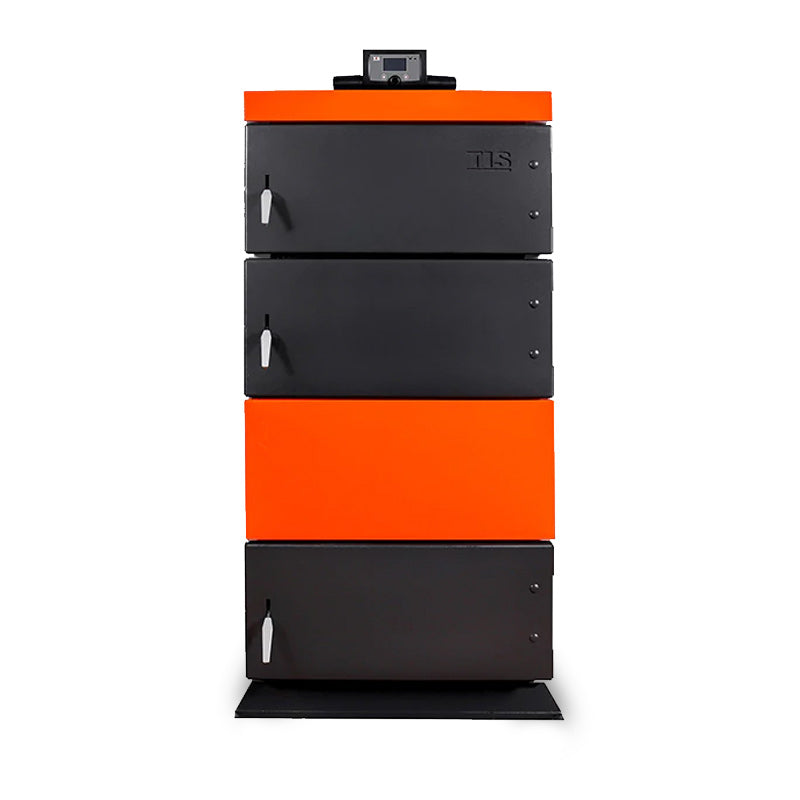

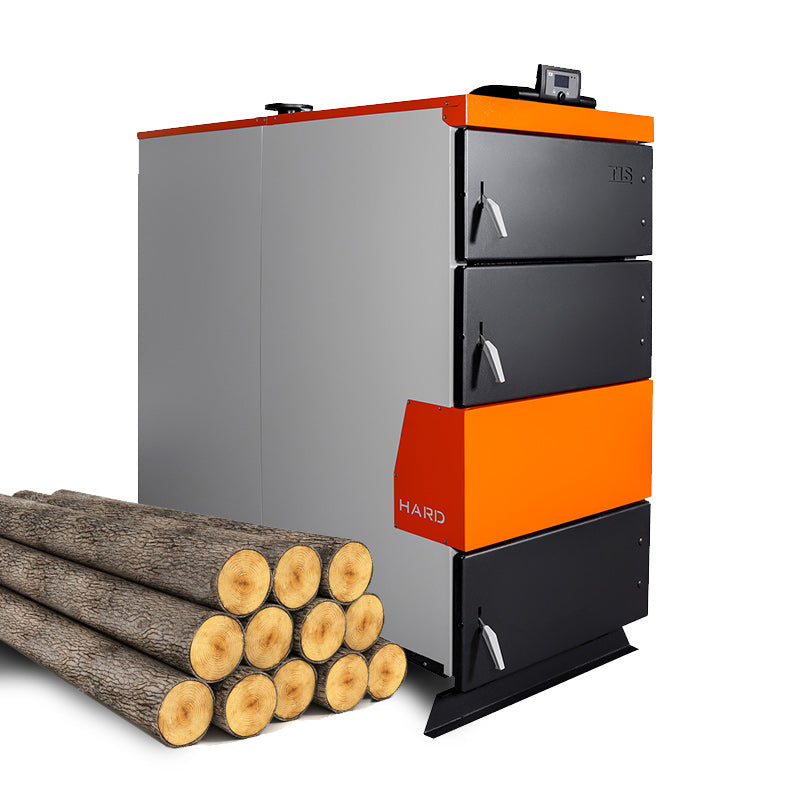

UNI 500 High-Efficiency Wood Boiler 1700K BTU

UNI 500 – High-Efficiency Modulating Wood Boiler with Gasification Mode

The UNI 500 is a robust, commercial-grade boiler designed to handle manual feed biomass such as wood, coal, and woodchips, with the added efficiency of gasification mode and a chimney sensor. This powerhouse is ideal for large-scale heating applications, delivering reliable performance and energy savings.

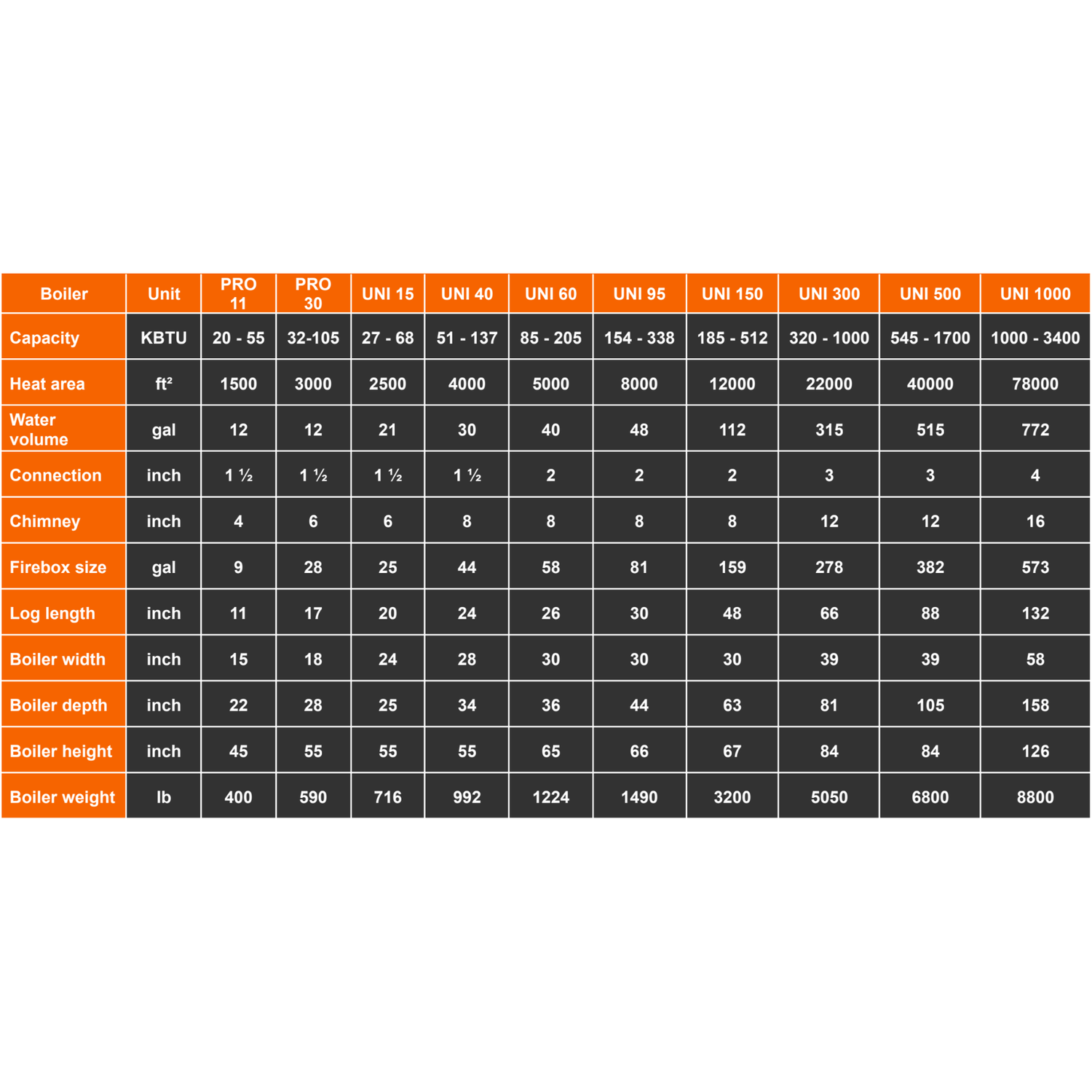

Key Features

• Heating Capacity: Covers up to 42,500 ft², making it ideal for extensive facilities.
• Firebox Size: 382 gallons, accommodating large fuel loads.
• Logs Length: Supports logs up to 88 inches, reducing the need for frequent cutting.

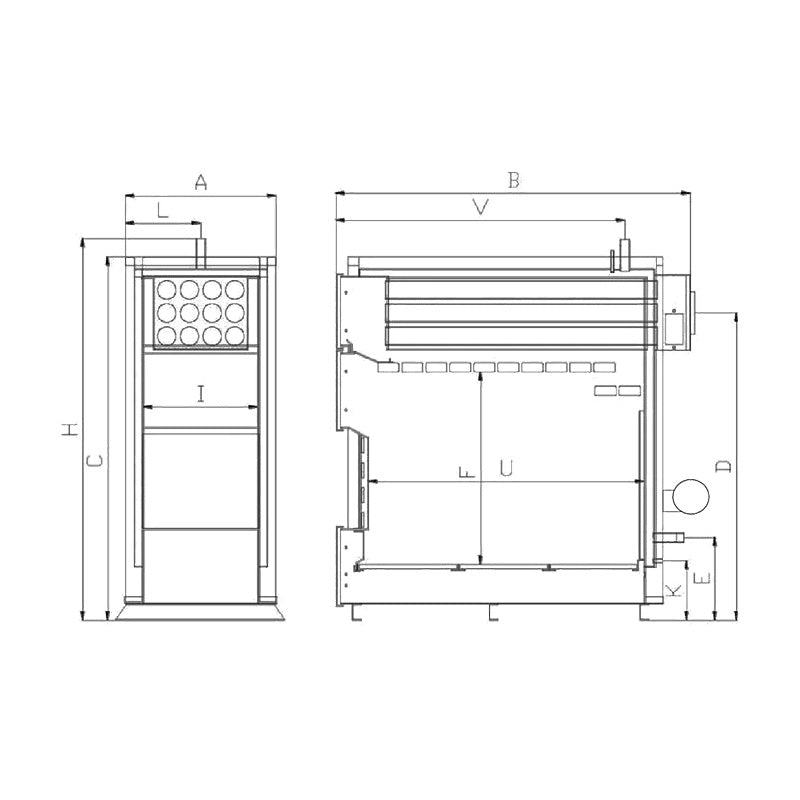

• Dimensions:
  • Width: 39"
  • Depth: 105"
  • Height: 84"
• Weight: 6,800 lb, ensuring durability and stability.

Advanced Efficiency

• Gasification Mode: Maximizes combustion efficiency by extracting more energy from biomass fuel.

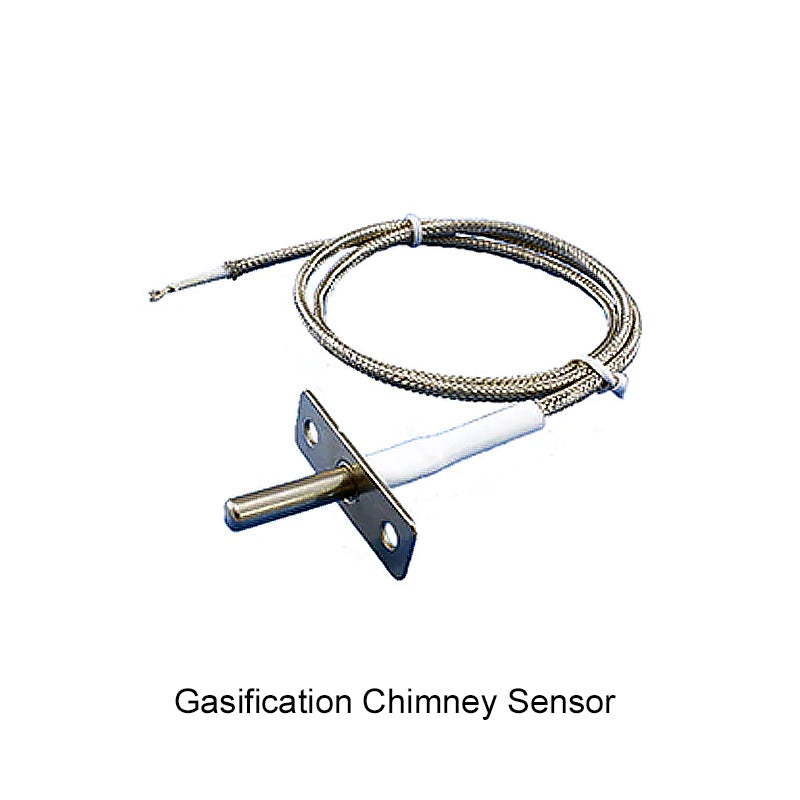

• Chimney Sensor: Enhances performance by monitoring and adjusting exhaust gas flow.
• Built for Performance: Designed for optimal heat recovery and minimal waste.

UNI Wood Boiler – High-Efficiency Heating Solution

The UNI Wood Boiler is a reliable and powerful heating system designed for commercial use, offering advanced features for efficient and long-lasting performance.

Main Features

Firebox

• Large Loading Chamber: Accommodates high fuel volumes, reducing reload frequency.
• Cast-Iron Grates: Ensures durability and high performance.

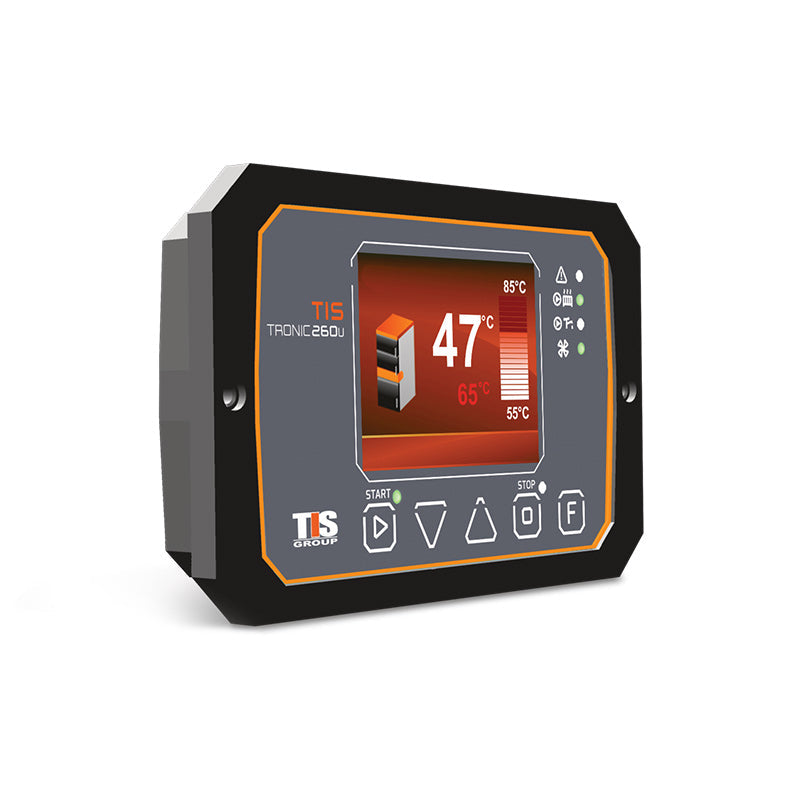

Smart Controller

• Customizable Options: Tailor combustion settings based on fuel type and conditions.
• Integrated Automation: Controls fan speed, central heating pump (CH), and domestic hot water pump (DHW).

Automated Fan

• Adjustable Speeds: Modulates airflow for optimized combustion.

Burning Time

• Provides heat for up to 24 hours on a single load.

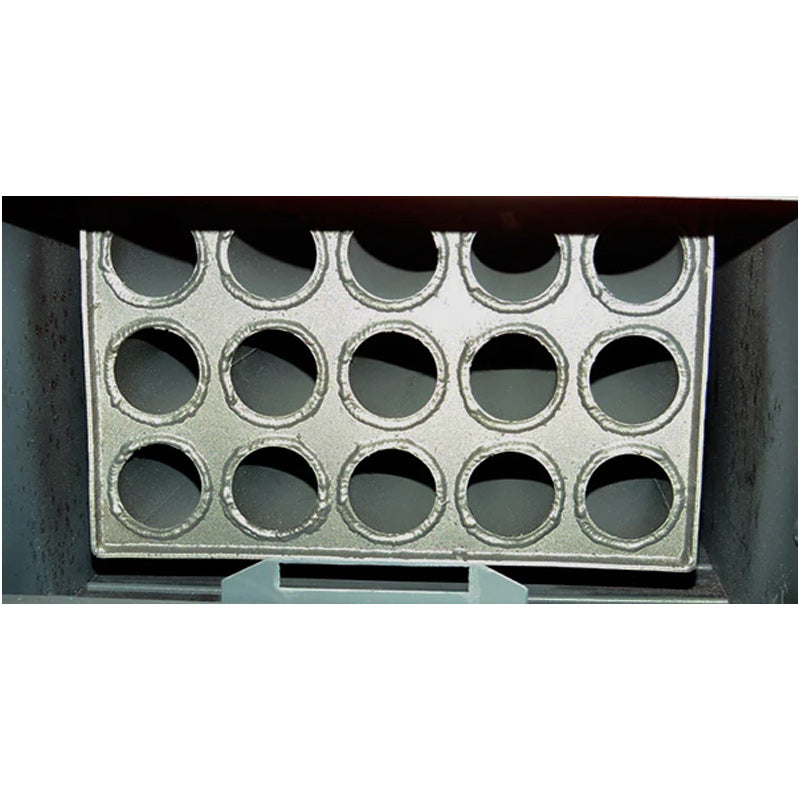

Heat Exchanger

• Tubular Design: Enhances heat transfer efficiency.

Boiler Steel Frame

• Constructed with 5mm thick ASTM A106 boiler steel, ensuring strength and durability.

Superior Build Quality

• Thickness: Nearly 1/4" for enhanced longevity.
• Insulation: Equipped with 2" non-combustible thermal insulation for maximum energy retention.
• Powder-Coated Casing: Resistant to mechanical stress and corrosion.
• Multi-Layer Coating: Protects against wear and tear for worry-free operation.

Advanced Efficiency

• Guaranteed Efficiency: Delivers over 86% efficiency with full combustion.
• Micro Air Metering: Precise control in both lower and higher fire chambers for optimal performance.

Ease of Operation

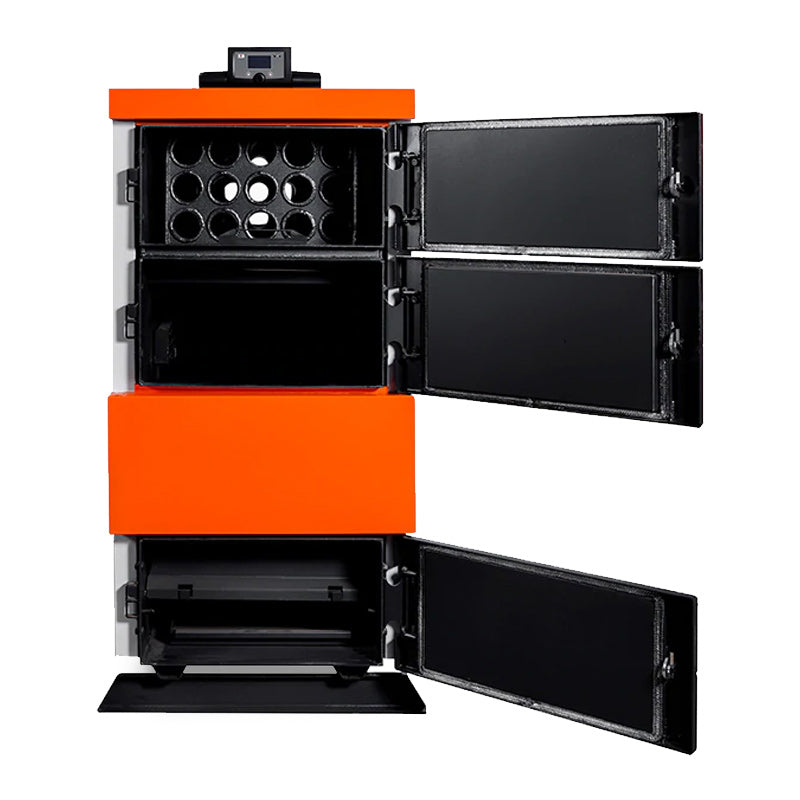

• User-Friendly Maintenance: Front-accessible design simplifies cleaning and upkeep.
• Versatility: Suitable for burning wood, coal, and other biomass fuels.

The UNI Wood Boiler combines robust construction, modern automation, and advanced efficiency to deliver reliable heating performance for commercial applications. A heat source you can depend on for years to come.
