UNI 95 Wood Boiler 330K BTU Efficient Modulating Wood Boiler

UNI 95 - Efficient Modulating Wood Boiler with Gasification Mode

The UNI 95 is a high-performance wood boiler designed for commercial use. It is built to efficiently burn manual feed biomass such as wood, coal, and wood chips. With its advanced gasification mode and chimney sensor, the UNI ensures maximum heat output with minimal fuel consumption.

Key Features:

• Heating Capacity:

  • Capable of heating areas up to 8000 ft², making it suitable for large commercial spaces.

• Robust Construction:

  • Firebox size: 81 gal for extended burning capacity.
  • Log length: Supports logs up to 30 inches, accommodating larger biomass loads.

• Efficient Gasification:

  • Gasification mode ensures optimal fuel use, providing more heat with less fuel.
  • Chimney sensor helps regulate combustion for cleaner and more efficient operation.

• Durable Design:

  • Made in Europe with high-quality materials for longevity.
  • Weight: 1490 lb for a sturdy and reliable unit.
  • Dimensions: 39 ½" Width x 50" Depth x 69" Height for large commercial spaces.

• Commercial Grade:

  • Built for commercial use, ensuring reliable performance in demanding environments.

The UNI 95 wood boiler combines cutting-edge technology with efficiency, offering businesses a robust, eco-friendly heating solution.

UNI 95 Wood Boiler – Main Features

The UNI Wood Boiler is designed to provide optimal performance with its advanced features, ensuring efficiency and longevity in commercial applications. Here’s a detailed breakdown of its key features:

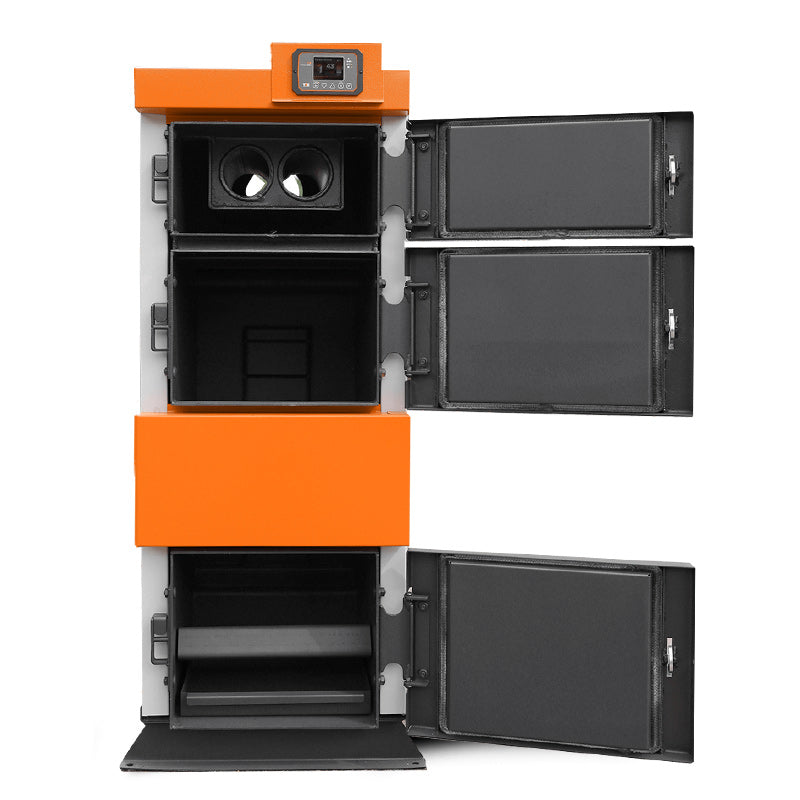

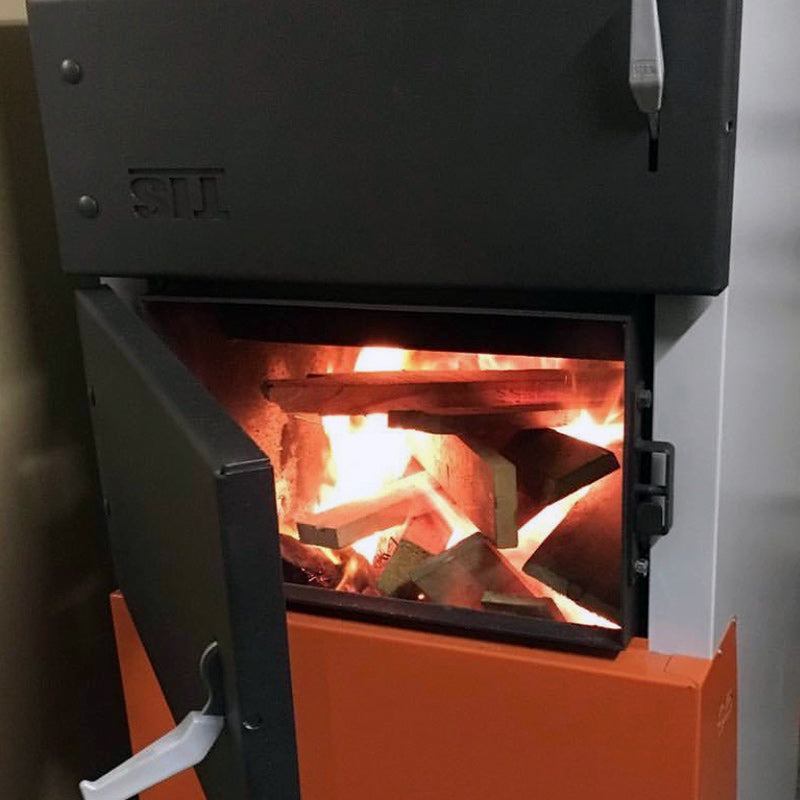

Fire Box

• Large Loading Chamber: Provides ample space for biomass, allowing for extended burning times and less frequent reloading.

Smart Controller

• Customizable Options: Offers flexibility to adjust settings based on your heating needs.
• Fan Control: Automatically modulates the fan speed for optimal combustion and energy use.
• Pump Control: Manages both the central heating pump (CH) and hot water pump (DHW) for a fully integrated system.
• Programmed Combustion: The controller adapts to different fuel types and operating conditions for enhanced efficiency.

Automated Fan

• Variable Speeds: Select from several speed options to match your heating requirements.

Burning Time

• Up to 24 Hours: Extended burning time allows for continuous operation, reducing the need for frequent refueling.

Heat Exchanger

• Efficient Tubular Design: Optimized for heat transfer, ensuring maximum energy efficiency.

Boiler Steel Frame

• High-Strength Grade, 5mm Thick: Constructed using ASTM A106 certified steel, providing superior durability and longevity.
• Powder Coated Casing: Resistant to environmental wear and tear, ensuring the unit’s lifespan.

Construction and Durability

• Multi-Layer Coating: Provides additional protection and enhances durability.
• Non-Combustible 2" Insulation: Keeps heat inside the unit, improving efficiency and safety.
• Thermal Protection Systems: Safeguards against overheating and ensures reliable performance over time.

Powerful Controller

• Automatic Fan Modulation: Adjusts fan operation for smooth and efficient combustion.
• Programmed Combustion Control: Tailors combustion based on fuel type and operating conditions for maximum heat output.

Efficient Heating

• Guaranteed Efficiency of 86% or More: The UNI boiler ensures optimal heat extraction with clean, full combustion using micro air metering for consistent performance.

The UNI Wood Boiler offers a perfect combination of power, efficiency, and reliability for large-scale commercial heating needs.
