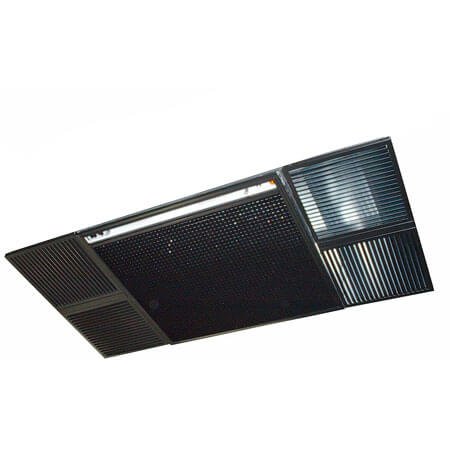

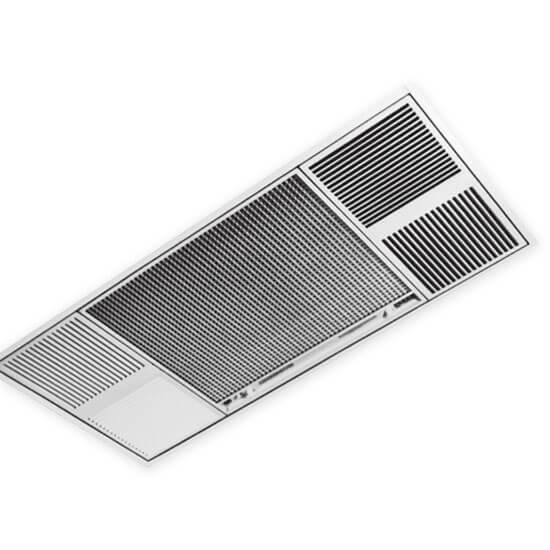

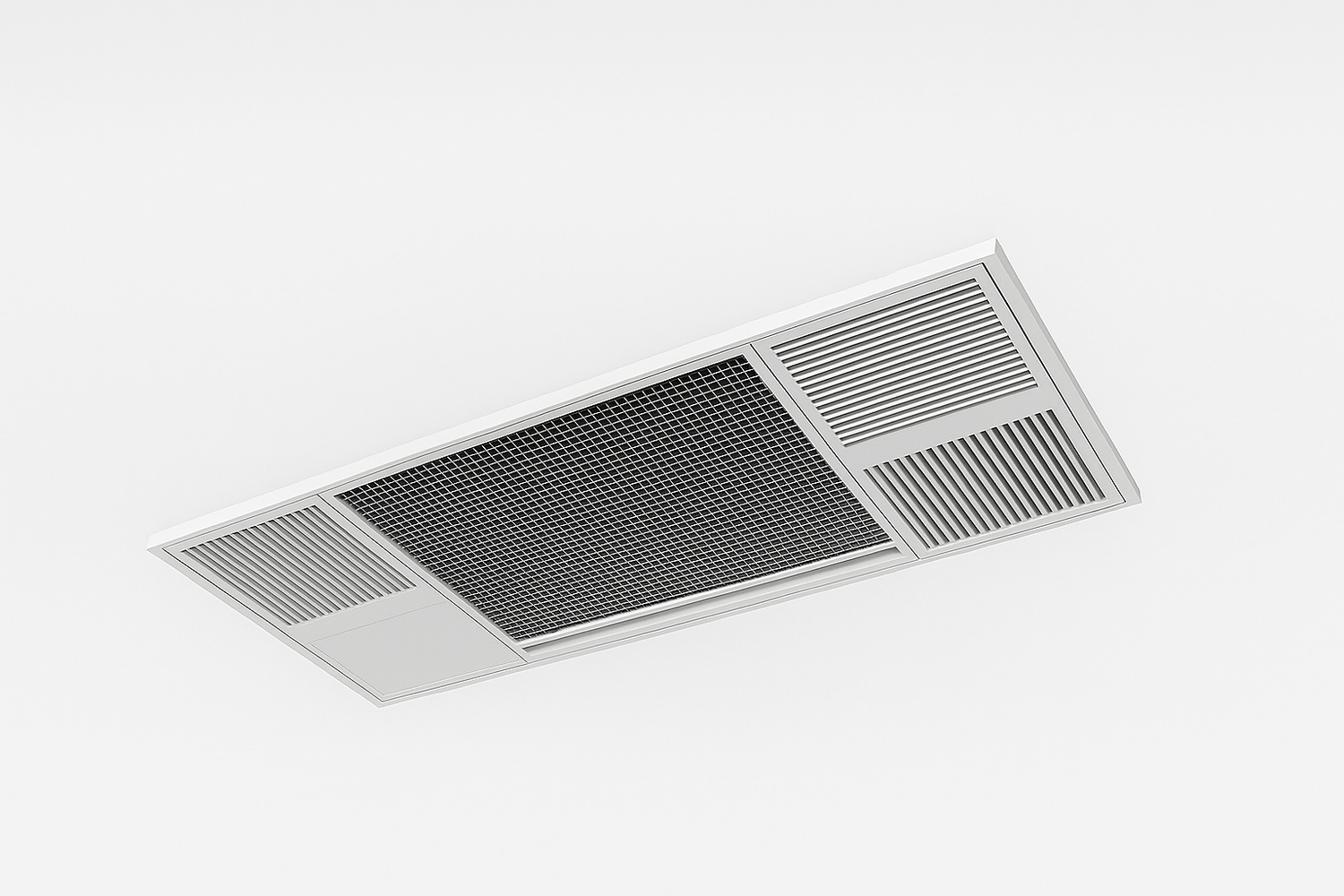

SmokeMaster X-11Q Flush Mount Electronic Air Cleaner

SmokeMaster X-11Q Flush Mount Electronic Air Cleaner

The SmokeMaster X-11Q Flush Mount Electronic Air Cleaner is a commercial-grade electronic air filtration system designed to remove tobacco smoke, pollen, dust, and other airborne contaminants. Ideal for smoking lounges, restaurants, bars, conference rooms, offices, and other commercial environments, this self-contained air cleaner improves indoor air quality while helping reduce heating and cooling costs.

Designed for installation above a T-bar drop ceiling, the X-11Q fits into the space of one 2' x 4' or two 2' x 2' ceiling tiles, leaving only its attractive flush-mounted grille visible. The corrosion-resistant steel cabinet is available in Black or Off-White and houses a powerful three-speed fan that delivers airflow up to 1,100 CFM while operating quietly thanks to its elastomeric suspension system.

The unit features a comprehensive three-stage filtration system beginning with a washable metal mesh pre-filter that captures larger airborne particles. An optional heavy-duty Polytron pre-filter provides additional protection for the electronic cells. The electrostatic electronic cells remove up to 97% of airborne contaminants, while the carbon post filters effectively reduce odors, VOCs, and harmful gases for cleaner, fresher air.

Built for economical long-term operation, the SmokeMaster X-11Q uses washable electronic cells and reusable pre-filters to minimize replacement costs. Its removable power module simplifies servicing, making it a dependable solution for demanding commercial air purification applications.

360-Degree Airflow with Comprehensive Filtration

With its unique 4-way air re-circulation method, the Smokemaster X-11Q commercial air cleaner takes advantage of the Coanda Aerodynamic Principle which disperses a 360-degree airflow. This effective airflow pattern ensures that the maximum amount of contaminated air enters the smoke eater in the most efficient way. Creates a more comfortable and refreshing environment, this air cleaner gently and evenly circulates clean air while eliminating stuffy air pockets and annoying drafts.

The first stage of the air filtration process is the washable Metal Mesh Pre-Filter which traps large particles such as hair, lint, and pollen. The Smokemaster X-11Q industrial air cleaner also has an optional heavy-duty Polytron Pre-Filter that provides better protection to the electronic cell by capturing more airborne particles and taking care of wet or misty smoke. Traps over 97% of contaminants, the air passes through the second stage of filtration which uses Electrostatic Precipitation. This process involves electrically charging the pollution particles as they pass the ionizing section of the Electronic Cells, forcing them to stick to the reversely charged collector plates. The third and final filtration stage is the Carbon Post Filter which effectively removes odors, VOC, and toxic gases so you can breathe cleaner and odor-free air. The electronic cells and prefilter in the air cleaner must be washed regularly with a detergent concentrate (sold separately) to maintain peak efficiency.

Easy Flush Mount Installation

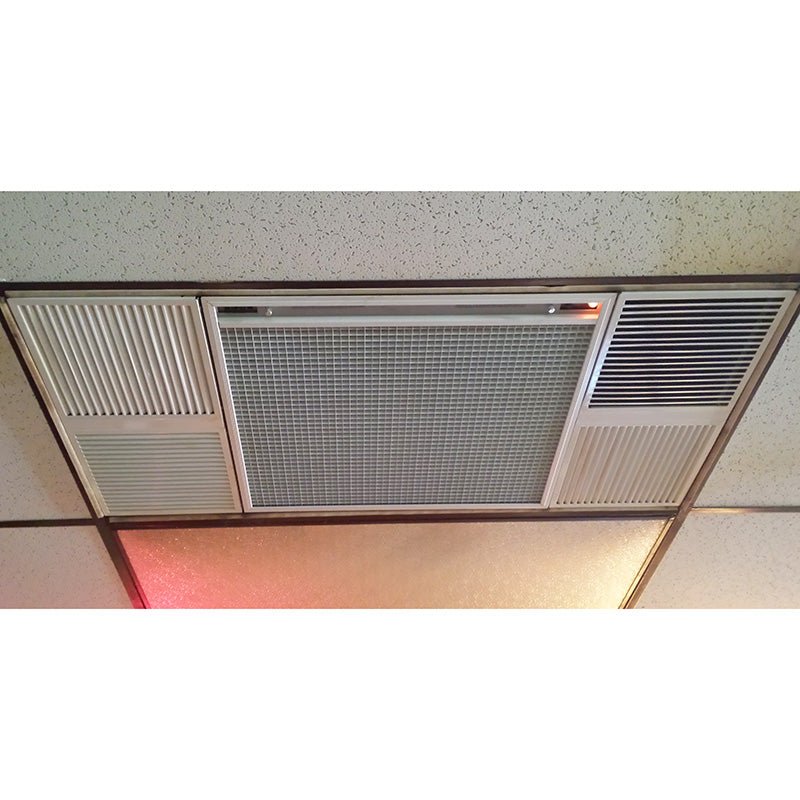

Fits into the space of one 2’ x 4’ or two 2’ x 2’ tiles, the X-11Q smoke eater is designed to be installed within a T-bar drop ceiling. With the cabinet hidden above the drop ceiling panel, this industrial air cleaner features an attractive grille that fits flush with the ceiling and has a minimalist and inconspicuous appearance. The intake grille conveniently swings down while the four louvered exhaust grilles are adjustable and can be disassembled and reassembled to provide alternate air patterns. Includes special-mounting brackets, this commercial air cleaner has sharp edges so wearing gloves during installation is a must.

Features

• Flush-mounted commercial electronic air cleaner
• Covers areas up to 1,000 sq. ft.
• Fits one 2' x 4' or two 2' x 2' drop ceiling tiles
• Three-speed fan with airflow up to 1,100 CFM
• Three-stage electronic air filtration system
• Washable metal mesh pre-filter
• Optional heavy-duty Polytron pre-filter
• Electronic cells remove up to 97% of airborne contaminants
• Carbon post filters reduce odors, VOCs, and toxic gases
• 360-degree airflow using the Coanda Aerodynamic Principle
• Adjustable four-louver exhaust grilles
• Quiet operation with elastomeric suspension system
• Washable electronic cells and reusable filters reduce maintenance costs
• Removable power module for easy servicing

Specifications

View and Downloads

• Manual
