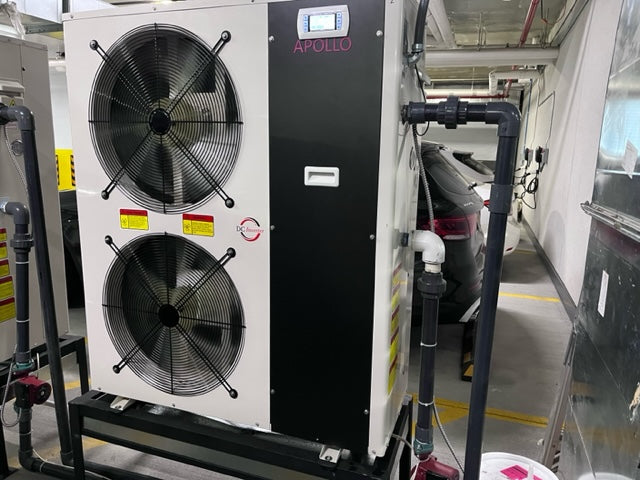

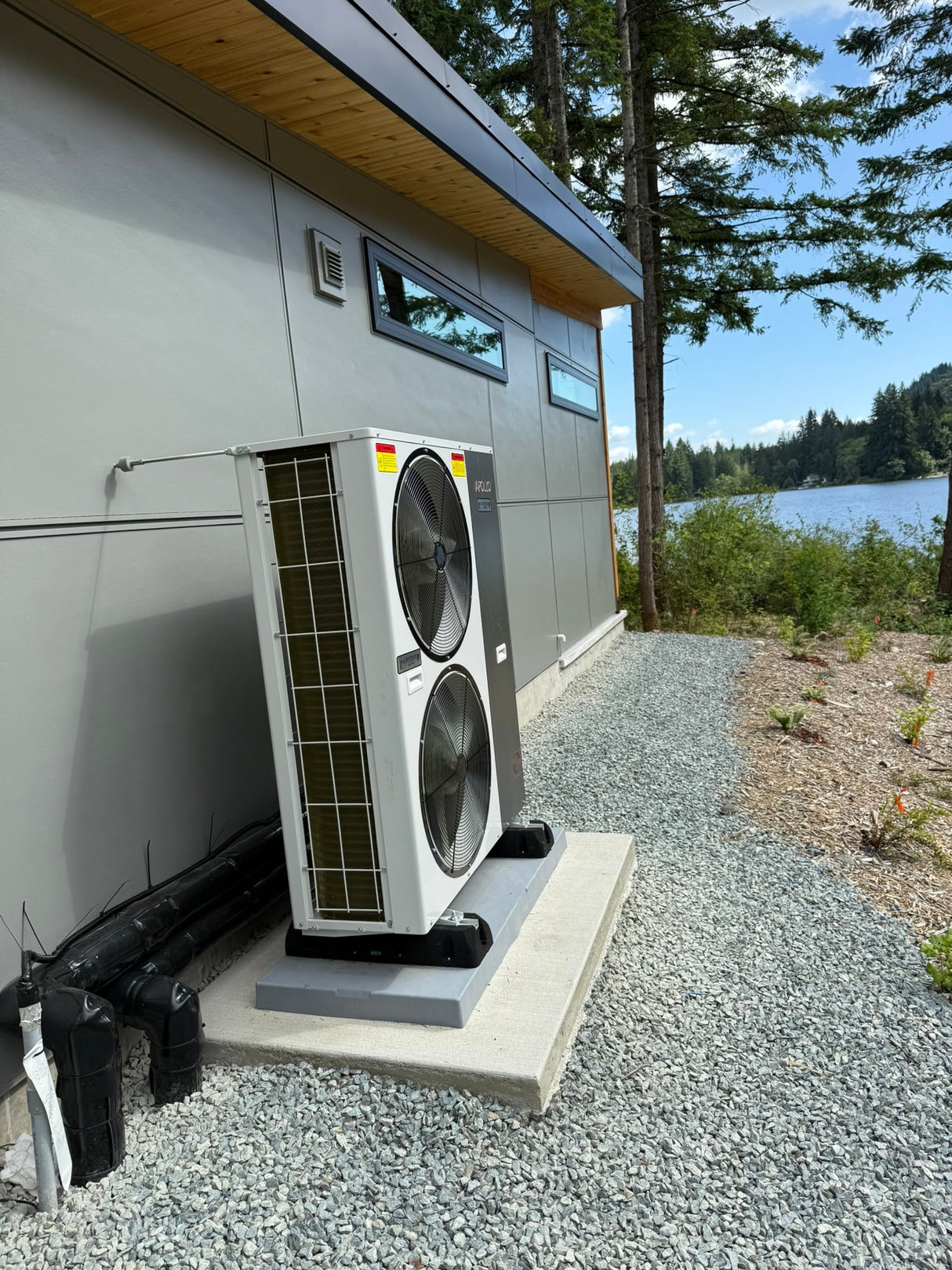

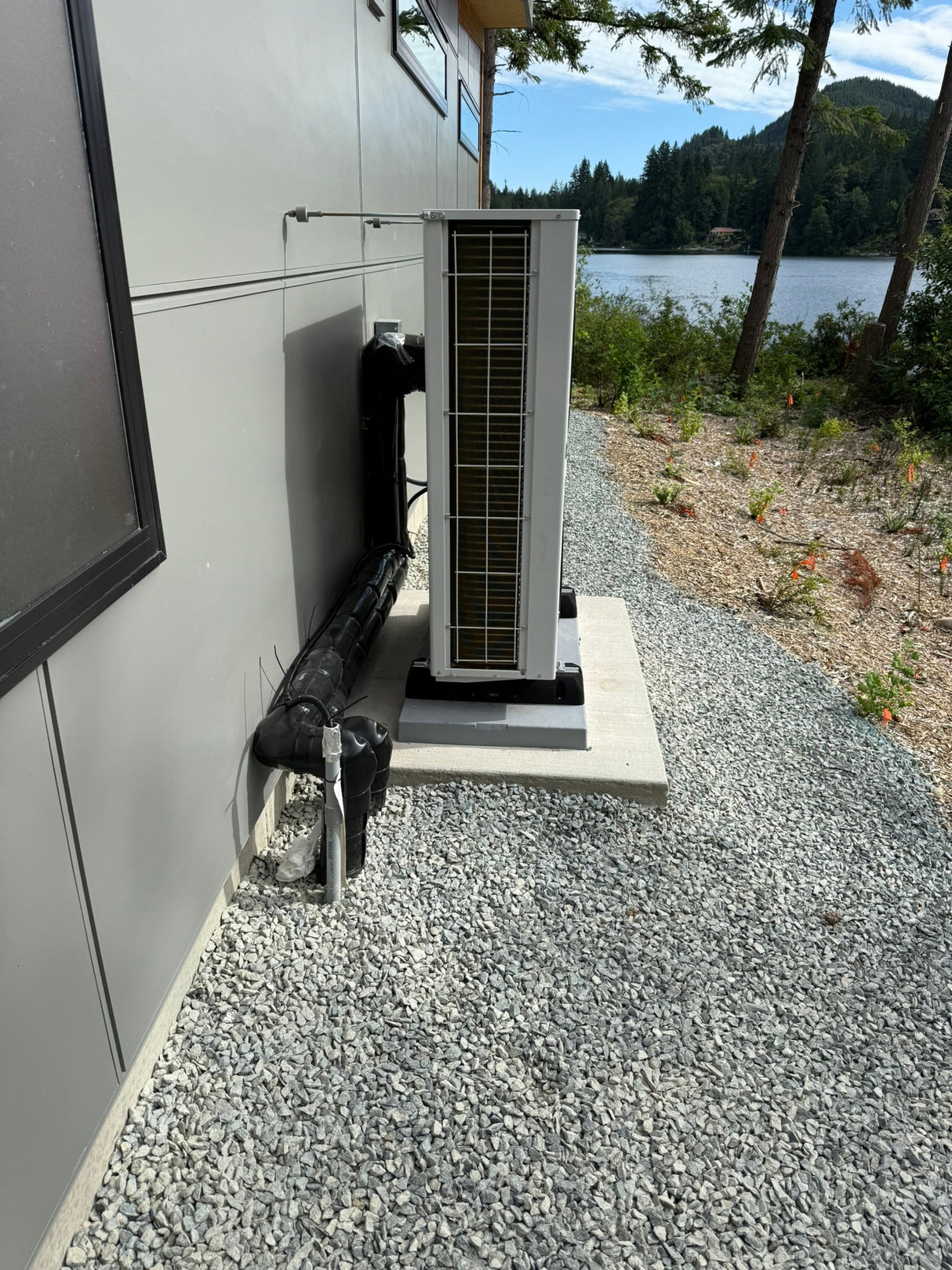

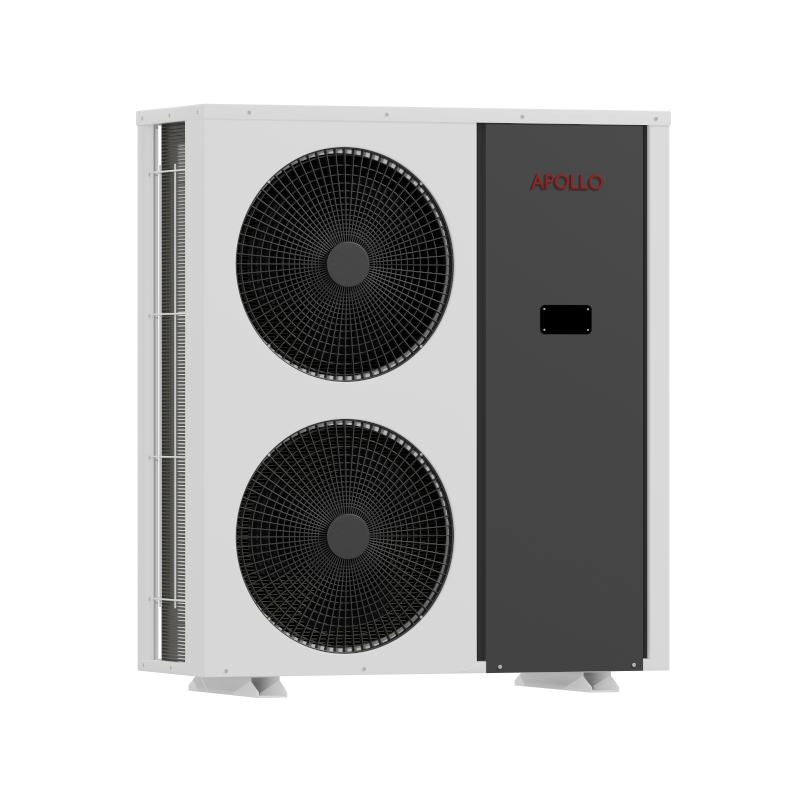

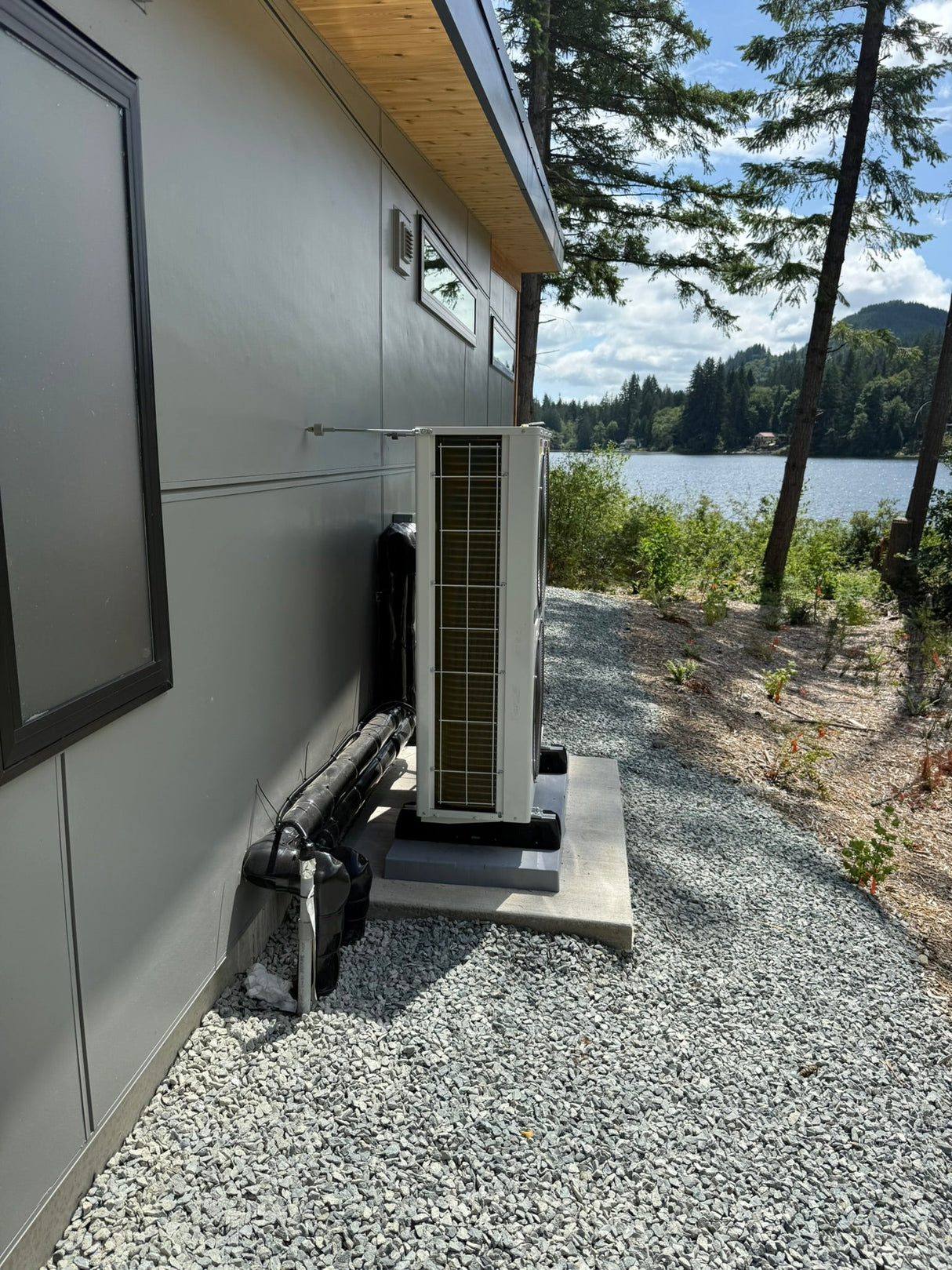

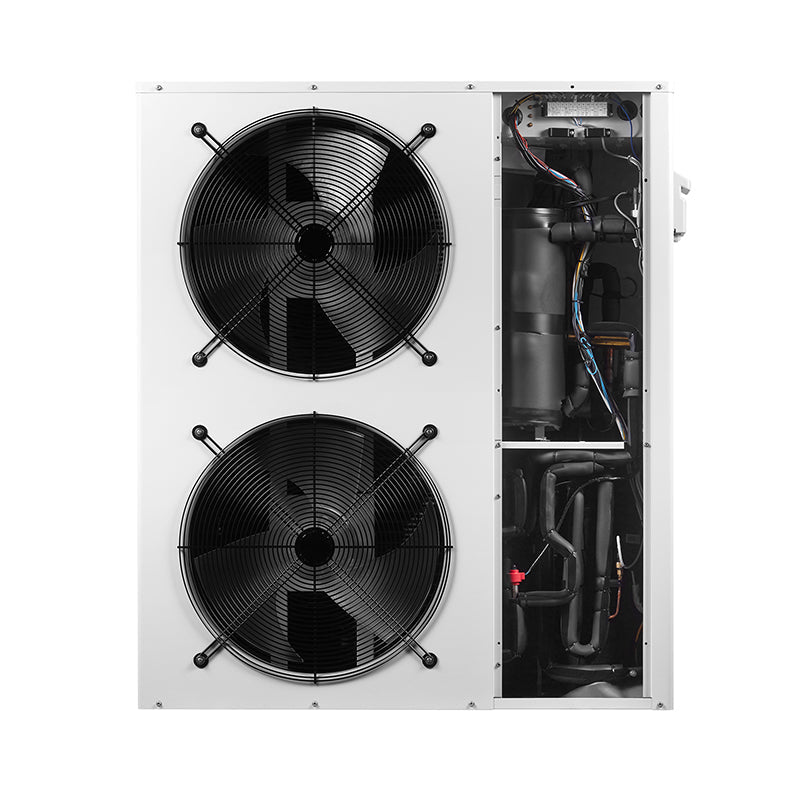

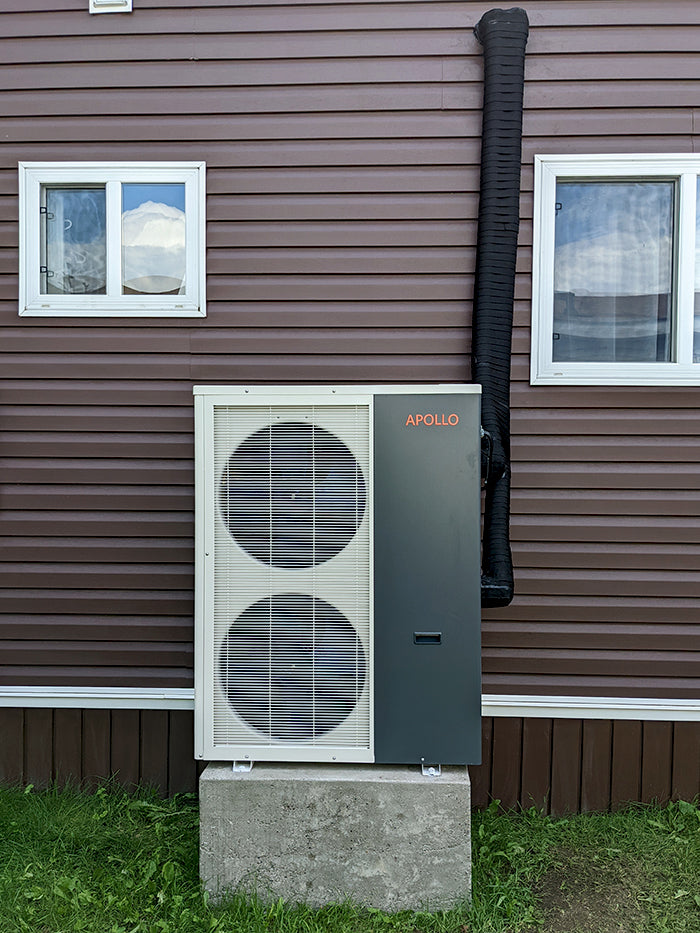

APOLLO Commercial Heat Pump - 72k BTU / 6 Ton - Air to Water - EVI Inverter DC Technology

APOLLO Commercial Heat Pump - 72k BTU / 6 Ton - Air to Water - EVI Inverter DC Technology

The APOLLO 72K BTU Air-to-Water Heat Pump is a high-capacity hydronic heating and cooling solution designed for large residential or commercial applications, serving spaces of up to approximately 4,000 square feet. It utilizes advanced EVI inverter DC technology and is engineered to support multiple functions, including space heating, cooling, domestic hot water production, and pool heating. This versatility allows the unit to integrate seamlessly with radiant floor systems, fan coil units, air handlers, radiators, and baseboard heating systems.

Built for dependable performance in demanding environments, the system is capable of operating in extreme outdoor temperatures, providing consistent comfort throughout the year. Its high efficiency helps reduce energy consumption while maintaining strong thermal output. Quality internal components contribute to stable operation, durability, and reduced operational noise, making it suitable for both residential comfort and commercial reliability requirements.

The heat pump uses R-32 refrigerant, supporting improved environmental performance while maintaining efficient heat transfer. Integrated smart control functionality allows convenient system management and temperature adjustment. Designed to meet the needs of high-demand hydronic systems, the APOLLO 72K BTU Air-to-Water Heat Pump delivers a powerful, efficient, and flexible solution for comprehensive climate and water heating applications.

• Capacity Recommended: 4000 ft²
• Applications: Perfect for Radiant Floor, Fan Coil Unit (FCU), Central Air Handler (AHU), Radiators, and Baseboard Heating.
• All-in-One Solution: Offers heating, cooling, domestic hot water (DHW), and pool heating capabilities.
• Energy Efficiency: COP reaching up to 5.65 for optimal energy savings.
• Extreme Climate Performance: Operates reliably in temperatures ranging from -31°F to 110°F.
• Smart Technology: Comes with a Wi-Fi controller for seamless remote operation.
• Quiet Operation: Produces minimal noise, ensuring a peaceful indoor environment.
• Premium Build: Incorporates Panasonic scroll compressors and Siemens fan motors for superior reliability.
• Low Global Warming Potential (GWP) Refrigerant: Uses R-32 for minimum environmental impact.
• High Capacity: Designed to handle larger residential or commercial spaces with ease.
• Durable Construction: Built to last, even in demanding climates and heavy usage scenarios.

Features

• Operates at Extreme Cold and Heat
  Wide ambient temperature range from >-31°F to 110°F. Features include intelligent control, automatic load adjustment in different climates and environments to satisfy the demands of summer cooling, winter heating, and hot water production throughout the year.
• Highly Efficient and Noise-Free
  The step-less inverter compressor, step-less inverter control system, brush-less fan motor, and DC speed water pump are all components of the APOLLO EVI + DC Inverter heat pump. It not only saves energy but is as quiet as a refrigerator, producing 12dB (A) less noise than a standard On / Off heat pump.
• A+++ Energy Labeled
  This unit is currently one of the most energy efficient, with the potential to dramatically lower customers' energy costs. Our high-efficiency DC variable frequency heat pump uses over 30% less energy than other air source heat pumps.
• 50% Faster than Regular Heat Pumps
  Once the heat pump is turned on, the inverter unit quickly selects the best compressor/fan motor operating frequencies. The heat pump EEV will open automatically based on heating or cooling demands. The inverters' fast heating saves up to 50% more heating time compared to traditional heat pumps.

Additional Features:

• Functions under -31°F
• Smart EVI inverter structure allows stable operation under -31°F
  Energy Saving
• COP reaching as high as 5.65 for a SCOP, with an annual COP of 4.88
  Certified Technology
• Over 65k units sold worldwide. UL certified.
  EVI Full Inverter
• Inverter compressor with an inverter controller and DC fan motor
  Virtually Silent
• You won't hear it running from 10 feet away
  Famous Brand Components
• Created with Panasonic compressor and Siemens fan motor technologies.

Specifications

Size: 6 Ton

Model	3.5T	5T	6T
A	18.5"	20"	20.9"
B	28.5"	32.5"	32.5"
C	43.4"	45.3"	47.6"
D	33.1"	53.8"	57.3"

MODEL		EVI DC 3.5 T	EVI DC 5 T	EVI DC 6 T
Heating Condition: Air DB 41°F / WB 59°F - Water Inlet 95°F, Water Outlet 131°F
Heating Capacity	KBTU	42	60	71.5
Input Power (Heating)	KBTU	9.2	13	15.7
Input Current (Heating)	A	12.2	17.4	20.8
COP	W/W	4.6	4.6	4.6
Heating Condition: Air DB 44°F, WB 42°F - Water Inlet 114°F, Water Outlet 113°F
Heating Capacity	KBTU	35.8	47.7	56.3
Input Power (Heating)	KBTU	11	14.2	17
Input Current (Heating)	A	14.8	19	22.7
COP	W/W	3.23	3.35	3.38
Heating Condition: Air DB 10°F, WB 7°F - Water Inlet 97°F, Water Outlet 106°F
Heating Capacity	KBTU	22.2	32.4	39.2
Input Power (Heating)	KBTU	10.5	15.2	18.6
Input Current (Heating)	A	14	20.3	24.8
COP	W/W	2.11	2.13	2.11
Cooling Condition: Air DB 95°F, --°F - Water Inlet 54°F, Water Outlet 44°F
Cooling Capacity	KBTU	27.3	42.7	51.2
Input Power (Heating)	KBTU	6.8	17	20.4
Input Current (Heating)	A	13.6	22.6	27.2
COP	W/W	4.6	4.6	4.6
Rated Voltage/Frequency	V/P/Hz	220-240V/1/60Hz
Rated Heating Capacity	KBTU	35.8	58	83.5
Rated Cooling Capacity	KBTU	27.4	51.5	68.9
Fan Motor Rating Load	A	0.29	0.58	0.58
Compressor Rotor Load	A	15.94	29.09	37.47
Total Load	A	16.23	29.67	38.05
MCA	A	29.41	48.16	58.72
MOP	A	39.56	65.84	100.78
Rated Water Flow	GPM	8.2	13	19.2
Water Connection	Inch	1	1	1 1/4
Refrigerant / Charge		R32 / 49.3 OZ	R32 / 81.2 OZ	R32 / 134.6 OZ
Noise Level	dB(A)	52	55	58
Product Dimension (L/W/H)	inch	43.4 / 18.5 / 33.1	45.3 / 20 / 53.8	43.4 / 20.9 / 57.3
Product Weight	Lb	275.6	341.8	403.5
