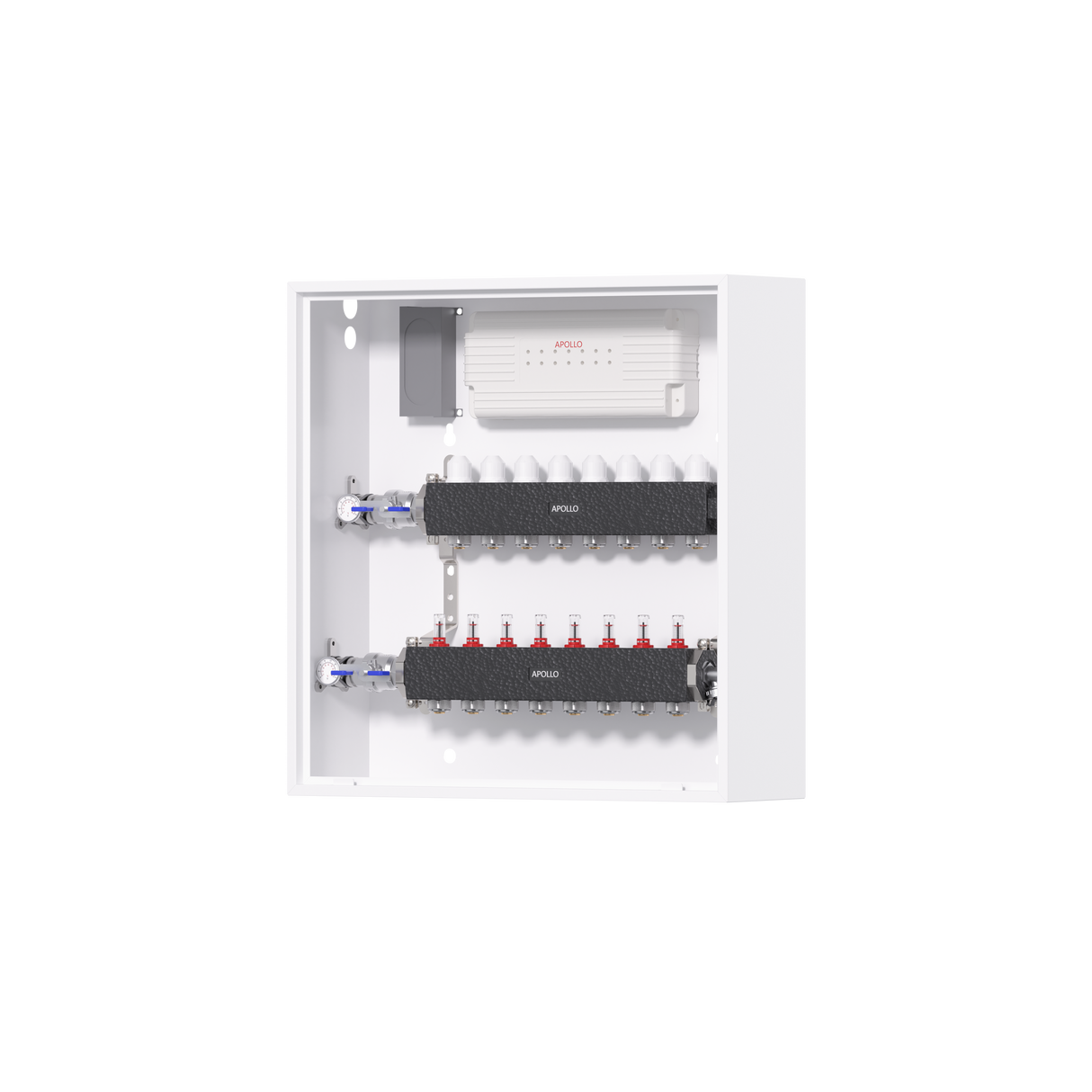

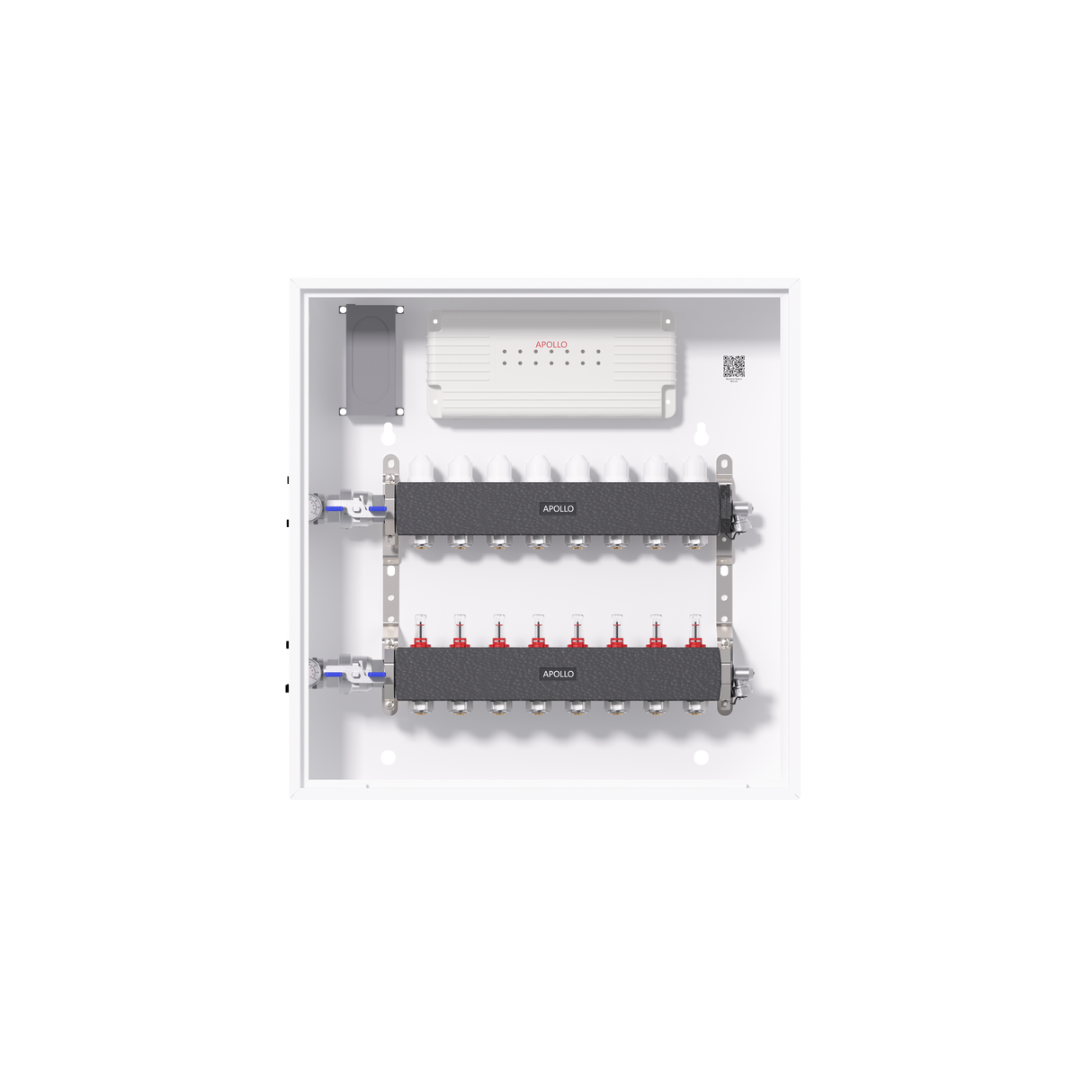

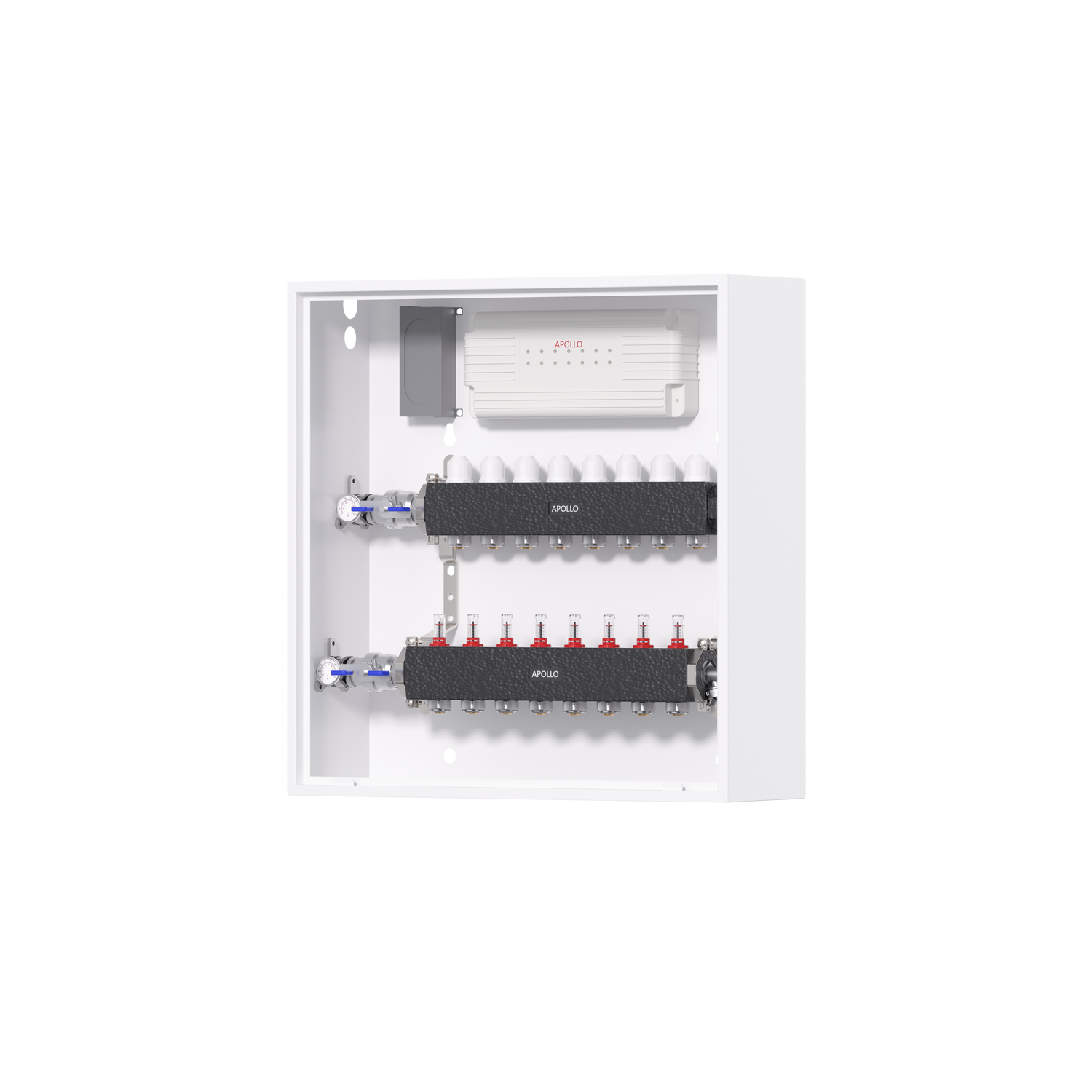

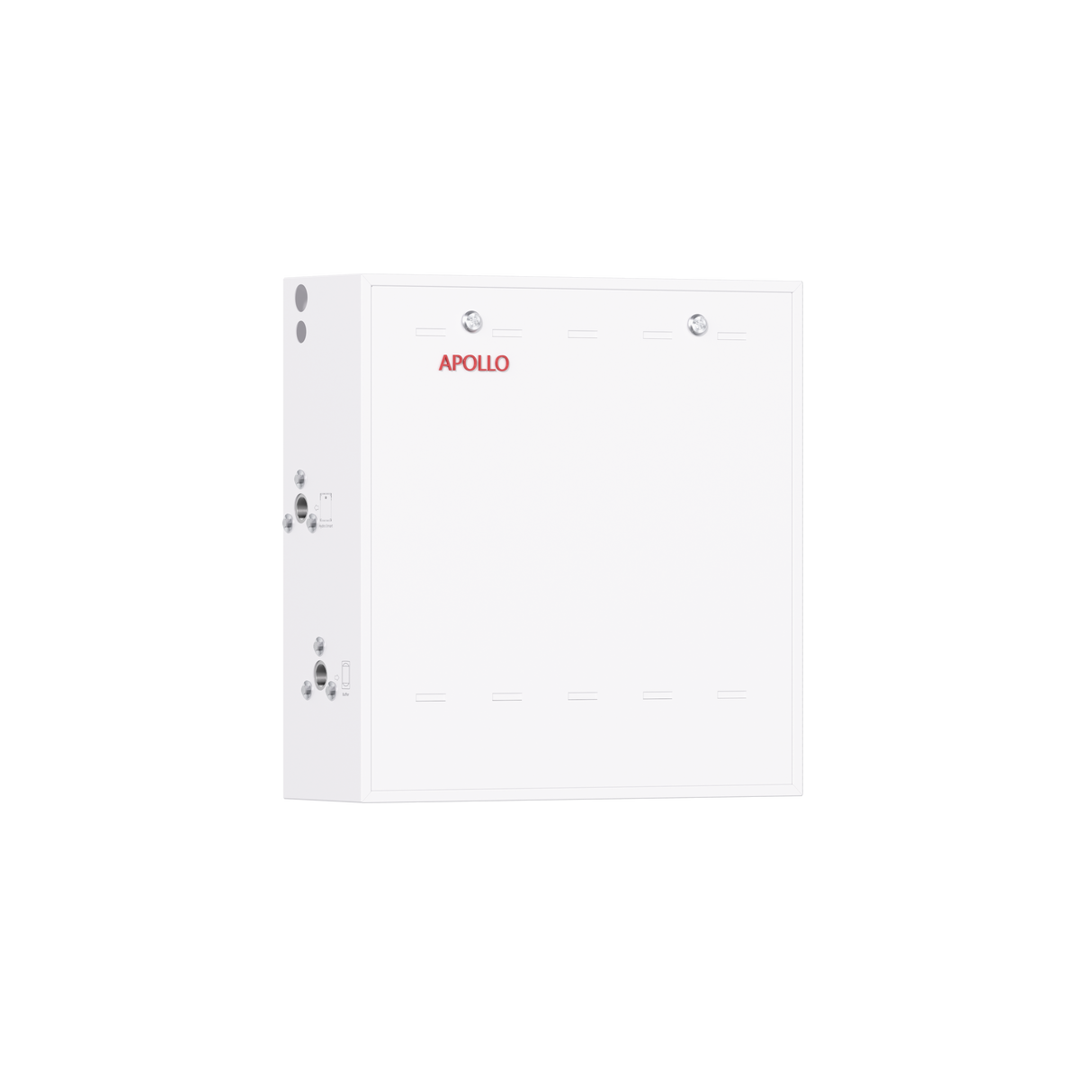

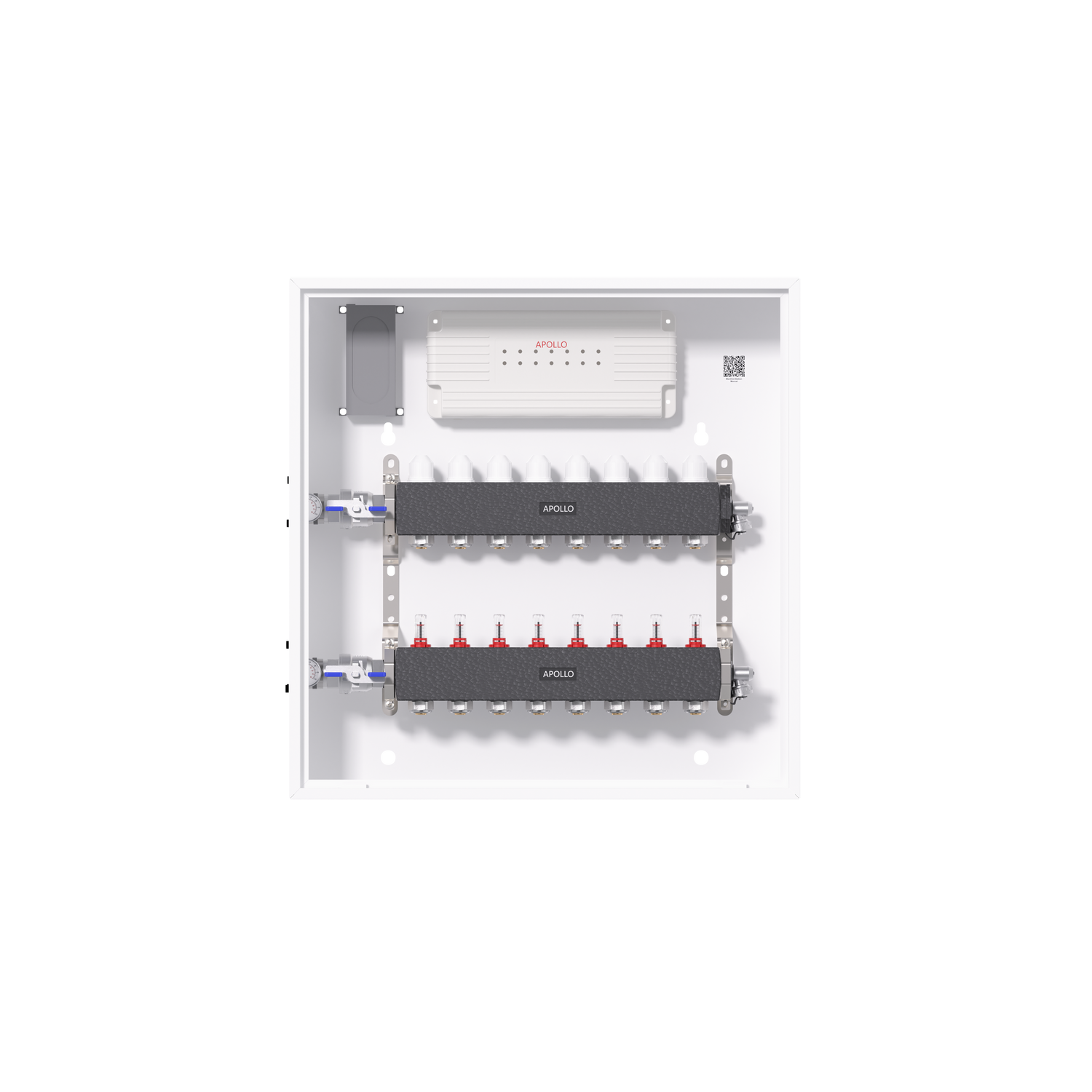

The APOLLO Manifold Station All‑in‑One is a comprehensive hydronic distribution hub engineered to simplify radiant heating and cooling systems for both residential and commercial applications. Built from engineered Stainless Steel 316, this all‑in‑one station is rugged and corrosion‑resistant, offering long‑lasting durability in demanding environments. Its integrated design combines multiple key system components into a single manifold assembly, streamlining installation and reducing the need for separate parts.

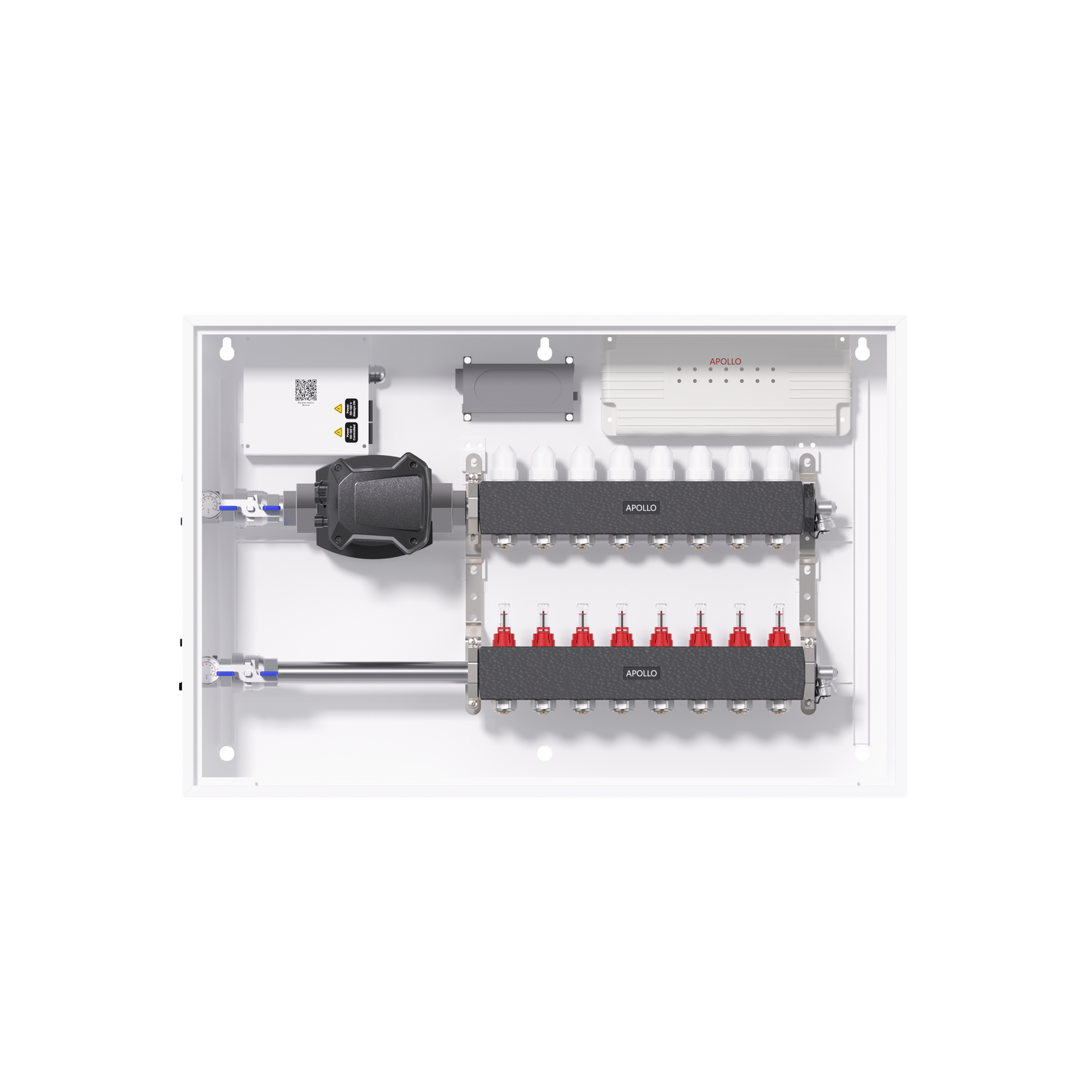

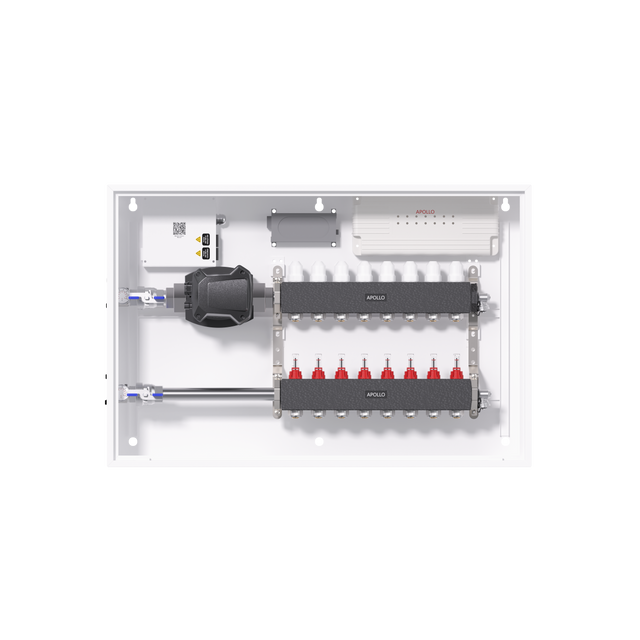

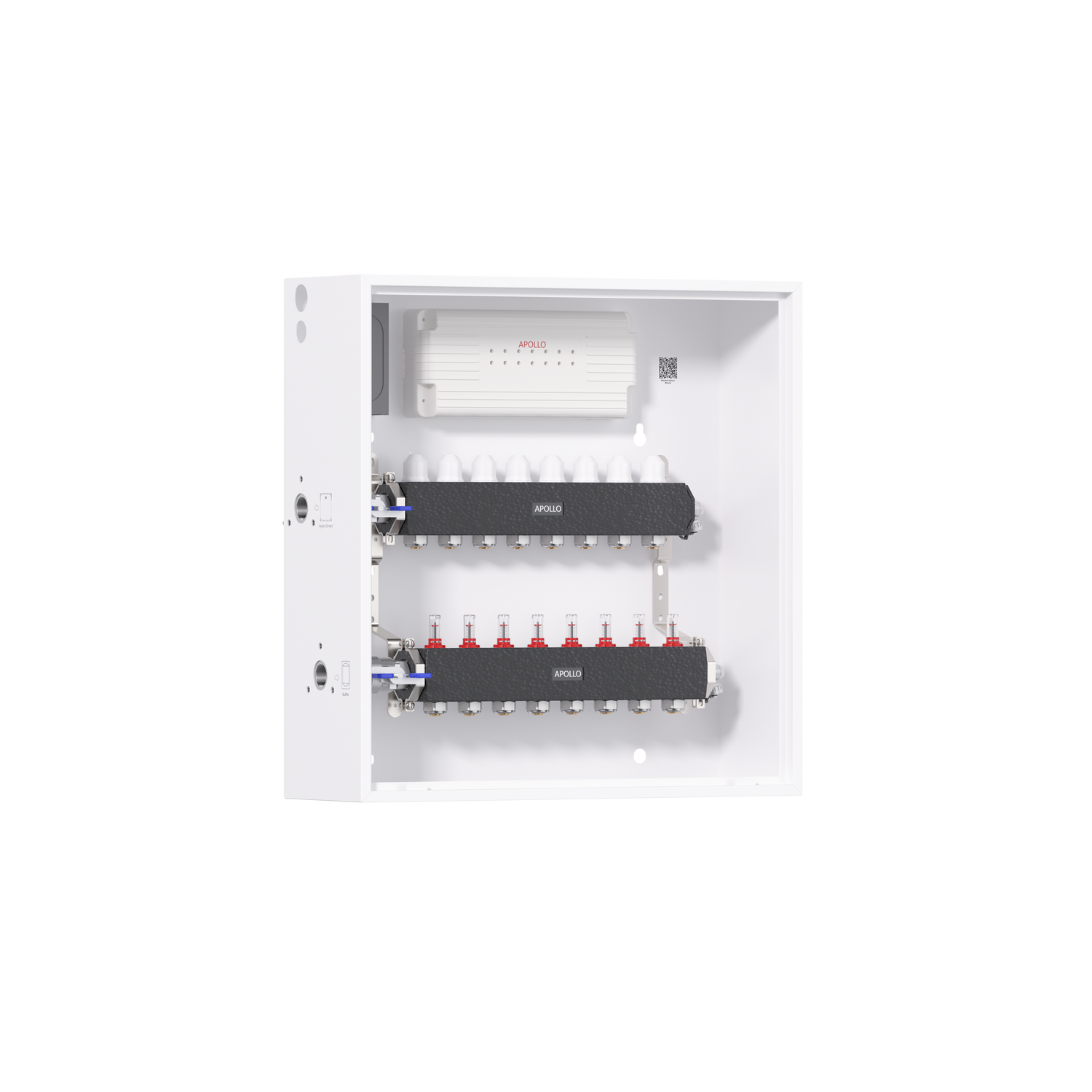

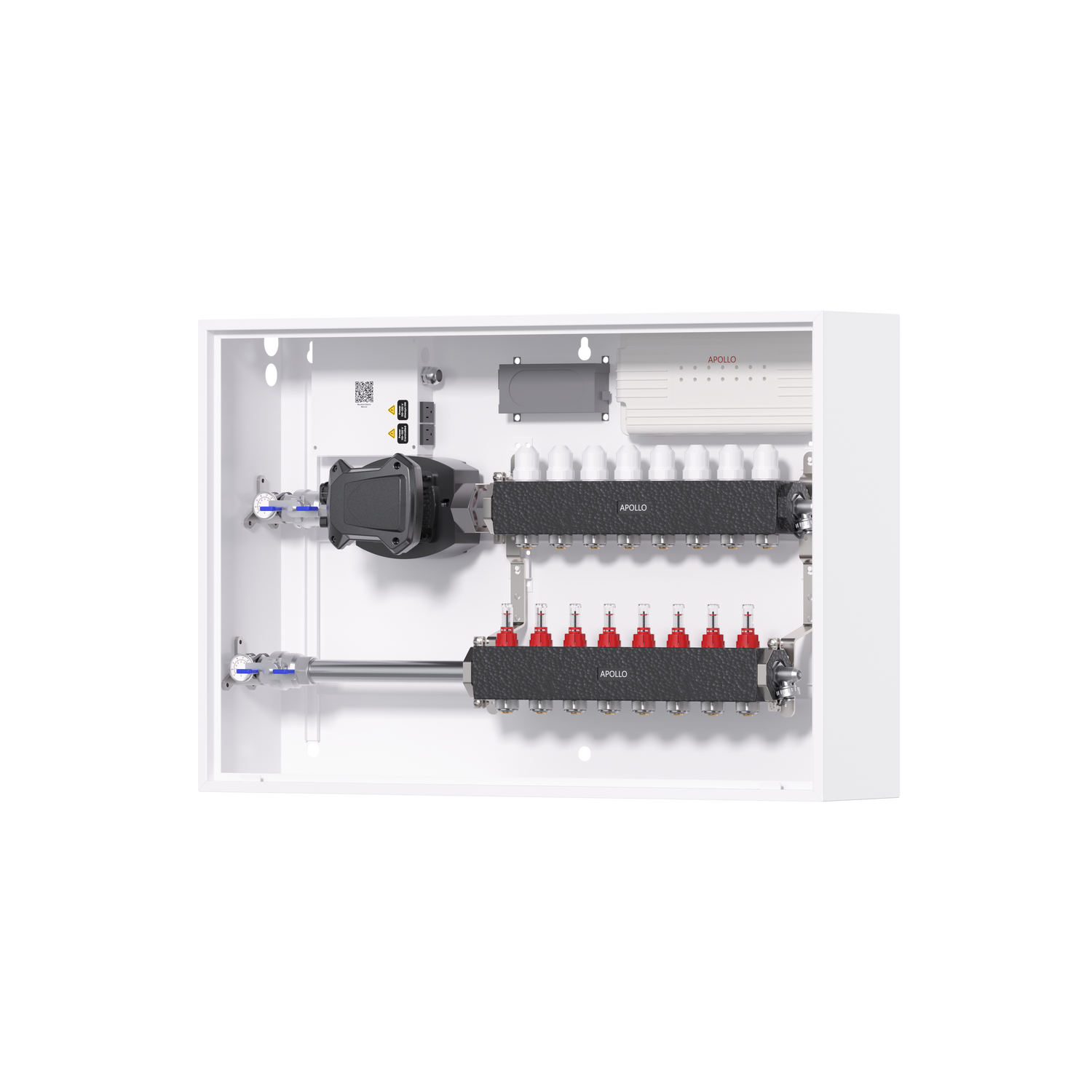

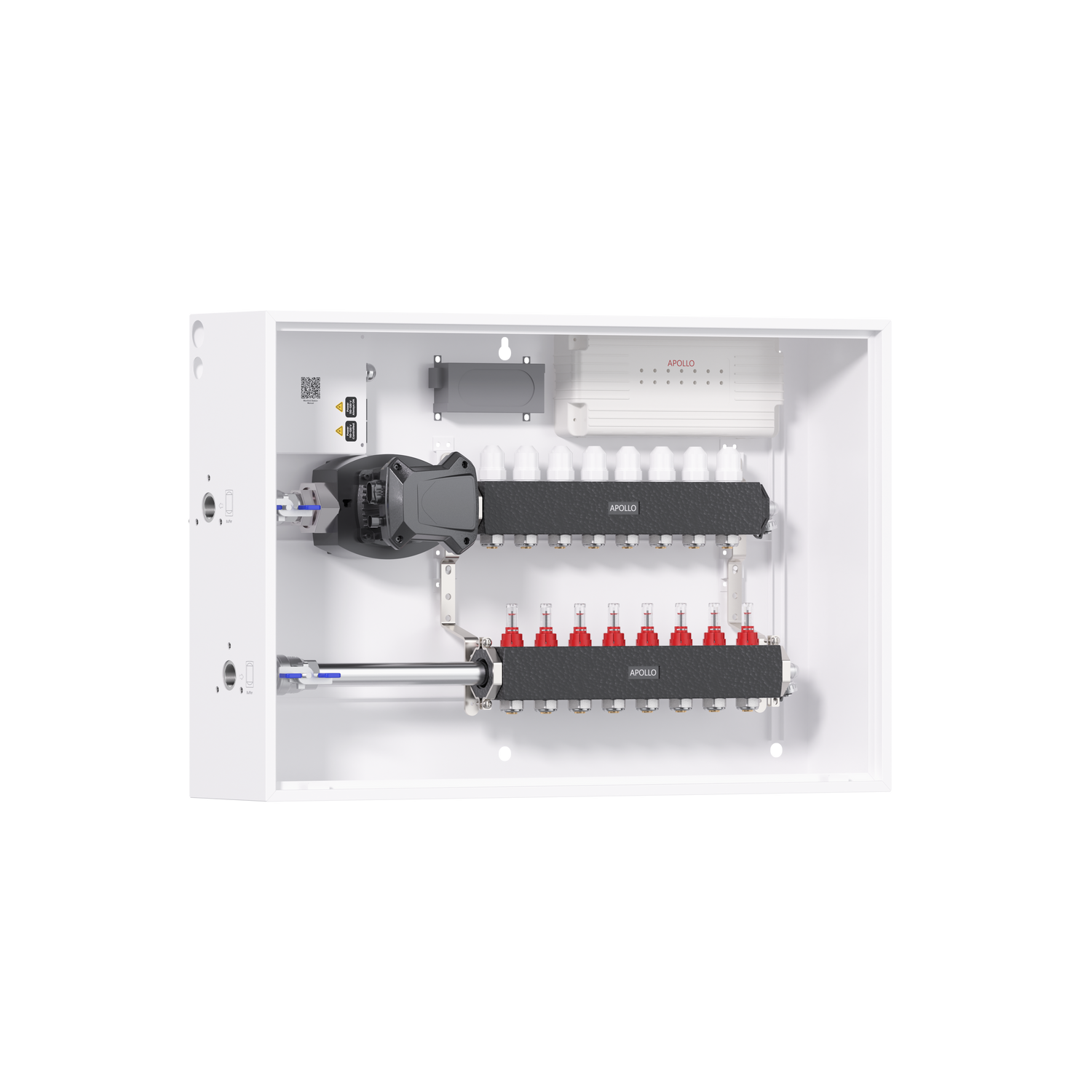

This manifold station includes a high‑efficiency 1 1/4″ pump, 8 APOLLO actuators, and a zone valve control system, providing a complete solution for managing multi‑zone hydronic loops. With 8 ports, it accommodates multiple heating or cooling zones, while the inclusion of flow meters and balancing valves for each zone allows precise calibration of flow rates to ensure balanced and efficient operation.

To further support performance and durability, the station comes with insulation to prevent heat loss and condensation, two 1″ ball valves for isolation, and service hose connectors/air vents to simplify maintenance. Its connection suite includes 2× 1″ PEX adapters and 8× 1/2″ PEX adapters, making it compatible with a wide range of plumbing setups. The manifold is rated for up to 150 PSI maximum pressure and is compatible with all common glycols used in radiant systems, ensuring versatility in various hydronic configurations.

With its integrated pump, actuators, and control hardware, the APOLLO Manifold Station All‑in‑One delivers a streamlined, efficient, and robust solution for hydronic heating and cooling distribution, making system design and installation simpler and more reliable.

Features

• MAX version include a Pump High Efficiency 1 1/4"
• Include 8 x Apollo Actuators
• Include the Zone Valve Control
• Include 2x PEX adapters
• Durable corrosion-resistant stainless steel 316.
• Include insulation mold to prevent heat loss and condensation.
• Include a flow meter and balancing valve for each zone for easy flow calibration.
• Include two 1" ball valves for easy isolation.
• Include two PEX 1″ adapters for quick toolless connection.
• Include 8 ports 1/2" PEX adapters for quick toolless connection.
• Include 2 service hose connectors that can also be used as air vents.
• Compatible with all glycols used in the radiant heating and cooling system.
• Operates at a maximum pressure of 150 PSI.
• All-in-one APOLLO system is compatible with FCU Thermostat 24V - Zone Valve Control - Manifold Actuator 24V
• Rugged and Corrosion-Resistant
  Constructed from engineered stainless steel 316 for exceptional durability and corrosion resistance.

Additional Features:

• Easy Installation
  Designed for straightforward installation in both residential and commercial settings.
• Efficient Heating & Cooling
  Features a high-efficiency pump, flow meters, and balancing valves for precise control and optimal performance.
• Complete All-in-One System
  Includes a pump, 8 actuators, and zone valve control for a comprehensive solution.
• Prevents Heat Loss
  Comes with an insulation mold to prevent heat loss and condensation, maximizing efficiency.
• Versatile Compatibility
  Compatible with all glycols used in radiant heating and cooling systems.

Specifications
