WhisperKOOL Quantum SS12000 220V High Efficiency Ducted Wine Cellar Cooling System

WhisperKOOL Quantum SS12000 220V High Efficiency Ducted Wine Cellar Cooling System

The WhisperKOOL Quantum SS12000 Ducted Split System 220V High Efficiency is a robust and professional‑grade cooling solution engineered for large wine cellars up to approximately 4,000 cubic feet when properly insulated and sealed with a vapor barrier. This fully ducted split‑system design separates the evaporator and condenser components, allowing quiet cooling delivery inside the cellar and flexible condenser placement outside or in an adjacent mechanical space.

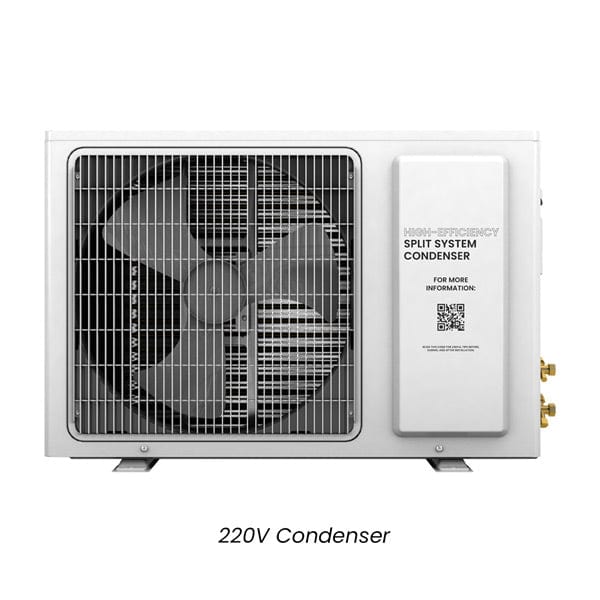

Equipped with a high‑efficiency 220V condenser, the Quantum SS12000 offers enhanced performance and energy efficiency even in challenging environments with condenser air intake temperatures up to 120 °F. Its corrosion‑resistant electro‑fin coated coils and durable construction are built to withstand the humidity and environmental conditions unique to wine storage.

Advanced control features include a KDT digital touch display that can be mounted up to 50 feet away for easy monitoring and adjustment, as well as a liquid‑temperature bottle probe that provides accurate readings of the wine’s actual temperature rather than just ambient air. The system’s flexible ducting options and thoughtful engineering make it ideal for custom residential or light commercial installations.

Whether you’re cooling a large collector cellar, a restaurant wine room, or a high‑end display space, the WhisperKOOL Quantum SS12000 delivers dependable, quiet cooling performance that helps protect and preserve valuable wine collections.

Who This System Is Designed For

The Quantum SS12000 is appropriate for:

• Wine cellars up to 4,000 cu. ft.
• Commercial wine storage environments
• Fully insulated, vapor-sealed builds
• Remote condenser installations (up to 100 ft line set)
• Fully ducted systems with no visible equipment inside cellar
• High ambient climates (up to 120°F condenser intake)

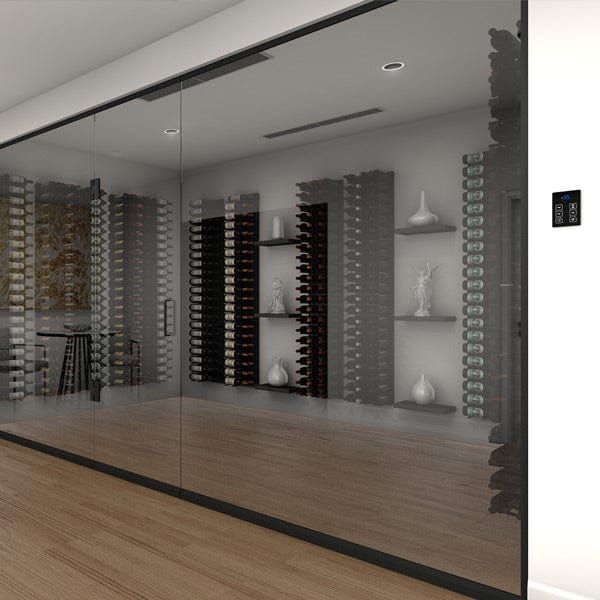

• Glass wine walls when properly load-calculated

Who Should NOT Use This System

This system may not be appropriate if:

• The cellar lacks a vapor barrier
• Insulation is below recommended R-values
• Duct runs exceed 35 ft per supply or return
• Mechanical room ventilation is inadequate
• Installation will not be performed by a licensed HVAC-R technician
• The space is significantly smaller than 4,000 cu. ft. (oversizing may cause short cycling)

Improper sizing or installation can lead to temperature instability, humidity imbalance, compressor strain, and premature system failure.

Cooling Performance & Capacity

Rated Cellar Capacity

• Up to 4,000 cu. ft. (when fully insulated and vapor sealed)

Cooling Output (BTU/h – Sensible / Total)

Sensible vs Total Capacity:
Sensible BTU measures temperature removal. Total BTU includes both temperature and latent moisture removal. Proper wine storage requires stable temperature and controlled humidity, making both ratings important.

Extreme Climate Performance

The 220V High Efficiency condenser is engineered to maintain a 55°F cellar temperature with condenser air intake temperatures up to 120°F.

Suitable for:

• Southern and desert climates
• Mechanical rooms with elevated heat

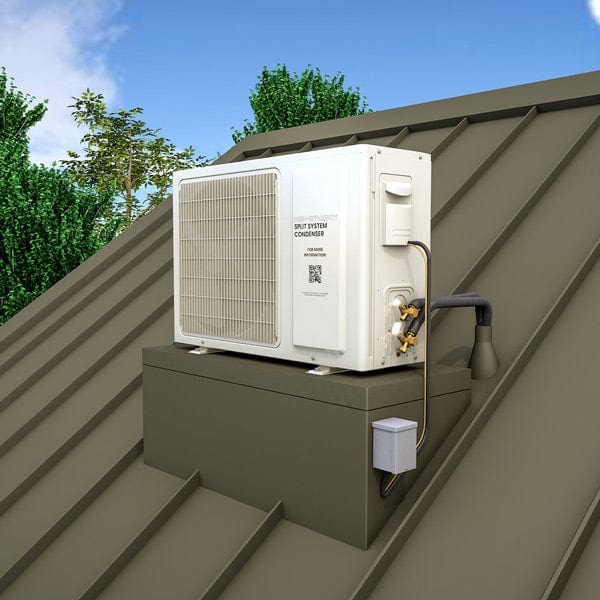

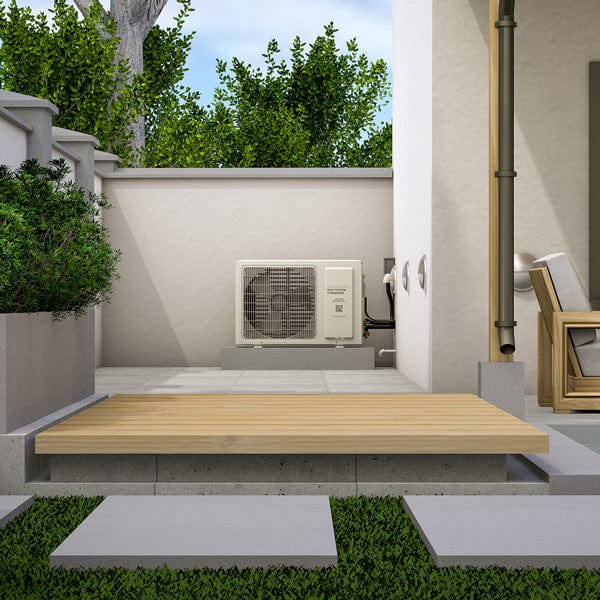

• Outdoor condenser placement (with exterior housing)

Airflow & Ducting Requirements

Airflow (Multi-Speed Fan)

• 590 CFM (Low)
• 650 CFM (Medium)
• 710 CFM (High)

Higher airflow may be required for:

• Dense racking layouts
• High glass exposure
• Long duct runs
• Elevated heat loads

Duct Specifications

• 14" Supply
• 14" Return
• Maximum 35 ft per duct run

Exceeding duct length or reducing duct diameter can reduce system performance and increase static pressure.

Electrical Requirements

• Evaporator: 120V (15-amp dedicated circuit required)
• Condenser: 220V (15-amp dedicated circuit required)

Installation must be performed by a licensed HVAC-R technician. Failure to meet electrical and installation requirements voids manufacturer warranty.

Installation Parameters

• Evaporator installed inside cellar

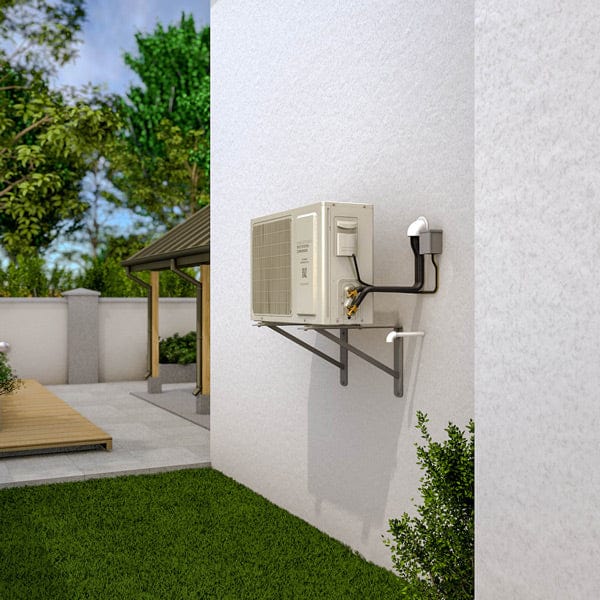

• Condenser may be installed up to 100 ft from evaporator
• Line Set:
  • Liquid Line: 3/8" OD
  • Suction Line: 5/8" OD (under 50 ft), 3/4" OD (over 50 ft)
• Drain Line: 3/4" CPVC/PVC

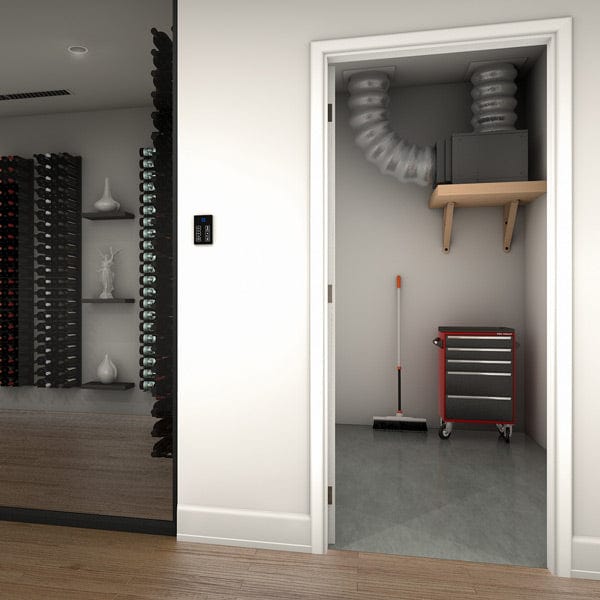

• Requires ventilated mechanical environment

Performance may decrease if installation guidelines are not followed.

Noise Levels

• Evaporator: 52 dBA
• Condenser: 52 dBA

52 dBA is comparable to a quiet residential refrigerator. Because this is a fully ducted system, mechanical noise inside the cellar is minimized.

Mechanical Specifications

• Compressor: 1.5 HP
• Refrigerant: R-134a
• Weight:
  • Evaporator: 96 lbs
  • Condenser: 84 lbs

Manuals for WhisperKOOL Quantum SS12000 Ducted Split:

• 220V High Efficiency (H.E.) Condenser Owner's Manual
• 220V (Copeland) Condenser Owner's Manual
• Quick Start Guide
• Warranty Checklist
• 220V H.E Product Sheet
• 220V Copeland Product Sheet
• Charge Chart
• Maintenance Checklist

Temperature Control & Monitoring

KDT Digital Touch Display

• Mountable up to 50 ft from system
• Advanced system protection alerts

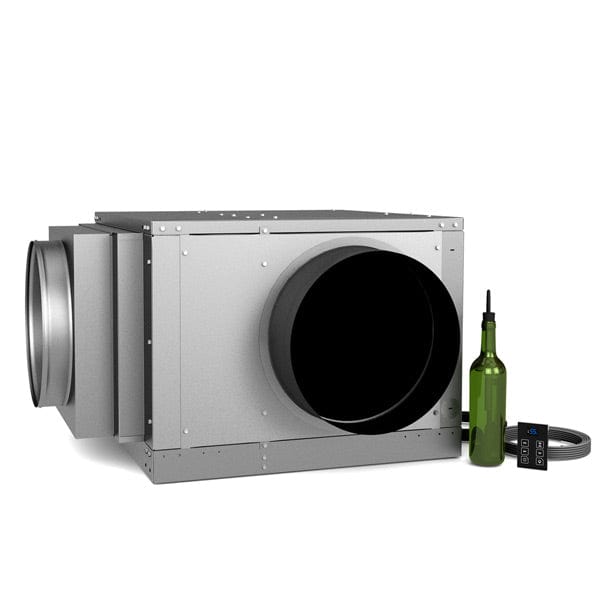

Liquid Temperature Bottle Probe

Measures actual liquid temperature rather than ambient air, improving stability and reducing short cycling.

Optional 24V Thermostat Conversion Kit

Allows integration with third-party smart thermostats for:

• Wi-Fi monitoring
• Runtime tracking
• Remote alerts

Note: WhisperKOOL does not provide smart thermostats and does not support third-party thermostat troubleshooting.

Construction Requirements

This system assumes:

• Minimum 6 mil polyethylene vapor barrier
• Climate-appropriate insulation levels
• Sealed penetrations
• Properly sealed cellar door
• No shared HVAC return air

Failure to meet construction standards will compromise cooling performance regardless of system capacity.

Warranty

• 2-Year Manufacturer Limited Warranty
• Additional 1-Year Installation Grace Period
• Warranty valid only with licensed HVAC-R installation
• Parts and labor included under manufacturer terms

Optional Accessories

• Exterior Condenser Protective Housing
• UV-C Lighting System
• 24V Thermostat Conversion Kit
• Condenser Coil Coating (recommended for coastal environments)

Summary

The WhisperKOOL Quantum SS12000 220V High Efficiency Ducted Split System is engineered for large, professionally constructed wine cellars requiring:

• Fully concealed ducted airflow
• Remote condenser installation
• High ambient temperature performance
• Commercial-grade reliability
• Stable 55°F wine preservation

Proper sizing, insulation, vapor sealing, and professional installation are essential to long-term performance.
