WhisperKOOL Quantum SS12000 Ducted Split Wine Cellar Cooling System

WhisperKOOL Quantum SS12000 Ducted Split Wine Cellar Cooling System

The WhisperKOOL Quantum SS12000 Ducted Split System is a high-capacity cooling solution designed for large residential and commercial wine cellars up to approximately 4,000 cubic feet. Its ducted split-system configuration separates the evaporator and condenser, allowing flexible installation and significantly quieter operation inside the cellar.

Engineered for performance in demanding environments, the system delivers powerful cooling capable of maintaining a stable cellar temperature around 55°F, even when condenser air intake temperatures reach up to 120°F. This makes it suitable for installations in warmer climates or locations with elevated ambient temperatures.

The Quantum SS12000 is built with professional-grade components, including an advanced digital controller and a liquid bottle temperature probe that ensures accurate monitoring of the wine’s temperature rather than just the surrounding air. Its corrosion-resistant construction enhances durability and long-term reliability.

Designed for fully ducted applications, the system allows cooling equipment to be hidden from view, preserving the aesthetics of high-end wine cellars while maximizing usable storage space. Professional HVAC-R installation is required to ensure proper performance and system longevity.

Who the Quantum SS12000 Is Best For

The WhisperKOOL Quantum SS12000 is ideal for:

• Wine cellars 3,000–4,000 cubic feet
• Large residential wine cellars
• Commercial wine storage rooms
• Cellars requiring remote equipment placement
• Installations where quiet cellar operation is important
• Custom wine cellar designs requiring ducted airflow

This system is commonly used in high-end custom wine cellars where cooling equipment must be hidden or installed remotely.

Features

• Fully Ducted Split-System Design

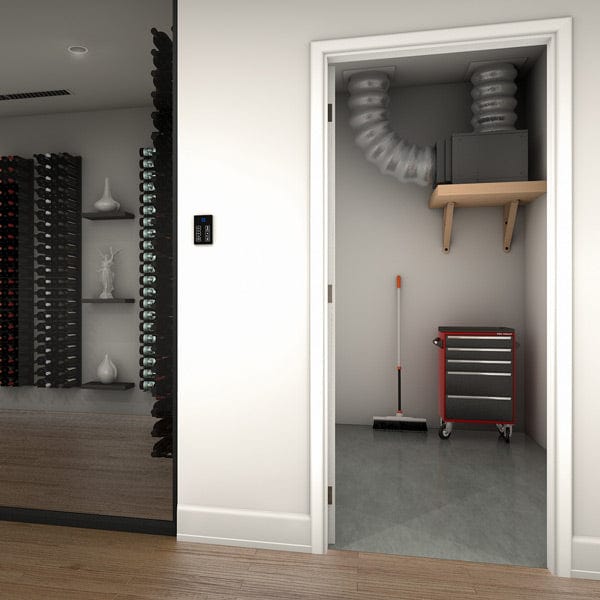

  The Quantum SS12000 uses a ducted split-system configuration, separating the evaporator and condenser units. This allows the cooling equipment to be placed outside the cellar while delivering conditioned air through ductwork.
• Quiet Wine Cellar Operation
  Because the compressor and condenser can be installed remotely, the cooling system produces significantly less noise inside the cellar compared with self-contained cooling units.
• Advanced Digital Controller
  The system includes a digital control display with a 50-foot cable, allowing the controller to be mounted outside the cellar for convenient monitoring and adjustments.
• Liquid Bottle Temperature Probe
  The bottle probe measures the temperature of the wine itself rather than the air in the cellar, providing more accurate control of wine storage conditions.
• Corrosion-Resistant Electro-Fin Coils
  Electro-fin coated coils help protect the system from corrosion, extending the life of the cooling unit in humid or coastal environments.
• High Ambient Temperature Performance
  The Quantum SS12000 is engineered to maintain proper cellar temperatures even when condenser air intake temperatures reach up to 120°F.

Cooling Capacity

The WhisperKOOL Quantum SS12000 is designed for wine cellars up to:

• 4,000 cubic feet

Cooling performance varies depending on condenser air intake temperature.

Cooling capacities are approximated for wine cellars that are fully insulated and sealed with a proper vapor barrier. Heat load calculations should always be performed before selecting a cooling system.

Technical Specifications

Manuals for WhisperKOOL Quantum SS12000 Ducted Split:

• 220V High Efficiency (H.E.) Condenser Owner's Manual
• 220V (Copeland) Condenser Owner's Manual
• Quick Start Guide
• Warranty Checklist
• 220V H.E Product Sheet
• 220V Copeland Product Sheet
• Charge Chart
• Maintenance Checklist

Installation Requirements

The Quantum SS12000 is a split-system wine cellar cooling unit designed for professional installation.

Key installation requirements include:

• Proper wine cellar insulation
• Vapor barrier installation
• Correct heat load calculations
• Dedicated electrical circuits
• Proper duct sizing and airflow

Equipment Placement

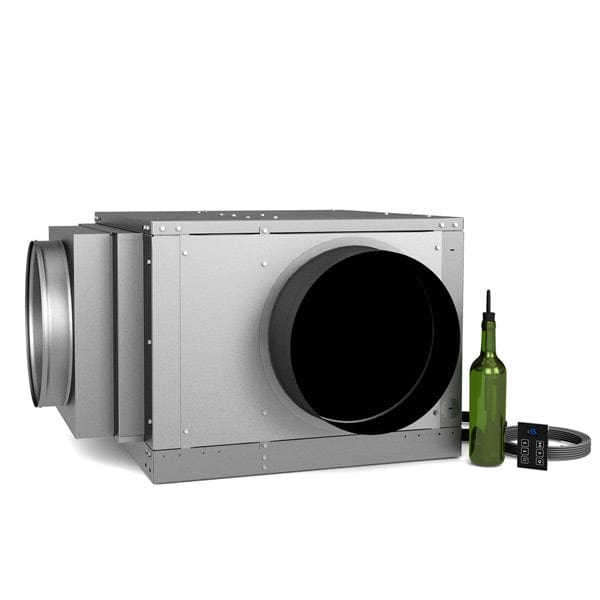

• The evaporator unit is installed inside the wine cellar

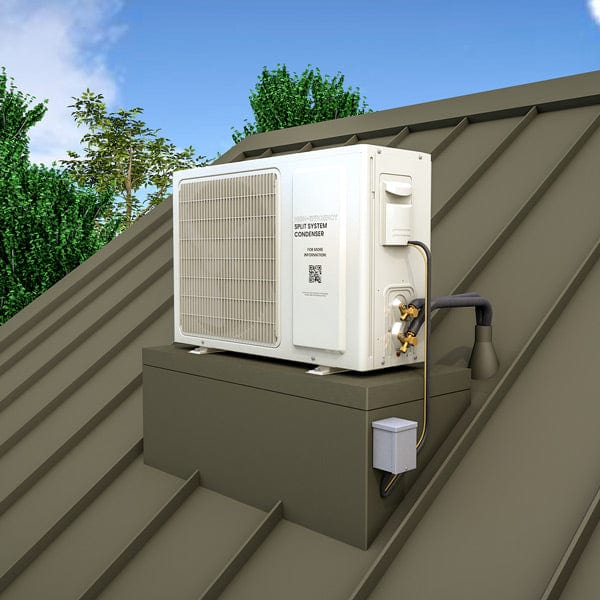

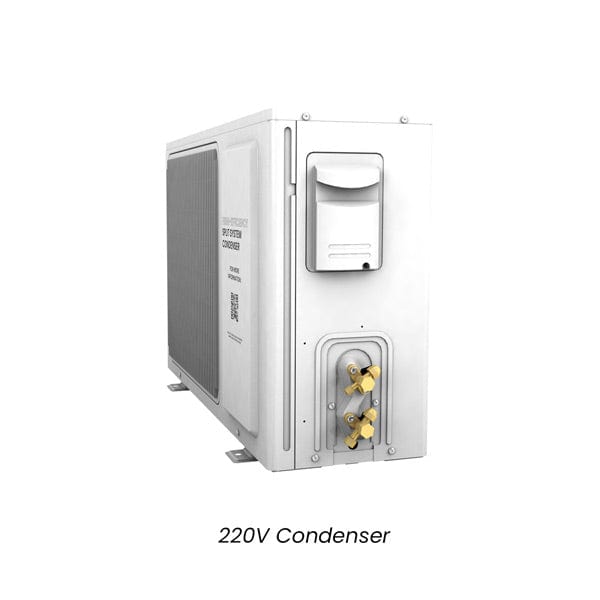

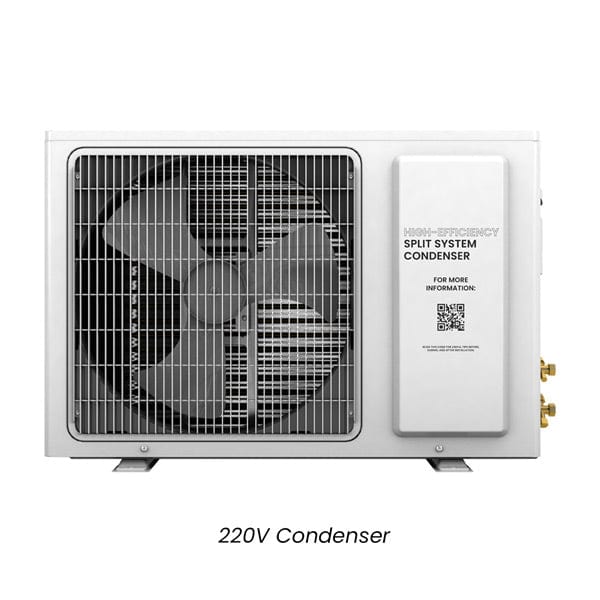

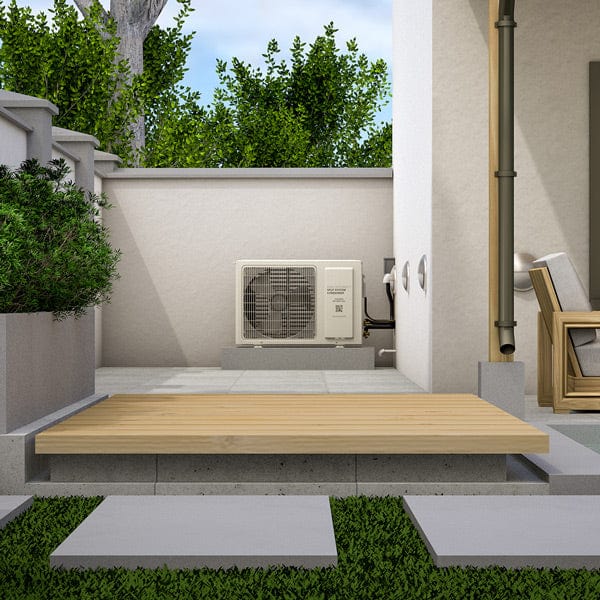

• The condenser unit is installed remotely, either outdoors or in a mechanical room
• Units are connected using a refrigerant line set

Important: Split-system cooling units must be installed by a licensed HVAC/R technician. Failure to follow proper installation requirements may void the manufacturer warranty.

Temperature Performance

• The Quantum SS12000 is designed to maintain a wine cellar temperature of approximately 55°F under demanding conditions.
• The system can operate effectively even when condenser air intake temperatures reach up to 120°F, making it suitable for warm climates or exterior condenser installations.

Pros and Cons

Advantages

• High cooling capacity for large wine cellars
• Quiet cellar operation
• Flexible ducted installation
• Remote condenser placement
• Professional-grade cooling performance

Considerations

• Requires professional HVAC installation
• Installation costs are higher than self-contained units
• Requires space for ducting and line sets

Optional Accessories

Several accessories are available to improve system performance and longevity.

• Exterior Condenser Housing
  Protects the outdoor condenser unit from weather exposure and environmental elements.
• UV-C Lighting System
  Helps reduce microbial growth inside the cooling system.
• 24V Thermostat Conversion Kit
  Allows integration with compatible smart thermostats for remote monitoring and control.

Warranty

WhisperKOOL Quantum Series cooling systems include:

• 2-year limited manufacturer warranty
• Up to 1 additional year grace period for installation
• Coverage includes parts and labor

Need Help Choosing the Right Cooling System?

Choosing the correct wine cellar cooling system depends on several factors:

• cellar size
• insulation quality
• construction materials
• ambient temperature
• ducting layout

If you're unsure whether the WhisperKOOL Quantum SS12000 is the right solution for your cellar, our team can help evaluate your project and recommend the best cooling system for your space.
