WhisperKOOL Quantum Twin 24000 220V High Efficiency Ducted Wine Cellar Cooling System

WhisperKOOL Quantum Twin 24000 220V High Efficiency Ducted Wine Cellar Cooling System

The WhisperKOOL Quantum Twin 24000 Ducted Split System 220V High Efficiency is a robust commercial‑grade cooling solution engineered for extra‑large wine cellars up to approximately 7,000 cubic feet when constructed with proper insulation and a sealed vapor barrier. Its fully ducted split‑system design separates the evaporators and condenser, allowing quiet operation inside the cellar while locating heat‑producing components externally or in an adjacent equipment area.

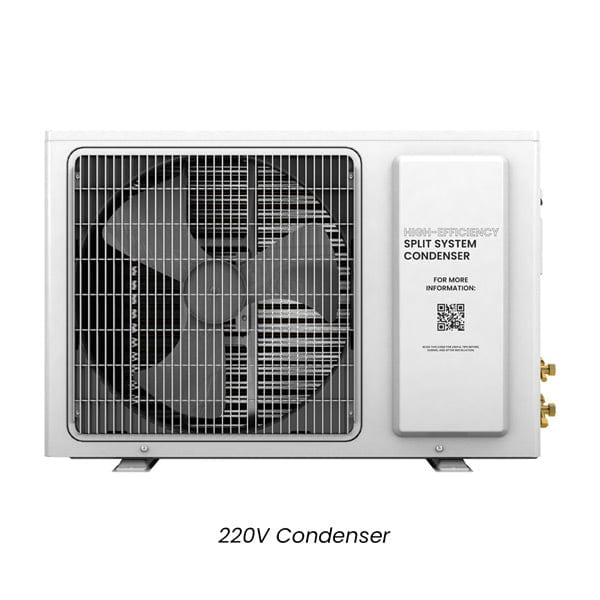

Designed for stability and performance in demanding environments, the system uses a high‑efficiency 220V condenser that maintains consistent temperature control even when condenser intake air temperatures reach up to 120 °F. Its corrosion‑resistant coils are specifically engineered to withstand typical wine cellar environments, including humidity and cellar outgassing.

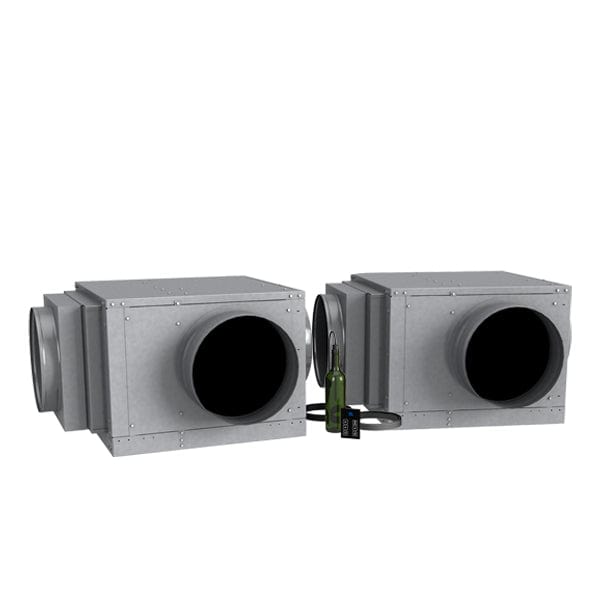

Advanced digital controls include a KDT touch display with Advanced System Protection and alert notifications for critical parameters, as well as a liquid‑temperature bottle probe that measures the actual liquid wine temperature for more precise preservation conditions than standard air sensors. Multiple evaporators allow flexible ducting options to deliver conditioned air exactly where needed.

Whether cooling a large residential collection, a hospitality space, or a high‑capacity commercial display room, the WhisperKOOL Quantum Twin 24000 provides dependable performance, flexible installation, and precise temperature management.

Quick Decision Summary

• Best For: Large wine rooms 5,500–7,500 cu. ft., commercial cellars, glass wine walls, high ambient climates
• Not For: Cellars under 4,000 cu. ft., through-wall installs, projects without vapor barrier or 220V power
• System Type: Fully ducted split system
• Max Cellar Size: 7,500 cu. ft. (proper insulation required)
• Voltage: 120V evaporator / 220V condenser
• Compressor: 3 HP
• Cooling Capacity (85°F intake): 21,519 BTU (Sensible) / 25,317 BTU (Total)
• Installation: Licensed HVAC-R technician required
• Line Set Included: No

Heat load calculations are strongly recommended before selecting this system.

Who This System Is Designed For

The Quantum Twin 24000 is appropriate when:

• Your cellar exceeds 5,500 cubic feet
• You have significant glass exposure
• You need ducted, hidden mechanical equipment

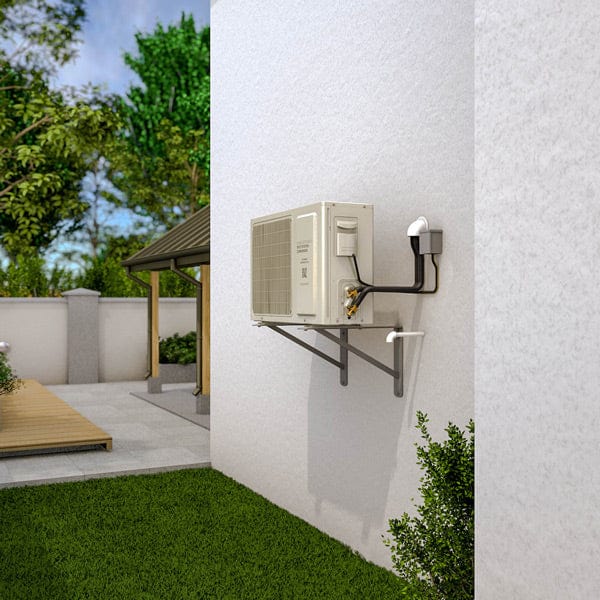

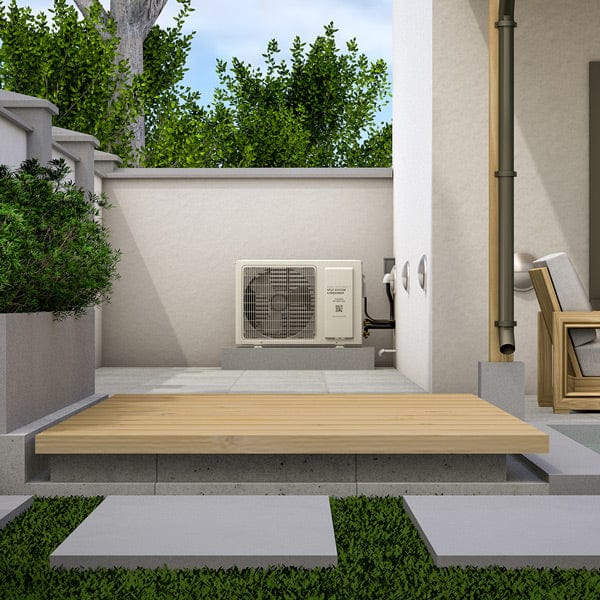

• The condenser must be installed remotely (up to 100 ft)
• The project is commercial or hospitality-grade
• The installation environment reaches up to 120°F condenser intake temperatures

This unit is commonly used in:

• Large luxury residences
• Restaurants and hospitality wine rooms
• Commercial wine storage facilities
• Estate-scale wine vaults

When This System Is NOT Appropriate

This system may not be suitable if:

• Your cellar is under 4,000 cu. ft.
• Insulation is below recommended R-values (R-19 walls / R-30 ceiling minimum typical)
• No properly installed vapor barrier is present
• You cannot supply a 220V dedicated circuit
• You need a self-contained or through-wall solution

An oversized unit in a small cellar can short cycle. An undersized unit in a large cellar will run continuously and may fail prematurely.

Cooling Performance by Ambient Temperature

Cooling capacity varies depending on condenser air intake temperature.

What this means:
As ambient temperatures increase, total output slightly decreases. Proper ventilation of the condenser location is critical for peak efficiency.

The system is capable of maintaining a 55°F cellar temperature with condenser air intake temperatures up to 120°F when installed correctly.

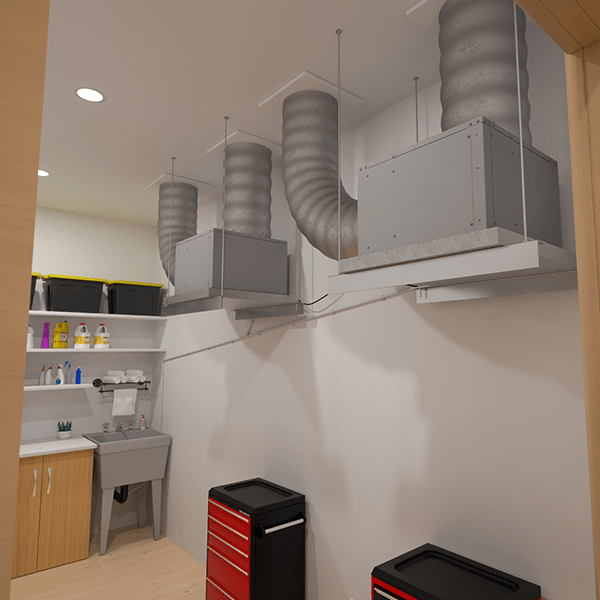

Fully Ducted Operation for Quiet Cellars

The Quantum Twin series is fully ducted, keeping mechanical noise and heat outside the cellar.

Duct Requirements:

• 14” Supply
• 14” Return
• Up to 35 ft per duct run

Line Set Distance:

• Condenser may be installed up to 100 ft from evaporator

Noise Levels:

• Evaporator: 58 dBA
• Condenser: 58 dBA

Ducted systems are preferred in luxury builds where equipment visibility and vibration must be minimized.

Electrical Requirements (Planning Critical)

• Evaporator: 120V — 15-amp dedicated circuit required
• Condenser: 220V — 25-amp dedicated circuit required

Electrical planning must be completed prior to installation. Always verify breaker sizing and wiring capacity.

Installation Requirements

• Liquid Line: 3/8”
• Suction Line: 5/8” (under 50 ft) or 3/4” (over 50 ft)
• Drain Line: 3/4” Female to base (CPVC/PVC)
• Line set not included
• Professional HVAC-R installation required

Failure to use a licensed technician will void warranty coverage.

24000 vs 18000 — When to Upgrade

Choose the 24000 if:

• Your cellar exceeds 5,500 cu. ft.
• You have higher glass exposure
• You are in a hot climate
• You want extra performance margin

Advanced Controls & Monitoring

The system includes:

• KDT digital touch display (50 ft cable)
• Liquid-temperature measuring bottle probe (50 ft cable)

The bottle probe measures actual wine temperature instead of ambient air, improving long-term aging consistency.

Technical Specifications

Manuals for WhisperKOOL Quantum Twin 24000 Ducted Split:

• Owner's Manual
• Quick Start Guide
• Warranty Checklist
• 220V H.E Product Sheet
• 220V Copeland Product Sheet
• Maintenance Checklist
• Charge Chart

Optional Accessories

• 24V Thermostat Conversion Kit
  Allows integration with third-party smart thermostats (thermostat not included). Note: removes standard WhisperKOOL control and bottle probe.

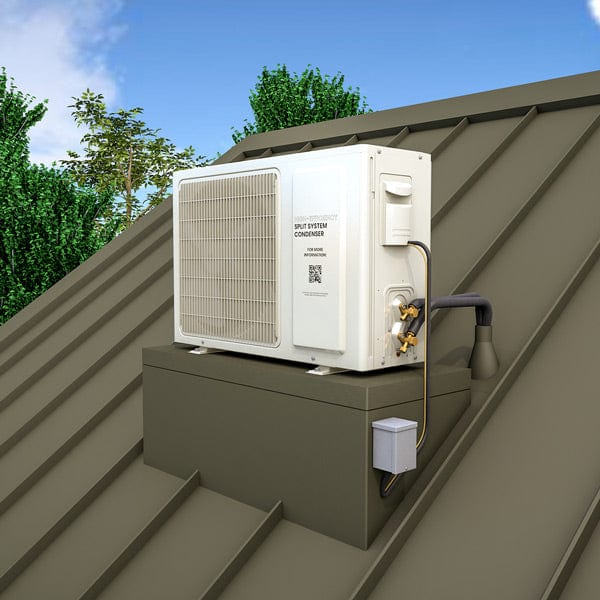

• Exterior Condenser Housing
  Recommended for outdoor condenser installations.
• Condenser Coil Coating
  Protects against salt-air corrosion in coastal environments.

Professional Recommendation

Every wine cellar is unique. Glass percentage, insulation quality, ambient temperature, and vapor sealing significantly impact performance.

Before purchasing the Quantum Twin 24000, we strongly recommend performing a professional heat load calculation to confirm proper sizing.

If you need assistance determining whether this system is appropriate for your project, contact our cellar specialists for guidance.
