WhisperKOOL Ceiling Mount 8000 OMEGA 110V Wine Cellar Cooling System

WhisperKOOL Ceiling Mount 8000 OMEGA 110V Wine Cellar Cooling System

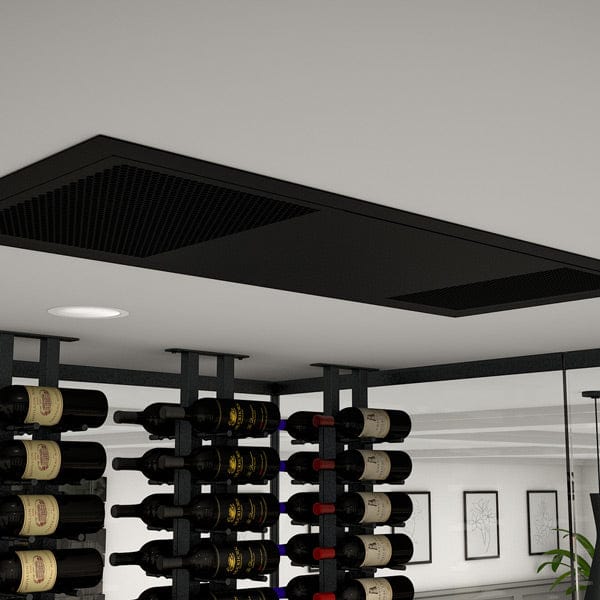

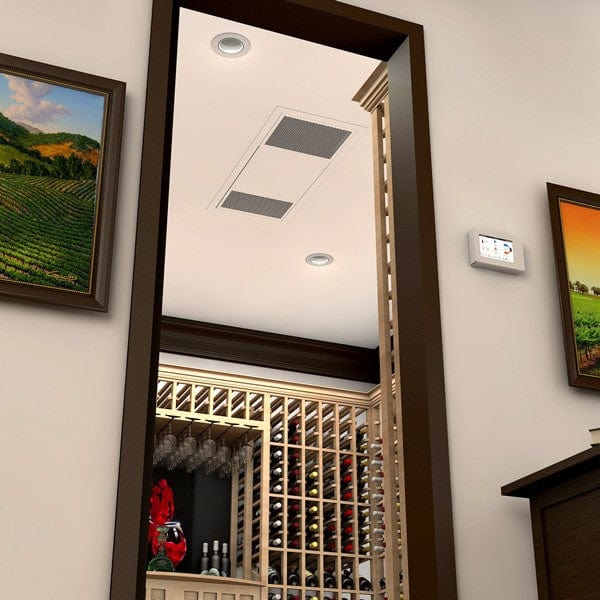

The WhisperKOOL Ceiling Mount 8000 OMEGA 110V Wine Cellar Cooling Unit is a powerful and space-efficient solution designed for medium to large wine cellars up to approximately 1,500 cubic feet when properly insulated and sealed. Its ceiling-mounted configuration allows the unit to be installed flush within the cellar, maximizing wall and floor space while delivering consistent and reliable cooling performance.

Operating on standard 110V power, this system is ideal for residential applications where higher voltage is not available. The ceiling-mounted design efficiently pulls in rising warm air, cools it, and redistributes conditioned air evenly throughout the cellar, helping maintain optimal wine storage conditions.

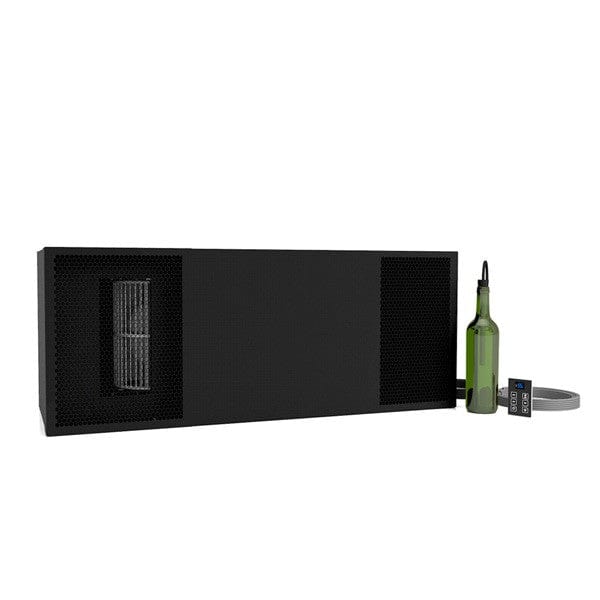

Equipped with a digital controller and compatible with a liquid-temperature bottle probe, the system ensures accurate temperature monitoring and control. Its quiet operation and compact design make it suitable for installations where both performance and minimal visual impact are important.

Built for durability and long-term reliability, the WhisperKOOL Ceiling Mount 8000 OMEGA offers dependable cooling performance, making it an excellent choice for preserving wine collections in custom residential or light commercial environments.

Is the Ceiling Mount 8000 Right for Your Cellar?

✔ Ideal For:

• Cellars between 1,500–2,000 cubic feet
• Fully insulated rooms (minimum R19 walls recommended)
• Sealed vapor barrier construction
• Ambient environments up to 120°F
• Installations requiring remote condenser placement
• Projects where wall space must remain clear for racking

✖ Not Recommended For:

• Uninsulated basements or passive wine rooms
• Glass-heavy wine walls without thermal breaks
• Open-concept rooms connected to living spaces
• DIY installation (licensed HVAC/R required)
• Spaces exceeding 2,000 cubic feet without load calculation

If your cellar design includes extensive glass or marginal insulation, consult a cooling load calculation before selecting this unit.

How the Cooling System Works

The system uses a split configuration:

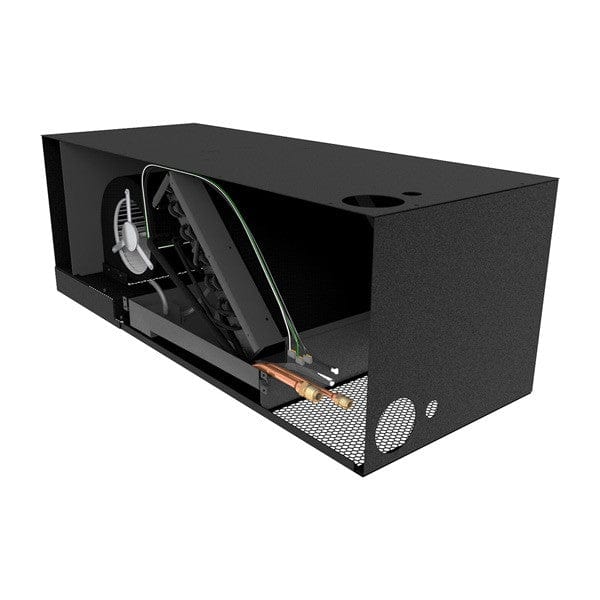

• Evaporator (inside cellar): Pulls warm air from ceiling level and redistributes cooled air evenly.

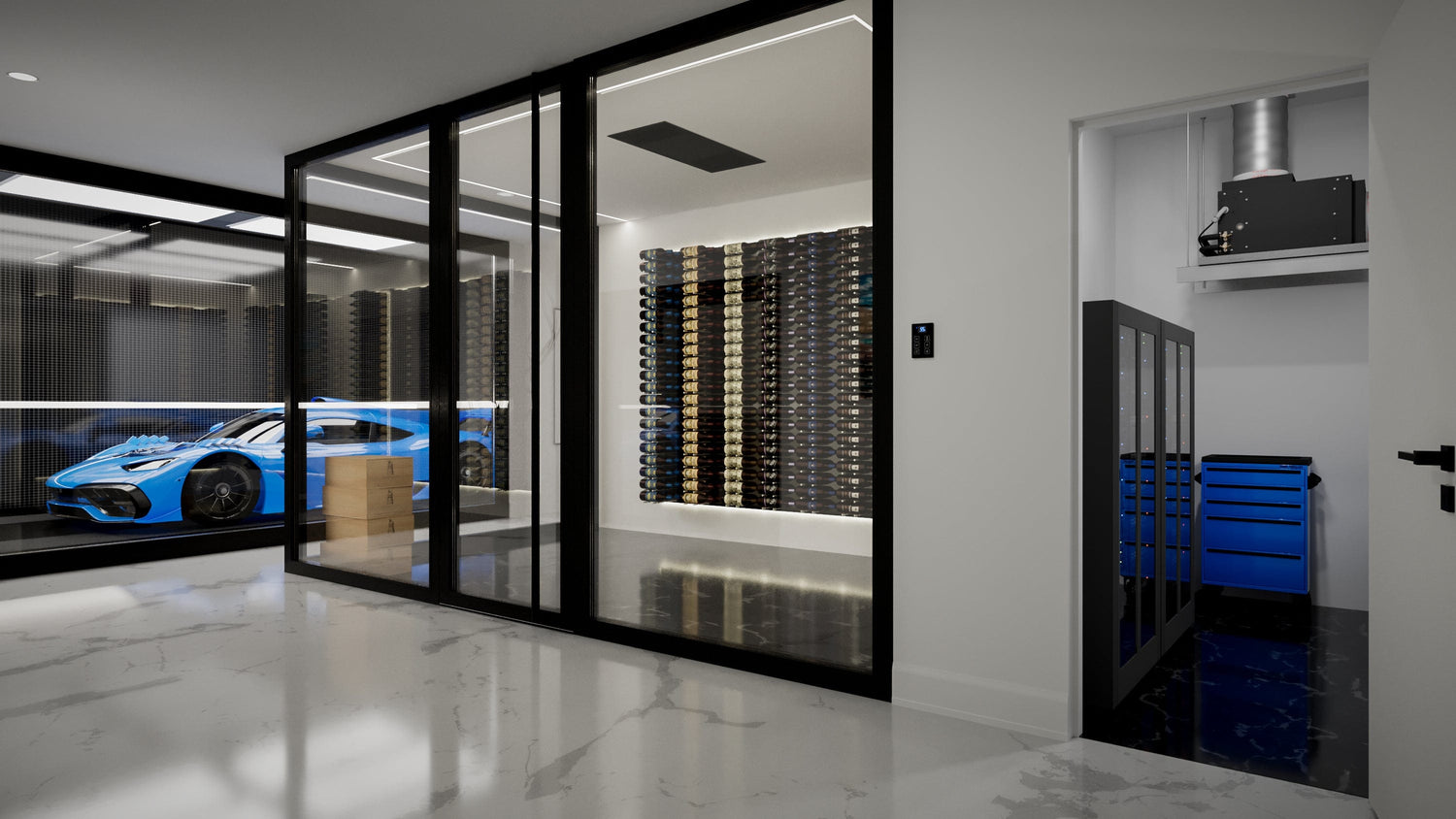

• Condenser (remote location): Exhausts heat outside the cellar environment.

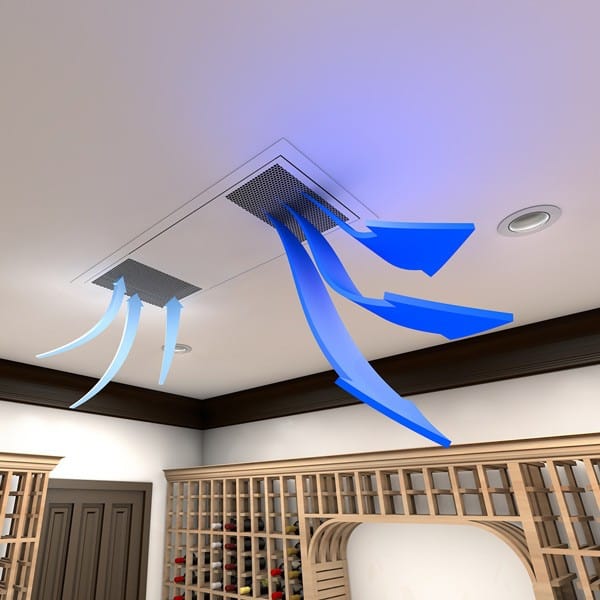

By drawing warm air from the ceiling—where heat naturally accumulates—the unit reduces stratification and prevents hot spots, helping maintain stable aging conditions.

What the Specifications Mean for Your Cellar

Cooling Capacity (BTU Explained)

• Cooling performance varies depending on condenser air intake temperature.

BTU Output – Ceiling Mount 8000

Sensible cooling reduces air temperature.

Total cooling includes both temperature and moisture removal.

Wine cellars primarily rely on sensible cooling to maintain 55°F storage conditions. Higher condenser intake temperatures reduce available BTU output, which is why proper condenser ventilation is critical.

Fan Speed & Performance

The system offers Medium and High fan settings:

• Medium: Quieter operation, lower airflow.
• High: Increased airflow and slightly higher BTU output.

Higher fan speeds may slightly increase evaporator noise but improve air circulation in larger cellars.

Noise Levels (dBA)

For context:

• 40–50 dBA ≈ quiet residential refrigerator
• 60 dBA ≈ normal conversation

The evaporator is suitable for residential wine rooms when mounted properly.

Electrical Requirements

• Voltage: 120V
• Evaporator: 120V (5-amp dedicated circuit required)
• Condenser: 120V
• Running Amps:
  • Evaporator: 1.4 amps
  • Condenser: 9.5 amps

Dedicated circuits are required for proper performance and warranty compliance.

Line Set Requirements

• Liquid line: 1/4" OD
• Suction line:
  • 1/2" OD (under 50 ft)
  • 5/8" OD (over 50 ft)

Longer line sets require larger suction lines to maintain refrigerant velocity and compressor efficiency.

Maximum recommended line set distance: 100 ft.

Installation Requirements

• Must be installed by a licensed HVAC/R technician
• Requires fully insulated and sealed cellar
• Vapor barrier required
• Condenser must have proper airflow and ventilation
• Drain line: 1/4" ID tubing (rigid tube recommended)

Improper installation will void the manufacturer warranty.

Full Technical Specifications

• Model: WhisperKool Ceiling Mount 8000 OMEGA 110V
• Cellar Capacity: Up to 2,000 cu. ft.
• CFM: 321
• Refrigerant: R-134a
• Horsepower: 0.5 HP
• Temperature Delta: Maintains 55°F with condenser air intake up to 120°F
• Dimensions:
  • Evaporator: 35.75”L x 14.5”W x 12.75”H
  • Condenser: 23”L x 15.75”W x 15.3”H
• Weight:
  • Evaporator: 66 lbs
  • Condenser: 86 lbs
• Thermostat: Advanced digital display with 50 ft liquid-temperature probe
• Warranty: Two-year limited warranty with up to one (1) additional year grace period for installation

Manuals for WhisperKool Ceiling Mount 8000 OMEGA:

• OMEGA Ceiling Mount Owner's Manual
• OMEGA Ceiling Mount Product Sheet
• OMEGA Condenser Owner's Manual
• OMEGA Condenser Product Sheet

Ceiling Mount 4000 vs 8000 – Which Should You Choose?

Choose the 8000 if:

• Your cellar exceeds 1,200–1,400 cu ft
• Ambient conditions are warmer
• You need more airflow

Optional Accessories

• Exterior condenser housing
• 24V thermostat conversion kit

Important Installation Notice

Split system cooling units MUST be installed by a qualified licensed HVAC/R technician. Failure to comply will void the system warranty.
