WhisperKOOL Platinum Split 8000 Ductless Cooling System 220V High Efficiency

WhisperKOOL Platinum Split 8000 220V High Efficiency Ductless Wine Cellar Cooling System

The WhisperKOOL Platinum Split 8000 Ductless Cooling System 220V High Efficiency is engineered to provide powerful and efficient temperature control for wine cellars up to approximately 2,000 cubic feet when properly insulated and sealed. Its ductless split‑system design separates the condenser from the evaporator, allowing for quiet operation inside the cellar while delivering reliable cooling performance from a remote condenser.

This high‑efficiency 220V model delivers enhanced energy performance and quieter operation compared to standard voltage units. The evaporator is designed for ceiling‑mount installation, utilizing the natural rise of warm air to improve cooling efficiency and evenly distribute conditioned air throughout the space. The condenser can be placed up to 100 feet away, offering flexible installation options that help minimize noise and maximize usable racking space.

Installation and maintenance are simplified with bottom‑mounted wiring access and flare fittings, making the process more technician‑friendly. Temperature control is precise and user‑friendly via a remote digital thermostat, and an optional liquid‑temperature bottle probe is available for accurate reading of wine temperature rather than just ambient air.

Whether you’re outfitting a large residential wine room, commercial cellar, or custom installation, the WhisperKOOL Platinum Split 8000 220V High Efficiency system delivers dependable performance, flexible configuration, and advanced control features.

Is the Platinum Split 8000 Right for Your Wine Cellar?

The WhisperKOOL Platinum Split 8000 (220V High Efficiency) is designed for wine cellars up to approximately 1,750 cubic feet when the space is:

• Fully insulated
• Sealed with a proper vapor barrier
• Professionally heat-load calculated
• Built to standard wine cellar construction practices

This system is ideal when you need:

• A ductless evaporator inside the cellar
• A remotely located condenser (up to 100 line feet away)
• Improved energy efficiency compared to 110V models
• Quiet operation with flexible installation options

If your cellar meets these conditions, this model is often an appropriate mid-to-large residential solution.

When You Should NOT Choose This Model

This system may not be appropriate if:

• The cellar is not insulated to proper R-values
• A vapor barrier is missing or improperly installed
• The room includes extensive uninsulated glass
• The space exceeds 1,750 cubic feet without engineering verification
• You require fully concealed cooling (consider a ducted split model instead)

Improper sizing is the most common cause of cooling failure. A professional heat load calculation is strongly recommended before purchase.

How the Platinum Split 8000 Ductless System Works

This is a split-system wine cellar cooling unit, meaning:

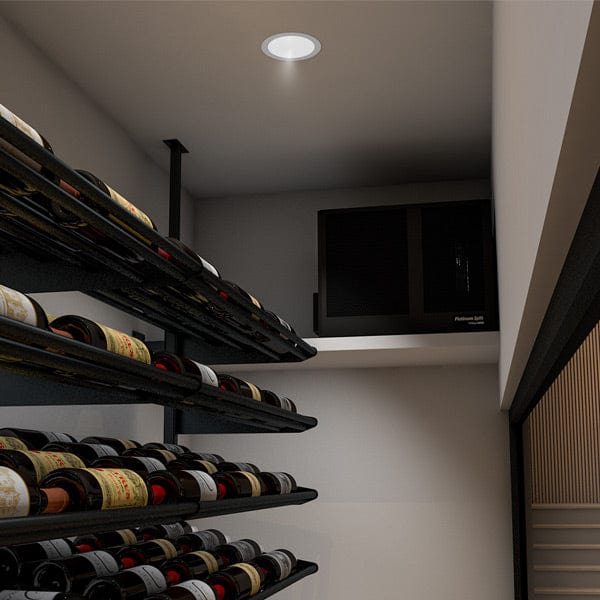

• The evaporator is installed inside or adjacent to the cellar.

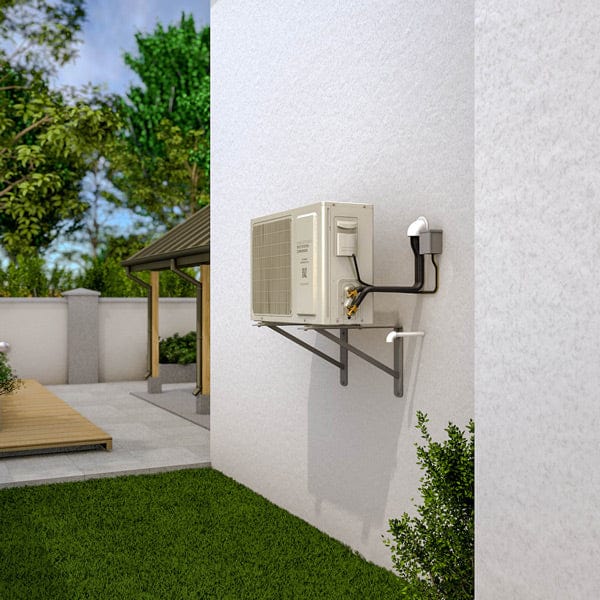

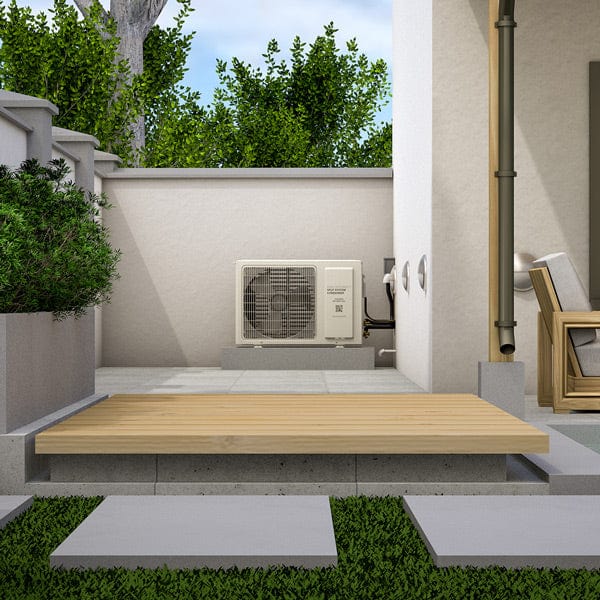

• The condenser is installed remotely (attic, mechanical room, or outdoors).

The evaporator delivers cooled air directly into the cellar through a visible grille. Heat is removed through refrigerant lines to the condenser, which may be installed up to 100 line feet away.

This separation reduces noise and heat transfer inside the cellar while allowing flexible installation.

Cooling Performance & Capacity

Cooling output varies depending on condenser air intake temperature. As ambient temperature increases, total BTU output decreases.

Performance by Condenser Intake Temperature

Important: These values assume a fully insulated and sealed cellar with proper vapor barrier construction.

Temperature Capability

• Designed to maintain a 55°F cellar temperature
• Operates in environments with condenser intake temperatures up to 120°F
• Performance depends on insulation quality and construction

Installation Requirements

Electrical Requirements

Evaporator

• 120V
• 15-amp dedicated circuit required
• Running Amps: 2.2

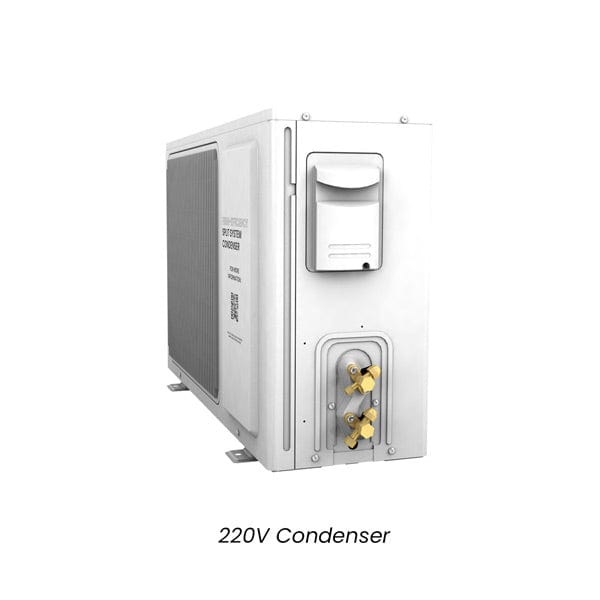

Condenser (220V High Efficiency)

• 220V
• 15-amp dedicated circuit required
• LRA: 13.2
• RLA: 3.19
• FLA: 2.66

Professional HVAC-R installation is required. Failure to use a qualified technician may void the manufacturer warranty.

Line Set & Distance Limits

• Condenser may be installed up to 100 line feet from evaporator
• Evaporator may be installed up to 25 duct feet from cellar
• Drain line: 1/2” ID tubing (not included)

Improper line length, poor airflow, or undersized electrical supply can affect performance.

Key System Features

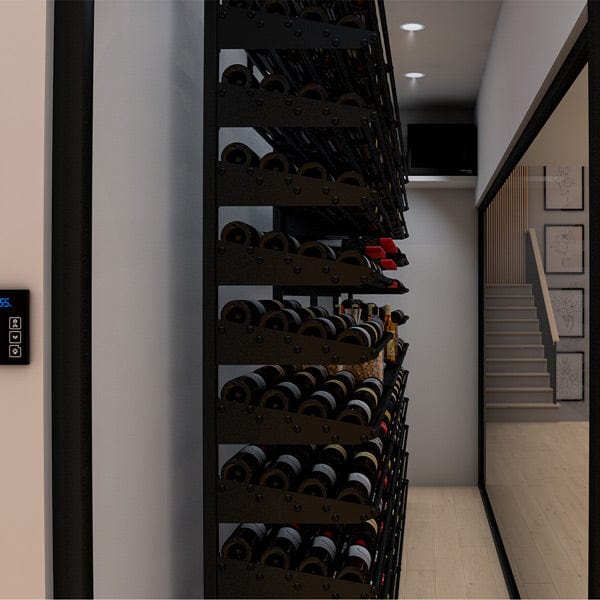

Advanced Digital Touch Display

• 50-ft cable
• Built-in system protection alarms
• Monitors operating parameters

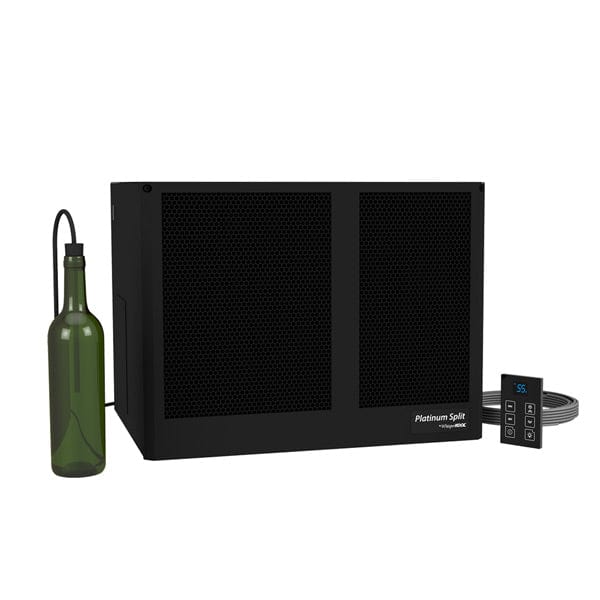

Liquid Temperature Bottle Probe

• Measures the temperature of the wine liquid rather than just ambient air, improving temperature accuracy and protecting long-term aging.

220V High-Efficiency Condenser

• Designed for improved electrical performance in larger residential applications.

Two-Speed Fan Control

• Allows adjustment of cooling output based on environmental demand.

Optional 24V Thermostat Conversion Kit

• Allows integration with customer-supplied smart thermostats
• Enables remote monitoring and alerts
• Replaces the standard WhisperKOOL controller and bottle probe
• WhisperKOOL does not supply smart thermostats

Noise Level

• 42–46 dBA depending on fan speed
  Quiet enough for residential installations when properly mounted.

Refrigerant

• R-134a

Dimensions & Weight

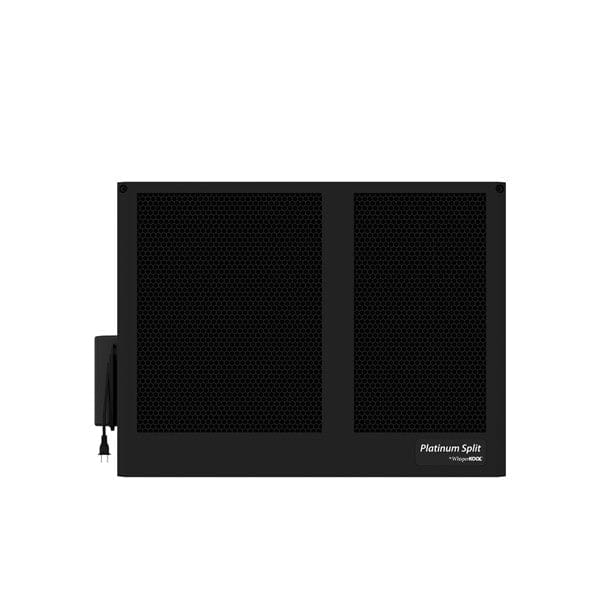

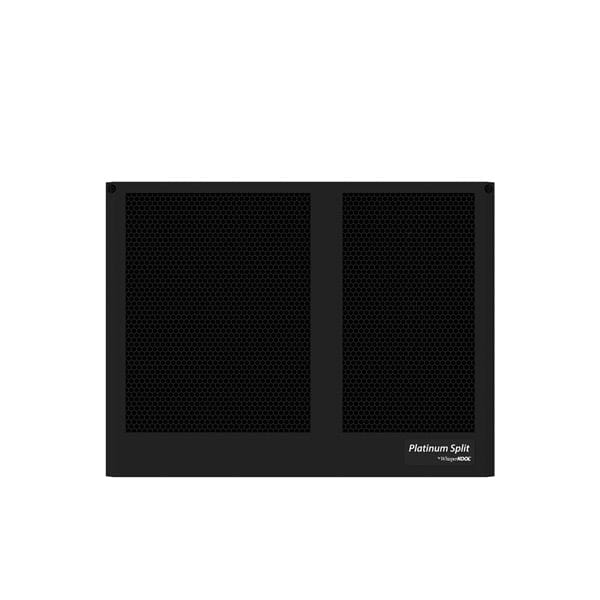

Evaporator

• 22.1” L x 22.5” W x 15.5” H
• Weight: 56 lbs

Condenser

• 21.18” L x 10.75” W x 21.18” H

Manuals for WhisperKOOL Platinum Split 8000 Ductless:

• Owner Manual for WhisperKOOL Platinum Split 8000 Ductless Cooling System 220V High Efficiency
• H.E. Owner Manual for WhisperKOOL Platinum Split 8000 Ductless Cooling System 220V High Efficiency
• 220V High-Efficiency Product Sheets for WhisperKOOL Platinum Split 8000 Ductless Cooling System 220V High Efficiency
• High Efficiency 220 Warranty Registration for WhisperKOOL Platinum Split 8000 Ductless Cooling System 220V High Efficiency

Optional Accessories

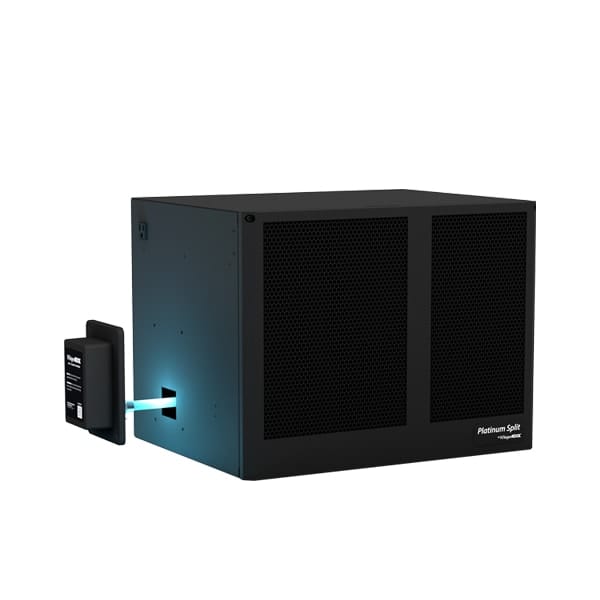

UV-C Light Technology

• Helps reduce mold and microbial buildup inside the system.
  (Not available for Mini models.)

Exterior Protective Housing

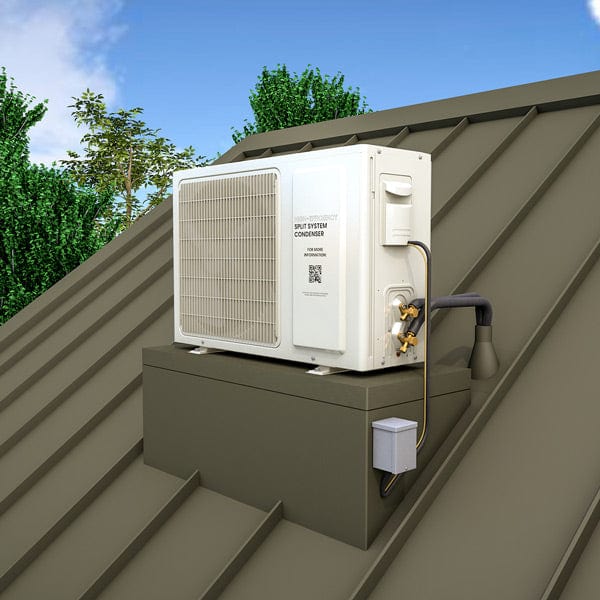

Recommended for outdoor condenser installations.

• Galvanized steel base
• 20 GA steel cabinet
• Hinged access
• Rain trough protection

Condenser Coil Coating

• Recommended for coastal or salt-air environments to reduce corrosion risk.

Warranty

• Two-Year Limited Warranty (Parts and Labor)
• Professional installation required

Professional Sizing Assistance Available

Choosing the correct cooling system is critical to protecting your wine collection. If you are unsure whether the Platinum Split 8000 is appropriate for your project, our cooling specialists can review your cellar specifications and assist with proper sizing.
