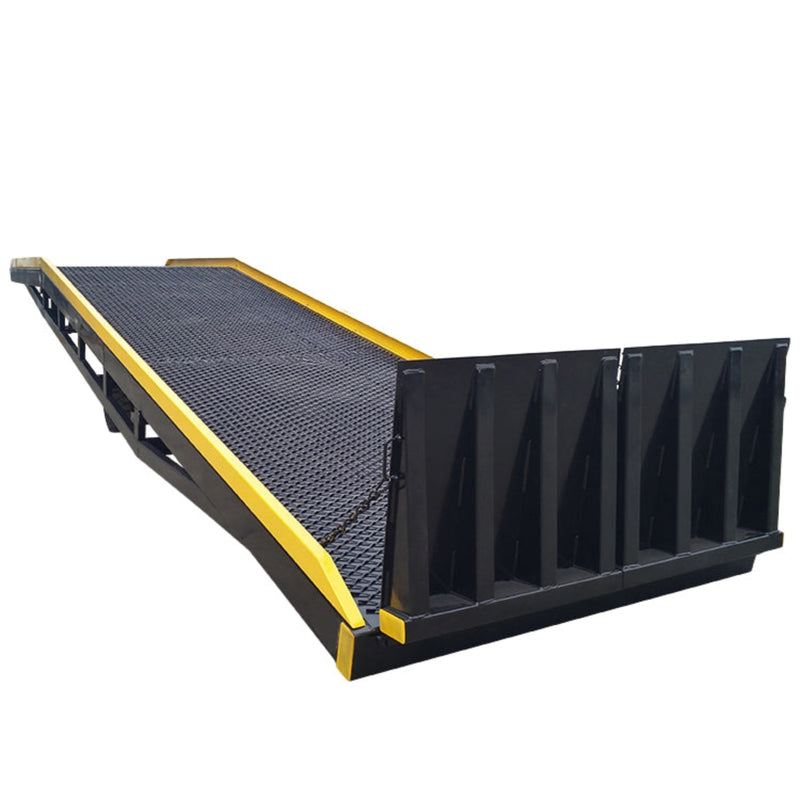

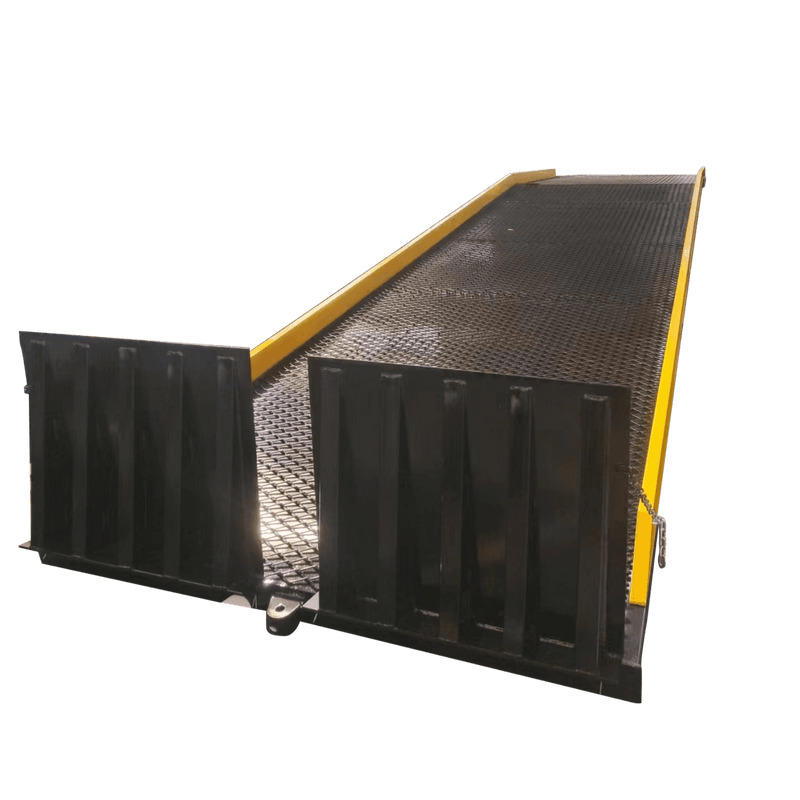

Chery Industrial 18,000 lb. Capacity Portable Loading Dock Ramps Yard Ramp
The Chery Industrial 18,000 lb. Capacity Portable Loading Dock Ramps Yard Ramp is a reliable solution for efficient loading and unloading when dock space is limited or unavailable. Built from heavy-duty steel, it supports up to 18,000 lbs, providing a strong, stable surface for forklifts and other heavy equipment to move safely between ground level and trailers, trucks, or rail cars.

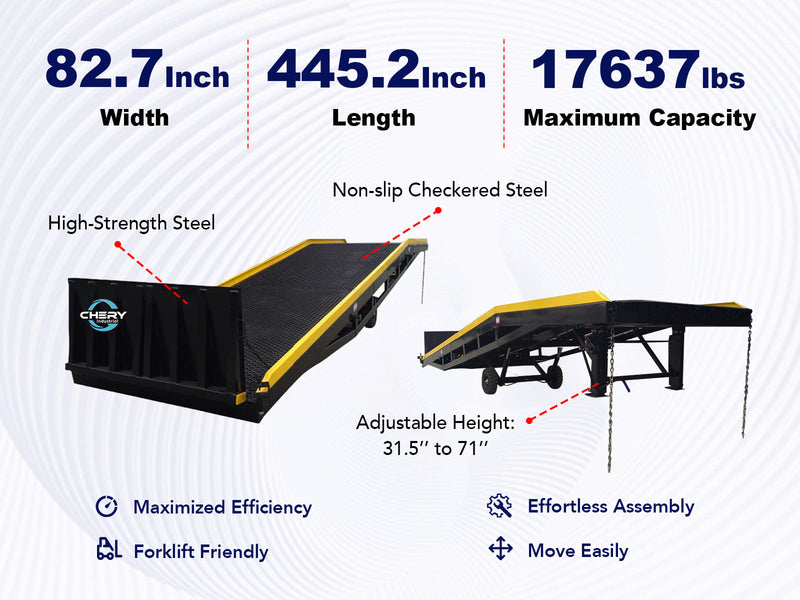

With a length of 37.1 feet and a width of 6.9 feet, this ramp offers ample space for maneuvering while ensuring safety with side rails on both sides to prevent accidental drive-offs. For added security, two safety chains attach directly to the ICC bumper of a semi-truck trailer, keeping the ramp firmly in place and eliminating the risk of kick-outs during use.
Perfect for warehouses, construction sites, and industrial operations, this yard ramp combines strength, safety, and convenience to streamline your material handling process and keep operations running smoothly.
Features
-
Adjustable Height – Seamlessly adapts from 43.3" to 71" (110–180 cm) to match a wide range of truck and dock heights.
-
Heavy-Duty Capacity – Built to support up to 17,637 lbs (8,000 kg), ensuring robust stability for forklifts and heavy loads.
-

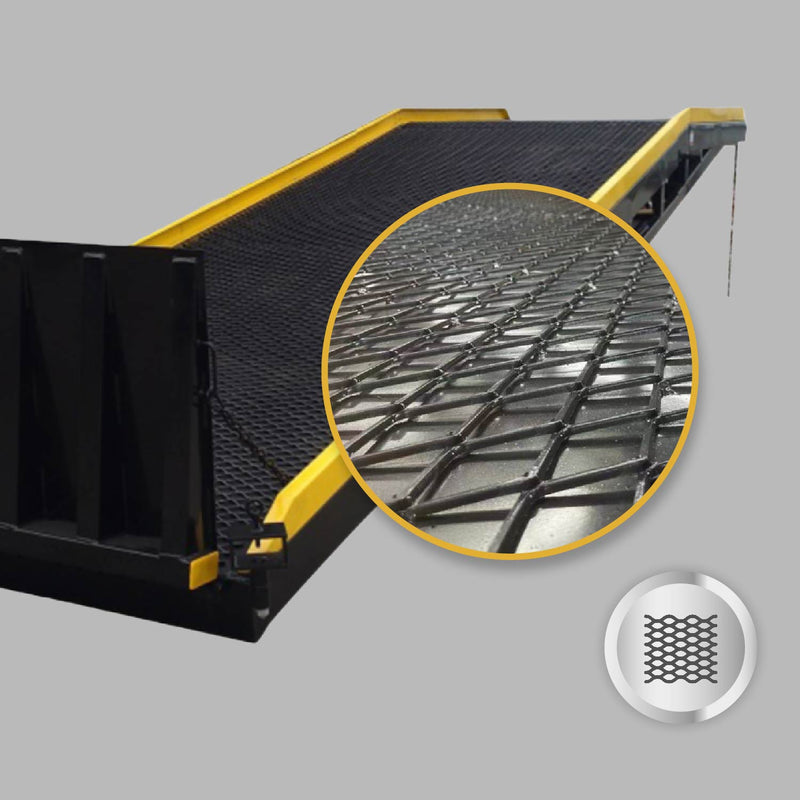

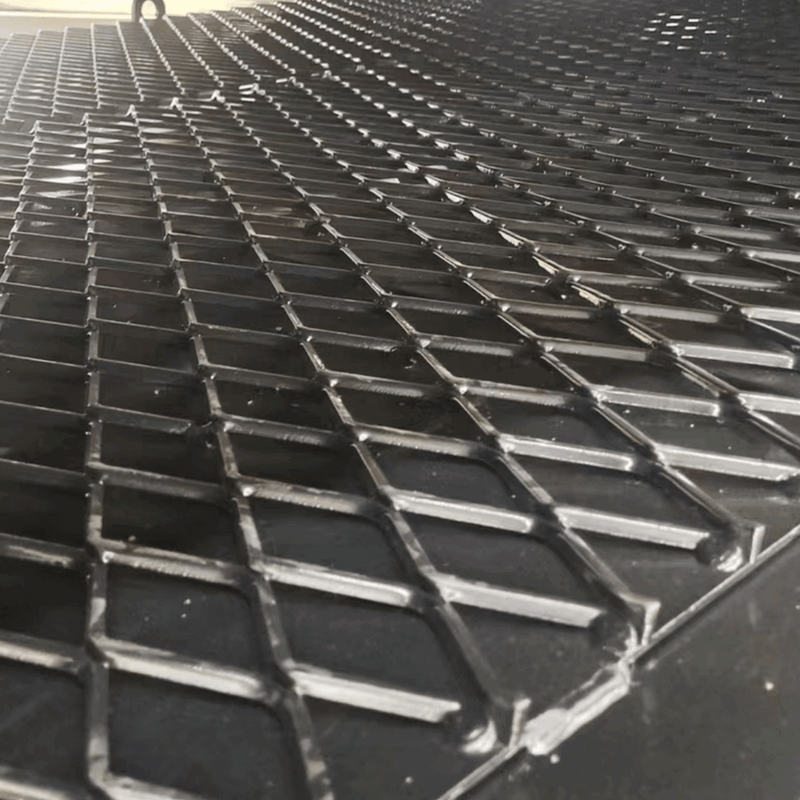

Non-Slip Surface – Checkered steel deck provides superior traction, reducing the risk of slips and accidents during loading and unloading.
-

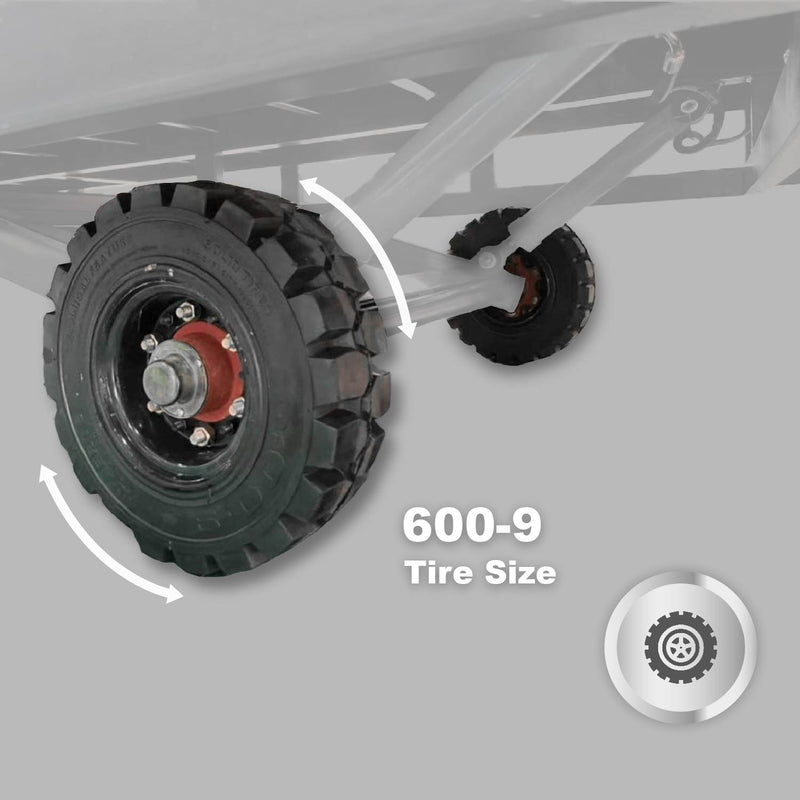

Easy Mobility – Outfitted with durable 600-9 solid tires, allowing for effortless positioning and stable support without the need for maintenance.

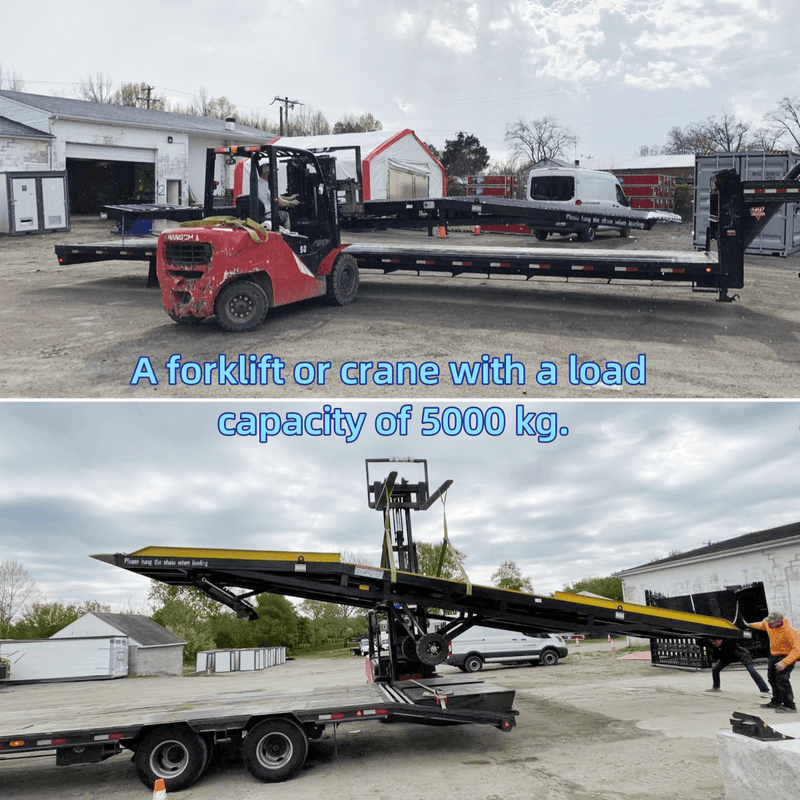

Necessary for unloading: A forklift or crane with a load capacity of 5000 kg.

Specifications
Material |
Steel |

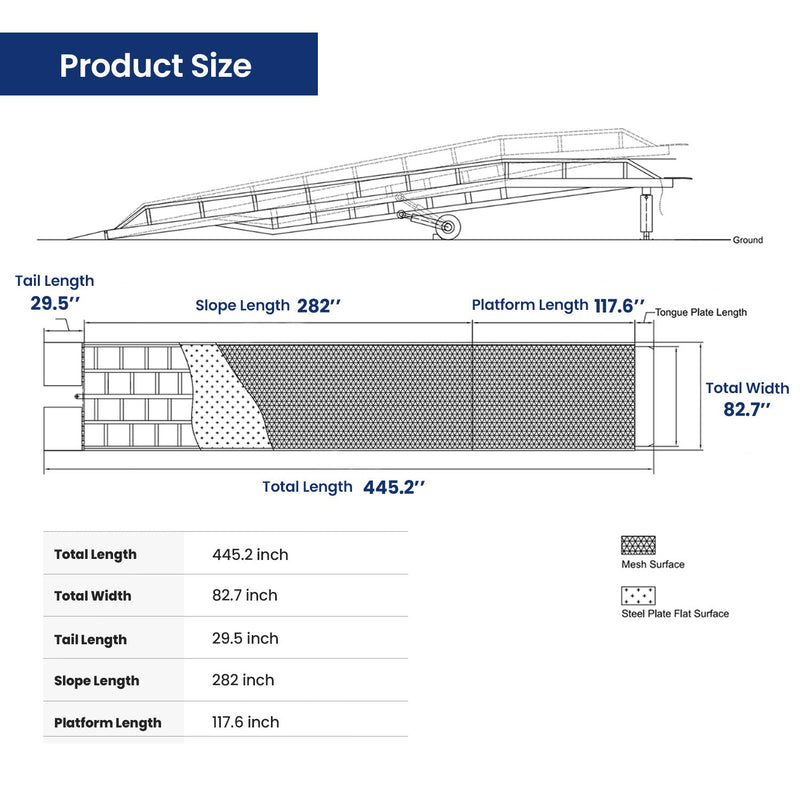

Length |
37.1' |
Width |
82.7" |
Minimum Height |
43.3" |
Maximum Height |
71" |
Weight |
5,292 lbs |
Maximum Capacity |
17,637 lbs |
Slope Length |
281.5" |
Platform Length |
118.1" |
Tail Plate Length |
29.5" |
Tip Plate Length |
15.7" |
Steel Plate Thickness |
3 mm |
Steel Mesh Thickness |
8 mm |
Lip Thickness |
14 mm |
Power |
AC(380V/220V/110V) |
Main Beam |
160x80x4mm rectangular pipe, 5 main beams. |
Vice Beam |
100x50x4mm |
Lift Type |
Dual Cylinder Hydraulic |

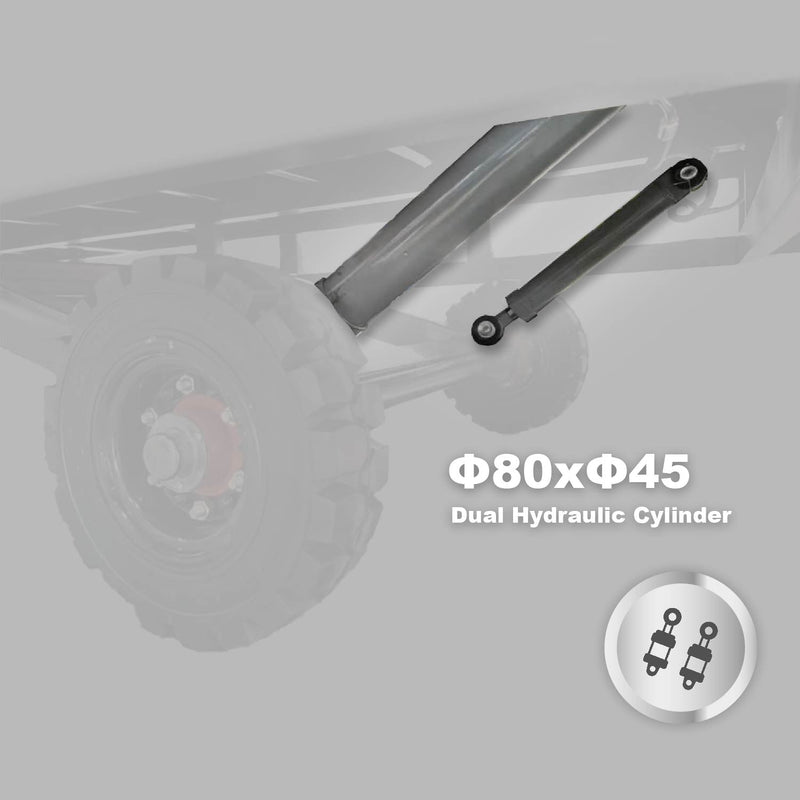

Hydraulic Cylinder |
Φ80xΦ45(2 pcs) |
Hydraulic Oil Pipe |
32Pma |
Solid Tire Size |
600-9 |

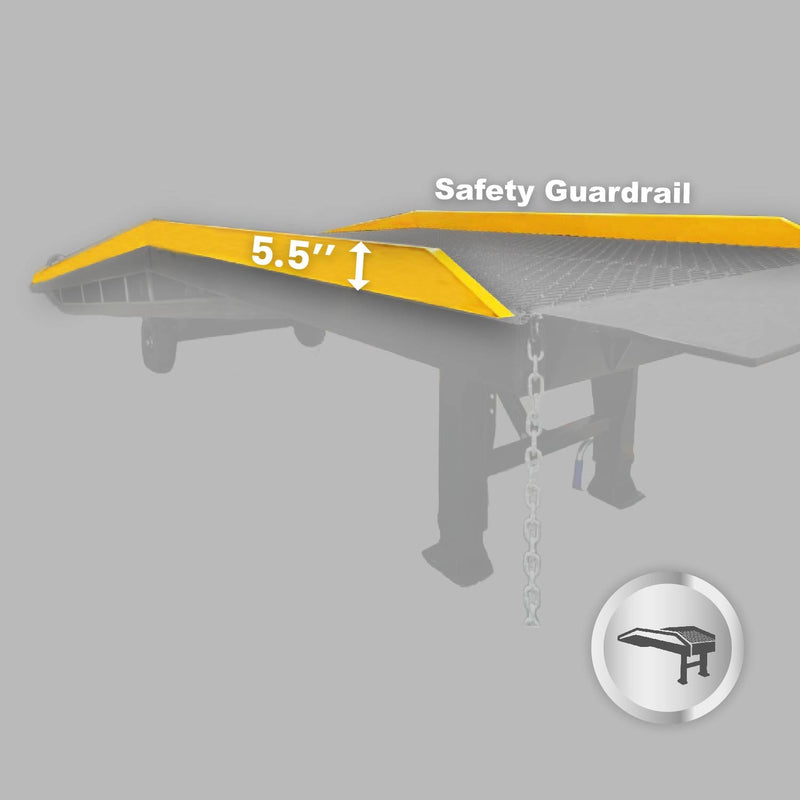

Guard Rail Height |
5.5" |

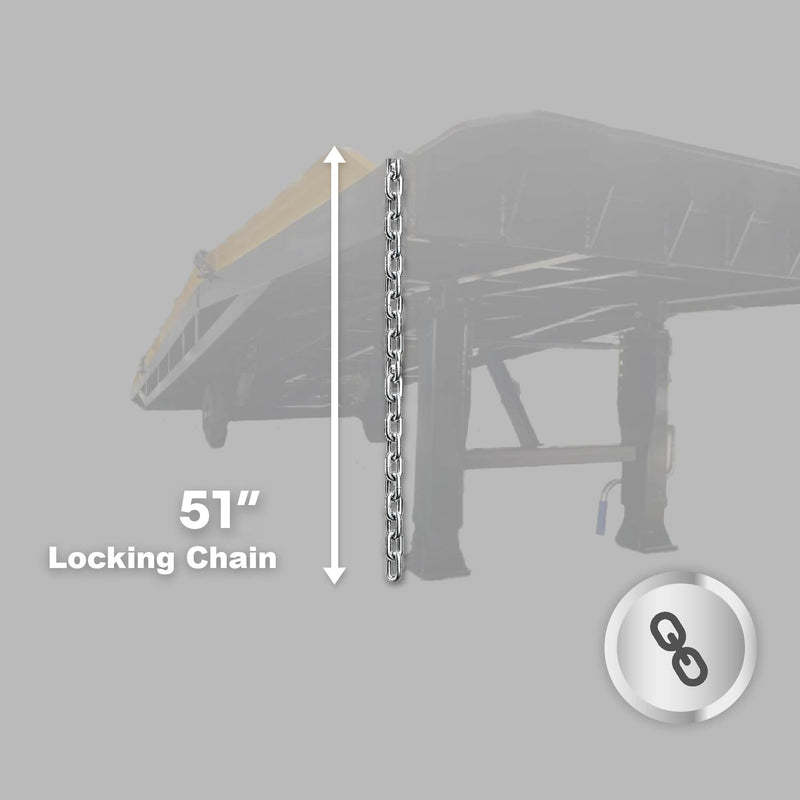

Safety Chains |
51" |
Package Size
- LxWxH (inch): 439x83x20
- Weight (lb): 5296(Manual Pump), 5516(Electric Pump)
- A forklift or equivalent is required for unloading.
