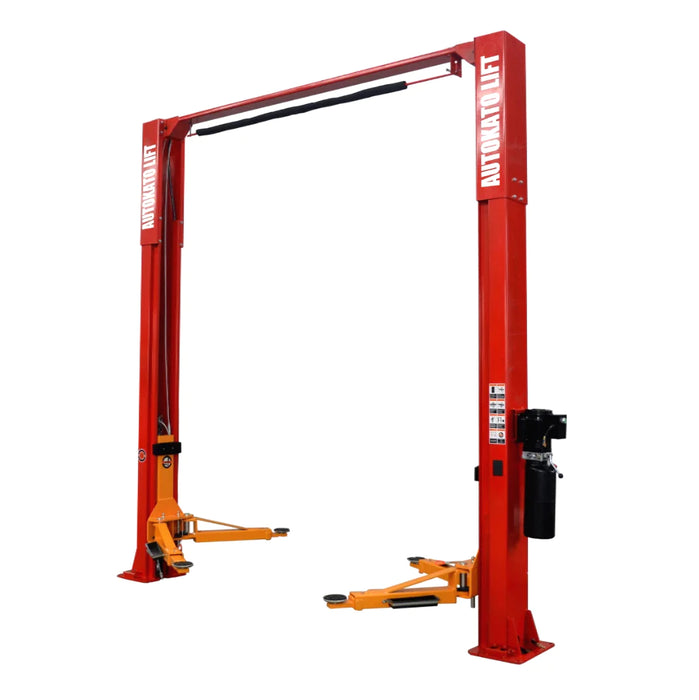

Katool Two Post Clear-floor Vehicle Lift 12000lbs KT-M120
The Katool Two Post Clear-floor Vehicle Lift 12000lbs KT-M120 is a heavy-duty, professional-grade lift designed for automotive shops, service centers, and well-equipped garages needing high load capacity and clear-floor workspace. It supports a lifting capacity of 12,000 lbs (5,500 kg), making it suitable for a wide variety of vehicles — including standard cars, heavy SUVs, and light trucks. The lift meets strict safety standards, having passed dynamic load testing at 115% and static load testing at 150%, which ensures reliable strength and safe operation under heavy loads.

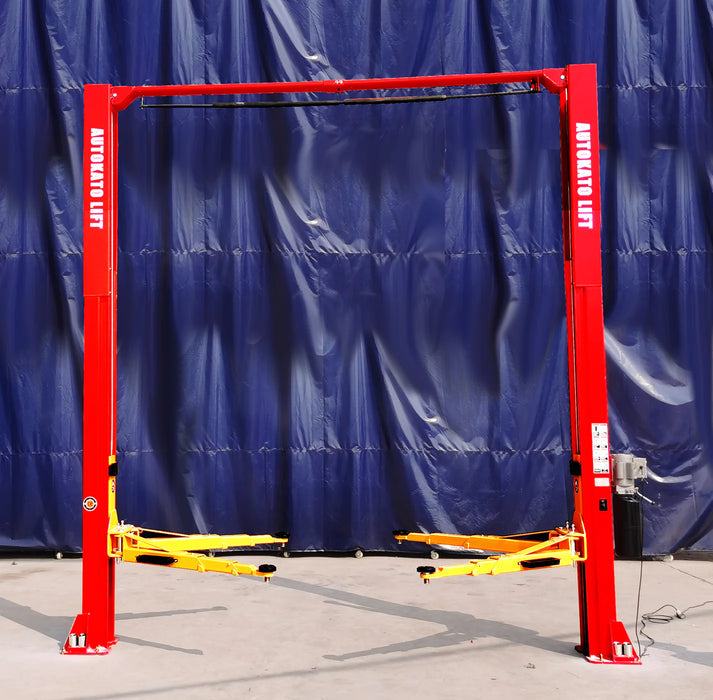

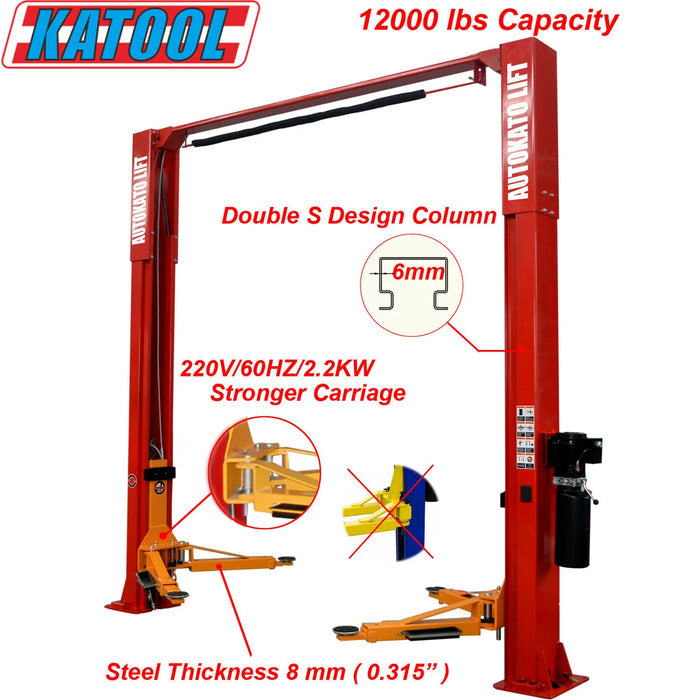

This model features a symmetric twin-post design with clear-floor construction and dual hydraulic chain-drive cylinders, providing smooth, balanced, and stable lifting. Manual safety release controls are accessible from both columns, giving operators precise control during lowering. The lift includes safety features such as rubber-pad door protection, an overhead safety shutoff bar, feet-protection guardrails, and an integrated toolbox. It also comes with extended support adapter sets (+30 mm and +120 mm) to accommodate vehicles with varying frame heights and lift points.
The KT-M120 offers a maximum lift height of approximately 70.75 inches (1800 mm) and a minimum pad height of around 4.25 inches (110 mm), making it compatible with both standard-height and low-profile vehicles. Its overall dimensions and generous inside column spacing provide sufficient working and drive-through space, which is especially useful for maintenance, undercarriage work, and general automotive repairs.
Overall, the Katool KT-M120 delivers powerful lifting capacity, robust construction, comprehensive safety features, and flexible support configurations — making it a solid choice for professional vehicle maintenance, repair shops, or garages seeking a dependable, heavy-duty lift system.
Effortless Lifting: The Katool KT-M120 2-Post Car Lift (12,000 lbs)
Safe & Strong Lifting:
-
12,000 lb Capacity: Handles heavy-duty vehicles with ease.
-
CE Certified & Exceeds Standards: Meets 115% dynamic and 150% static load capacity for peace of mind.
-
Dual Release & Secure Arms: Ensures controlled lifting from both sides.
-
Double Hydraulic Power: Delivers efficient operation.
Enhanced Safety & Convenience:
-
Rubber Pad Protection: Guards doors from damage during lifting.
-
Adjustable Arm Extensions: Accommodates various vehicle widths (+30mm & +120mm).
-
Overhead Safety Shutoff: Provides an extra layer of protection.
-
Foot Guards with Toolbox: Integrates safety with convenience.
-
Flexible Power Options: 220V or 110V operation (optional).

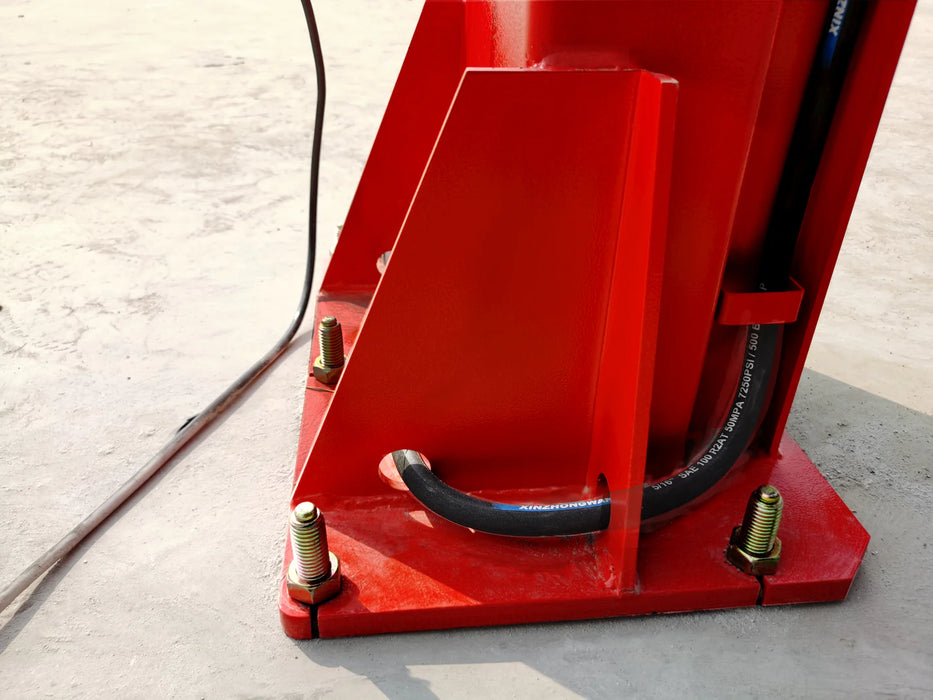

Important Note: Requires proper concrete installation (consult a professional).
Features
-
12,000 lbs Lifting Capacity: Handles trucks, vans, and most heavy-duty vehicles.
-
CE Certified & Exceeds Standards: Meets 115% dynamic and 150% static load capacity for superior safety.
-
Manual Safety Release from Two Sides: Allows for easy operation and control from either side.
-

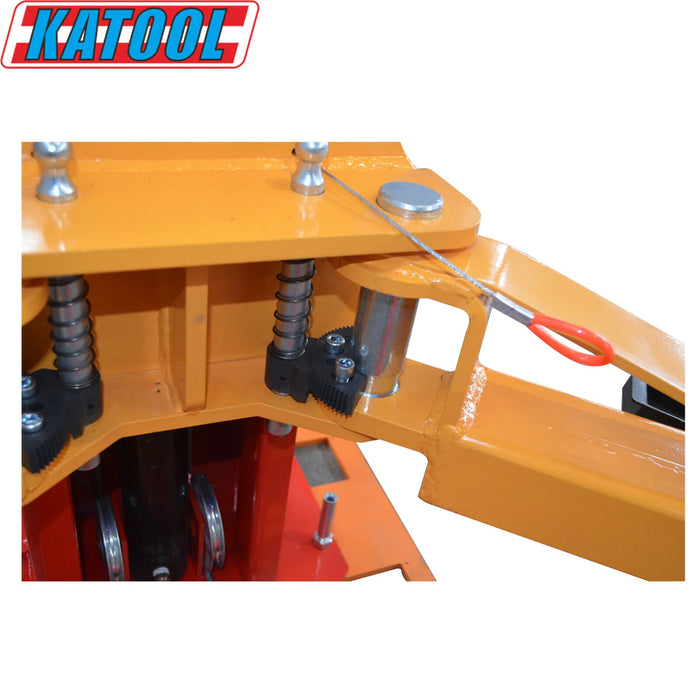

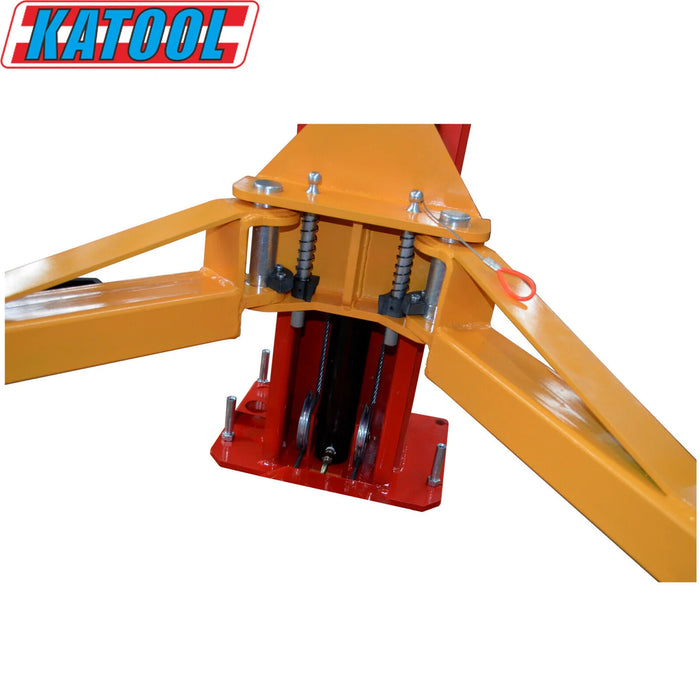

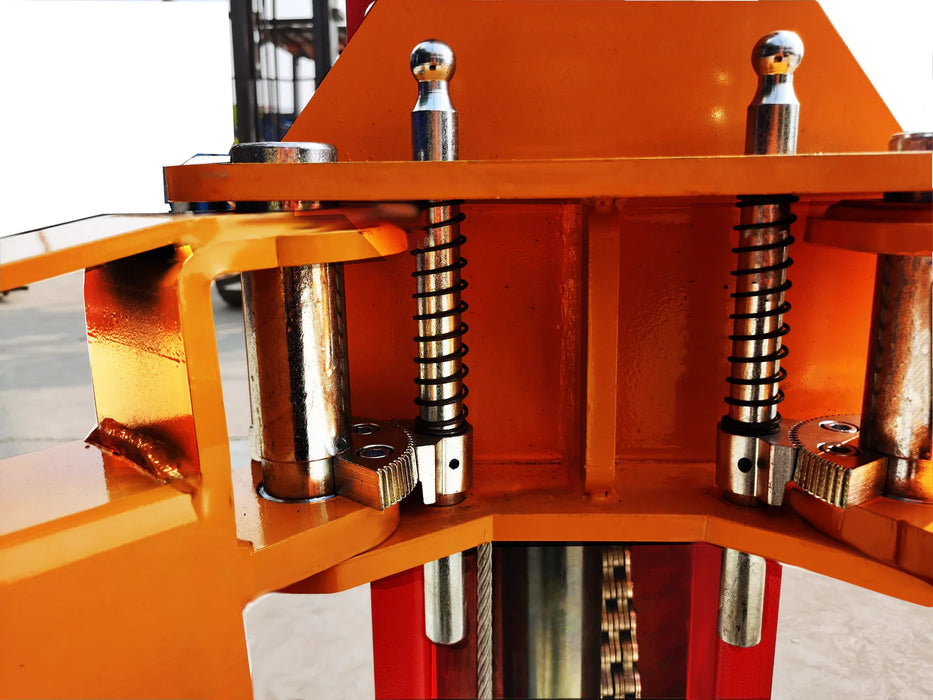

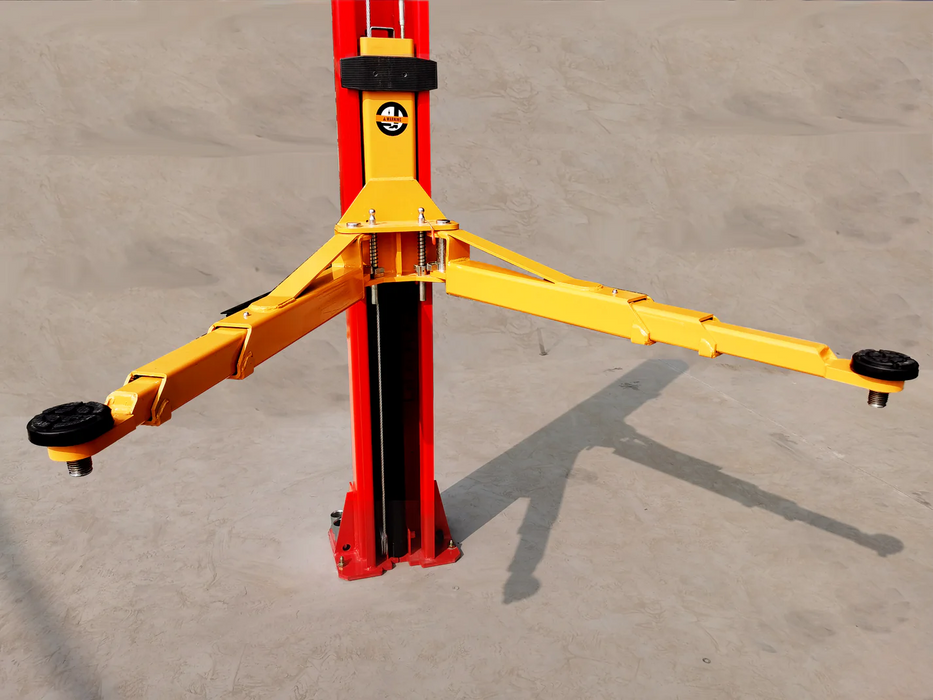

Symmetric Arms: Ensures balanced and secure lifting.
-

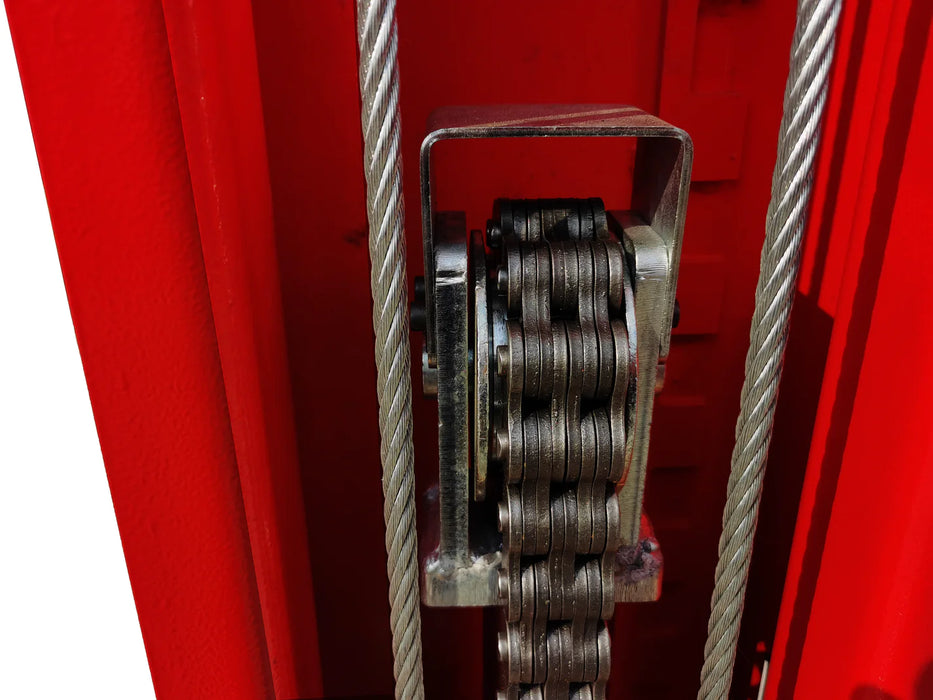

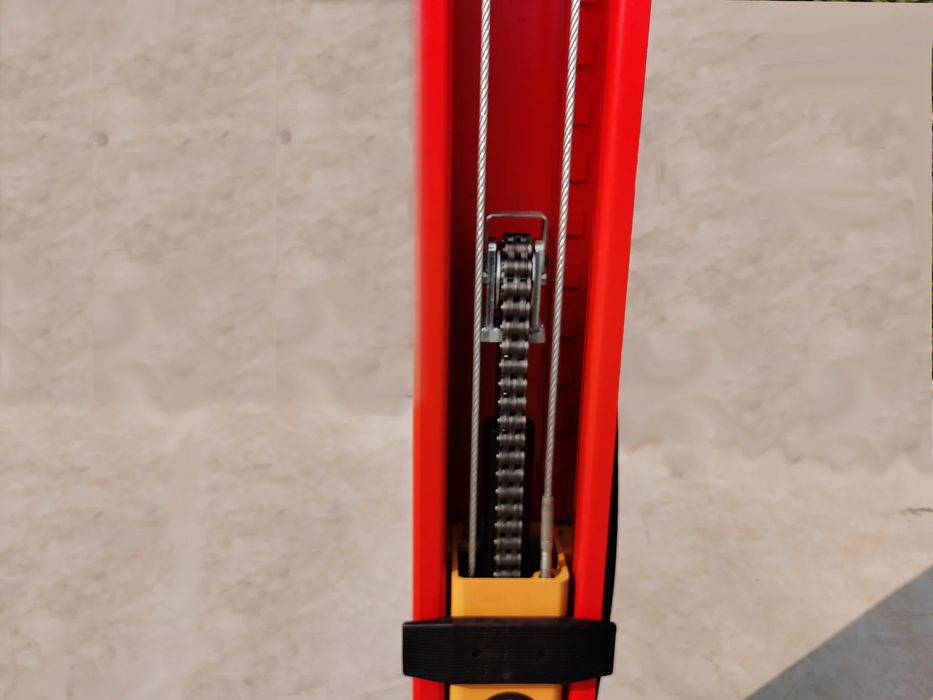

Dual Hydraulic Chain-Drive Cylinders: Provides powerful and efficient lifting performance.
-

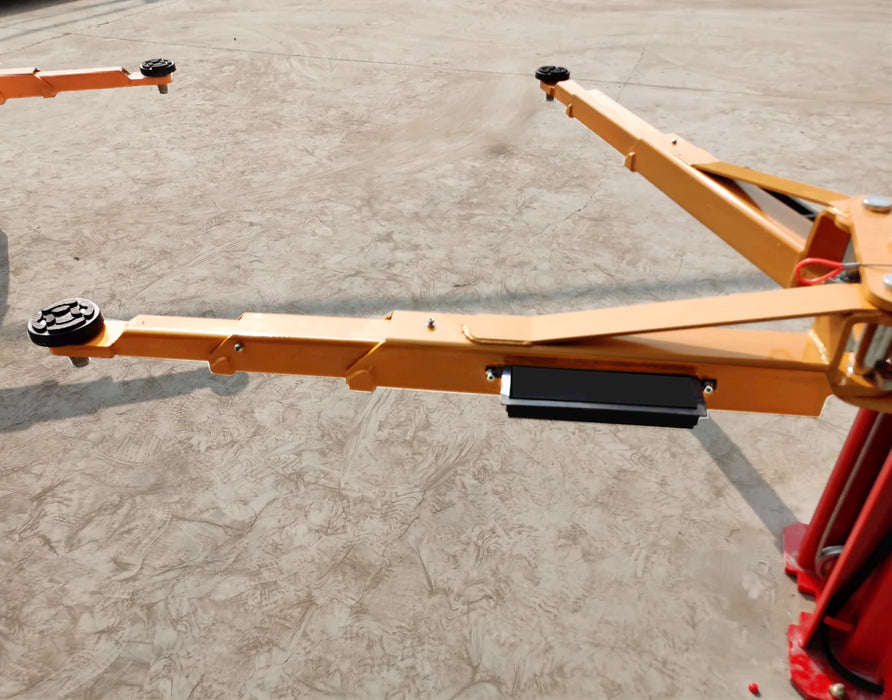

Rubber Pad Door Opening Protection: Prevents damage to doors during vehicle entry/exit.
-
Extended Support Adaptor Sets (+30mm & +120mm): Offers versatility for vehicles of varying widths.
-
Overhead Safety Shutoff Bar: Stops operation upon accidental contact.
-
Feet-Protection Safety Guardrails with Tools Box: Integrates safety with convenient storage space.
-
High-Quality Hydraulic System (220V or 110V): Delivers reliable power with optional voltage configurations.
12 Months All Parts Warranty

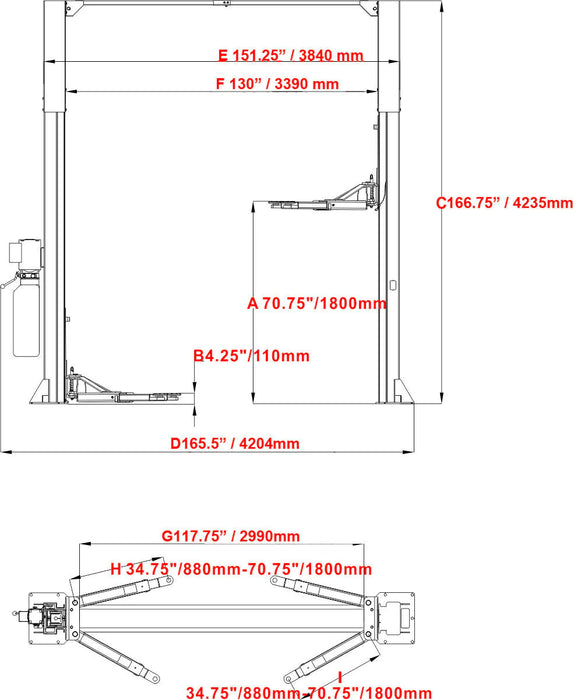

Specifications
-
Lifting Capacity: 12,000 lbs (5,500 kg)
-
Max Lifting Height: 70.75 in (1,800 mm)
-
Min Height: 4.25 in (110 mm)
-
Overall Height: 166.75 in (4,235 mm)
-
Overall Width: 165.5 in (4,204 mm)
-
Outside Columns: 151.25 in (3,840 mm)
-
Inside Columns: 130 in (3,390 mm)
-
Drive Thru Clearance: 117.75 in (2,990 mm)
-
Motor: 220VAC/60HZ/1PH (Optional: 110V)
-
Net Weight: 1,653 lbs (750 kg)
Understanding Two-Post Lift Weight Capacities
Two-post lifts are essential in automotive shops, but selecting the appropriate lift with the correct weight capacity is crucial for safety and equipment longevity.
Typical Weight Capacities
Two-post lifts generally have weight capacities ranging from 7,000 to 20,000 pounds, accommodating various vehicles from light-duty cars to heavy-duty trucks. It's important to note that each lift arm also has its own weight limit. For instance, a lift with a 10,000-pound total capacity may have each arm rated for 2,500 pounds. Therefore, if a vehicle's weight distribution exceeds this per-arm limit, the lift may not be suitable.
Calculating Required Lift Capacity
To determine the appropriate lift capacity:
-
Calculate Rear Axle Weight: Multiply the vehicle's total weight by the distance from the center of gravity to the front axle, then divide by the wheelbase.
-
Calculate Front Axle Weight: Subtract the rear axle weight from the total vehicle weight.
-
Determine Arm Capacity: Divide each axle's weight by two to find the load per arm.
For example, if a vehicle weighs 9,000 pounds with a 3,000-pound front axle and a 6,000-pound rear axle, each arm would need to support 3,000 pounds. In this case, a 10,000-pound lift with 2,500-pound arms would be insufficient.Opting for a 12,000-pound lift would be safer.
Importance of Choosing a Lift with Adequate Capacity
Selecting a lift with a capacity that exceeds the vehicle's weight requirements is advisable. This accounts for variables like vehicle modifications, additional equipment, or unexpected weight distributions. Many manufacturers recommend not exceeding 75% of a lift's rated capacity to maintain safety margins.
Safe Operating Practices
-
Adhere to Weight Limits: Never exceed the lift's total or per-arm weight capacities.
-
Proper Vehicle Positioning: Ensure the vehicle is centered and balanced on the lift to distribute weight evenly.
-
Regular Maintenance: Follow the manufacturer's maintenance schedule and conduct routine inspections to identify potential issues.
By understanding and respecting the weight capacities and operational guidelines of two-post lifts, automotive shops can ensure safer working conditions and prolong the lifespan of their equipment.
