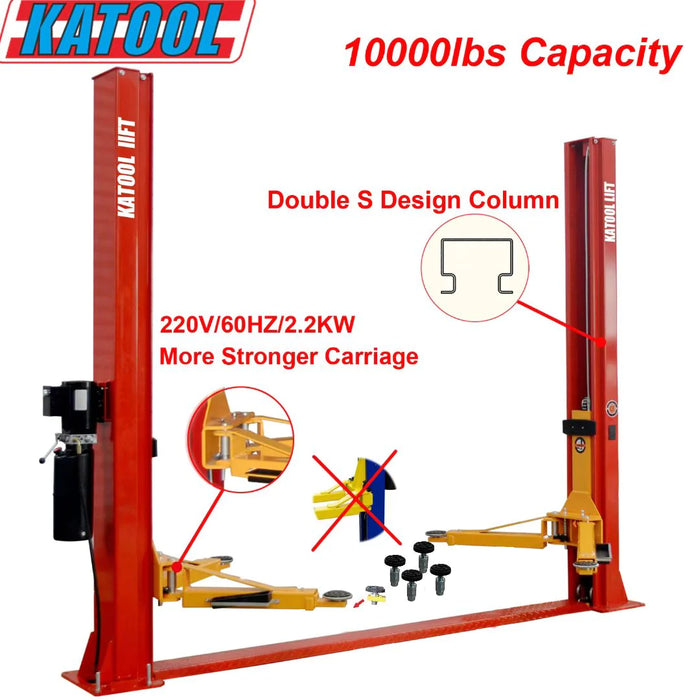

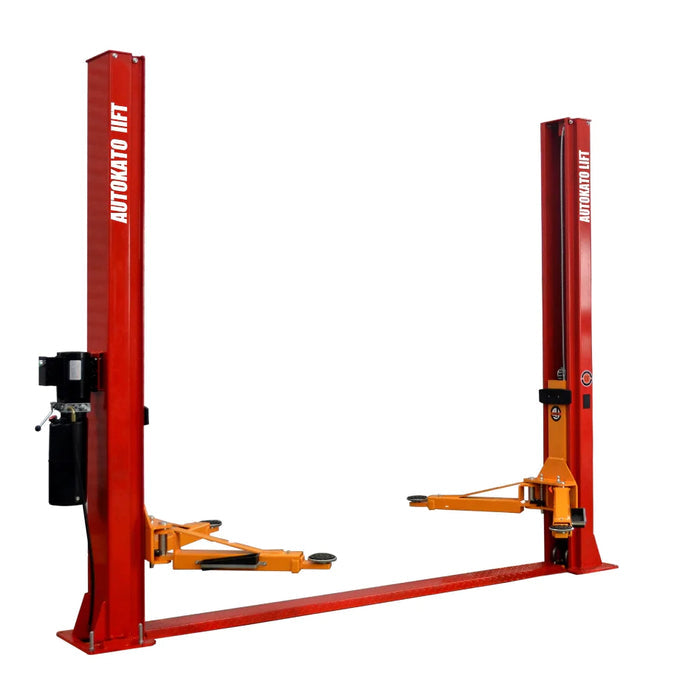

Katool Two Post Vehicle Lift 10000lbs KT-H100

Katool Two Post Vehicle Lift 10000lbs KT-H100

The Katool Two Post Vehicle Lift 10000lbs KT-H100 is a heavy-duty automotive lift designed for professional workshops and advanced home garages. It has a lifting capacity of 10,000 lbs (4,500 kg), making it suitable for a wide range of passenger cars, SUVs, and light trucks. The lift is CE approved and has passed strict dynamic and static load testing, including 115% dynamic load and 150% static load evaluations, ensuring reliable performance and safety during operation.

This model features a stable base-plate design paired with symmetric lift arms for balanced lifting support. It uses dual hydraulic chain-drive cylinders that provide smooth, consistent lifting action. The system includes manual safety release controls accessible from both sides of the lift, adding reliability and convenience for the operator. Additional safety components include rubber pad door protection to prevent vehicle door damage and feet-protection guardrails that also incorporate a built-in toolbox for improved organization.

With a maximum lifting height of approximately 70.75 inches (1800 mm) and a low minimum pad height of around 4.25 inches (110 mm), the KT-H100 can accommodate both standard and low-profile vehicles. Its overall width is about 142.25 inches (3614 mm), providing generous working space between the columns. The reach arms extend from roughly 30.75 inches (780 mm) to 50.5 inches (1280 mm), allowing compatibility with various vehicle sizes and wheelbases. The unit has a net weight of about 570 kg (1256 lbs), reflecting its durable and professional-grade build quality.

Overall, the Katool KT-H100 offers strong lifting performance, dependable safety features, and adaptable design, making it an excellent choice for workshops seeking a reliable and efficient two-post lift for daily automotive service operations.

Boost Your Shop's Efficiency with the Katool KT-H100 Two Post Vehicle Lift!

The Katool KT-H100 offers a robust 10,000lbs lifting capacity, ideal for various vehicles in your auto repair shop. This CE-approved lift prioritizes safety with features like dual safety releases, a secure base plate design, and protective guardrails.

• Powerful Lifting: 10,000lbs capacity tackles a wide range of vehicles.
• Safety First: CE-certified, undergoes rigorous testing, and includes multiple safety features like dual releases and guardrails.
• Versatile Functionality: Adjustable arm extensions and various height settings accommodate diverse vehicles.
• Hydraulic Efficiency: Dual chain-drive cylinders ensure smooth and secure lifting.
• Durable Design: Symmetric arm design and a reliable base plate provide long-lasting performance.
• Convenient Operation: Optional voltage configurations (220V/60HZ/1PH or 110V/60HZ/1PH) for flexible installation.

Invest in a Safe and Efficient Lifting Solution! Order your Katool H100 Today!

Important Note: Ensure proper concrete thickness (minimum 5.9 inches with 3000 PSI rating) before installation for optimal safety.

Features

• 10,000lbs Lifting Capacity: Handles a wide range of vehicles for workshop versatility.
• CE-Certified with Safety Features: Dual safety releases, secure base plate design, and protective guardrails prioritize user safety.
• Adjustable Arm Extensions (+30mm & +120mm): Accommodates various vehicle types for wider applicability.
• Multiple Height Settings: Offers flexibility for diverse lifting tasks.
• Dual Hydraulic Chain-Drive Cylinders: Ensures smooth and efficient lifting operations.
• Symmetric Arm Design & Reliable Base Plate: Provides long-lasting durability.
• Optional Voltage Configurations (220V/60HZ/1PH or 110V/60HZ/1PH): Offers installation flexibility for your shop's electrical setup.
• Tools Box Included: Provides convenient storage for essential tools.


12 Months All Parts Warranty

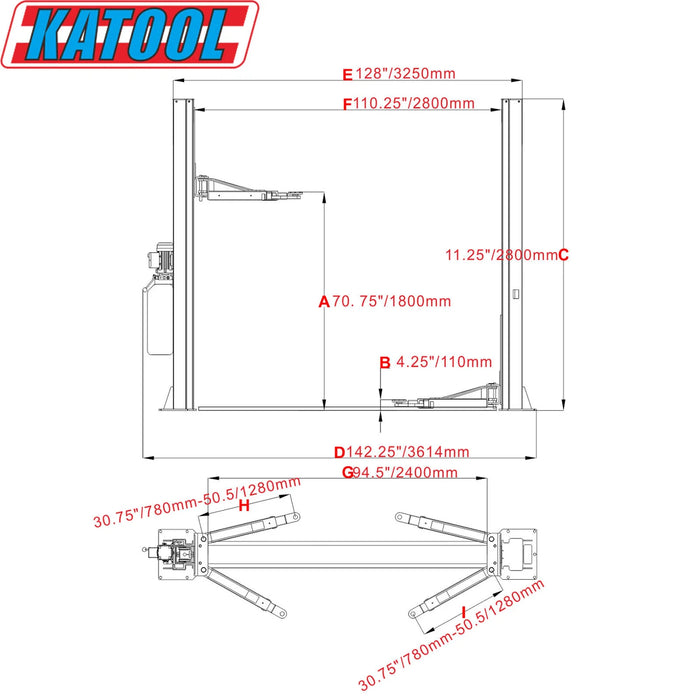

Specifications

• Lifting Capacity: 10,000lbs / 4500kg
• Max. Lifting Height: 70.75" / 1800mm
• Min. Height: 4.25" / 110mm
• Overall Height: 110.25" / 2800mm
• Overall Width: 142.25" / 3614mm
• Outside Column Height: 128" / 3250mm
• Inside Column Height: 110.25" / 2800mm
• Drive-Thru Clearance: 94.5" / 2400mm
• Front Arm Reach (Min): 30.75" / 780mm (2 stages)
• Front Arm Reach (Max): 50.5" / 1280mm (2 stages)
• Rear Arm Reach (Min): 30.75" / 780mm (2 stages)
• Rear Arm Reach (Max): 50.5" / 1280mm (2 stages)
• Motor: 220VAC/60HZ/1PH/2.2KW


Understanding Two-Post Lift Weight Capacities

Two-post lifts are essential in automotive shops, but selecting the appropriate lift with the correct weight capacity is crucial for safety and equipment longevity.

Typical Weight Capacities

Two-post lifts generally have weight capacities ranging from 7,000 to 20,000 pounds, accommodating various vehicles from light-duty cars to heavy-duty trucks. It's important to note that each lift arm also has its own weight limit. For instance, a lift with a 10,000-pound total capacity may have each arm rated for 2,500 pounds. Therefore, if a vehicle's weight distribution exceeds this per-arm limit, the lift may not be suitable.

Calculating Required Lift Capacity

To determine the appropriate lift capacity:

1. Calculate Rear Axle Weight: Multiply the vehicle's total weight by the distance from the center of gravity to the front axle, then divide by the wheelbase.

2. Calculate Front Axle Weight: Subtract the rear axle weight from the total vehicle weight.

3. Determine Arm Capacity: Divide each axle's weight by two to find the load per arm.

For example, if a vehicle weighs 9,000 pounds with a 3,000-pound front axle and a 6,000-pound rear axle, each arm would need to support 3,000 pounds. In this case, a 10,000-pound lift with 2,500-pound arms would be insufficient. Opting for a 12,000-pound lift would be safer.

Importance of Choosing a Lift with Adequate Capacity

Selecting a lift with a capacity that exceeds the vehicle's weight requirements is advisable. This accounts for variables like vehicle modifications, additional equipment, or unexpected weight distributions. Many manufacturers recommend not exceeding 75% of a lift's rated capacity to maintain safety margins.

Safe Operating Practices

• Adhere to Weight Limits: Never exceed the lift's total or per-arm weight capacities.

• Proper Vehicle Positioning: Ensure the vehicle is centered and balanced on the lift to distribute weight evenly.

• Regular Maintenance: Follow the manufacturer's maintenance schedule and conduct routine inspections to identify potential issues.

By understanding and respecting the weight capacities and operational guidelines of two-post lifts, automotive shops can ensure safer working conditions and prolong the lifespan of their equipment.
