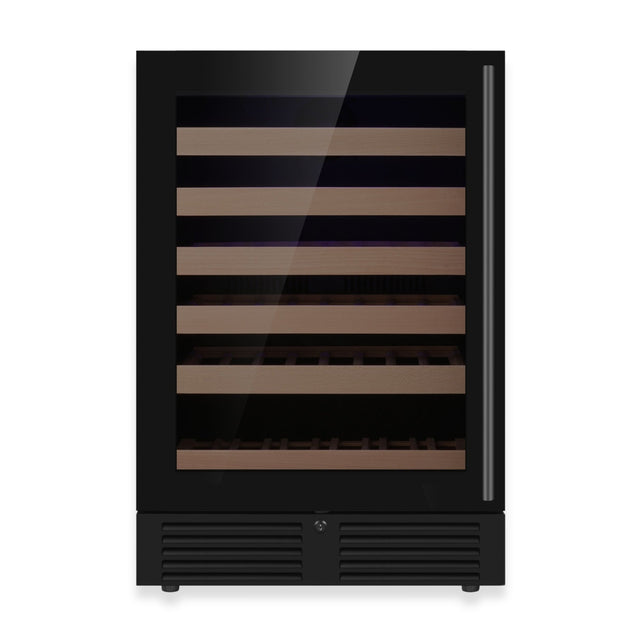

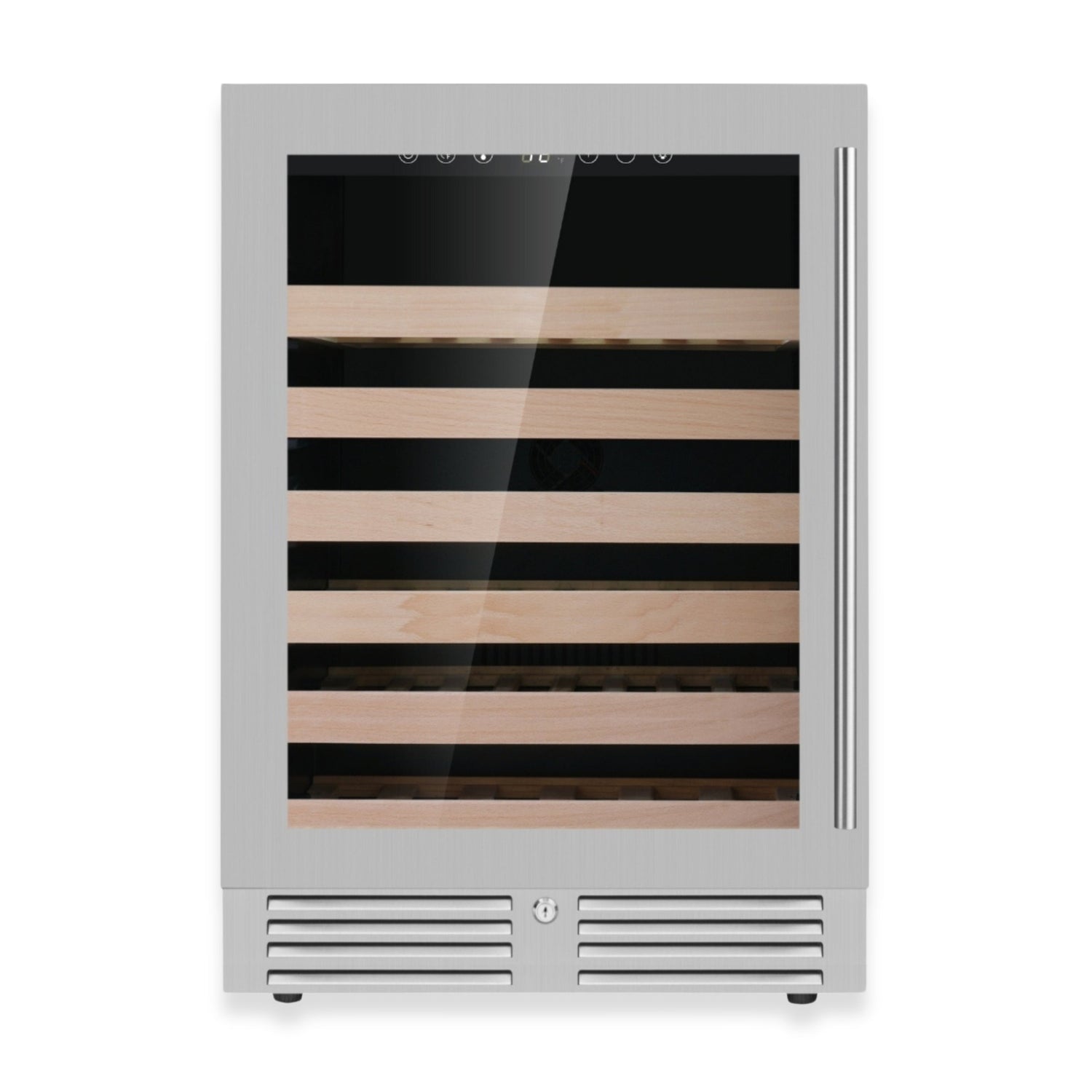

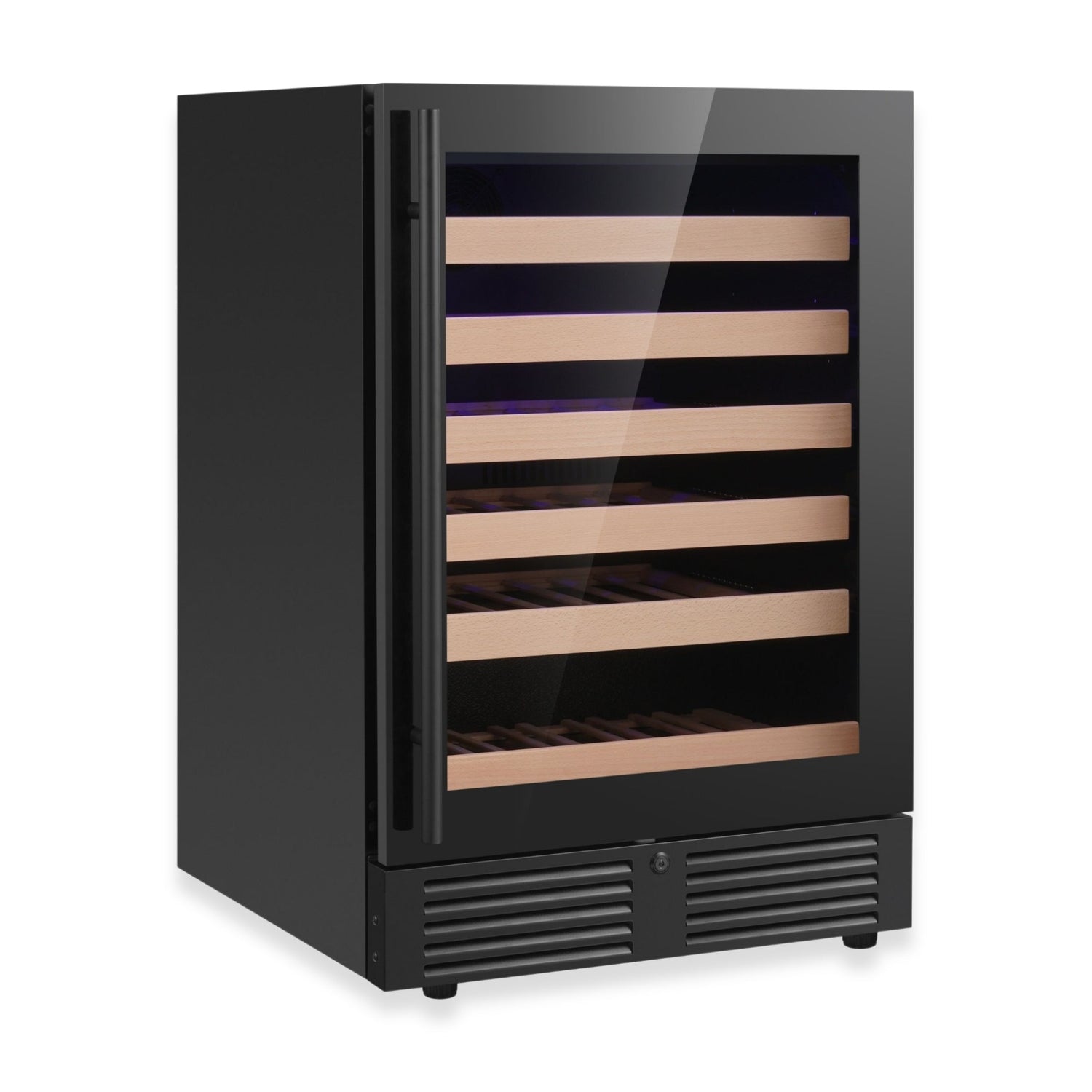

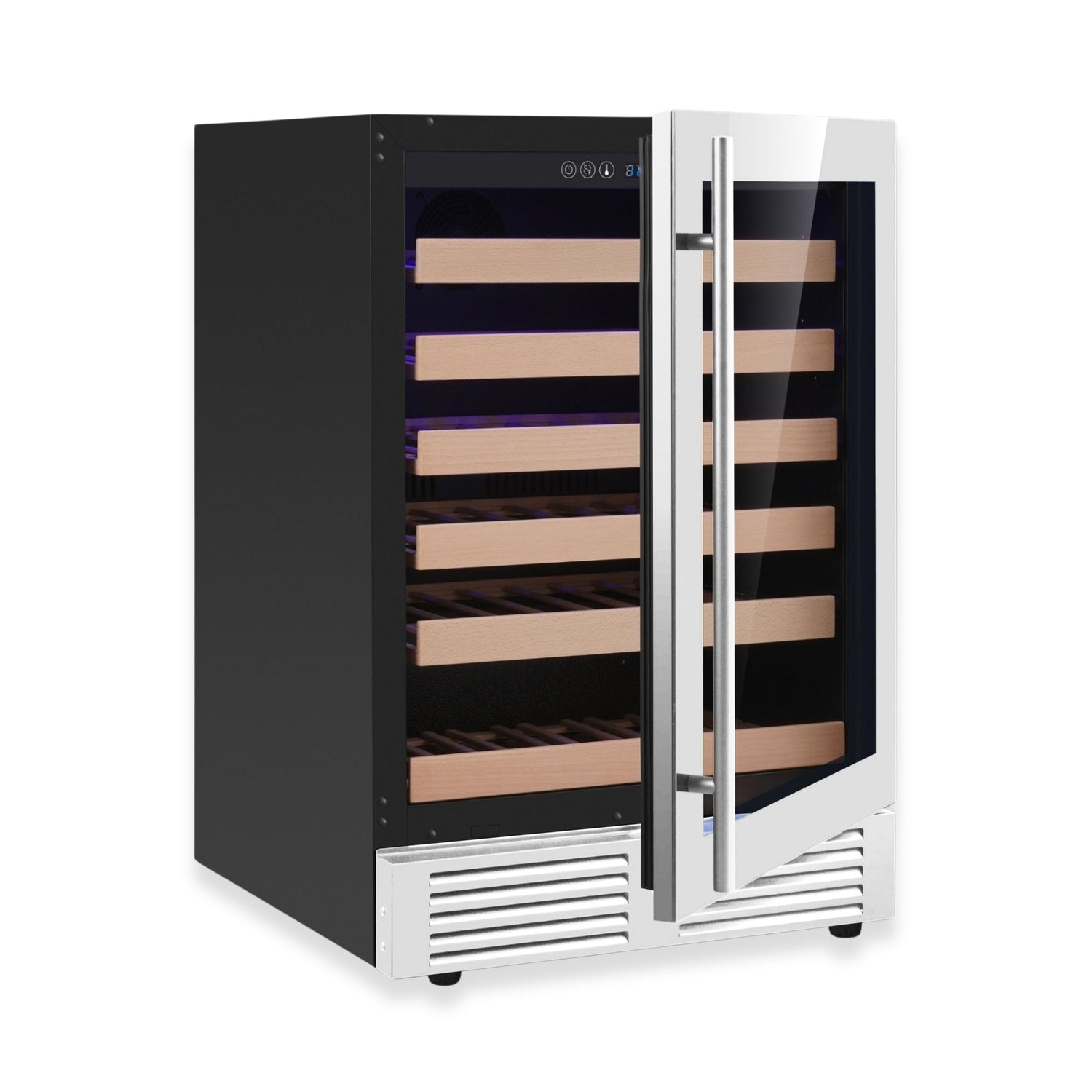

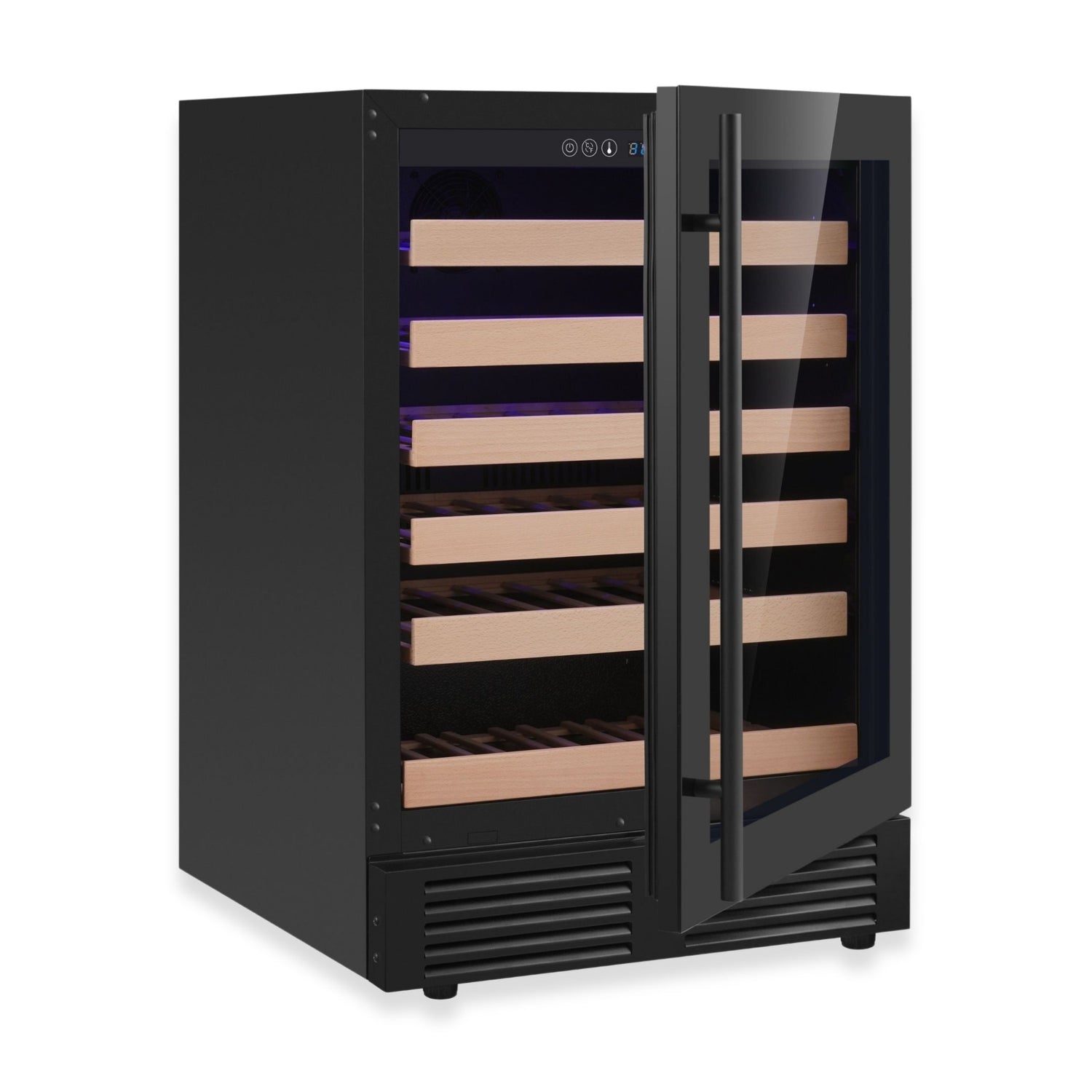

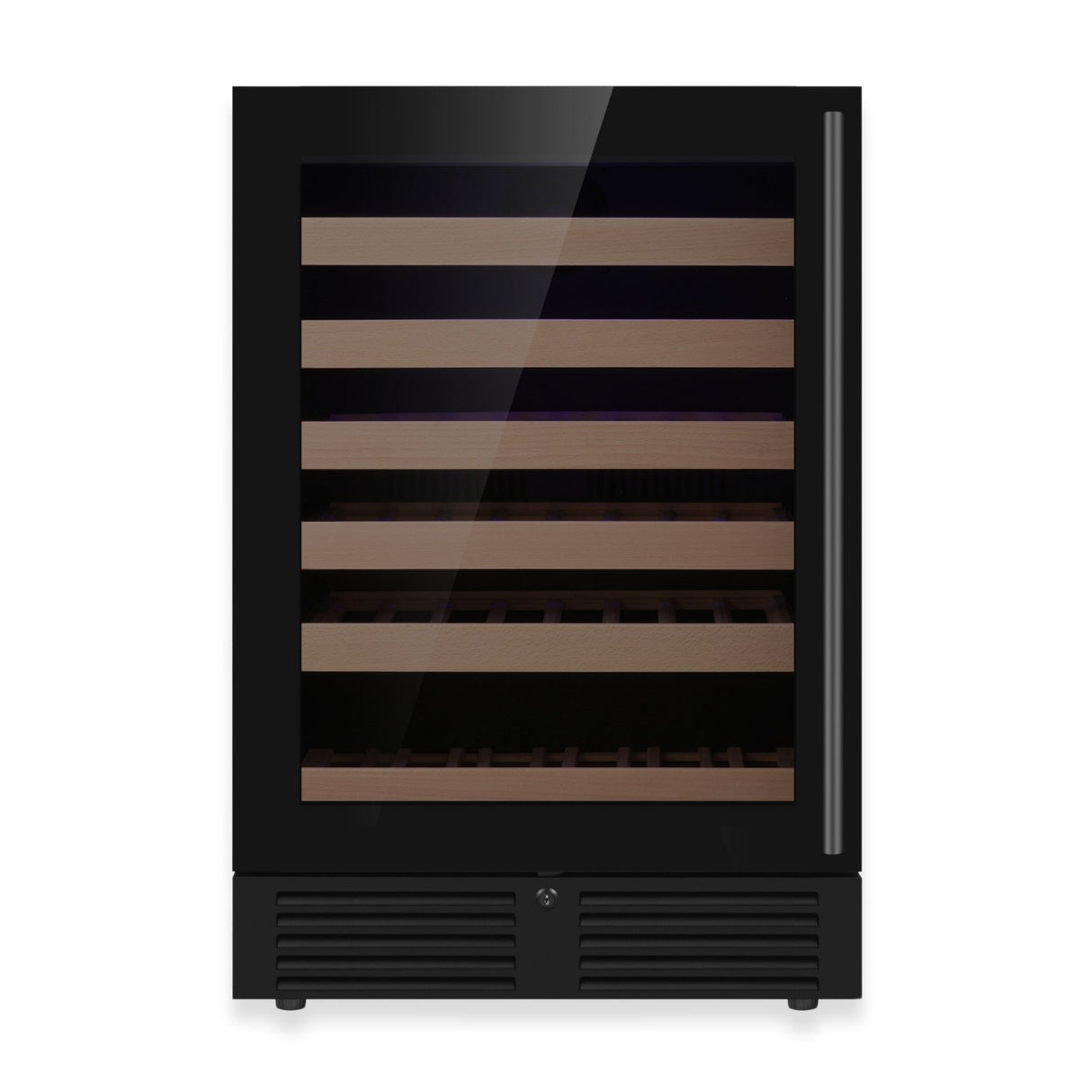

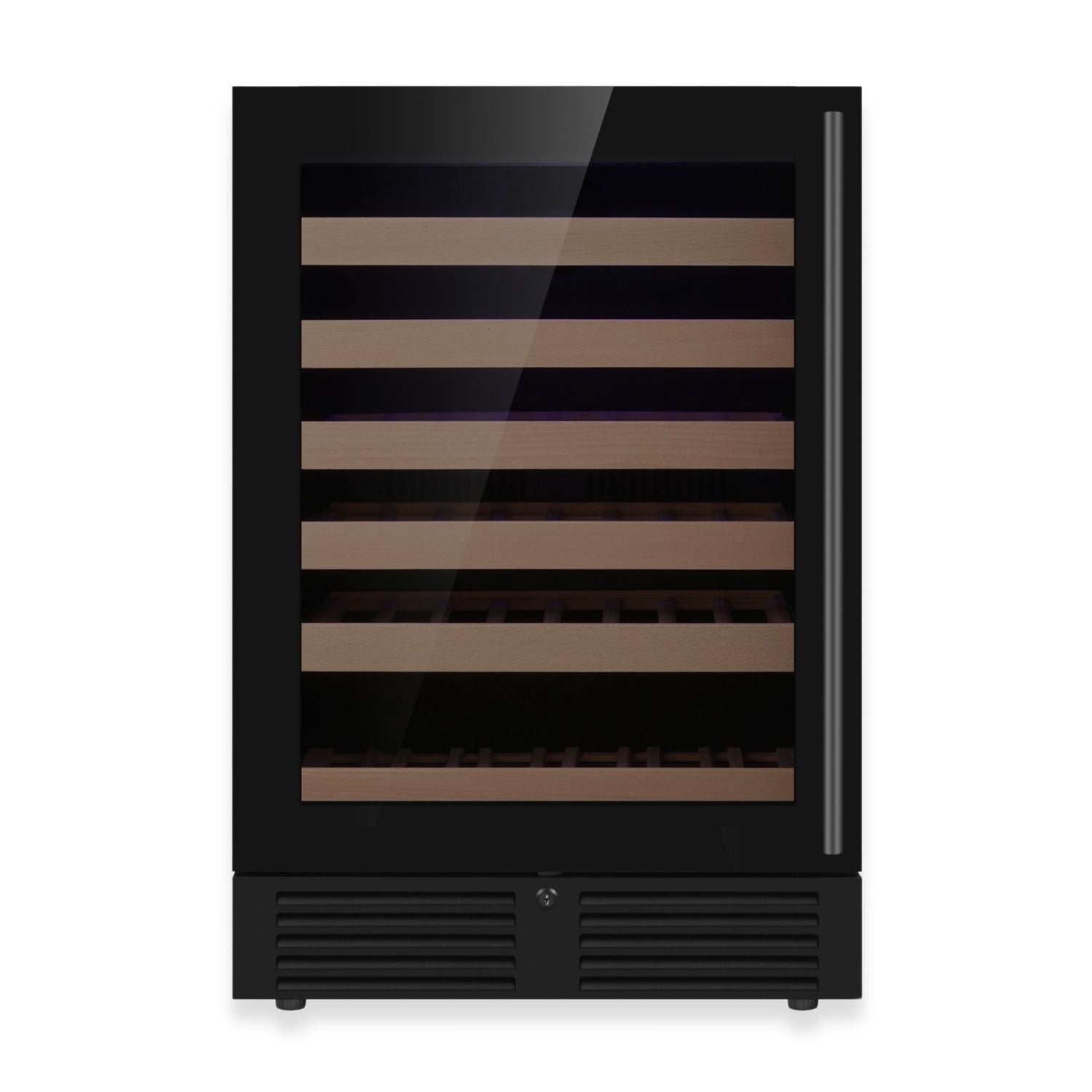

KingsBottle 24-Inch Under-Counter Single Zone Wine Cooler with Low-E Glass Door

KingsBottle 24-Inch Under-Counter Single Zone Wine Cooler with Low-E Glass Door

The KingsBottle 24-Inch Under-Counter Low-E Glass Door Single-Zone Wine Cooler is expertly crafted to keep your wine collection at the ideal temperature. Featuring an Embraco Inverter Compressor, it delivers quiet, energy-efficient performance, ensuring reliable cooling for both home and office environments.

The Low-E glass door offers superior UV protection to preserve wine quality while minimizing condensation for a clear, elegant display. With its single-zone temperature control, this cooler is perfect for maintaining either red or white wines at their optimal serving temperature.

Designed with a sleek under-counter profile, it integrates effortlessly into any kitchen or bar setting. Adjustable shelving provides versatile storage options, accommodating a variety of bottle sizes with ease.

Features

Inverter Compressor

• Equipped with a premium Embraco Inverter Compressor that operates quietly while reducing energy consumption by up to 40%.

Patented Compressor Sink Design

• Enhances air circulation around the compressor for improved cooling efficiency, reduced vibration, and lower noise levels.

Low-E Glass Door

• Features Low-Emissivity (Low-E) glass that minimizes energy loss and prevents condensation, acting as an invisible insulating barrier.


Fan-Circulated Air-Cooling System

• Maintains consistent temperatures throughout the cabinet and regulates humidity levels to preserve stored items in ideal conditions.

Activated Carbon Filter

• Purifies the air by filtering out impurities and odors, keeping the interior environment clean and fresh.

LED Digital Touchpad Control

• User-friendly LED touch controls offer simple operation with clear and precise temperature settings.

Beech Wooden Shelves

• Durable full-extension beech wood shelves designed for smooth pull-out access and optimal bottle spacing—suitable for both standard and large bottles (up to 3.39" / 86mm in diameter).

Magnetic Door Switch

• Includes a 2-minute door-open alarm to maintain stable temperatures and energy efficiency.

Hidden Door Hinge

• Crafted from laminated steel with integrated molding, offering a smooth, seamless built-in appearance.

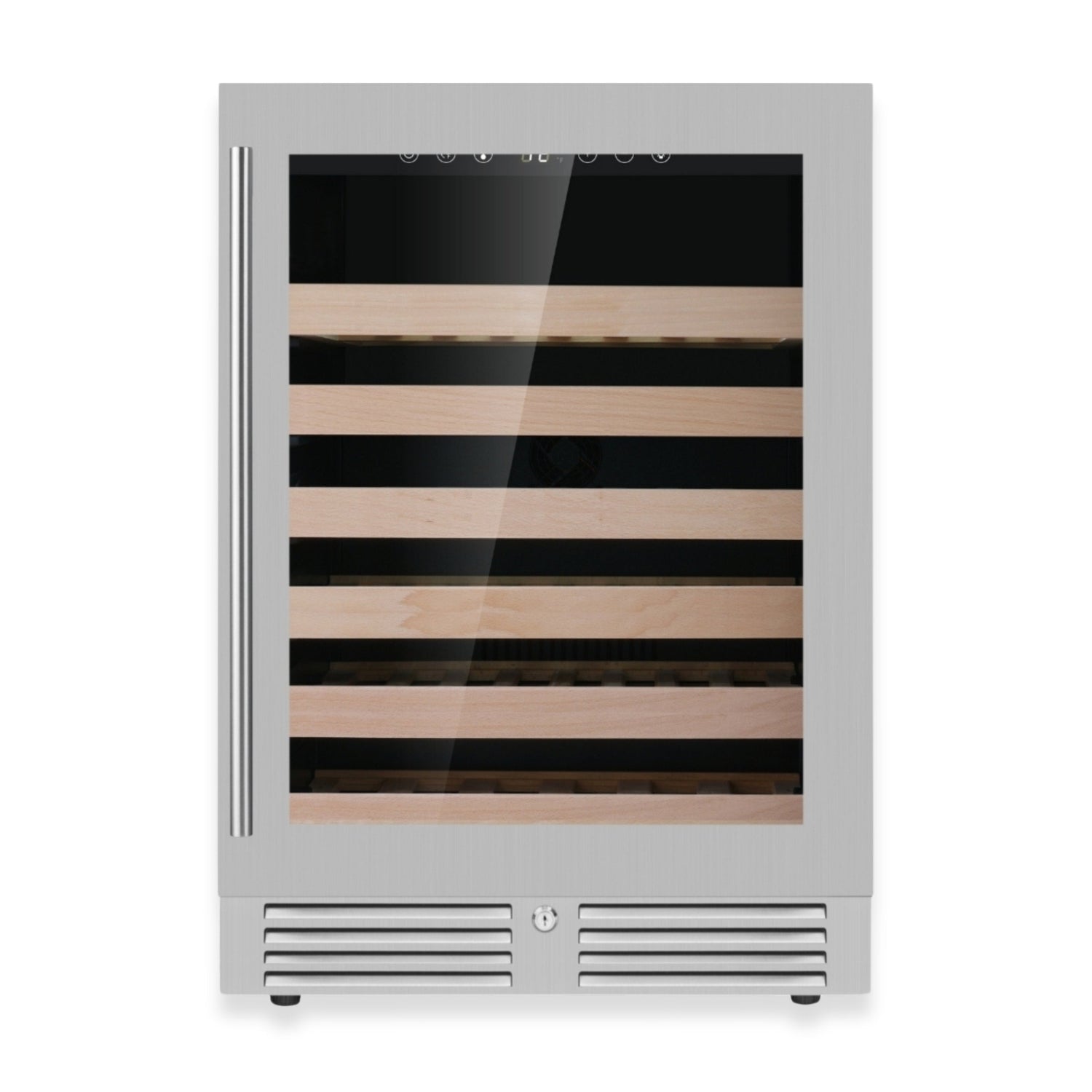

Seamless Stainless Steel Door Frame

• Modern thin-edge stainless steel design that enhances the unit’s aesthetic appeal.

45mm Thick C-Pantane Insulation

• Thick 45mm foam insulation boosts cooling performance while minimizing energy consumption.

Specifications

• Volume: 5.12 CF (145 Liters)

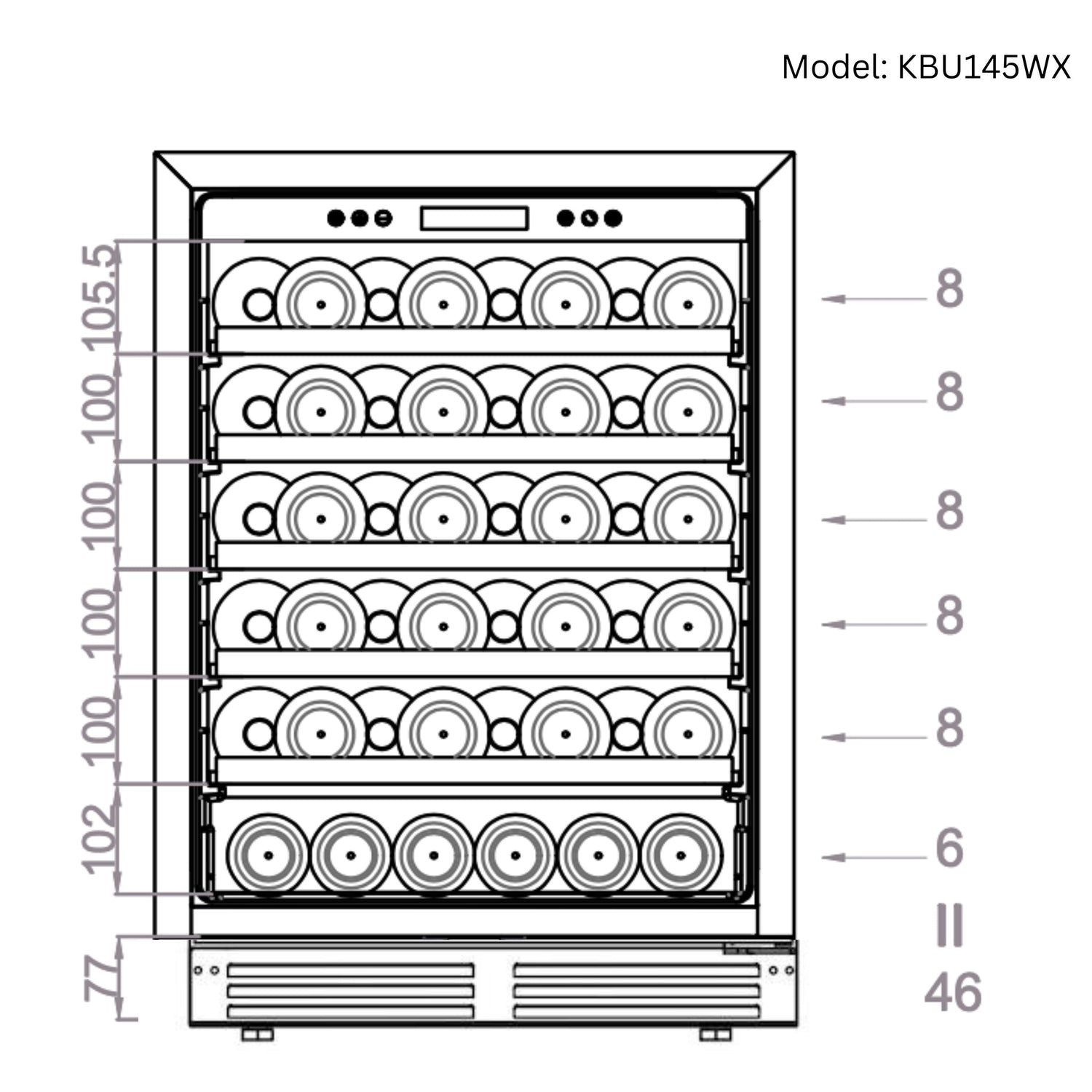

• Capacity (by bottles): 46 bottles
• Installation Type: Built-In or Freestanding
• Climate Type: N
• Temperature Zones: Single Zone
• Adjustable Temperature Range: 35°F to 68°F (2°C to 20°C)
• Operating Room Temperature: 32°F to 100°F (0°C to 38°C)
• Shelf Configuration: 6 Beech Wooden Shelves

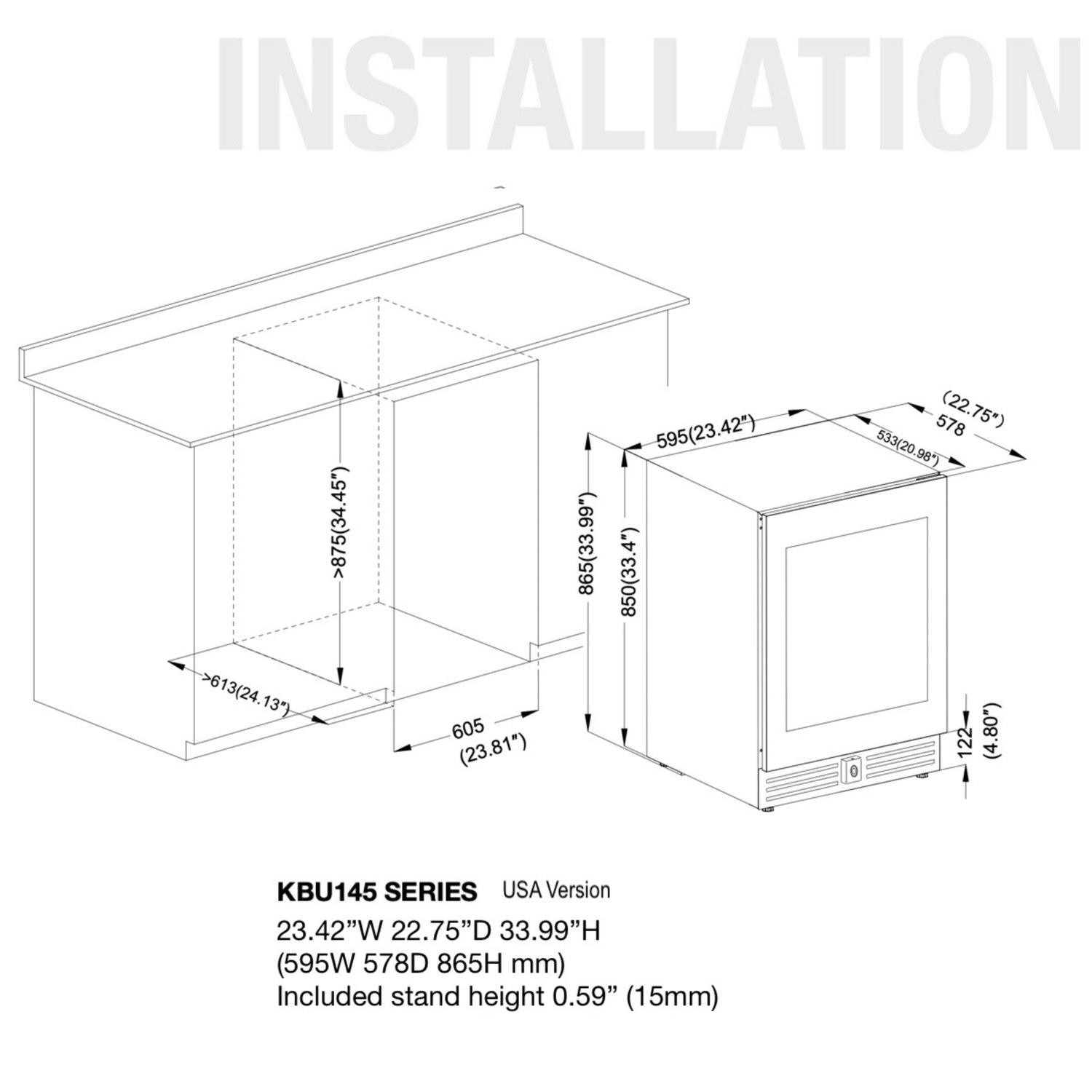

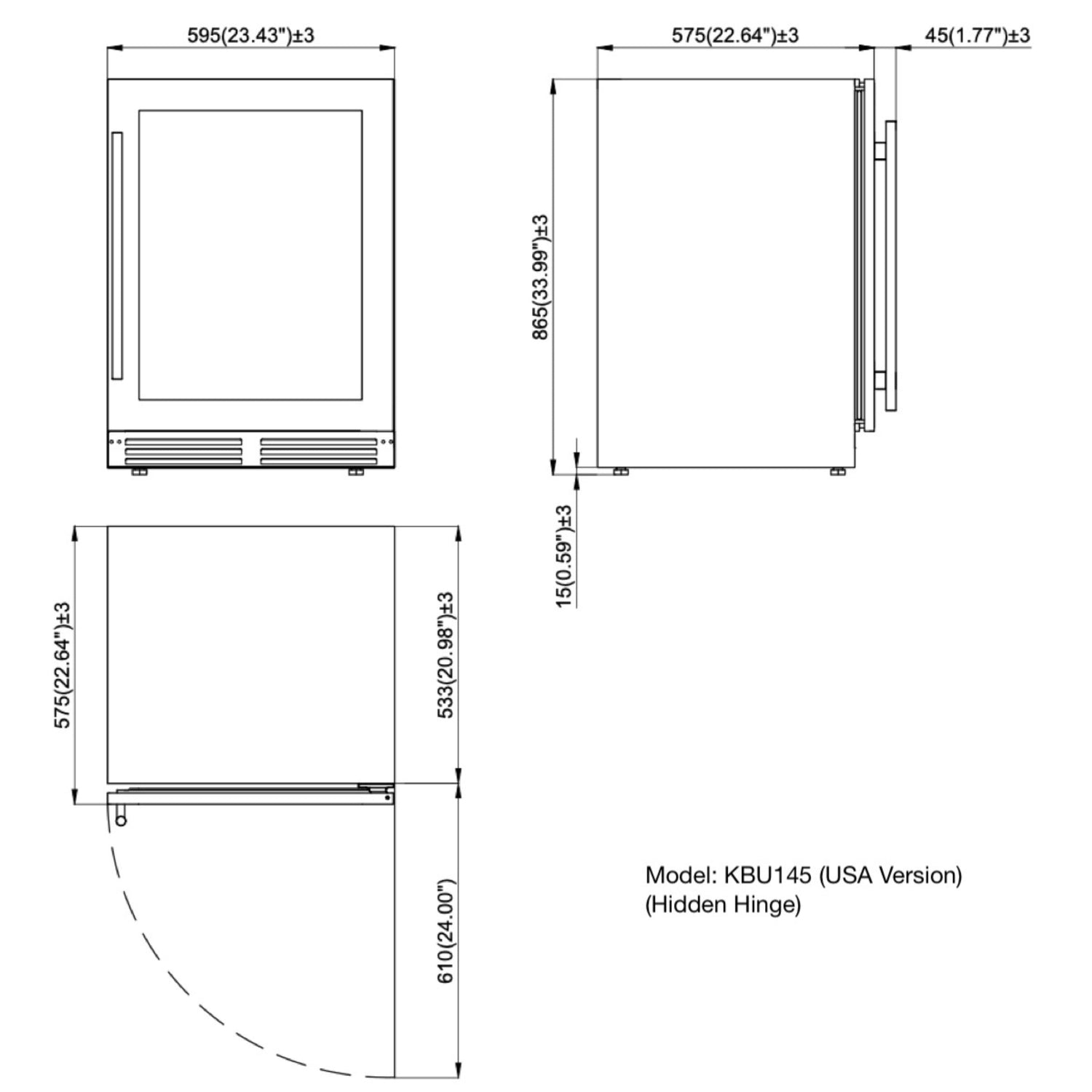

• Dimensions: 23.42” W × 22.75” D × 33.99” H (including stand height of 0.59”)

Electrical Specifications

• Compressor: Embraco Inverter Compressor
• Defrost Type: Automatic Defrost
• Power Supply: 110–115V / 60Hz
• Rated Power: Input: 165W
• Rated Current: 1.7A
• Refrigerant: R600A / 45g
• Power Lamp: 0.7W × 2
• Energy Efficiency Compliance: ETL / DOE

View and Download

 Single Zone Wine Coolers User Manual

Quick Overview:

Single-Zone Cooling: Provides a consistent temperature throughout the entire storage compartment for optimal preservation.
Under-Counter Design: Perfect for built-in installations, offering a space-saving and streamlined look.
Low‑E Glass Door: Dual-layer tempered glass with a low-emissivity coating minimizes condensation and protects contents from UV damage.
Energy Efficient: Features an inverter compressor for quiet performance and reduced power consumption.
Customizable Storage: Includes adjustable beechwood shelves that easily adapt to different bottle sizes and shapes.
