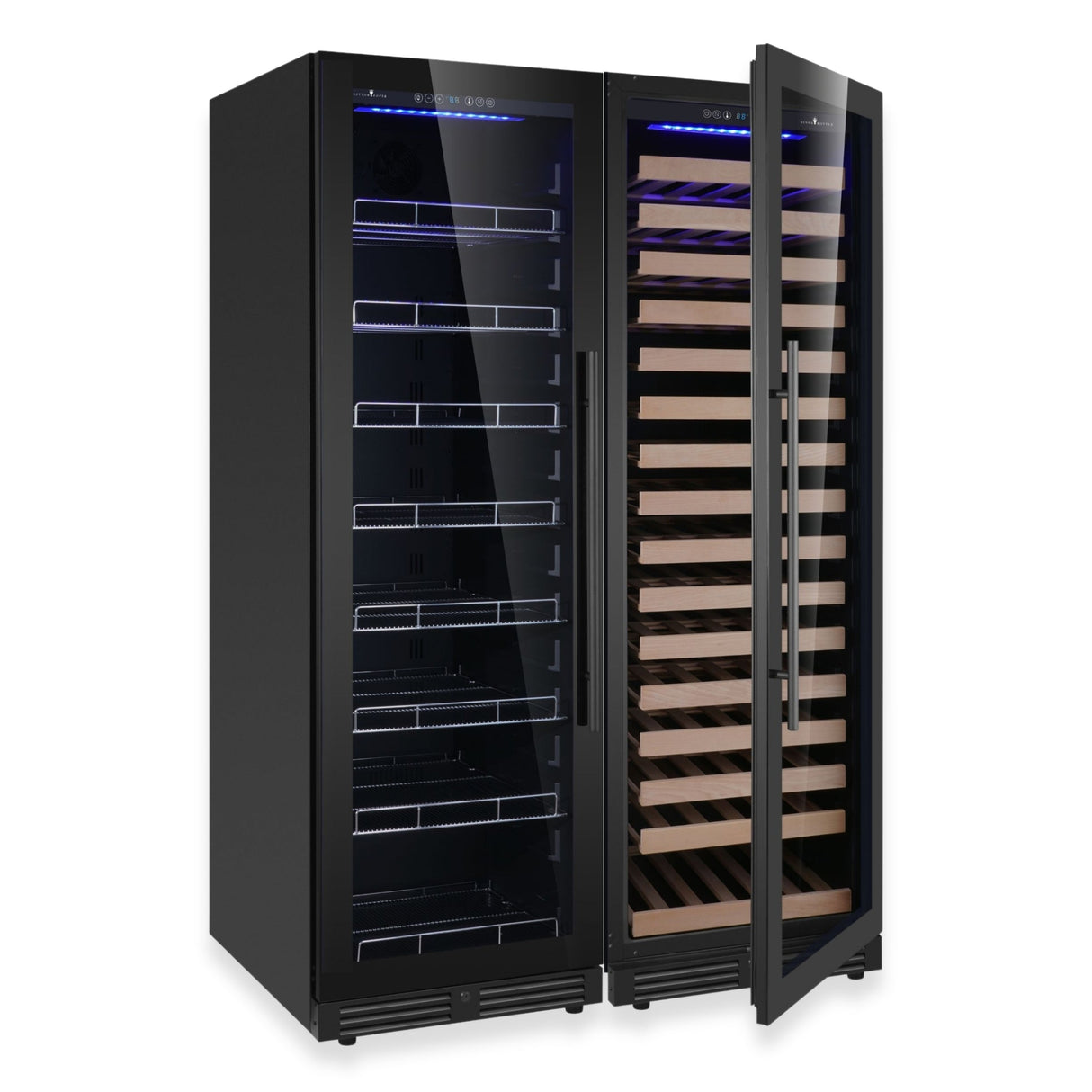

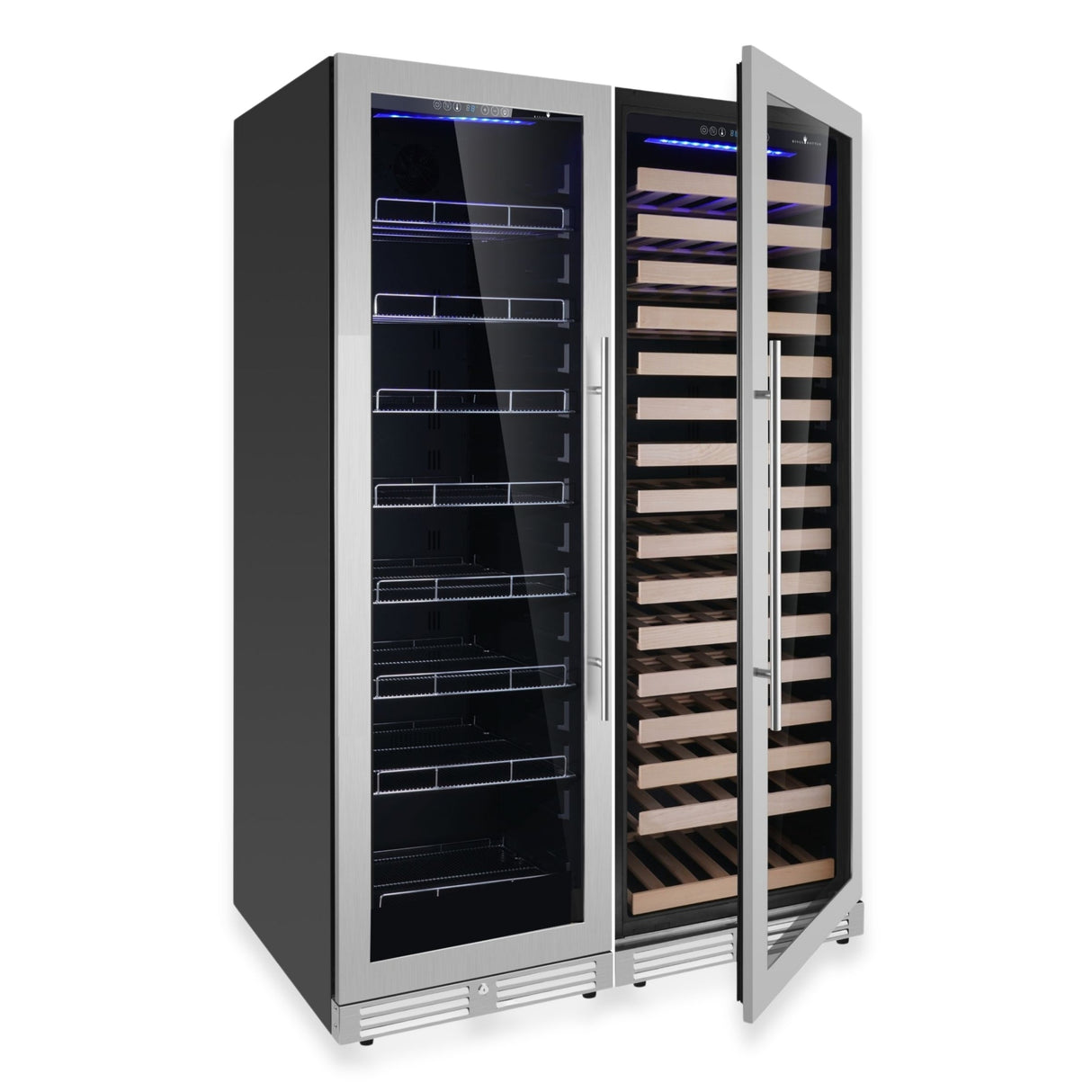

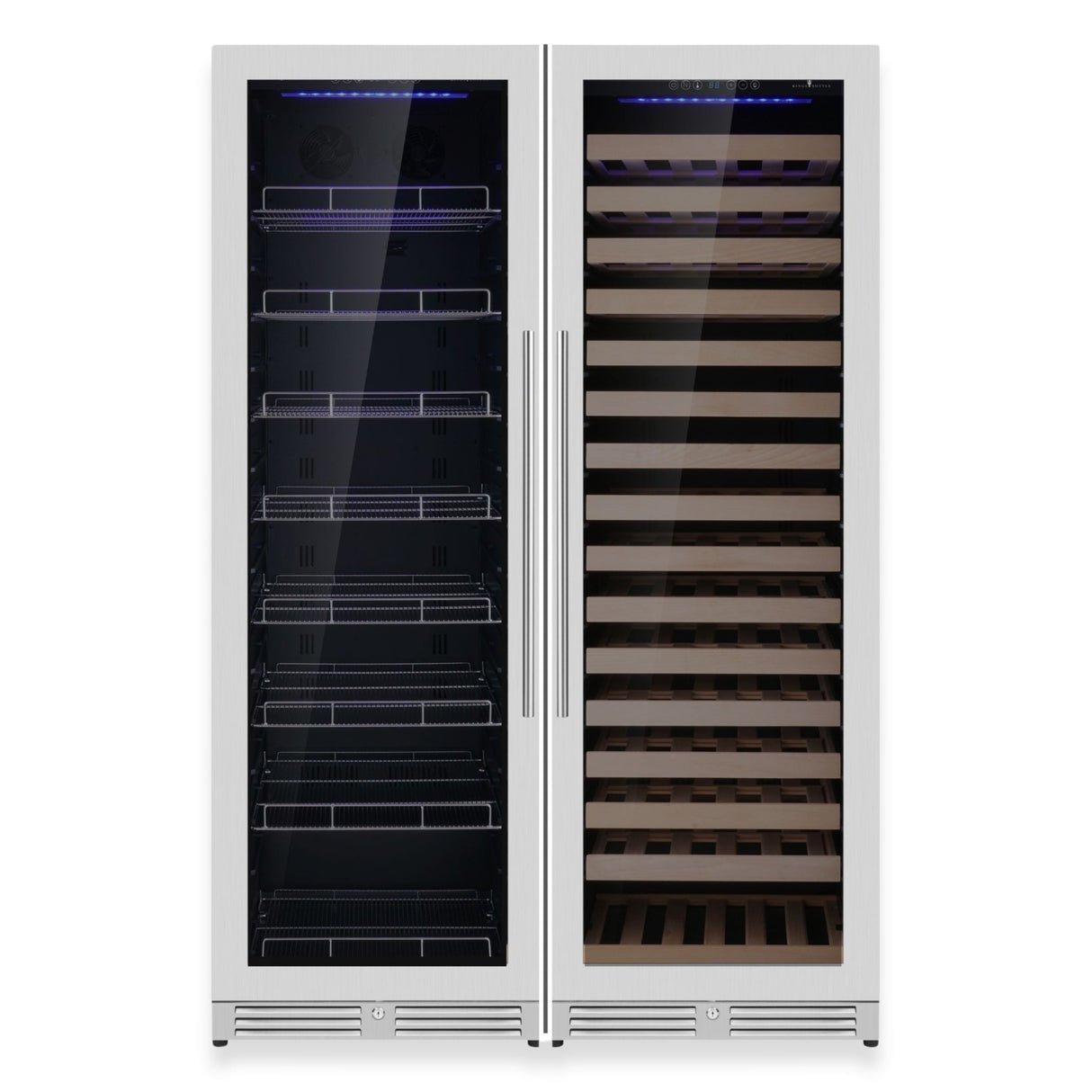

KingsBottle Ultimate Wine & Beverage Upright Refrigerator Combo with Low-E Glass Door

KingsBottle Ultimate Wine & Beverage Upright Refrigerator Combo with Low-E Glass Door

The KingsBottle Ultimate Wine & Beverage Upright Refrigerator Combo delivers a perfect balance of style, efficiency, and functionality for storing both wine and beverages. Featuring two independent cooling zones, it allows you to maintain ideal temperatures for each—keeping your wines perfectly aged in the upper zone and your beverages refreshingly chilled in the lower zone.

Powered by an Embraco Inverter Compressor, this unit operates with exceptional quietness while using up to 40% less energy than standard compressors. The Low-E glass door provides UV protection to preserve the flavor and integrity of your collection while adding a sleek, contemporary look.

With adjustable shelves, you can easily accommodate bottles and cans of various sizes. Designed for versatility, this refrigerator combo is suitable for both freestanding and built-in installations, making it a stylish and practical addition to any home or commercial space.

Features

Inverter Compressor

• Premium Embraco Inverter Compressor; ultra-quiet operation while reducing energy usage by up to 40%.

Patented Compressor Sink

• Enhances air circulation around the compressor for improved cooling, reduced vibration, and quieter performance.

Low‑E Glass

• Minimizes energy use and condensation on the glass door; acts as an invisible insulating barrier.


Fan-Circulated Air Cooling System

• Ensures even temperature distribution throughout the cabinet and regulates humidity to protect your contents.

Activated Carbon Filter

• Effectively removes impurities, keeping the air inside fresh and odor-free.

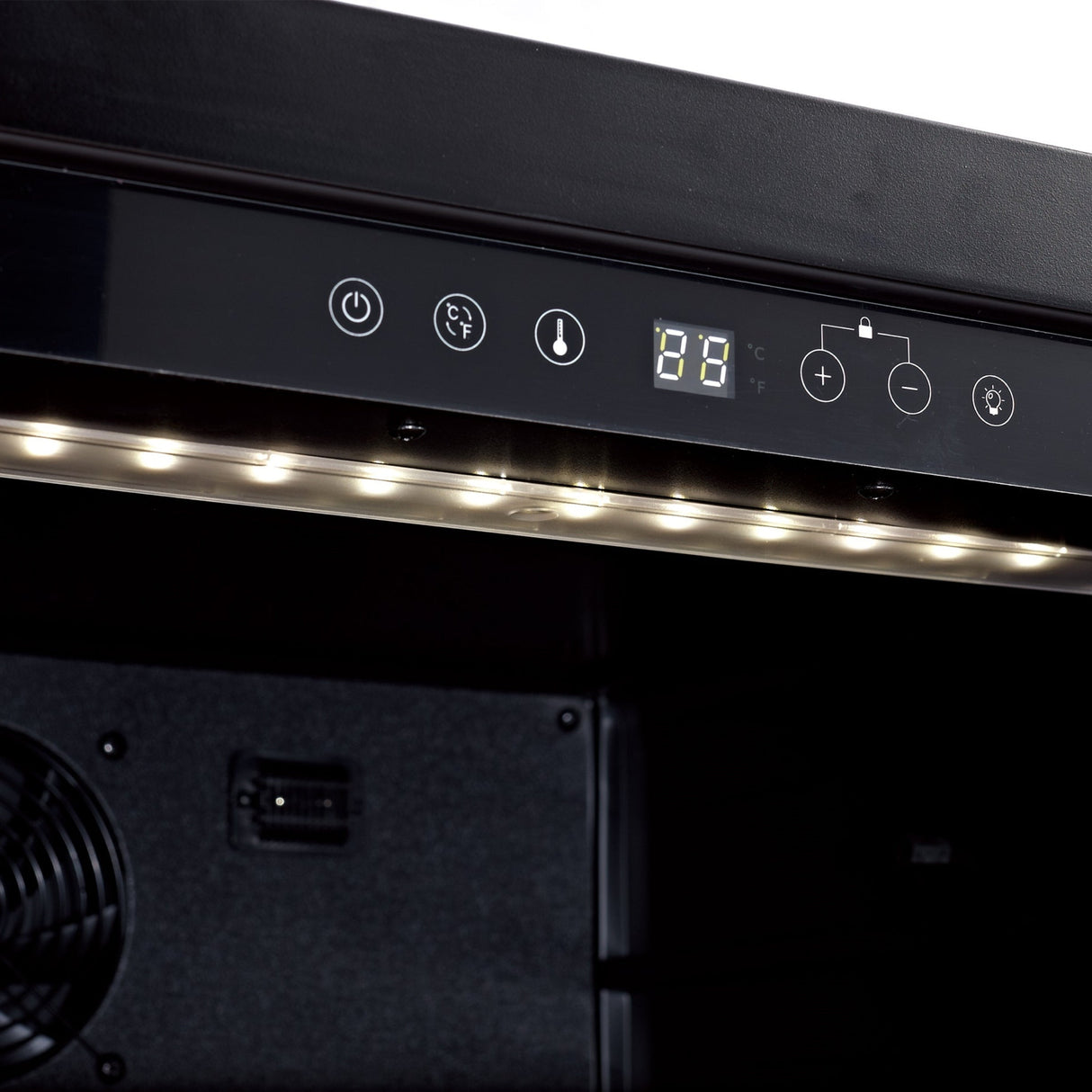

LED Display & Digital Touchpad Control

• User-friendly controls with a clear, accurate display for precise settings.

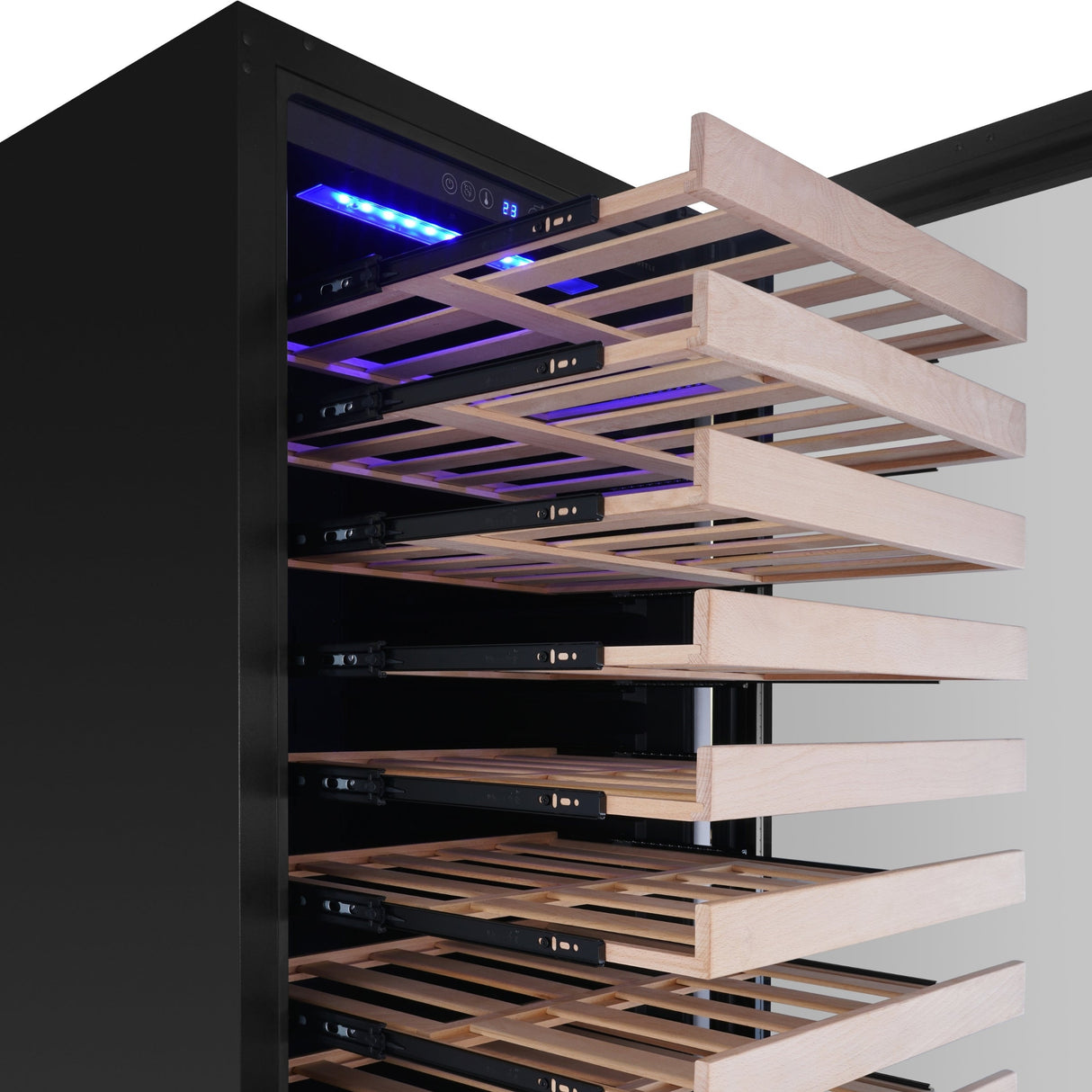

Beech Wooden Shelves

• Full-extension pull-out shelves made of sturdy, wine-friendly beech wood; designed to hold standard and larger bottles up to 3.39" (86mm) in diameter.

Magnetic Switch

• Door-open alert triggers after 2 minutes for added convenience.

Hidden Door Hinge

• Integrated laminated steel hinge with molded design; enables full built-in installation for a seamless look.

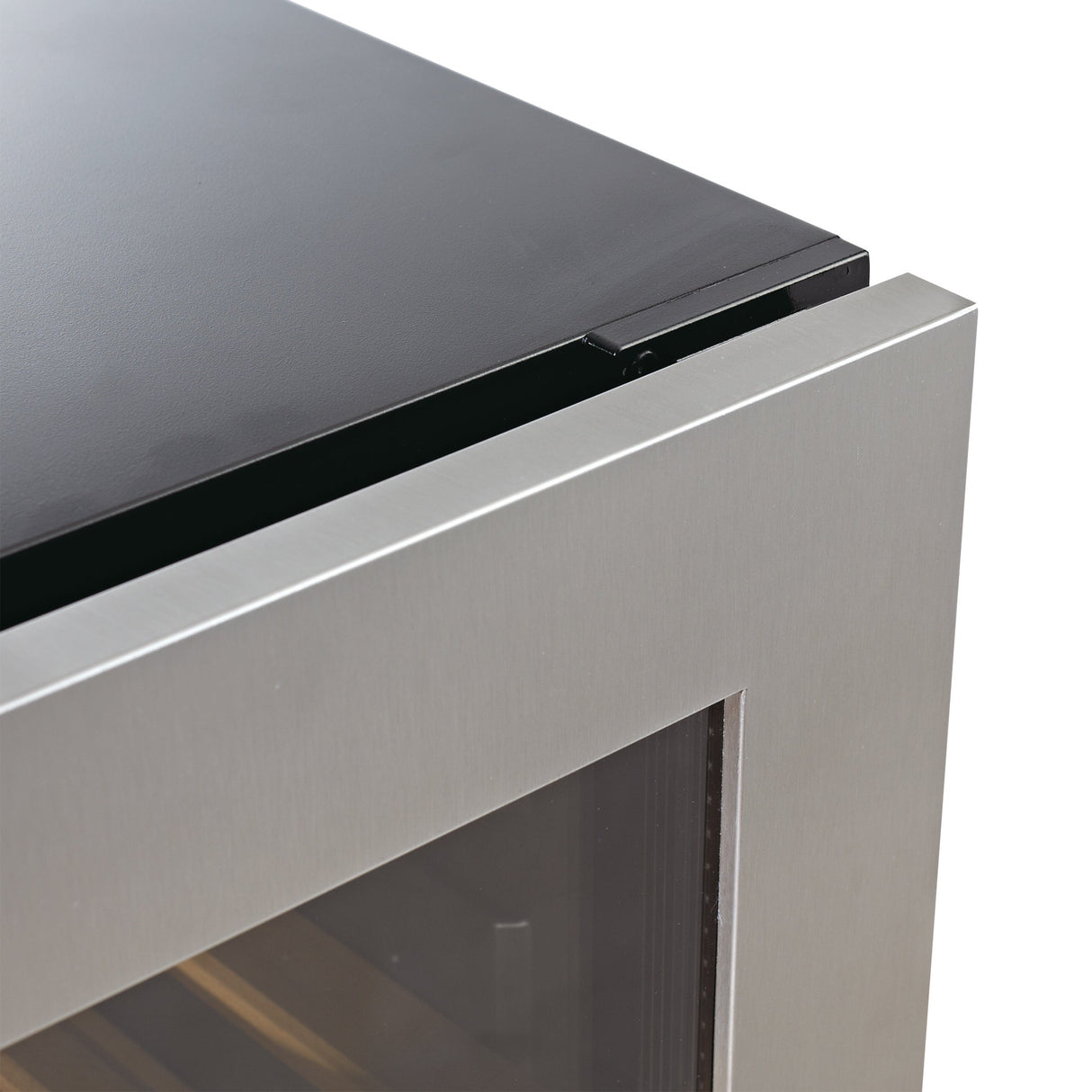

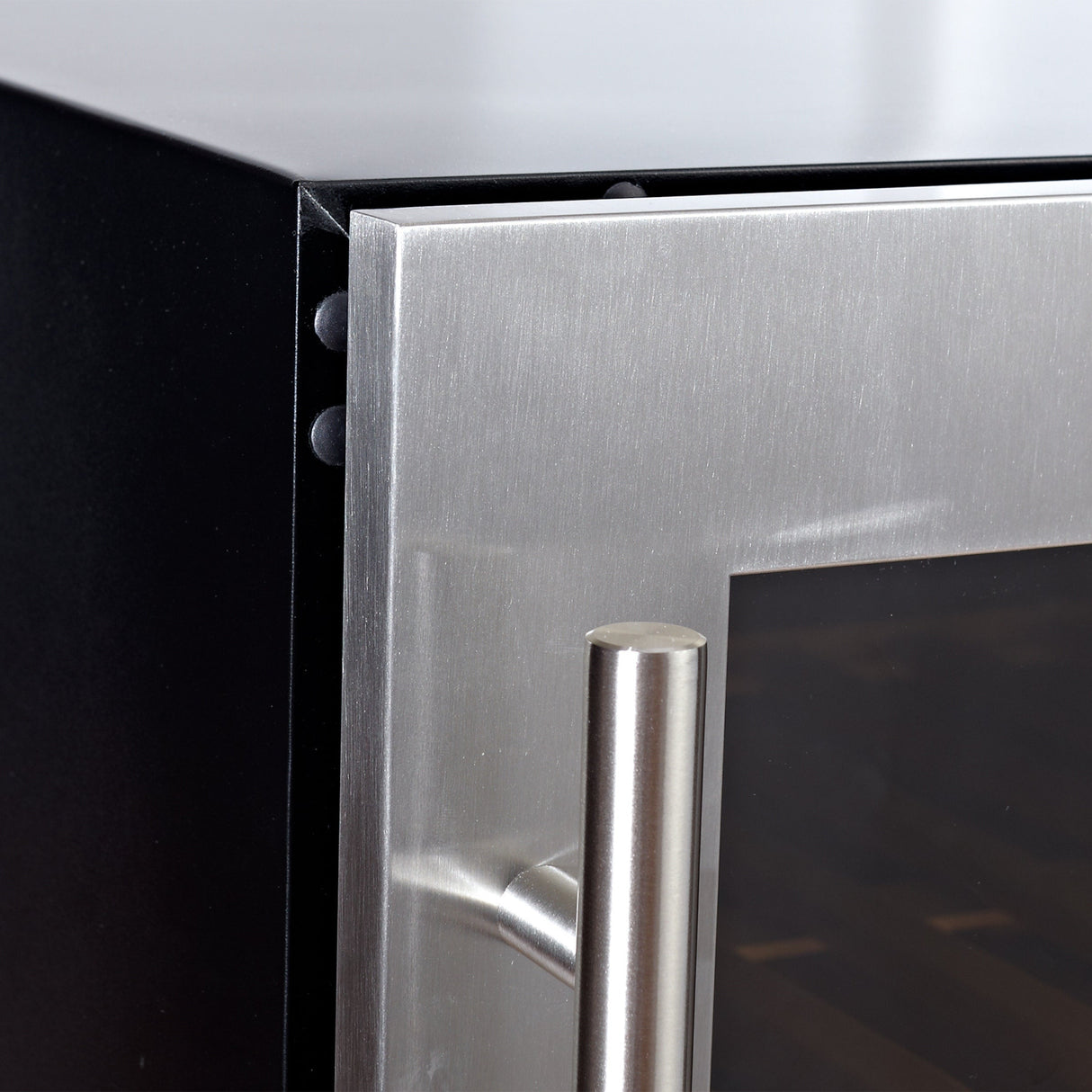

Seamless Stainless Steel Door Frame

• Thin, elegant door design with a polished, artistic appearance.

45mm Thick C-Pentane Insulation

• Thick foam improves cooling efficiency and reduces energy consumption.

Specifications

Capacity & Volume

• Total Volume: 30 CF (850 Liters)
• Volume per Zone: 15 CF (425 Liters)

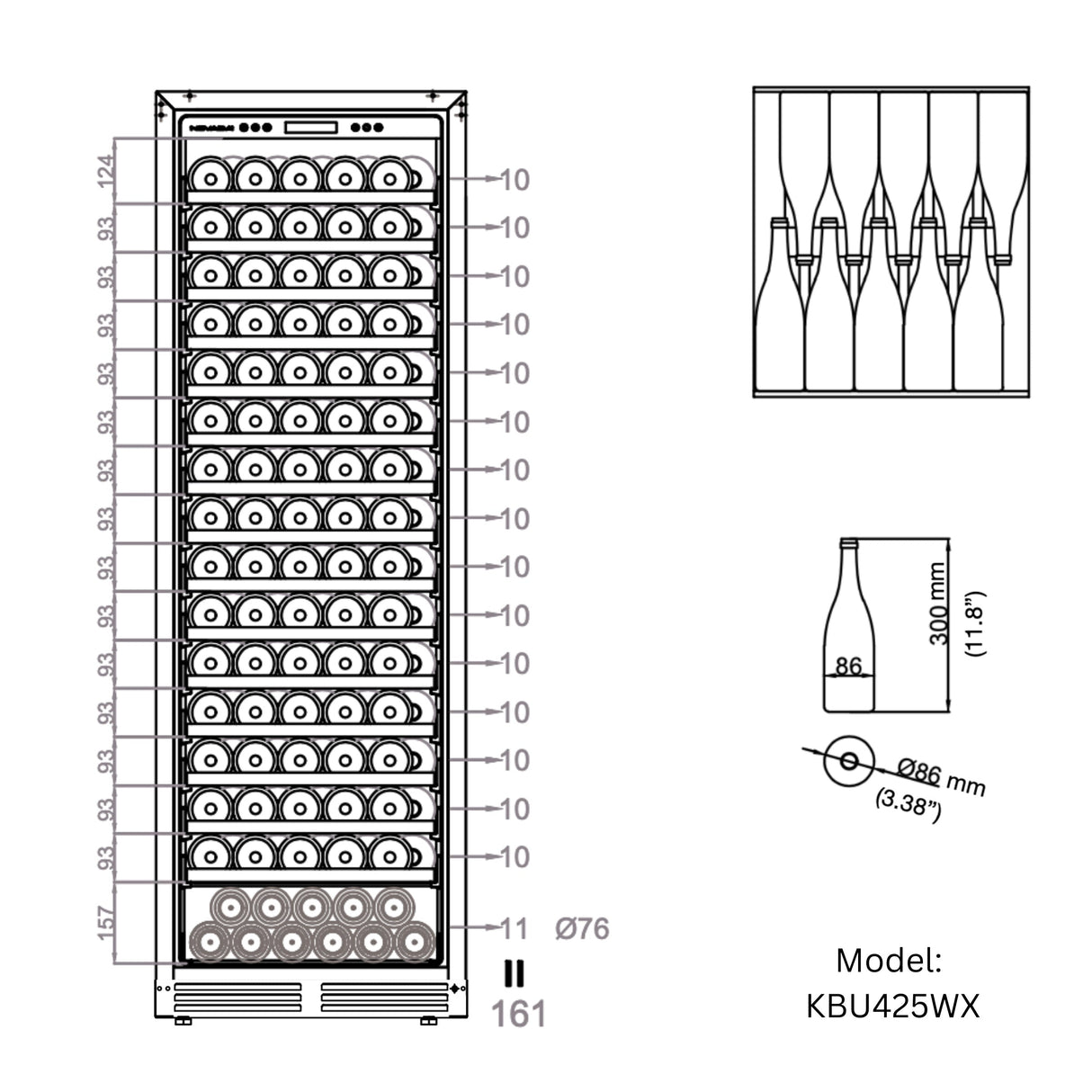

• Capacity (by bottles): 161 bottles

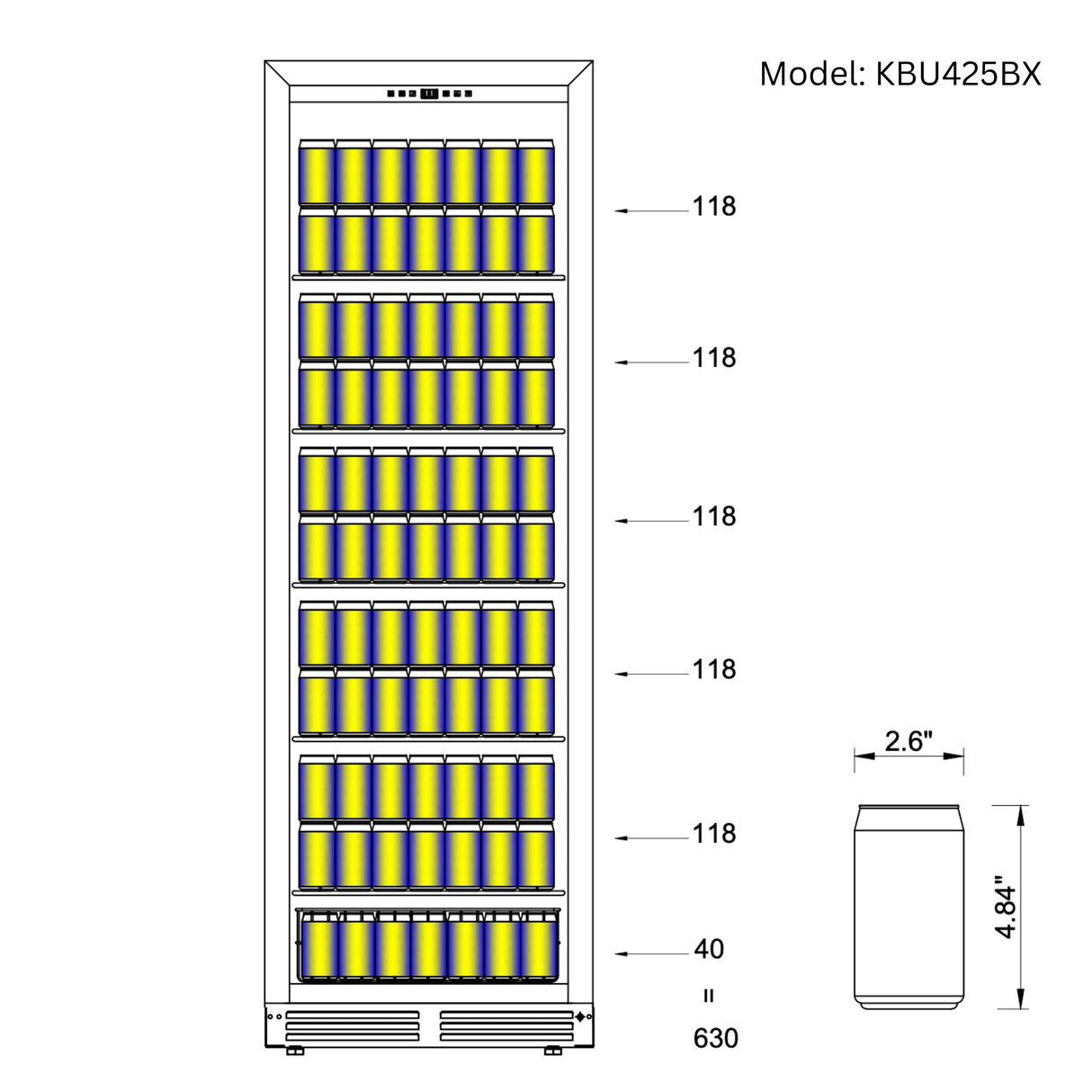

• Capacity (by cans): 630 cans

Installation & Climate

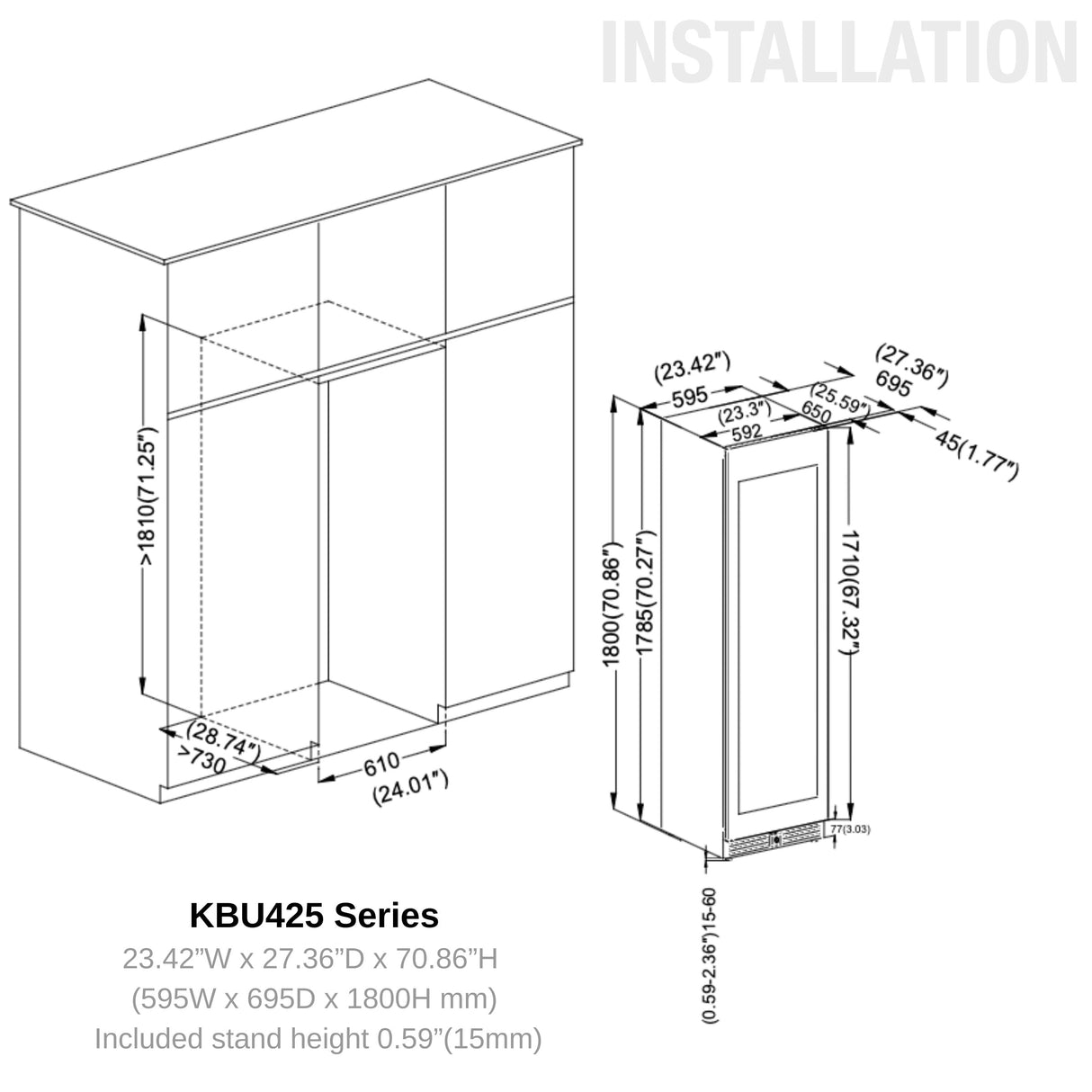

• Installation Type: Built-In or Freestanding
• Climate Type: N

Temperature & Zones

• Temperature Zones: Dual Zone
• Adjustable Temperature Range:
  • Beer Side: 35°F–68°F (2°C–20°C)
  • Wine Side: 35°F–68°F (12°C–20°C)
• Operating Room Temperature: 32°F–100°F (0°C–38°C)

Shelf Configuration

• 8 Chromed Steel Shelves
• 16 Beech Wooden Shelves

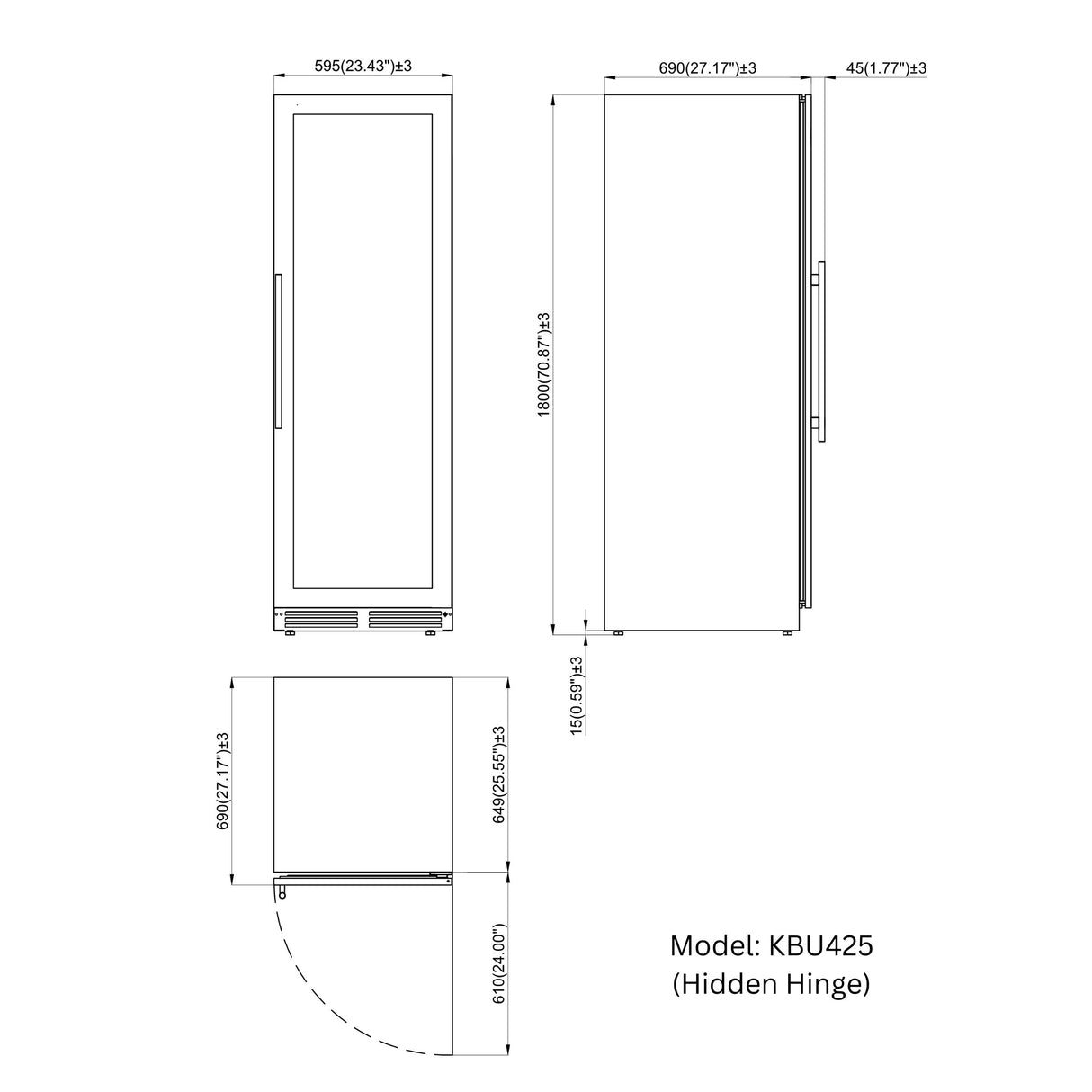

Dimensions

• Width: 46.84”
• Depth: 27.36”
• Height: 70.86” (including stand height 0.59”)

Electrical Specifications

• Compressor: Embraco Inverter Compressors
• Power Supply: 110-115V/60HZ
• Rated Power Input (W): 330W (165W per unit)
• Rated Current: 3.4A (1.7A per unit)
• Refrigerant: R600A / 52g per unit

View and Download

• Beverage Cooler User Manual
• Single Zone Wine Cooler User Manual

Quick Overview

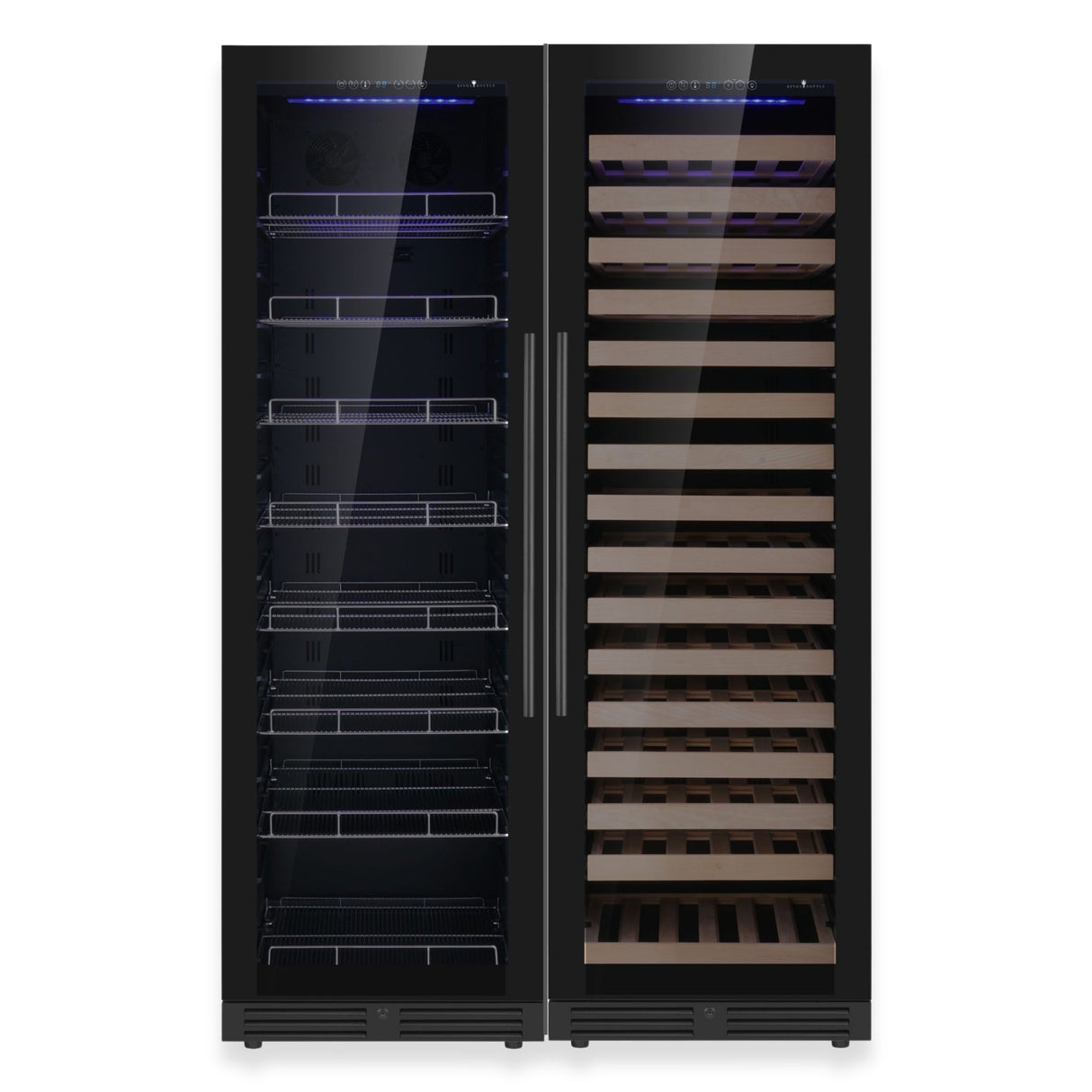

Combo Storage Solution: A two-unit upright design that seamlessly combines wine and beverage refrigeration in one stylish setup.

Dual-Zone Capability: Allows independent temperature control for optimal preservation of both wines and beverages.

Low‑E Glass Door: Reduces condensation and shields contents from UV rays, ensuring a clear and polished display.

Energy-Efficient Inverter Compressor: Offers quiet, dependable cooling with precise temperature regulation while minimizing energy use.

Elegant Upright Design: Features a modern, space-efficient look ideal for sophisticated residential or commercial environments.
