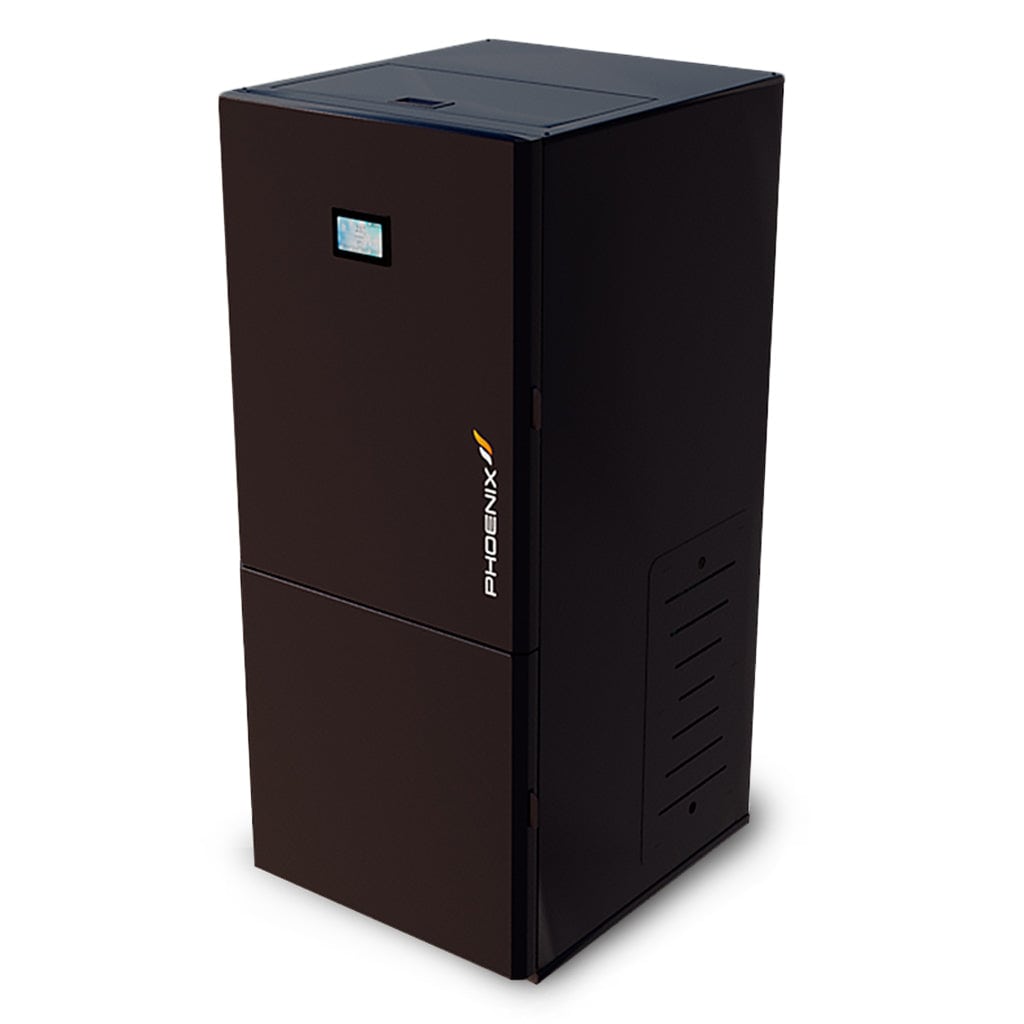

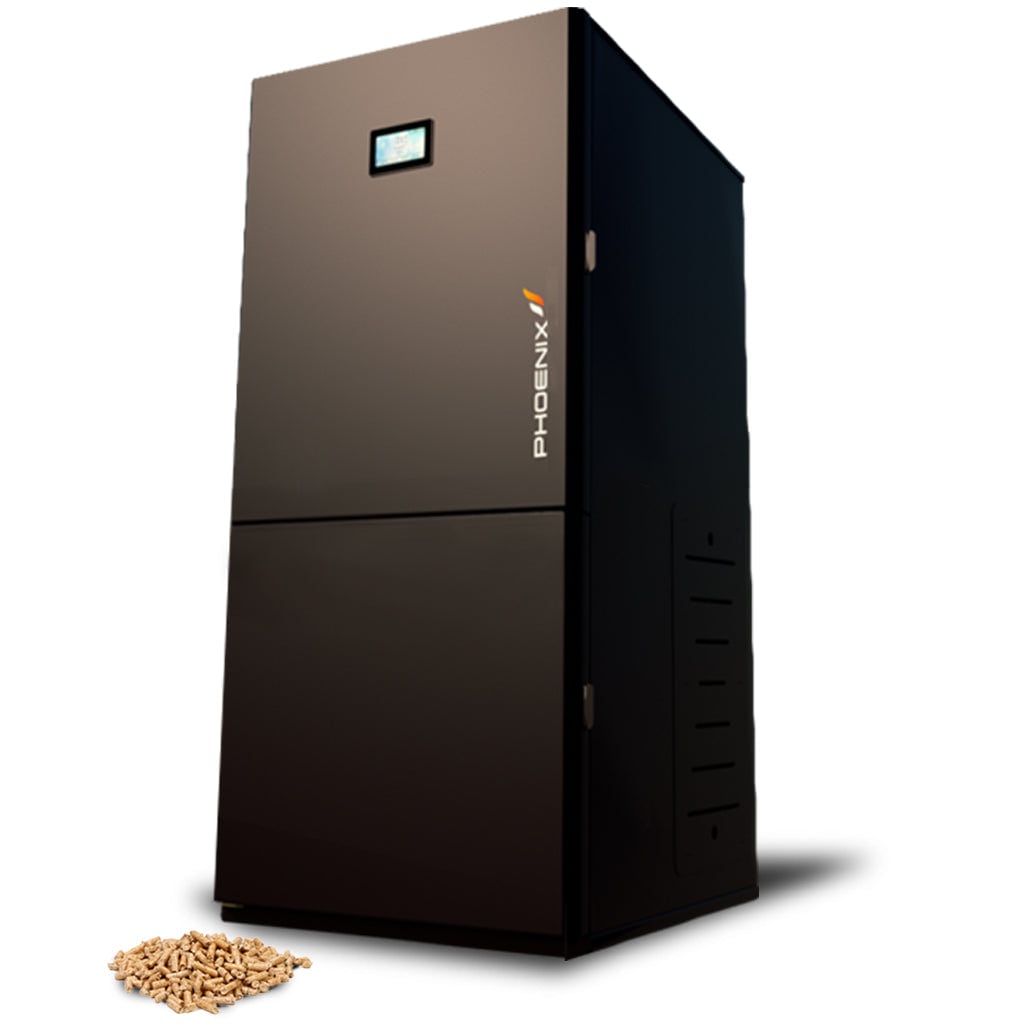

APOLLO Phoenix 50 Compact Pellet Boiler 170K BTU

APOLLO Phoenix 50 Compact Pellet Boiler 170K BTU

The APOLLO Phoenix 50 Compact Pellet Boiler 170K BTU is a high-output solid fuel heating system designed for large residential and light commercial applications. With a heating capacity of 170,000 BTU, this compact pellet boiler is capable of efficiently heating areas of up to approximately 6,200 square feet, delivering reliable and consistent warmth. It is engineered to operate using 100% natural wood pellets, providing an environmentally friendly and sustainable heating solution.

Built with durability in mind, the Phoenix 50 features a robust construction and a stainless steel water jacket to support long-term performance in demanding heating environments. Its advanced combustion design maximizes heat transfer while helping reduce fuel consumption, ensuring efficient operation throughout the heating season.

The boiler includes an automatic cleaning system that helps maintain optimal performance while reducing routine maintenance requirements. Its compact footprint allows for flexible installation in mechanical rooms or utility spaces where space is limited, without compromising heating power.

Designed for efficiency, reliability, and sustainability, the APOLLO Phoenix 50 Compact Pellet Boiler delivers strong heating performance in a streamlined design, making it a practical choice for applications requiring dependable pellet-based heating.

OUR MOST EFFICIENT AND TECHNOLOGICALLY ADVANCED UNIT TO THIS DATE. UP TO 96% EFFICIENCY

For Commercial use only.

Features

• High Efficiency
  86% efficiency with pure wood pellets.
• Eco-Friendly
  Uses 100% natural wood pellets without additives.
• Durable Construction
  Robust steel water jacket for long-lasting performance.
• Easy to Use

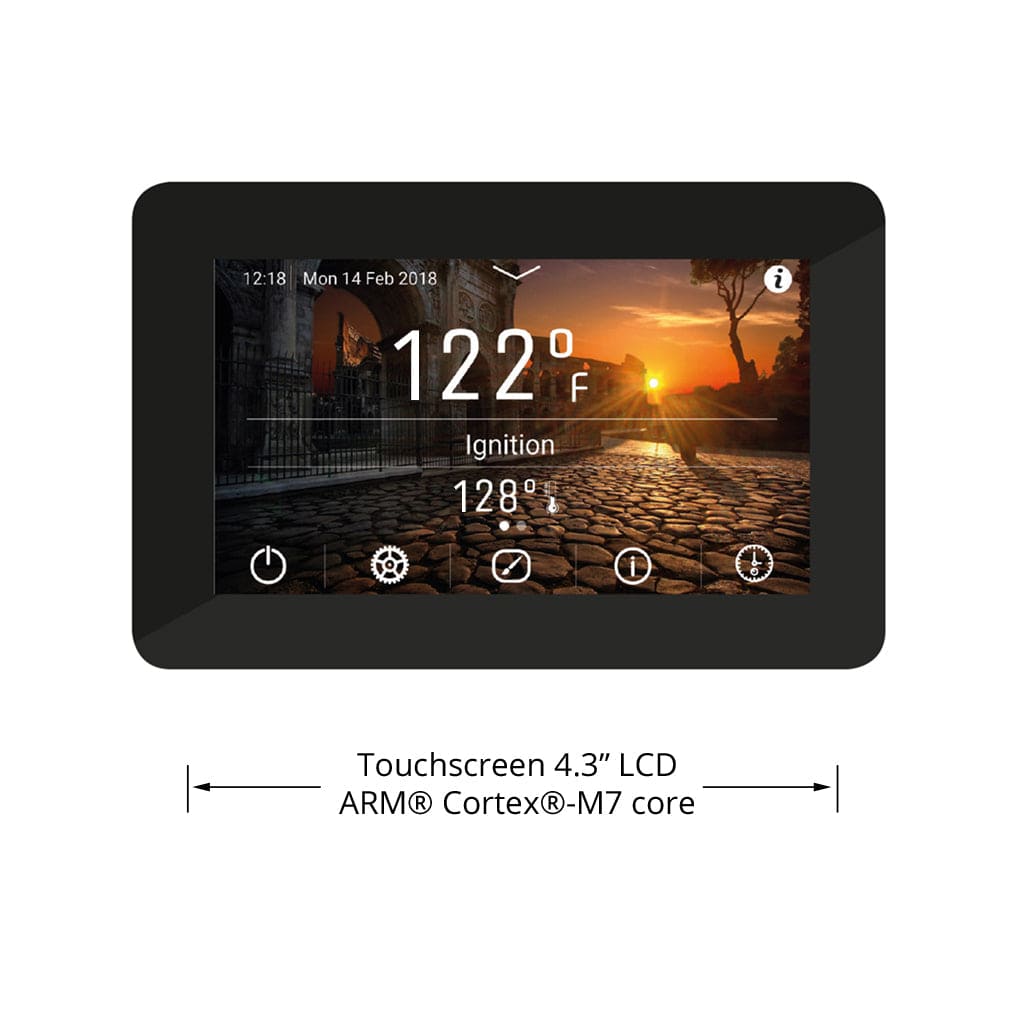

  Touchscreen interface for simple operation.
• Self-Cleaning
  Automatic cleaning for efficient maintenance.
• Safe Operation
  Adheres to safety standards for reliable heating.

Additional Features

• Heat: 6,200 ft²

• Weight: 981 lbs

• Width: 32'', Depth: 34'', Height: 63 ¾''

• Hopper volume: 330Lbs of pellets

• Made in Europe

Specifications

Basic Information:

Attribute	PHOENIX 18	PHOENIX 35	PHOENIX 50
Heat	2500 ft²	4500 ft²	6200 ft²
Weight	706 lb	794 lb	981 lb
Width	24 ¾"	24 ¾"	32"
Depth	25 ¼"	25 ¼"	34"
Height	57 ¾"	59 ½"	63 ¾"
Hopper volume	200Lbs of pellets	240Lbs of pellets	330Lbs of pellets

Detailed Information:

Installation and Safety Information:

Power of 170,000 BTU (30 KW) that can heat from 1,400 ft2 to 6,200 ft2.

The Phoenix boiler is the new generation of high-efficiency boilers. With a very high efficiency (up to 96%), it competes with all the major expensive Scandinavian brands for a fraction of the price, at least half the price of the latter. Compare, you will see.

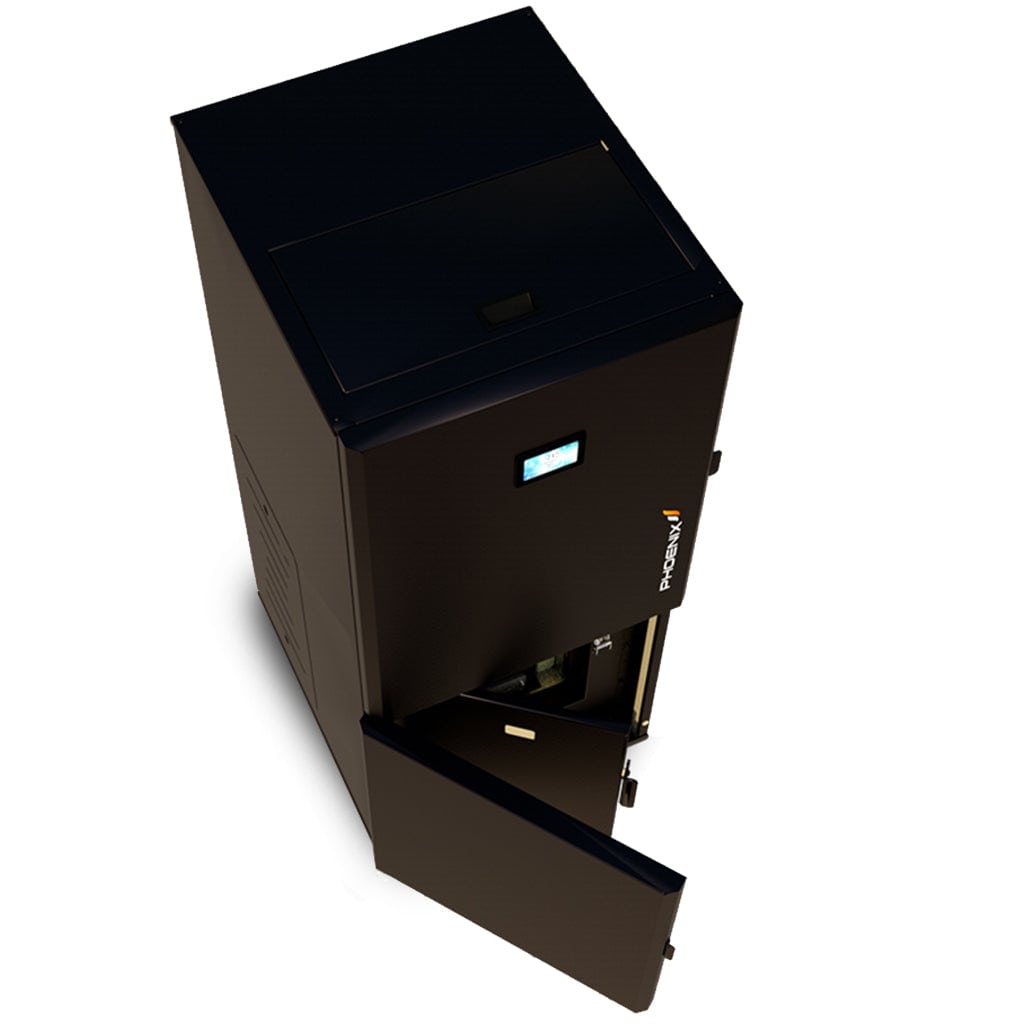

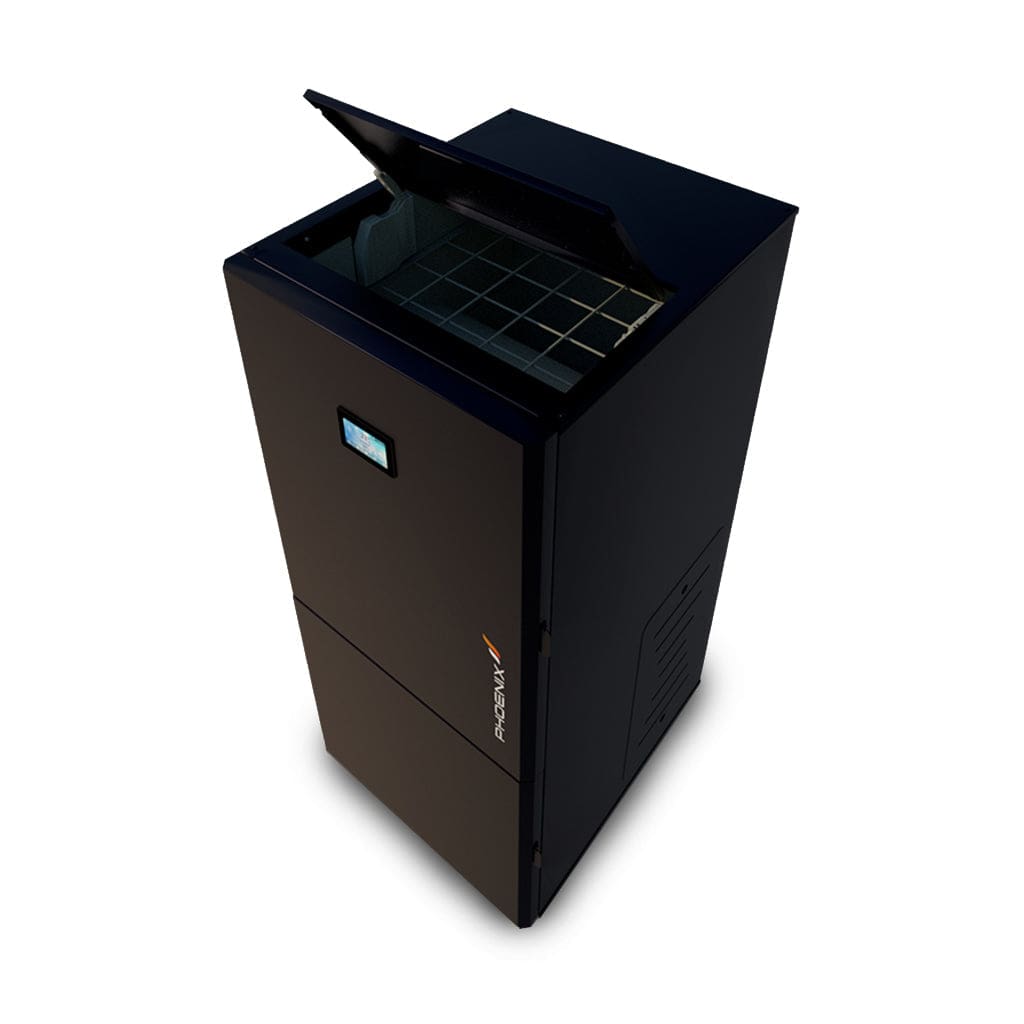

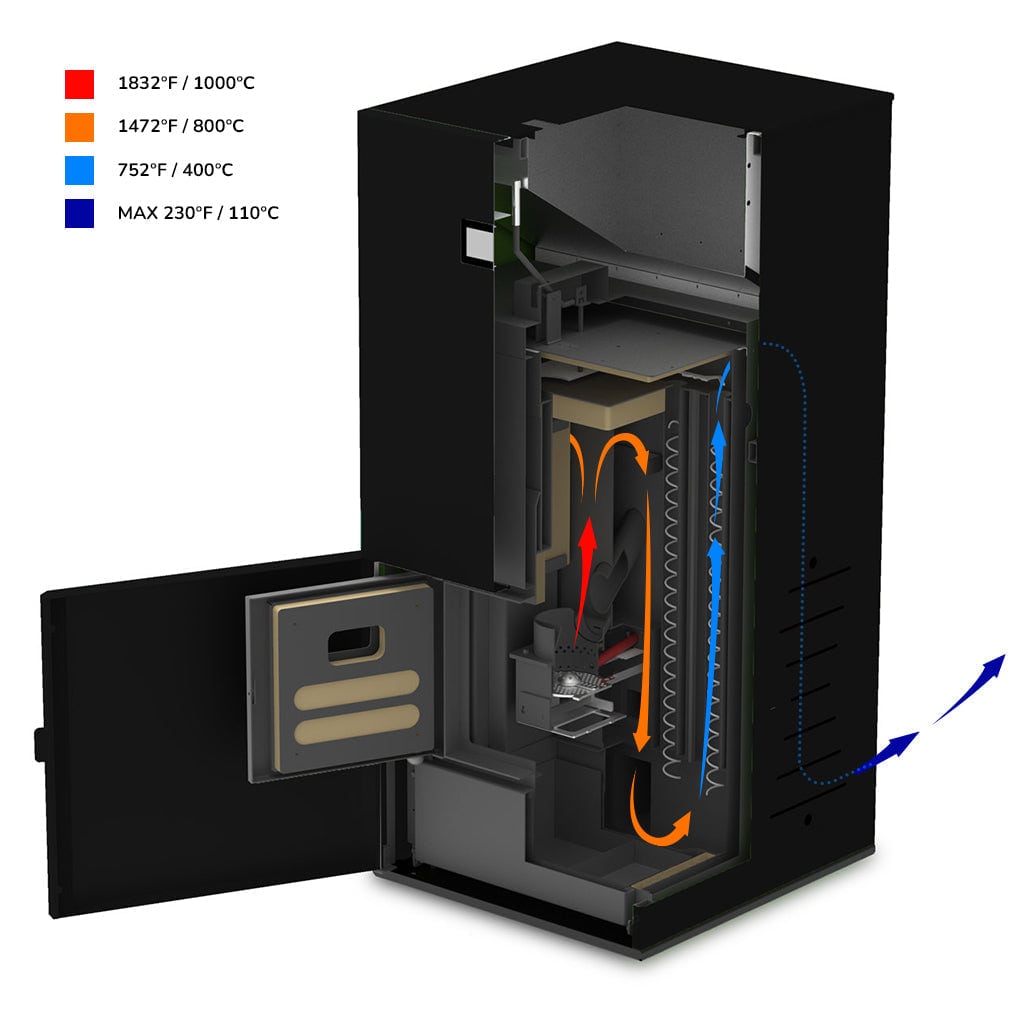

Unlike most pellet boilers, the Phoenix unit is extremely compact because its pellet tank is built directly on the heat exchanger, all in a single frame (mono-block). Added to this is its high performance multi-pass tubular heat exchange system (16 tubes in total), which allows installation in tight spaces.

Thanks to the integrated self-cleaning system, maintenance is minimal. All you have to do is pull ing the exchanger cleaner lever and empty the ash pan once or twice a month (about 5 minutes) and the cleaning is done.

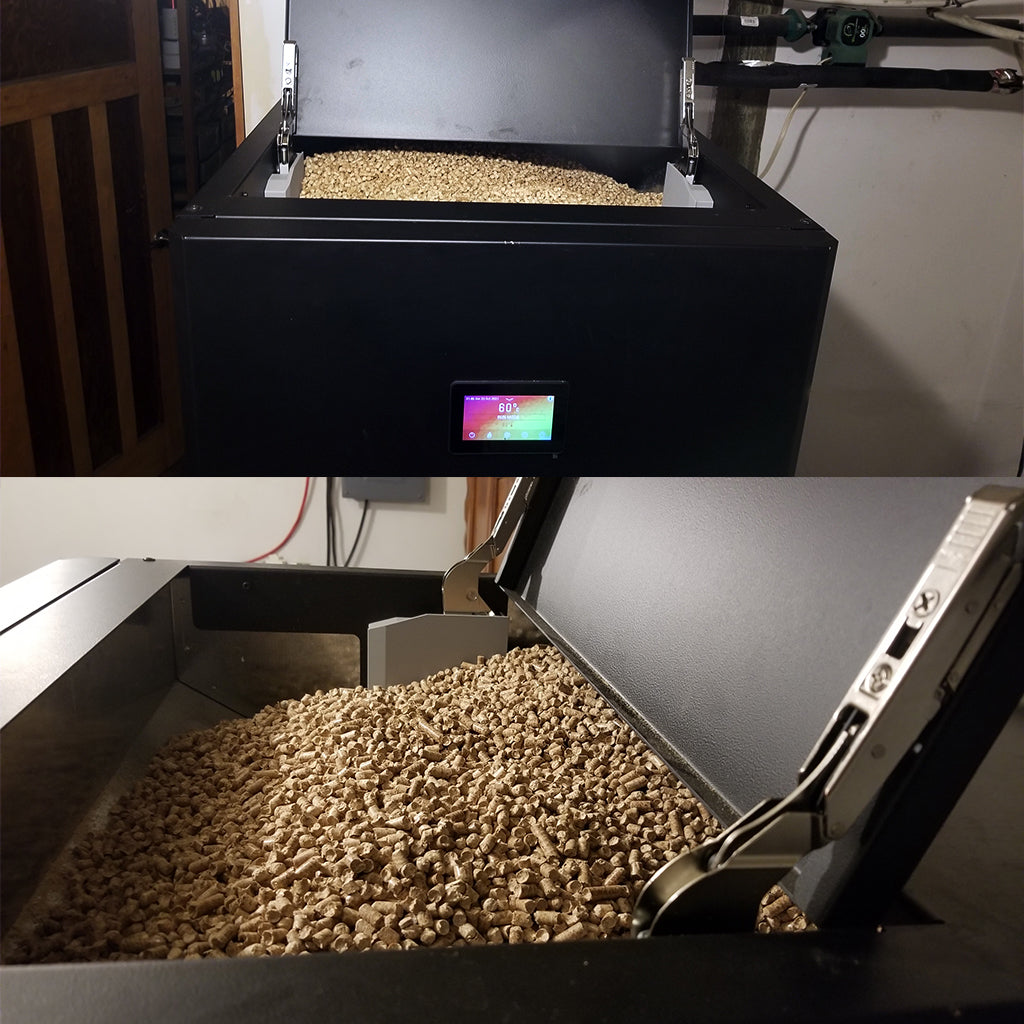

It can contain 8¼ bags of pellets (240lbs) for an autonomy of 3 to 10 days (depending on your energy demand). It is completely programmable and lets you decide when it is on or off.

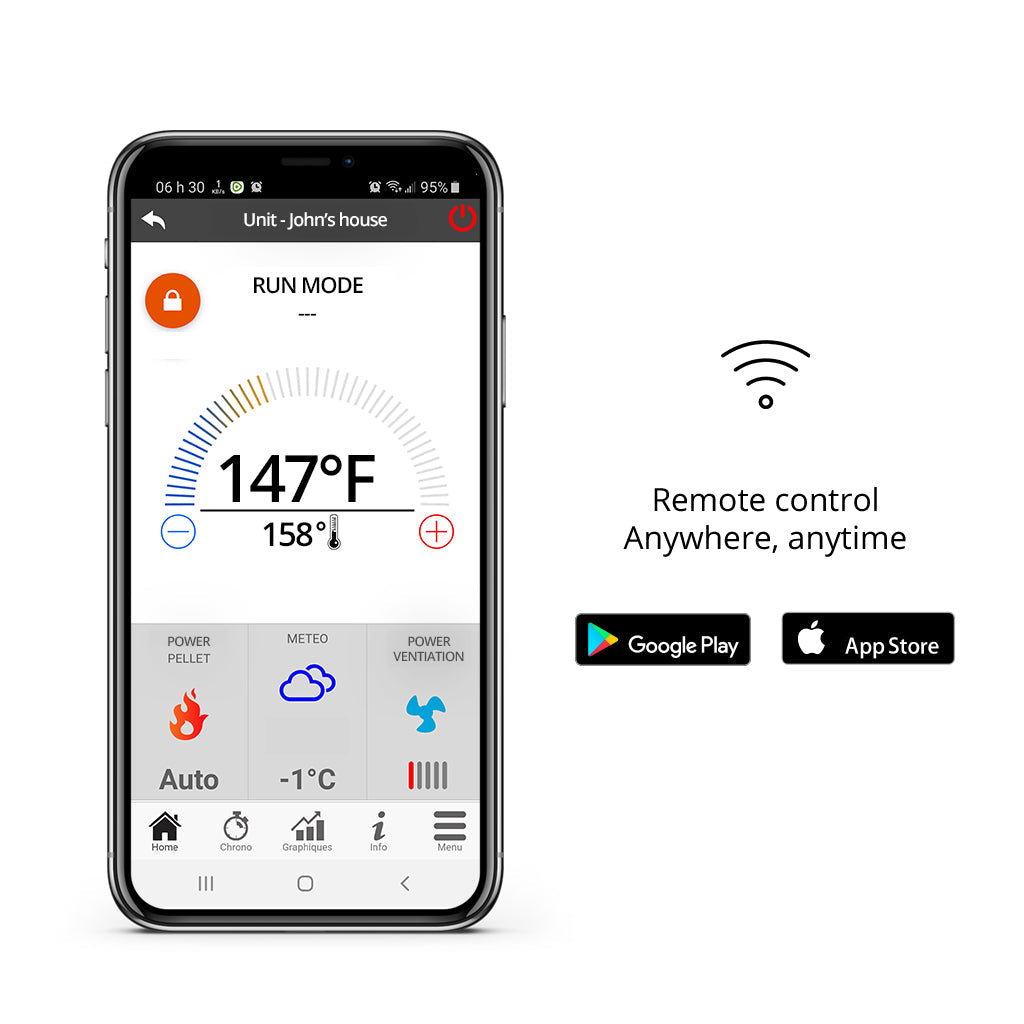

Leave with peace of mind with its remote control module: You can consult and modify the parameters of your unit at any time (anywhere) from the Android/Apple application on your smartphone.

This boiler meets North American environmental requirements. Thanks to its innovative technology, such as the 5-speed automatic fuel modulation, this product achieves very high efficiency and low CO emissions are released into the atmosphere (< 300mg/m3).

The ISO-9001 manufacturing process for our boilers is fully automated (welding, cutting, painting, etc.) thus reducing the risk of manufacturing defects to a minimum. Each unit is tested twice before being placed on the market (vacuum pressure test and water test). The success of this design has already been proven in more than 18 European countries. An efficient machine that works for a long time.

The product is covered by a two-year warranty on parts.

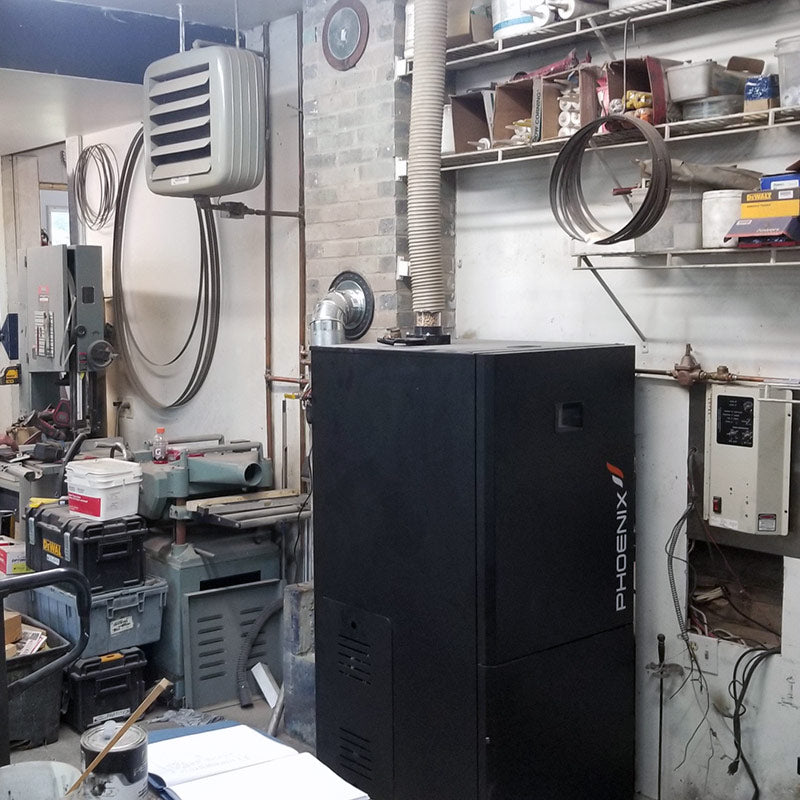

Whether you heat your home, workshop and/or garage, this boiler will meet your needs and your budget. Heating with wood pellets, a smart choice.
