MBTEK BIO DUO 1000, Woodchip Boiler 3400K BTU

BIO DUO 1000, Woodchip Boiler 3400K BTU

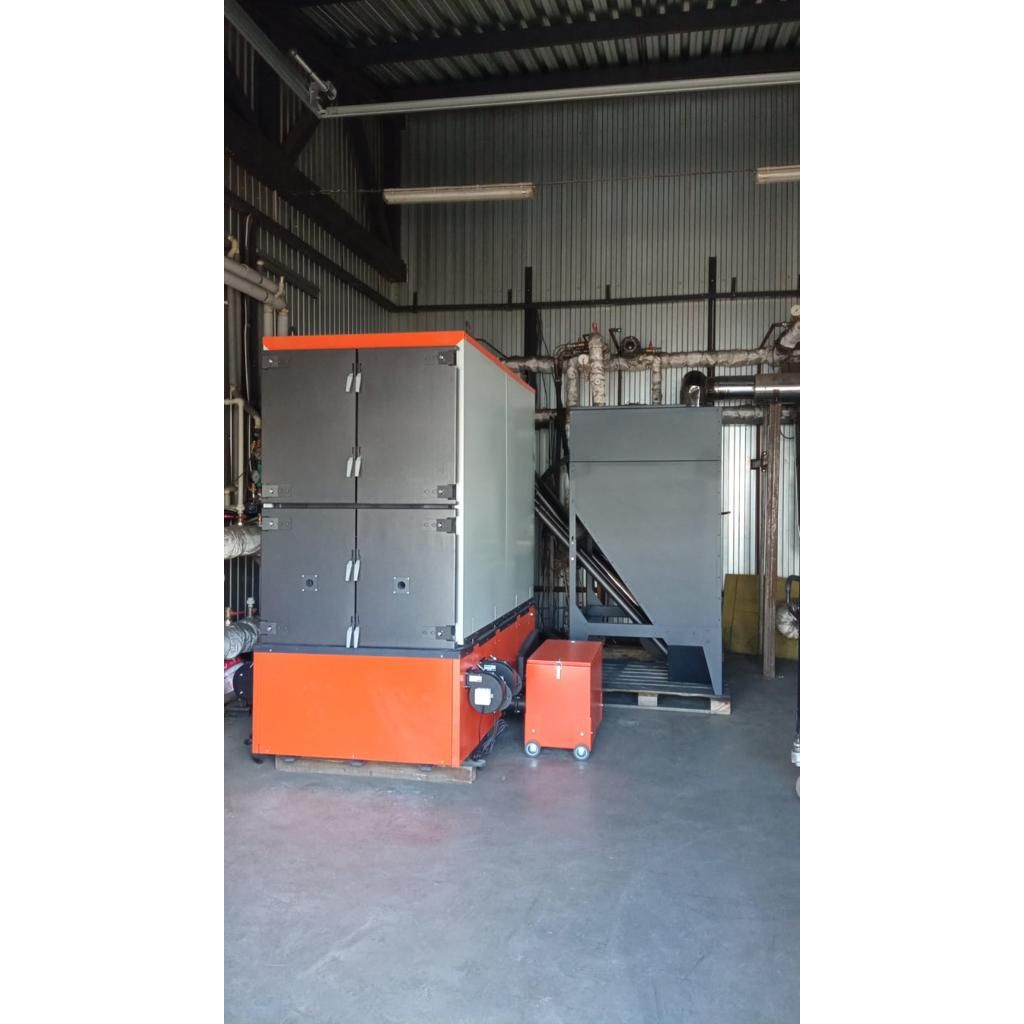

The BIO DUO 1000, Woodchip Boiler 3400K BTU is a commercial-grade biomass heating solution designed to deliver high-capacity and reliable heat for large facilities. With an adjustable heating capacity from 300 to 1000 kW (1,000K to 3,400K BTU), it is capable of supporting heating systems for areas of up to approximately 95,000 sq ft, making it suitable for industrial buildings, agricultural facilities, and large residential or commercial applications that require consistent, powerful heating.

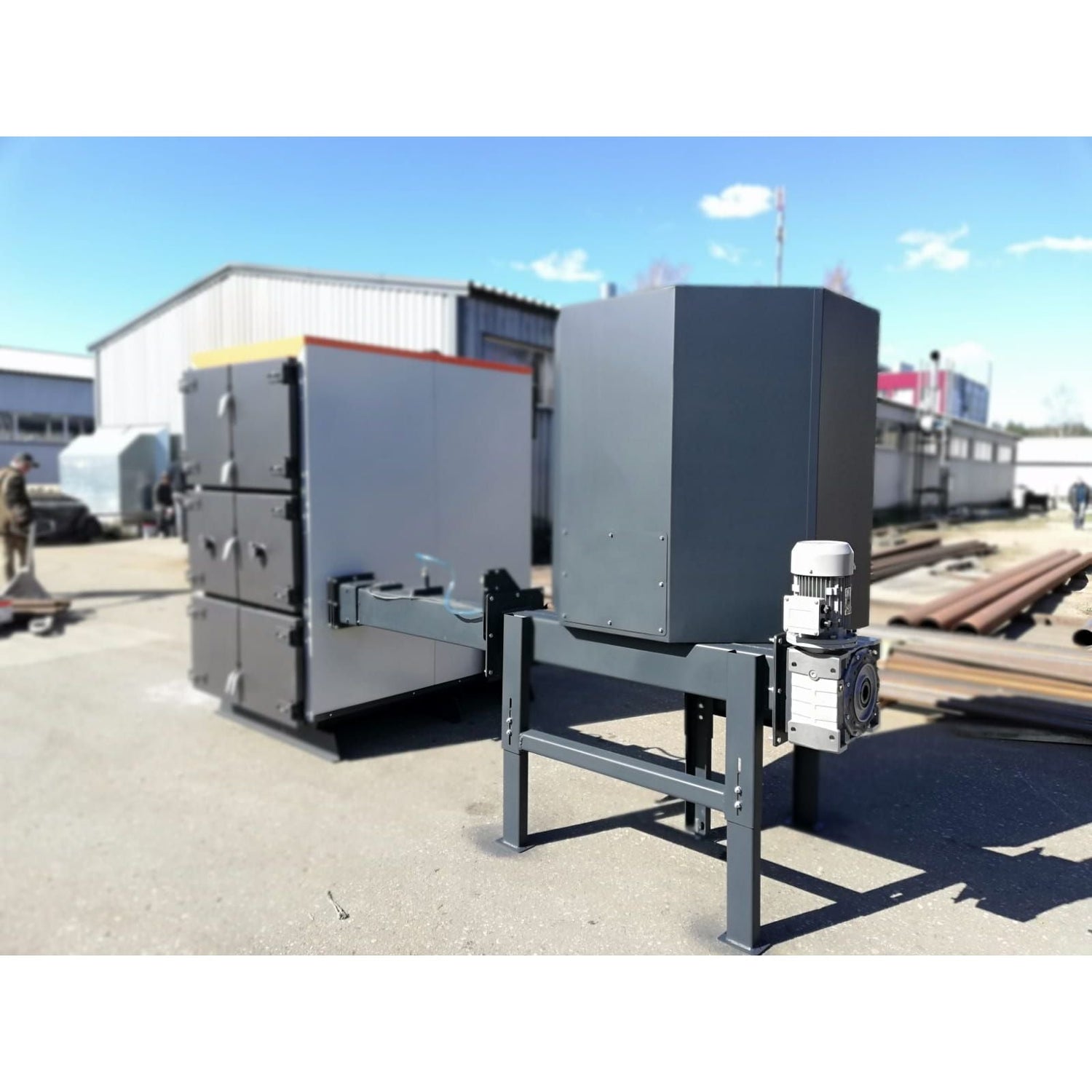

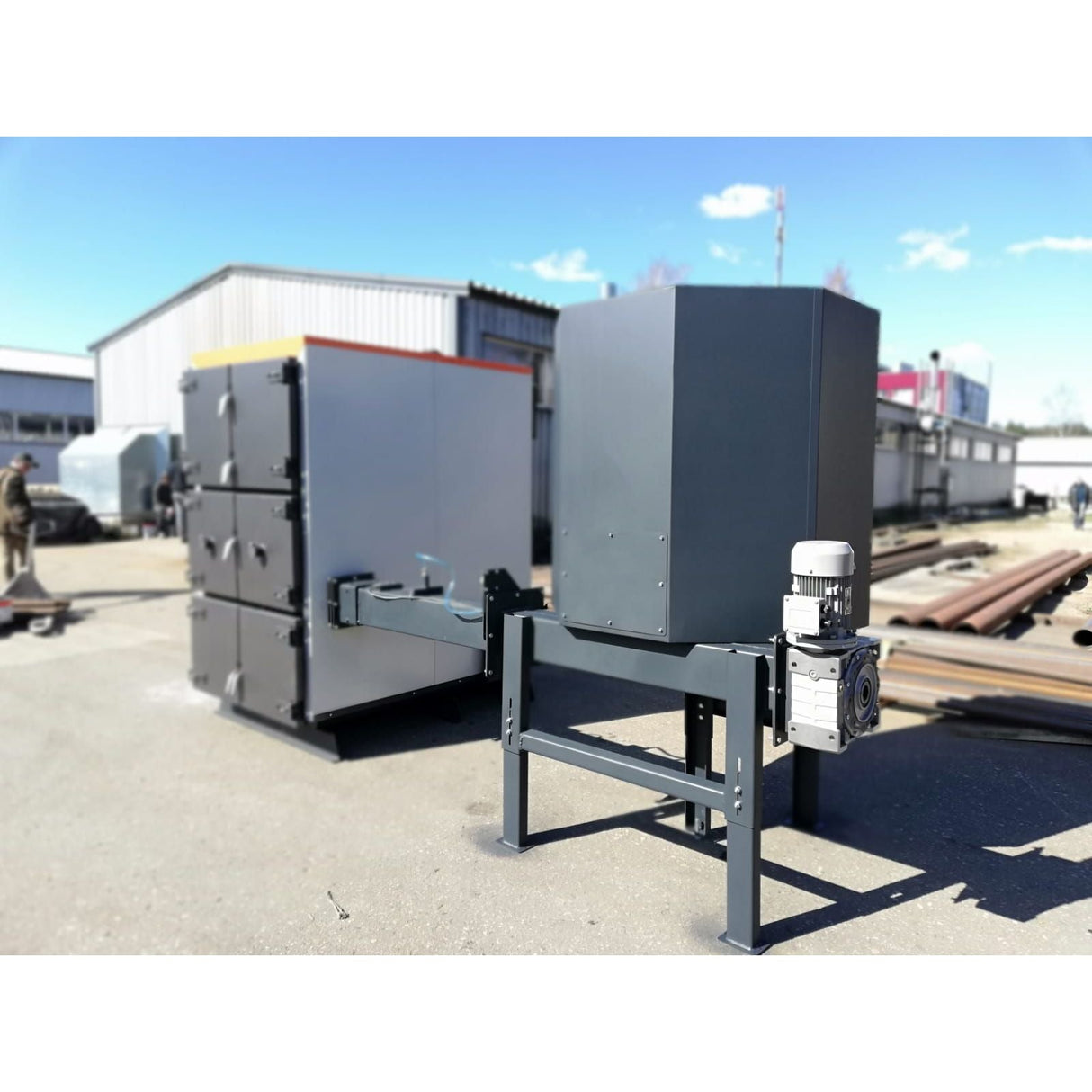

This boiler is engineered to burn wood chips and wood waste of various qualities, allowing flexibility in fuel sourcing while maintaining stable performance. An automatic fuel supply system reduces manual handling and supports continuous operation. The unit is constructed from high-strength boiler steel (ASTM A106) and features 2-inch thick thermal insulation with a durable powder-coated exterior, ensuring long-term durability and resistance in demanding operating environments.

For safety and efficiency, the BIO DUO 1000 integrates advanced protection systems, including thermal water protection and fuel line temperature monitoring, which help prevent ignition risks within the fuel feed system. Heat recovery is optimized to keep exhaust gas temperatures at or below 155 °C, contributing to strong energy utilization and an overall thermal efficiency of at least 86% at rated output.

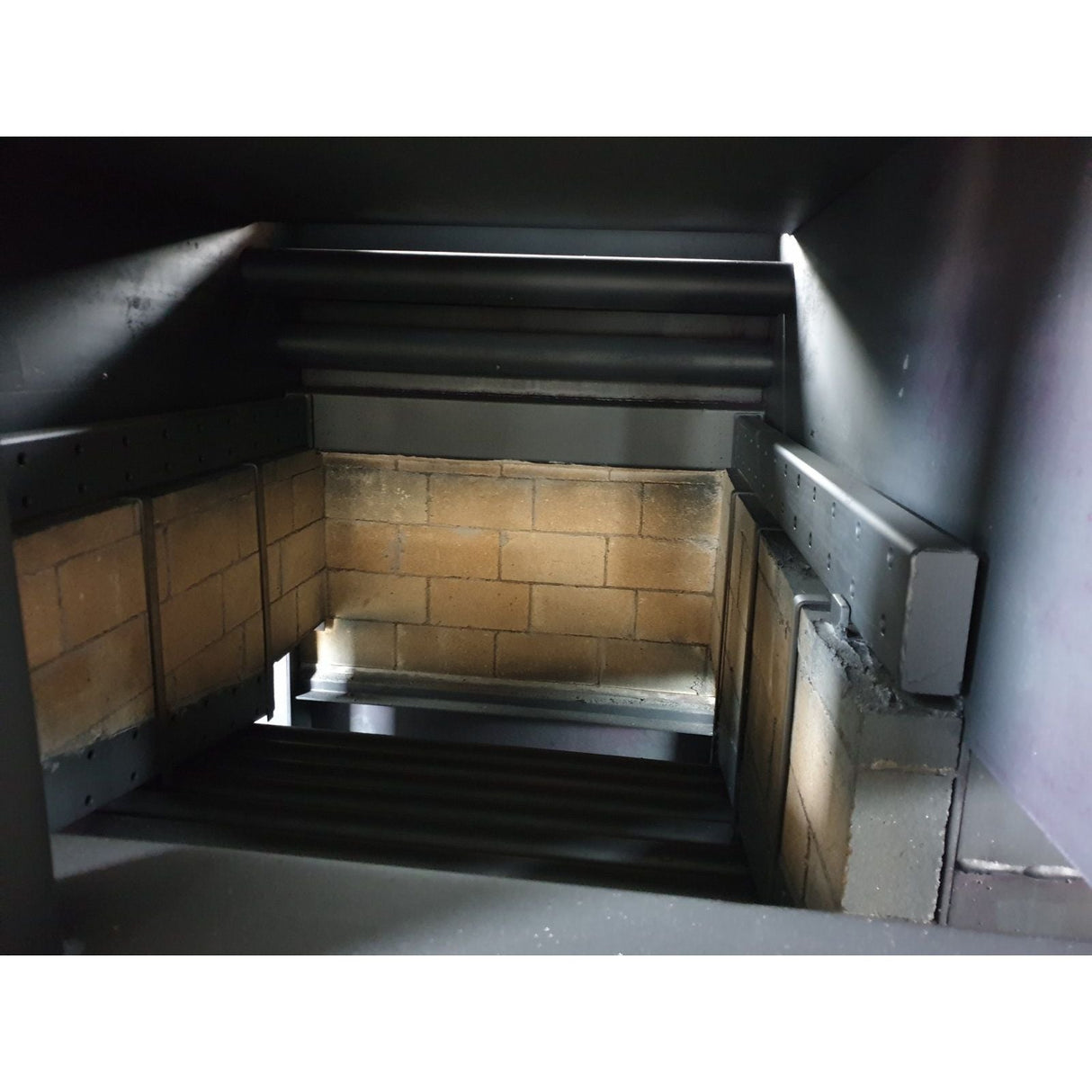

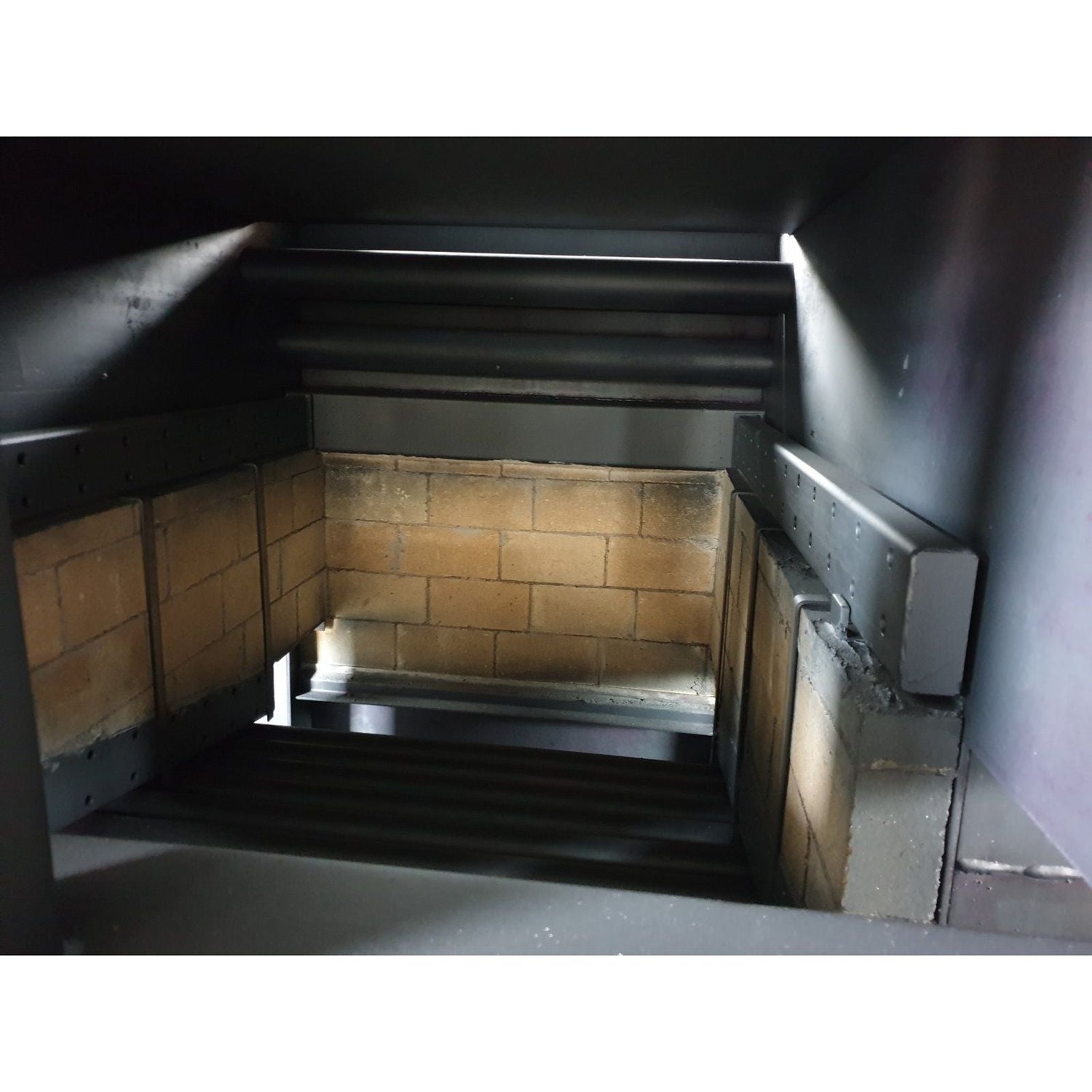

Maintenance and servicing are simplified through a practical design that includes wide door openings for easy access to the top heat exchanger and front-mounted components for cleaning and ash removal. Integrated automation controls manage the fan, feeder, and pump operation, and the system can be connected to room thermostats or network modules for enhanced monitoring and control, making it a dependable solution for large-scale biomass heating needs.

Features

• Massive Heating Power
  Delivers 300 to 1000 kW (1000-3400 KBTU) output with automatic fuel supply.
• Fuel Versatility
  Operates efficiently on wood waste fuel of any quality.
• High Efficiency
  Achieves a rated power efficiency of no less than 86%.
• Robust Construction
  Made from the best high-strength boiler steel grade ASTM A106.
• Accessible Maintenance
  Cleaning and maintenance are conveniently carried out from the front.
• Reliable & Guaranteed
  Features a strong security system and a 10-year warranty.

Additional Features

• Heat: 95000 ft²
• Weight: 16720 lb
• Hopper Volume: 800 gal - 8000 lb of woodchip
• Power: 300-1000 kW (1000-3400k BTU)
• Woodchip fuel

• Made in Europe


Commercial Grade for Commercial Use

• Efficiency at rated power not less than 86%
• Made from the best high-strength boiler steel grade ASTM A106
• Thermal insulation 2” thick
• Powder-coated skin resistant to mechanical stress
• Wide door opening angle
• Cleaning and maintenance are carried out from the front boiler parts
• Reliable security system (thermal water protection with control sensor fuel line temperature)
• Equipped with automatic TIS TRONIC 660HD.

TIS TRONIC 660HD

• Boiler fan control
• Boiler feeder control
• Control of pumps for central heating (CH), hot water supply (DHW), hot water circulation (DHW) and mixing circuit;
• Temperature control of flue gases
• Operation according to data from the outside temperature sensor
• Work in modes -" winter-summer "
• Boil protection;
• Possibility of connecting a room thermostat, internet module TIS TRONIC 501

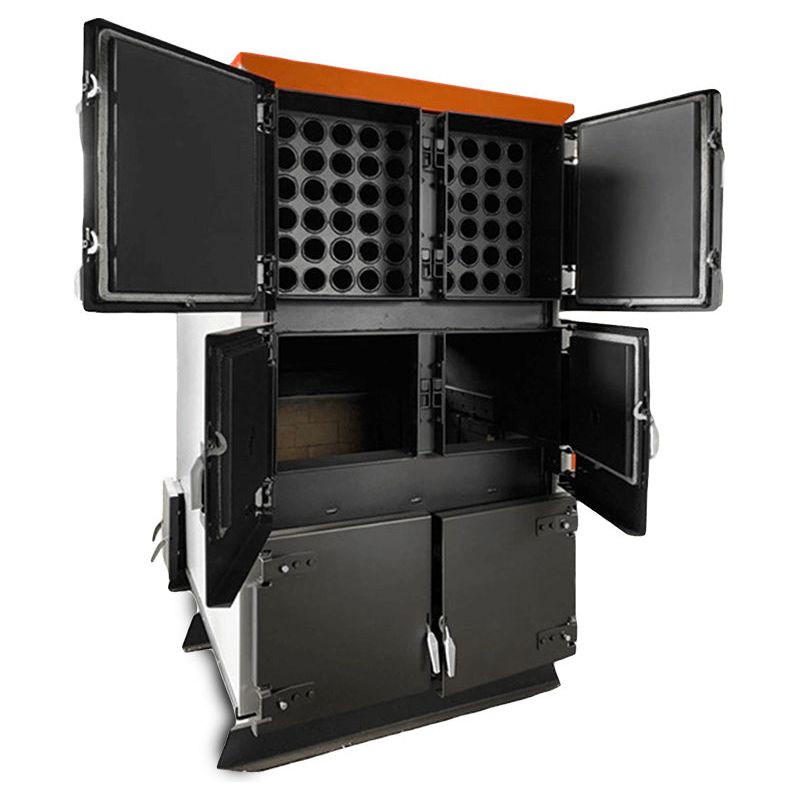

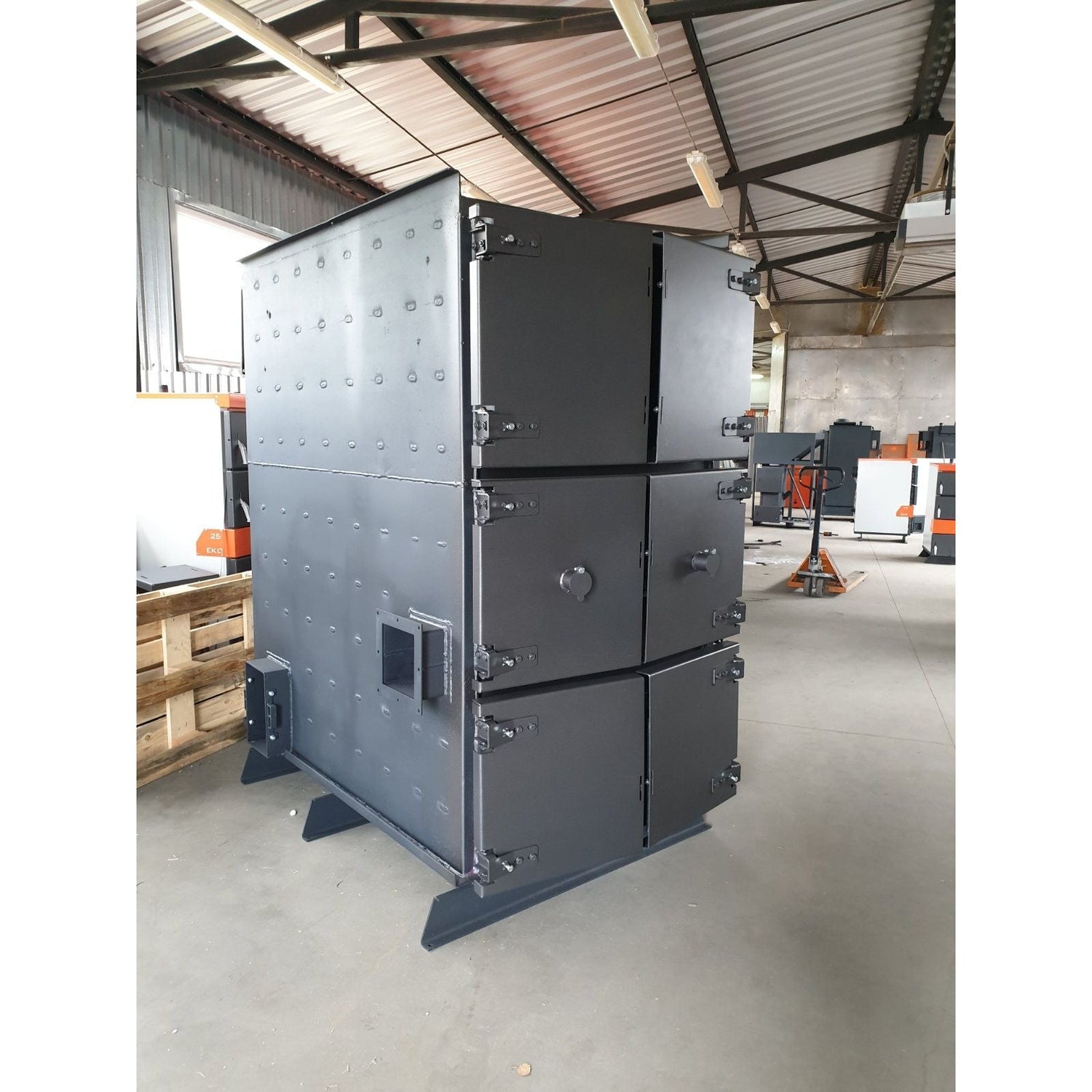

BIO HARD is manufactured with the finest certified boiler steel ASTM A106. The wide door openings make easy cleaning of the top heat exchanger, middle loading of biomass, and removal of ashes from the bottom. All maintenance is performed from the front and there is no need to unscrew anything else. High-quality multi-layer coating, non-combustible 2" insulation, and thermal protection systems ensure long-term and trouble-free operation.

Warranty: 10 years
