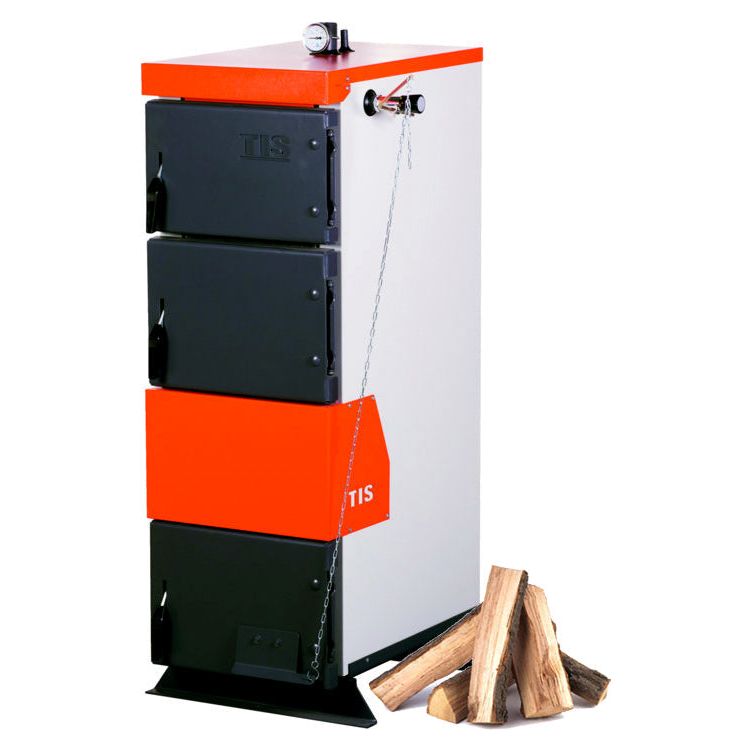

PRO 30 Wood Boiler 105K BTU

MBTEK PRO 30 Wood Boiler 105K BTU

The MBTEK PRO 30 Wood Boiler 105K BTU is a solid fuel heating solution designed to deliver reliable and powerful warmth for residential and small commercial spaces. With a 105,000 BTU heating capacity, this unit is well suited to heat areas where steady and efficient heat output is required. It operates using a manual feed system and is compatible with a range of solid fuels, including wood, biomass, charcoal, and wood chips, providing users with flexibility in fuel choice based on availability and preference.

Engineered for efficiency, the PRO‑30 Boiler utilizes gasification combustion technology, which enhances fuel burn quality and heat transfer compared to traditional combustion methods. A built‑in chimney sensor helps regulate the combustion process, promoting cleaner and more efficient operation while helping to maximize heat output from each load of fuel. This efficient design supports consistent performance throughout the heating season.

Constructed for long‑term use, the boiler combines durability with effective heat generation, making it practical for properties that depend on solid fuel systems for year‑round comfort. Its layout and components are tailored for straightforward installation and maintenance, ensuring dependable operation with regular care.

Ideal for homes, workshops, or small commercial buildings that utilize alternative or renewable fuel sources, the APOLLO PRO‑30 Boiler 105K BTU provides a dependable and energy‑efficient heating solution, balancing performance with adaptable fuel compatibility and effective heat delivery.

MODULATING WOOD BOILER WITHOUT ELECTRICITY OFF-GRID

For Commercial use only. PRO burns manual feed biomass such as wood, coal, and woodchips efficiently.

Features

• Heat: 3000 ft²

• Weight: 590 lb

• Width: 18'', Depth: 28", Height: 55"

• Firebox size: 28 gal.us

• Logs length: 17"

• Made in Europe
• Commercial Grade for Commercial Use.

Specifications

Basic Information:

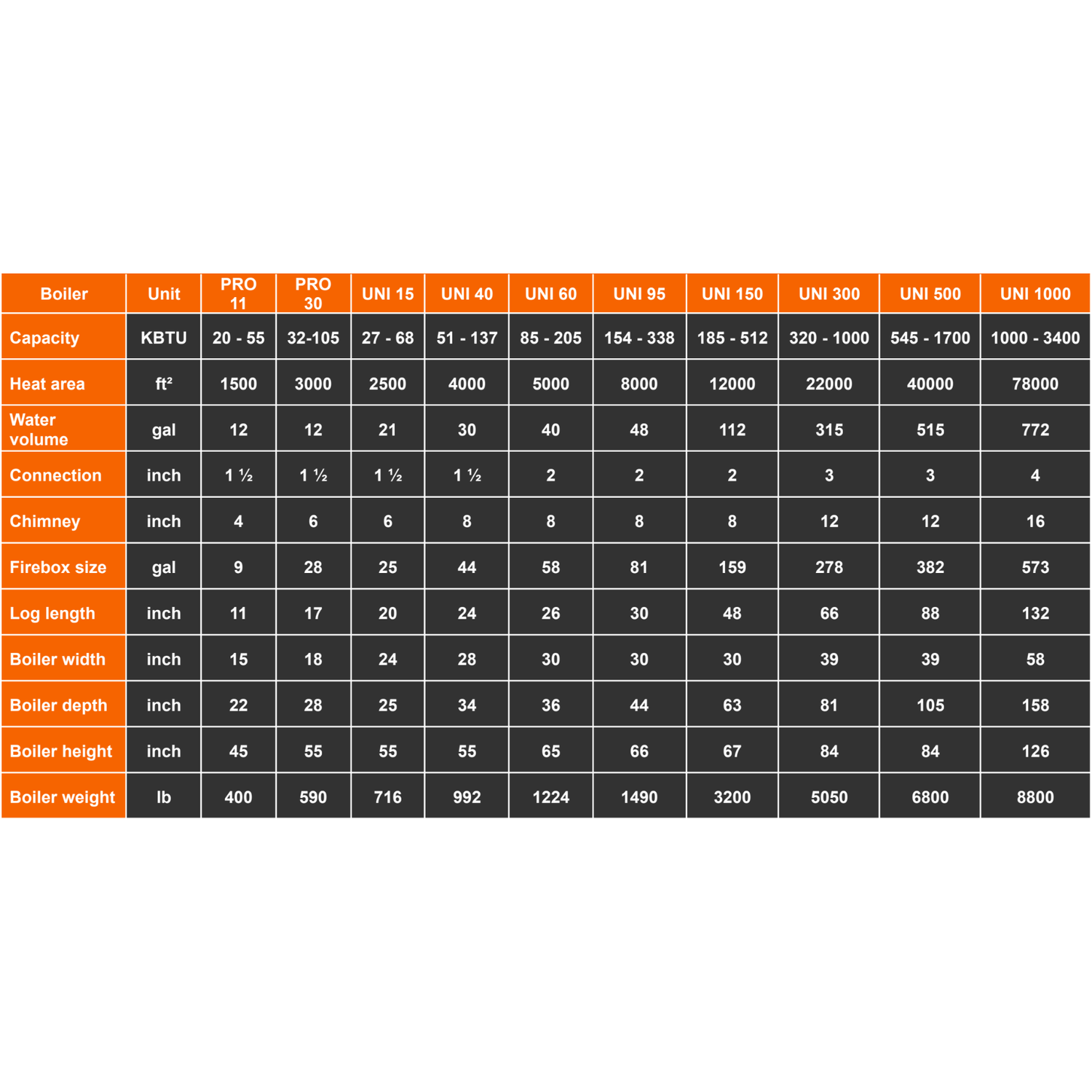

Attribute	Pro 11	Pro 30
Heat	1500 ft²	3000 ft²
Weight	400 lb	590 lb
Width	15"	18"
Depth	22"	28"
Height	45"	55"
Firebox size	9 gal.us	28 gal.us
Logs length	11"	17"

Detailed Information:

Power supply	No electricity needed.
Typical Applications	Designed for heating systems using solid fuels such as wood, coal, and briquettes.
Water Flow Through Boiler	Pro 11: 2.20 GPM. | Pro 30 5.72 GPM.
Hydraulic Resistance	Pro 11: Up to 1.45 PSI. | Pro 30: Up to 2.18 PSI.
Chimney Diameter	Pro 11: Options include 4.25 inches. | Pro 30: Options include 6.25 inches.
Types of Fuel	Wood (maximum 20% moisture content), coal (long-flaming preferred), and briquettes. The use of coking marks and anthracite is prohibited.
Calorific Value of Coal	Approximately 6500 kcal or 25.79 kBTU.
Clearance	With 29-Gauge Metal Heat Shield: Minimum space — Side/Back: 18 in., Front: 48 in., Ceiling: 3 in. Without Heat Shield: Minimum space — Side/Back: 48 in., Front: 48 in., Ceiling: 36 in. Stove Pipe to Wall or Ceiling: Single Wall Stove Pipe: 18 in.., Double Wall Stove Pipe: 6 in. For floor clearance requirements, refer to the installation manual.
Installation	Must be performed by qualified specialists in accordance with thermal mechanics project specifications.
Safety Features	Installation of a safety valve on the supply line and a non-return valve if connected to the water network.
Water Quality	Fill heating systems with clean, transparent water with hardness not exceeding 2 mg-eq/l.
Preventive Measures	Regular monitoring of coolant volume and pressure, and adherence to temperature limits when adding water (not exceeding 104 °F).
Chimney Construction	Recommended to be acid-resistant stainless steel per EN standards.
Warranty	Damage from scale formation is not covered under warranty.
Lifespan Consideration	Regular maintenance is essential for longevity and efficiency of the heating system.

PRO Boilers advantages are the large fuel loading chamber and a thermostatic regulation of air inlet damper. The boiler burns clean complete combustion and extracts the maximum amount of heat with a guaranteed efficiency of 85%. The boiler is also ready to add in future a fan and controller module.

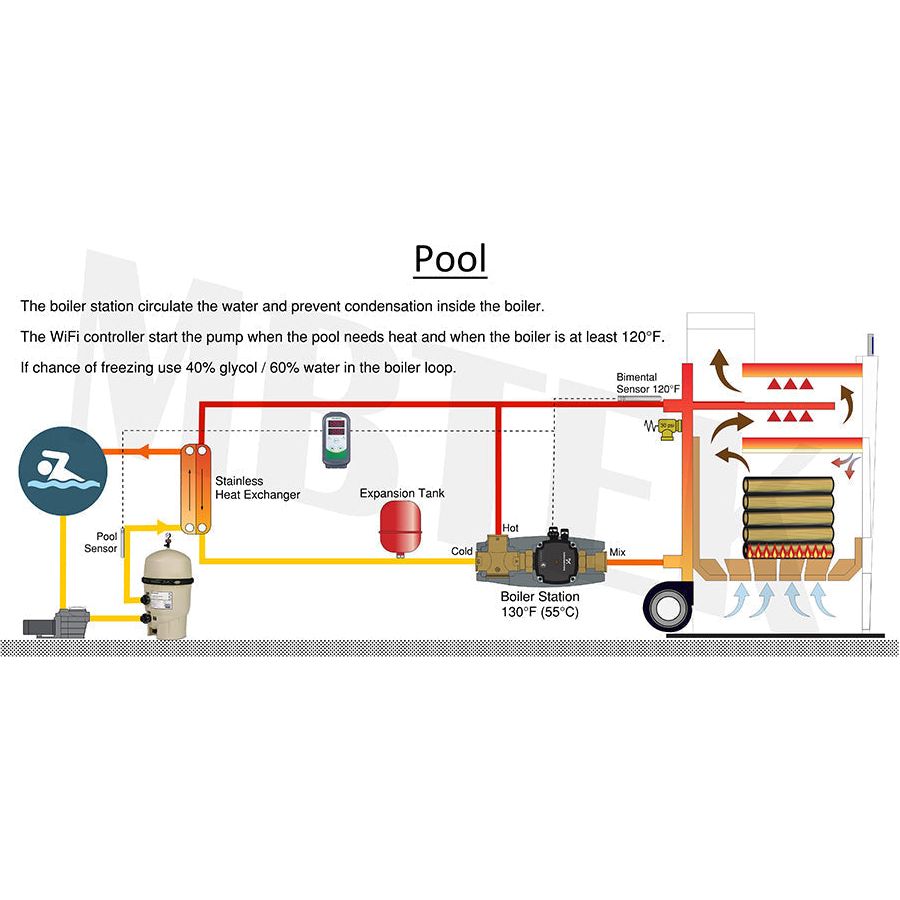

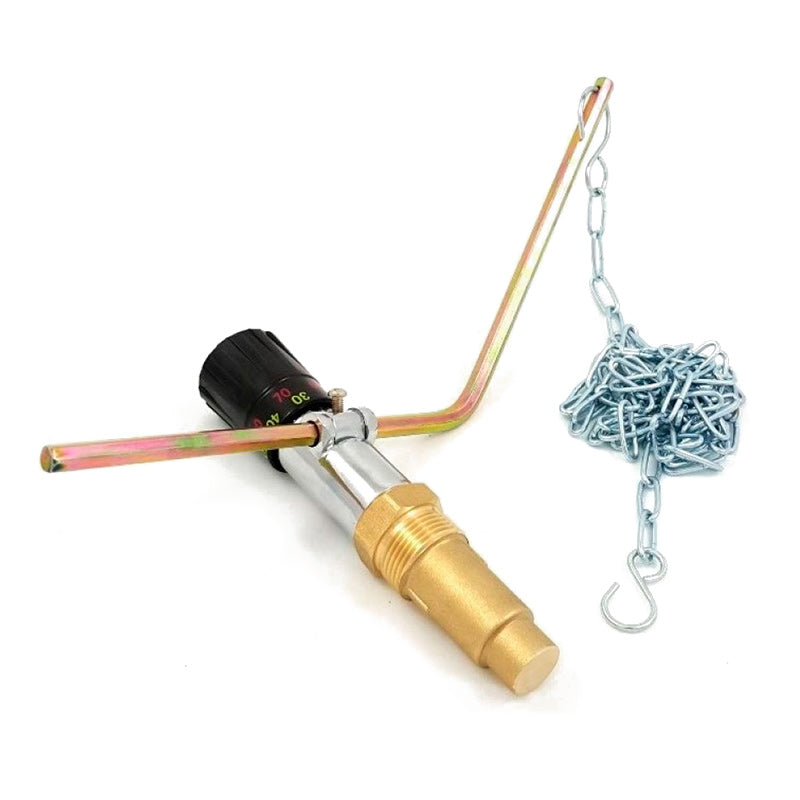

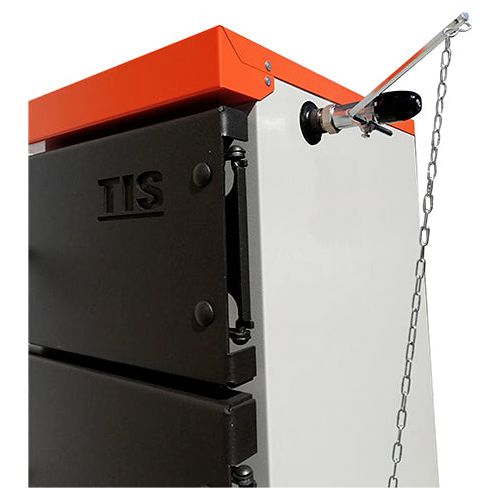

PRO boilers doesn't use any electricity and is preferred for Off-Grid installation. It fit naturally in no pump system with thermosiphon circulation. The combustion is adjusted with a thermostatic lever that adjusts the air inlet of the boiler depending on the preset boiler temperature. The boiler can heat your domestic hot water, thermal storage, direct feeding design and more. Simply turn the thermostatic element knob to desired water temperature and the boiler will modulate the combustion to match setpoint.

PRO Boilers are manufactured with the finest certified boiler steel ASTM A106. The wide door openings make easy cleaning of the heat exchanger, loading of biomass and removal of ashes. All maintenance is performed from the front and there is no need to unscrew anything else. High-quality multi-layer coating, non-combustible 2" insulation, and thermal protection systems ensure long-term and trouble-free operation.
