MRCOOL 5th Gen Advantage 24K BTU Ductless Mini Split Air Conditioner and Heat Pump 230V
MRCOOL 5th Gen Advantage 24K BTU Ductless Mini Split Air Conditioner and Heat Pump 230V is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
We offer fast and reliable shipping across the continental U.S., with free shipping available on most orders (exclusions may apply based on brand and product type). Orders are typically processed within 1–2 business days and transit time is usually 4–7 business days. Larger items may ship via freight and require a scheduled curbside delivery. Please ensure your contact details are accurate at checkout. For questions about delivery timelines, shipping eligibility, or special requests, feel free to contact us directly. See policy
Price Match Guarantee
Price Match Guarantee
Find a lower price? Call +1(855-799-1672) and we'll match it! (Some exclusions may apply. See ourLowest Price Guarantee Policyfor more information)
Returns
Returns
Our return policy covers a 30-day period from the date of purchase. To be eligible, items must be unused, in their original packaging, and accompanied by proof of purchase. Defective products are eligible for free returns, with options for a refund or replacement. Customer remorse returns may incur return shipping fees and restocking fees. Refunds are processed within a specified timeframe, subject to restocking fees if applicable. Late or missing refunds should be addressed with your bank or credit card company first. Exchanges may be accepted for defective or damaged items. Shipping costs for returns are typically the responsibility of the customer, except in cases of damaged products. For further details or inquiries, please contact us via phone, email, or live chat.See policy
MRCOOL 5th Gen Advantage 24K BTU Ductless Mini Split Air Conditione...
MRCOOL 5th Gen Advantage 24K BTU Ductless Mini Split Air Conditioner and Heat Pump 230V is backordered and will ship as soon as it is back in stock.
✅ Authorized Online Dealer
🚚 Free Shipping + No Sales Tax (exclusions may apply)
💲 We Beat The Lowest Price
📦 Fast 4-7 Day Delivery
🏭 Manufacturer Warranty Included
❓ Questions? Call Our Experts: +1 (855-799-1672)
Description
Description
MRCOOL 5th Gen Advantage 24K BTU Ductless Mini Split Air Conditioner and Heat Pump 230V

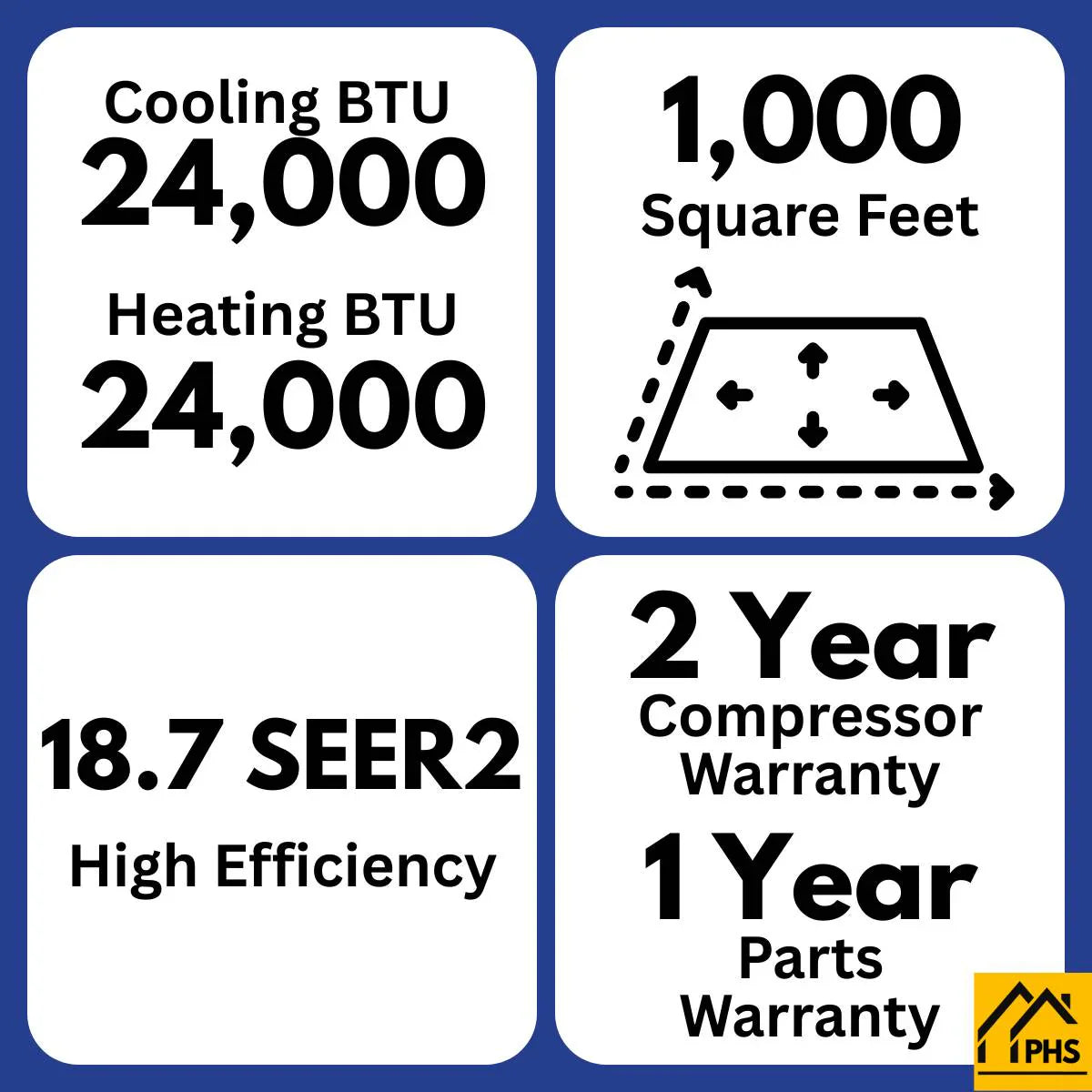

The MRCOOL Advantage 5th Gen 24,000 BTU Single Zone Mini Split Complete System with a 16 ft line set and 230 V wall-mounted design is a powerful ductless HVAC solution designed to deliver efficient year-round comfort in larger single-zone spaces. With 24,000 BTU of heating and cooling capacity, this system is well suited for areas up to approximately 1,000–1,050 sq ft, such as living rooms, open-concept areas, or large bedrooms. Its ductless design eliminates the need for traditional ductwork while still providing strong, consistent performance.

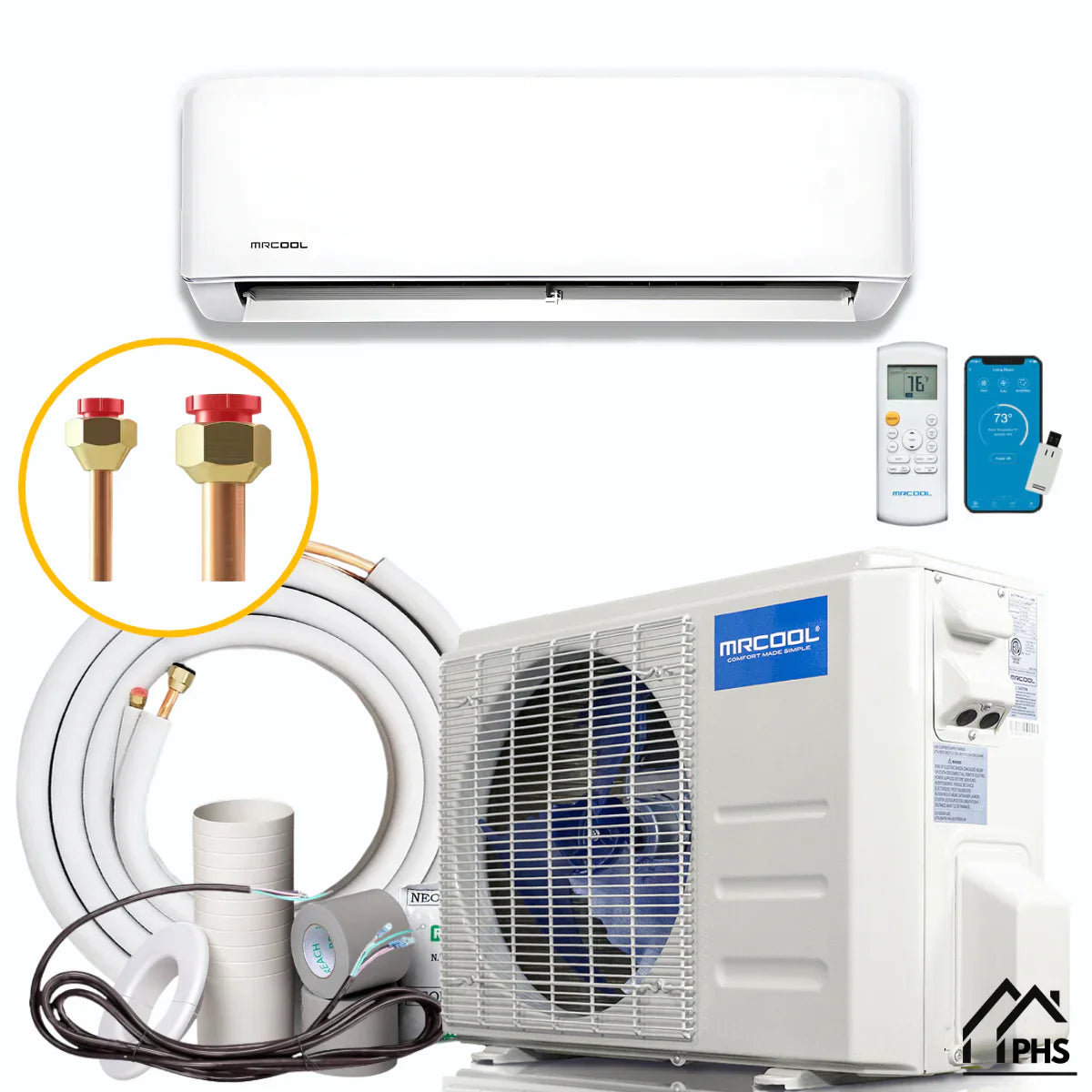

This complete system includes a 24,000 BTU heat pump condenser and a matching wall-mounted indoor air handler, along with a 16 ft line set intended for professional installation. Operating on 230-volt power, it delivers reliable heating and cooling with an 18.7 SEER2 efficiency rating, helping maintain comfort across a wide range of outdoor conditions.
Built for quiet and dependable operation, the Advantage series mini split provides balanced airflow and even temperature distribution throughout the space. The wall-mounted indoor unit supports efficient air circulation while maintaining a clean, space-saving profile, making it a practical solution for whole-room climate control.
The system is backed by manufacturer warranty coverage, including a 2-year compressor warranty and a 1-year parts warranty, offering added confidence and long-term reliability. With its combination of high capacity, energy efficiency, and professional-grade design, the MRCOOL Advantage 5th Gen 24,000 BTU Single Zone Mini Split is a dependable choice for larger residential comfort needs.
Please note: This system is not a DIY installation and must be installed by a licensed HVAC technician.
Features
- 24,000 BTU Capacity – Ideal for cooling and heating areas up to 1,000 sq. ft.
- Efficient Heating & Cooling – Provides year-round comfort with reliable temperature control.
- Quiet Operation – Built to deliver powerful performance while keeping noise levels low.
- Wall-Mounted Design – Space-saving and easy to integrate into most rooms.
- Durable Construction – Engineered with quality materials for long-lasting operation.
Specifications
| Condenser 24K BTU | |
|---|---|
| Product Dimensions | 35.04"W x 13.46"D x 26.50"H |
| Electrical Requirements | Requires a minimum of 230V/60HZ/19-20A (please check your home meets this electrical requirement prior to purchase) |
| Cooling Capacity | 24,000 BTU |
| Heating Capacity | 24,000 BTU |
| Zone Capacity | 1 |
| Cool Mode - Outdoor Operating Temperature Range | 5°F - 122°F |
| Heat Mode - Outdoor Operating Temperature Range | 5°F - 86°F |
| SEER2 | 18.7 |
| EER2 | 10.0 |
| Registered Warranty | 1-Year Parts, 2-Year Compressor (can be extended to a Limited Lifetime Warranty upon registration) |
| Air Handler 24K BTU | |
| Product Dimensions | 42.52"W x 8.90"D x 13.19"H |
| Electrical Requirements | Requires a minimum of 230V/60HZ/3-15A (please check your home meets this electrical requirement prior to purchase) |
| Mount Type | Wall |
| Cooling Capacity | 24,000 BTU |
| Heating Capacity | 24,000 BTU |
| Coverage Area | Up to 1050 sq ft |
| Modes | Auto Heat Quiet Mode Fan Only |
| Registered Warranty | 1-Year Parts, 2-Year Compressor (can be extended to a Limited Lifetime Warranty upon registration) |
| Line Set | |
| Length | 16 Feet |
| Liquid Line Size | 3/8" |
| Suction Line Size | 5/8" |
Applications
-
Large bedrooms – Keep your sleeping area comfortable in any season.
-
Living rooms – Perfect for open or connected family spaces.
-
Basements – Maintain warmth in winter and cool comfort in summer.
-
Home offices – Energy-efficient comfort for large workspaces.
What’s Included
-

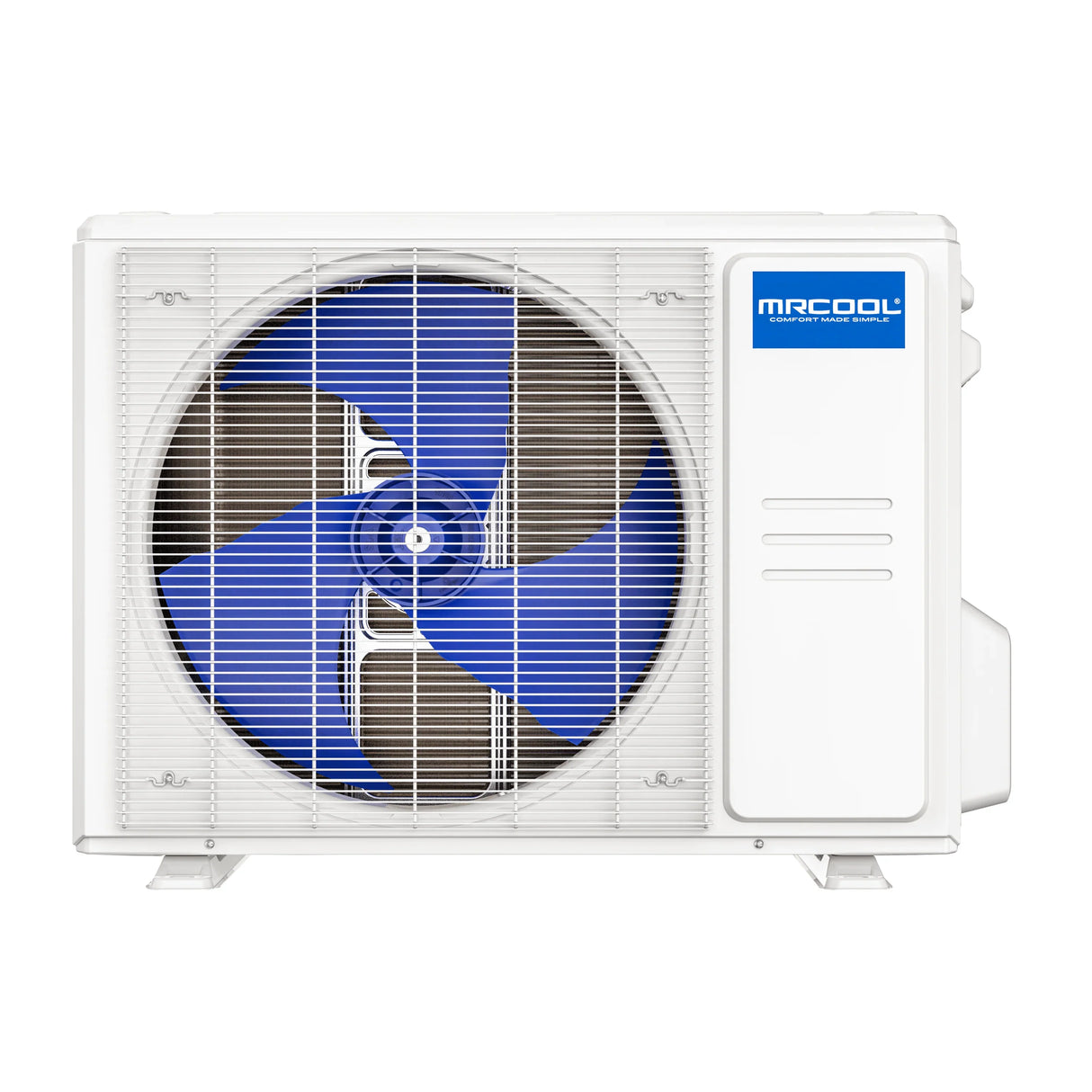

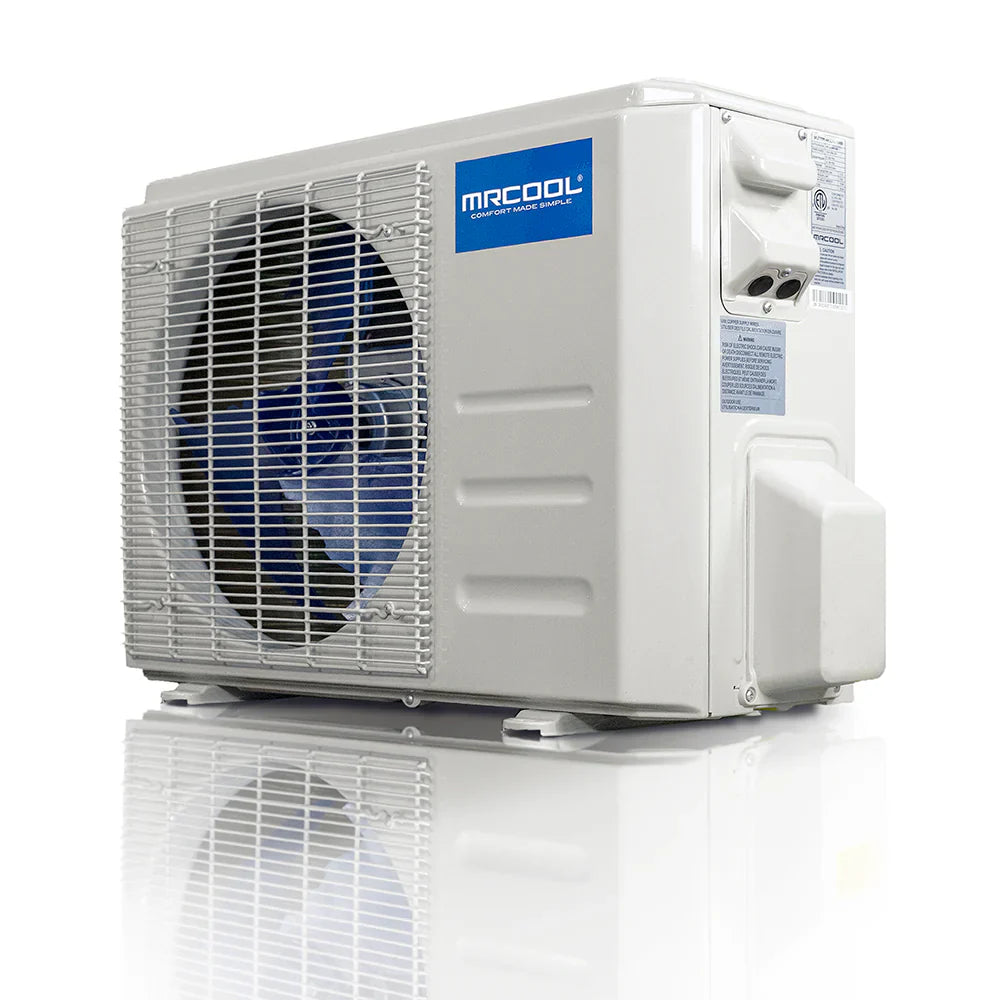

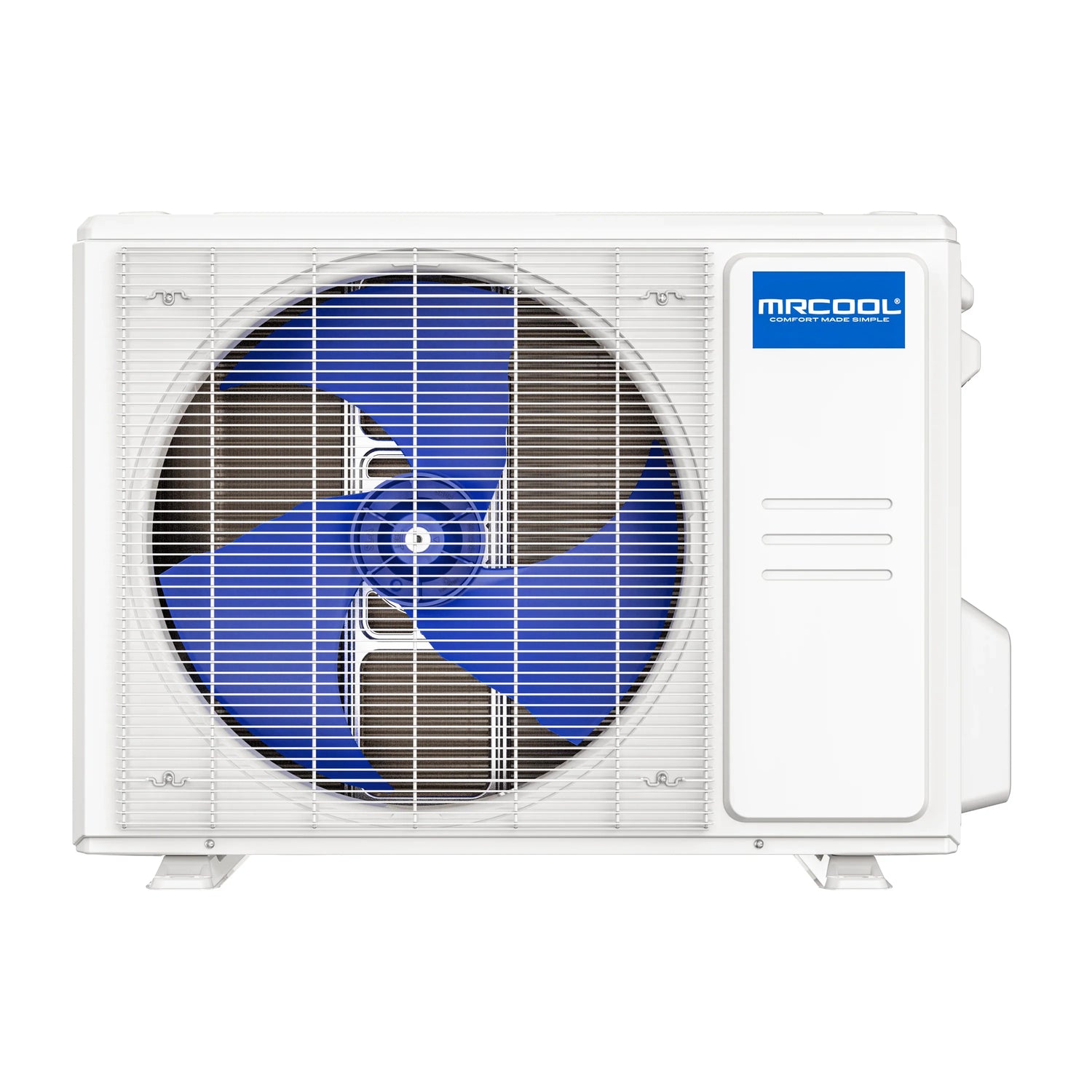

24K BTU Heat Pump Condenser
-

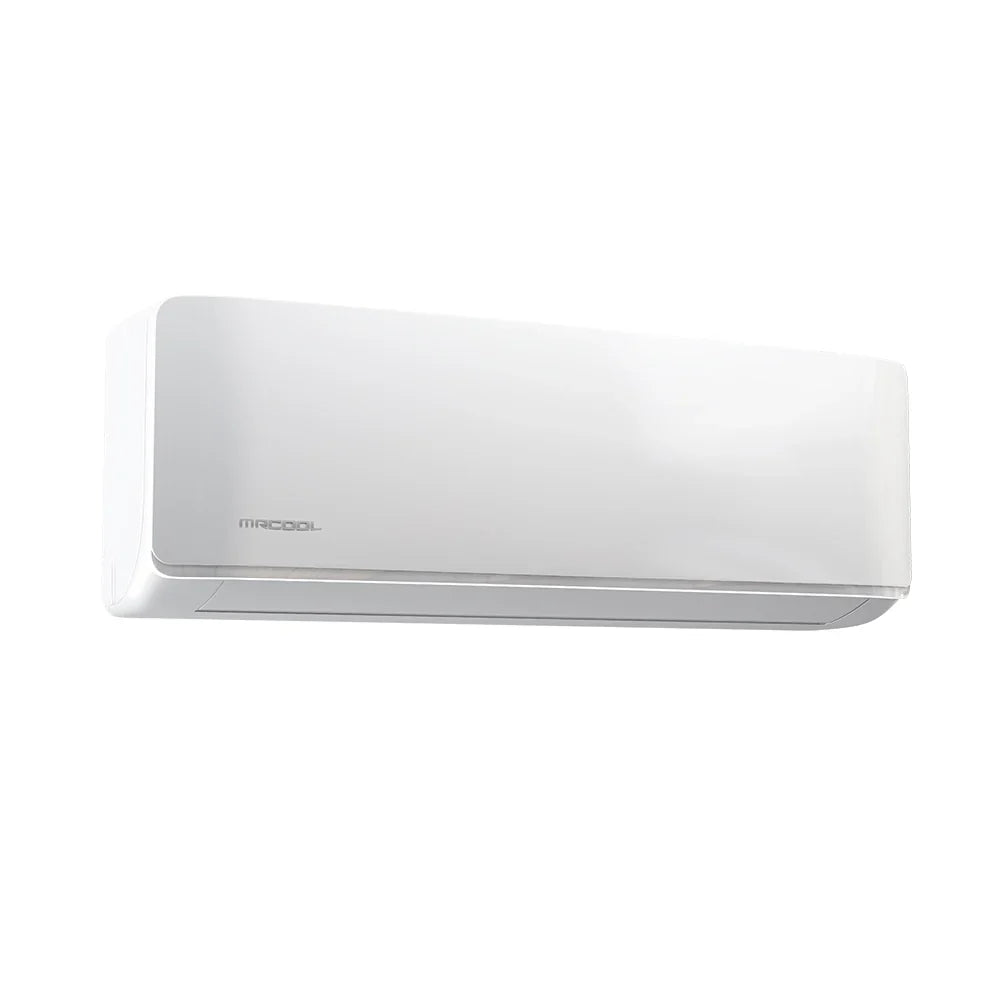

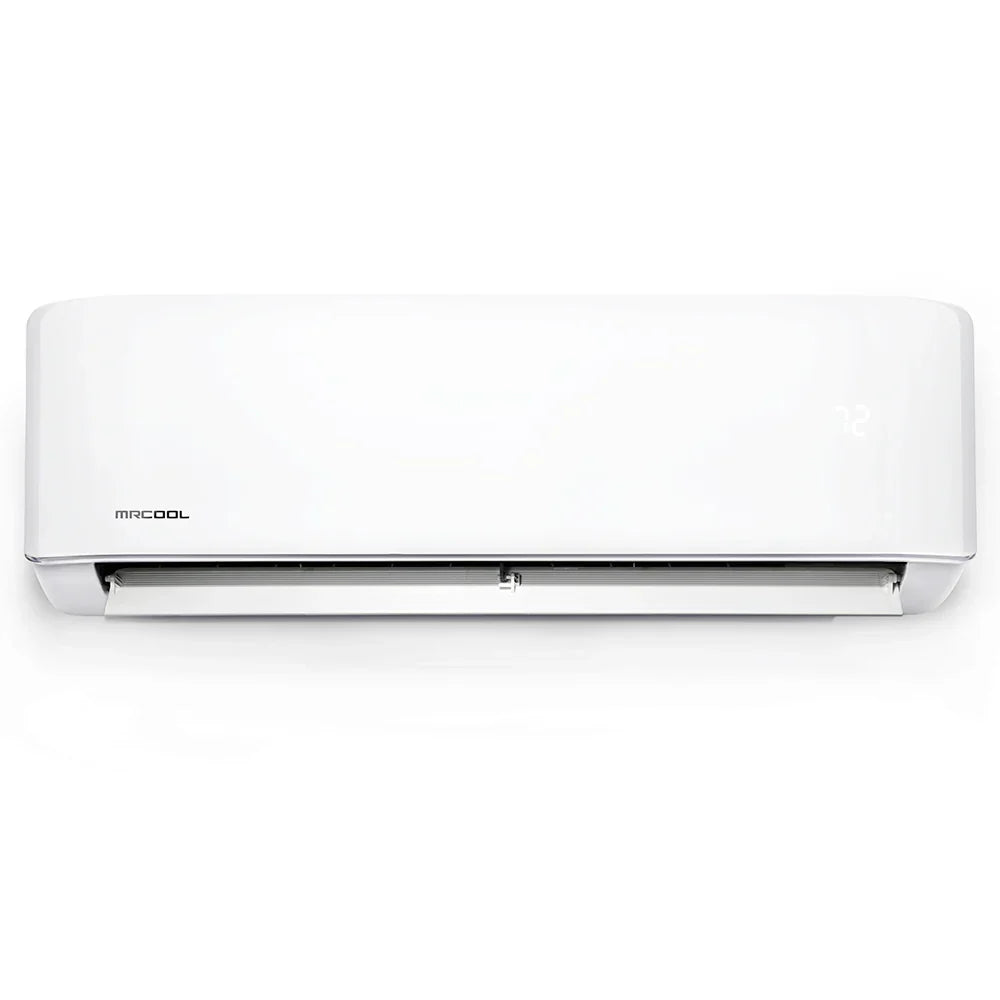

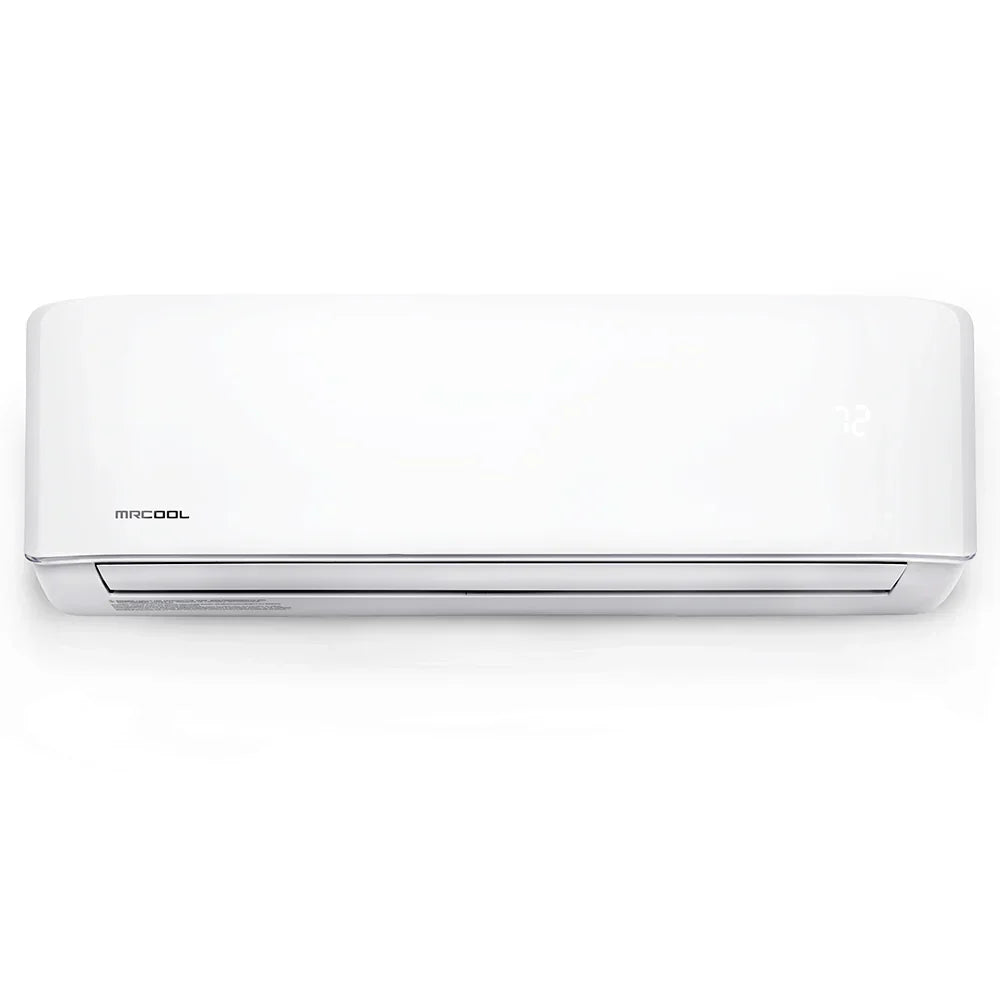

24K BTU Wall Mount Air Handler
-
User manual
Warranty
-
2-Year Compressor Warranty
-
1-Year Parts Warranty
Frequently-Asked Questions
Does this system require professional installation?
Yes. The Advantage Series is not DIY-friendly and must be installed by a licensed HVAC technician.
What size area can this unit cover?
This 24K BTU system is suitable for large spaces up to 1,000 sq. ft.
