MRCOOL Closed Loop Installation Kit 4 Ton with Angled Manifold GCIK-CL4T-AM
The MRCOOL Closed Loop Installation Kit 4 Ton with Angled Manifold (model GCIK-CL4T-AM) is a complete geothermal accessory package designed to support 4-ton GeoCool Inverter Series heat pump systems. This all-in-one kit provides all the major components needed to build a closed-loop geothermal field, enabling efficient ground-source heating and cooling performance throughout the year. It is engineered to help streamline the installation process for residential or light commercial geothermal HVAC applications.

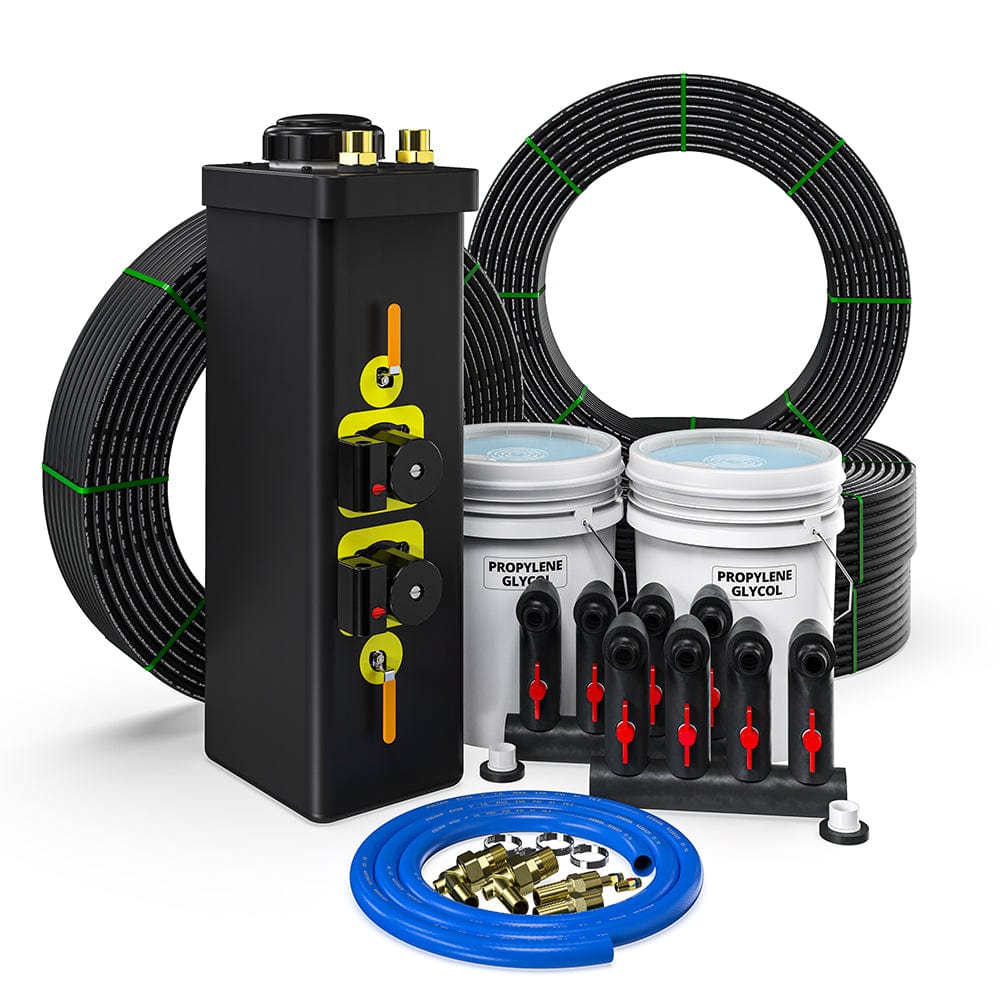

This comprehensive kit includes four 600-foot rolls of 3/4″ high-density polyethylene (HDPE) loop pipe, a 4-circuit angled insulated header, a Geo-Pulse non-pressurized geothermal flow center with dual pumps, and a 12-foot geothermal hose kit with 90° elbow adapters. To help protect the system and enhance thermal transfer efficiency, the kit also comes with 5 gallons of propylene glycol heat transfer fluid. Each component is constructed with corrosion-resistant materials suited for long-term buried use, ensuring reliable performance in underground field installations.
The angled manifold design offers installation flexibility in mechanical spaces where loop routing may benefit from non-linear alignment, making it easier to work around obstacles or confined areas. By bundling all essential loop components into a single package, this kit reduces the need to source parts individually and supports a more efficient setup process.
Optimized for use with MRCOOL GeoCool geothermal units, the 4 Ton Closed Loop Installation Kit with Angled Manifold provides a solid foundation for dependable ground-source HVAC performance. Its robust configuration and included accessories make it a practical choice for those planning a geothermal installation or upgrade that demands long-lasting and efficient heat exchange capability.
Features
-
Angled Manifold Configuration – Offers versatile routing options for installations in tight or complex mechanical spaces.
-
Complete Installation Kit – Includes loop piping, fittings, manifold, and hardware to cover your 4-ton geothermal project needs.
-
Corrosion-Resistant Materials – Built to withstand underground installation conditions for long-term reliability.
-
Designed for MRCOOL Systems – Engineered specifically to match MRCOOL geothermal heat pump systems.
-
Time-Saving Setup – Reduces installation time and labor with pre-matched components and user-friendly layout.
Specifications
| Equipment Type |
Install Kit |
| Configuration |
Angled |
| Proposition 65 Warning |
Yes |
Applications
-
Residential Geothermal Systems – Supports efficient, renewable heating and cooling for larger homes.
-
Energy-Efficient Upgrades – Ideal for retrofitting existing systems to geothermal technology.
-
New Construction Projects – A great solution for contractors installing 4-ton geothermal systems in new homes.
-
Compact Mechanical Rooms – Angled manifold provides flexibility for tighter equipment configurations.
-
Eco-Friendly HVAC Solutions – Facilitates low-emission, sustainable heating and cooling installations.
What’s Included
- MRCOOL Closed Loop Installation Kit 4 Ton with Angled Manifold (GCIK-CL4T-AM)
- User Manual
Frequently-Asked Questions
Is this kit compatible with other geothermal brands?
It is designed specifically for MRCOOL geothermal systems. For use with other brands, ensure compatibility with the system specifications.
Can the angled manifold be adjusted?
The angled configuration is fixed but designed for ease of routing and compact space installations.
Is professional installation recommended?
Yes, for best performance and warranty protection, professional installation is advised.
