Description
Description

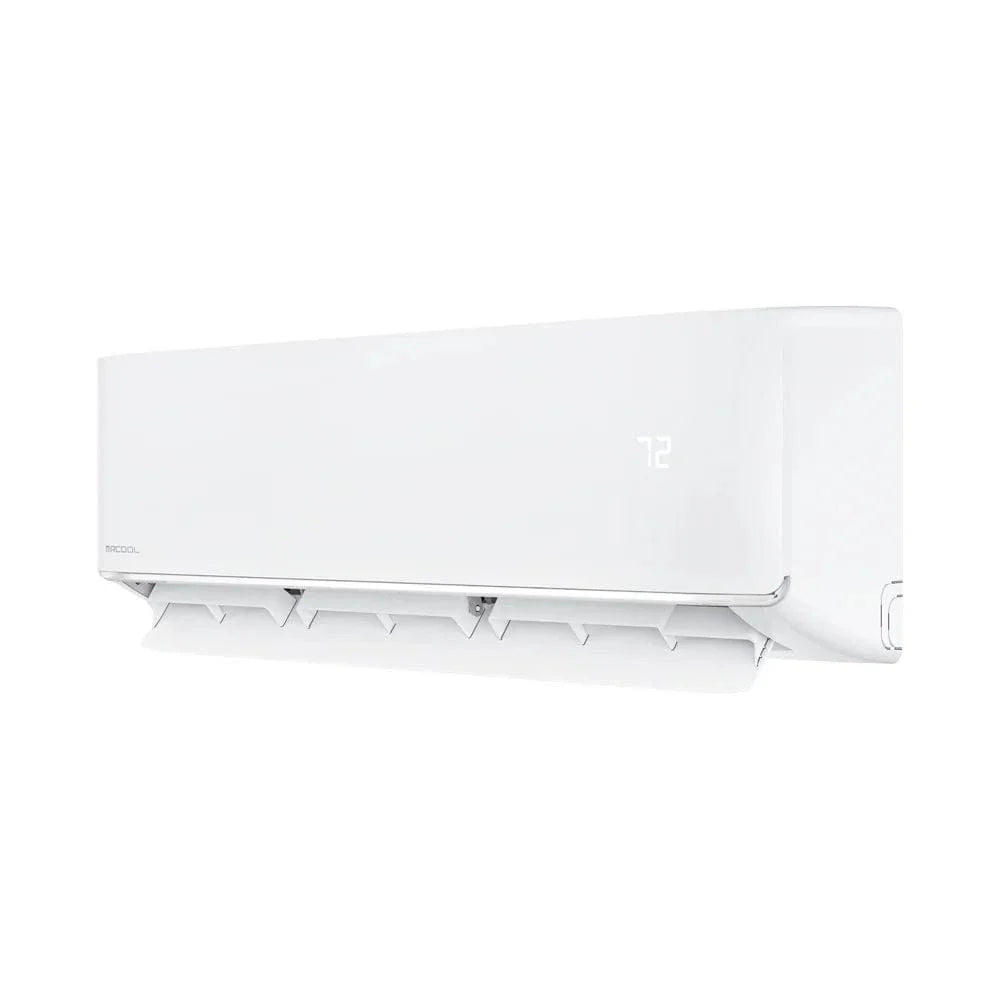

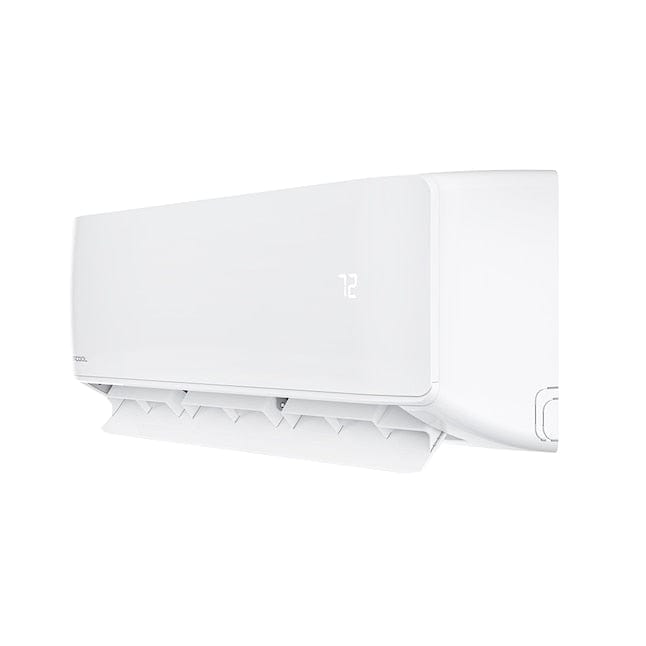

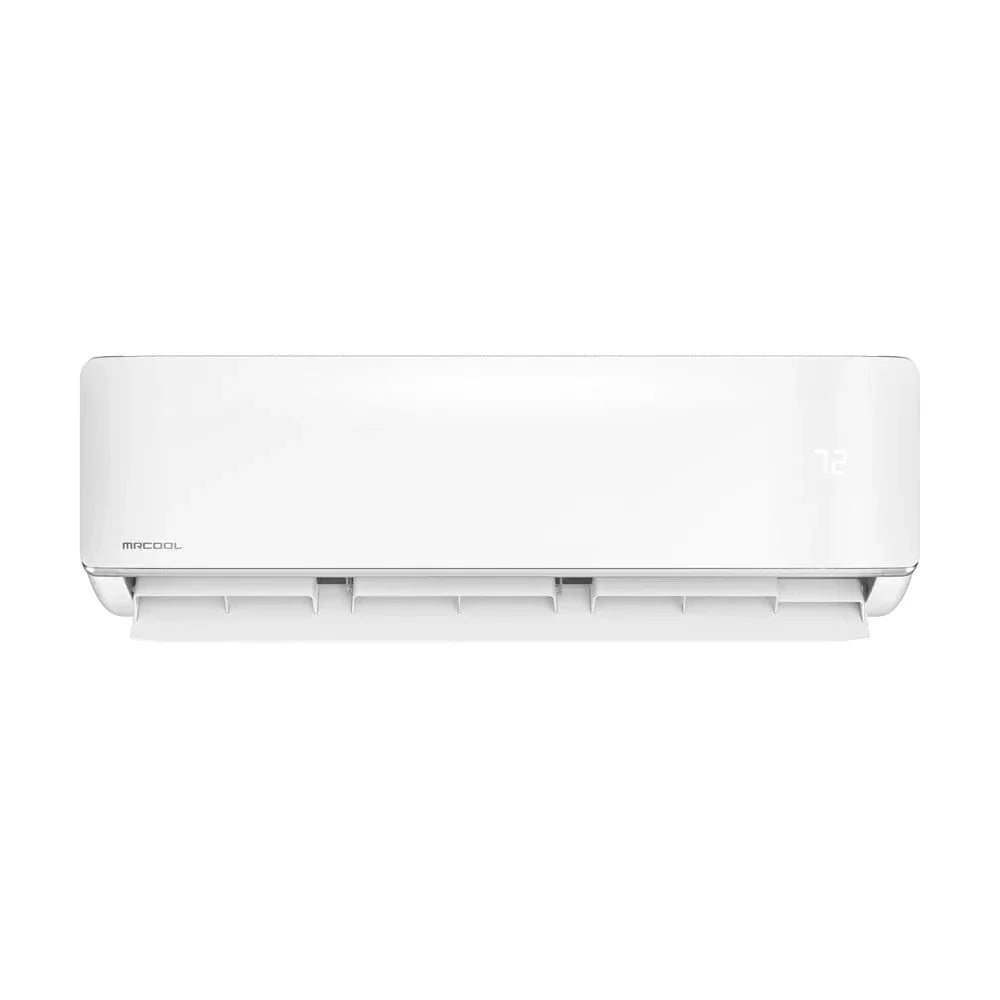

MRCOOL DIY 5th Gen E Star 24K BTU Single Zone Mini Split Complete System with 25ft. Line Set 230V
The MRCOOL DIY® R‑5th Gen E‑Star 24,000 BTU Single Zone Mini Split Complete System with a 25 ft pre‑charged line set and 230 V wall‑mounted air handler is a high‑performance ductless heating and cooling solution designed for larger single zone spaces. With a 24,000 BTU capacity, this system delivers dependable climate control in both cooling and heating modes, making it ideal for open living areas, larger bedrooms, or multipurpose rooms where year‑round comfort is essential. Built for energy‑efficient operation, it helps manage utility costs while maintaining strong indoor performance.
This complete mini‑split package includes both the indoor air handler and outdoor condenser, paired with a 25 ft pre‑charged Quick Connect line set to streamline installation. Operating on 230 V single‑phase power, the unit is suited to standard residential electrical systems. Its inverter‑driven technology adjusts output to match real‑time comfort needs, providing smooth temperature control and improved efficiency compared to traditional fixed‑speed systems.
The system uses eco‑friendly refrigerant and is engineered for relatively quiet operation, helping maintain a peaceful indoor environment even during active heating or cooling cycles. Its wall‑mounted design allows for flexible placement within the room while optimizing airflow and comfort delivery throughout the conditioned space.
Backed by solid warranty coverage — including a 10‑year compressor warranty and 5‑year parts warranty — the MRCOOL DIY® R‑5th Gen E‑Star 24,000 BTU Mini Split Complete System offers long‑term peace of mind and reliable performance. Whether you’re upgrading an existing setup or installing a new standalone HVAC solution, this system delivers robust comfort and energy efficiency with a homeowner‑friendly, ductless design.
Please note: This system is designed for DIY installation and includes a pre-charged Quick Connect line set for easy setup without HVAC tools or certification.
Features
-
Do-It-Yourself Installation
Includes a 25 ft. pre-charged Quick Connect line set — no HVAC tools or professional installation required. -
ENERGY STAR® Certified Efficiency
High SEER2 ratings keep energy costs low while maintaining consistent comfort. -
Smart Home Integration
Control your system with the MRCOOL SmartHVAC app, Amazon Alexa, or Google Assistant. -
Advanced Inverter Technology
Ensures smooth, efficient, and quiet operation by adjusting power output to meet comfort needs. -
Whisper-Quiet Operation
Designed to operate at low noise levels, making it ideal for bedrooms, offices, and living spaces.
Specifications
Dimensions & Weight
| Specifications | Details |
| Condenser Dimensions | 37.24 W" x 16.14 D" x 31.89 H" |
| Condenser Weight | 112.8 lbs / 55.7 kg |
| Air Handler Dimensions | 42.52 W" x 8.90 D" x 13.19 H" |
| Air Handler Weight | 35.49 lbs / 16.1 kg |
Capacity & Performance
| Specifications | Details |
| Zone Capacity | 1 |
| Cooling Capacity | 23,000 BTU |
| EER2 | 12.7 |
| SEER2 | 22.7 |
| Heating Capacity | 23,000 BTU |
| HSPF2-4 | 9.6 |
| HSPF2-5 | 7.1 |
| Coverage Area | 750 to 1,000 sq ft. |
| Outdoor Noise Level | 58.5 dB(A) |
| Indoor Noise Level (Hi/Mi/Lo) | 54.0/48.0/43.0/33.5/20.0 dB(A) |
Electrical Requirements
| Specifications | Details |
| Voltage | 208-230V |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 25A |
| Min Circuit Ampacity | 24A |
Refrigerant & Piping
| Specifications | Details |
| Refrigerant Type | R-454B |
| Refrigerant Volume | 67.37 oz |
| Liquid Line Size | 3/8" |
| Suction Line Size | 5/8" |
| Max Line Set Length | 164 ft. |
Features
| Specifications | Details |
| Inverter | DC |
| Compressor Type | Rotary |
| Fan Only Option | Yes |
| Quiet Mode | Yes |
| Auto Cool | Yes |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
| Works with IOS | Yes |
| Works with Android | Yes |
| Remote Control Included | Yes |
Certifications & Warranty
| Specifications | Details |
| Certifications | UL Listed, ETL Listed, Energy Star Certified, AHRI Certified |
| Warranty | 7 Years Compressor | 5 Years Parts | Extended Limited Lifetime Replacement *If the original owner does not register the unit, the warranty defaults to the standard 5 year parts, 7 year compressor warranty **The original, registered owner must be enrolled in the MrCool Care Program every year in order to qualify for the 7 year full unit replacement for compressor failure and lifetime compressor replacement. |
Applications
- Large bedrooms – quiet, efficient comfort for restful sleep

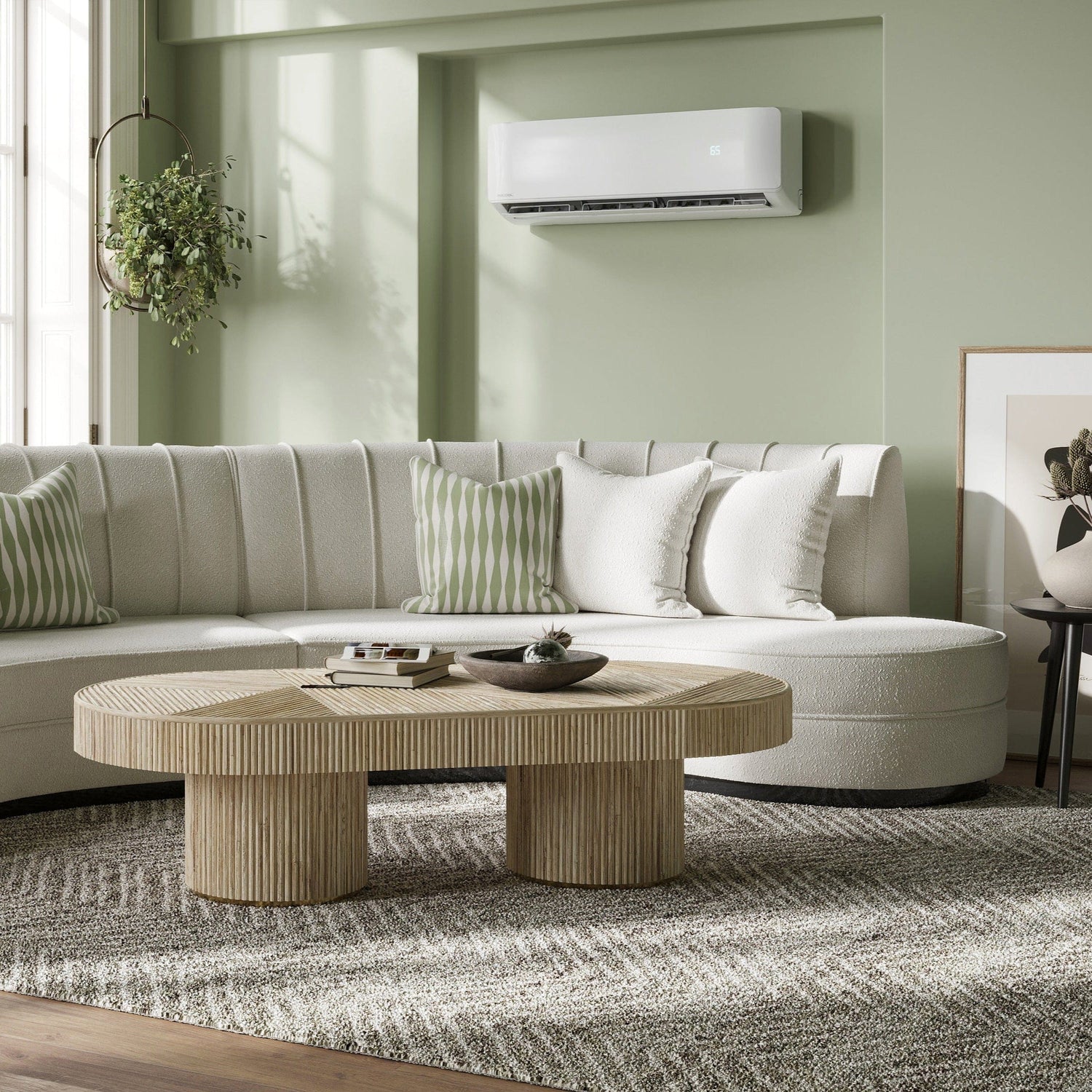

- Living rooms – consistent heating and cooling for family gathering areas

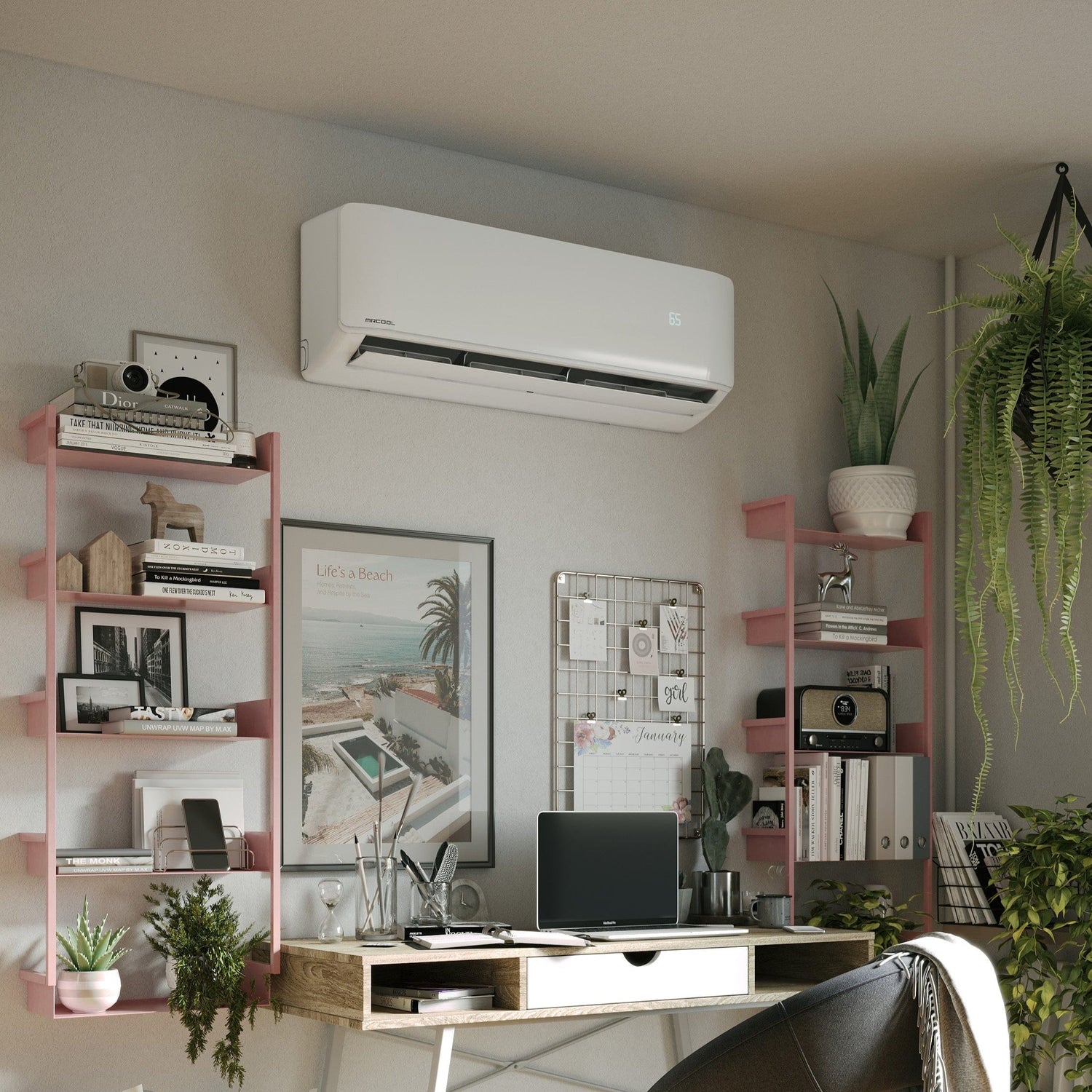

- Home offices – maintain productivity in a comfortable environment
- Small apartments/condos – efficient solution for up to 1,000 sq. ft.

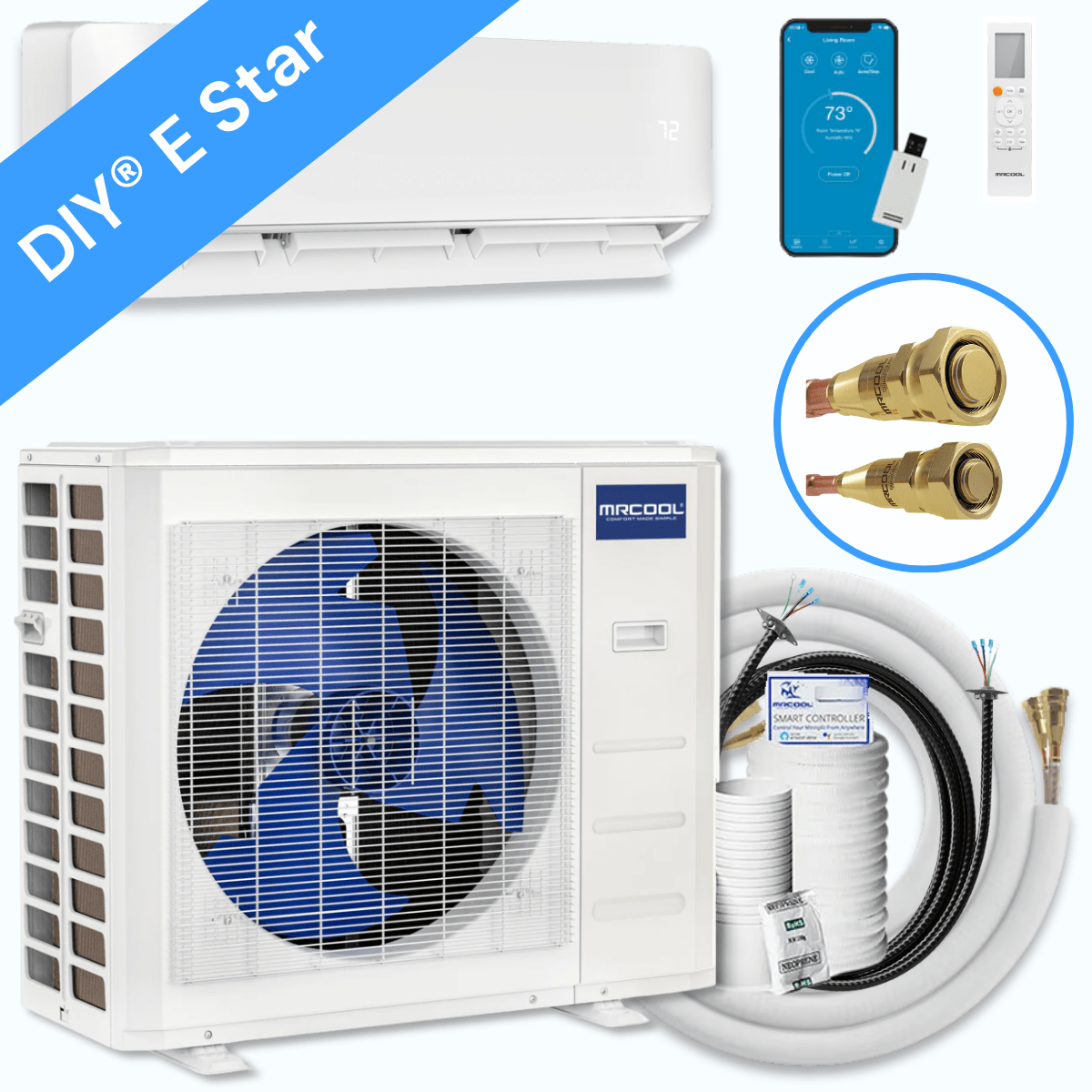

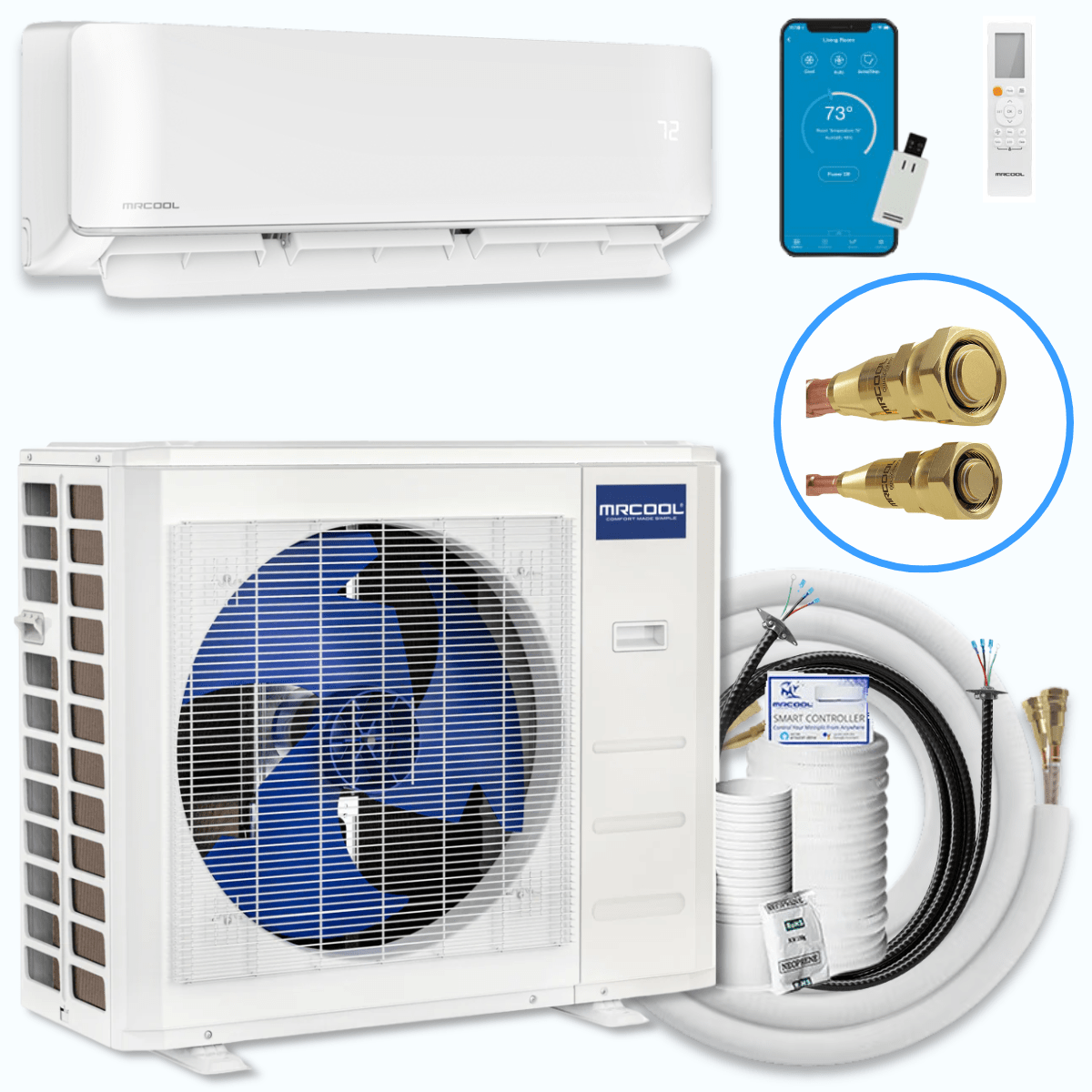

What's Included
Everything you need is included with your product.

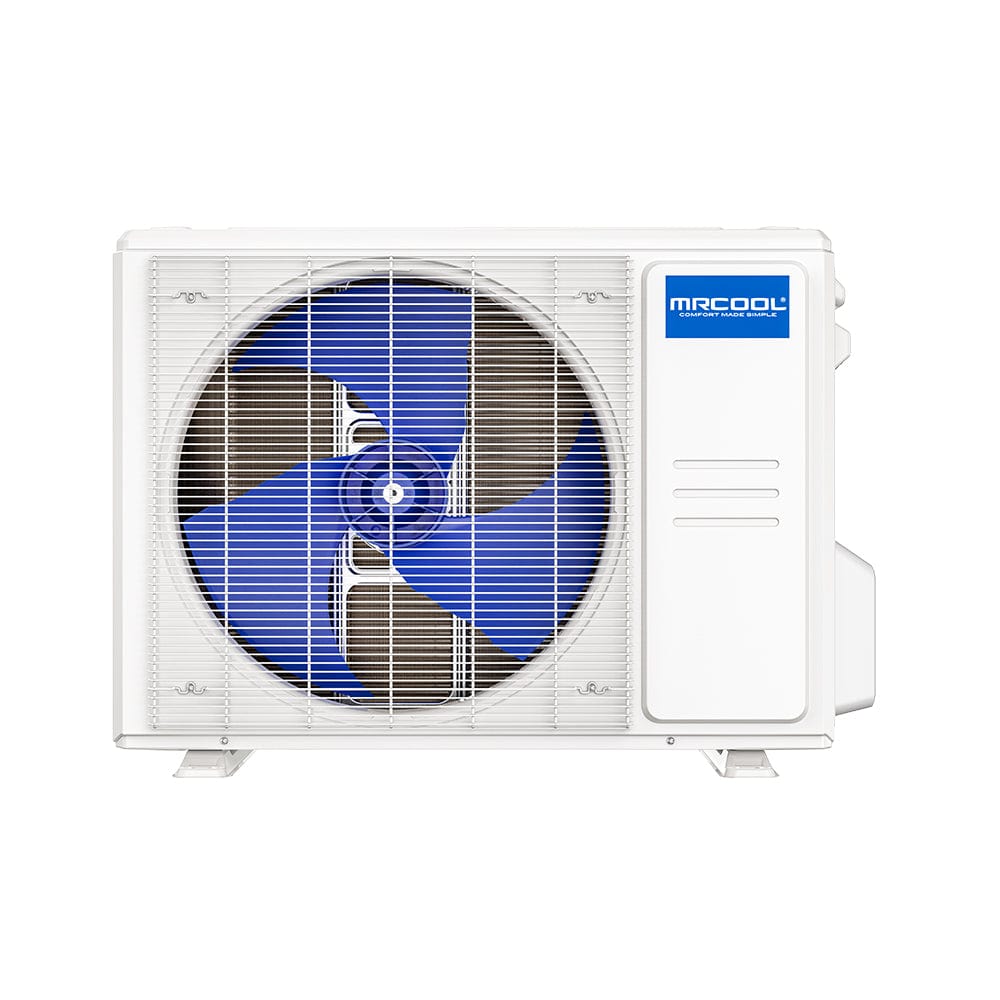

- Condenser Unit
- Air Handler

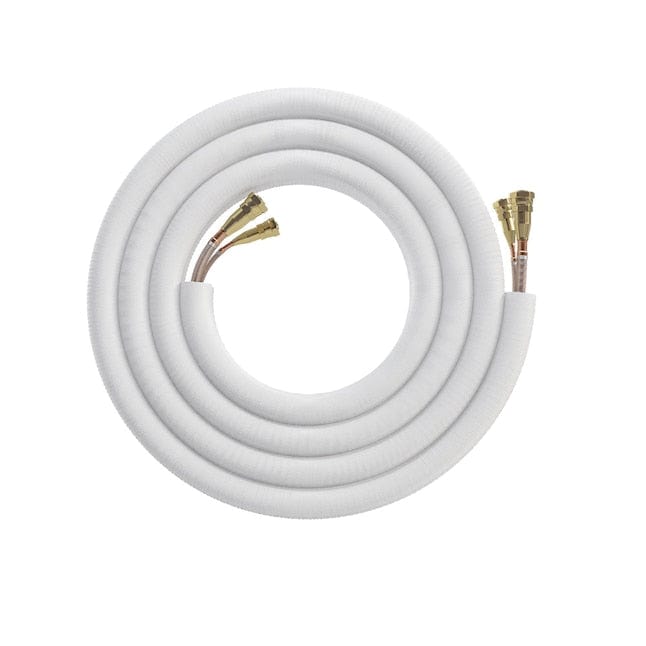

- 25 ft. Pre-Charged DIY Quick Connect Line Set
- DIYPRO Communication Cable

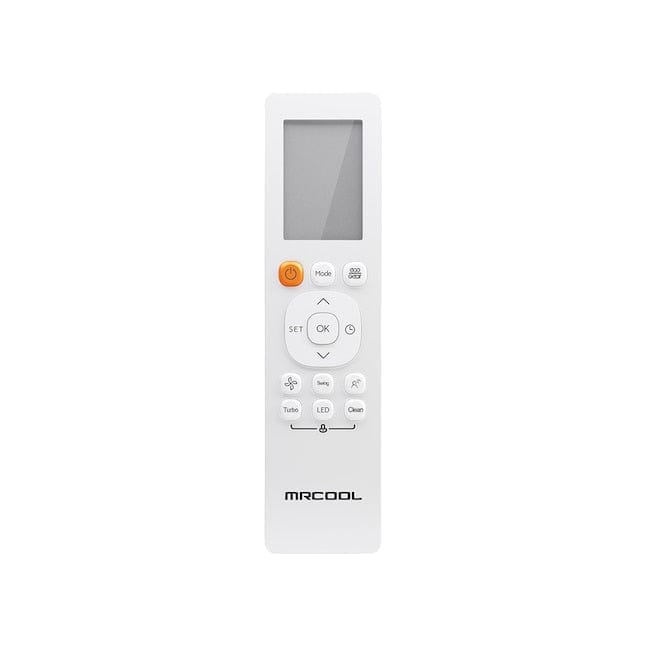

- Remote Control
- Installation Accessories
- User Manual
Warranty
- 7 Years Compressor
- 5 Years Parts
Frequently-Asked Questions
Is this system really DIY-friendly?
Yes, the MRCOOL DIY series includes pre-charged Quick Connect line sets, allowing homeowners to install the system without special HVAC tools or certification.
What size area does this system cover?
This 24,000 BTU model is ideal for spaces between 750–1,000 sq. ft.
Does it work in very cold or hot climates?
Yes, the Hyper Heat design allows operation in conditions as low as -22°F and as high as 122°F.
Can I control it from my phone?
Absolutely. The system is WiFi-enabled and compatible with both iOS and Android through the MRCOOL app.
