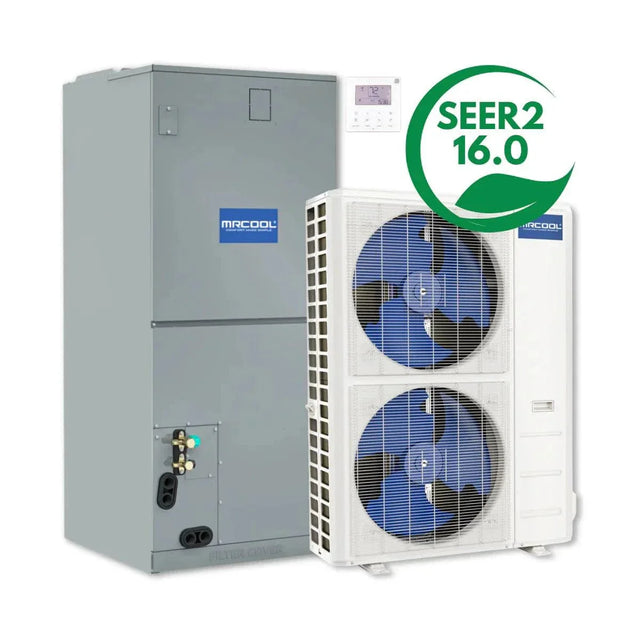

MRCOOL Hyper Heat 2nd Gen 60 K BTU 2‑Ton Central Ducted Heat Pump Split System
The MRCOOL Hyper Heat 2nd Gen 60 K BTU 2‑Ton Central Ducted Heat Pump Split System (model CENTRAL‑60‑HP‑230B00‑O) is engineered to deliver powerful, whole-home climate control — combining heating and cooling performance with energy‑saving efficiency. With a cooling capacity of 54,000 BTU and a heating capacity of 56,000 BTU, this system is ideal for larger homes of roughly 2,001–2,500 sq ft.
Built for all-season comfort — even in demanding climates — the unit operates reliably in outdoor temperatures from –22 °F up to 120 °F, thanks to its Hyper Heat technology. Its 16 SEER2 efficiency rating and EER2 = 10 specification indicate good energy performance, contributing to reduced utility costs while maintaining consistent indoor comfort.
The system includes both the condenser and air handler, making it a complete central ducted solution ready for installation by a licensed HVAC technician. The air handler supports multiple installation orientations (vertical downflow/upflow; horizontal right/left), allowing flexibility to suit various home layouts.
Built with R‑454B refrigerant — a more eco‑conscious choice — this unit balances performance and environmental responsibility. Backed by a 10‑year warranty on compressor and parts, the MRCOOL Hyper Heat 60 K BTU system is a dependable solution for homeowners seeking efficient, year‑round comfort and long-term peace of mind.
Please note: This system is not a DIY installation and must be installed by a licensed HVAC technician.
Features
-
Powerful Hyper Heating: Provides up to 56,000 BTU heating capacity, ensuring strong performance in extreme winter conditions.
-
High Efficiency: Delivers 16 SEER2 and 10 EER2 ratings for reliable energy savings and comfort.
-
Wide Coverage: Designed to effectively heat and cool spaces between 2,001–2,500 sq. ft.
-
Quiet Operation: Operates at just 54.5 / 52.4 / 49.5 / 34.5 dB(A) (air handler) and 65 dB(A) (condenser) for minimal disruption.
-
Eco-Friendly Refrigerant: Uses R-454B refrigerant, engineered with a lower environmental impact compared to older refrigerants.
Specifications

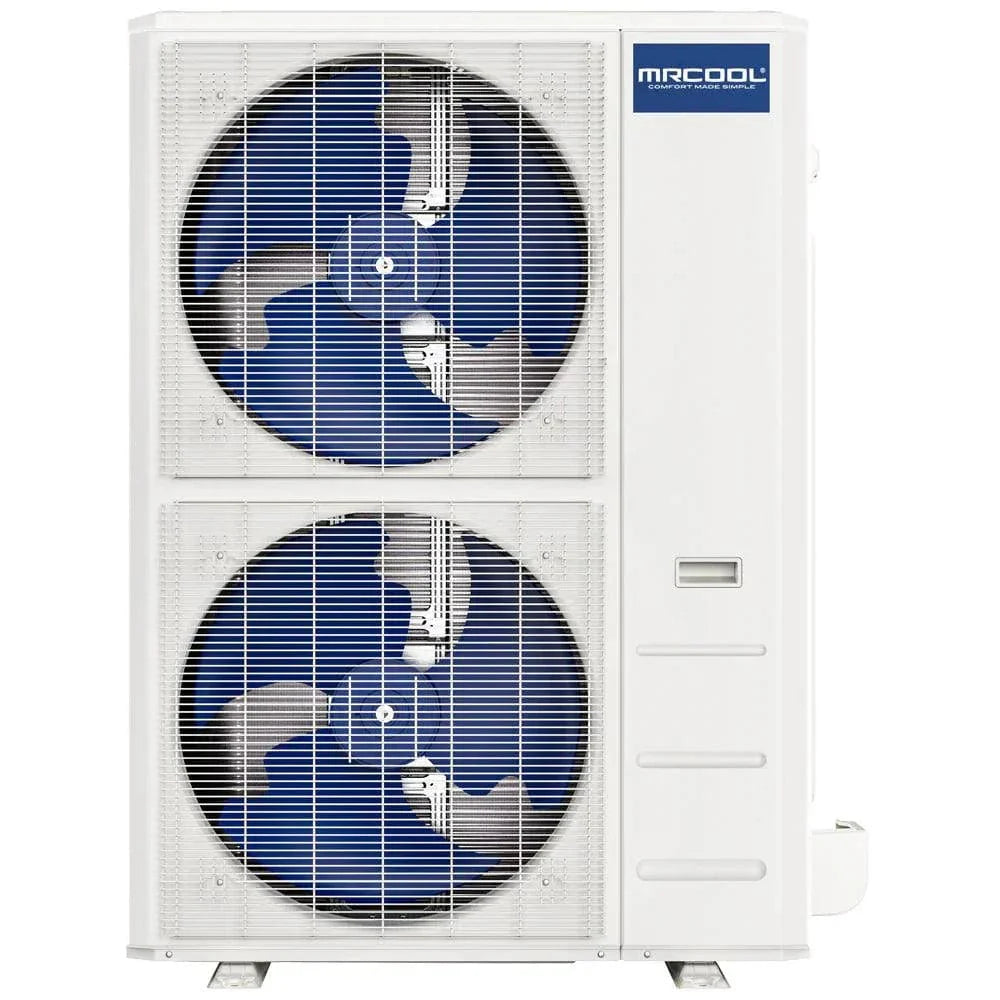

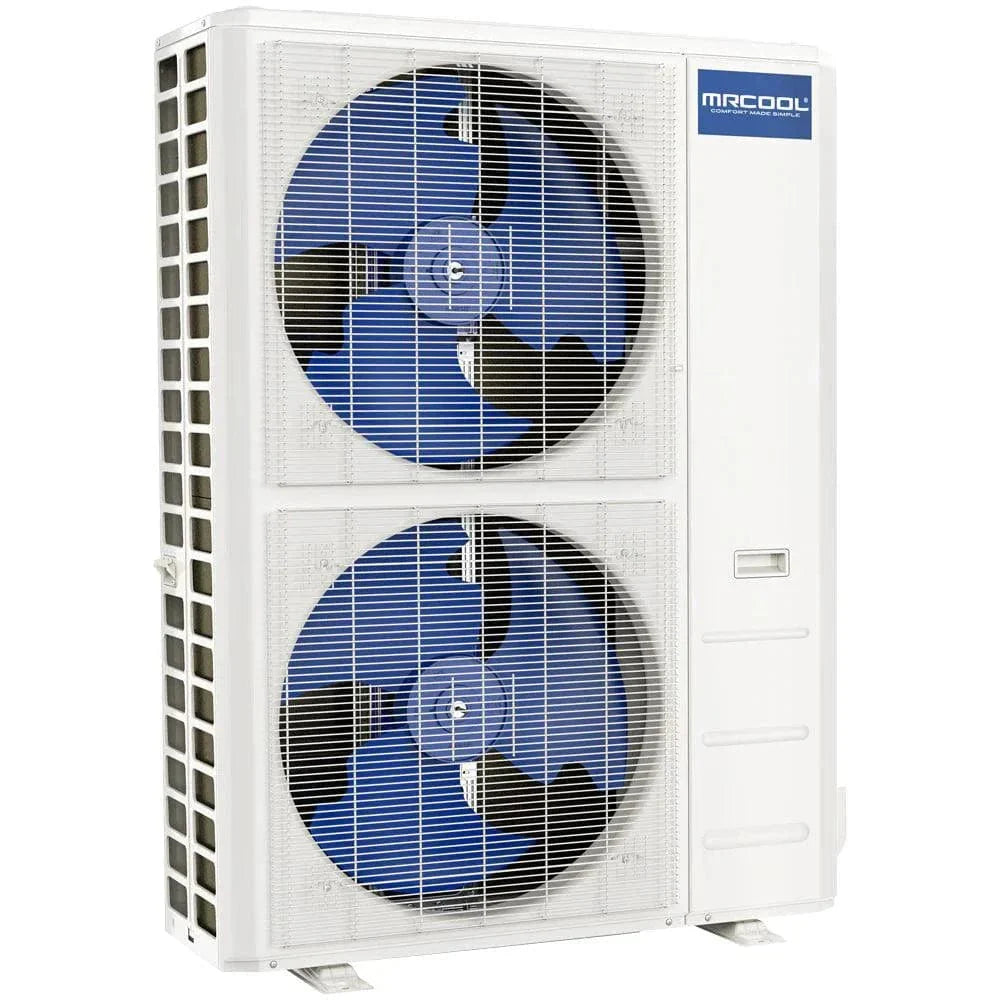

Condenser
| Dimensions |
37.48" W x 16.34" D x 52.48" H |
| Weight |
242.95 lbs |
| Electrical Requirements |
Requires a minimum of 208-230V/60Hz/40A (please check your home meets this electrical requirement prior to purchase) |
| Cooling Capacity |
54,000 BTU |
| Heating Capacity |
56,000 BTU |
| Outdoor Operating Temperature Range |
-22 °F - 120°F |
| SEER2 |
16 |
| EER2 |
10 |
| HSPF2-4 |
9 |
| HSPF2-5 |
8 |
| Noise Level (Hi/Mi/Lo) |
65 db(A) |
| Refrigerant |
R454B / 183.42 oz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
3/4" |
| Warranty |
10 Years Compressor, 10 Years Parts |

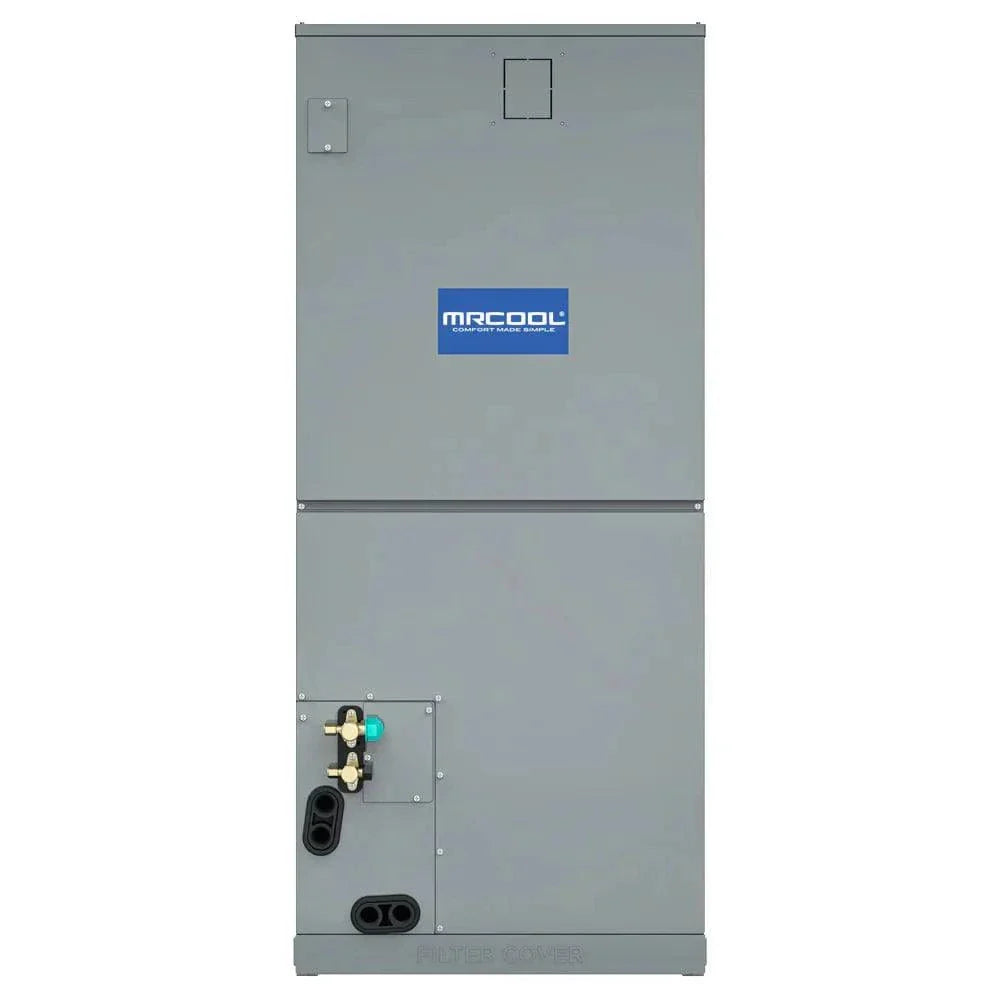

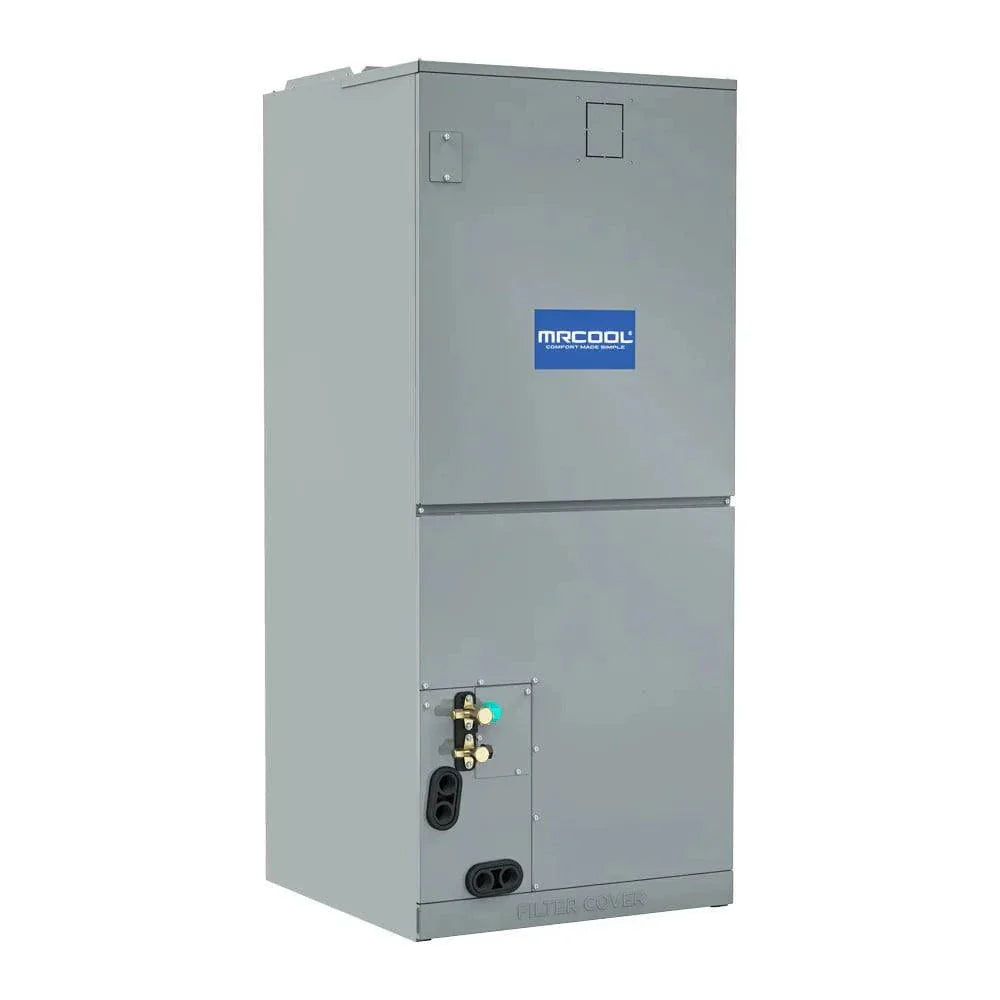

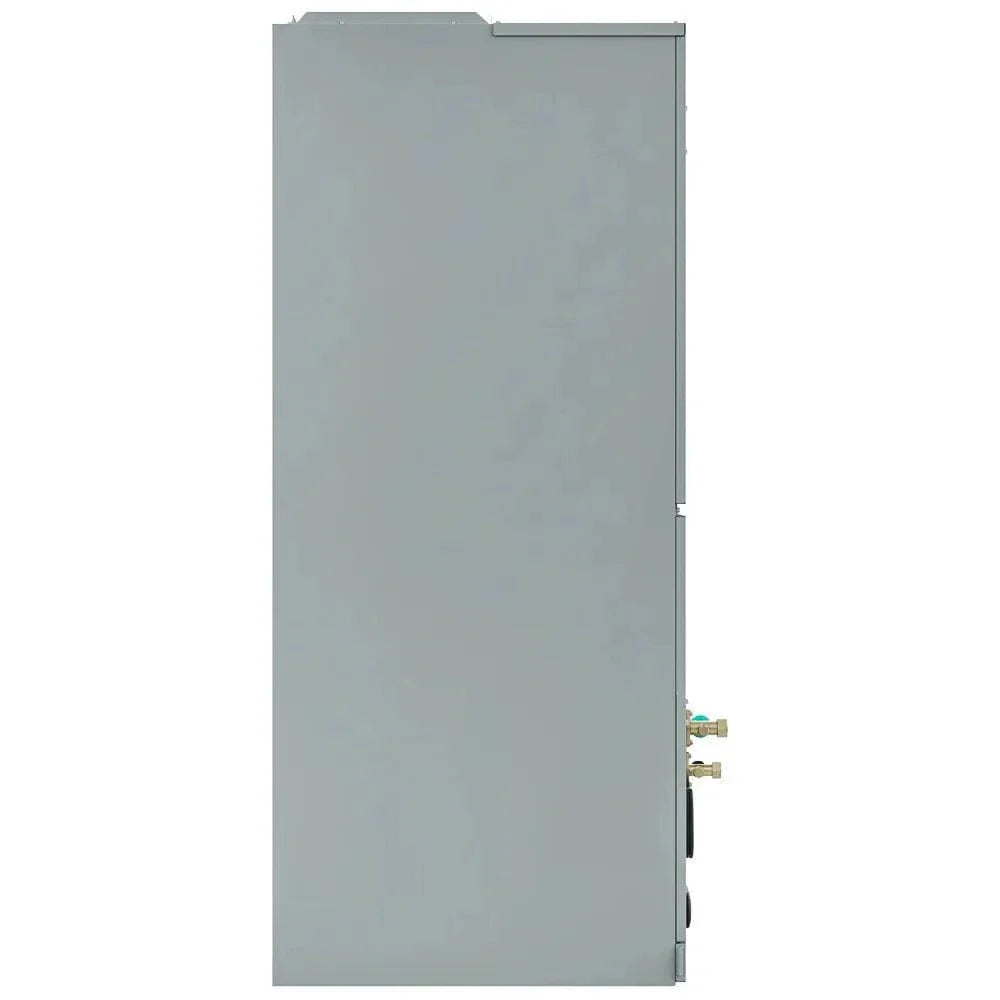

Air Handler
| Dimensions |
24.49" W x 21.02" D x 52.99" H |
| Weight |
162.92 lbs |
| Electrical Requirements |
Requires a minimum of 208-230V/60Hz/14.5/11.0-15A (please check your home meets this electrical requirement prior to purchase) |
| Mount Type |
Vertical (Downflow or Upflow) Horizontal (Right or Left) |
| Cooling Capacity |
54,000 BTU |
| Heating Capacity |
56,000 BTU |
| Coverage Area |
2,001-2,500 square feet |
| SEER2 |
16 |
| EER2 |
10 |
| HSPF2-4 |
9 |
| HSPF2-5 |
8 |
| Noise Level (Turbo/Hi/Mi/Lo/Si) |
54.5 / 52 / 49.5 / 34.5 / N/A dB(A) |
| Airflow (TURBO/Hi/Mi/Lo) |
1807 / 1583 / 1359 / 1136 / N/A CFM |
| Refrigerant |
R454B / 183.42 oz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
3/4" |
| Compatible Heat Kits |
10kW - MVPHK10 15kW - MVPHK15 20kW - MVPHK20
|
| Warranty |
10 Years Parts |
Applications
-
Large homes – optimized for houses up to 2,500 sq. ft.
-
Cold climates – hyper heat performance maintains warmth in sub-zero conditions
-
Whole-home comfort – central ducted design distributes consistent airflow
-
Energy-conscious households – saves on utility bills with efficient heating and cooling
What’s Included
Warranty
-
10 Years Compressor
-
10 Years Parts
Frequently-Asked Questions
Q: Can this system handle extreme cold?
A: Yes, it provides reliable heating down to -22°F with hyper heat technology.
Q: Is this a DIY system?
A: No, it must be installed by a licensed HVAC technician.
Q: What size home is this ideal for?
A: This 5-ton system covers areas between 2,001–2,500 sq. ft.
