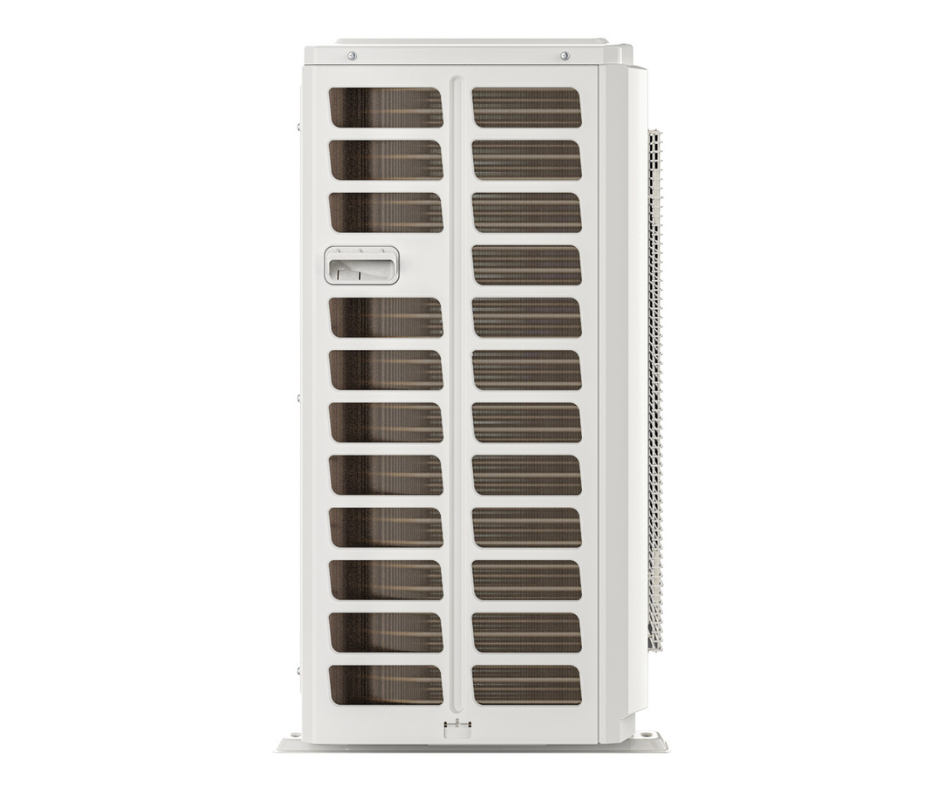

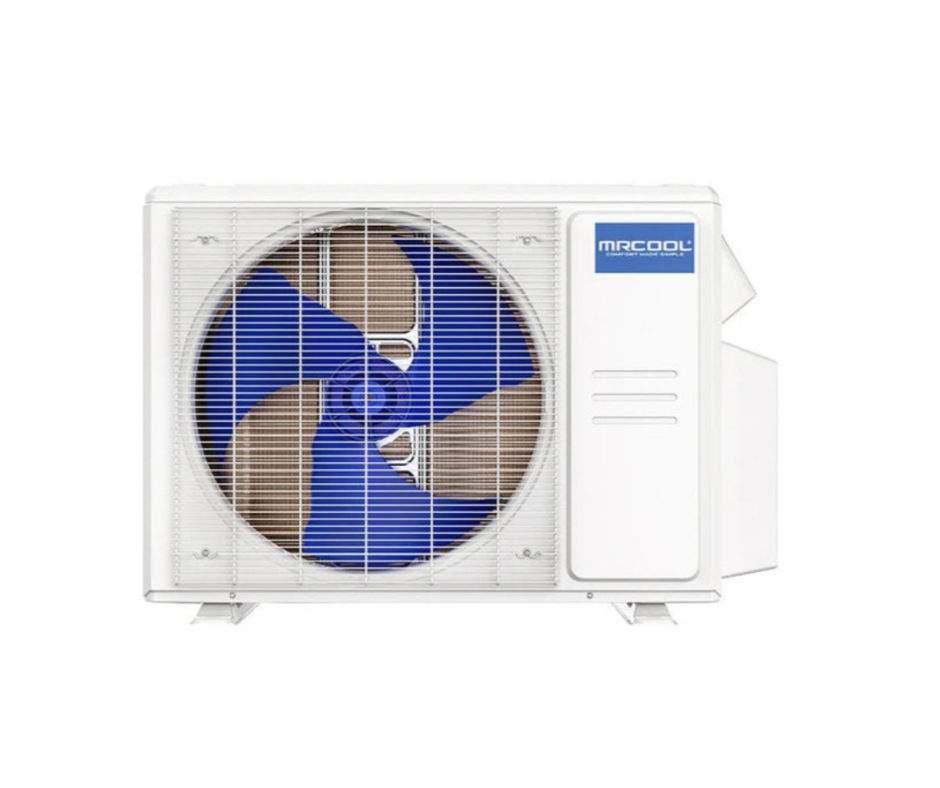

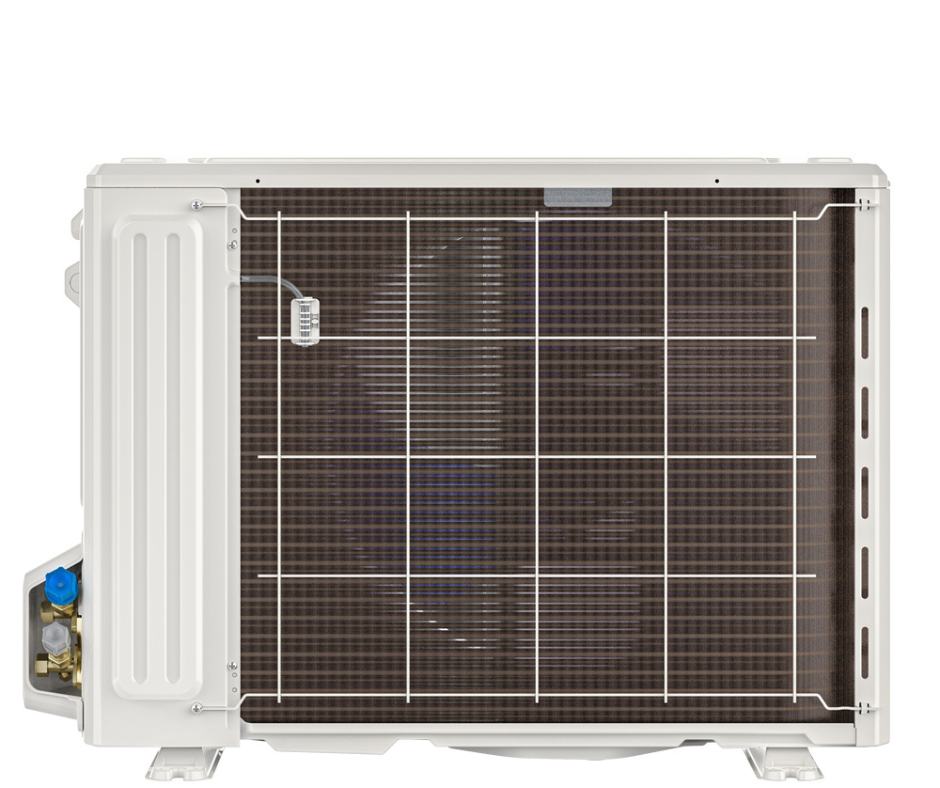

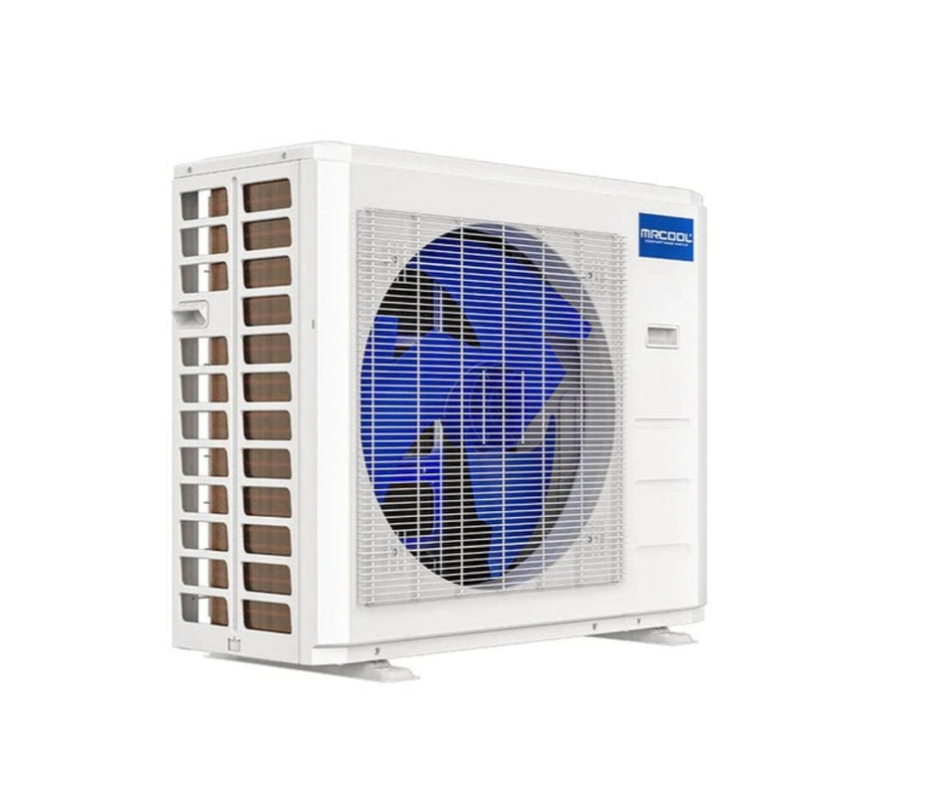

MRCOOL VersaPro 2 Ton Central Ducted DC Inverter Heat Pump Condenser MVP-24-HP-C-230A00-O

MRCOOL VersaPro 2 Ton Central Ducted DC Inverter Heat Pump Condenser MVP-24-HP-C-230A00-O

Upgrade your home’s heating and cooling performance with the MRCOOL VersaPro 2 Ton Central Ducted DC Inverter Heat Pump Condenser MVP-24-HP-C-230A00-O — a high-efficiency outdoor HVAC solution engineered for modern comfort and energy savings. Designed to integrate seamlessly with the MRCOOL VersaPro Central Ducted Air Handler, this condenser delivers reliable year-round temperature control while helping reduce operating costs with its advanced inverter technology.

At the core of this system is cutting-edge DC inverter technology, which enables variable-speed operation to maintain precise indoor temperatures and superior humidity control. With an 18.1 SEER2 efficiency rating and 9.7 HSPF-4, this heat pump condenser offers a balance of impressive cooling and heating performance for spaces up to approximately 1,000 square feet. Its compact side-discharge design ensures flexible installation even in tight outdoor areas.

Built for durability, the unit features a painted galvanized steel cabinet that resists corrosion and weather wear, while self-diagnostic capabilities streamline maintenance and troubleshooting. The system uses eco-forward R-454B refrigerant, reducing environmental impact without compromising efficiency. This condenser also supports smart thermostat compatibility (Wi-Fi and app-based control sold separately), giving you intuitive control over your indoor environment.

Backed by a 10-year parts and compressor warranty, the MRCOOL VersaPro condenser brings long-term reliability to your home comfort system. Whether you’re replacing aging equipment or upgrading to a more efficient HVAC system, this condenser offers quiet, efficient performance designed for dependable comfort throughout the year.

FEATURES

• DC Inverter Technology – Variable-speed efficiency and smoother temperature control
• 18.1 SEER2 / 9.7 HSPF-4 – High-efficiency heating and cooling
• Central Ducted Design – Ideal for whole-home HVAC systems
• Side-Discharge Cabinet – Compact footprint for tight installation areas
• R-454B Refrigerant – Environmentally responsible, next-generation refrigerant
• Quiet Operation – Only 60 dBA
• Smart Thermostat – Wi-Fi & app-based control (sold separately)
• Self-Diagnostics – Faster service and easier maintenance
• Durable Galvanized Steel Cabinet – Built for long-term reliability

Specifications

PERFORMANCE & ELECTRICAL DATA

• Cooling Capacity: 24,000 BTU
• Heating Capacity: 26,000 BTU
• Tonnage: 2 Ton
• SEER2: 18.1
• EER2: 11
• HSPF-4: 9.7
• HSPF-5: 7.7
• Airflow: 1765.7 CFM
• Voltage: 208–230V
• Phase: Single
• Frequency: 60 Hz
• Max Breaker: 20A
• Minimum Circuit Ampacity: 19A

TECHNICAL SPECIFICATIONS

• Model: MVP-24-HP-C-230A00-O
• Series: MRCOOL® VersaPro® Central Ducted
• Unit Type: Split System Heat Pump
• Equipment Type: Condenser
• Refrigerant Type: R-454B
• Refrigerant Charge: 74.08 oz
• Liquid Line Size: 3/8 in
• Suction Line Size: 3/4 in
• Sound Rating: 60 dBA
• Color: Gray
• Wi-Fi Compatible: Yes
• App Compatible: Yes
• ETL Certified: Yes
• ENERGY STAR® Certified: Yes
• AHRI Certified: Yes

DIMENSIONS & WEIGHT

Unit Dimensions

• Width: 35.04 in
• Height: 26.5 in
• Depth: 13.46 in
• Net Weight: 102 lbs

Shipping Dimensions

• Width: 39.17 in
• Height: 29.13 in
• Depth: 15.67 in
• Shipping Weight: 109 lbs

WARRANTY INFORMATION

• Parts Warranty: 10 Years
• Compressor Warranty: 10 Years

Frequently Asked Questions (FAQ's)

Q: What air handler pairs with this condenser?

A: It is designed to work with the MRCOOL® VersaPro® Central Ducted Air Handler.

Q: Is this a variable-speed condenser?

A: Yes. It uses DC inverter technology for precise, energy-efficient operation.

Q: Is it Energy Star certified?

A: Yes. This model is ENERGY STAR® certified.
