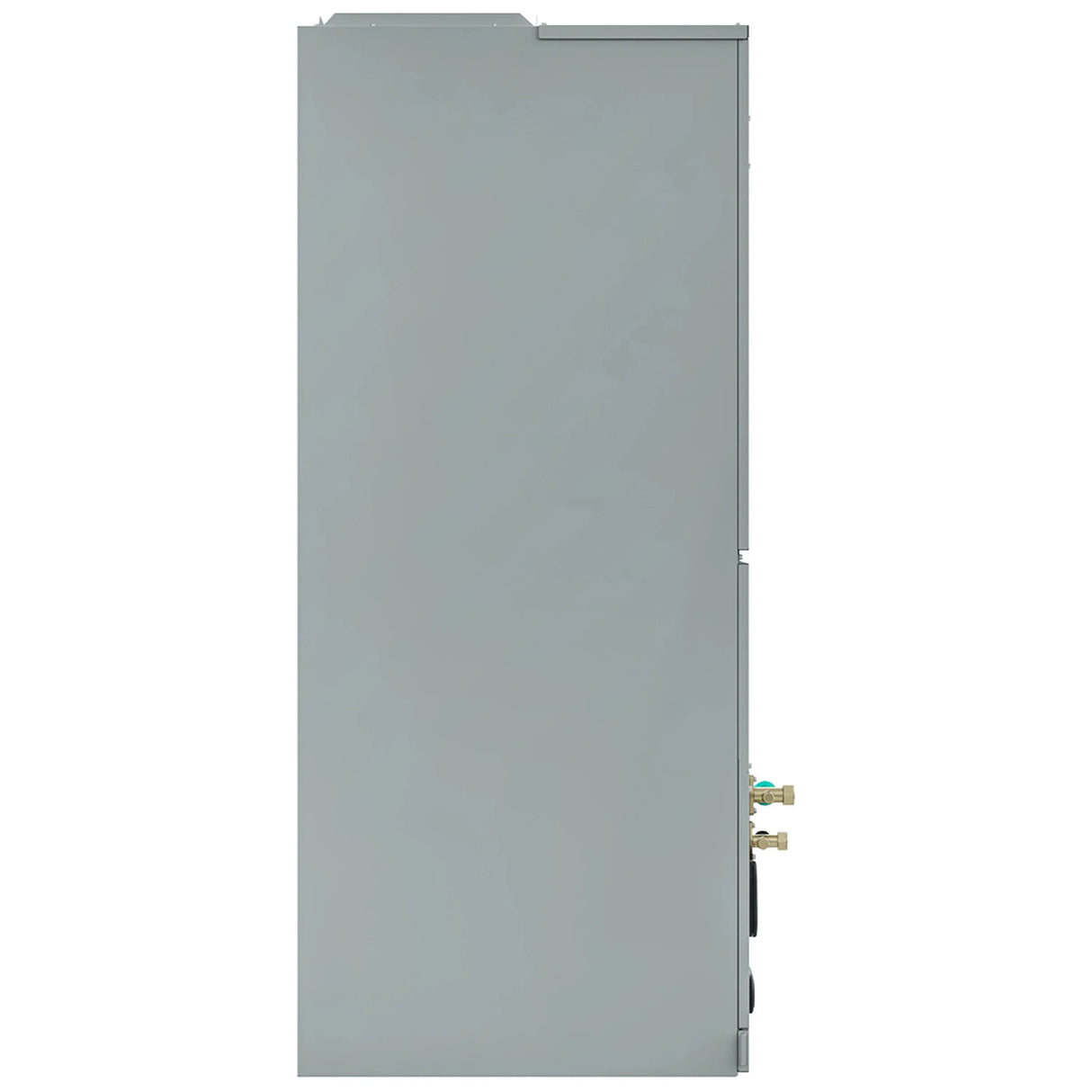

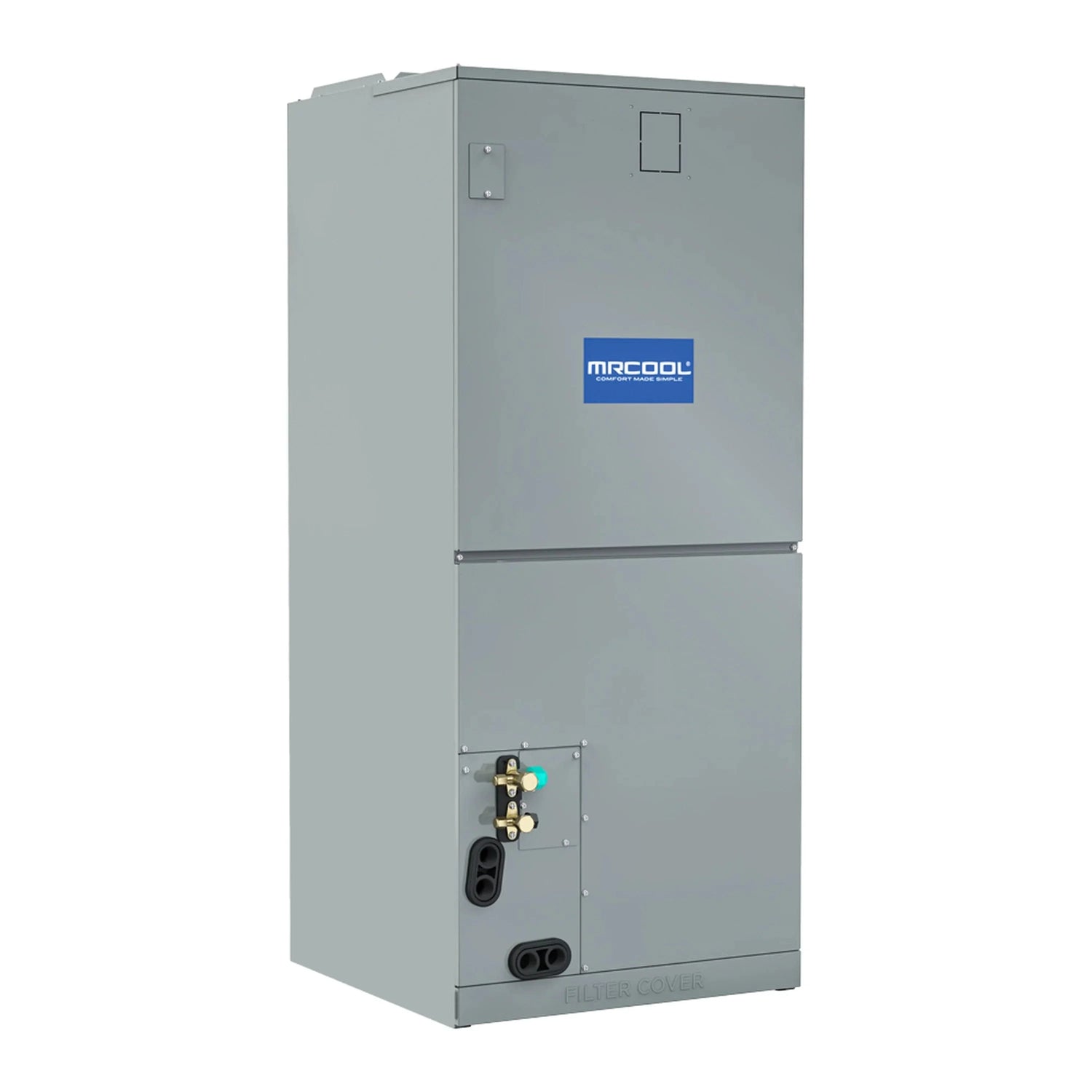

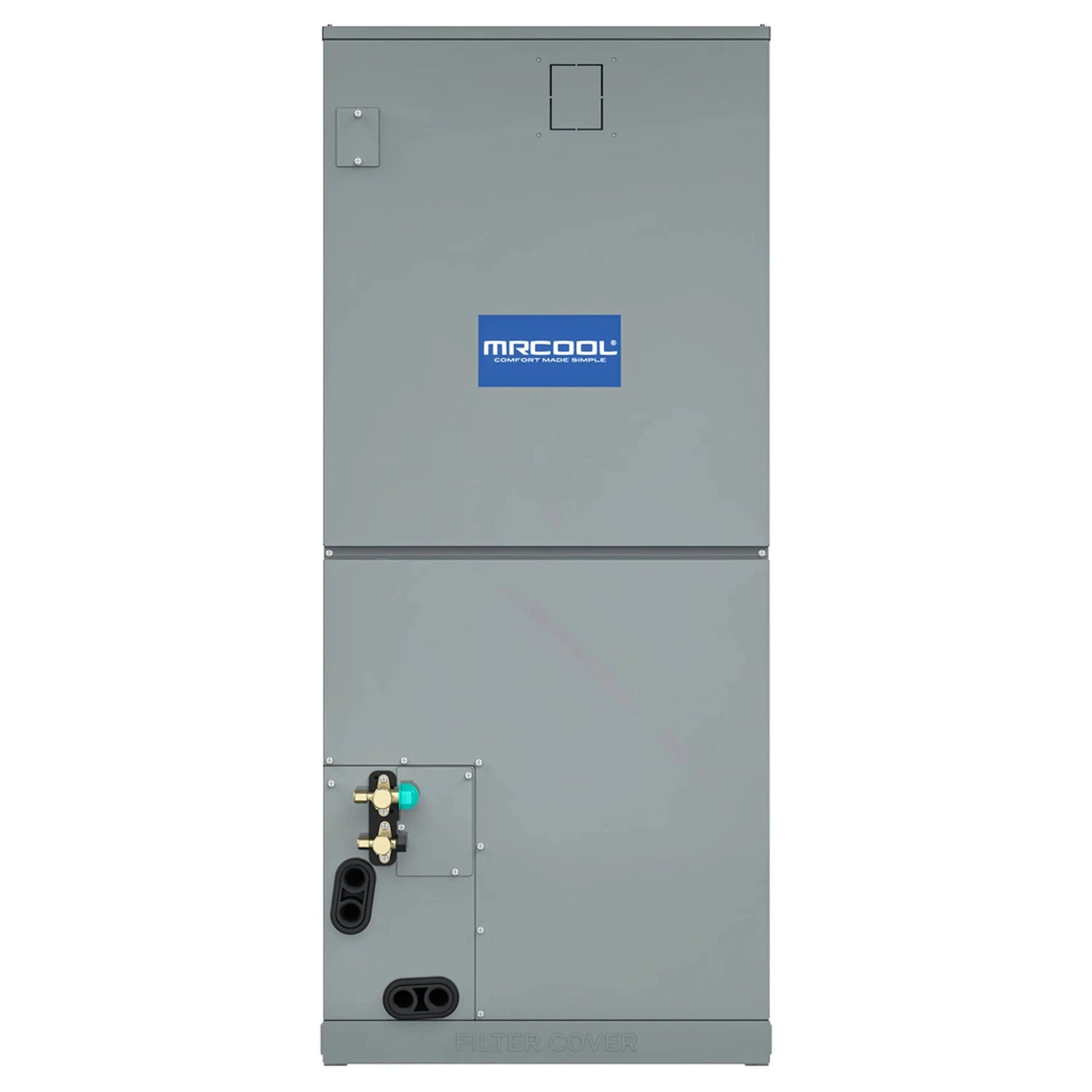

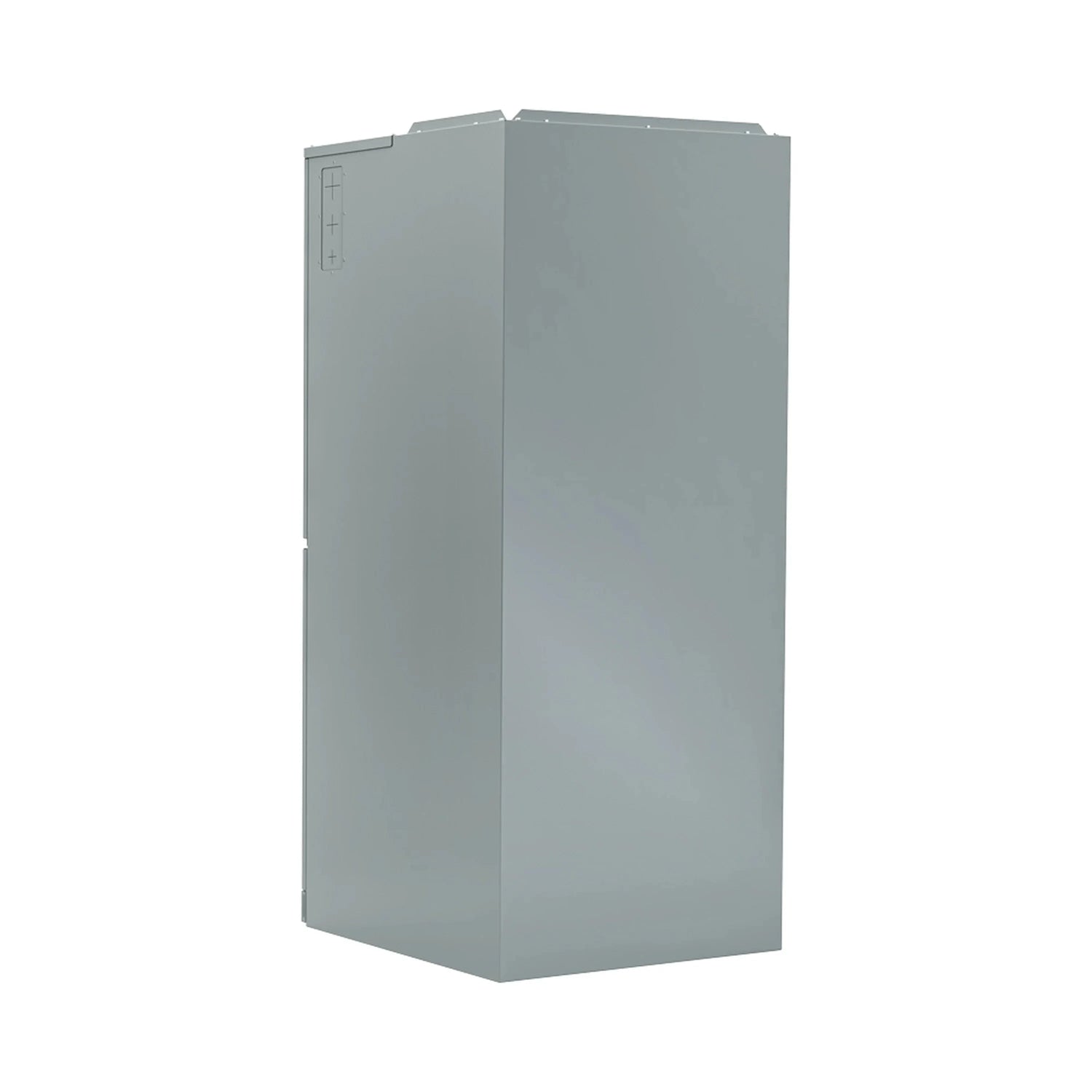

MRCOOL VersaPro 2nd Gen 18K BTU 1.5 Ton Central Ducted Multiposition Air Handler

MRCOOL VersaPro 2nd Gen 18K BTU 1.5 Ton Central Ducted Multiposition Air Handler

The MRCOOL VersaPro 2nd Gen 18K BTU 1.5 Ton Central Ducted Multiposition Air Handler is a versatile, high‑efficiency indoor unit designed to distribute heating and cooling evenly throughout your home. With a capacity of 18,000 BTU (1.5 ton), it is well suited for spaces of approximately 501–750 sq ft — making it ideal for small to mid‑size homes or condos.

This air handler operates with strong energy efficiency, boasting an 18.8 SEER2 rating and 11.0 EER2, ensuring you get effective climate control while keeping energy consumption reasonable. Its design supports multiple installation orientations — vertical (upflow or downflow) or horizontal (left or right) — giving you flexibility to adapt the unit to different home layouts.

Despite its compact size, this unit delivers dependable airflow: the fan system moves up to ~618 CFM on turbo mode, enough for comfortable air distribution in its coverage area. It uses eco‑friendly R‑454B refrigerant and supports optional electric heat kits (5 kW / 8 kW / 10 kW) for additional heating when needed — useful in cooler climates or during colder periods.

Quiet operation rounds out the package — on low fan settings, noise can be as low as 33 dB(A), making it suitable even for bedrooms or quieter living areas.

Please note: This system is not a DIY installation and must be installed by a licensed HVAC technician.

Features

• Multiposition Flexibility: Can be installed in vertical (upflow or downflow) or horizontal (left or right) orientations for maximum versatility.
• Energy Efficiency: Rated 18.8 SEER2 and 11.0 EER2, ensuring reliable comfort with energy savings.
• Quiet Operation: Operates as low as 33 dB(A) on the lowest fan setting for minimal noise disturbance.
• Compatible Heat Kits: Supports optional 5kW, 8kW, and 10kW electric heat kits, providing extra heating support when needed.
• Durable Build: Built to last with 10-year parts warranty protection.

Specifications

Applications

• Apartments/condos – efficient comfort for compact spaces

• Small homes – covers areas between 501–750 sq. ft.

• Renovations or retrofits – adaptable for multiple installation positions

• Supplemental system – ideal as part of a split system for consistent airflow

What’s Included

• MRCOOL VersaPro 2nd Gen 18K BTU 1.5 Ton Central Ducted Multiposition Air Handler

• User Manual

Warranty

• 10 Years Parts

Frequently-Asked Questions

Q: Can this unit be installed horizontally?
A: Yes, this air handler can be installed in both horizontal and vertical orientations, making it flexible for different spaces.

Q: Is professional installation required?
A: Yes, this is not a DIY unit and must be installed by a licensed HVAC technician.

Q: What size space does it cover?
A: The 18K model is ideal for spaces between 501–750 sq. ft., depending on insulation and climate.

Manual

• MRCOOL VersaPro 2nd Gen 18K BTU 1.5 Ton Central Ducted Multiposition Air Handler Manual
