MRCOOL VersaPro 2nd Gen 24K BTU 2 Ton Central Ducted Heat Pump Split System

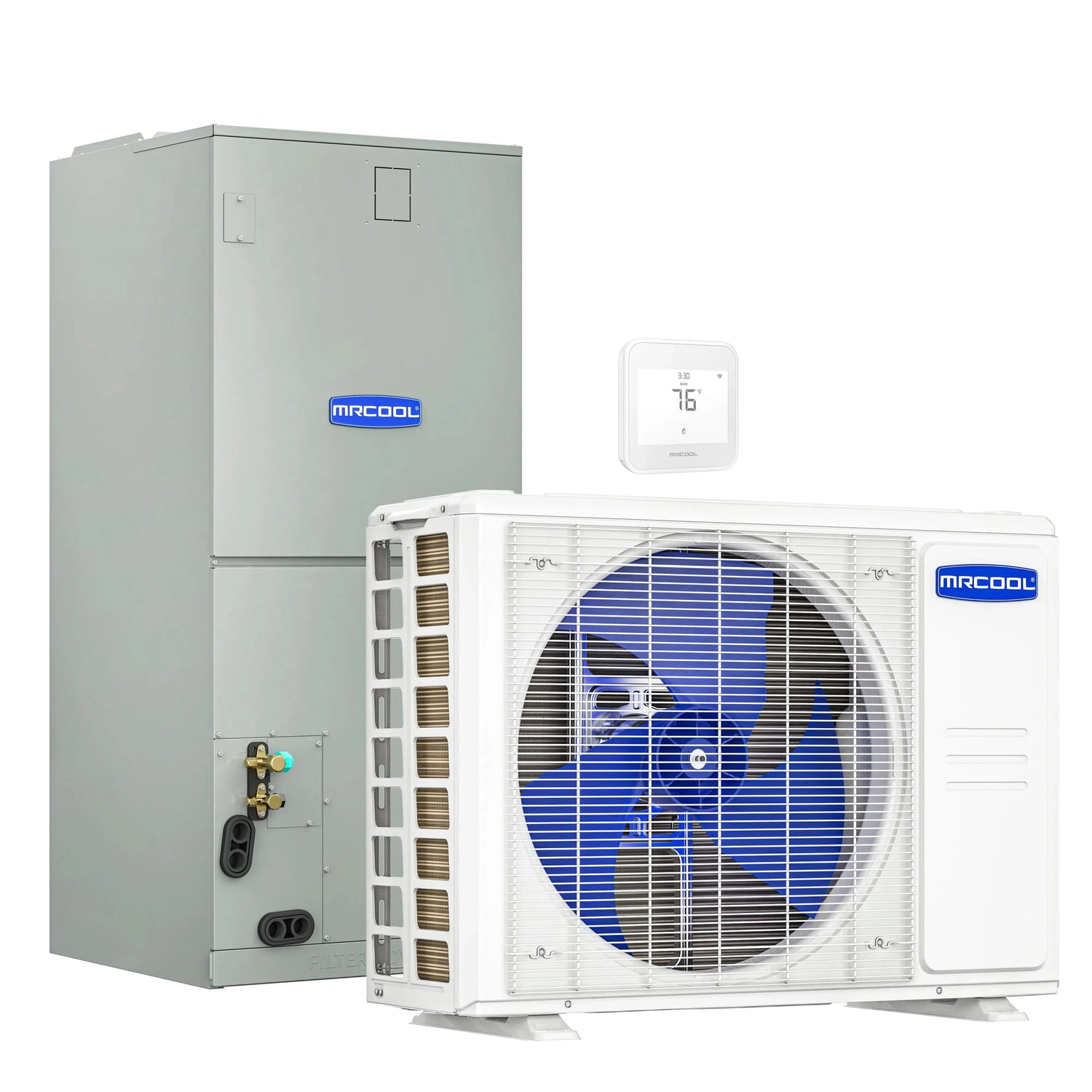

The MRCOOL VersaPro 2nd Gen 24 K BTU 2‑Ton Central Split System is a complete HVAC solution — combining a heat‑pump condenser, a central ducted air handler, and a 25‑ft pre‑charged line set — designed to give homes efficient, year‑round heating and cooling.
With a rated cooling capacity of 24,000 BTU and heating capacity of 26,000 BTU, the system uses eco‑friendly refrigerant (R‑454B) to deliver reliable comfort. Its inverter-driven heat pump with a SEER2 efficiency rating of 18.1 ensures lower energy consumption while maintaining consistent indoor temperatures throughout the year.

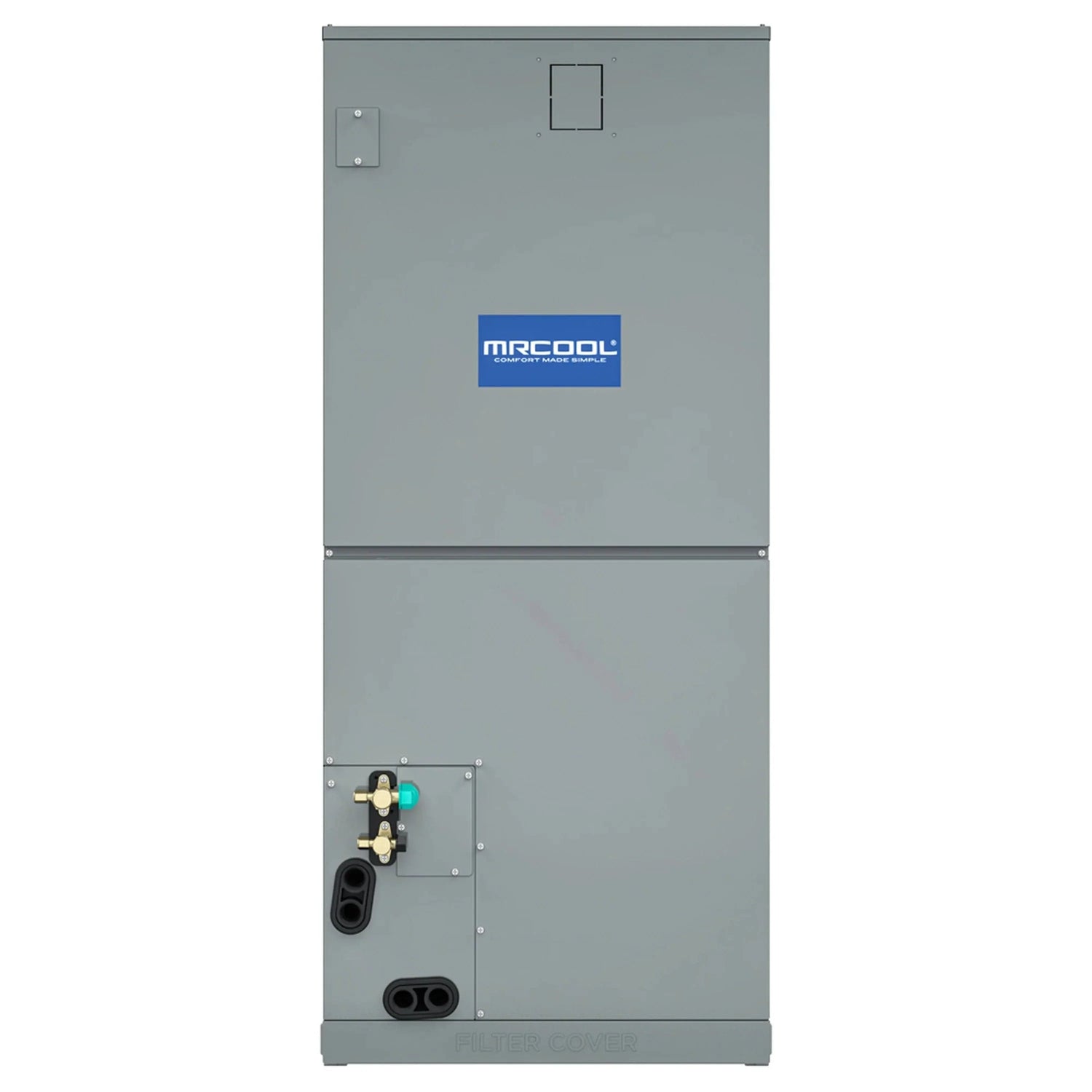

The central ducted air handler includes a multi‑position installation design (upflow, downflow, horizontal left or right), making it flexible enough to integrate with different ductwork layouts and home configurations. Airflow can be adjusted with multiple blower speeds, ensuring even distribution of cooled or heated air throughout the house.
This bundled system is ideal for residential use — whether you’re upgrading an older HVAC set‑up or equipping a new home — delivering a fully integrated, energy‑efficient, and comparatively easy‑to‑install central HVAC solution that covers both cooling and heating needs all year.
Please note: This system is not a DIY installation and must be installed by a licensed HVAC technician.
Features
-
High-Efficiency Performance
SEER2 rating of 18.1 and EER2 of 11.0 help deliver energy savings without sacrificing comfort.
-
Year-Round Comfort
Provides 24,000 BTU cooling and 26,000 BTU heating for dependable climate control in every season.
-
Wide Operating Range
Operates in outdoor temperatures as low as -13°F and up to 120°F, making it ideal for diverse climates.
-
Quiet Operation
Noise levels as low as 42 dB(A) ensure smooth, quiet performance indoors.
-
Durable Warranty
Backed by a 10-year compressor and parts warranty for peace of mind.
Specifications

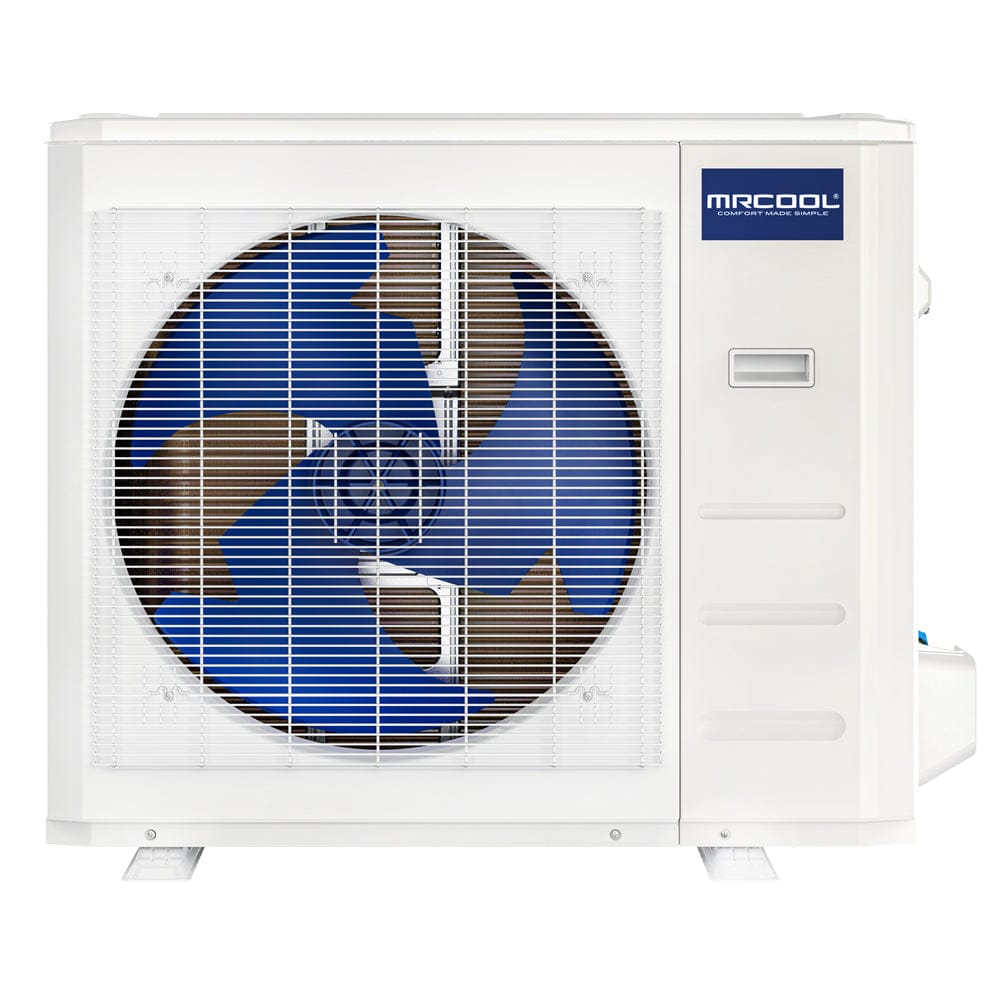

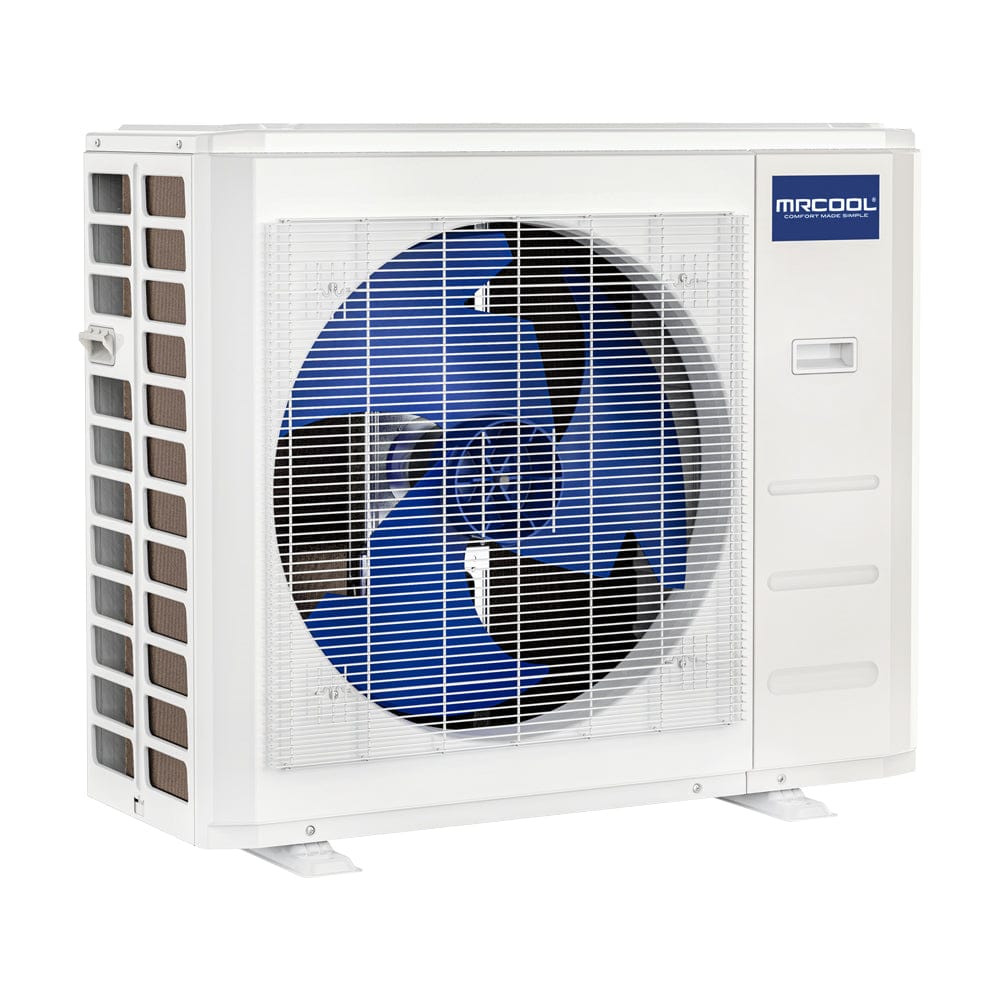

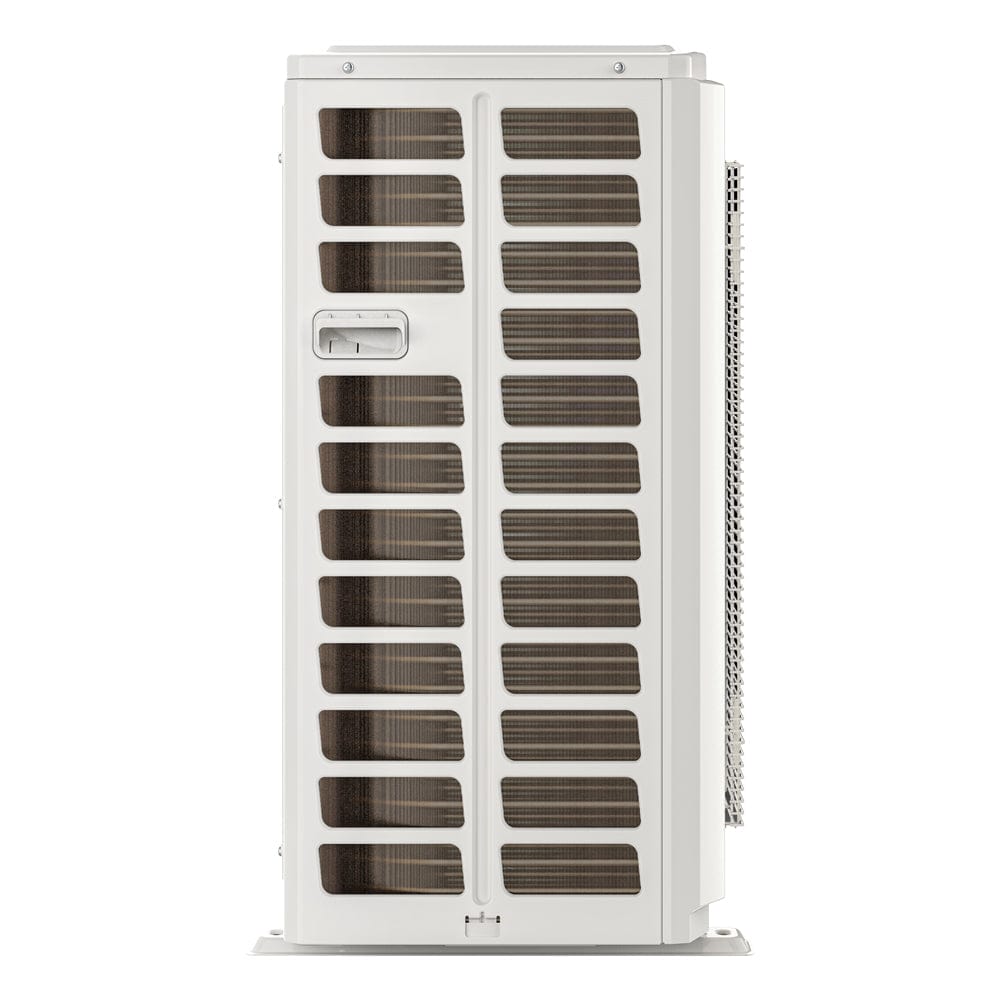

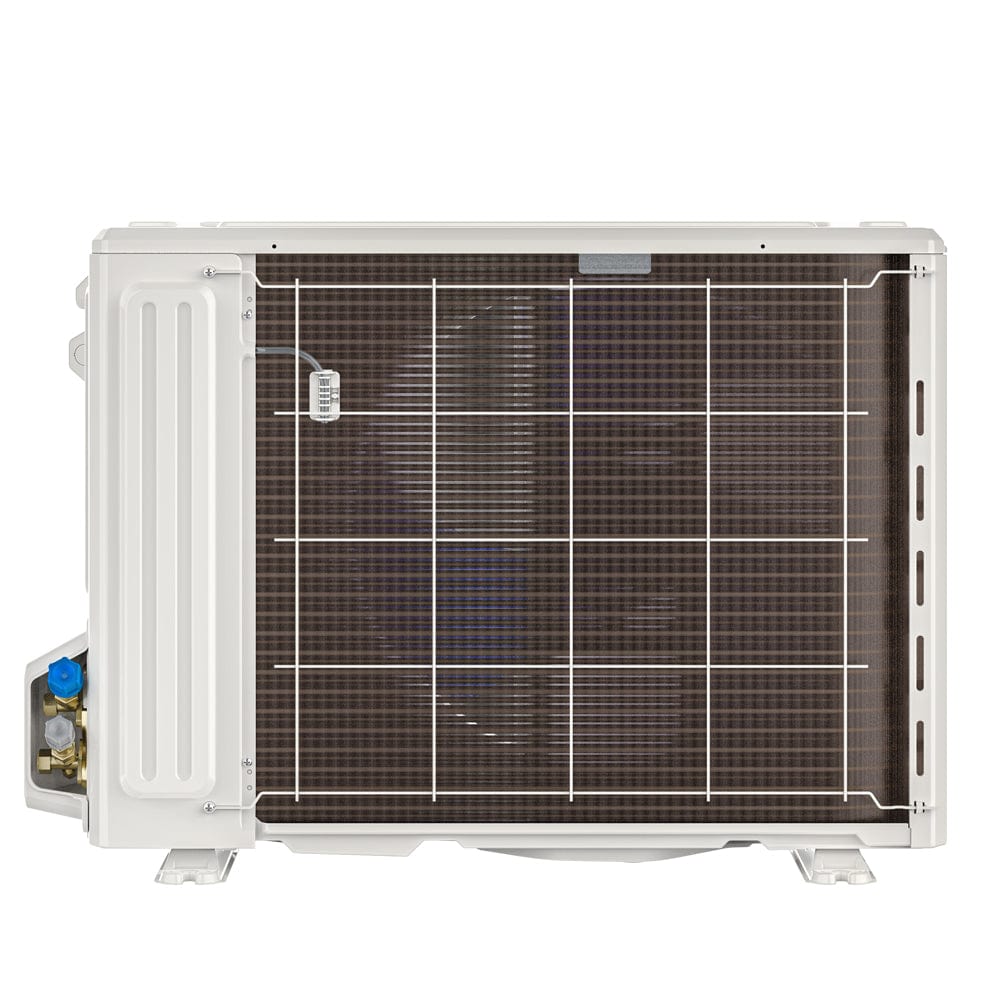

Condenser
| Dimensions |
35.04"W x 13.46"D x 26.50"H |
| Weight |
141.76 lbs |
| Electrical Requirements |
Requires a minimum of 208-230V/60Hz/22.5-25A (please check your home meets this electrical requirement prior to purchase) |
| Cooling Capacity |
24,000 BTU |
| Heating Capacity |
26,000 BTU |
| Outdoor Operating Temperature Range |
-13 °F - 120°F |
| SEER2 |
18.1 |
| EER2 |
11.0 |
| HSPF2-4 |
9.7 |
| HSPF2-5 |
7.7 |
| Noise Level (Hi/Mi/Lo) |
60 dB(A) |
| Refrigerant |
R454B / 74.08 oz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
3/4" |
| Warranty |
10 Years Compressor, 10 Years Parts |

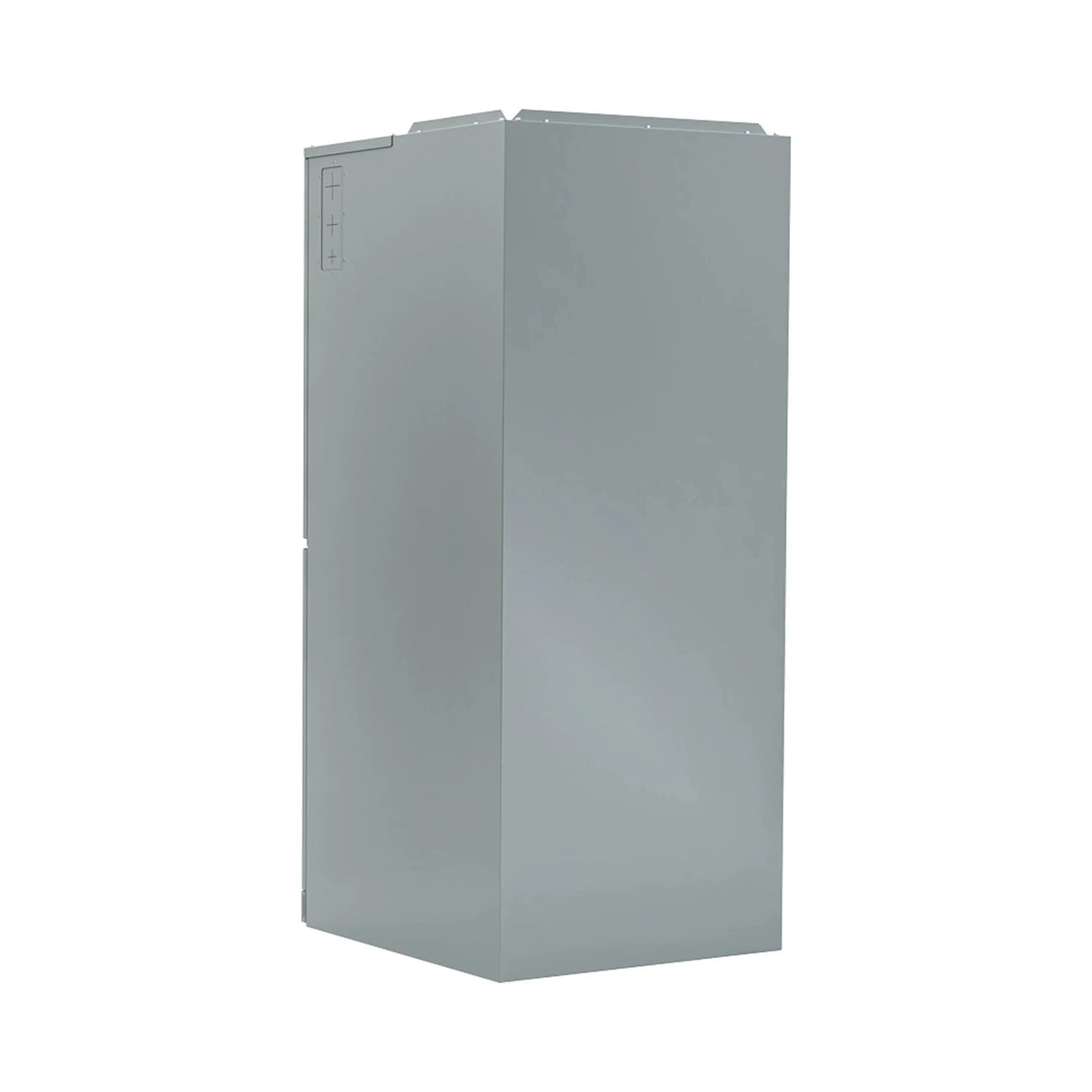

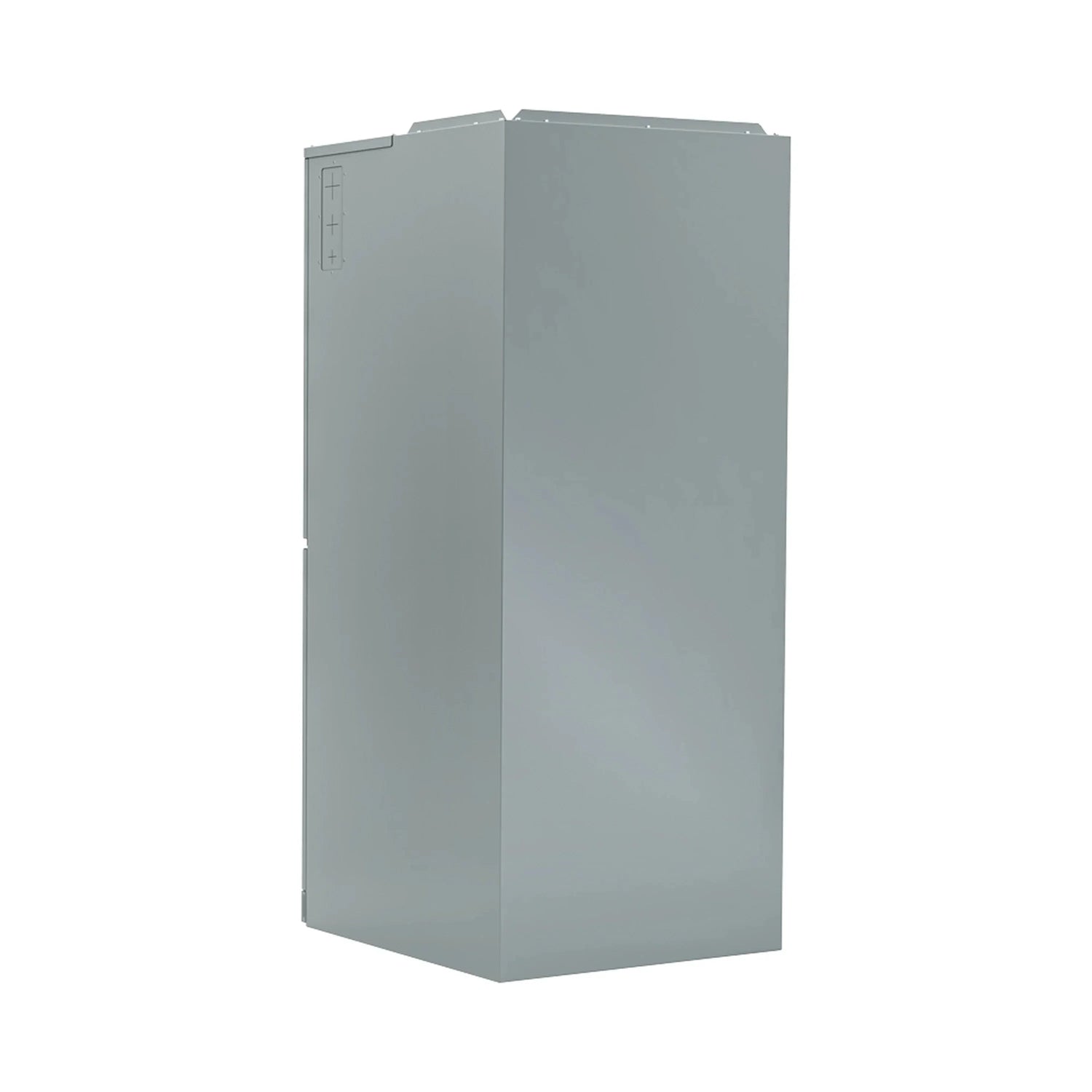

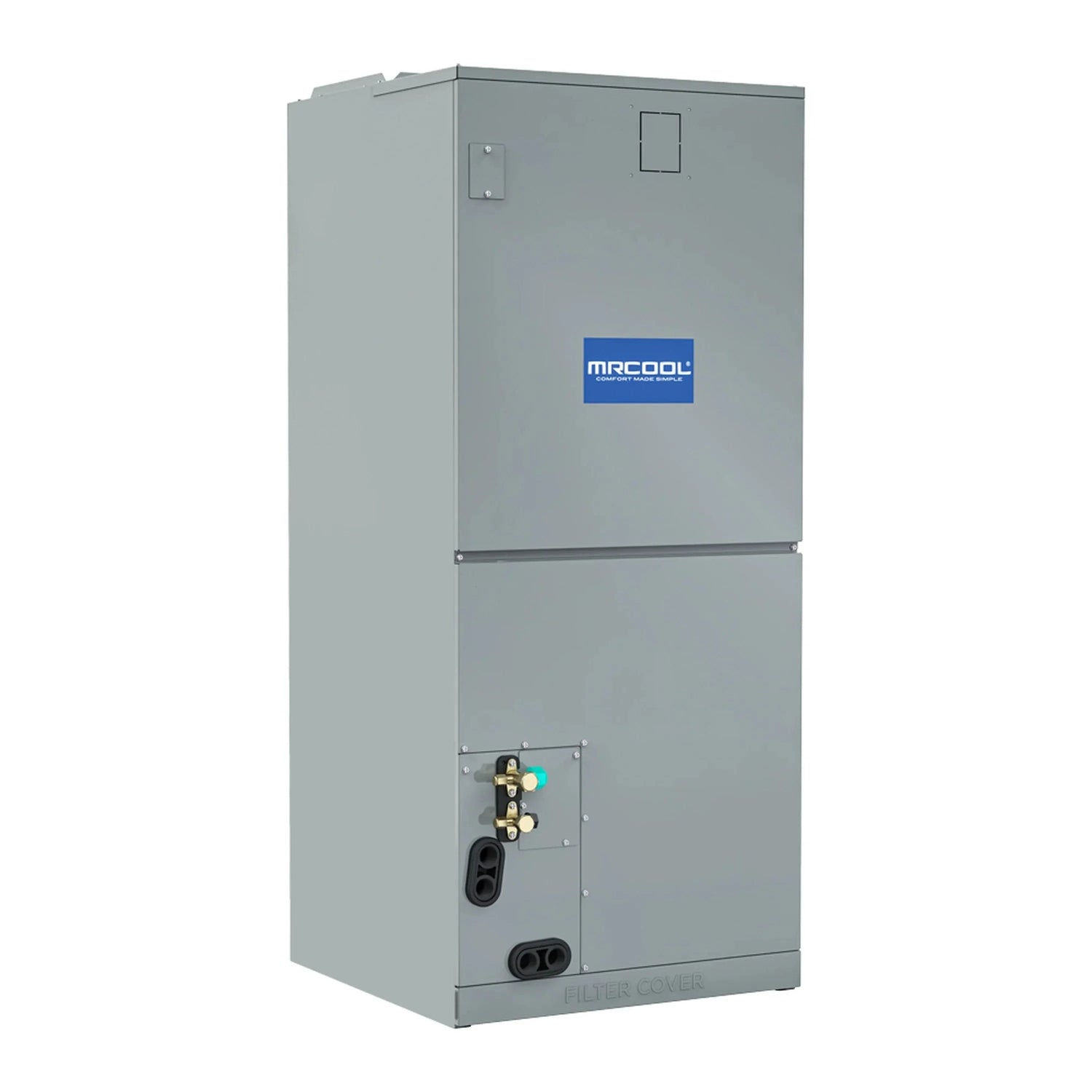

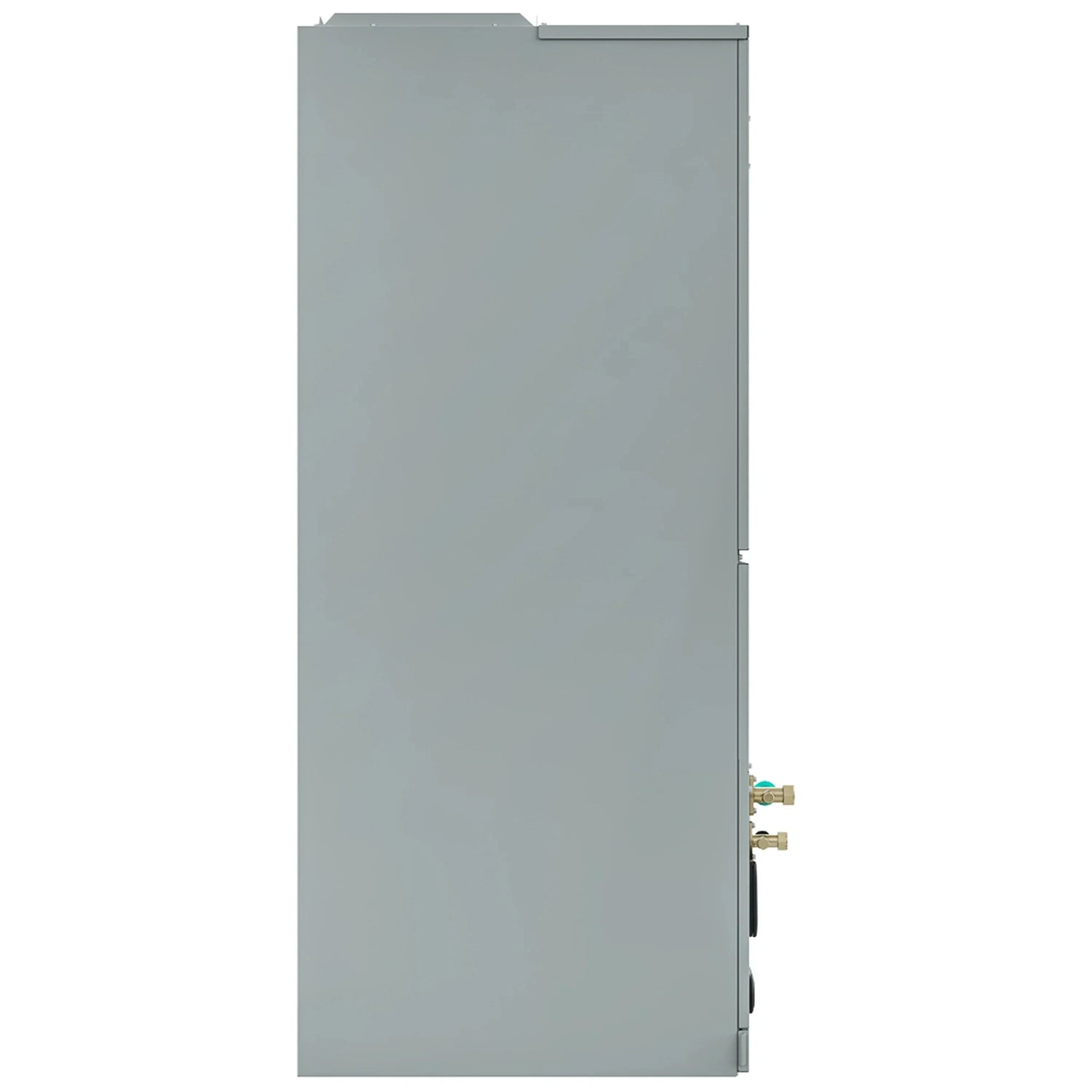

Air Handler
| Dimensions |
17.52" W x 21.02" D x 45.00" H |
| Weight |
105.60 lbs |
| Electrical Requirements |
Requires a minimum of 208-230V/60Hz/5.5/4.0-15A (please check your home meets this electrical requirement prior to purchase) |
| Mount Type |
Vertical (Downflow or Upflow) Horizontal (Right or Left) |
| Cooling Capacity |
24,000 BTU |
| Heating Capacity |
26,000 BTU |
| Coverage Area |
751-1,000 square feet |
| SEER2 |
18.1 |
| EER2 |
11.0 |
| HSPF2-4 |
9.7 |
| HSPF2-5 |
7.7 |
| Noise Level (Turbo/Hi/Mi/Lo/Si) |
- / 44 / 42 / 28 / - dB(A) |
| Airflow (TURBO/Hi/Mi/Lo) |
824.04 / 759.29 / 694.55 / 629.80 CFM |
| Refrigerant |
R454B / 74.08 oz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
3/4" |
| Compatible Heat Kits |
5kW - MVPHK05 8kW - MVPHK08 10kW - MVPHK10 15kW - MVPHK15
|
| Warranty |
10 Years Parts |
Applications
-
Whole-home comfort – efficient heating and cooling for up to 1,000 sq. ft.
-
Renovations – great for replacing outdated central systems.
-
New construction – provides reliable ducted comfort for modern builds.
-
Challenging climates – designed to perform in extreme cold or heat.
What’s Included
Warranty
Frequently-Asked Questions
Q: Is this system DIY-friendly?
A: No. The VersaPro 2nd Gen is not a DIY system and must be installed by a licensed HVAC technician.
Q: What size area can this system cover?
A: This 24K BTU unit can cover approximately 751–1,000 sq. ft., depending on insulation and climate.
Q: What type of refrigerant does it use?
A: This model uses R454B refrigerant, which is more environmentally friendly than R-410A.
