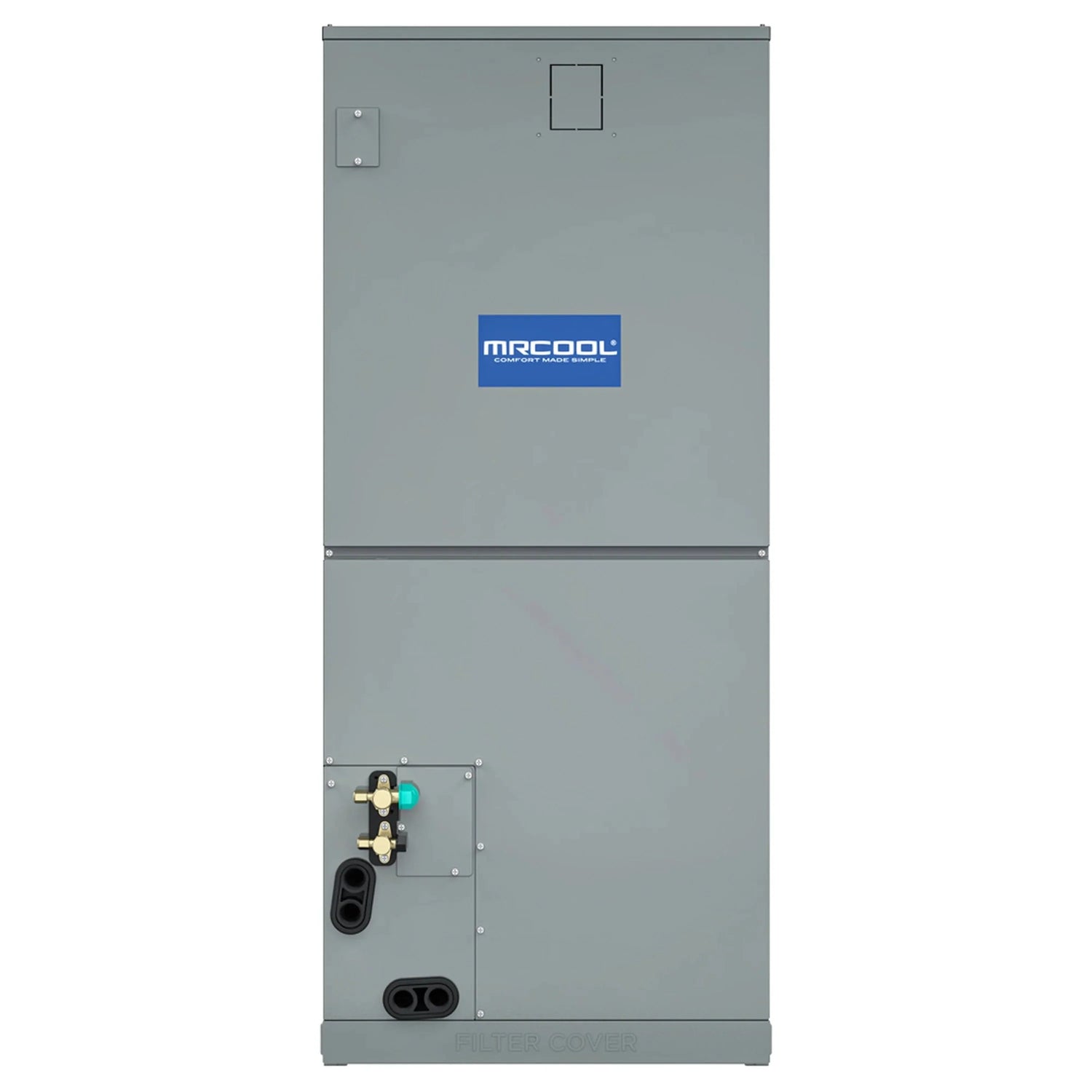

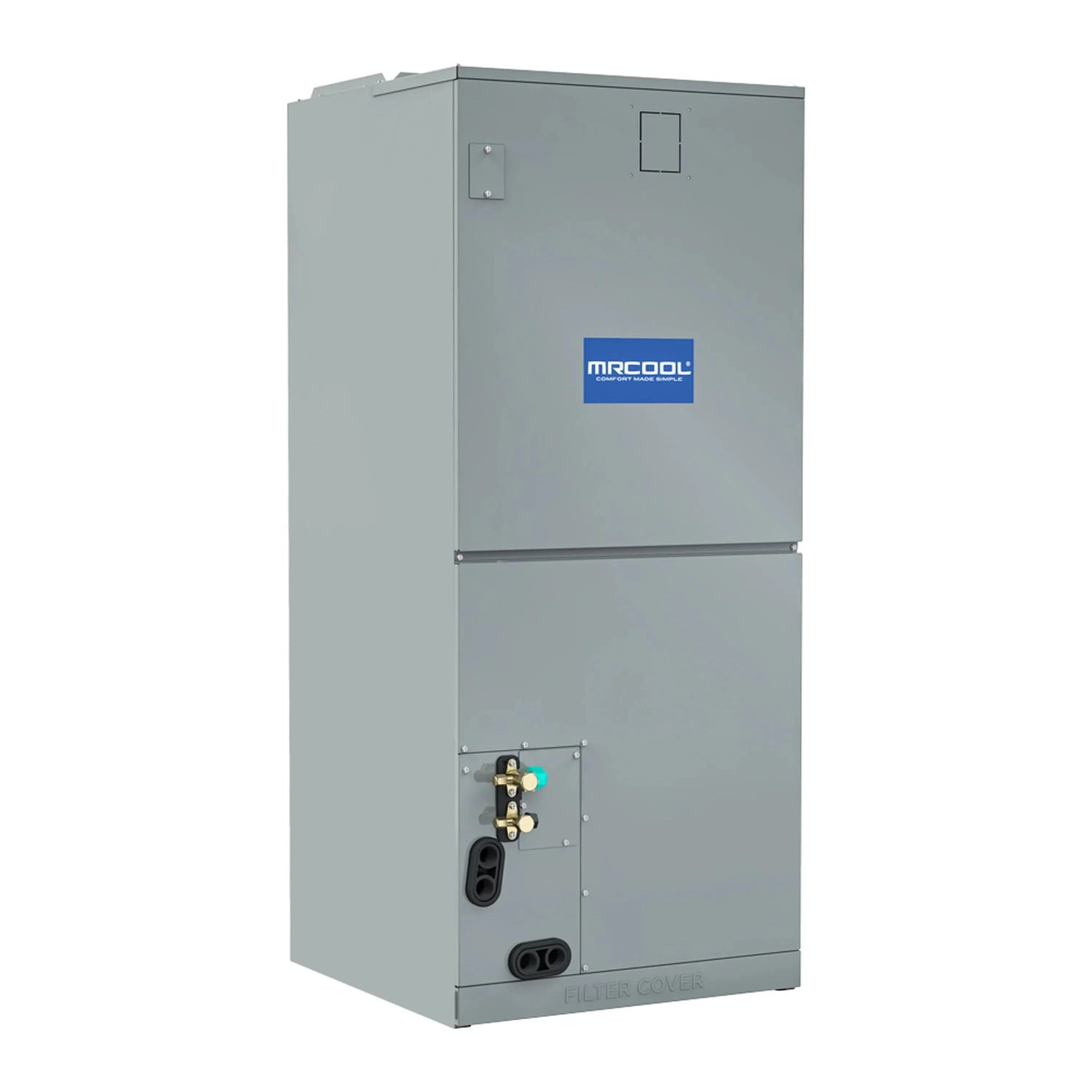

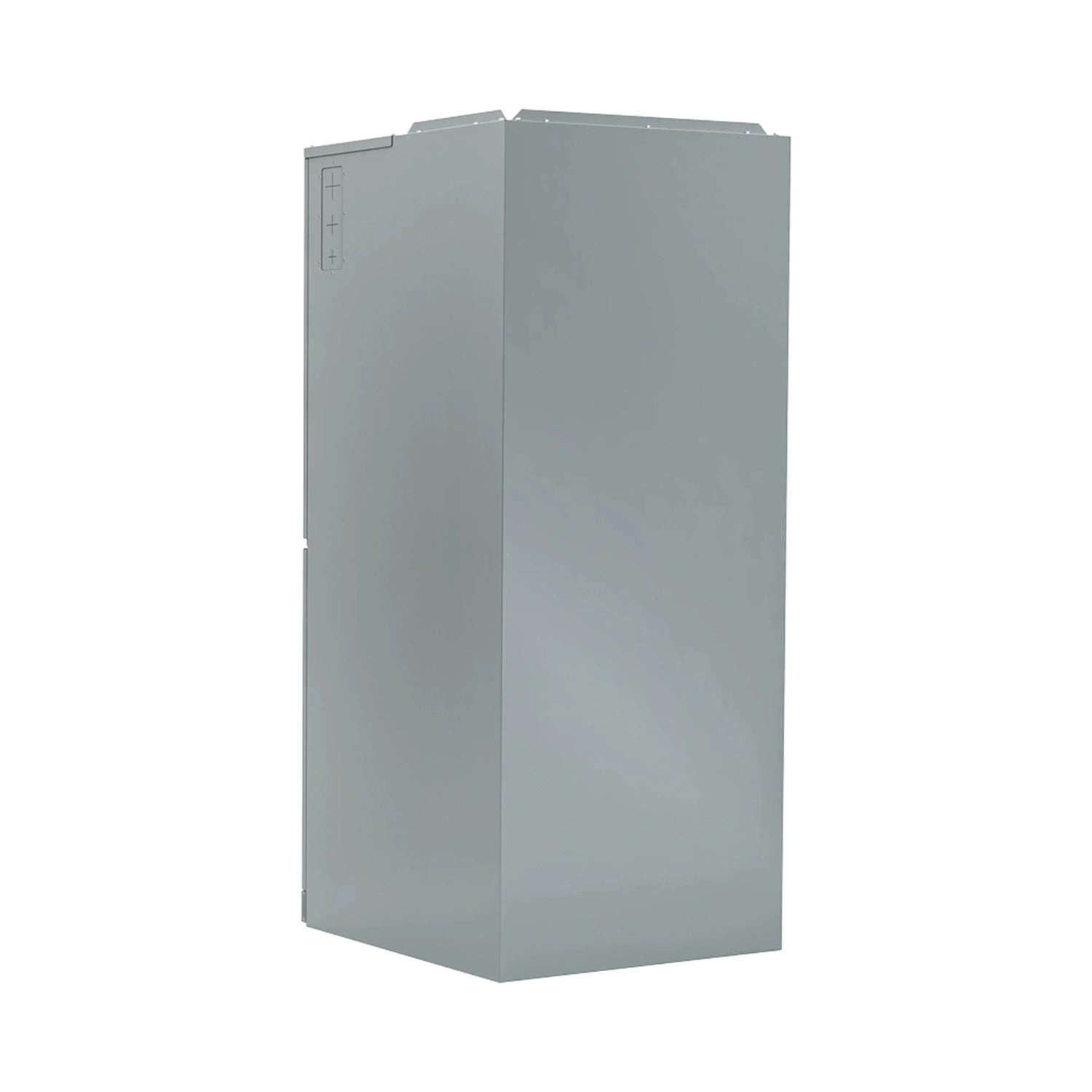

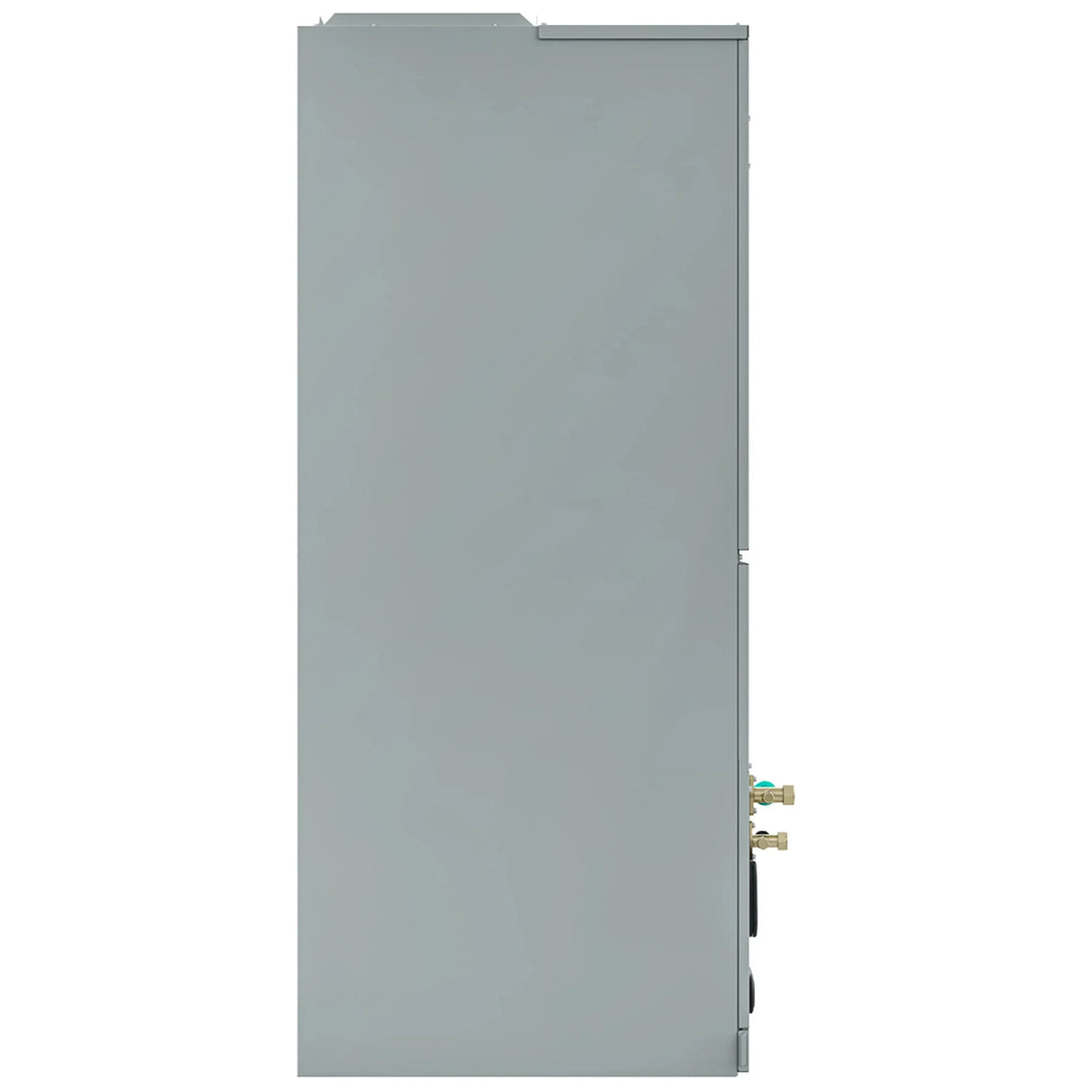

MRCOOL VersaPro 2nd Gen 48K BTU 4 Ton Central Ducted Multiposition Air Handler
The MRCOOL VersaPro 48K BTU 4‑Ton Central Ducted Air Handler (model MVP‑48‑HP‑MUAH‑230A00‑O) is a heavy‑duty indoor unit built to deliver efficient heating and cooling for larger homes or spaces — suitable for areas up to about 2,000 sq ft.
This air handler is constructed from durable painted galvanized steel to ensure long-term reliability and resilience. It supports multiple installation orientations — upflow, downflow, or horizontal (left or right) — offering flexibility to adapt to different home layouts and ductwork configurations.
With a cooling capacity of 48,000 BTU and a heating capacity of 48,000 BTU, along with a SEER2 rating of up to 16.5, this unit balances strong performance with energy efficiency — ideal for maintaining comfortable indoor climate year-round without excessive energy usage.
The unit includes a self‑diagnostic panel to simplify maintenance and troubleshooting, reducing downtime in case of issues. It is compatible with optional auxiliary heat kits for added heating power if needed, and works seamlessly with compatible condensers to create a full central HVAC system for your home.
Please note: This system is not a DIY installation and must be installed by a licensed HVAC technician.
Features
-
Flexible Installation: Supports vertical (upflow/downflow) or horizontal configurations for maximum adaptability.
-
High Capacity: Delivers 48,000 BTU heating and cooling for whole-home comfort.
-
Wide Coverage: Designed for 1,501–2,000 sq. ft., making it ideal for larger homes.
-
Energy Efficient: Rated at 16.0 SEER2, 10.0 EER2, and up to 8.5 HSPF2 for efficient year-round operation.
-
Compatible Heat Kits: Supports 5kW–20kW auxiliary heat kits for added backup heating.
Specifications
| Dimensions |
24.49" W x 21.02" D x 52.99" H |
| Weight |
162.92 lbs |
| Electrical Requirements |
Requires a minimum of 208-230V/60Hz/14.5/11.0-15A (please check your home meets this electrical requirement prior to purchase) |
| Mount Type |
Vertical (Downflow or Upflow) Horizontal (Right or Left) |
| Cooling Capacity |
48,000 BTU |
| Heating Capacity |
48,000 BTU |
| Coverage Area |
1,501-2,000 square feet |
| SEER2 |
16.0 |
| EER2 |
10.0 |
| HSPF2-4 |
8.5 |
| HSPF2-5 |
7.2 |
| Noise Level (Turbo/Hi/Mi/Lo/Si) |
- / 53 / 50 / 44 / - dB(A) |
| Airflow (TURBO/Hi/Mi/Lo) |
1600.99 / 1471.50 / 1283.15 / 1094.80 CFM |
| Refrigerant |
R454B / 134.04 oz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
3/4" |
| Compatible Heat Kits |
8kW - CENTRALHK08 10kW - CENTRALHK10 15kW - CENTRALHK15 20kW - CENTRALHK20
|
| Warranty |
10 Years Parts |
Applications
-
Large homes – Covers 1,500–2,000 sq. ft. effectively.
-
Flexible installs – Works in vertical or horizontal orientations to match duct layouts.
-
Year-round comfort – Efficient heating and cooling performance.
-
Customizable heating – Optional heat kits for colder climates.
What’s Included
Warranty
Frequently-Asked Questions
Q: What size home does this air handler support?
A: It is recommended for homes sized 1,500–2,000 sq. ft., depending on climate and insulation.
Q: Can I add supplemental heat?
A: Yes, it is compatible with optional 5kW–20kW heat kits for added heating capacity.
Q: Is this a DIY unit?
A: No. This system requires professional installation by a licensed HVAC technician.
