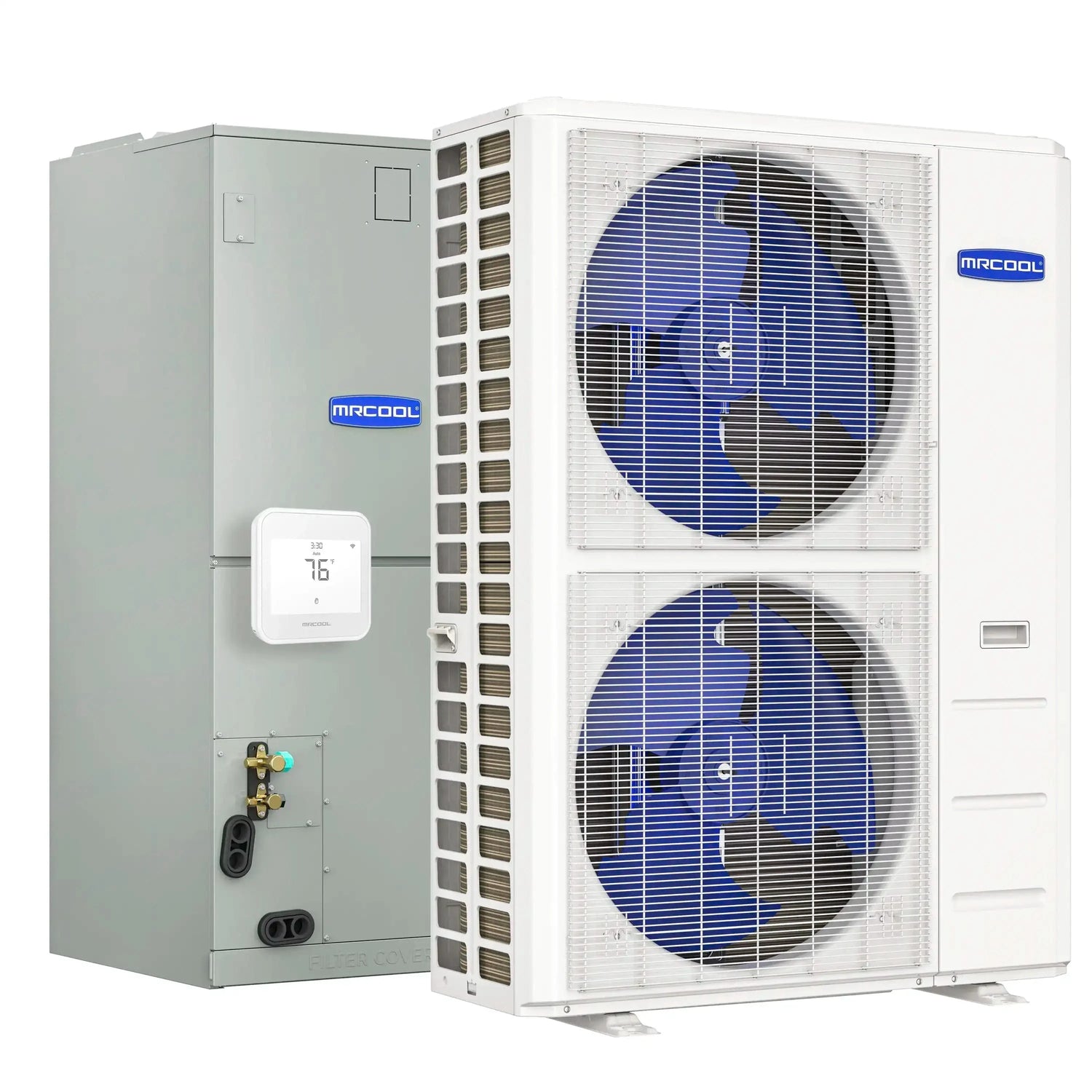

MRCOOL VersaPro 2nd Gen 60K BTU 5 Ton 15.2 SEER2 Central Ducted Heat Pump Split System

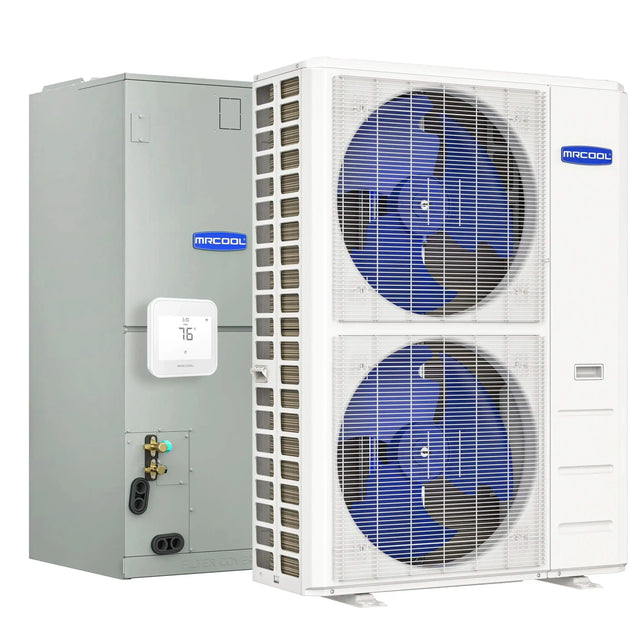

The MRCOOL VersaPro 60 K BTU 5‑Ton Central Ducted Split System brings together a powerful heat‑pump condenser and a matching ducted air handler to deliver efficient, whole‑home climate control for larger spaces. Engineered to serve homes roughly in the 2,500–3,000 sq ft range, this 5‑ton system provides dependable heating and cooling throughout the year — ideal if you want comfort for a large living area.
This system stands out for energy efficiency and modern performance: with a SEER2 rating of 15.2 and HSPF4 rating of 8.4, it balances cooling/heating power with energy savings. The system uses eco‑friendly R‑454B refrigerant and includes inverter‑driven technology that adjusts output to match demand — which helps maintain consistent indoor climate while optimizing energy use.
Installation versatility is another strong point. The air handler supports multi‑position mounting (upflow, downflow, or horizontal), making it adaptable to a variety of ductwork layouts or house designs. It also pairs well with “No‑Vac” quick‑connect line sets, simplifying the setup process.
To top it off, the unit is backed by a 10‑year warranty on parts and compressor, giving long-term peace of mind. Whether you’re upgrading an older HVAC system or installing a brand-new ducted setup, this split system offers a comprehensive, efficient, and durable climate solution for large homes.
Please note: This system is not a DIY installation and must be installed by a licensed HVAC technician.
Features
-
High-Capacity Comfort
Provides 60,000 BTU heating and cooling, designed for 2,000–2,500 sq. ft. homes and large spaces.
-
Energy Efficient
Delivers 15.2 SEER2, 8.6 EER2, and up to 8.4 HSPF2 efficiency for year-round comfort.
-
Flexible Installation
Air handler supports vertical (upflow/downflow) or horizontal (left/right) configurations.
-
Durable Performance
Built with R-454B refrigerant for eco-friendly operation and long-term reliability.
-
Quiet Operation
Noise levels as low as 34.5 dB(A) for the air handler and 65 dB(A) for the condenser.
-
Optional Heat Kits
Compatible with 10kW, 15kW, and 20kW heat kits for colder climates.
Specifications

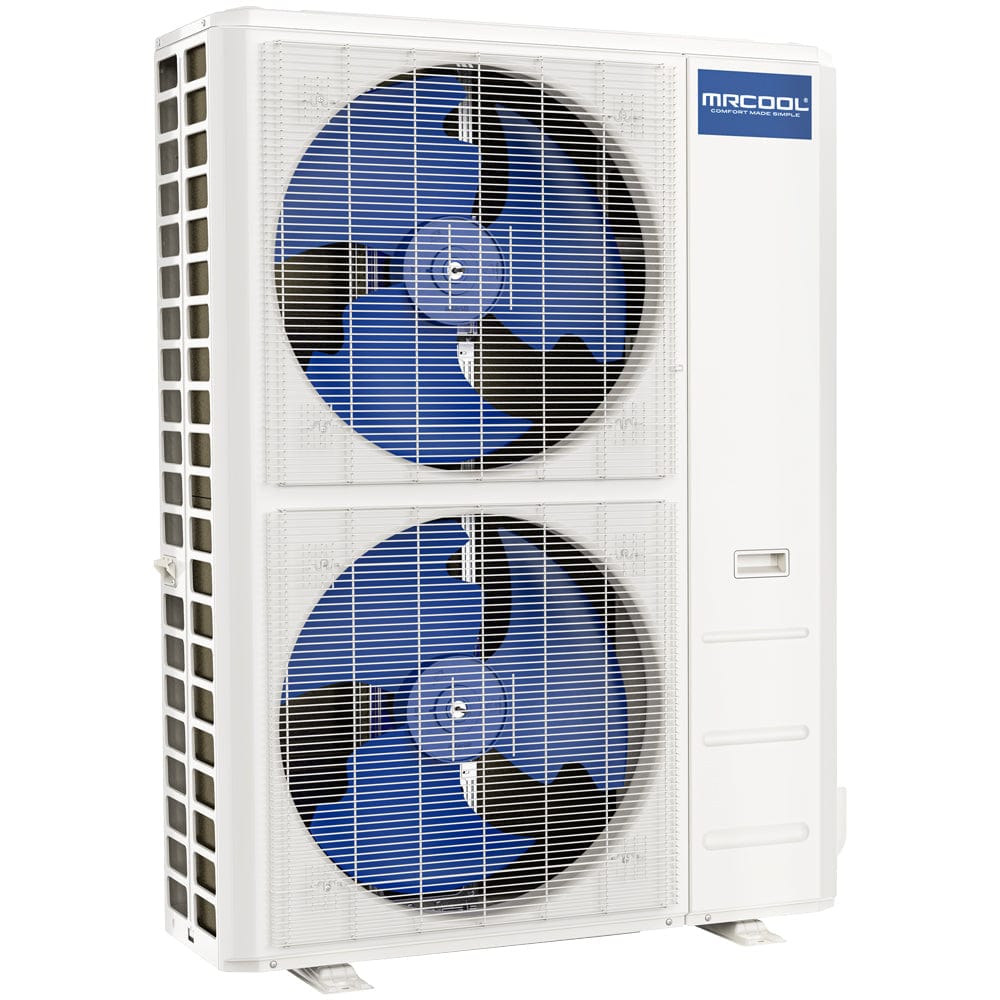

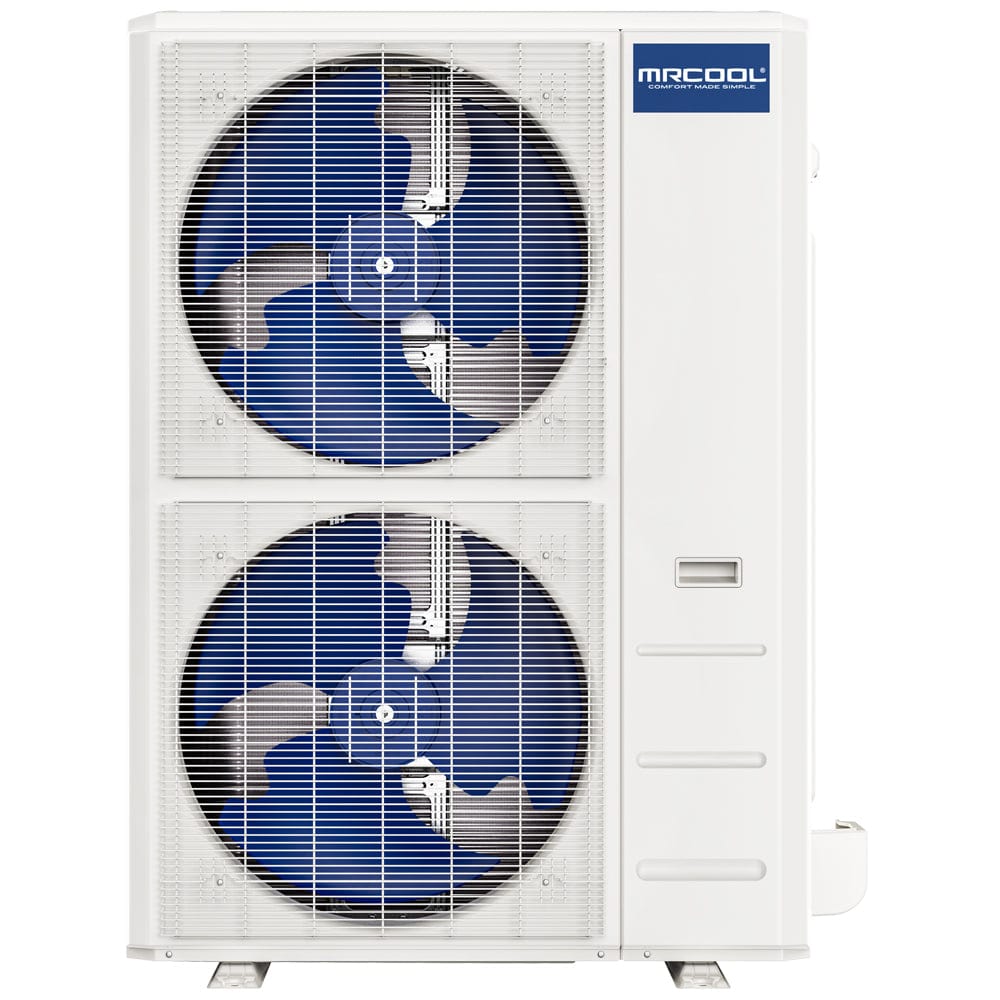

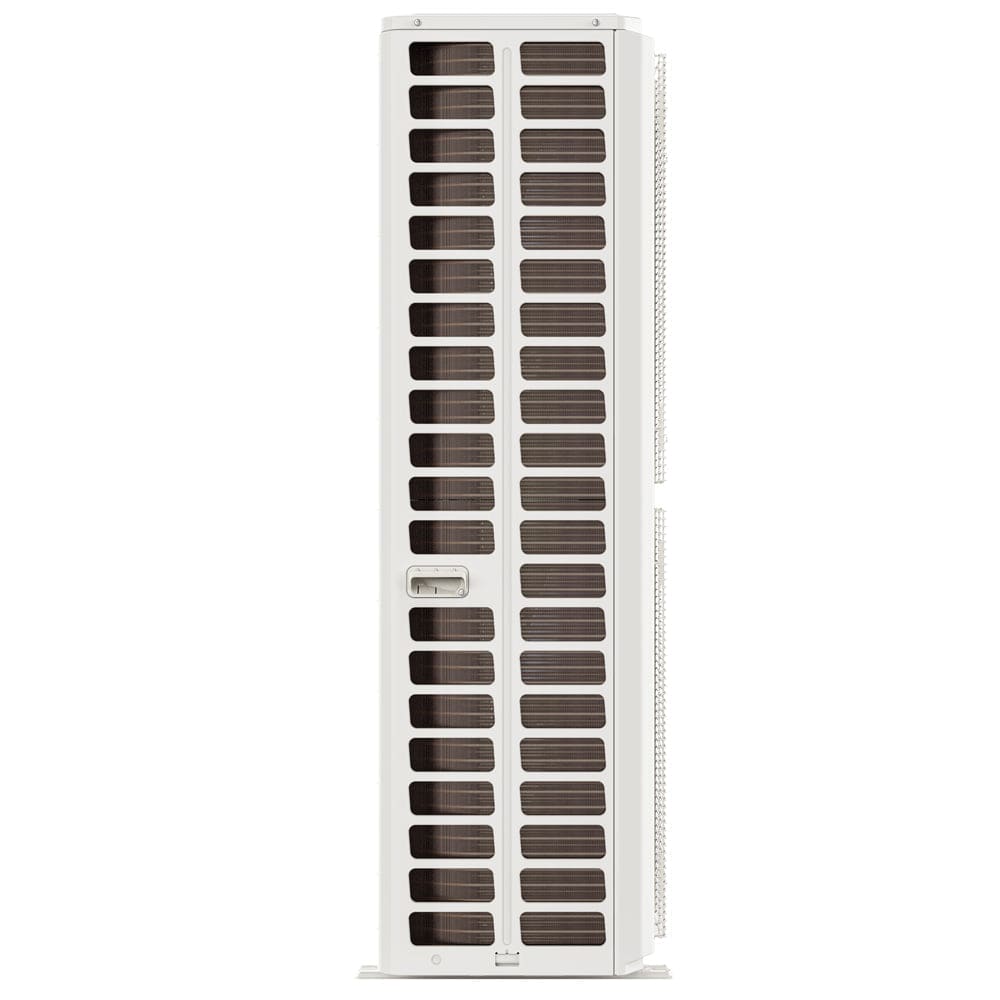

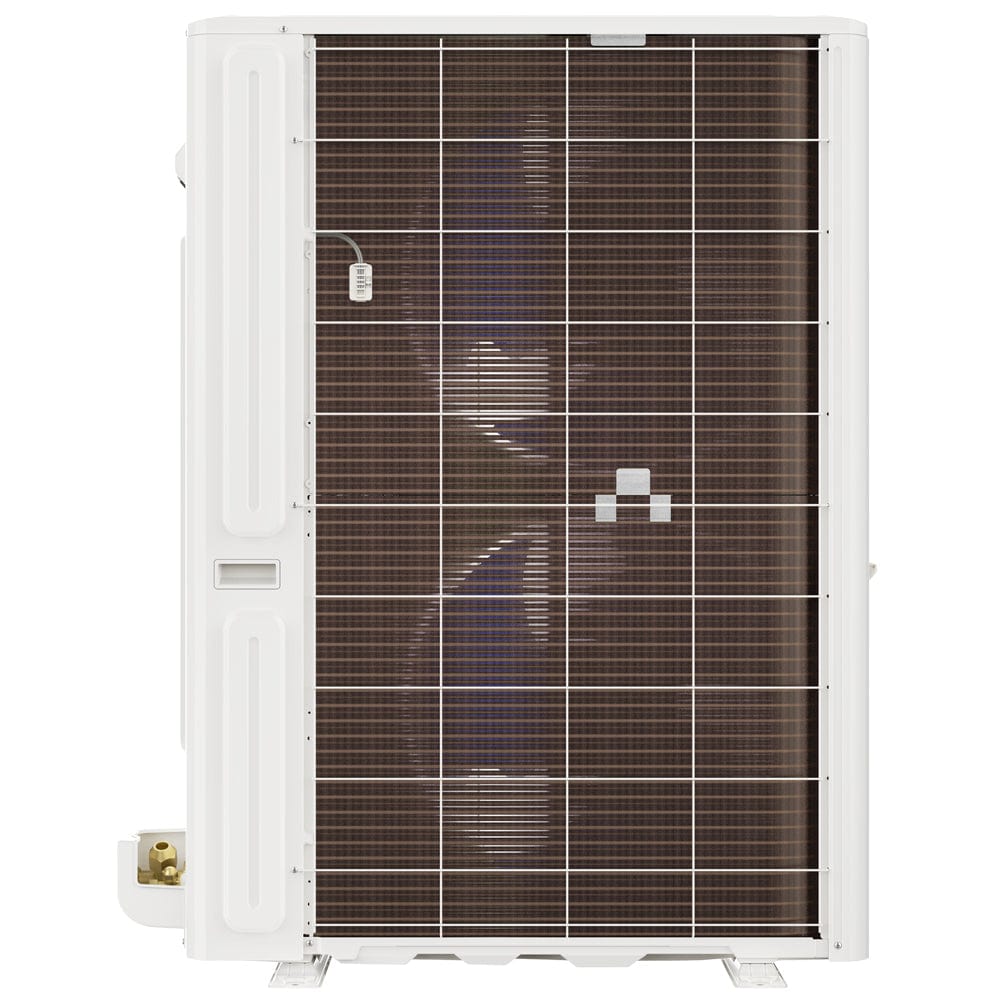

Condenser
| Dimensions |
38.58" W x 16.34" D x 38.39" H |
| Weight |
192.90 lbs |
| Electrical Requirements |
Requires a minimum of 208-230V/60Hz/39-40A (please check your home meets this electrical requirement prior to purchase) |
| Cooling Capacity |
54,000 BTU |
| Heating Capacity |
54,000 BTU |
| Outdoor Operating Temperature Range |
-13 °F - 120°F |
| SEER2 |
15.2 |
| EER2 |
8.6 |
| HSPF2-4 |
8.4 |
| HSPF2-5 |
6.8 |
| Noise Level (Hi/Mi/Lo) |
65 db(A) |
| Refrigerant |
R454B / 134.04 oz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
3/4" |
| Warranty |
10 Years Compressor, 10 Years Parts |

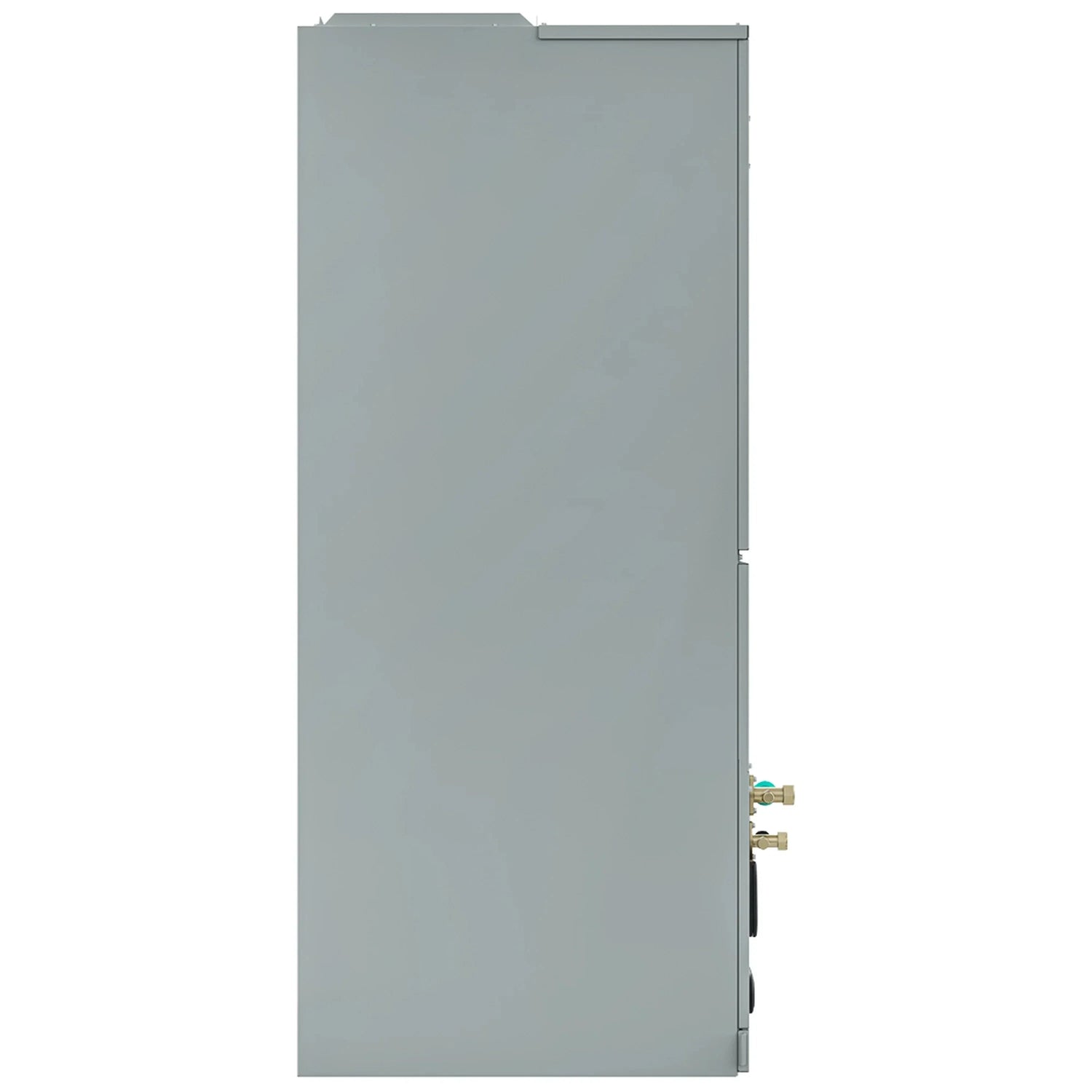

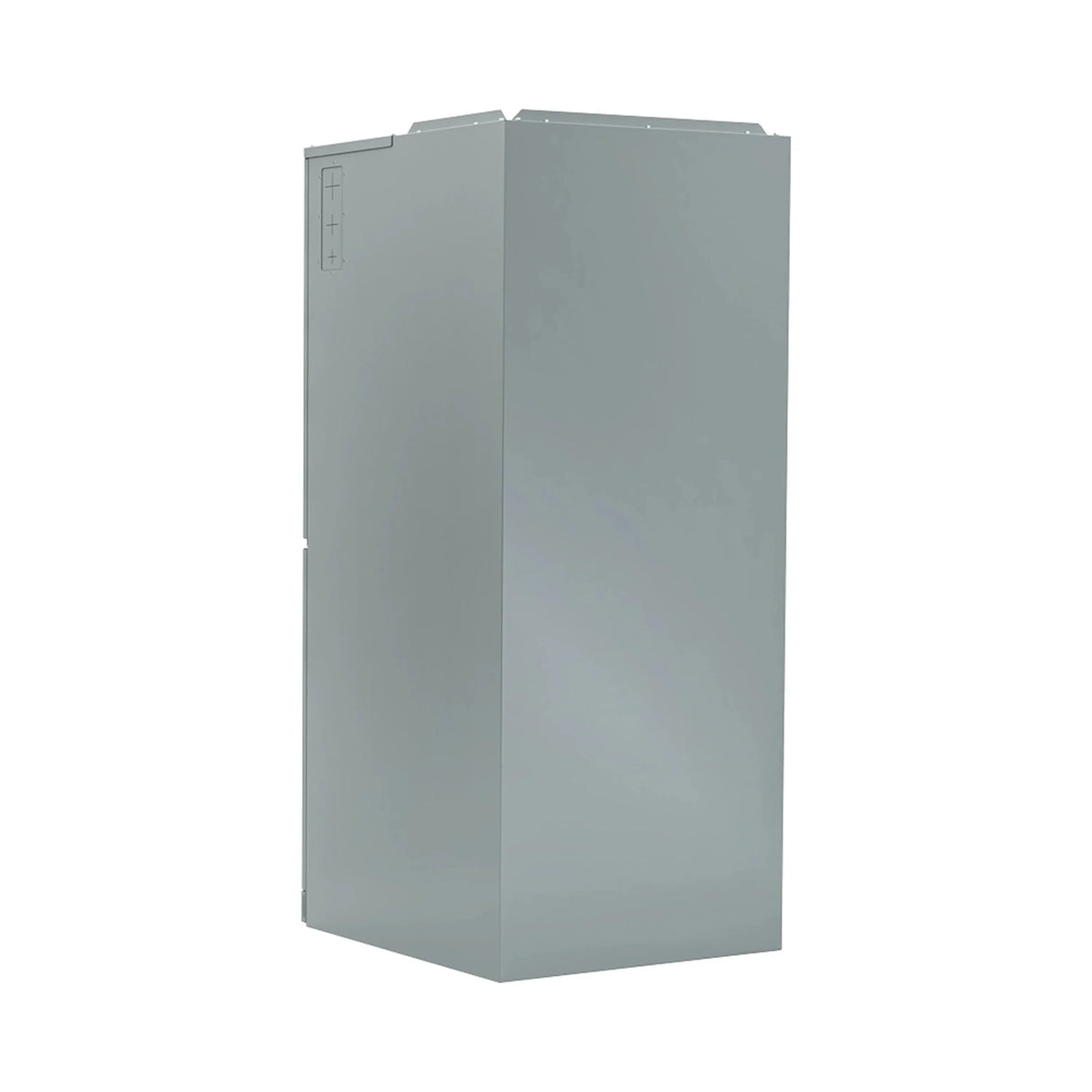

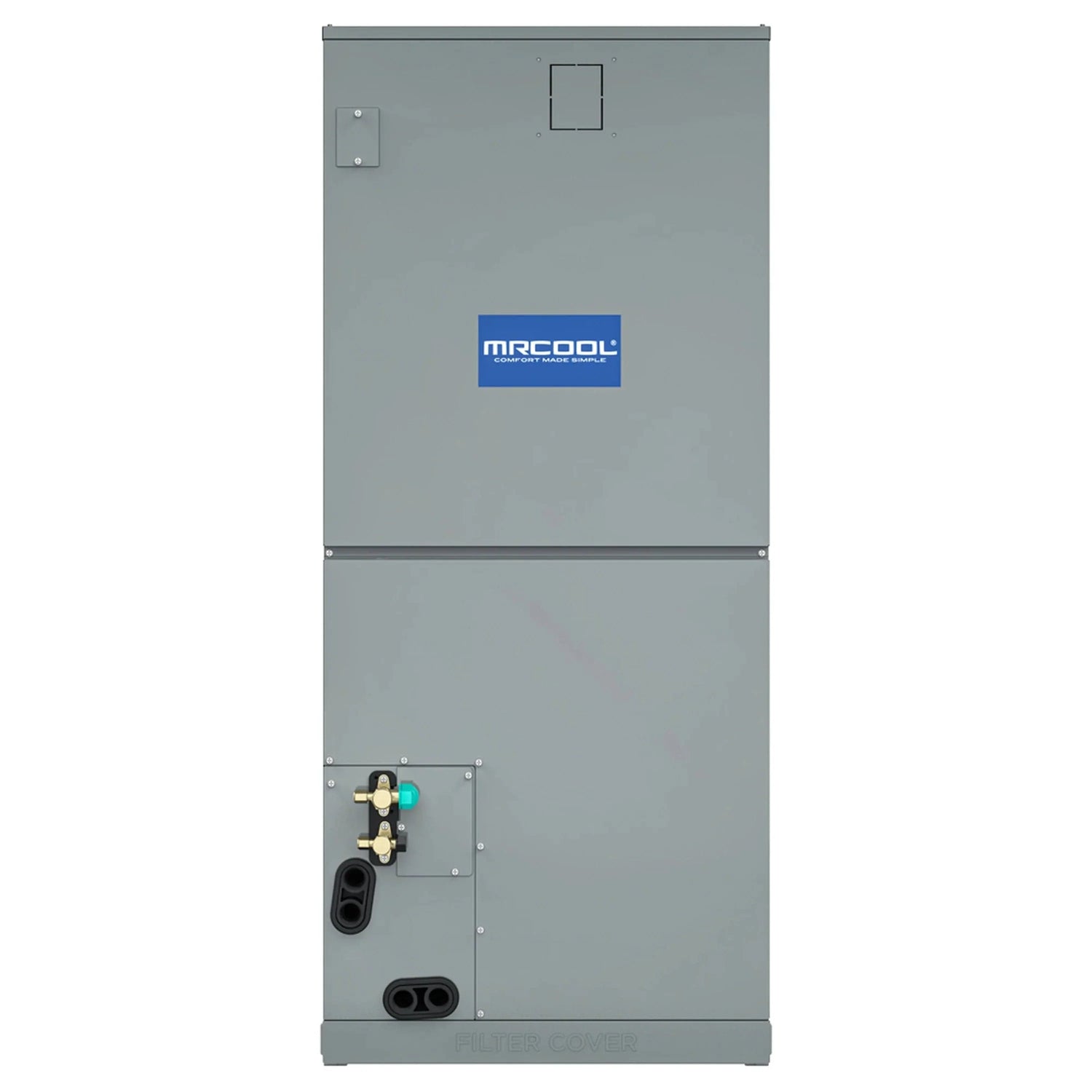

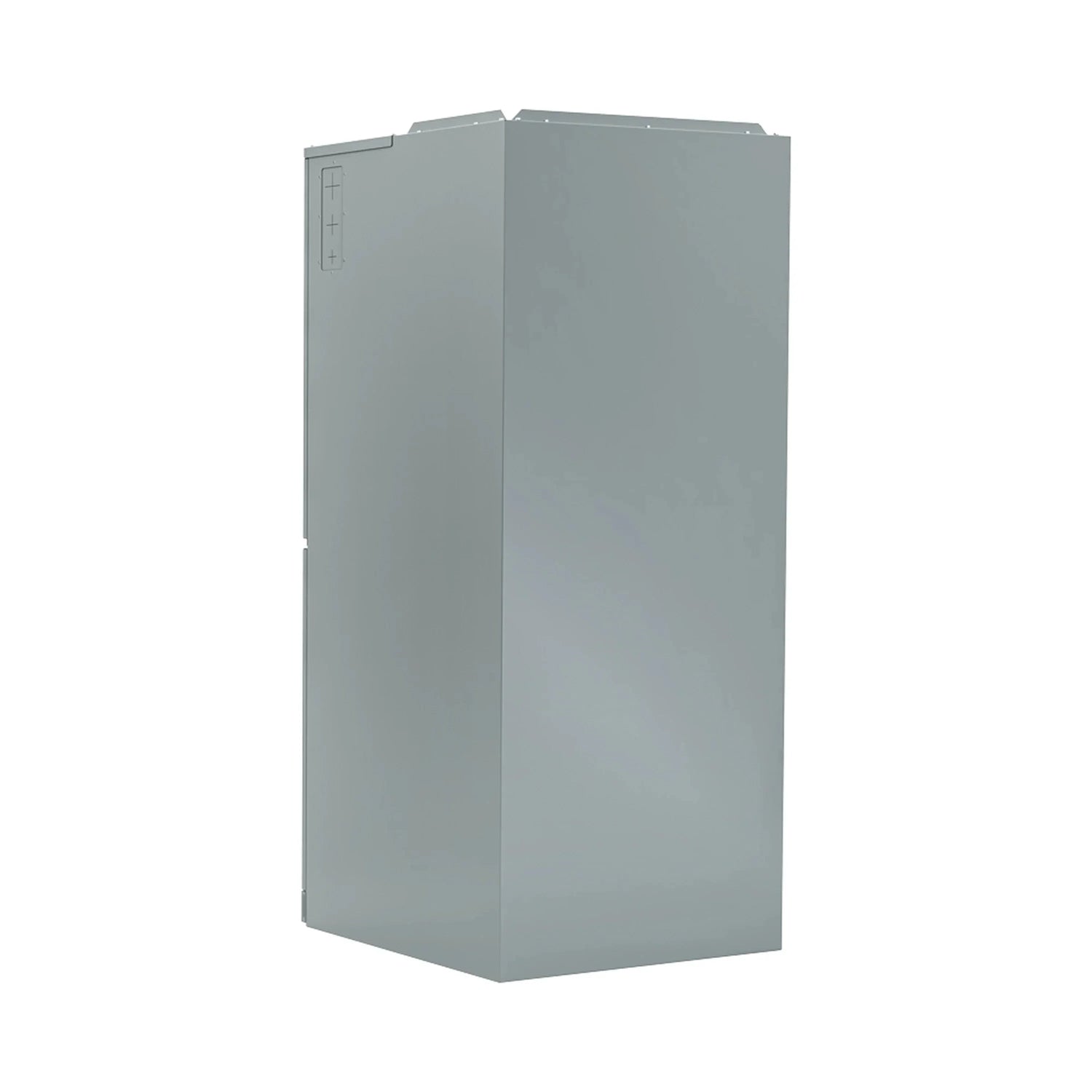

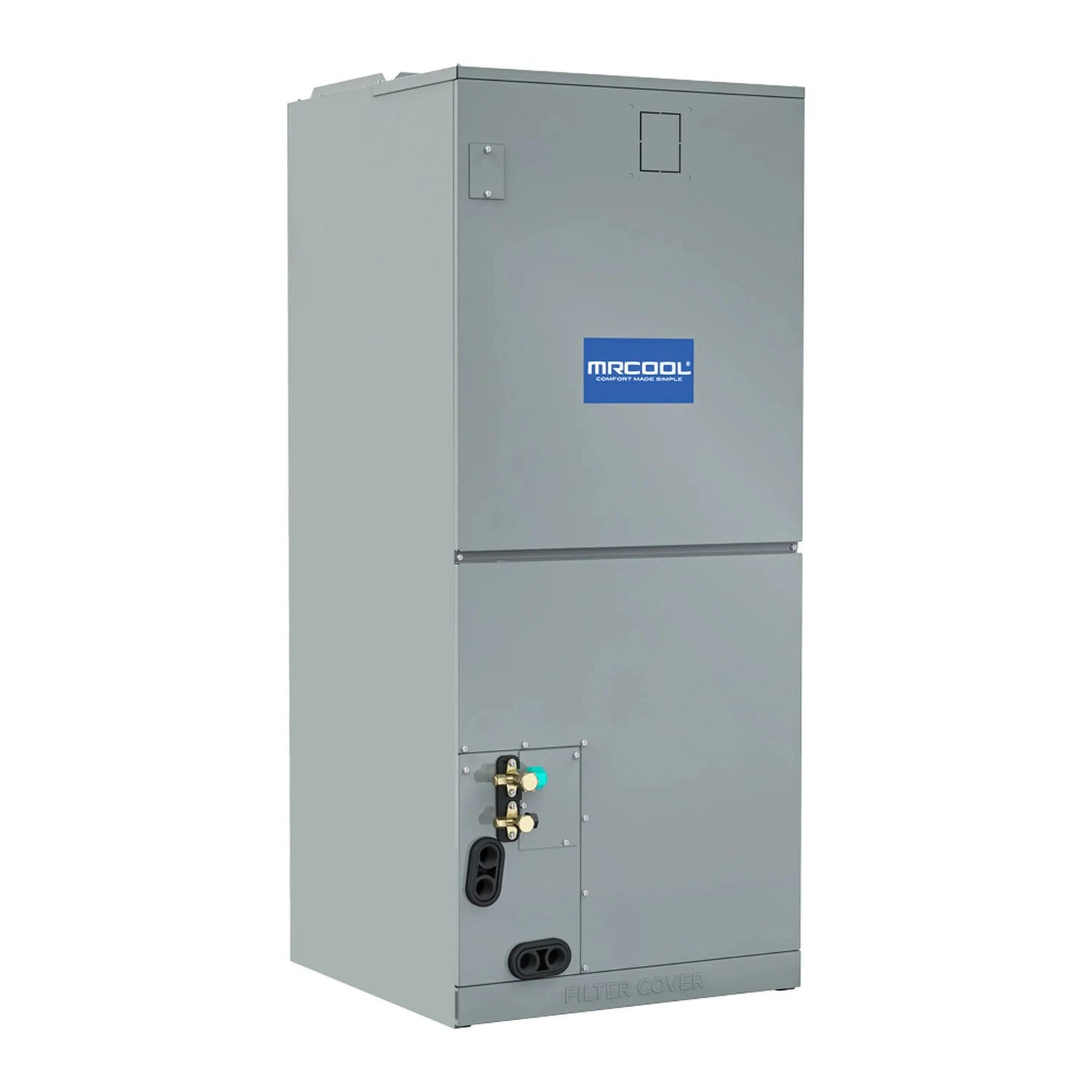

Air Handler
| Dimensions |
24.49" W x 21.02" D x 52.99" H |
| Weight |
162.92 lbs |
| Electrical Requirements |
Requires a minimum of 208-230V/60Hz/14.5/11.0-15A (please check your home meets this electrical requirement prior to purchase) |
| Mount Type |
Vertical (Downflow or Upflow) Horizontal (Right or Left) |
| Cooling Capacity |
54,000 BTU |
| Heating Capacity |
54,000 BTU |
| Coverage Area |
2,001-2,500 square feet |
| SEER2 |
15.2 |
| EER2 |
8.6 |
| HSPF2-4 |
8.4 |
| HSPF2-5 |
6.8 |
| Noise Level (Turbo/Hi/Mi/Lo/Si) |
56.0 / 52.0 / 49.0 / 34.5 / - dB(A) |
| Airflow (TURBO/Hi/Mi/Lo) |
1807.00 / 1583.33 / 1359.67 / 1136.00 CFM |
| Refrigerant |
R454B / 134.04 oz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
3/4" |
| Compatible Heat Kits |
10kW - MVPHK10 15kW - MVPHK15 20kW - MVPHK20
|
| Warranty |
10 Years Parts |
Applications
-
Large homes – Ideal for 2,000–2,500 sq. ft. coverage
-
Commercial spaces – Offices, shops, and open layouts
-
Year-round comfort – Efficient heating and cooling for all climates
-
Custom installs – Supports both vertical and horizontal duct setups
What’s Included
Warranty
Frequently-Asked Questions
Q: What size home does this unit cover?
A: It is designed for 2,000–2,500 sq. ft. homes depending on insulation and climate.
Q: Does this system include heat kits?
A: No, heat kits are sold separately but can be added for additional heating support.
Q: Can this be installed as a DIY project?
A: No, this system requires professional installation by a licensed HVAC technician.
