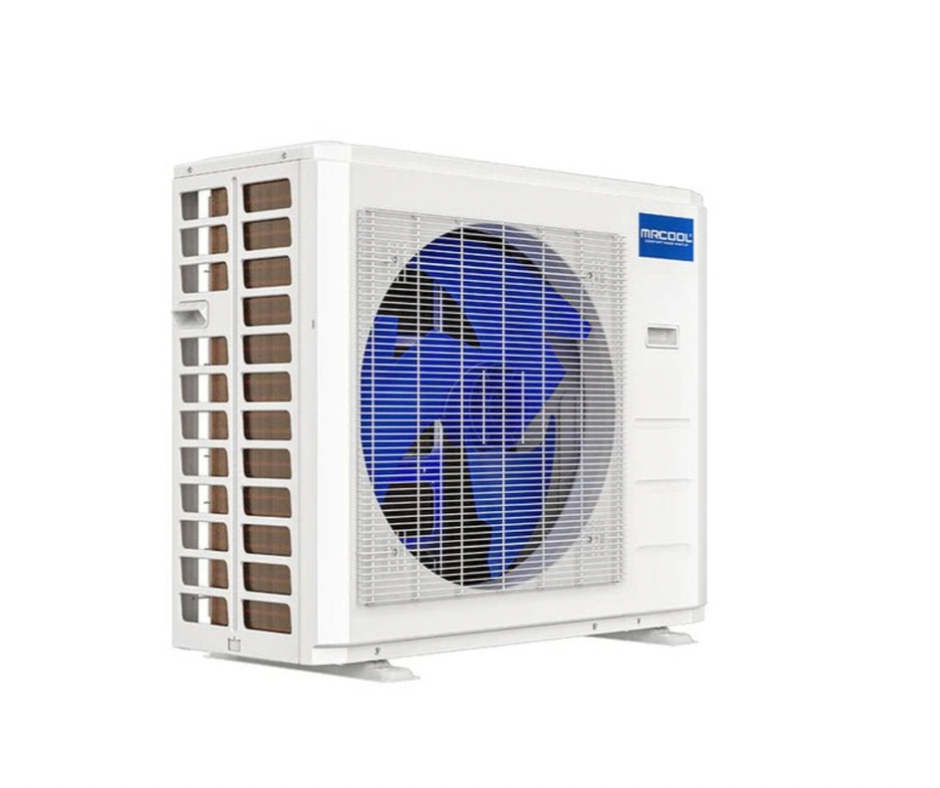

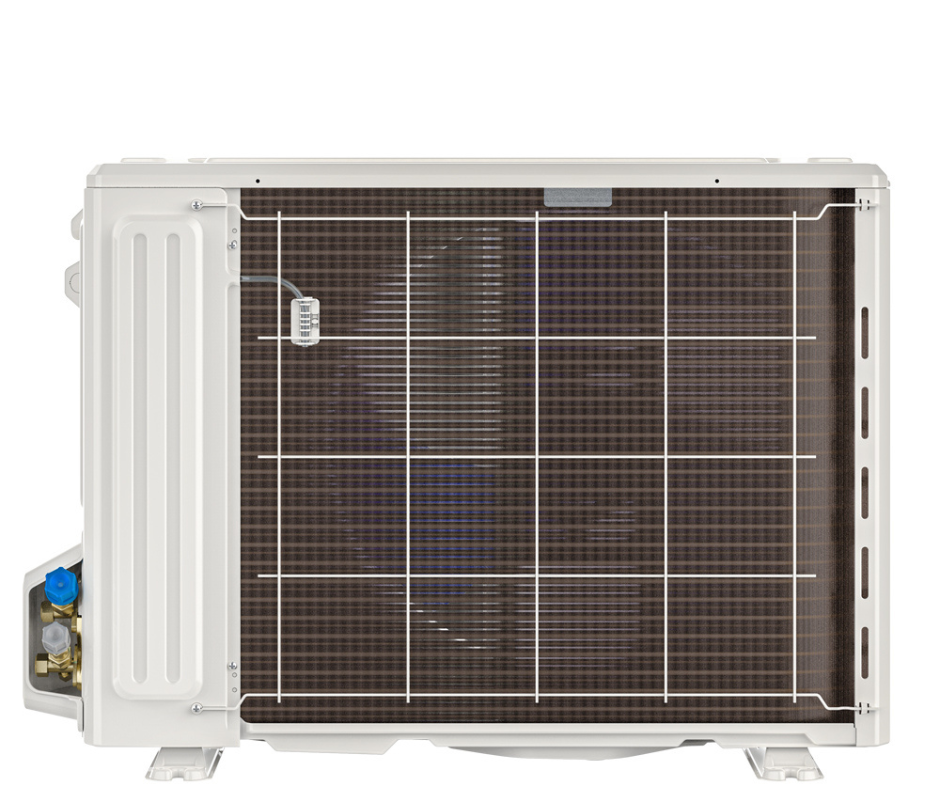

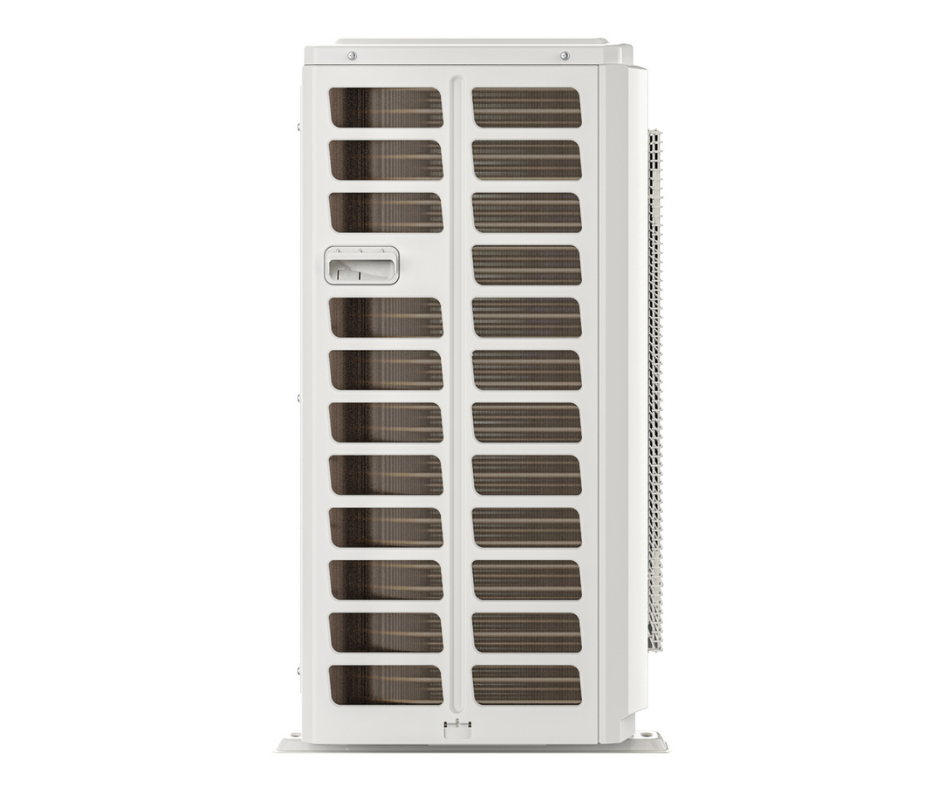

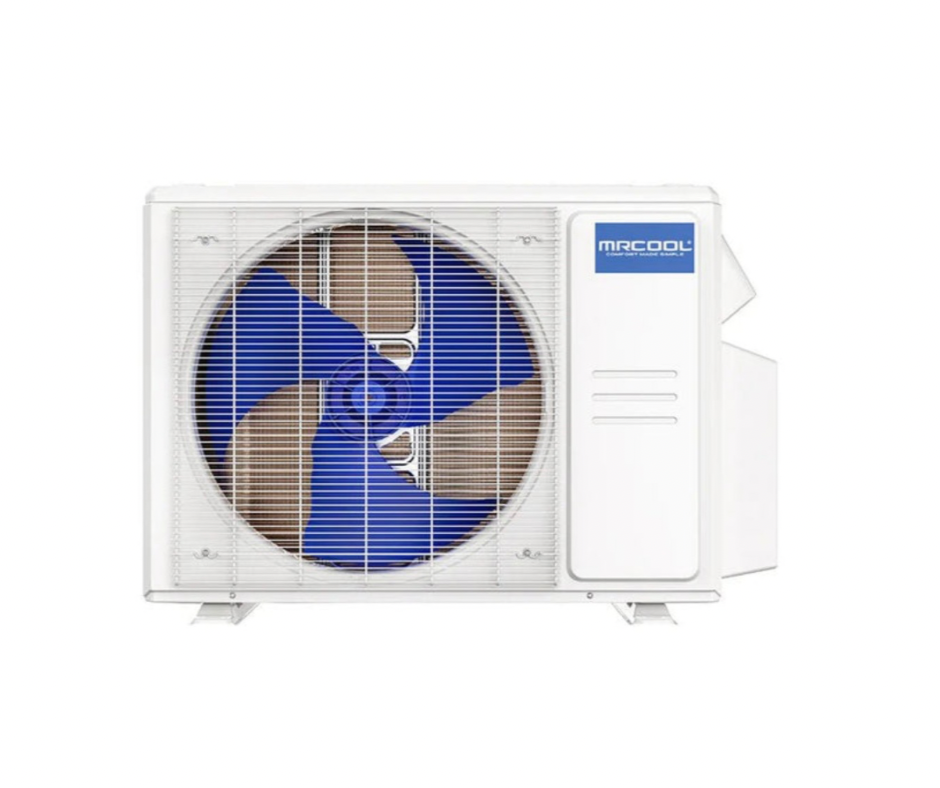

MRCOOL VersaPro 30k 2.5 Ton Central Ducted DC Inverter Heat Pump Condenser MVP-30-HP-C-230A00-O

MRCOOL VersaPro 30k 2.5 Ton Central Ducted DC Inverter Heat Pump Condenser MVP-30-HP-C-230A00-O

The MRCOOL VersaPro 30k 2.5 Ton Central Ducted DC Inverter Heat Pump Condenser brings whole-home comfort within reach with its balanced blend of energy efficiency, quiet performance, and durable construction. Engineered with advanced DC inverter technology, this condenser continuously modulates its compressor output to meet your home’s heating and cooling needs. This reduces the typical on/off cycling of traditional systems, resulting in smoother temperature control, enhanced humidity management, and lower energy consumption.

Rated at a 17 SEER2 efficiency and featuring an 8.5 HSPF-4, the unit delivers dependable year-round performance while helping reduce utility costs. Its compact side-discharge cabinet design fits easily even in constrained outdoor spaces, and the robust painted galvanized steel enclosure stands up to weather and corrosion for long-lasting operation.

Built for modern comfort control, this unit supports Wi-Fi and app compatibility and pairs seamlessly with the MRCOOL Smart Thermostat, giving you convenient remote access to your system. The environmentally friendlier R-454B refrigerant ensures more sustainable operation without sacrificing performance.

Backed by a 10-year compressor and parts warranty, the MRCOOL VersaPro heat pump condenser offers peace of mind and dependable performance for years to come. Whether you’re upgrading an aging HVAC system or installing a new one, this condenser provides reliable efficiency and comfort for your home.

Features

• DC Inverter Technology – Variable-speed efficiency with smoother comfort
• 17 SEER2 / 8.5 HSPF-4 – Energy-efficient heating and cooling
• 2.5-Ton Central Ducted Design – Ideal for whole-home HVAC systems
• Side-Discharge Cabinet – Compact footprint for tight installations
• R-454B Refrigerant – Eco-friendly, future-ready refrigerant
• Quiet Operation – Only 60 dBA
• Smart Thermostat Included – Wi-Fi & app-based control
• Self-Diagnostics – Faster service and easier maintenance
• Durable Galvanized Steel Construction – Built for long-term use

Specifications

PERFORMANCE & ELECTRICAL DATA

• Cooling Capacity: 30,000 BTU
• Heating Capacity: 31,000 BTU
• Tonnage: 2.5 Ton
• SEER2: 17
• EER2: 10.7
• HSPF-4: 8.5
• HSPF-5: 6.6
• Airflow: 3001.8 CFM
• Voltage: 208–230V
• Phase: Single
• Frequency: 60 Hz
• Max Breaker: 25A
• Minimum Circuit Ampacity: 22.5A

TECHNICAL SPECIFICATIONS

• Model: MVP-30-HP-C-230A00-O
• Series: MRCOOL® VersaPro® Central Ducted
• Unit Type: Split System Heat Pump
• Equipment Type: Condenser
• Refrigerant Type: R-454B
• Refrigerant Charge: 91.71 oz
• Liquid Line Size: 3/8 in
• Suction Line Size: 3/4 in
• Sound Rating: 60 dBA
• Color: Gray
• Wi-Fi Compatible: Yes
• App Compatible: Yes
• ETL Certified: Yes
• ENERGY STAR® Certified: No
• AHRI Certified: Yes

DIMENSIONS & WEIGHT

Unit Dimensions

• Width: 37.24 in
• Height: 31.89 in
• Depth: 16.14 in
• Net Weight: 141.76 lbs

Shipping Dimensions

• Width: 42.91 in
• Height: 34.84 in
• Depth: 19.68 in
• Shipping Weight: 152.34 lbs

WARRANTY INFORMATION

• Parts Warranty: 10 Years
• Compressor Warranty: 10 Years

Frequently Asked Questions (FAQ's)

Q: What air handler should be used with this condenser?

A: This condenser is designed to pair with the MRCOOL® VersaPro® Central Ducted Air Handler.

Q: Is this a variable-speed inverter condenser?

A: Yes. It uses DC inverter technology for higher efficiency and quieter operation.

Q: Is R-454B refrigerant future-compliant?

A: Yes. R-454B is a low-GWP refrigerant that meets current and future regulations.
