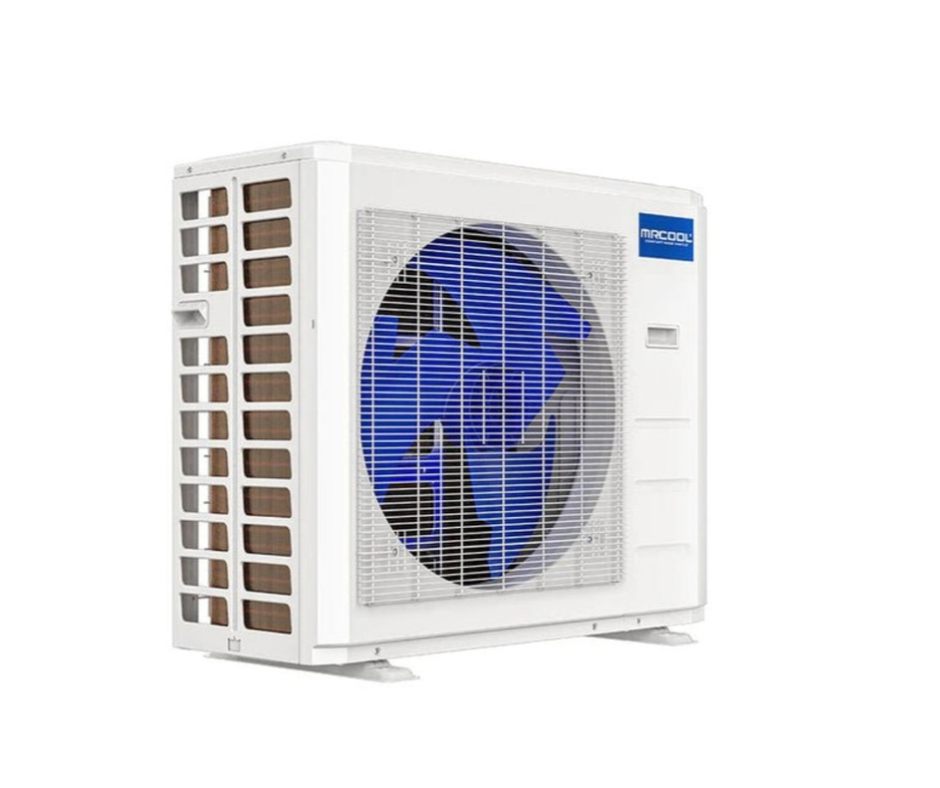

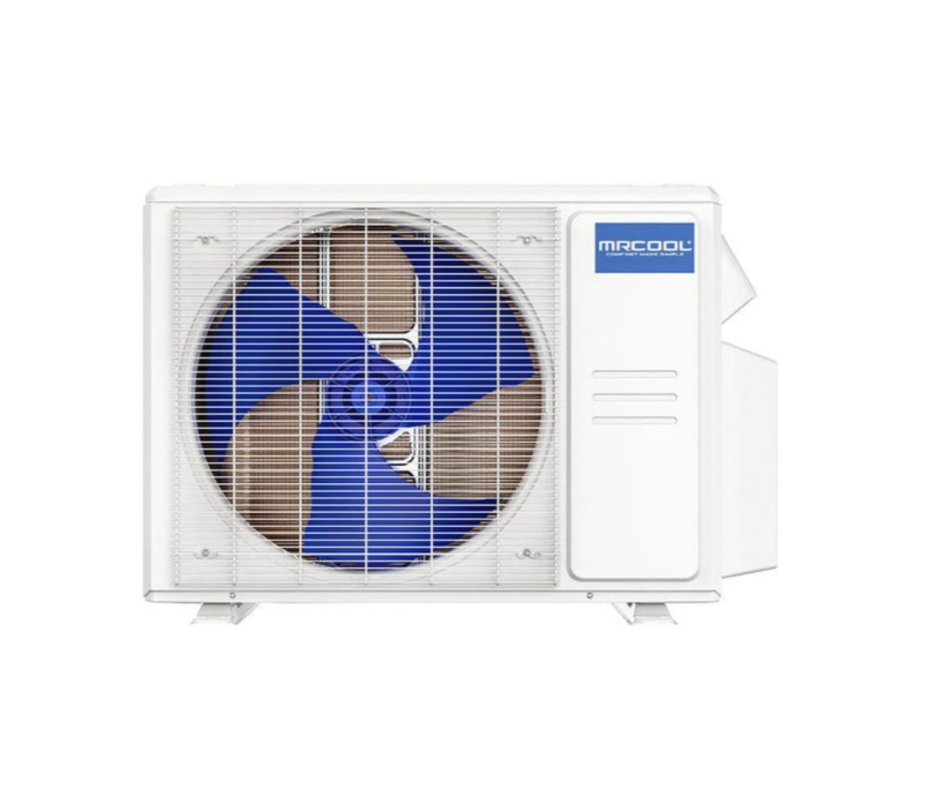

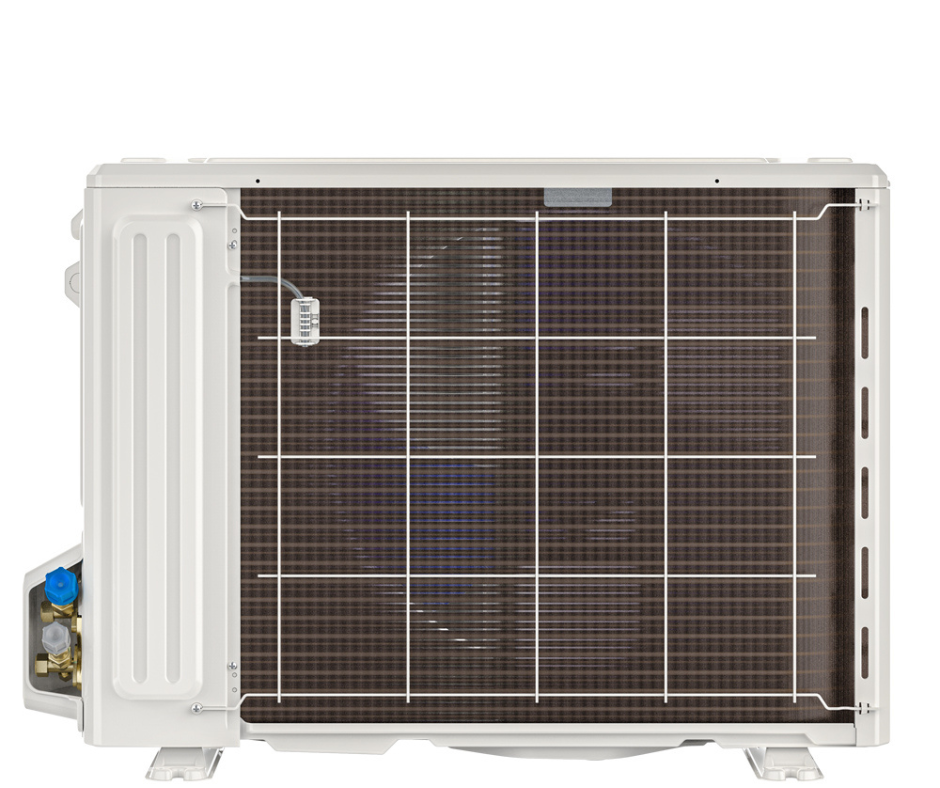

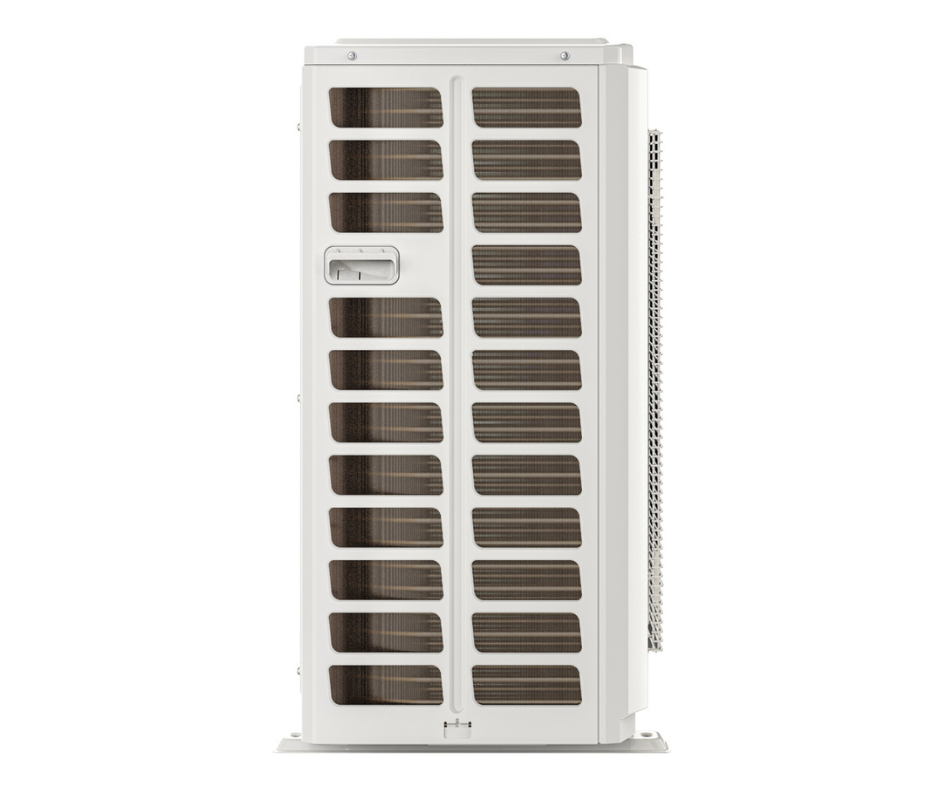

MRCOOL VersaPro 36-HP-C-230A00-O 3 Ton Central Ducted DC Inverter Heat Pump Condenser

MRCOOL VersaPro 36-HP-C-230A00-O 3 Ton Central Ducted DC Inverter Heat Pump Condenser

The MRCOOL VersaPro 36-HP-C-230A00-O 3 Ton Central Ducted DC Inverter Heat Pump Condenser delivers dependable year-round comfort with reliable heating and cooling performance for whole-home HVAC applications. Built with advanced DC inverter technology, this outdoor heat pump condenser continuously modulates compressor output to match your indoor comfort needs, reducing energy waste and minimizing the temperature swings typical of traditional single-stage systems. With a strong 16.1 SEER2 cooling efficiency and 8.7 HSPF-4 heating performance, it helps keep energy costs under control while providing consistent comfort in all seasons.

Designed to pair flawlessly with the MRCOOL VersaPro Central Ducted Air Handler, this condenser forms a complete system optimized for efficiency, durability, and quiet operation. The compact side-discharge cabinet is ideal for installations where space is limited, while the painted galvanized steel enclosure offers long-lasting protection against the elements. Its eco-friendly R-454B refrigerant supports modern environmental standards without sacrificing performance.

Ease of maintenance and serviceability are built into the VersaPro condenser with integrated self-diagnostic technology that streamlines troubleshooting and helps reduce the need for professional service calls. Smart thermostat and Wi-Fi compatibility allow you to monitor and control your system from virtually anywhere, putting comfort and convenience at your fingertips. Backed by a 10-year compressor and parts warranty, this MRCOOL unit offers long-term peace of mind for homeowners seeking a reliable HVAC upgrade.

Features

• DC Inverter Technology – Variable-speed efficiency with smoother comfort
• 16.1 SEER2 / 8.7 HSPF-4 – Energy-efficient heating and cooling
• 3-Ton Central Ducted Design – Ideal for whole-home HVAC systems
• Side-Discharge Cabinet – Compact footprint for tight installations
• R-454B Refrigerant – Eco-friendly, future-ready refrigerant
• Quiet Operation – Only 63 dBA
• Smart Thermostat Included – Wi-Fi & app-based control
• Self-Diagnostics – Faster service and easier maintenance
• Durable Galvanized Steel Cabinet – Built for long-term outdoor use

Specifications

PERFORMANCE & ELECTRICAL

• Cooling Capacity: 36,000 BTU
• Heating Capacity: 36,000 BTU
• Tonnage: 3 Ton
• SEER2: 16.1
• EER2: 10
• HSPF-4: 8.7
• HSPF-5: 7
• Airflow: 2,413.2 CFM
• Voltage: 208–230V
• Phase: Single
• Frequency: 60 Hz
• Max Breaker: 30A
• Minimum Circuit Ampacity: 24A

TECHNICAL SPECIFICATIONS

• Model: MVP-36-HP-C-230A00-O
• Series: MRCOOL® VersaPro® Central Ducted
• Unit Type: Split System Heat Pump
• Equipment Type: Condenser
• Refrigerant Type: R-454B
• Refrigerant Charge: 116.4 oz
• Liquid Line Size: 3/8 in
• Suction Line Size: 3/4 in
• Sound Rating: 63 dBA
• Color: Gray
• Wi-Fi Compatible: Yes
• App Compatible: Yes
• ETL Certified: Yes
• ENERGY STAR® Certified: Yes
• AHRI Certified: Yes

DIMENSIONS & WEIGHT

Unit Dimensions

• Width: 37.24 in
• Height: 31.89 in
• Depth: 16.14 in
• Net Weight: 153.22 lbs

Shipping Dimensions

• Width: 42.91 in
• Height: 34.84 in
• Depth: 19.68 in
• Shipping Weight: 163.58 lbs

WARRANTY INFORMATION

• Parts Warranty: 10 Years
• Compressor Warranty: 10 Years

Frequently Asked Questions (FAQ's)

Q: What air handler is compatible with this condenser?

A: This condenser is designed to pair with the MRCOOL® VersaPro® Central Ducted Air Handler.

Q: Is this a variable-speed inverter condenser?

A: Yes. It uses DC inverter technology for higher efficiency and quieter operation.

Q: Is R-454B refrigerant future-compliant?

A: Yes. R-454B is a low-GWP refrigerant designed to meet current and future regulations.
