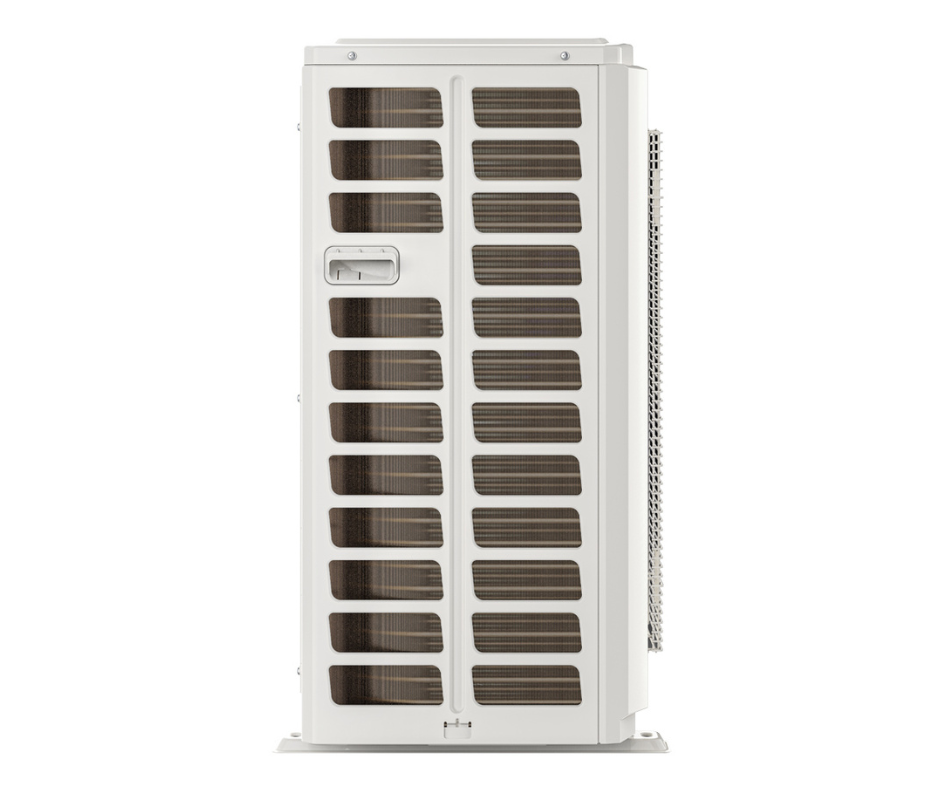

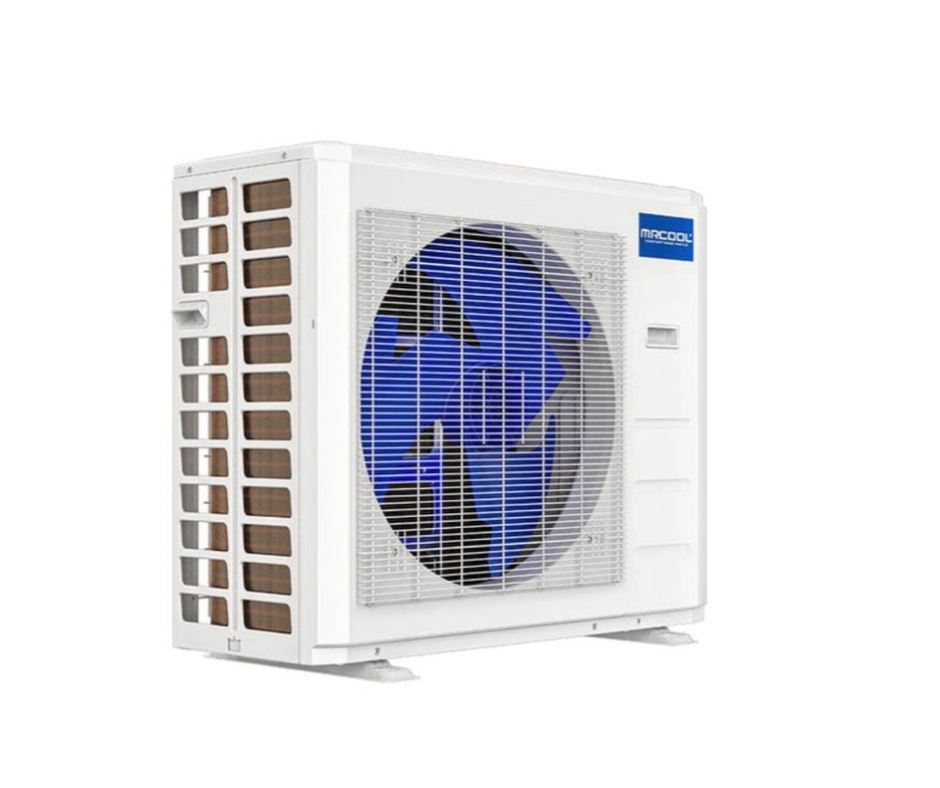

MRCOOL VersaPro 48-HP-C 4 Ton 16 SEER2 R-454B Central Ducted DC Inverter Heat Pump Condenser MVP-48-HP-C-230A00-O

MRCOOL VersaPro 48-HP-C 4 Ton 16 SEER2 R-454B Central Ducted DC Inverter Heat Pump Condenser MVP-48-HP-C-230A00-O

Discover year-round comfort and efficiency with the MRCOOL VersaPro 48-HP-C 4 Ton Central Ducted DC Inverter Heat Pump Condenser. Designed to deliver reliable HVAC performance in both heating and cooling seasons, this advanced condenser combines modern technology with durable construction to keep your home comfortable and energy bills down. Engineered to pair seamlessly with the matching VersaPro Central Ducted Air Handler, this unit provides a complete solution for larger homes and full-duct systems with outstanding performance and control.

At the core of its design is variable-speed DC inverter technology, which continuously adjusts compressor output to match real-time demand. This not only leads to smoother temperature transitions and improved indoor comfort but also enhances humidity control, reduces energy consumption, and delivers quieter operation compared to traditional single-stage systems. With a SEER2 rating of 16 and HSPF-4 rating of 8.5, the VersaPro condenser strikes a solid balance of efficiency and daily performance.

Built for durability, the unit features a compact side-discharge cabinet made from painted galvanized steel that withstands harsh outdoor elements, while integrated self-diagnostics simplify service and maintenance, helping technicians identify issues quickly. Its optimized footprint makes installation possible in tighter outdoor spaces where conventional units may not fit as easily.

Control is made easy with Wi-Fi and app compatibility paired with the included MRCOOL Smart Thermostat, giving you effortless temperature management from anywhere. Backed by 10-year parts and compressor warranties, this condenser is a dependable upgrade that enhances home comfort and delivers peace of mind for years to come.

Features

• DC Inverter Technology – Variable-speed efficiency and smoother comfort
• 16 SEER2 / 8.5 HSPF-4 – Efficient year-round heating and cooling
• 4-Ton Central Ducted Capacity – Ideal for large homes and full ducted systems
• Side-Discharge Cabinet – Compact footprint for tight installations
• R-454B Refrigerant – Eco-friendly, future-compliant refrigerant
• Quiet Operation – Only 65 dBA
• Smart Thermostat Included – Wi-Fi & app-based temperature control
• Self-Diagnostics – Faster troubleshooting and reduced service time
• Durable Galvanized Steel Cabinet – Built for long-term outdoor exposure

Specifications

PERFORMANCE & ELECTRICAL

• Cooling Capacity: 48,000 BTU
• Heating Capacity: 48,000 BTU
• Tonnage: 4 Ton
• SEER2: 16
• EER2: 10
• HSPF-4: 8.5
• HSPF-5: 7.2
• Airflow: 3,037.1 CFM
• Voltage: 208–230V
• Phase: Single
• Frequency: 60 Hz
• Max Breaker: 40A
• Minimum Circuit Ampacity: 36A

TECHNICAL SPECIFICATIONS

• Model: MVP-48-HP-C-230A00-O
• Series: MRCOOL® VersaPro® Central Ducted
• Unit Type: Split System Heat Pump
• Equipment Type: Condenser
• Refrigerant Type: R-454B
• Refrigerant Charge: 134.04 oz
• Liquid Line Size: 3/8 in
• Suction Line Size: 3/4 in
• Sound Rating: 65 dBA
• Color: Gray
• Wi-Fi Compatible: Yes
• App Compatible: Yes
• ETL Certified: Yes
• ENERGY STAR® Certified: Yes
• AHRI Certified: Yes

DIMENSIONS & WEIGHT

Unit Dimensions

• Width: 38.58 in
• Height: 38.39 in
• Depth: 16.34 in
• Net Weight: 192.9 lbs

Shipping Dimensions

• Width: 45.08 in
• Height: 42.52 in
• Depth: 19.68 in
• Shipping Weight: 224.21 lbs

WARRANTY INFORMATION

• Parts Warranty: 10 Years
• Compressor Warranty: 10 Years

Frequently Asked Questions (FAQ's)

Q: What air handler pairs with this condenser?

A: This condenser is designed to pair with the MRCOOL® VersaPro® Central Ducted Air Handler.

Q: Is this a variable-speed inverter system?

A: Yes. It uses DC inverter technology for improved efficiency, quieter operation, and longer system life.

Q: Is R-454B refrigerant future-proof?

A: Yes. R-454B is a low-GWP refrigerant that meets current and future environmental regulations
