MRCOOL 27K 4‑Zone DIY Mini Split System (9k + 9k + 9k) Air Handlers & Three 16 ft QuickConnect Line Sets R‑454B DIYM327HPW05D00

MRCOOL 27K 4‑Zone DIY Mini Split System (9k + 9k + 9k) Air Handlers & Three 16 ft QuickConnect Line Sets R‑454B DIYM327HPW05D00

The MRCOOL 27K 4‑Zone DIY Mini Split System (Model DIYM327HPW05D00) delivers professional‑grade comfort for residential spaces with a balanced and energy‑efficient multi‑zone design. Centered around a high‑performance 27,000 BTU outdoor condenser, this system distributes consistent heating and cooling to three independently controlled indoor zones. Each zone features a 9,000 BTU wall-mounted air handler, making this setup ideal for evenly sized rooms such as bedrooms, offices, bonus rooms, or rental spaces where comfort control matters most.

Installation is remarkably straightforward thanks to MRCOOL’s patented DIY QuickConnect technology, eliminating the need for vacuum pumps, refrigerant handling tools, and licensed HVAC technicians. The pre‑charged line sets use modern R‑454B refrigerant, ensuring compliance with today’s environmental and efficiency standards. Premium features like corrosion-resistant Gold Fin protection, Follow Me temperature sensing, and smart control compatibility via smartphone app or voice commands increase both convenience and functionality.

This system’s balanced capacity distribution and independent zone control make it a smart choice for homeowners who want consistent comfort, energy savings, and smart home connectivity—all with a truly DIY installation experience.

Features

• 27,000 BTU Multi‑Zone Outdoor Condenser – Capable of supporting up to four zones.

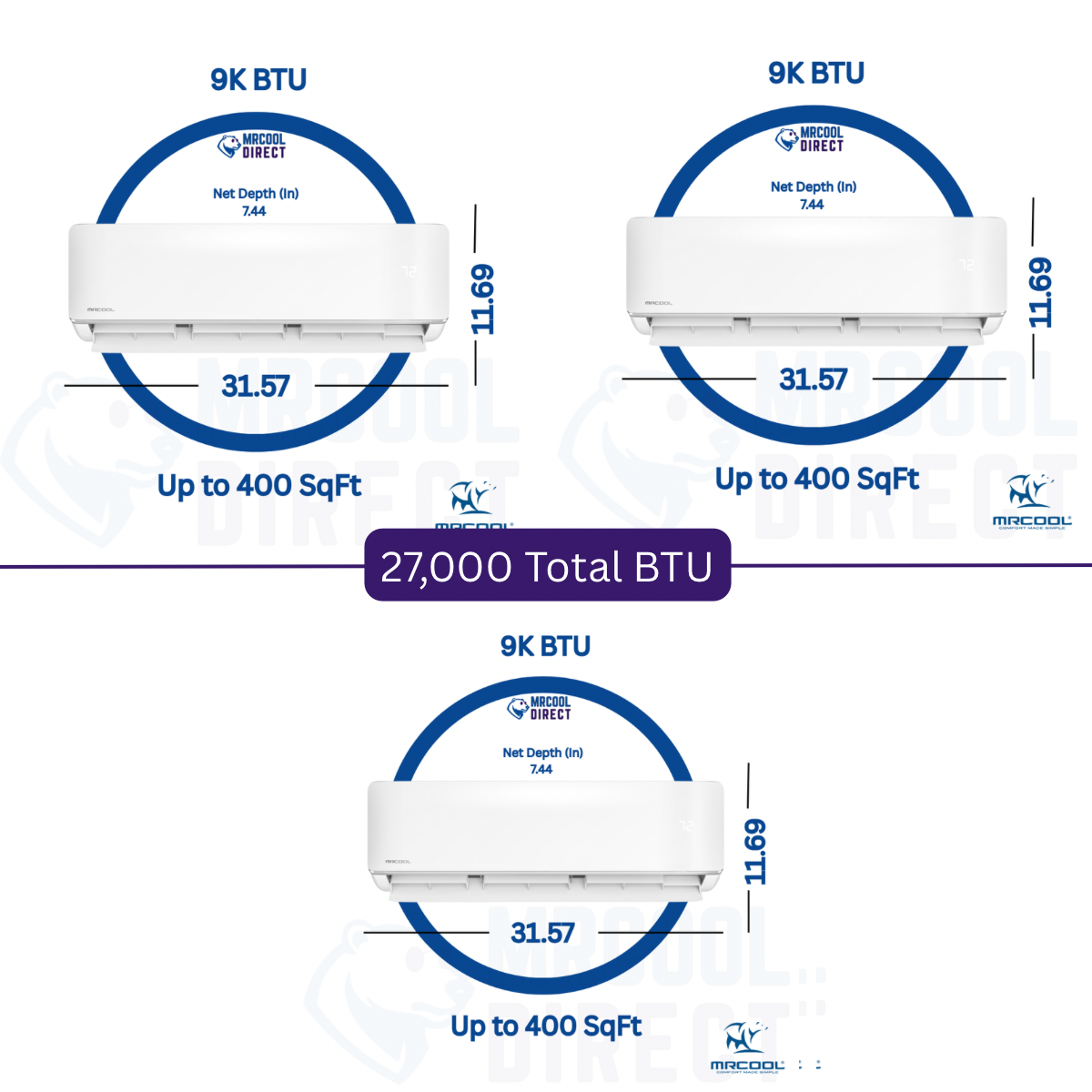

• Three 9,000 BTU Wall‑Mounted Indoor Air Handlers – Independent temperature control for each zone.

• DIY QuickConnect Pre‑Charged Line Sets – 16 ft factory-sealed, pre-charged with R‑454B refrigerant for no vacuum or refrigerant handling.

• Gold Fin Corrosion Protection – Enhanced durability for long-term reliability.

• Follow Me Temperature Sensing – Ensures precise comfort where you are.

• Smart HVAC Control – Manage remotely using the MRCOOL Smart HVAC Controller app; also works with Amazon Alexa and Google Assistant.

• Wireless Remotes Included – One for each indoor unit.

• True DIY Installation – No HVAC license or specialty tools required.

Specifications

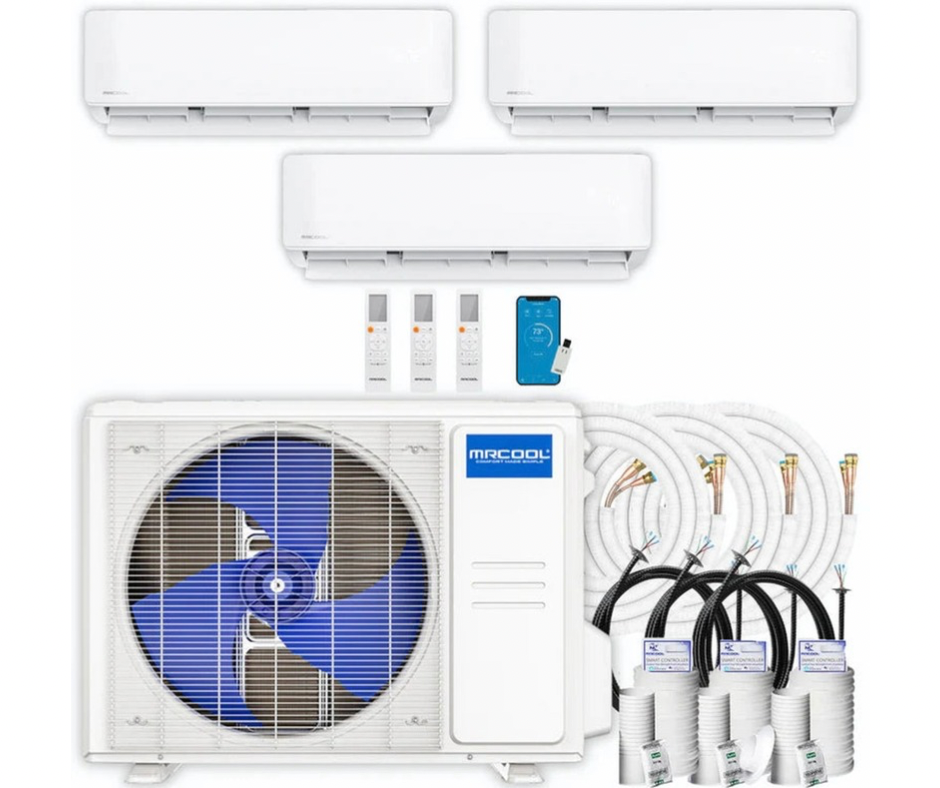

What’s Included

✔ MRCOOL® DIY® 4-Zone Outdoor Condenser

• Model: DIY-MULTI4-27HP230D-O

• 27,000 BTU | 208/230V | DC Inverter Heat Pump

• Max Breaker: 35A | Min Circuit Ampacity: 30.5A

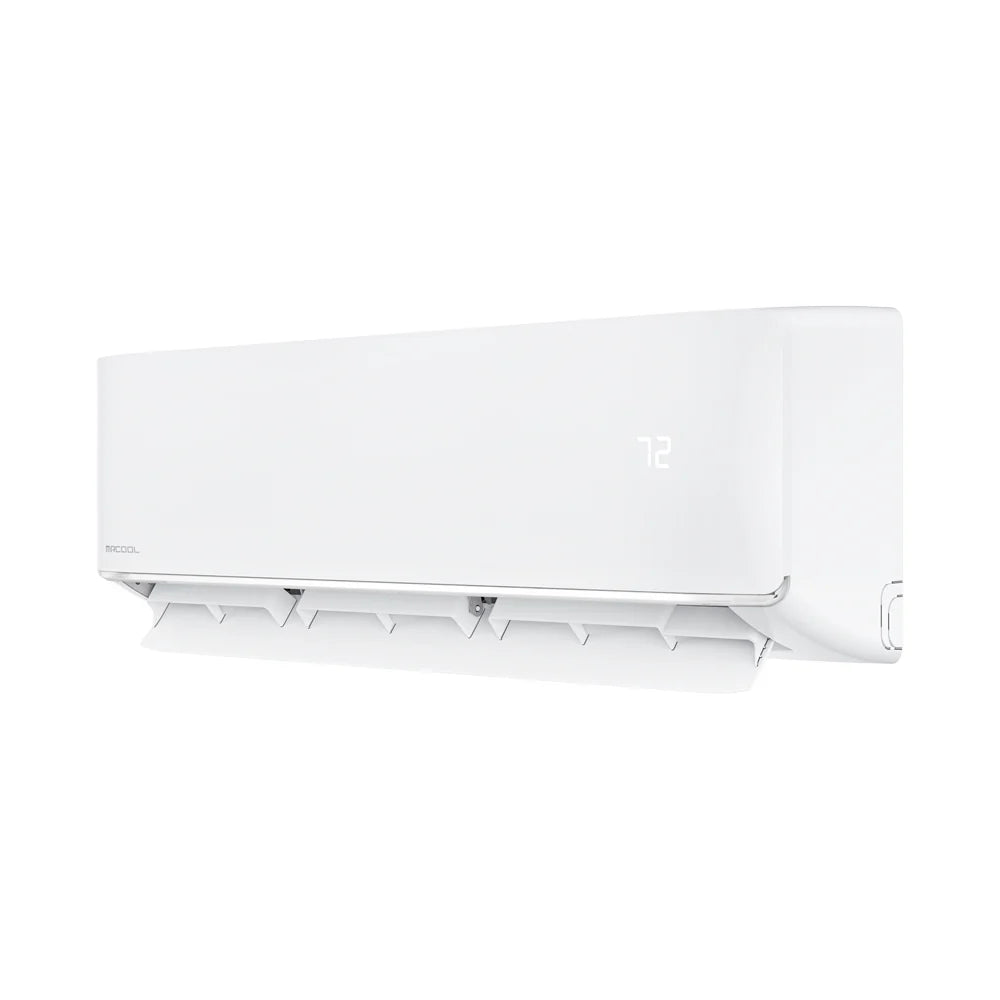

✔ (3) MRCOOL® DIY® 9K BTU Wall-Mounted Air Handlers

• Model: DIY-09-HP-WMAH-230D25-O

• Each zone independently controlled

• Ideal for rooms up to ~350 sq. ft. each

✔ (3) MRCOOL® DIY® 16 ft QuickConnect® Line Sets

• Model: DIY16-1438-O

• Pre-charged with R-454B refrigerant

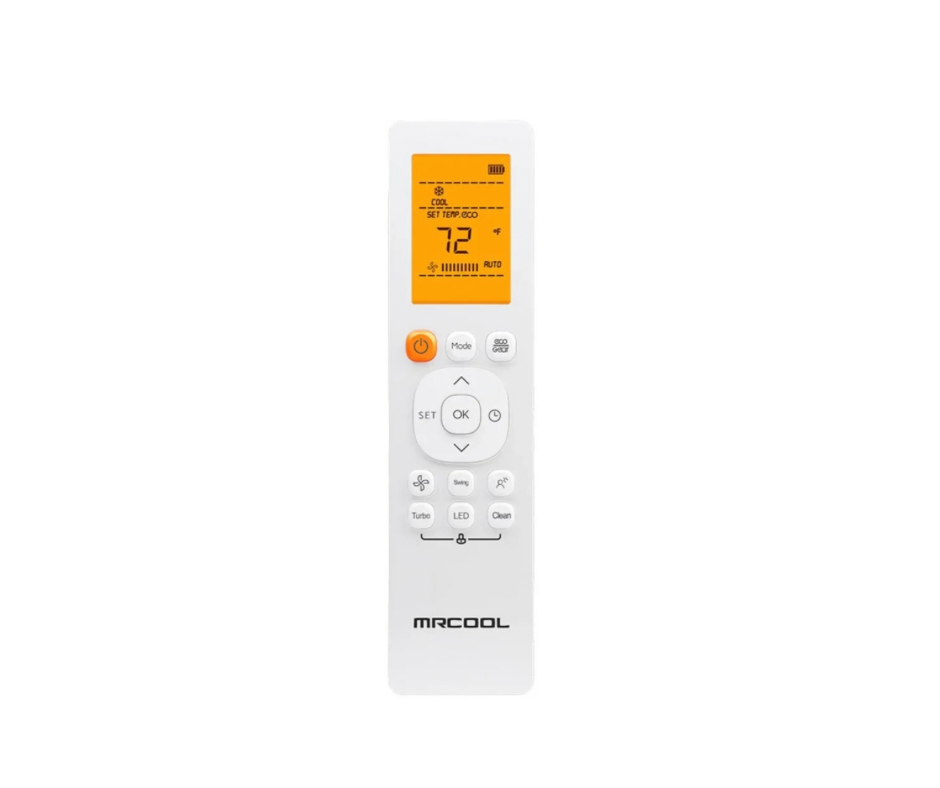

✔ Wireless remotes for each zone

✔ DIY® QuickConnect® fittings

✔ Factory-sealed refrigerant system

Frequently Asked Questions (FAQ's)

Is this system good for equal-size rooms?

Yes. Three 9K zones provide balanced comfort across similar-sized spaces.

Can I install this without HVAC tools?

Yes. The DIY® QuickConnect® system eliminates vacuuming and charging.

Can each zone be controlled independently?

Absolutely. Each air handler operates on its own thermostat and remote.

Does this support smart home control?

Yes. Works with the MRCOOL® Smart HVAC Controller®, Alexa, and Google Assistant.

Is R-454B refrigerant future-compliant?

Yes. R-454B meets current and upcoming environmental regulations.
