MRCOOL 27k 4‑Zone DIY Multi‑Zone Bundle (9k + 18k, 25 ft + 50 ft Line Sets) 230V – DIYM227HPW03D09

MRCOOL 27k 4‑Zone DIY Multi‑Zone Bundle (9k + 18k, 25 ft + 50 ft Line Sets) 230V –

Experience flexible, efficient heating and cooling with the MRCOOL 27k 4‑Zone DIY Multi‑Zone Bundle — a perfectly matched HVAC system designed for homeowners and DIY enthusiasts. This comprehensive bundle includes everything you need for two indoor zones: one 9k BTU and one 18k BTU wall‑mount air handler, along with pre‑charged 25 ft and 50 ft QuickConnect® line sets for straightforward installation. Built on the 5th generation DIY platform with R‑454B refrigerant, this system delivers year‑round comfort and smart control without the cost of professional HVAC installation.

The outdoor condenser supports up to four indoor units, giving you the flexibility to expand your system later if needed. Quiet operation, high efficiency with up to 23 SEER2, and independent zone control make this multi‑zone bundle ideal for homes, detached spaces, upstairs rooms, or bonus areas up to approximately 1,000–1,200 sq ft. With SmartHVAC® app support and voice control compatibility, managing comfort has never been easier.

Whether you’re replacing an older system or installing comfort in a new space, MRCOOL’s design simplifies the process. With pre‑charged line sets and easy‑to‑follow instructions, most homeowners comfortable with basic tools can complete the installation themselves and save on contractor costs.

Backed by industry certifications and sold by a trusted US dealer, this multi‑zone bundle gives dependable performance and future expansion potential — all in a single, smart‑ready platform.

Features

• True DIY installation with pre‑charged QuickConnect® R‑454B line sets — no vacuum pump or refrigerant handling needed

• Two indoor zones: 9k BTU and 18k BTU wall‑mount air handlers for flexible room comfort zoning

• Smart comfort controls with SmartHVAC® app, Alexa and Google Assistant compatibility

• Independent zone operation, allowing customized temperature settings per room

• Flexible line set lengths (25 ft and 50 ft) ideal for close and long‑run installations

• Supports up to 4 total indoor units for future expansion (within capacity limits)

• Quiet, efficient heating and cooling with DC inverter compressor technology

Specifications

What’s Included

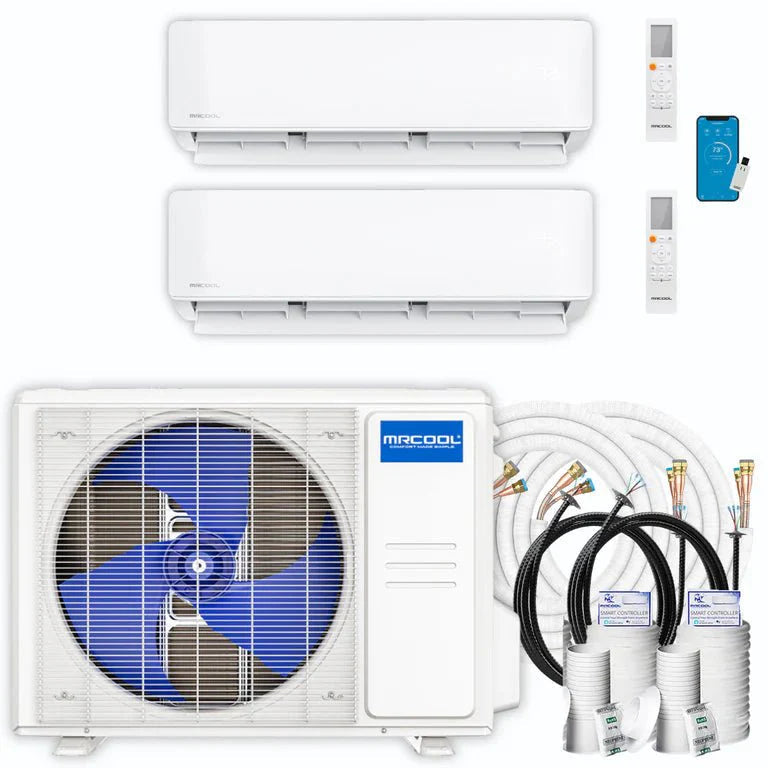

IN THIS COMPLETE DIY BUNDLE – MRCOOL DIYM227HPW03D09:

• (1) DIY-MULTI4-27HP230D-O – 27k BTU 4-Zone Multi-Zone Outdoor Condenser (230V, R-454B)
• (1) DIY-18-HP-WMAH-230D25-O – 18k BTU 5th Gen Wall-Mount Air Handler (up to 800 sq. ft.)
• (1) DIY-09-HP-WMAH-230D25-O – 9k BTU 5th Gen Wall-Mount Air Handler (up to 400 sq. ft.)
• (1) DIY25-1438-O – 25 ft Pre-Charged R-454B QuickConnect® Line Set (1/4” x 3/8”)
• (1) DIY50-1412C-O – 50 ft Pre-Charged R-454B QuickConnect® Line Set w/ DIYPRO® Cable (1/4” x 1/2”)

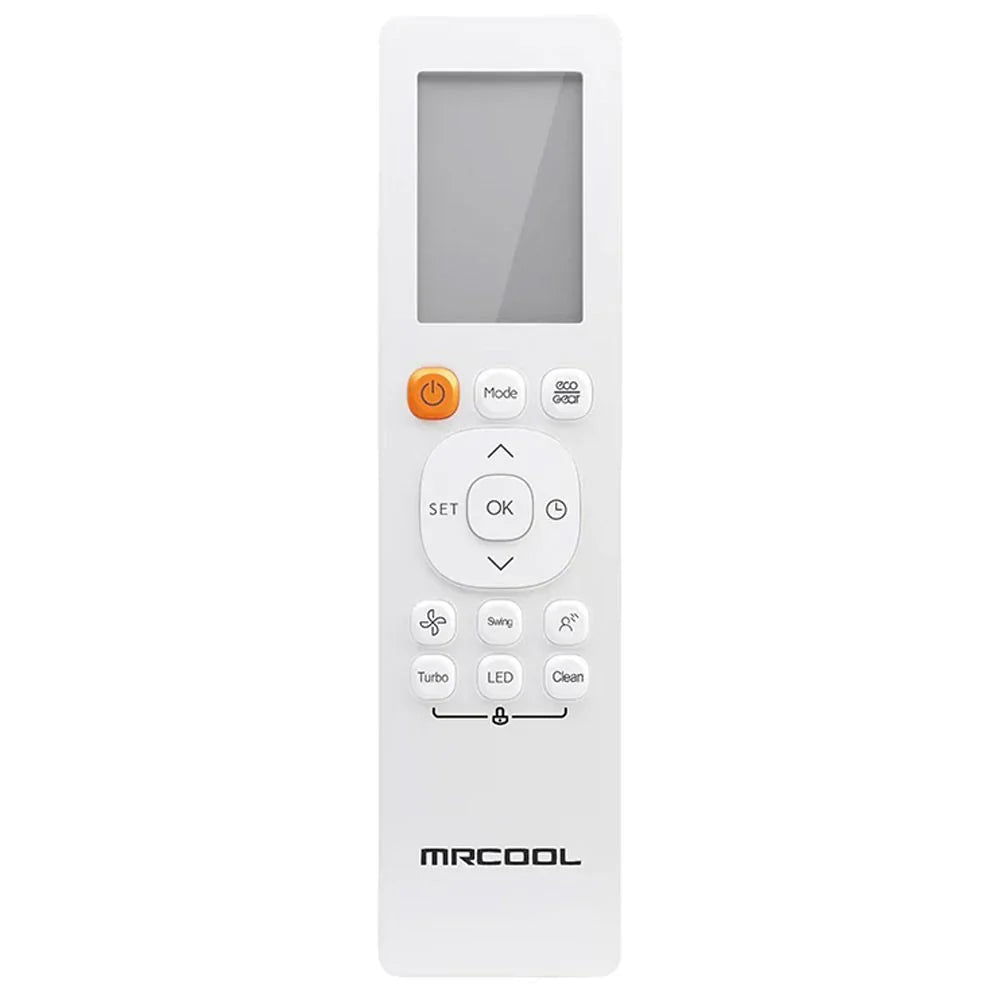

• Wireless remotes for each indoor unit
• DIYPRO® cable, install hardware, and documentation as supplied by MRCOOL®
• Manufacturer installation manuals and warranty information

Frequently Asked Questions (FAQ's)

Q: What is special about the DIYM227HPW03D09 bundle compared to other 27k kits?

A: This bundle includes one standard 25 ft line set and one extra-long 50 ft line set, making it ideal when one zone is close to the condenser and the other is farther away (upstairs room, garage apartment, or bonus room).

Q: What breaker size do I need for this system?

A: The DIY-MULTI4-27HP230D-O condenser specifies a maximum fuse/breaker of 25A and a minimum circuit ampacity (MCA) of 23A. Always have a licensed electrician size wiring and breakers according to local electrical code.

Q: Are the line sets pre-charged for DIY install?

A: Yes. Both DIY25-1438-O and DIY50-1412C-O are factory pre-charged with R-454B and use QuickConnect® fittings. No vacuum pump, no gauges, and no refrigerant handling required.

Q: How many rooms can this bundle handle?

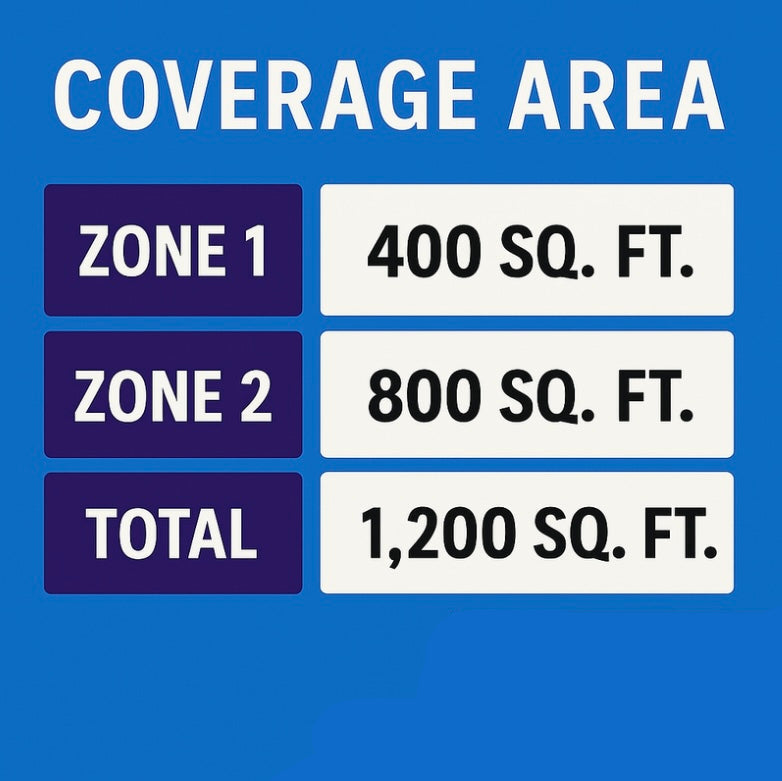

A: Out of the box, this bundle is built for two zones: a 9k zone up to ~400 sq. ft. and an 18k zone up to ~800 sq. ft. The condenser can support up to 4 indoor units total, so you can add more MRCOOL® DIY air handlers later.

Q: Is this a good option for upstairs or long-line installations?

A: Yes. The 50 ft DIY50-1412C-O line set is perfect when the condenser is on the ground and the 18k air handler is upstairs or far away. The 25 ft line works great for a closer 9k zone

Q: Do I really not need an HVAC tech?

A: The MRCOOL® DIY series is specifically engineered so homeowners can install it themselves using pre-charged QuickConnect® line sets and DIYPRO® cable. If you’re comfortable with tools and following instructions, you can DIY it. If not, you can still hire an installer and benefit from the simplified design.
