MRCOOL  |  SKU: DIYM436HPW01D00
9% off
New arrival

MRCOOL DIY 36,000 BTU 4‑Zone 23 SEER2 Multi‑Zone Ductless Mini‑Split Air Conditioner & Heat Pump System DIYM436HPW01D00

$5,354.00 USD $5,854.00

Delivery and Shipping

We offer fast and reliable shipping across the continental U.S., with free shipping available on most orders (exclusions may apply based on brand and product type). Orders are typically processed within 1–2 business days and transit time is usually 4–7 business days. Larger items may ship via freight and require a scheduled curbside delivery. Please ensure your contact details are accurate at checkout. For questions about delivery timelines, shipping eligibility, or special requests, feel free to contact us directly. See policy

Price Match Guarantee

Find a lower price? Call +1(855-799-1672) and we'll match it! (Some exclusions may apply. See ourLowest Price Guarantee Policyfor more information)

Returns

Our return policy covers a 30-day period from the date of purchase. To be eligible, items must be unused, in their original packaging, and accompanied by proof of purchase. Defective products are eligible for free returns, with options for a refund or replacement. Customer remorse returns may incur return shipping fees and restocking fees. Refunds are processed within a specified timeframe, subject to restocking fees if applicable. Late or missing refunds should be addressed with your bank or credit card company first. Exchanges may be accepted for defective or damaged items. Shipping costs for returns are typically the responsibility of the customer, except in cases of damaged products. For further details or inquiries, please contact us via phone, email, or live chat.See policy

Shop with Confidence
As an authorized U.S. dealer, every order is verified and backed by full manufacturer warranty. Contact our team if you need an official quote, invoice, or product guidance before ordering

Genuine Products — Manufacturer Warranty Included
All items sold at The Imperial Luxe are 100% authentic and backed by the manufacturer’s warranty.

✅ Authorized Online Dealer
🚚 Free Shipping + No Sales Tax (exclusions may apply)
💲 We Beat The Lowest Price
📦 Fast 4-7 Day Delivery
🏭 Manufacturer Warranty Included
❓ Questions? Call Our Experts: +1 (855-799-1672)

Description

MRCOOL DIY 36,000 BTU 4‑Zone 23 SEER2 Multi‑Zone Ductless Mini‑Split Air Conditioner & Heat Pump System DIYM436HPW01D00

The MRCOOL® DIY® 36,000 BTU 4‑Zone Multi‑Zone Ductless Mini‑Split Air Conditioner & Heat Pump System (DIYM436HPW01D00) delivers advanced, customizable comfort for homeowners seeking room‑by‑room climate control without the hassle and cost of professional installation. Designed to efficiently heat and cool multiple spaces—including bedrooms, offices, nurseries, and bonus rooms—this system pairs a powerful 36,000 BTU outdoor condenser with three 6,000 BTU and one 9,000 BTU wall‑mounted indoor air handlers. With a high‑efficiency 23 SEER2 rating, DC inverter compressor, and smart‑enabled controls, it’s engineered for both performance and energy savings.

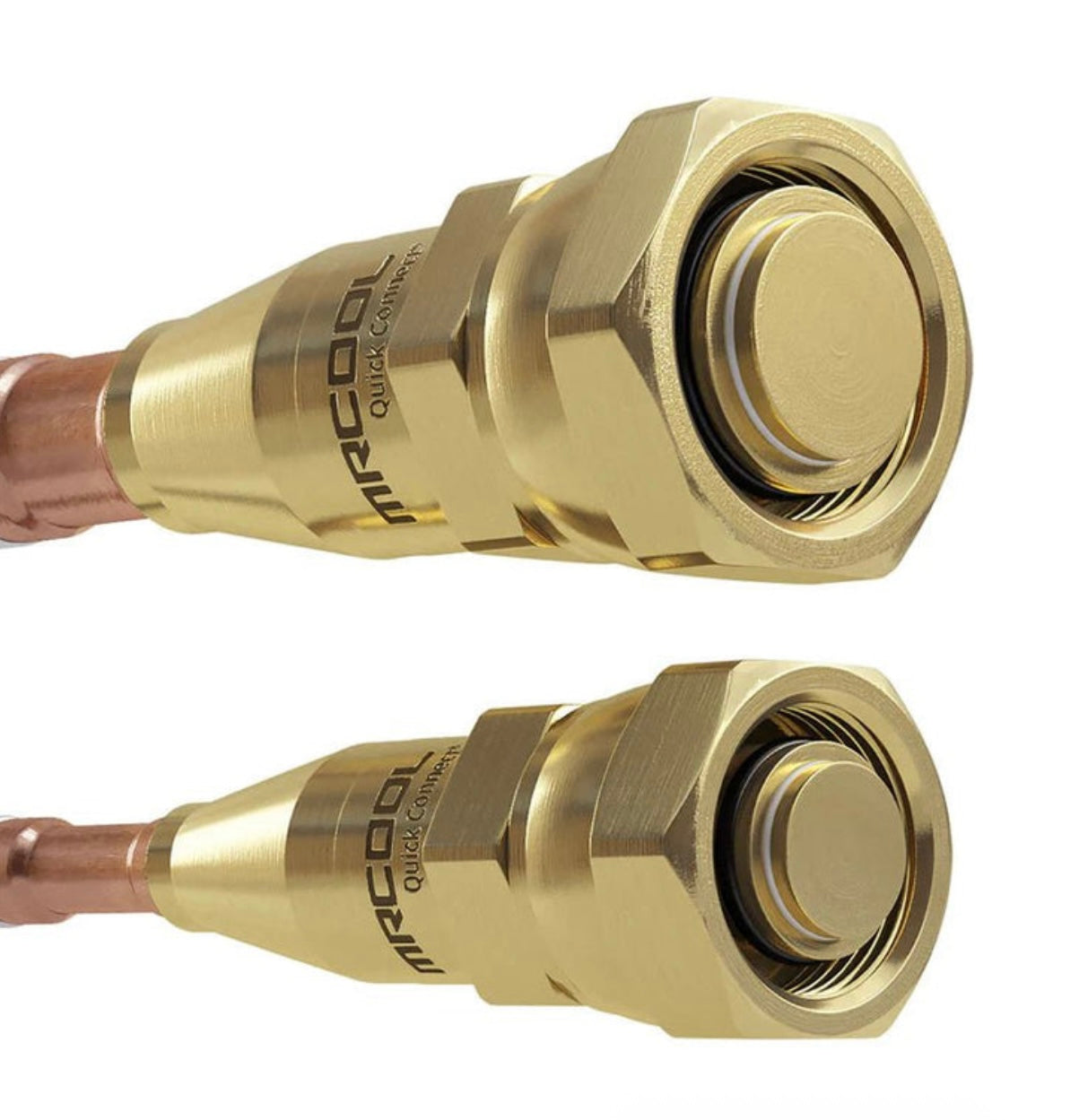

What sets this bundle apart is MRCOOL’s patented DIY® QuickConnect® technology. Each line set arrives factory‑sealed and pre‑charged with R‑454B refrigerant, eliminating vacuum pumps, gauges, and refrigerant handling—so you can install with confidence and ease. Along with Gold Fin® anti‑corrosion protection, smart app compatibility, and independent zone control, this system offers tailored comfort, lower energy bills, and versatile connectivity with Amazon Alexa®, Google Home®, and the MRCOOL® Smart HVAC Controller® app.

Features

  • 36,000 BTU total system capacity
  • 4 independently controlled comfort zones
  • Three 6K zones + one 9K zone
  • 23 SEER2 high-efficiency rating
  • DC inverter variable-speed compressor
  • DIY® QuickConnect® pre-charged line sets
  • No vacuum pump or HVAC license required
  • DIYPRO® cable — no electrical conduit needed
  • Gold Fin® corrosion-resistant coating
  • Follow Me® temperature sensing
  • MRCOOL® Smart HVAC Controller® App
  • Amazon Alexa® & Google Home® compatible
  • ENERGY STAR® & AHRI certified

Specifications

Specification Details
Model DIYM436HPW01D00
System Capacity 36,000 BTU
SEER2 Rating 23
Zones Included 4 (three 6K + one 9K)
Compressor Type DC Inverter Variable‑Speed
Refrigerant Pre‑charged R‑454B
Outdoor Unit Voltage 208/230 V Single‑Phase, 60 Hz
Minimum Circuit Ampacity 30.5 Amps
Max Breaker Size 35 Amps
Outdoor Unit Dimensions (W×H×D) 37.24″ × 31.89″ × 16.14″
Outdoor Unit Weight ~169 lbs

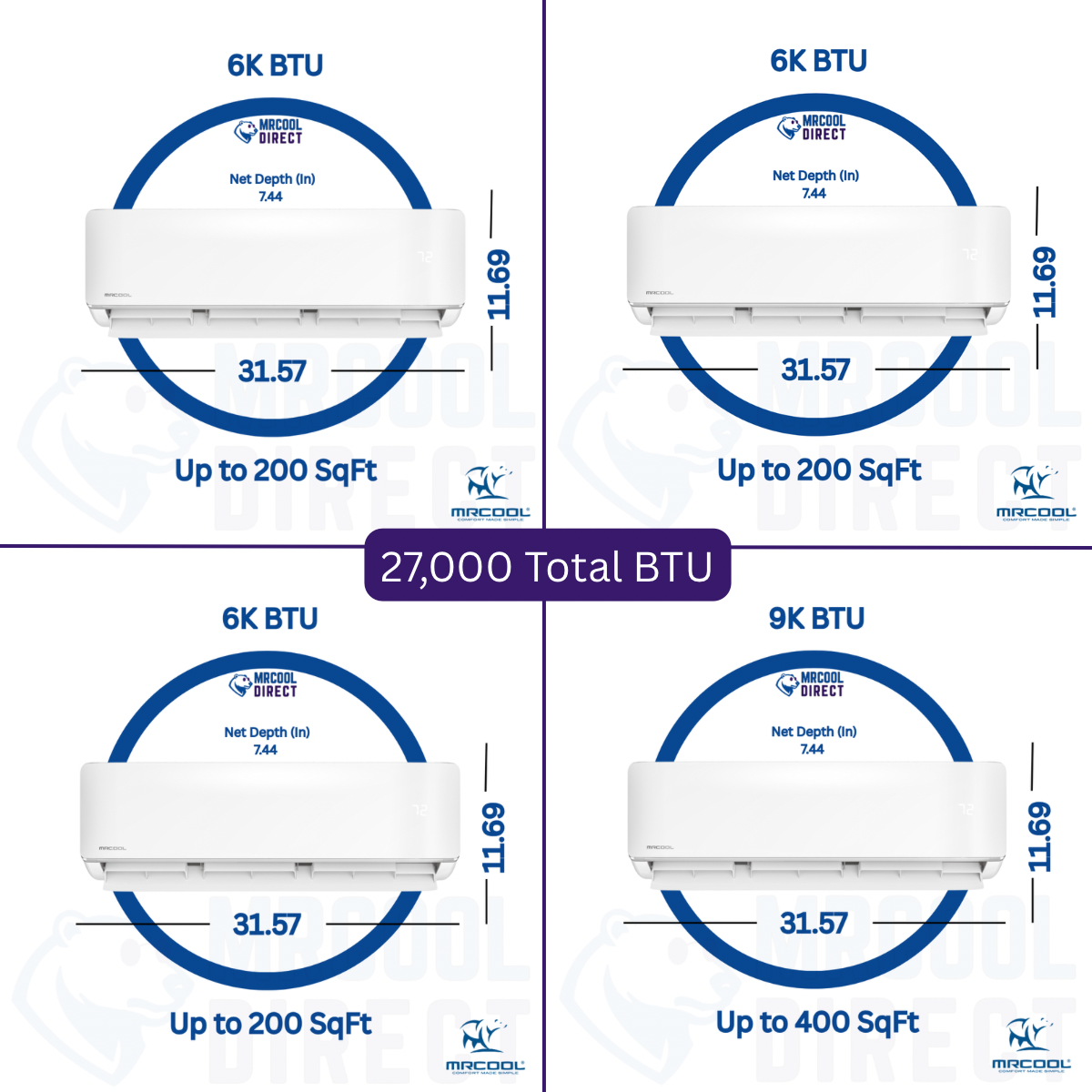

Indoor 6K Handler Dimensions (W×H×D) 31.57″ × 11.69″ × 7.44″
Indoor 6K Handler Weight ~24.5 lbs
Indoor 9K Handler Dimensions (W×H×D) 31.57″ × 11.69″ × 7.44″
Indoor 9K Handler Weight ~25 lbs
Certification ENERGY STAR® & AHRI
Warranty 5‑Year Parts, 7‑Year Compressor, Limited Lifetime Replacement (with registration)

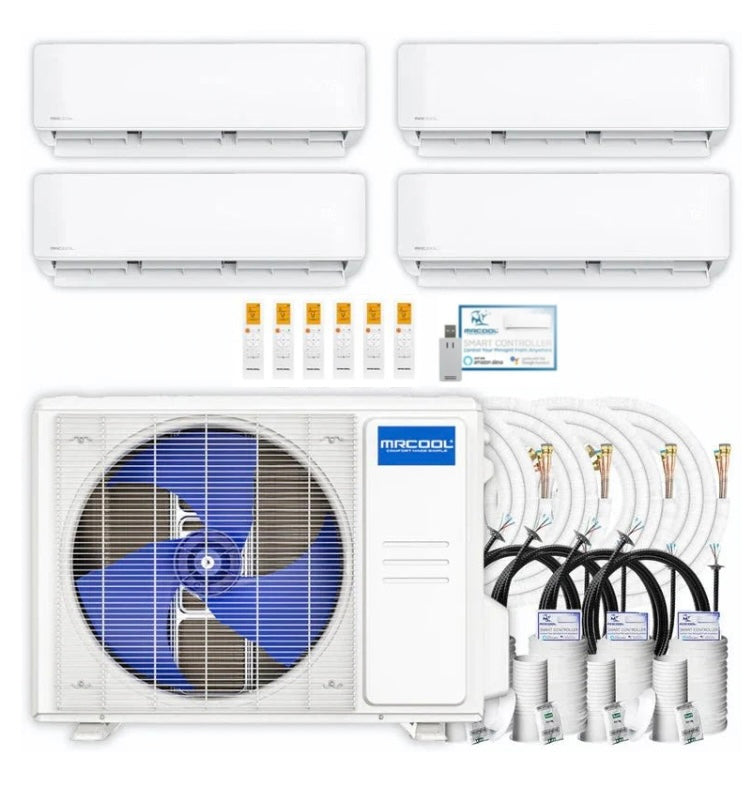

What’s Included

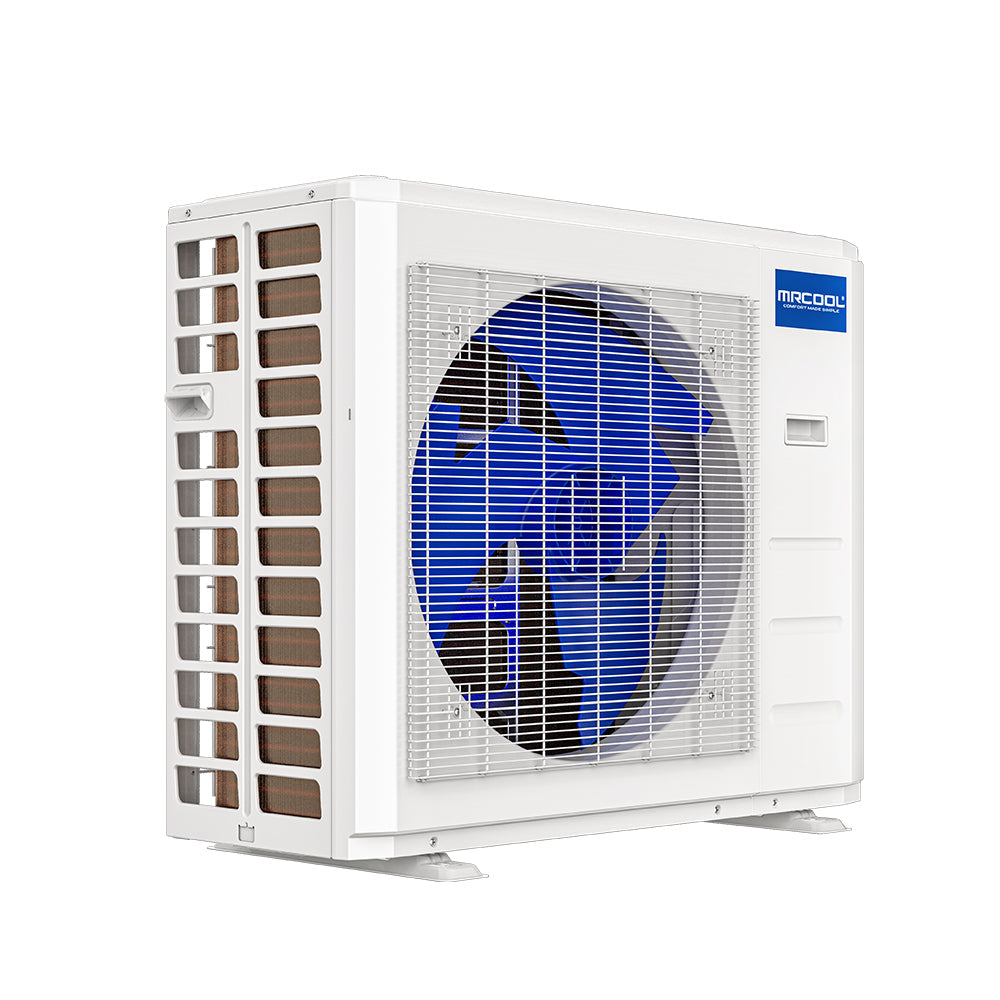

  • ✔ MRCOOL® DIY® 36K BTU Multi-Zone Outdoor Condenser
  • ✔ (3) 6K BTU Wall-Mounted Indoor Air Handlers
  • ✔ (1) 9K BTU Wall-Mounted Indoor Air Handler
  • ✔ (4) 16-ft DIY® QuickConnect® Line Sets (1/4 × 3/8)
  • ✔ DIYPRO® communication cable
  • ✔ Wireless remotes for each indoor unit
  • ✔ Installation manuals & mounting hardware

Frequently Asked Questions (FAQ's)

Is this system truly DIY?

Yes. No vacuuming, gauges, or refrigerant handling required.

Can each room be set to a different temperature?

Yes. Each zone operates independently.

Why mix 6K and 9K air handlers?

This allows better load matching for rooms with different sizes or sun exposure.

Does this system support smart control?

Yes. Works with Alexa®, Google Home®, and the MRCOOL® Smart HVAC Controller® App.
