MRCOOL DIY 36k 5th Gen Multi-Zone 12K + 24K Bundle with 16ft + 25ft Line Sets 230V R-454B DIYM236HPW06D01

MRCOOL DIY 36k 5th Gen Multi-Zone 12K + 24K Bundle with 16ft + 25ft Line Sets 230V R-454B DIYM236HPW06D01

The MRCOOL DIYM236HPW06D01 is a cutting-edge 5th Generation multi-zone ductless mini-split system designed for easy installation and superior climate control. This bundle includes two high-efficiency air handlers, one 12,000 BTU and one 24,000 BTU, paired with pre-charged line sets of 16ft and 25ft for seamless setup. Perfect for residential or light commercial applications, this system provides efficient heating and cooling with minimal effort.

Engineered with DIY enthusiasts in mind, this system eliminates the need for professional refrigerant handling. Each component is ready to connect using MRCOOL’s QuickConnect technology, allowing users to enjoy professional-grade performance without specialized tools. The 36,000 BTU condenser ensures powerful performance across multiple zones, keeping your home or office comfortable year-round.

The system is optimized for energy efficiency with high SEER2 ratings, delivering reliable cooling while keeping electricity costs low. Its compact design and quiet operation make it ideal for living spaces where both comfort and discretion are important. Every detail, from the durable outdoor condenser to the responsive indoor air handlers, is designed for longevity and optimal performance.

Whether upgrading an existing system or installing a new multi-zone solution, the MRCOOL DIY 36k Multi-Zone Bundle offers the perfect combination of flexibility, efficiency, and DIY convenience. Experience advanced HVAC technology with a system that adapts to your home’s unique layout.

Features

• 36,000 BTU outdoor condenser

• Multi-zone system: 12K + 24K air handlers

• Pre-charged 16ft and 25ft line sets

• 230V operation

• Easy DIY installation with QuickConnect technology

• Energy-efficient SEER2 performance

• Quiet operation

Specifications

What’s Included

✔ 36k 5-Zone Outdoor Condenser (DIY-MULTI5-36HP230D-O)

• 34,000 BTU cooling / 36,000 BTU heating
• Supports up to 5 total zones
• 23 SEER2, 12 EER2, 9.9 HSPF2-4
• Pre-charged R-454B refrigerant
• DC inverter efficiency
• WiFi, Alexa, Google Assistant
• Up to 221 ft total line set capability
• Gold Fin® anti-corrosion treatment

Electrical

• Voltage: 208/230V
• MCA: 30.5A
• Max Fuse/Breaker: 35A

✔ 12,000 BTU 5th Gen Wall Mount AH (DIY-12-HP-WMAH-230D25-O)

• Covers up to 550 sq ft
• Whisper-quiet operation
• Follow Me® temperature tracking
• SmartHVAC wireless + app control
• Perfect for bedrooms, offices, small living rooms
• Uses 16 ft 1/4 × 3/8 line set (DIY16-1438-O)

✔ 24,000 BTU 5th Gen Wall Mount AH (DIY-24-HP-WMAH-230D25-O)

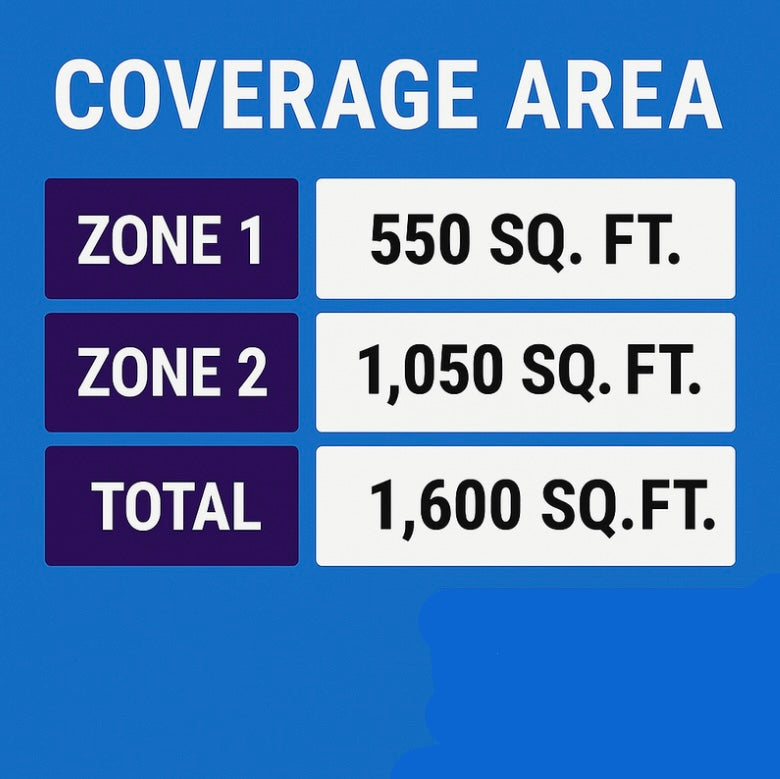

• Comfort for up to 1,050 sq ft
• Heavy-duty airflow for large spaces
• Multi-speed fan + quiet mode

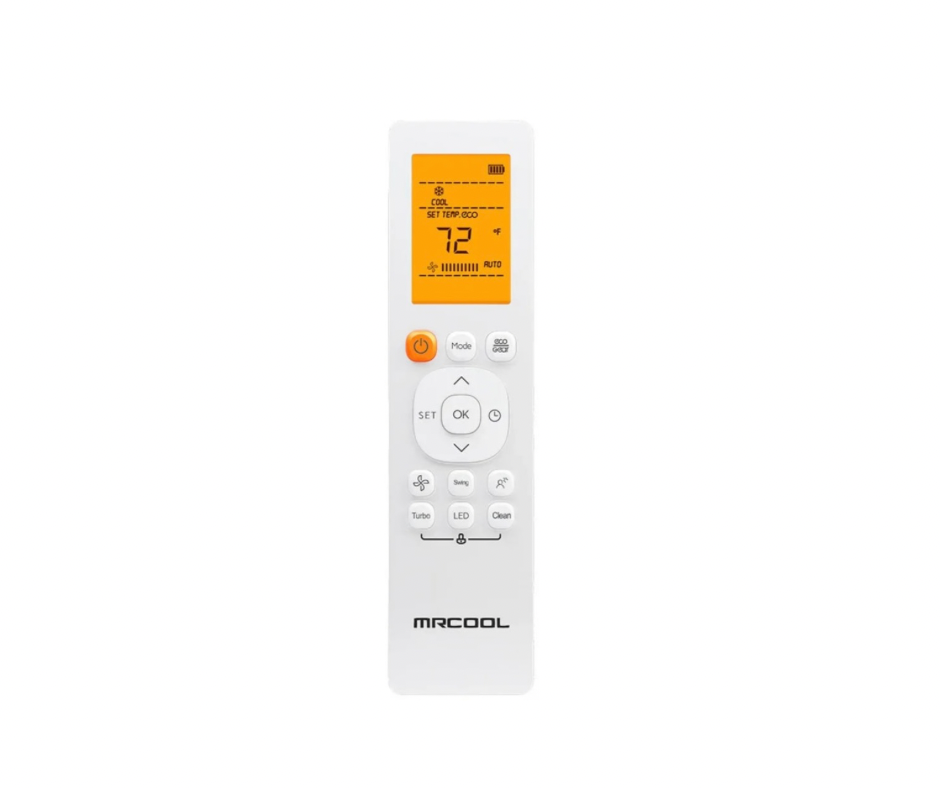

• SmartHVAC app + remote control
• Uses 25 ft 3/8 × 5/8 line set (DIY25-3858-O)

✔ 16 ft R-454B Line Set (DIY16-1438-O)

• 1/4 × 3/8 Quick-Connect
• Pre-charged with R-454B
• Ideal for the 12K indoor unit

✔ 25 ft R-454B Line Set (DIY25-3858-O)

• 3/8 × 5/8 Quick-Connect
• Pre-charged with R-454B
• Perfect for the 24K indoor unit

Frequently Asked Questions (FAQ's)

1. Why does this bundle use both a 16 ft and a 25 ft line set?

Because the indoor units are placed at different distances from the condenser. This keeps each head optimized for performance.

2. Is this a true DIY system?

Yes — all line sets are factory pre-charged with R-454B and require no vacuum pump.

3. How many zones can the condenser support?

Up to 5 total zones if you expand later.

4. What breaker size does it need?

A 35A breaker with 30.5A MCA.

5. Do both indoor units have their own thermostat?

Yes — each room has independent temperature and fan control.

6. Is it compatible with Alexa/Google?

Yes — full smart home integration.
