MRCOOL DIY 5th Gen 2‑Zone 12,000 BTU Ductless Mini Split Air Conditioner Heat Pump with Pre‑Charged (25 ft + 25 ft) Line Sets (6K + 6K) R454B — DIYM218HP

MRCOOL DIY 5th Gen 2‑Zone 12,000 BTU Ductless Mini Split Air Conditioner & Heat Pump with Pre‑Charged (25 ft + 25 ft) Line Sets (6K + 6K) R454B — DIYM218HP

The MRCOOL DIY 5th Gen 2‑Zone 12,000 BTU Ductless Mini Split Air Conditioner & Heat Pump is a complete multi-zone solution designed to deliver year-round comfort to two separate areas of your home. Ideal for bedrooms, home offices, or living spaces, this system offers efficient heating and cooling while providing independent temperature control for each zone. The indoor units are compact and wall-mounted, making them perfect for small to medium-sized rooms while maintaining a modern and unobtrusive look.

Installation is easy and truly DIY-friendly. The system includes two pre-charged 25 ft QuickConnect® line sets, eliminating the need for vacuum pumps or refrigerant gauges. Using eco-friendly R‑454B refrigerant, this system provides high efficiency while being better for the environment. The outdoor condenser is engineered for durability and long-term reliability, ensuring consistent performance throughout the year.

Each indoor unit comes with its own wireless remote for independent temperature control. The DC inverter technology in the system ensures quiet operation and energy-efficient performance, while smart control capability allows for mobile app and voice assistant integration. This system combines convenience, efficiency, and reliable multi-zone climate control in one package.

Features

• 2-Zone Multi-Zone Comfort: Independently controlled zones for customized temperature in each room

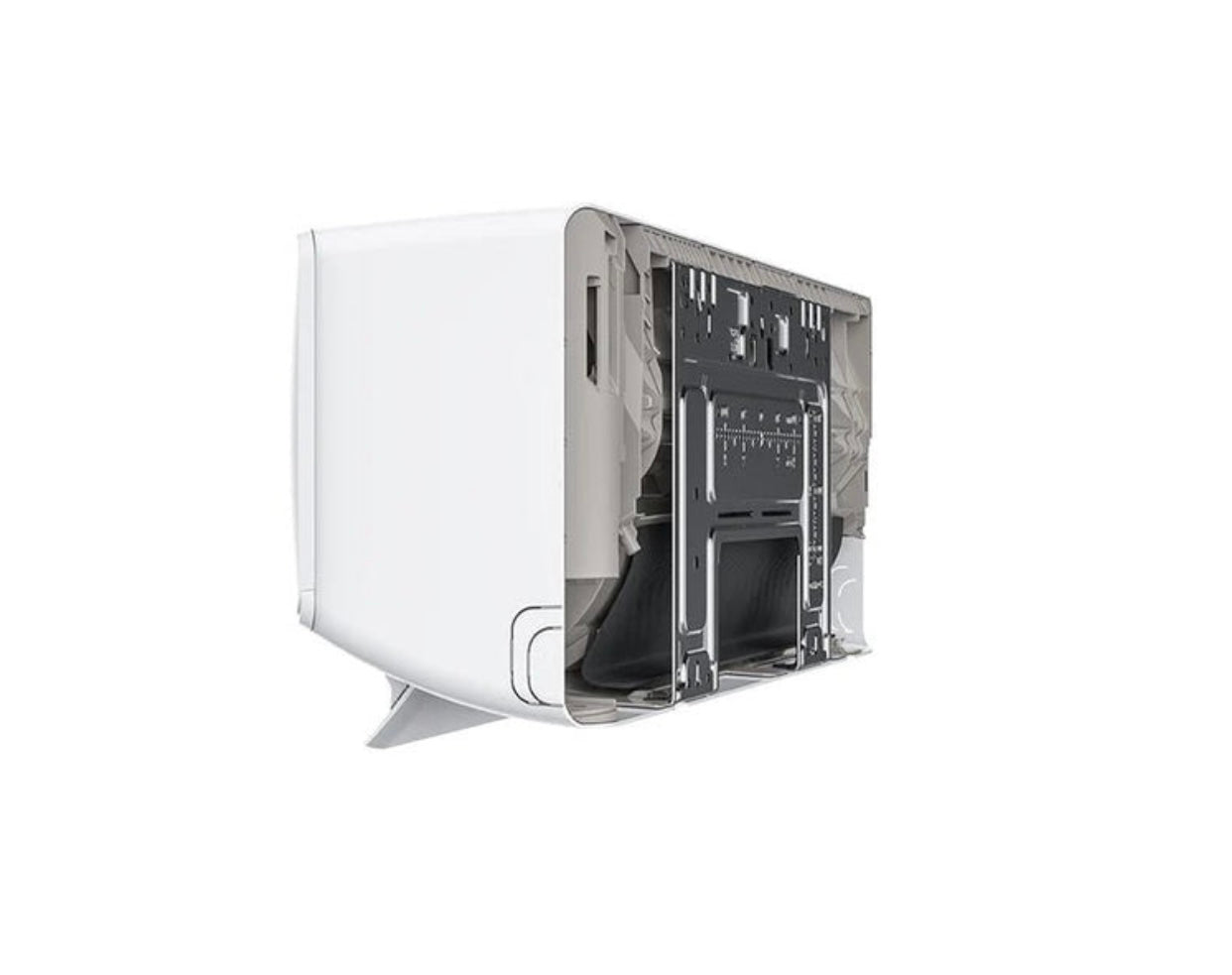

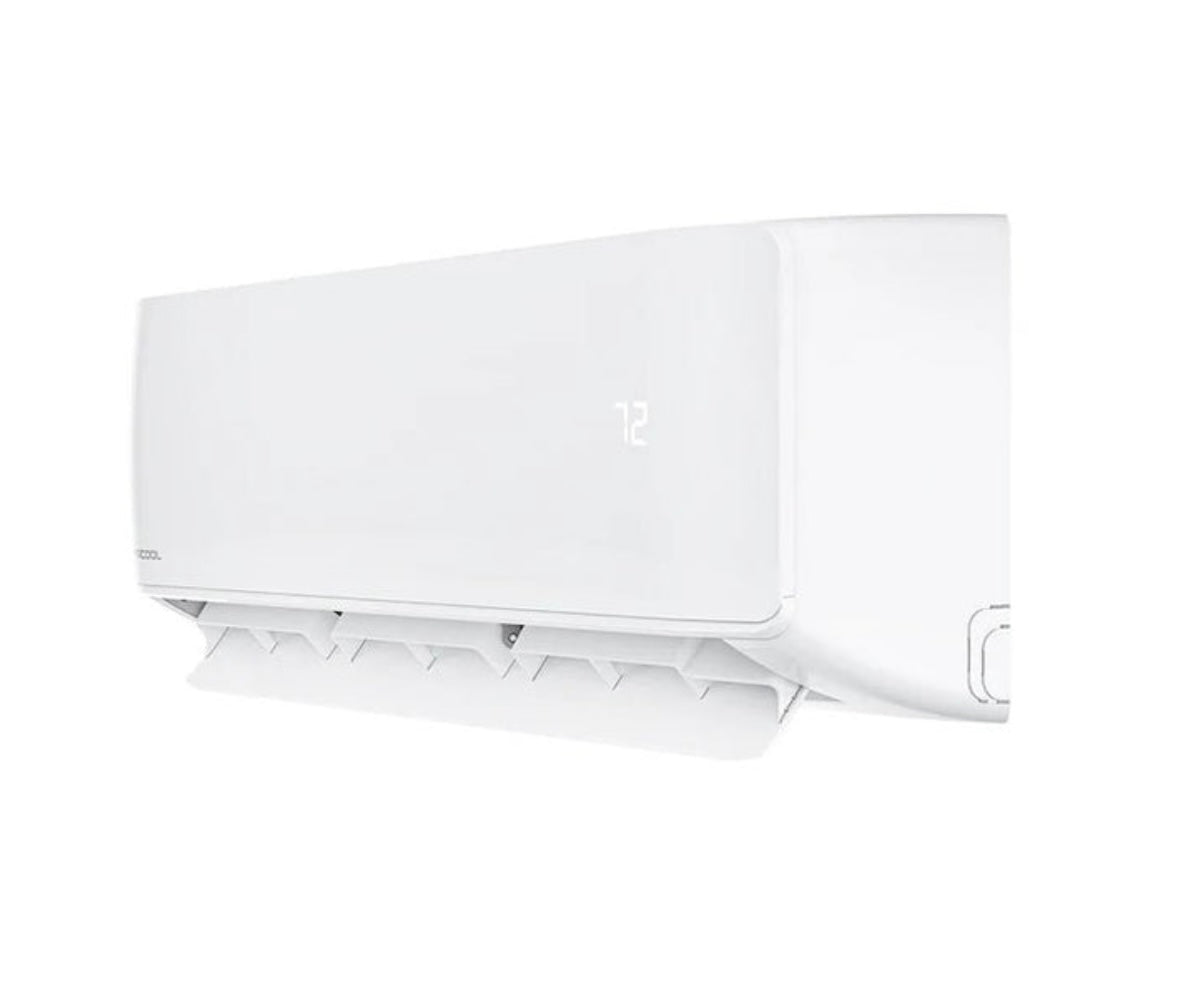

• Indoor Units: Two 6,000 BTU wall-mounted air handlers

• DIY Installation: Pre-charged QuickConnect® line sets simplify installation

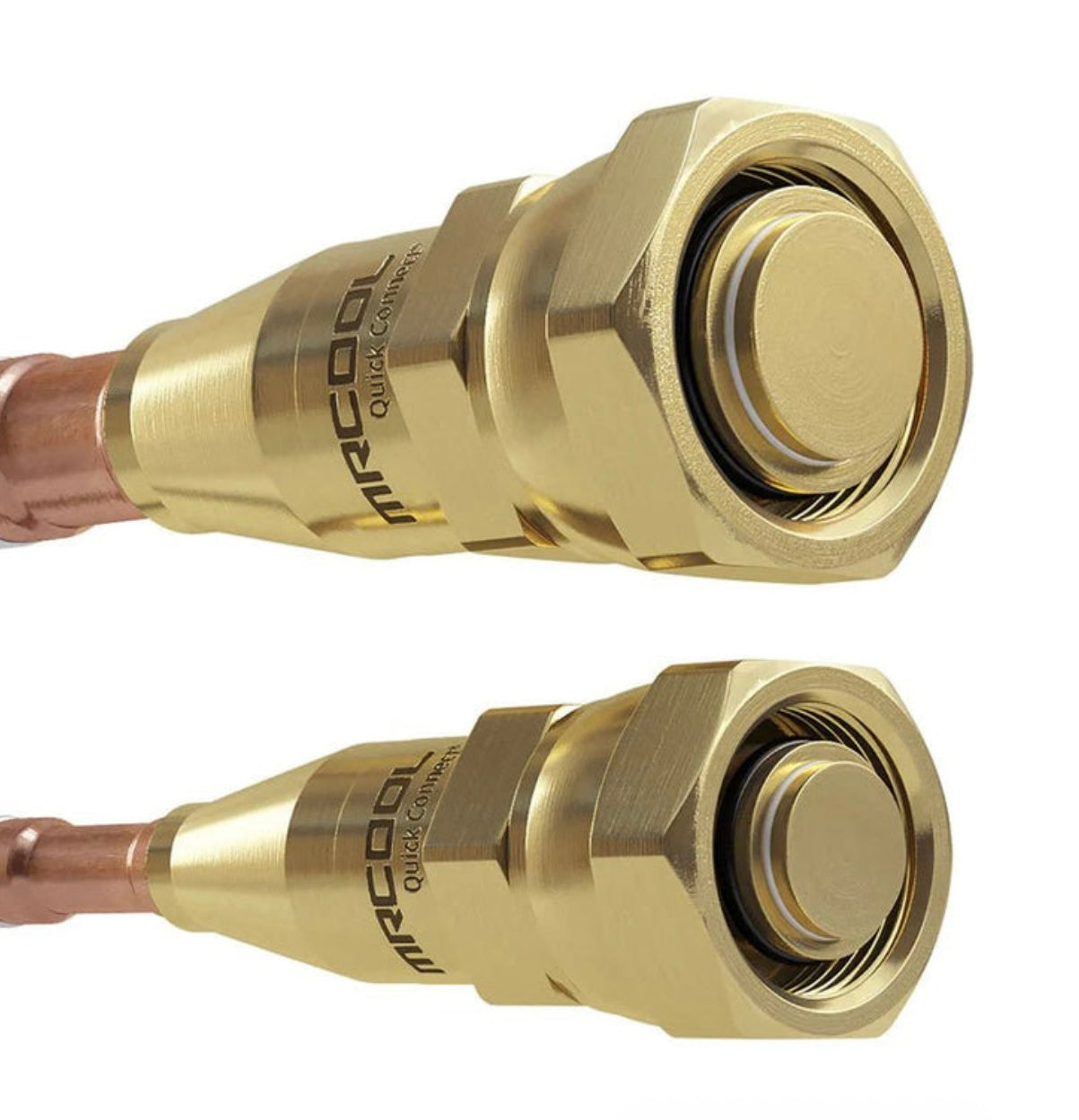

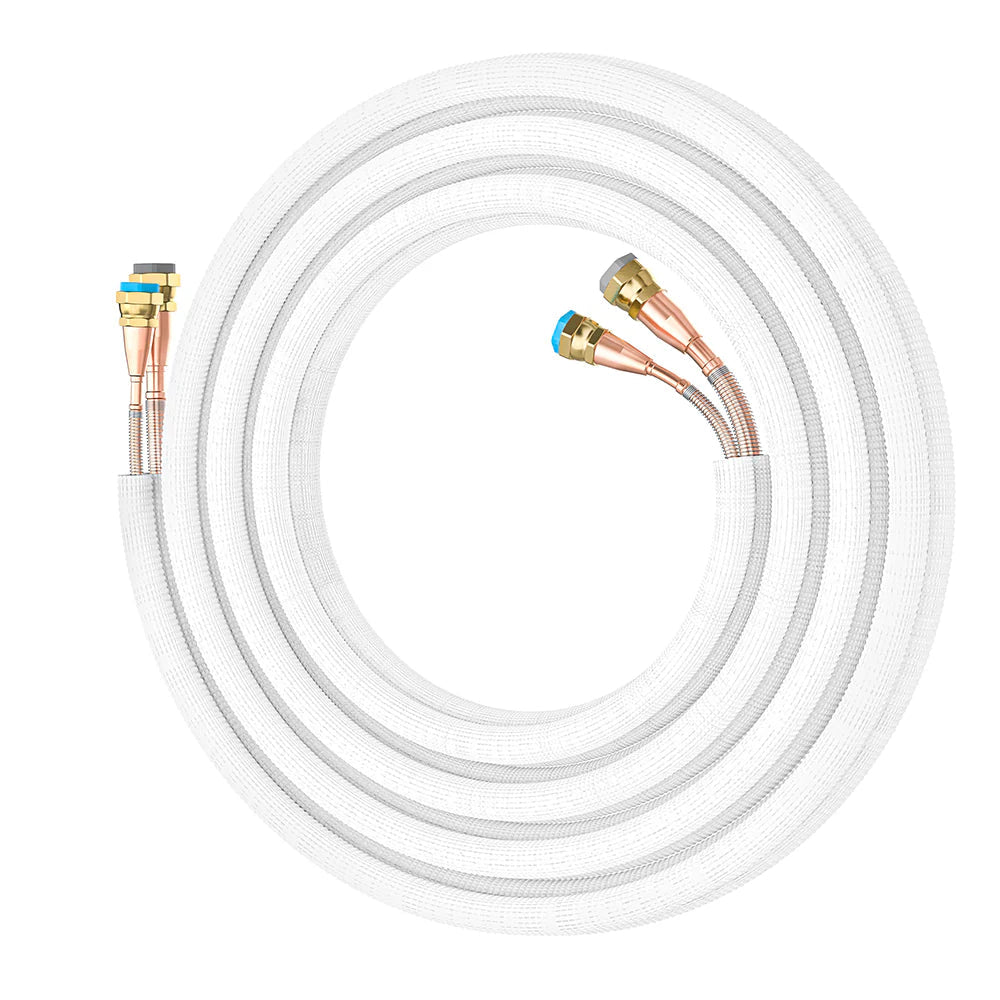

• Line Sets Included: Two 25 ft pre-charged R‑454B QuickConnect® line sets

• Eco-Friendly Refrigerant: Uses R‑454B for lower environmental impact

• DC Inverter Technology: Smooth, quiet, and energy-efficient operation

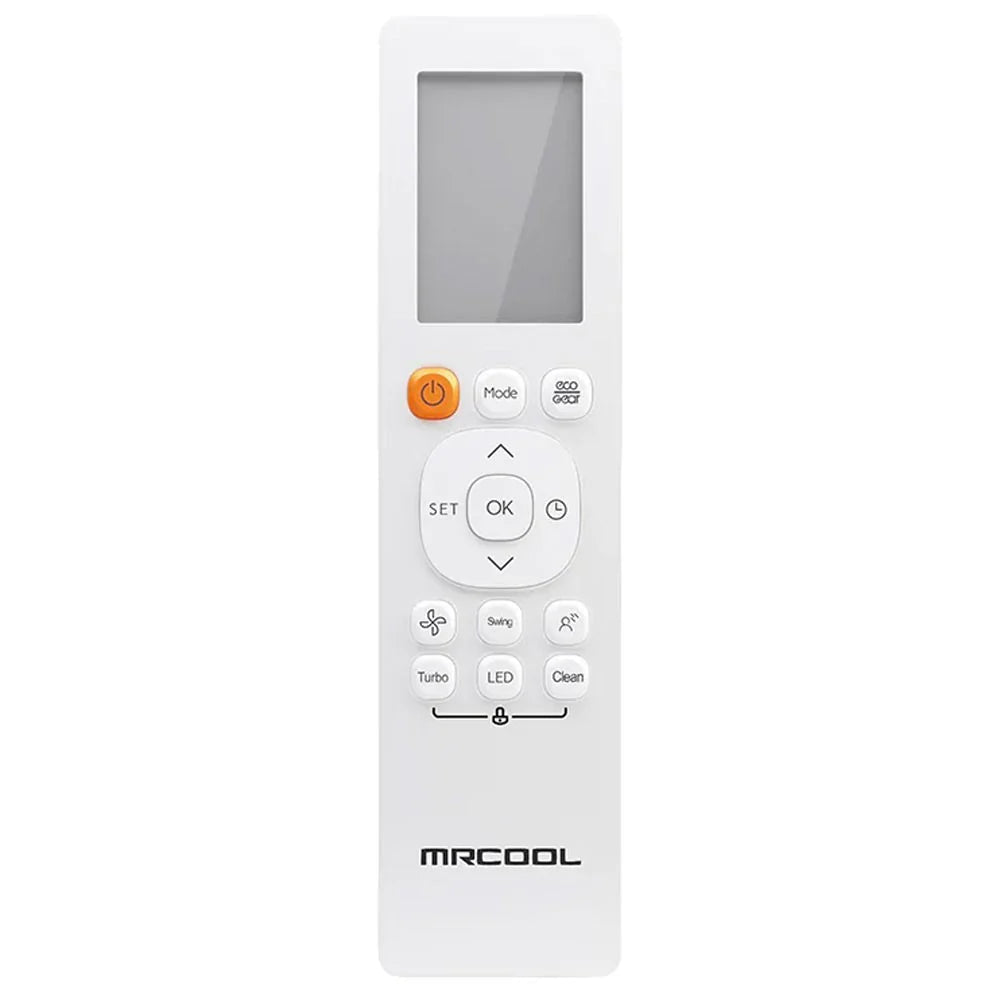

• Wireless Remote Controls: Independent remotes for each indoor unit

• Smart Control Ready: Compatible with mobile app control and voice assistants

• Corrosion-Resistant Outdoor Unit: Built to last in varied climates

• Ideal for Small to Medium Rooms: Provides flexible home climate comfort

Specifications

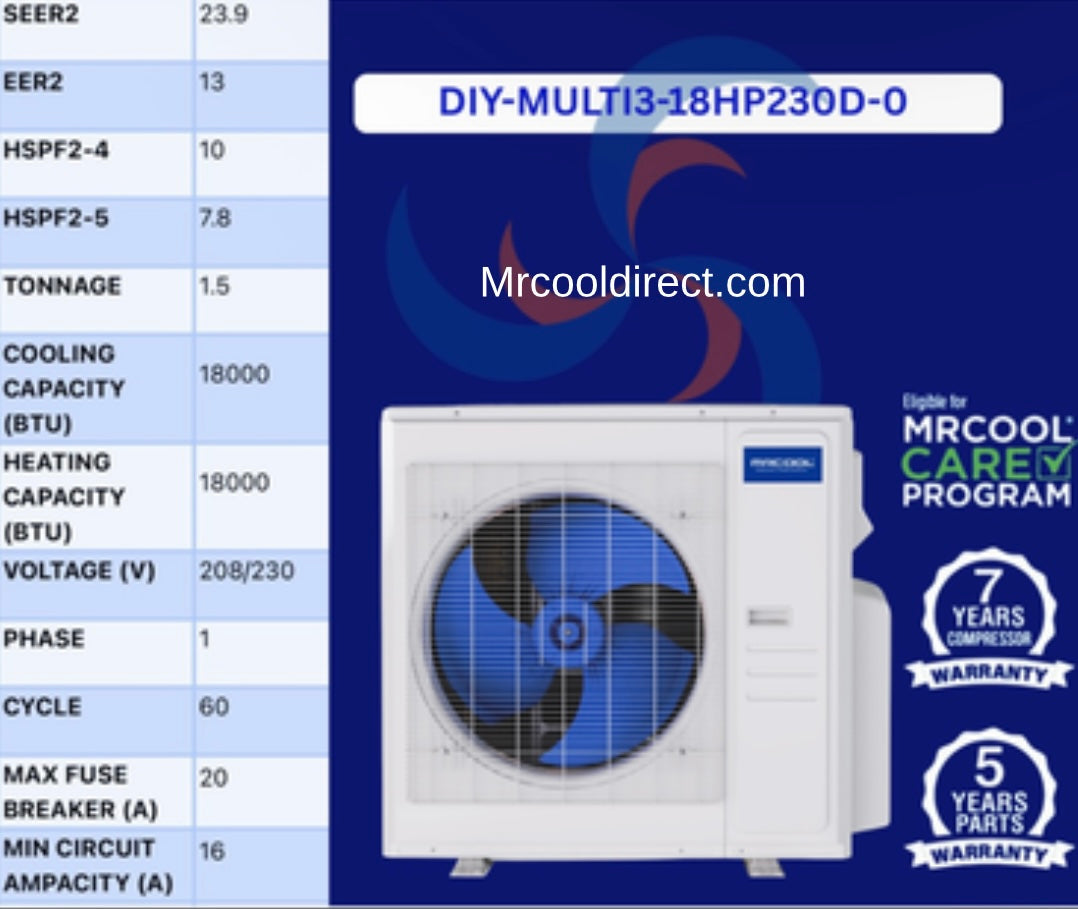

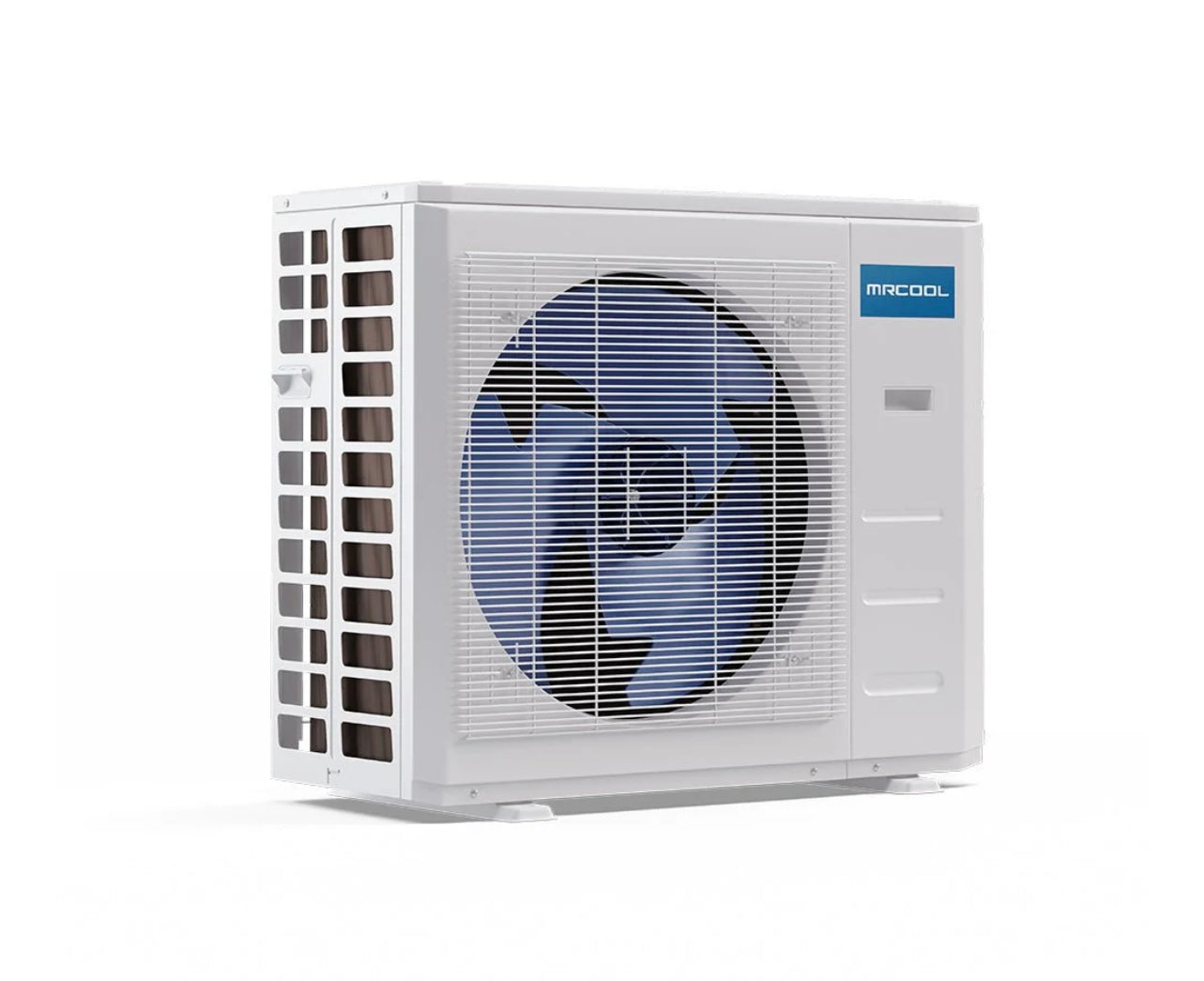

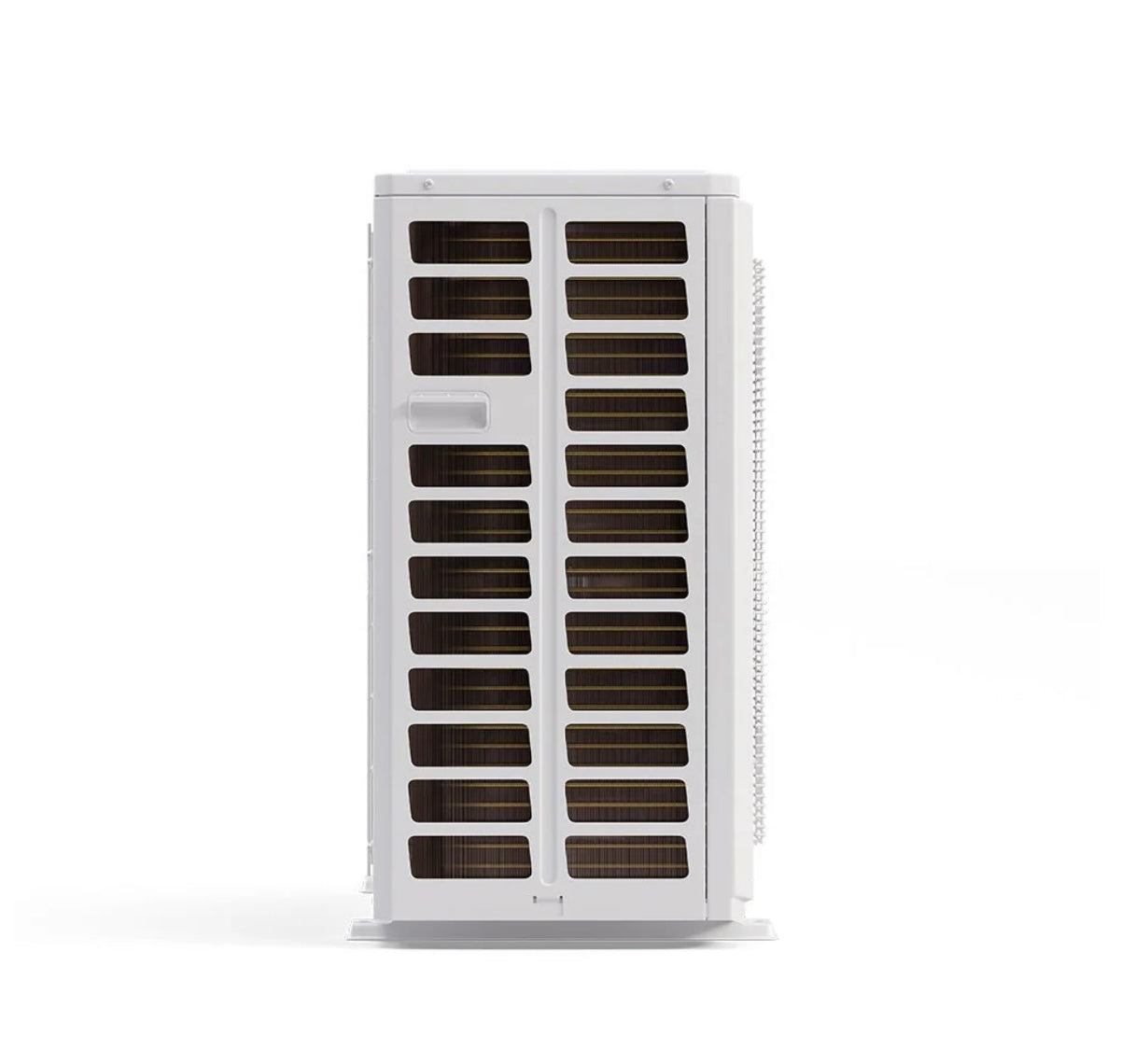

OUTDOOR UNIT (18K)

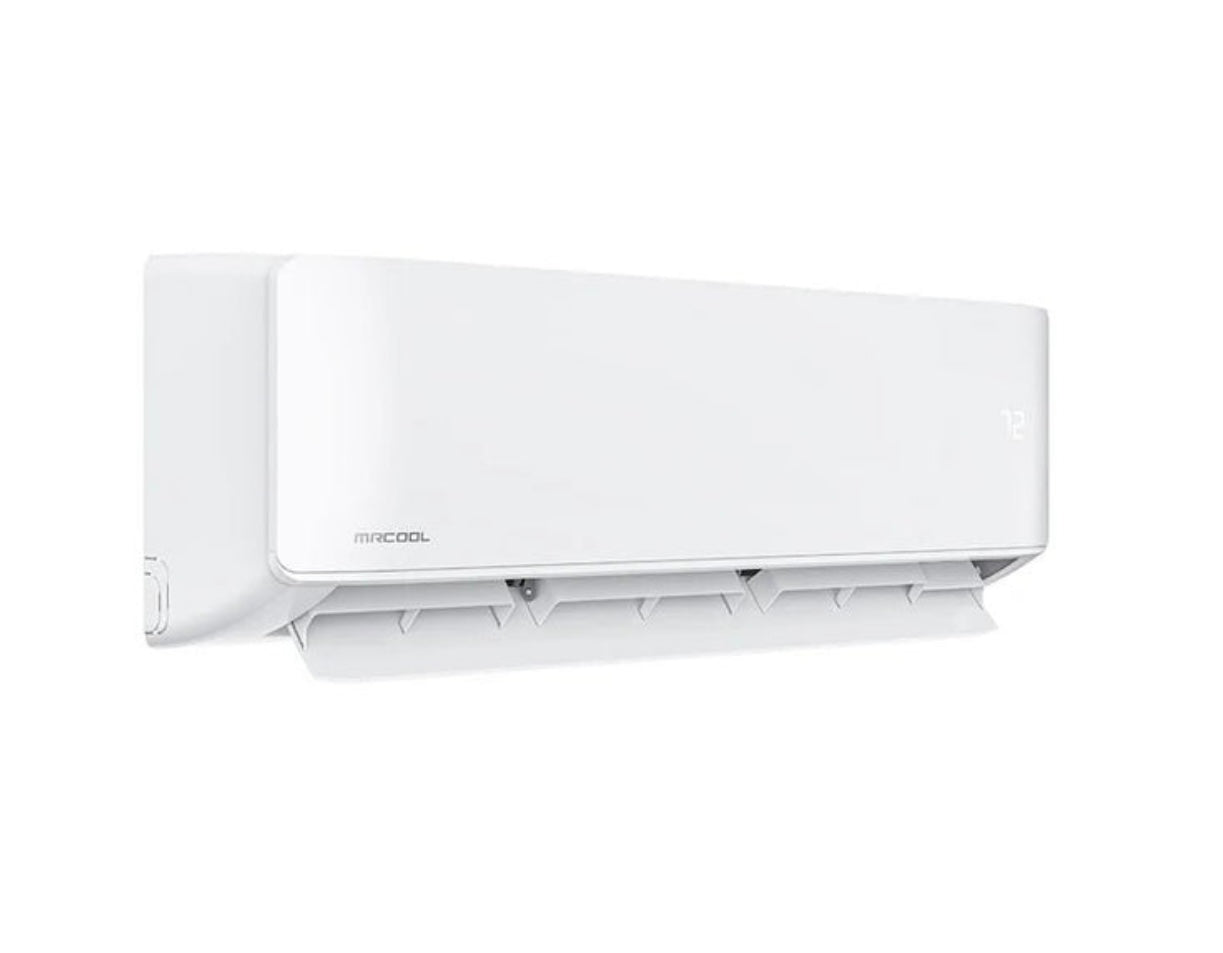

INDOOR UNIT (6K) x 2

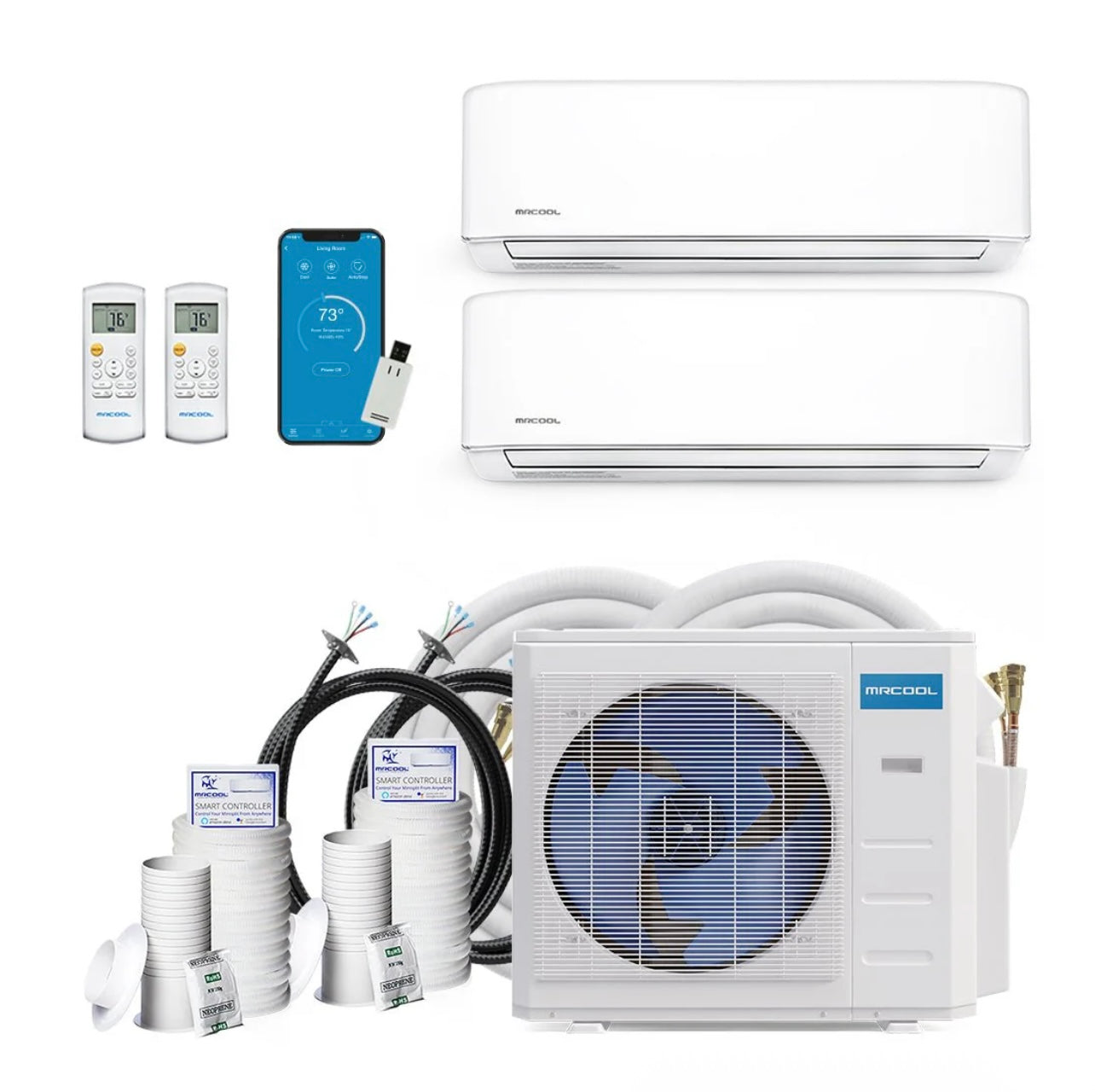

What’s Included

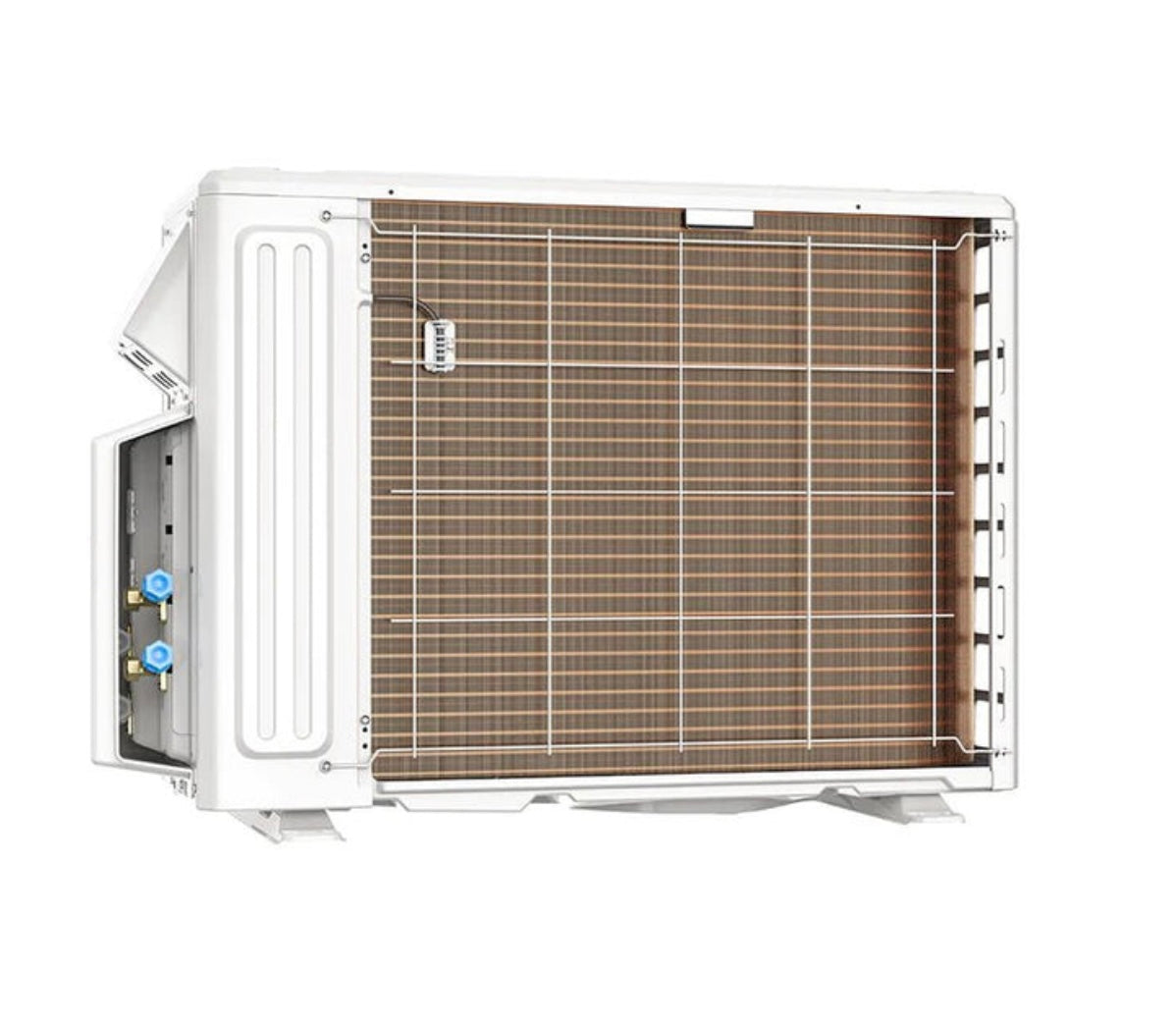

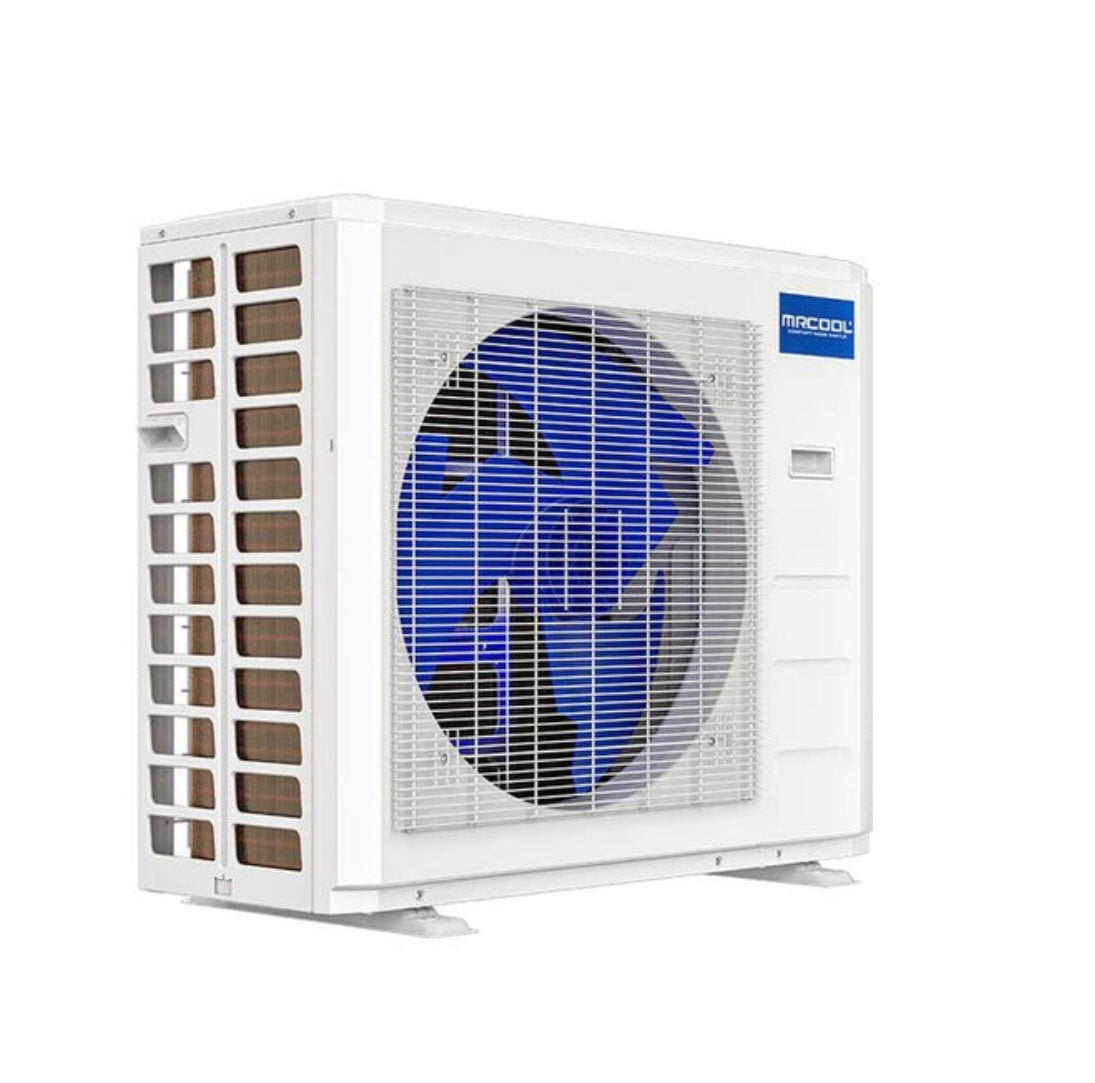

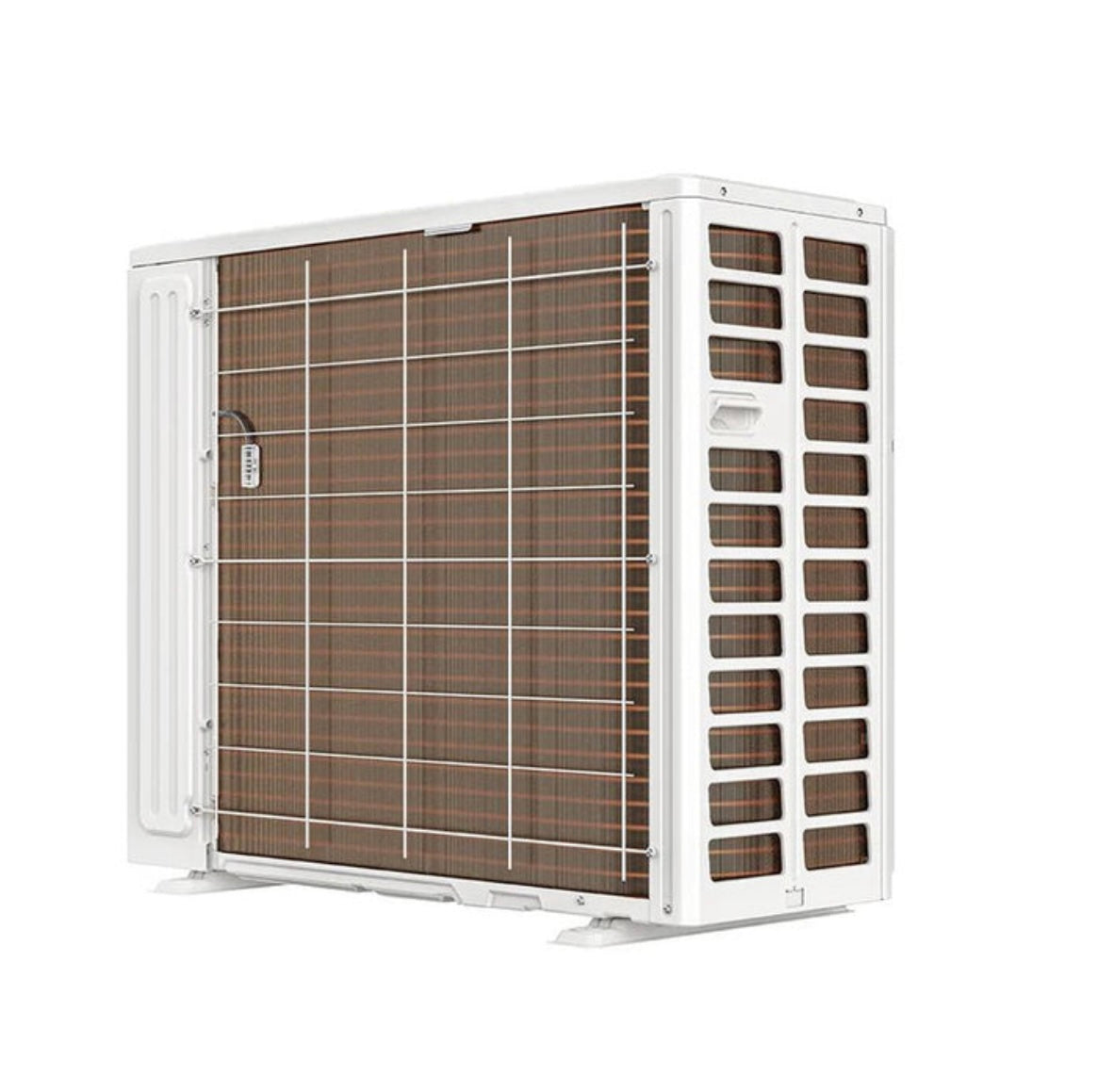

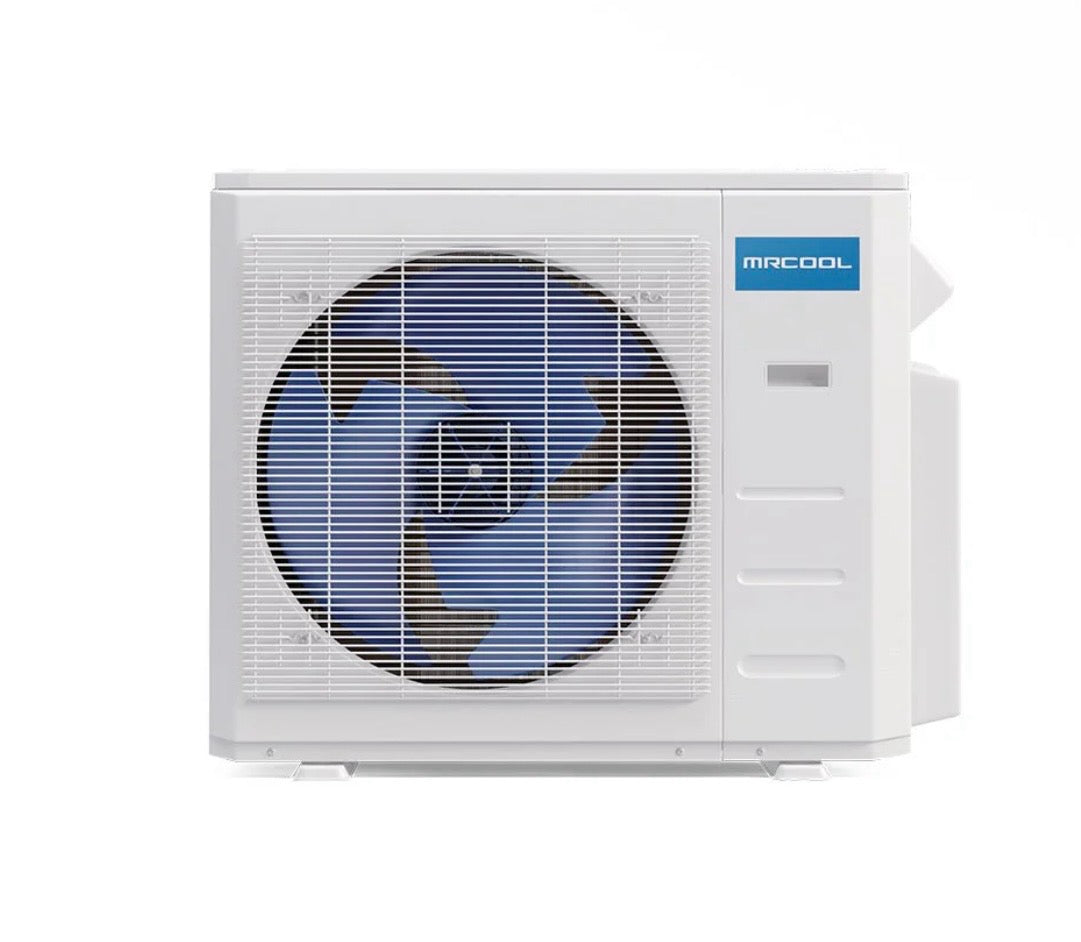

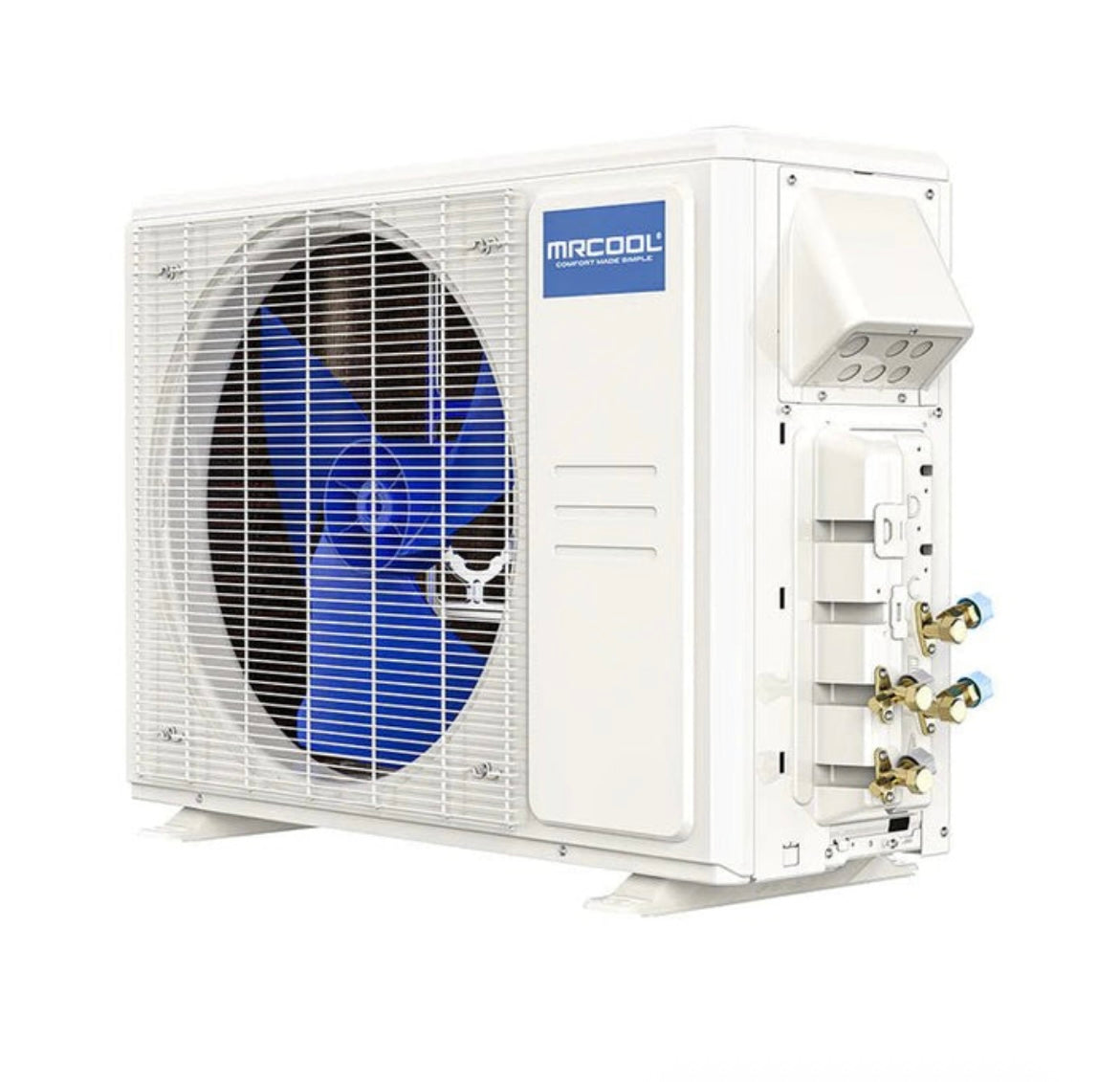

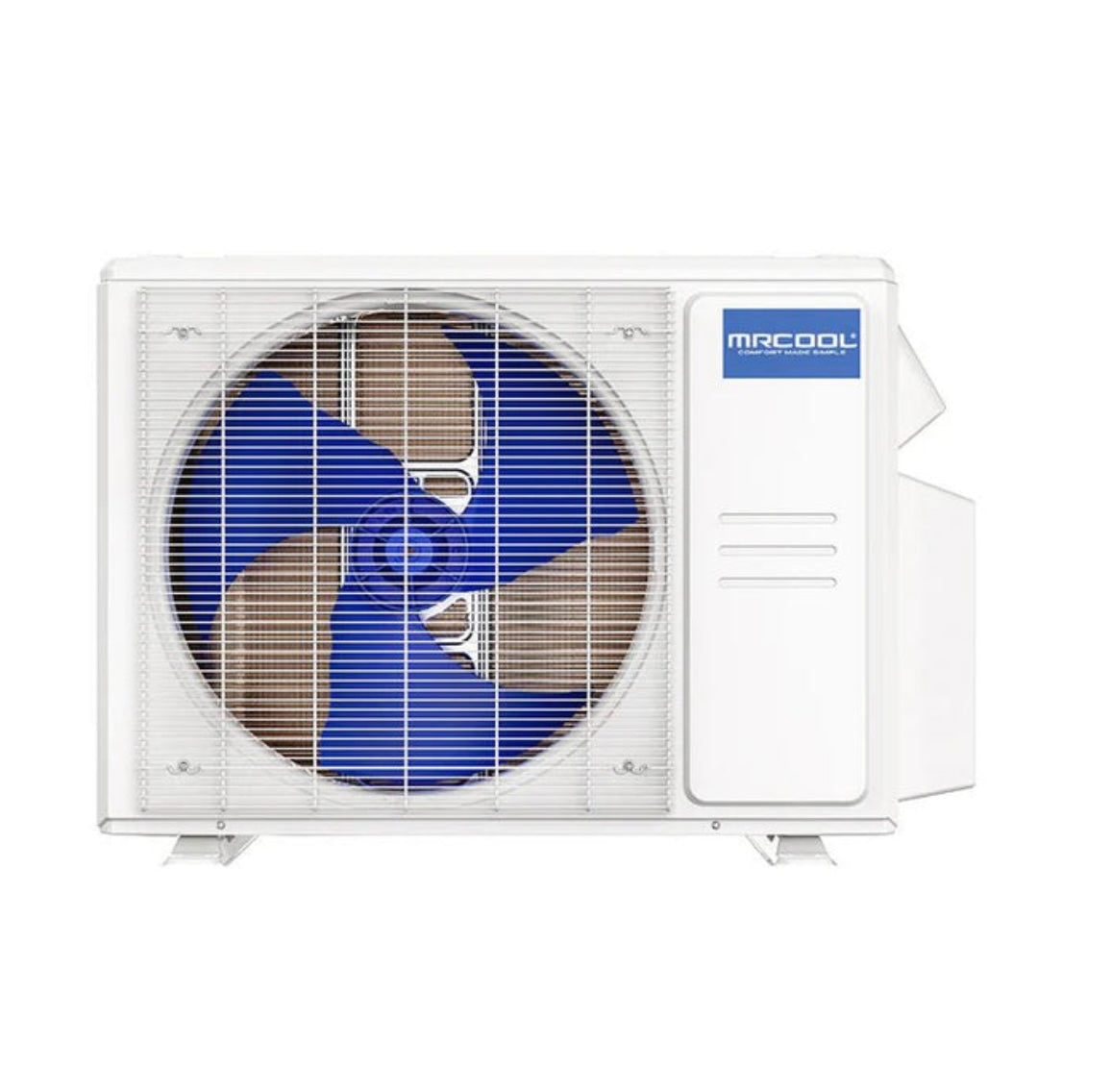

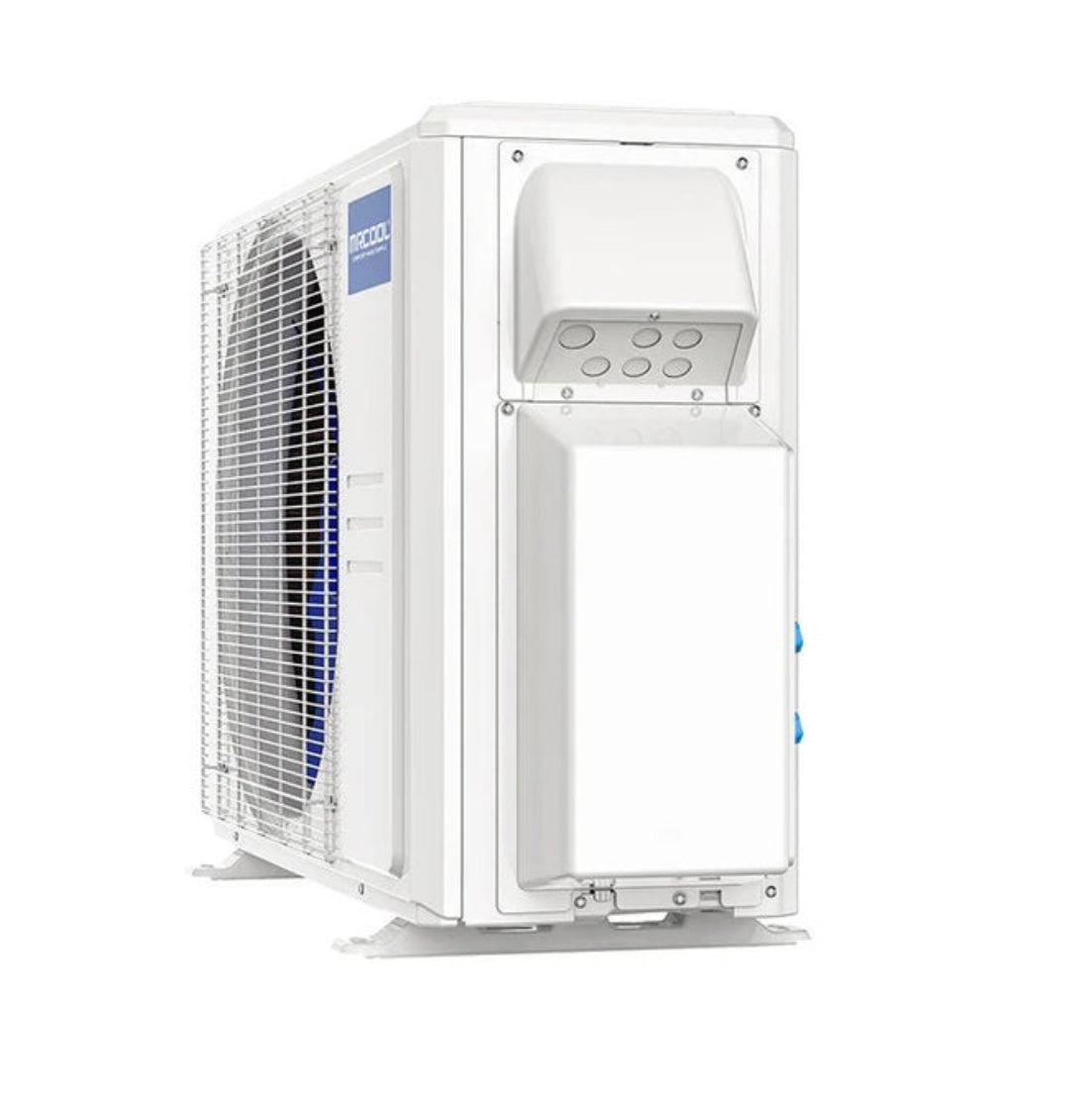

1 Mrcool DIY 18k btu 1.5 Ton Condenser

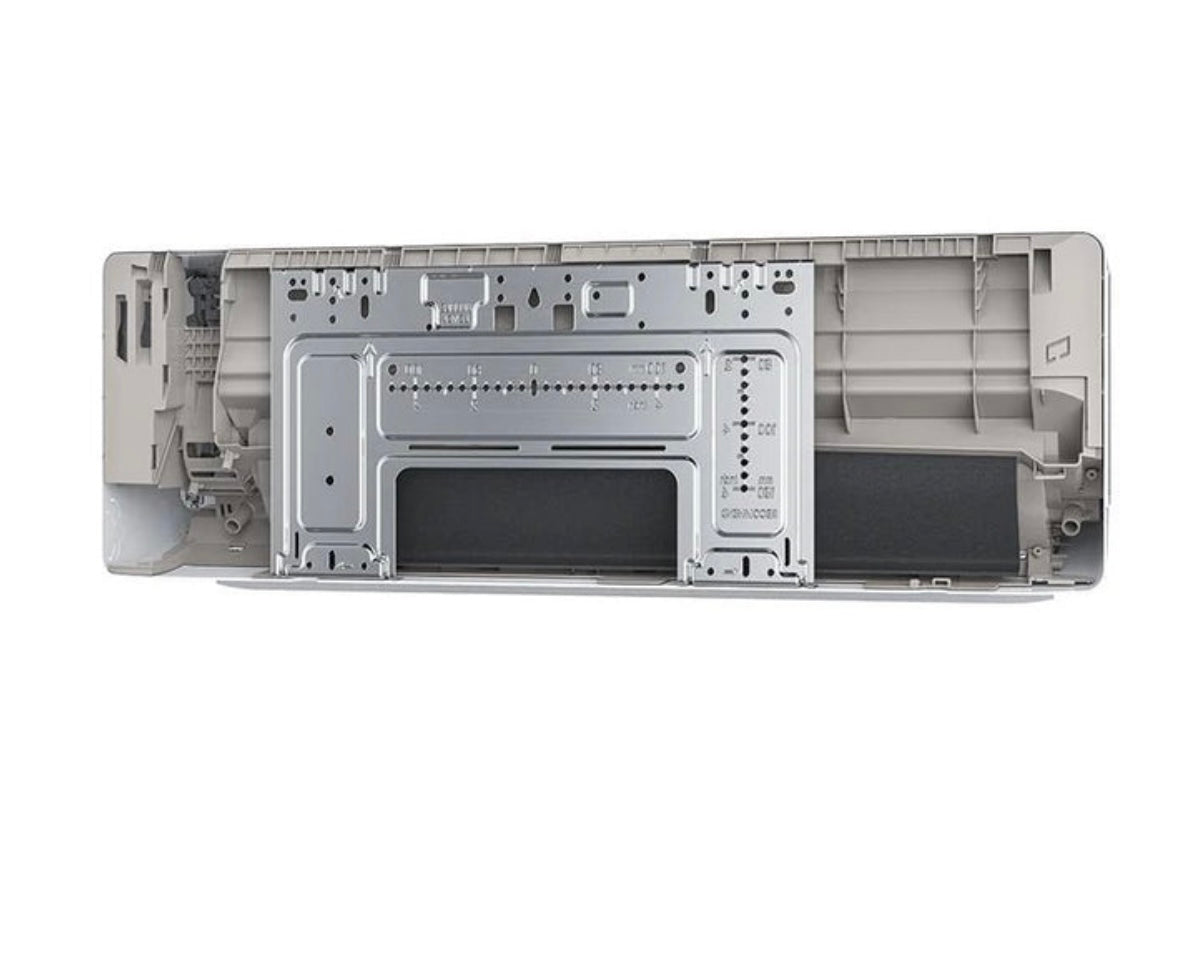

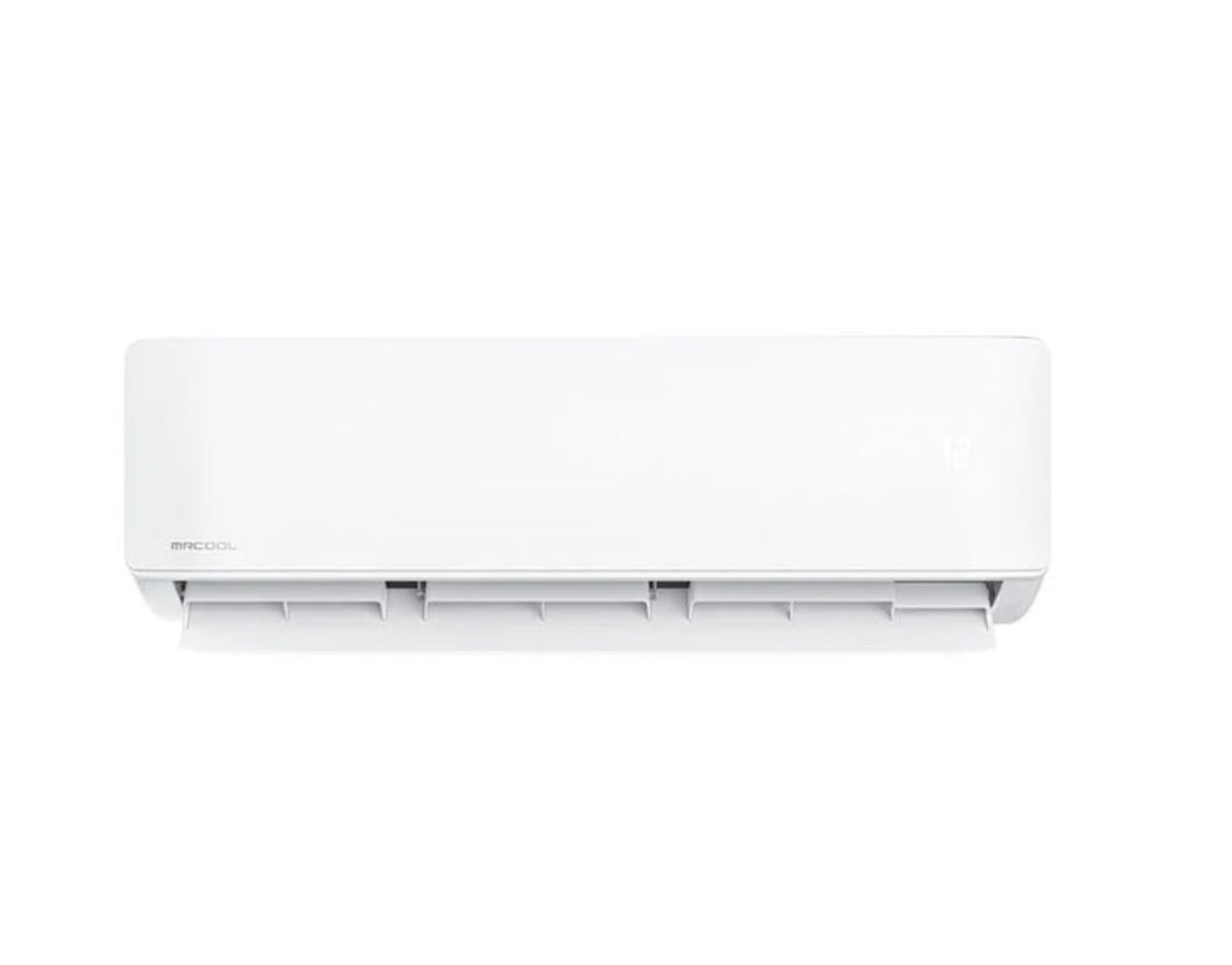

2 Mrcool 6k btu wall Mount Air Handlers

2 Mrcool 25ft Pre Charged Line sets

2 Mrcool  Remotes

Air Handler Compatibility

This condenser supports up to three indoor air handlers with a maximum combined capacity of 24,000 BTU. Available air handler sizes: 6K, 9K, and 12K BTU.

Examples of Compatible Combinations:

• 6K + 6K + 12K (24,000 BTU)
• 6K + 9K + 9K (24,000 BTU)
• 6K + 6K + 9K (21,000 BTU)
• 6K + 9K + 6K (21,000 BTU)
• 9K + 9K (18,000 BTU – one port unused)
• 6K + 12K (18,000 BTU – one port unused)

Recommended Wire Sizing

• Recommended: 12 AWG copper wire – safe for 18A minimum circuit ampacity
• One Size Smaller (14 AWG): Not recommended – may overheat under full load and violate electrical code
• One Size Larger (10 AWG): Offers lower voltage drop and extra safety margin

Ideal Coverage Area

Perfect for spaces ranging from 750 to 1,100 sq. ft., depending on your climate zone and insulation quality. With the 18k btu 1.5 Ton Condenser.

Whether it’s hot summer days or freezing winter nights, the MRCOOL® DIY® Mini Split keeps your home comfortable and your energy bills low. Smart. Simple. Affordable.

(Smart phone in photos not included.)

Frequently Asked Questions & Answers

What's the difference between the 5th Gen and 4th Gen?

The 5th Gen MRCOOL DIY® Mini Split offers several key upgrades over the 4th Gen, focusing on efficiency, advanced technology, and eco-friendliness.

Here’s what’s new with the 5th Gen:

• Next-Gen R-454B Refrigerant: A more environmentally friendly refrigerant with lower global warming potential (GWP), compliant with the latest HVAC regulations.
• Higher Energy Efficiency: Improved SEER2 ratings for greater energy savings and optimized performance.
• Enhanced System Reliability: Upgraded components for better heating and cooling performance.


Can I install it myself, or do I need a professional?

The MRCOOL® DIY® system is designed for homeowners and doesn’t require HVAC tools. You can install the indoor and outdoor units yourself using the pre-charged DIY® Quick Connect® lines. However, a licensed electrician is required for the electrical hookup to ensure safety and code compliance.

Does it work in cold weather?

Yes. MRCOOL® 5th Gen systems feature low-ambient heating and can provide reliable heat even when outdoor temperatures drop to around 5°F.

How do I know what BTU size I need for my rooms?

A general rule of thumb is 20 BTU per square foot of space. Here's a rough guide:

• 6,000 BTU = 100 - 200sq ft
• 9,000 BTU = 150 - 400sq ft
• 12,000 BTU = 351- 550 sq ft
• 18,000 BTU = 501 – 800 sq ft
• 24,000 BTU = 751 – 1,050 sq ft
• 36,000 BTU = 1,001 - 1,550 sq ft

Some additional factors may impact performance such as insulation, ceiling height, sun exposure and the number of appliances in the room. For assistance, contact our Product Experts.

Does it heat as well as cool?
Yes. All 5th Gen models are heat pumps, providing both heating and cooling for year-round comfort.

Is it Wi-Fi compatible?

Yes. The MRCOOL SmartHVAC app allows smartphone control and works with Amazon Alexa and Google Assistant.

What is the warranty?

The MRCOOL®  5th Generation DIY Mini-Split systems offer the following warranty coverage:

• 7-Year Compressor Replacement Warranty: This warranty ensures that if the compressor fails within the first seven years, MRCOOL will provide a replacement.
• 5-Year Parts Warranty: This warranty covers all parts of the system for five years from the date of purchase.  Limited Lifetime Replacement Warranty with registration in the MRCOOL® Care Program

Note: Always verify system configuration before purchasing. Specifications may change during production. Images may be representative only.

Perfect For:

✔ Two small bedrooms
✔ Home office + guest room
✔ Studio or small apartment zones

The MRCOOL® DIY 5th Gen Multi-Zone 18k Dual Zone Mini Split (6K + 6K) is the easiest, most cost-effective way to enjoy professional-grade HVAC comfort without professional installation costs
