MRCOOL DIY 5th Gen 2-Zone 18,000 BTU Ductless Mini Split Air Conditioner & Heat Pump with Pre-Charged (25 ft + 25 ft) Line Sets (6K + 12K) — DIYM227HPW00D06

MRCOOL DIY 5th Gen 2-Zone 18,000 BTU Ductless Mini Split Air Conditioner & Heat Pump with Pre-Charged (25 ft + 25 ft) Line Sets (6K + 12K) — DIYM227HPW00D06

The MRCOOL DIY 5th Gen 2-Zone 18,000 BTU Ductless Mini Split Air Conditioner & Heat Pump is designed to provide efficient, customizable comfort for two separate spaces. This system includes an 18,000 BTU outdoor condenser paired with two wall-mounted indoor air handlers—one 6,000 BTU unit and one 12,000 BTU unit—allowing independent temperature control in each zone.

Engineered for true DIY installation, this system comes equipped with pre-charged (25ft + 25ft) QuickConnect® line sets, eliminating the need for vacuum pumps, refrigerant handling, or specialized HVAC tools. The factory-sealed refrigerant lines simplify setup while ensuring reliable performance right out of the box.

The system operates as both an air conditioner and a heat pump, delivering year-round comfort in a wide range of climates. Each indoor unit includes its own remote control, enabling precise temperature adjustments per room. Quiet operation and energy-efficient performance make this system ideal for bedrooms, offices, additions, or multi-room living spaces.

Built with durability in mind, the outdoor unit features corrosion-resistant construction and is backed by MRCOOL’s manufacturer warranty, providing peace of mind along with long-term performance.

Features

• 2-Zone ductless mini split system

• Total system capacity: 18,000 BTU

• Indoor air handlers included: (1) 6,000 BTU + (1) 12,000 BTU

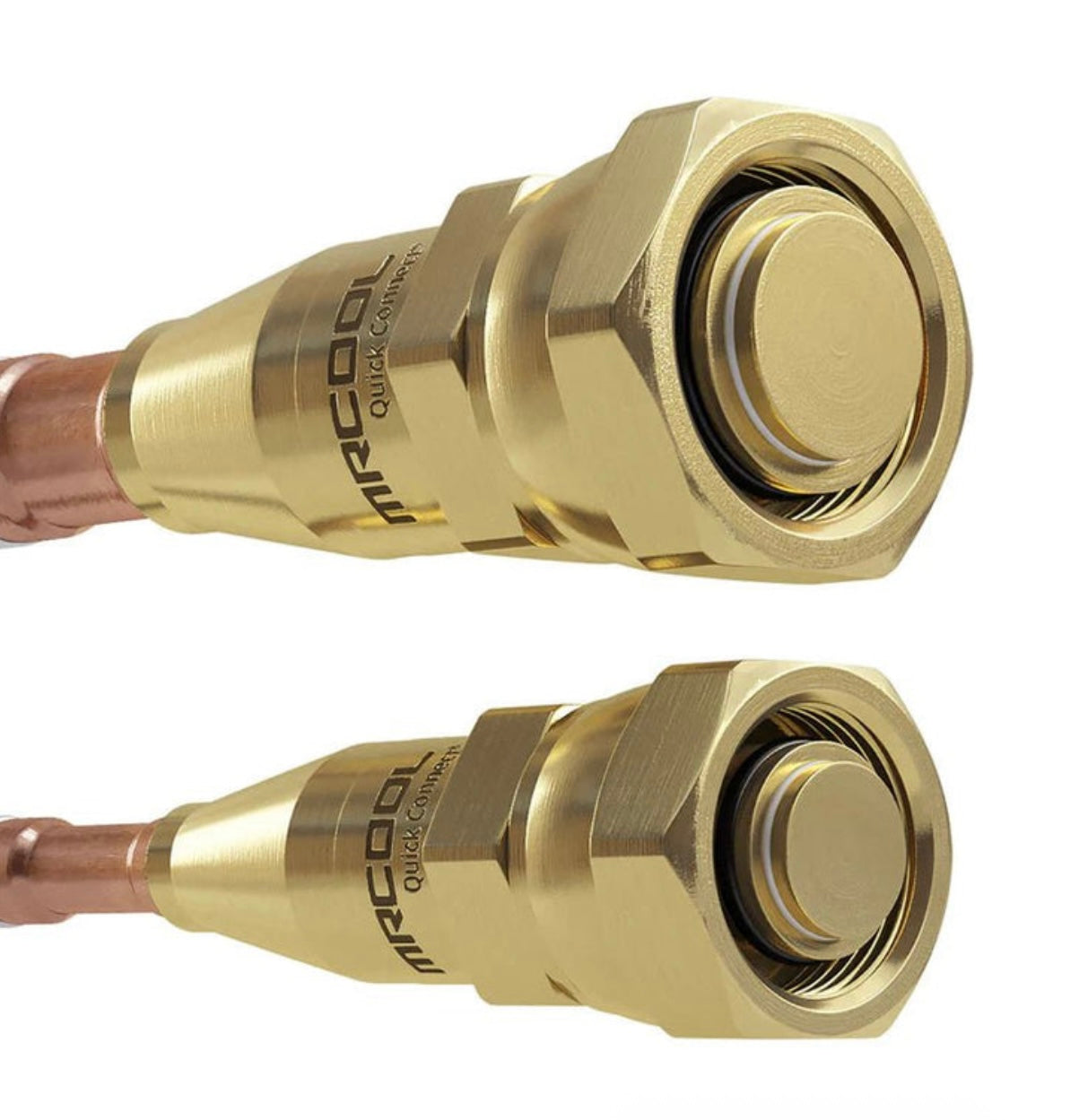

• Pre-charged (25ft + 25ft) QuickConnect® line sets included

• DIY-friendly installation—no professional tools required

• Heating and cooling functionality in one system

• Independent temperature control for each zone

• Quiet operation for indoor comfort

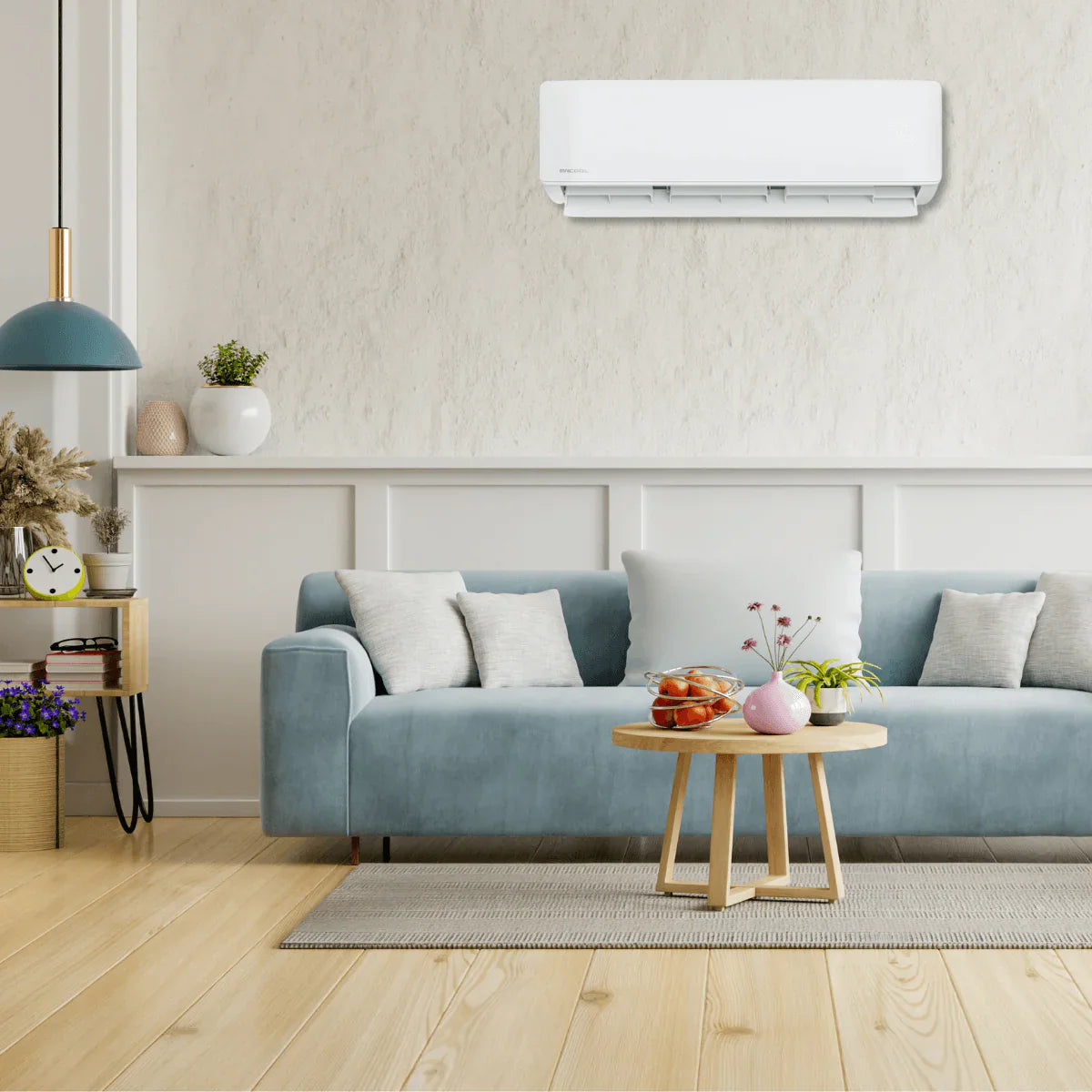

• Wall-mounted indoor units

• Corrosion-resistant outdoor condenser

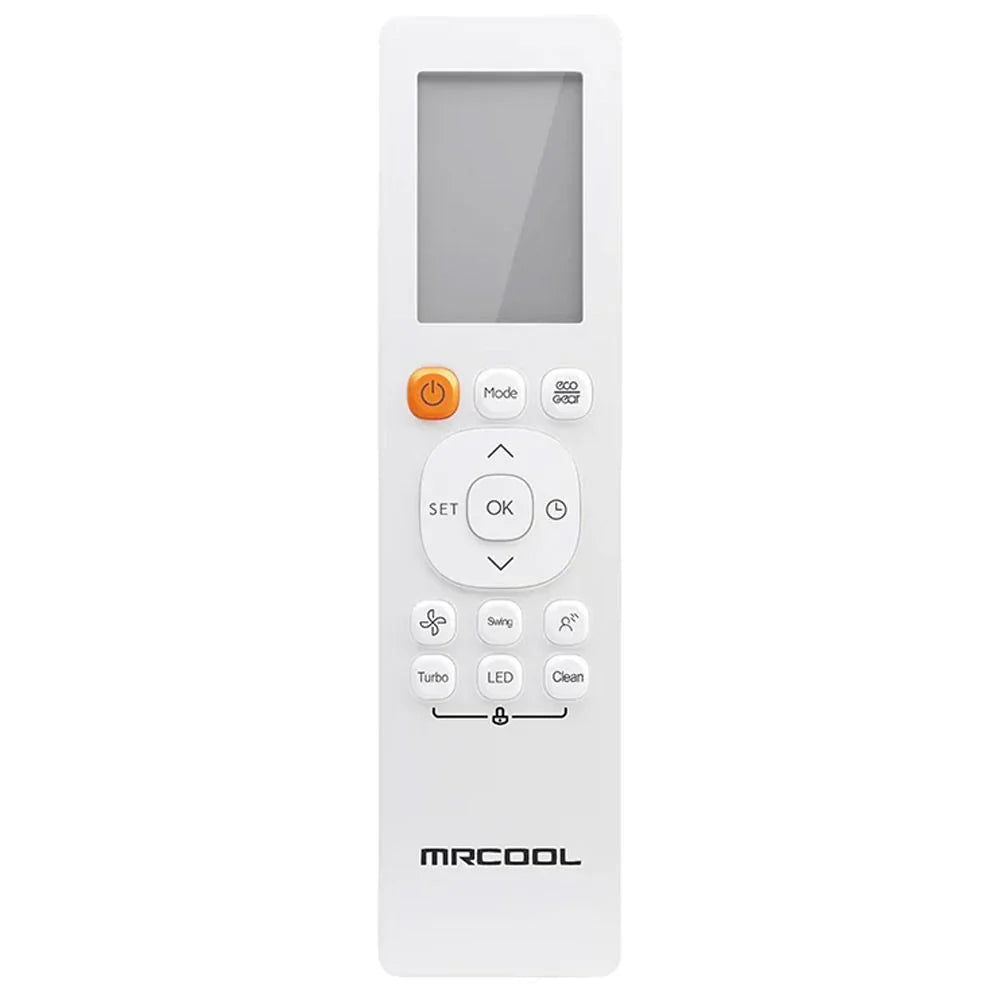

• Wireless remote controls included for each air handler

Specifications

What's Included

This bundle includes:

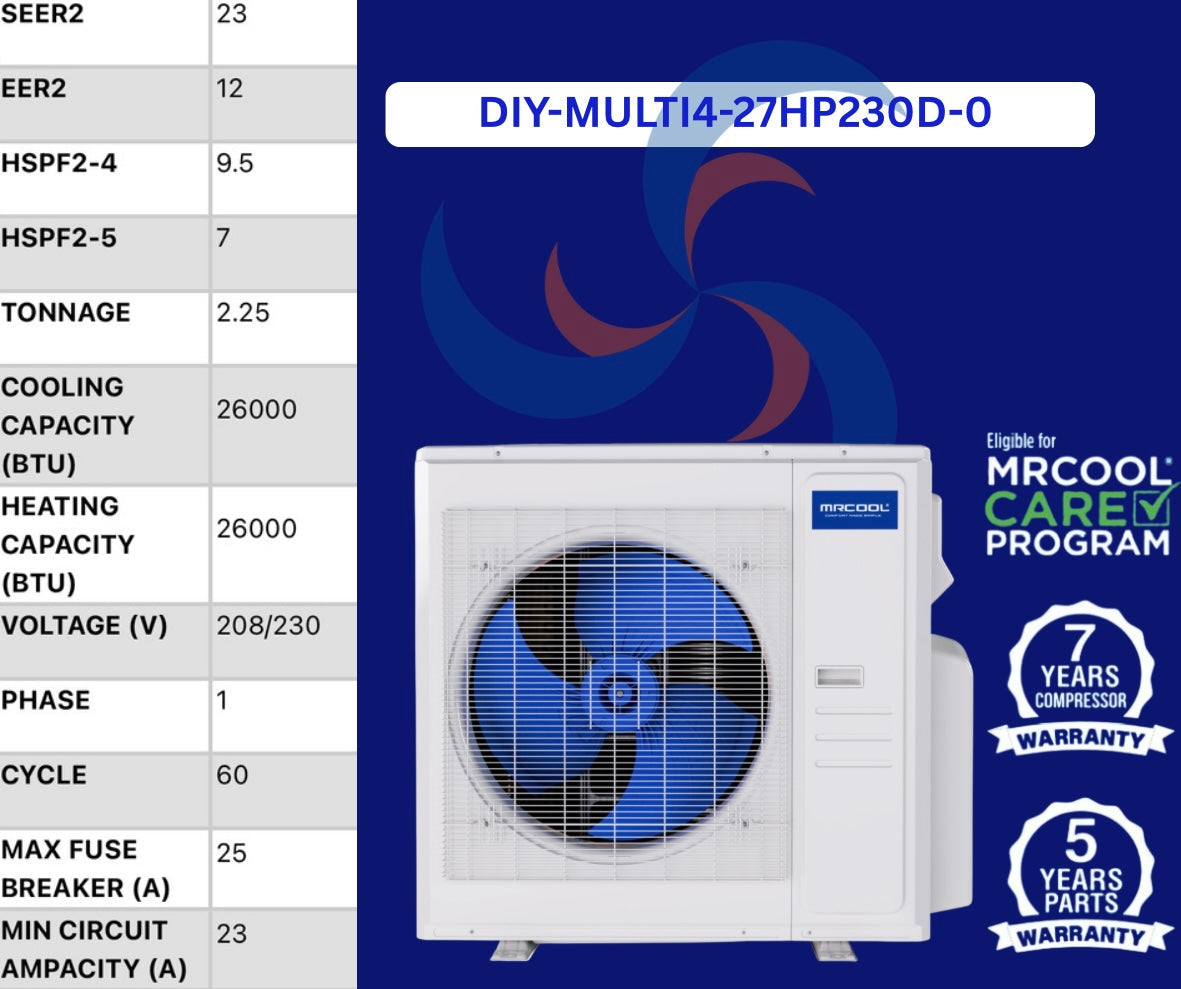

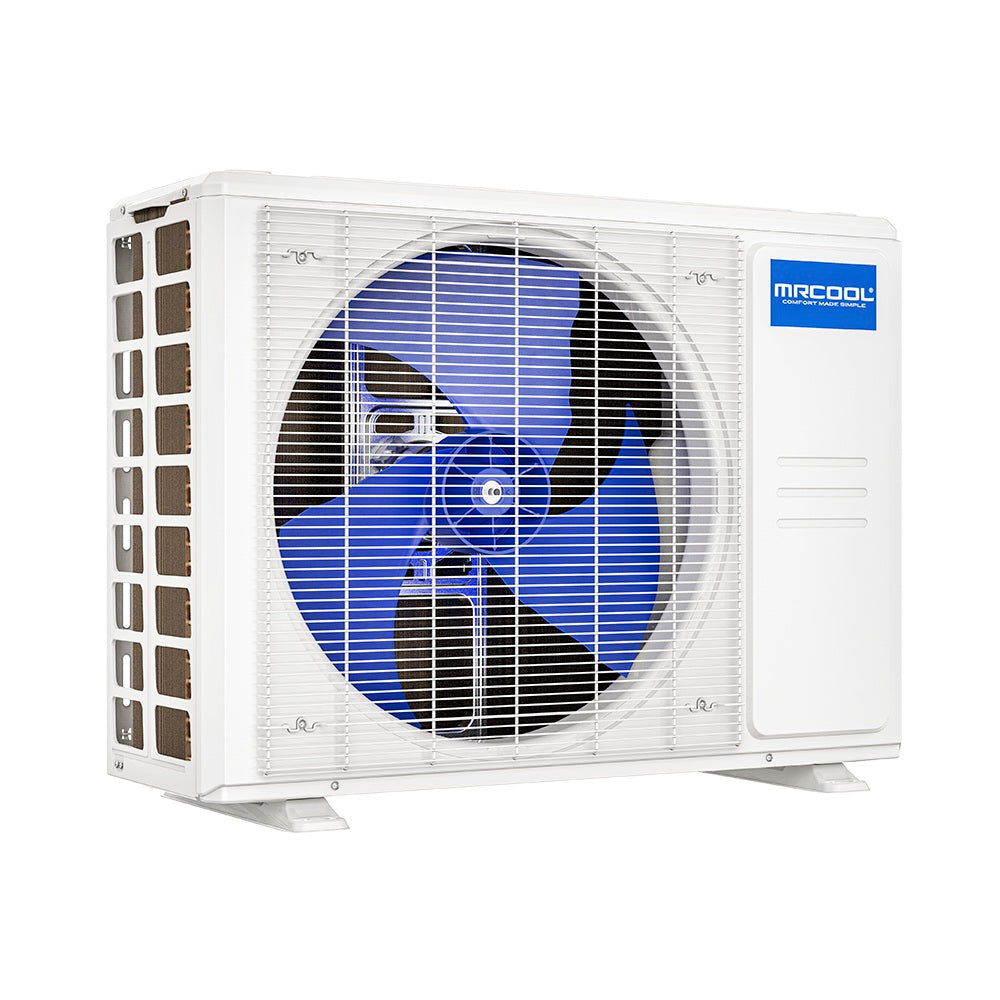

✔ DIY-MULTI4-27HP230D-O — 27,000 BTU 5th Gen 4-Zone Condenser

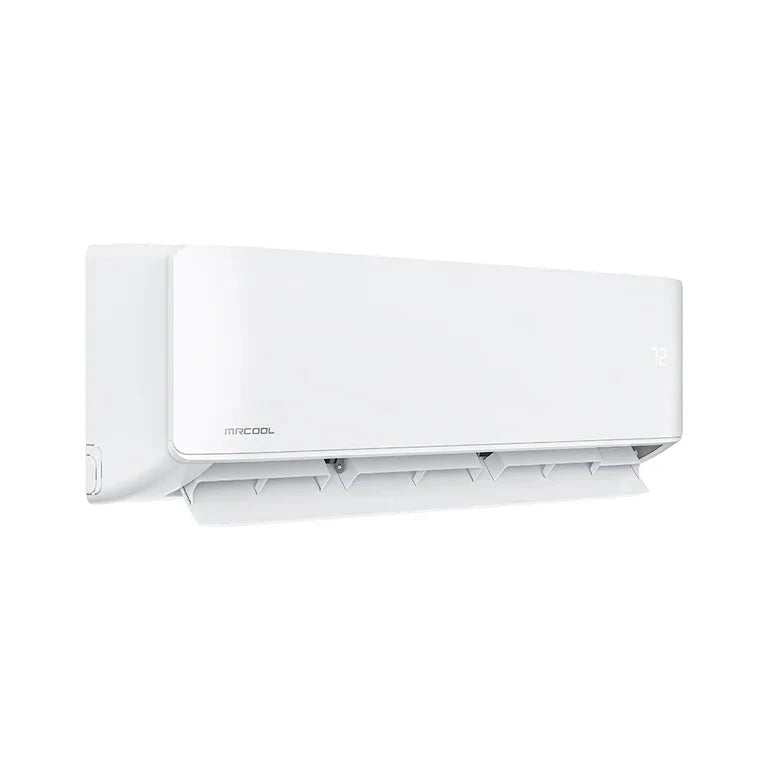

✔ DIY-06-HP-WMAH-230D25-O — 6,000 BTU Wall Mount Air Handler
✔ DIY-12-HP-WMAH-230D25-O — 12,000 BTU Wall Mount Air Handler

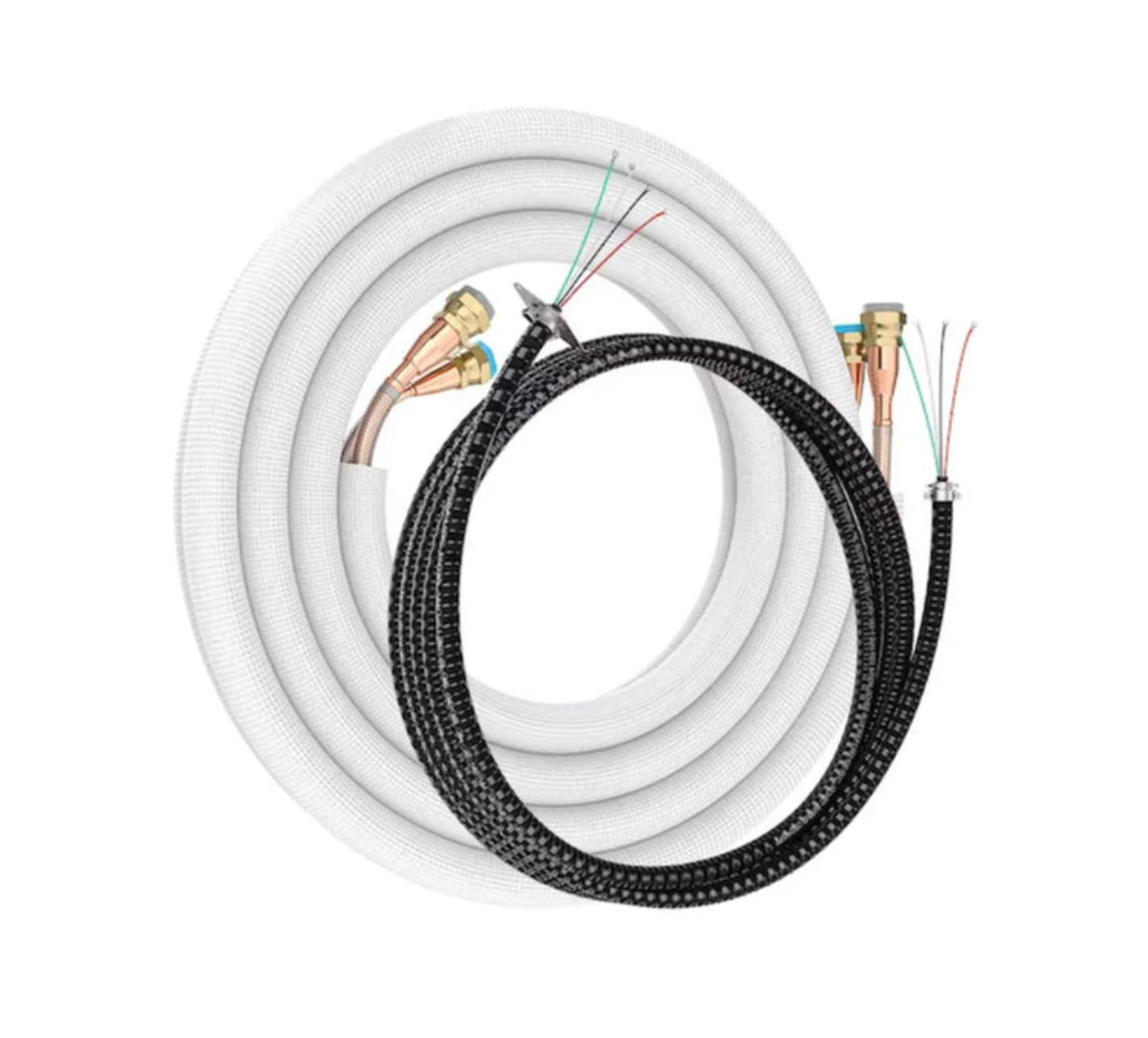

✔ (2) DIY25-1438-O — 25 ft Pre-Charged Quick Connect® Line Sets

Smart Phone Is NOT Included

Whether it’s hot summer days or freezing winter nights, the MRCOOL DIY Mini Split keeps your home comfortable and your energy bills low. Smart. Simple. Affordable.

Frequently Asked Questions

What's the difference between the 5th Gen and 4th Gen?

The 5th Gen MRCOOL DIY® Mini Split offers several key upgrades over the 4th Gen, focusing on efficiency, advanced technology, and eco-friendliness.

Here’s what’s new with the 5th Gen:

• Next-Gen R-454B Refrigerant: A more environmentally friendly refrigerant with lower global warming potential (GWP), compliant with the latest HVAC regulations.
• Higher Energy Efficiency: Improved SEER2 ratings for greater energy savings and optimized performance.
• Enhanced System Reliability: Upgraded components for better heating and cooling performance.


Can I install it myself, or do I need a professional?

The MRCOOL DIY system is designed for homeowners and doesn’t require HVAC tools. You can install the indoor and outdoor units yourself using the pre-charged Quick Connect® lines. However, a licensed electrician is required for the electrical hookup to ensure safety and code compliance.

Does it work in cold weather?
Yes. MRCOOL 5th Gen systems feature low-ambient heating and can provide reliable heat even when outdoor temperatures drop to around 5°F.

How do I know what BTU size I need for my rooms

A general rule of thumb is 20 BTU per square foot of space. Here's a rough guide:

• 6,000 BTU = 100 - 200 sq ft
• 9,000 BTU = 150 - 400 sq ft
• 12,000 BTU = 351- 550 sq ft
• 18,000 BTU = 501 – 800sq ft
• 24,000 BTU = 751 – 1,050 sq ft
• 36,000 BTU = 1,001 - 1,550 sq ft

Some additional factors may impact performance such as insulation, ceiling height, sun exposure and the number of appliances in the room. For assistance, contact our Product Experts

Does it heat as well as cool?

Yes. All 5th Gen models are heat pumps, providing both heating and cooling for year-round comfort.

Is it Wi-Fi compatible?

Yes. The MRCOOL SmartHVAC app allows smartphone control and works with Amazon Alexa and Google Assistant.

What is the warranty?

The MRCOOL 5th Generation DIY Mini-Split systems offer the following warranty coverage:

• 7-Year Compressor Replacement Warranty: This warranty ensures that if the compressor fails within the first seven years, MRCOOL will provide a replacement.
• 5-Year Parts Warranty: This warranty covers all parts of the system for five years from the date of purchase.

Recommended Room Types

Perfect for:

• Bedrooms
• Home offices
• Barndominiums
• Tiny homes
• Garages
• Old homes where its hard to use DUCT WORK.
• Apartments
• New home build
