MRCOOL  |  SKU: DIYM448HPW02D00
7% off
New arrival

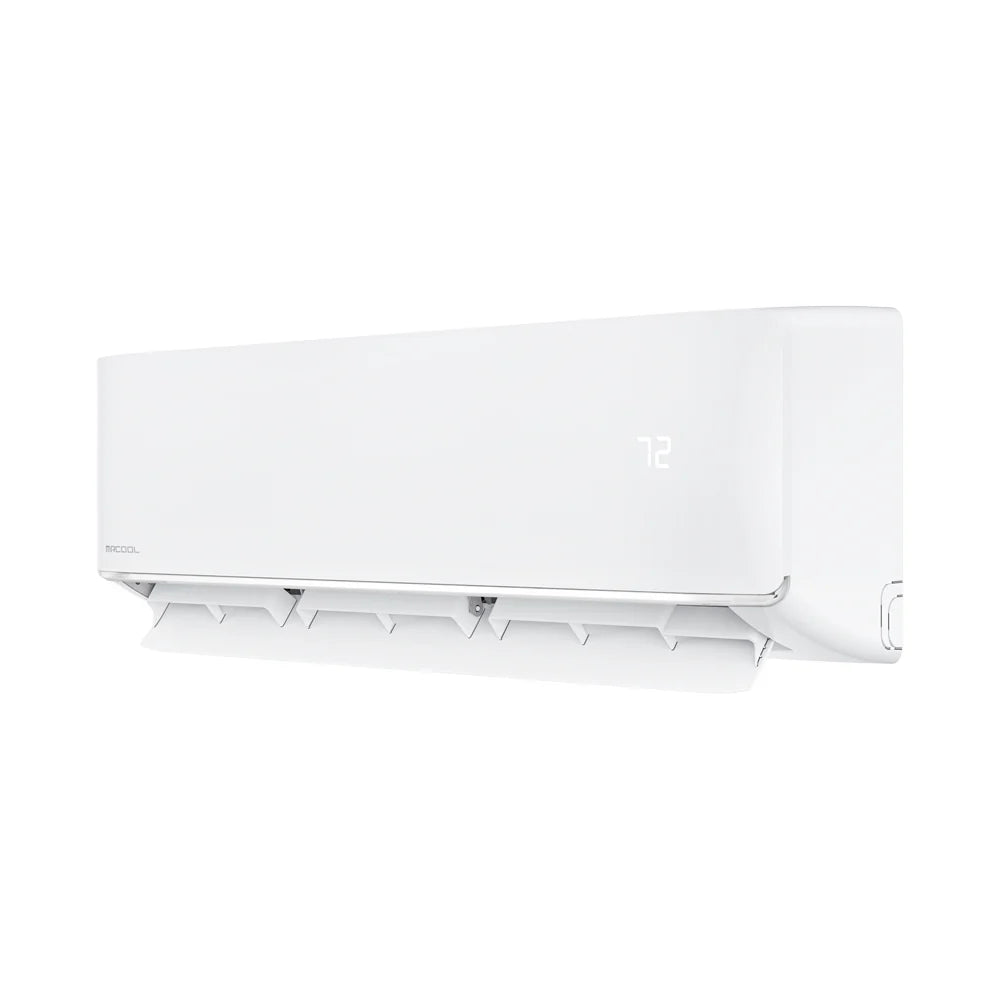

MRCOOL DIY 5th Gen Multi‑Zone 4‑Zone 48,000 BTU 21.8 SEER2 (2×6K + 9K + 12K) Ductless Mini‑Split Air Conditioner & Heat Pump System DIYM448HPW02D00

$6,271.00 USD $6,771.00

Delivery and Shipping

We offer fast and reliable shipping across the continental U.S., with free shipping available on most orders (exclusions may apply based on brand and product type). Orders are typically processed within 1–2 business days and transit time is usually 4–7 business days. Larger items may ship via freight and require a scheduled curbside delivery. Please ensure your contact details are accurate at checkout. For questions about delivery timelines, shipping eligibility, or special requests, feel free to contact us directly. See policy

Price Match Guarantee

Find a lower price? Call +1(855-799-1672) and we'll match it! (Some exclusions may apply. See ourLowest Price Guarantee Policyfor more information)

Returns

Our return policy covers a 30-day period from the date of purchase. To be eligible, items must be unused, in their original packaging, and accompanied by proof of purchase. Defective products are eligible for free returns, with options for a refund or replacement. Customer remorse returns may incur return shipping fees and restocking fees. Refunds are processed within a specified timeframe, subject to restocking fees if applicable. Late or missing refunds should be addressed with your bank or credit card company first. Exchanges may be accepted for defective or damaged items. Shipping costs for returns are typically the responsibility of the customer, except in cases of damaged products. For further details or inquiries, please contact us via phone, email, or live chat.See policy

Shop with Confidence
As an authorized U.S. dealer, every order is verified and backed by full manufacturer warranty. Contact our team if you need an official quote, invoice, or product guidance before ordering

Genuine Products — Manufacturer Warranty Included
All items sold at The Imperial Luxe are 100% authentic and backed by the manufacturer’s warranty.

✅ Authorized Online Dealer
🚚 Free Shipping + No Sales Tax (exclusions may apply)
💲 We Beat The Lowest Price
📦 Fast 4-7 Day Delivery
🏭 Manufacturer Warranty Included
❓ Questions? Call Our Experts: +1 (855-799-1672)

Description

MRCOOL DIY 5th Gen Multi‑Zone 4‑Zone 48,000 BTU 21.8 SEER2 (2×6K + 9K + 12K) Ductless Mini‑Split Air Conditioner & Heat Pump System DIYM448HPW02D00

Experience efficient, customizable comfort without the need for professional HVAC installation with the MRCOOL DIY® 5th Gen Multi‑Zone 4‑Zone 48,000 BTU Mini‑Split System. This advanced ductless heat pump system pairs a powerful 48,000 BTU multi‑zone condenser with a thoughtfully balanced set of two 6,000 BTU, one 9,000 BTU, and one 12,000 BTU indoor air handlers—perfect for homes with a mix of bedrooms, offices, medium‑sized living spaces, and more. Designed for room‑by‑room temperature control, this system offers up to four independently controlled zones, giving you personalized comfort where you need it most.

Installation is dramatically simplified thanks to MRCOOL’s patented QuickConnect® technology: each line set arrives factory‑sealed and pre‑charged with eco‑friendly R‑454B refrigerant, eliminating the need for vacuum pumps, gauges, or refrigerant licensing. The included DIYPRO® communication cable removes the need for electrical conduit, making this one of the most homeowner‑friendly multi‑zone HVAC systems on the market. Backed by advanced inverter technology, Gold Fin® corrosion protection, and smart home compatibility, it delivers quiet, efficient performance year‑round.

Control your comfort right from your smartphone with the MRCOOL Smart HVAC Controller® App or use voice commands through Amazon Alexa® and Google Home®. With ENERGY STAR® and AHRI certification, this system helps reduce energy costs while keeping your home comfortable in any season.

Features

  • 48,000 BTU total system capacity
  • 4 independently controlled zones
  • (2) 6K + (1) 9K + (1) 12K BTU air handlers
  • 21.8 SEER2 high-efficiency rating
  • DC inverter variable-speed compressor

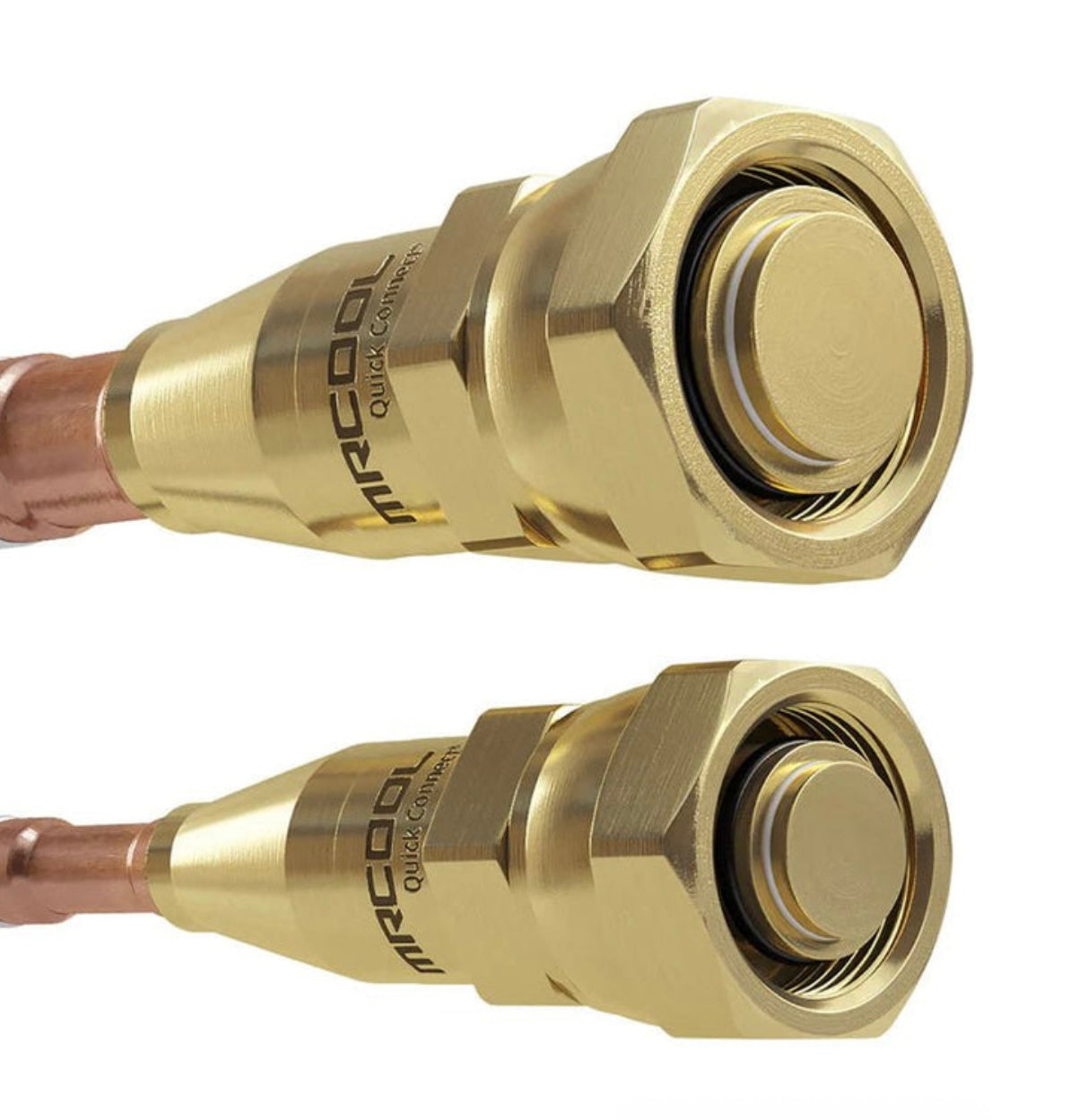

  • DIY® QuickConnect® pre-charged line sets
  • No vacuum pump or refrigerant handling
  • DIYPRO® cable (no conduit required)
  • Gold Fin® anti-corrosion protection
  • Follow Me® temperature sensing
  • MRCOOL® Smart HVAC Controller® App
  • Amazon Alexa® & Google Home® compatible
  • ENERGY STAR® & AHRI certified

Specifications

Specification Details
Brand MRCOOL®
Model DIYM448HPW02D00
Type 4 Zones/Rooms
Total Capacity (BTU) 48,000
Indoor Units (2) 6K, (1) 9K, (1) 12K
SEER2 Rating 21.8
Compressor Type DC Inverter
Refrigerant R‑454B
Voltage 208 / 230 V
Phase Single‑Phase
Frequency 60 Hz
Min Circuit Ampacity 40 A
Max Breaker Size 45 A
Outdoor Unit Dimensions 37.48″ W × 52.48″ H × 16.34″ D
Outdoor Unit Weight ~224 lbs
6K Indoor Handler (each) 31.57″ W × 11.69″ H × 7.44″ D; ~24.5 lbs
9K Indoor Handler 31.57″ W × 11.69″ H × 7.44″ D; ~25 lbs
12K Indoor Handler 31.57″ W × 11.63″ H × 7.44″ D; ~24.5 lbs
Warranty – Parts 5 Years
Warranty – Compressor 7 Years
Limited Lifetime Replacement With MRCOOL® Care Program registration
Included Line Sets (4) 16 ft QuickConnect® sets
Included Accessories DIYPRO® cable, wireless remotes, installation hardware

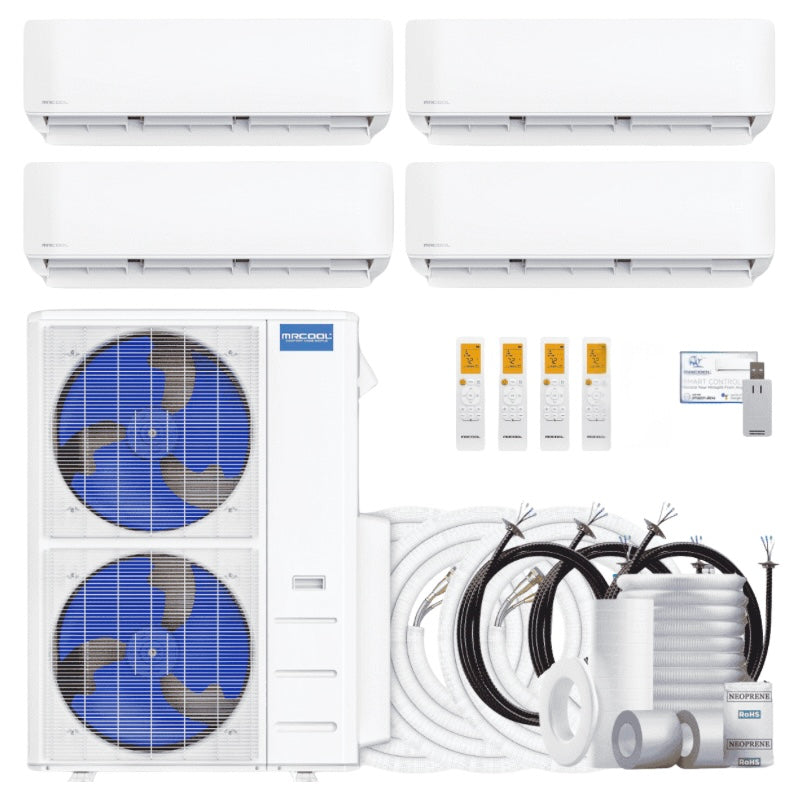

What’s Included

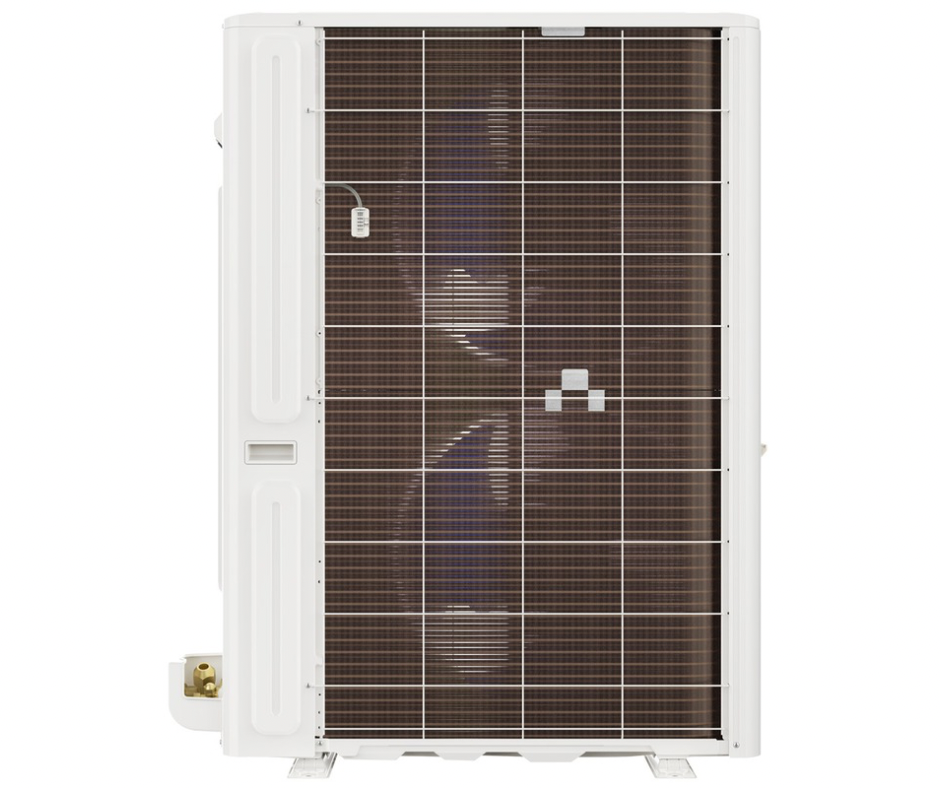

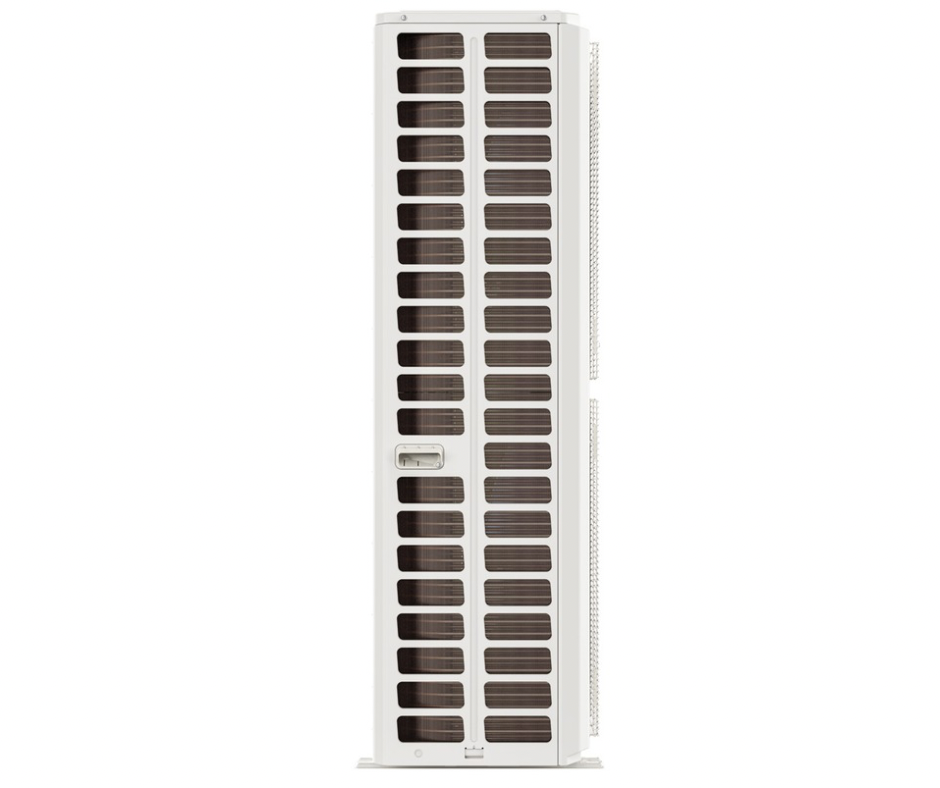

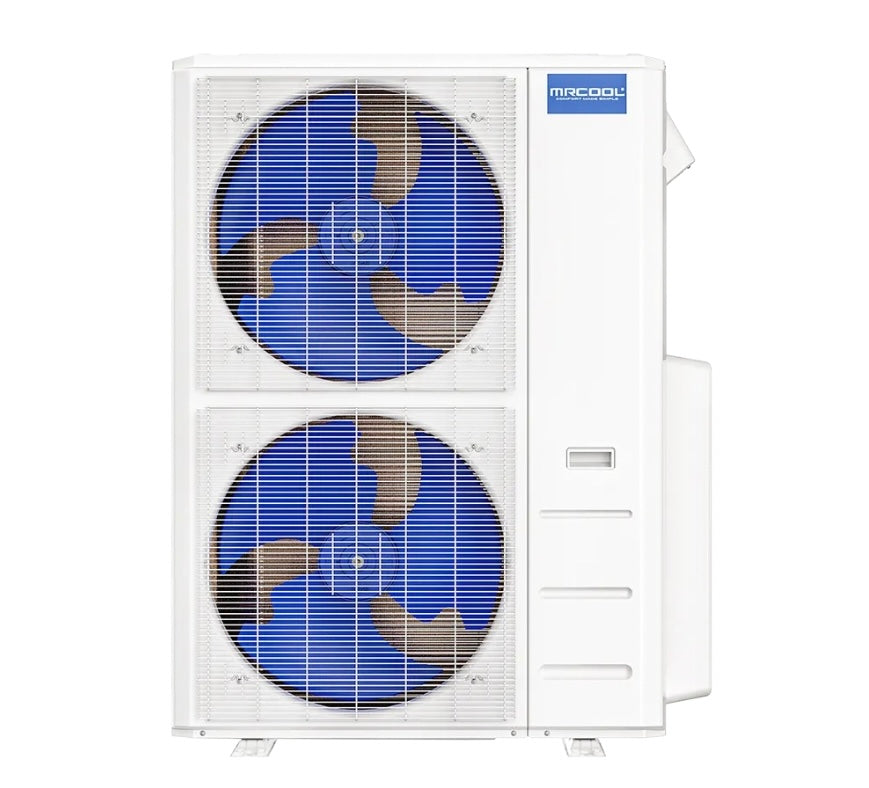

  • ✔ MRCOOL® DIY® 48,000 BTU Multi-Zone Outdoor Condenser

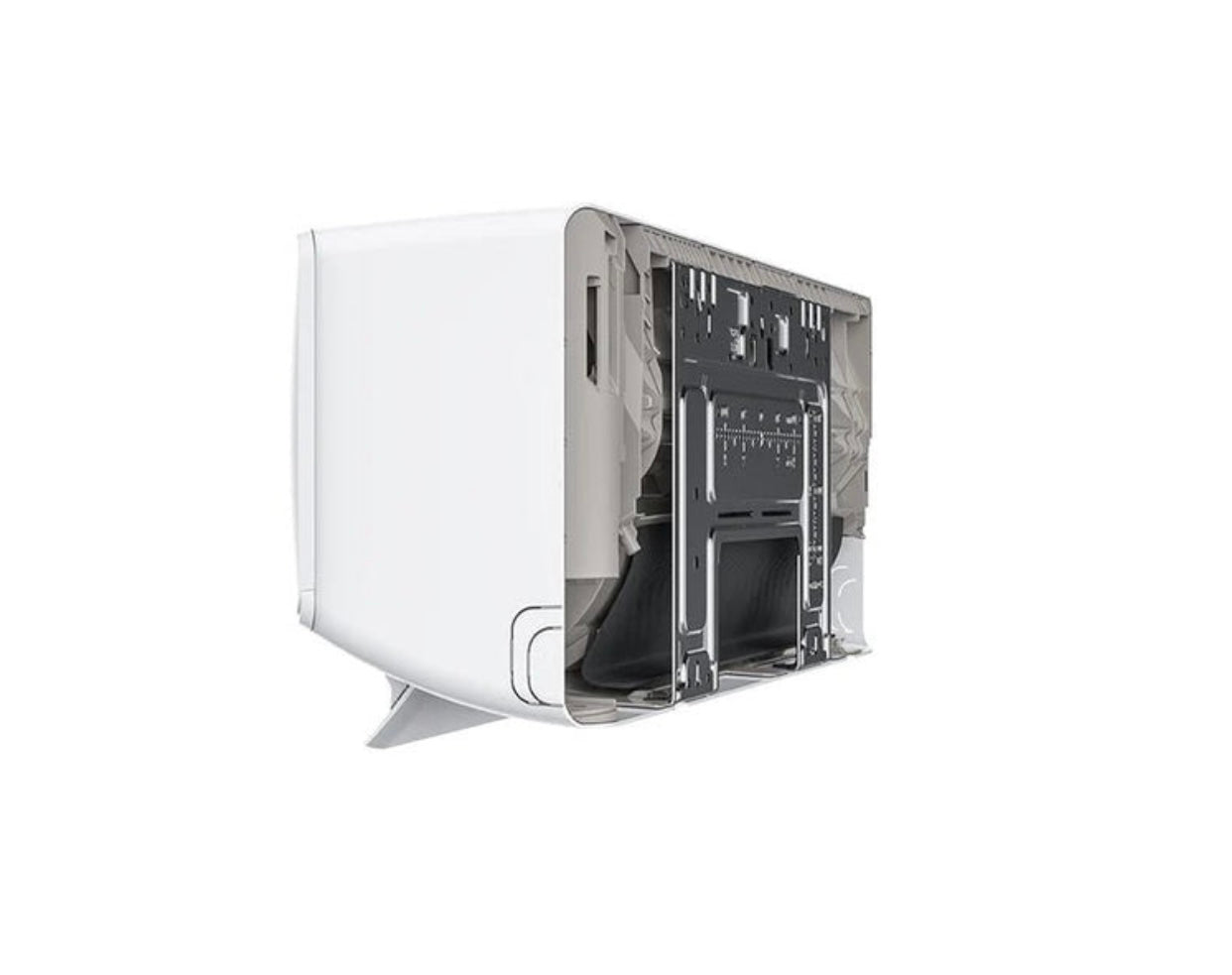

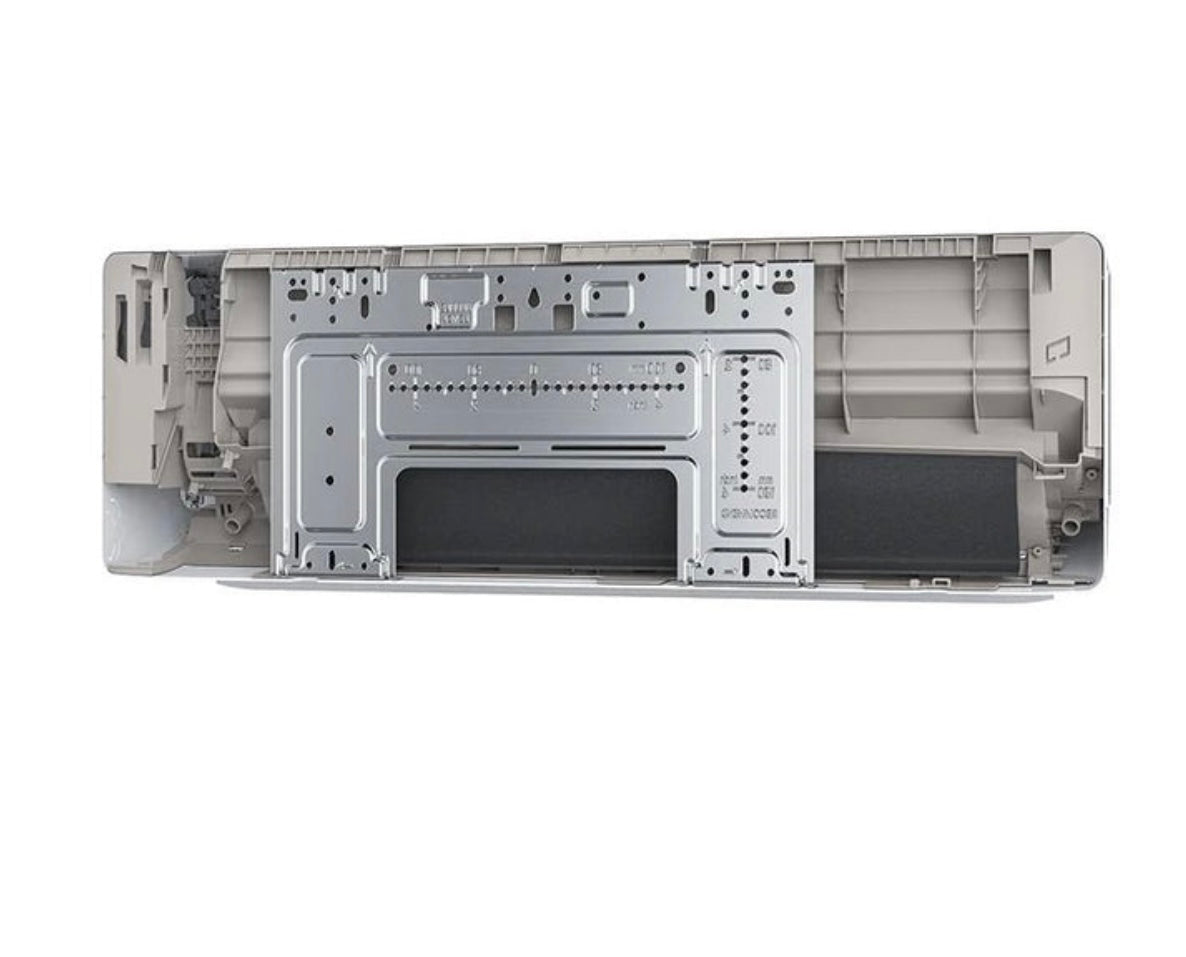

  • ✔ (2) 6,000 BTU Wall-Mounted Indoor Air Handlers
  • ✔ (1) 9,000 BTU Wall-Mounted Indoor Air Handler
  • ✔ (1) 12,000 BTU Wall-Mounted Indoor Air Handler
  • ✔ (4) 16-ft DIY® QuickConnect® Line Sets (1/4 × 3/8)
  • ✔ DIYPRO® communication cable
  • ✔ Wireless remotes for each indoor unit
  • ✔ Installation manuals & mounting hardware

Frequently Asked Questions (FAQ's)

Why mix 6K, 9K, and 12K air handlers?

This allows proper load matching for rooms of different sizes, improving comfort and efficiency.

Is this system really DIY?

Yes. No vacuuming, gauges, or licensed HVAC labor required.

Can each room be controlled independently?

Absolutely. Each zone has its own thermostat and remote.

Does it support smart control?

Yes. Compatible with Alexa®, Google Home®, and the MRCOOL® Smart HVAC Controller® App.
