MRCOOL  |  SKU: DIYM448HPW04D00
7% off
New arrival

MRCOOL DIY 5th Gen Multi-Zone 4-Zone 48,000 BTU 21.8 SEER2 (6K + 6K + 9K + 24K) Ductless Mini-Split Heat Pump System DIYM448HPW04D00

$6,591.00 USD $7,091.00

Delivery and Shipping

We offer fast and reliable shipping across the continental U.S., with free shipping available on most orders (exclusions may apply based on brand and product type). Orders are typically processed within 1–2 business days and transit time is usually 4–7 business days. Larger items may ship via freight and require a scheduled curbside delivery. Please ensure your contact details are accurate at checkout. For questions about delivery timelines, shipping eligibility, or special requests, feel free to contact us directly. See policy

Price Match Guarantee

Find a lower price? Call +1(855-799-1672) and we'll match it! (Some exclusions may apply. See ourLowest Price Guarantee Policyfor more information)

Returns

Our return policy covers a 30-day period from the date of purchase. To be eligible, items must be unused, in their original packaging, and accompanied by proof of purchase. Defective products are eligible for free returns, with options for a refund or replacement. Customer remorse returns may incur return shipping fees and restocking fees. Refunds are processed within a specified timeframe, subject to restocking fees if applicable. Late or missing refunds should be addressed with your bank or credit card company first. Exchanges may be accepted for defective or damaged items. Shipping costs for returns are typically the responsibility of the customer, except in cases of damaged products. For further details or inquiries, please contact us via phone, email, or live chat.See policy

Shop with Confidence
As an authorized U.S. dealer, every order is verified and backed by full manufacturer warranty. Contact our team if you need an official quote, invoice, or product guidance before ordering

Genuine Products — Manufacturer Warranty Included
All items sold at The Imperial Luxe are 100% authentic and backed by the manufacturer’s warranty.

✅ Authorized Online Dealer
🚚 Free Shipping + No Sales Tax (exclusions may apply)
💲 We Beat The Lowest Price
📦 Fast 4-7 Day Delivery
🏭 Manufacturer Warranty Included
❓ Questions? Call Our Experts: +1 (855-799-1672)

Description

MRCOOL DIY 5th Gen Multi-Zone 4-Zone 48,000 BTU 21.8 SEER2 (6K + 6K + 9K + 24K) Ductless Mini-Split Heat Pump System DIYM448HPW04D00

The MRCOOL® DIY® 5th Generation Multi-Zone 4-Zone Ductless Mini-Split Heat Pump System is designed to provide efficient, customizable comfort for multiple rooms or areas in your home. With a total capacity of 48,000 BTU, this system allows each zone to be controlled independently, delivering precise heating and cooling where it is needed most. Its high efficiency rating of up to 21.8 SEER2 helps reduce energy consumption while maintaining consistent indoor comfort throughout the year.

This system is built with MRCOOL®’s patented DIY® QuickConnect® technology, making installation possible without the need for specialized HVAC tools or professional assistance. Pre-charged line sets simplify the setup process, while the variable-speed DC inverter compressor ensures quiet operation and reliable performance. The included indoor air handlers are sized to meet different room requirements, offering flexibility for a wide range of residential layouts.

Equipped with smart control capabilities, the system can be managed through the MRCOOL® Smart HVAC Controller® app and is compatible with popular voice assistants. Durable construction, including Gold Fin® anti-corrosion protection on the outdoor unit, enhances longevity and dependable operation in various environmental conditions.

Features

  • 48,000 BTU total system capacity
  • 4 independently controlled comfort zones
  • (2) 6K + (1) 9K + (1) 24K BTU indoor air handlers
  • Up to 21.8 SEER2 efficiency
  • DC inverter variable-speed compressor

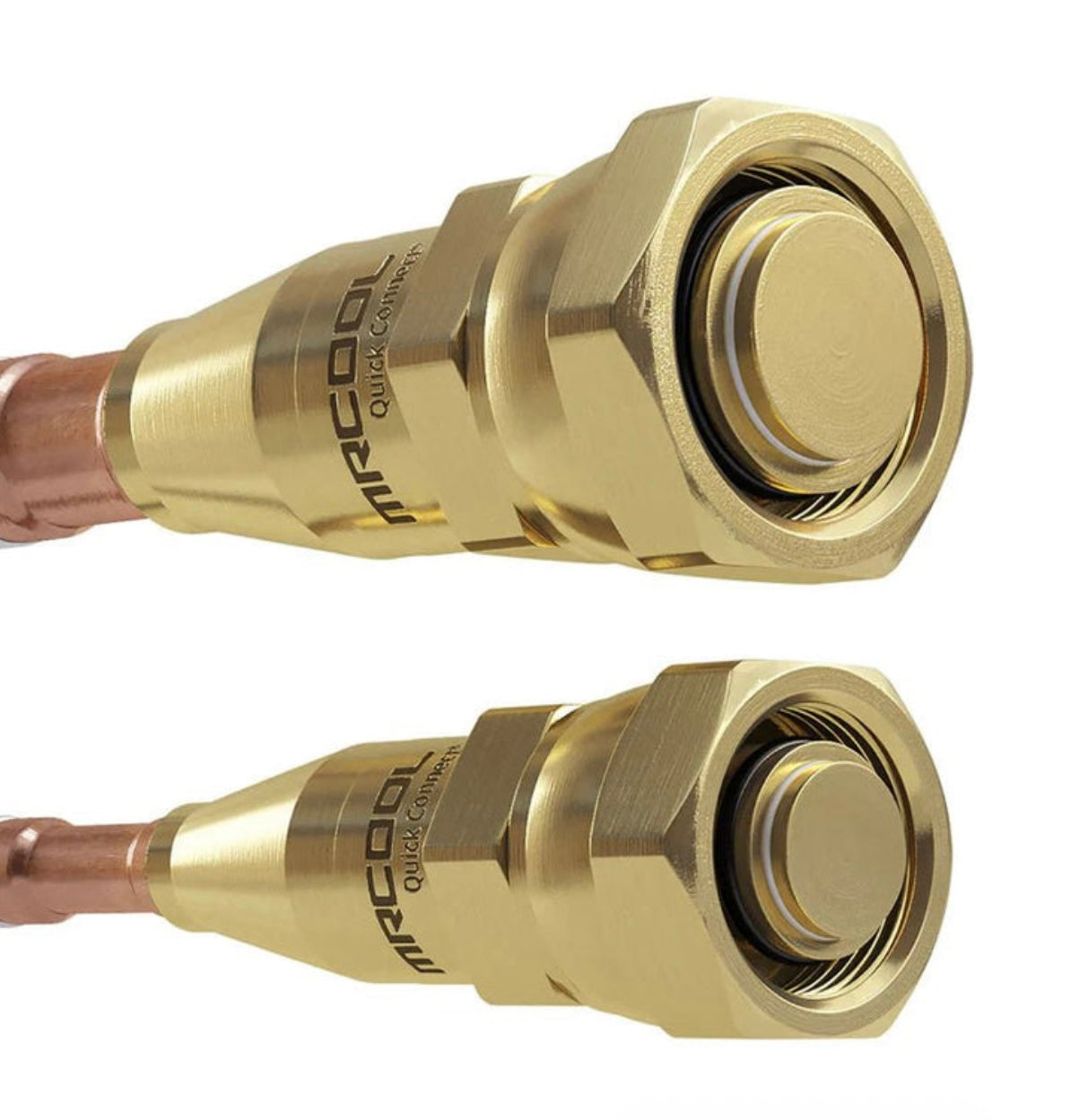

  • DIY® QuickConnect® pre-charged line sets
  • 25-ft line-set reach for flexible layouts
  • DIYPRO® cable (no conduit required)
  • Gold Fin® anti-corrosion protection
  • Follow Me® temperature sensing
  • MRCOOL® Smart HVAC Controller® App
  • Alexa® & Google Home® compatible
  • ENERGY STAR® & AHRI certified

Specifications

Specification Details
Model DIYM448HPW04D00
Total System Capacity 48,000 BTU
SEER2 Up to 21.8
Compressor Type DC Inverter
Voltage 208 / 230 V
Phase / Frequency Single Phase / 60 Hz
Minimum Circuit Ampacity 40 A
Maximum Breaker Size 45 A
Outdoor Unit Dimensions (W × H × D) 37.48 in × 52.48 in × 16.34 in
Outdoor Unit Weight Approx. 224 lbs
Indoor Units Included (2) 6K, (1) 9K, (1) 24K BTU
Line Sets Included 4 × 16 ft DIY® QuickConnect®
Smart Control App, Alexa, Google Home
Certifications ENERGY STAR®, AHRI

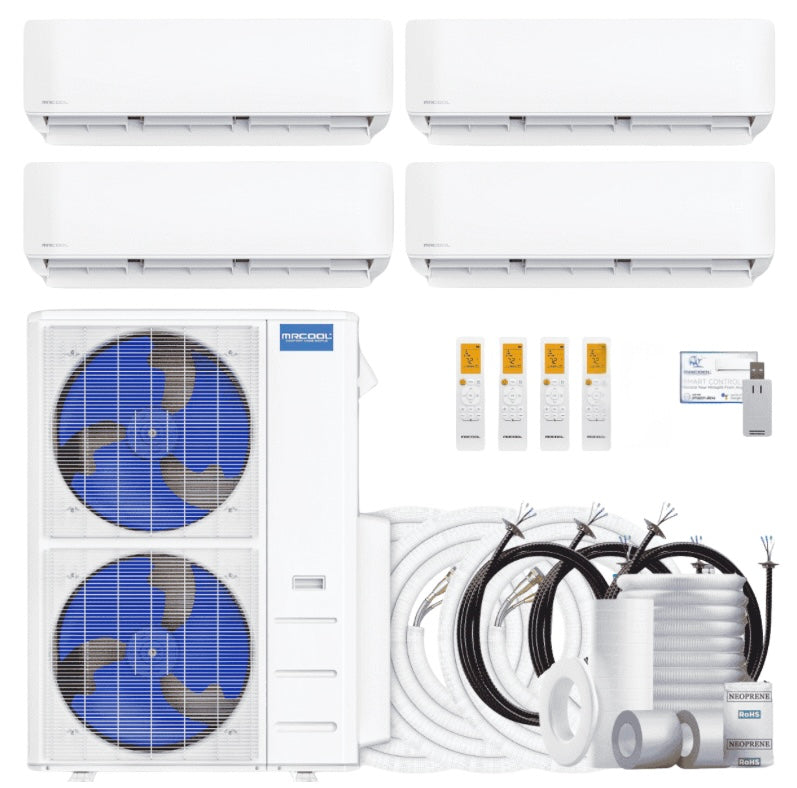

What’s Included

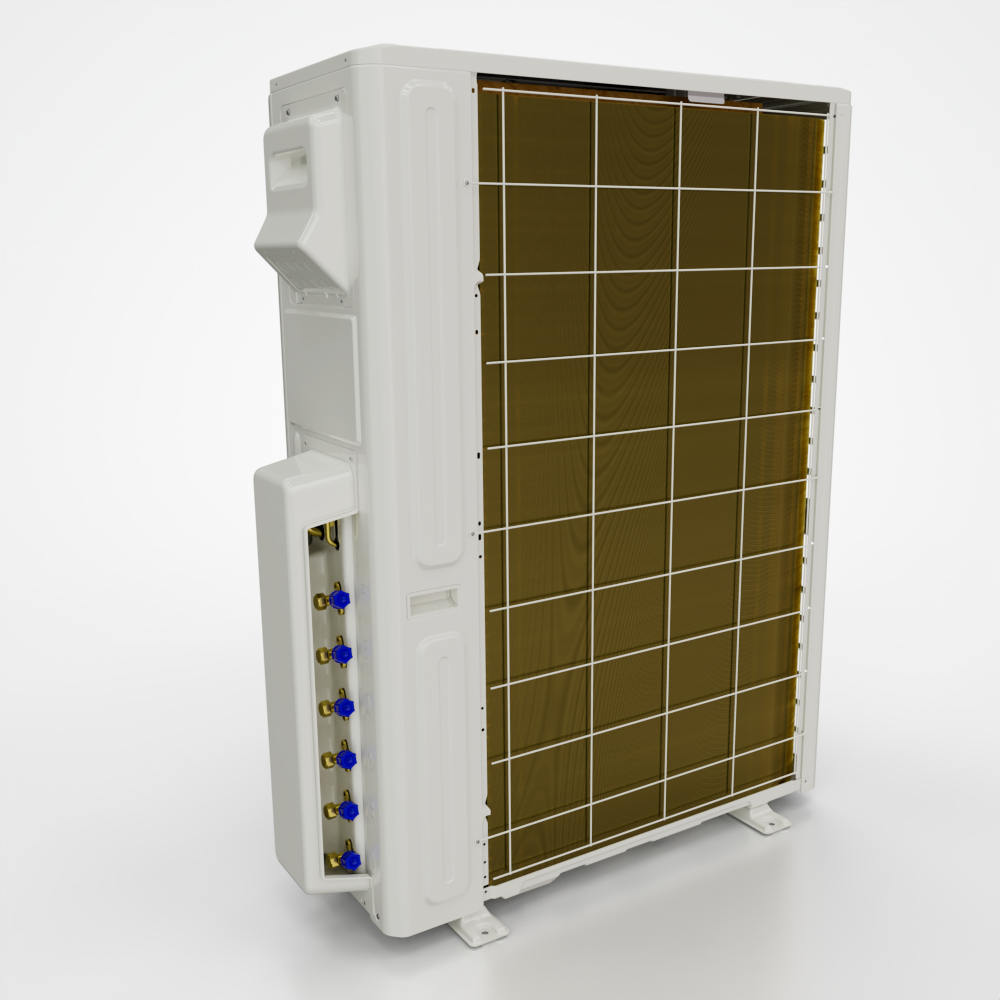

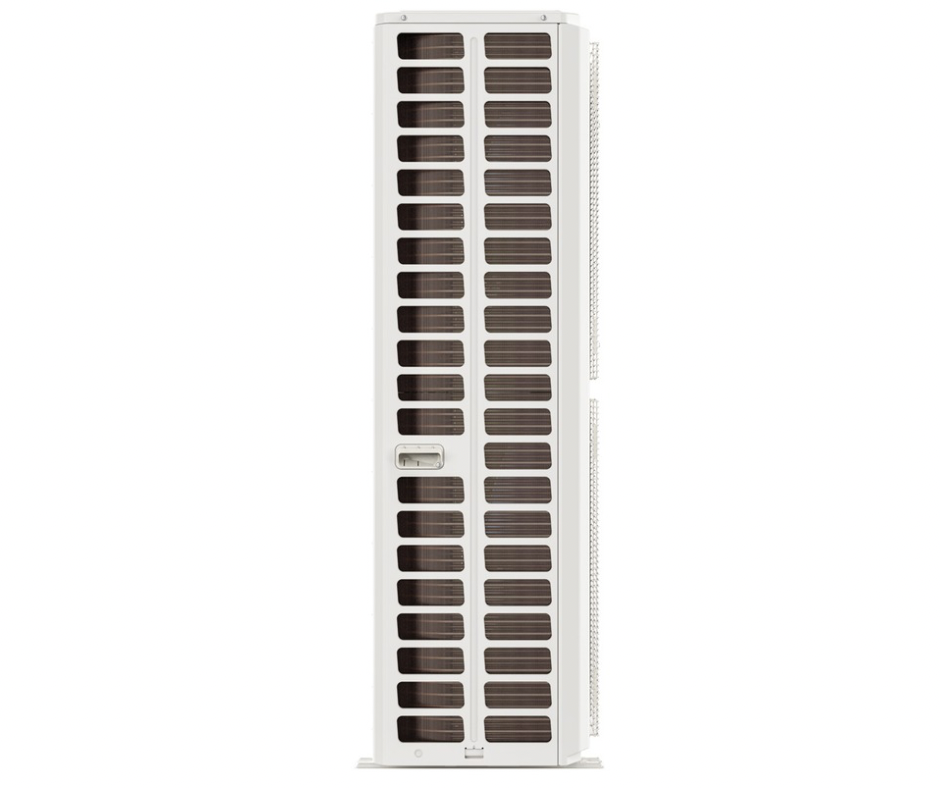

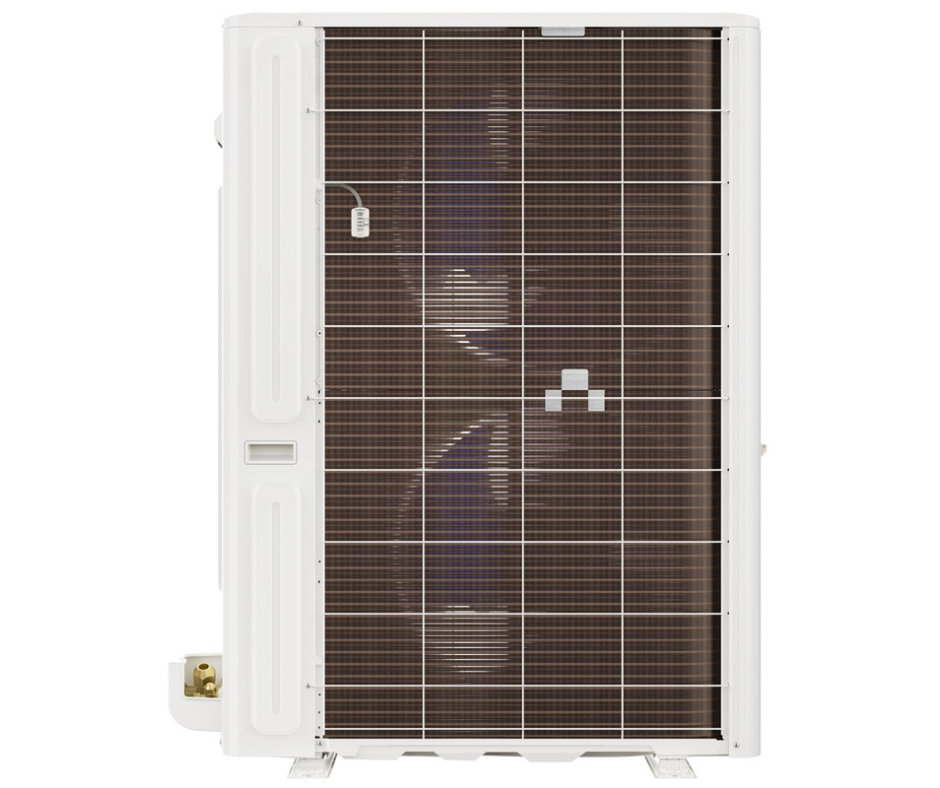

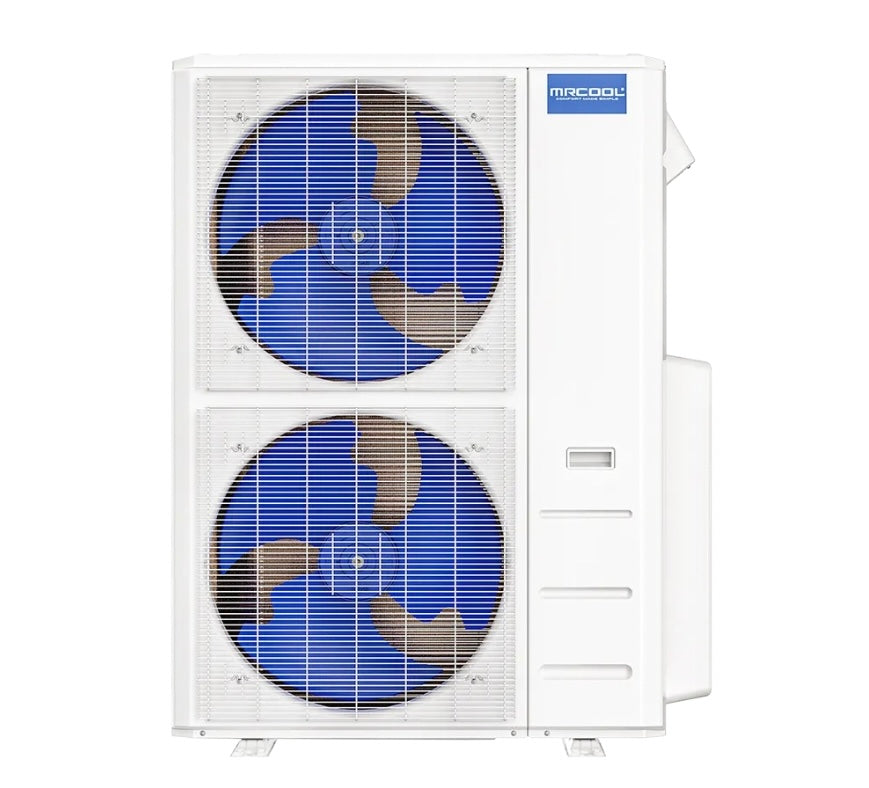

  • ✔ MRCOOL® DIY® 48,000 BTU Multi-Zone Outdoor Condenser

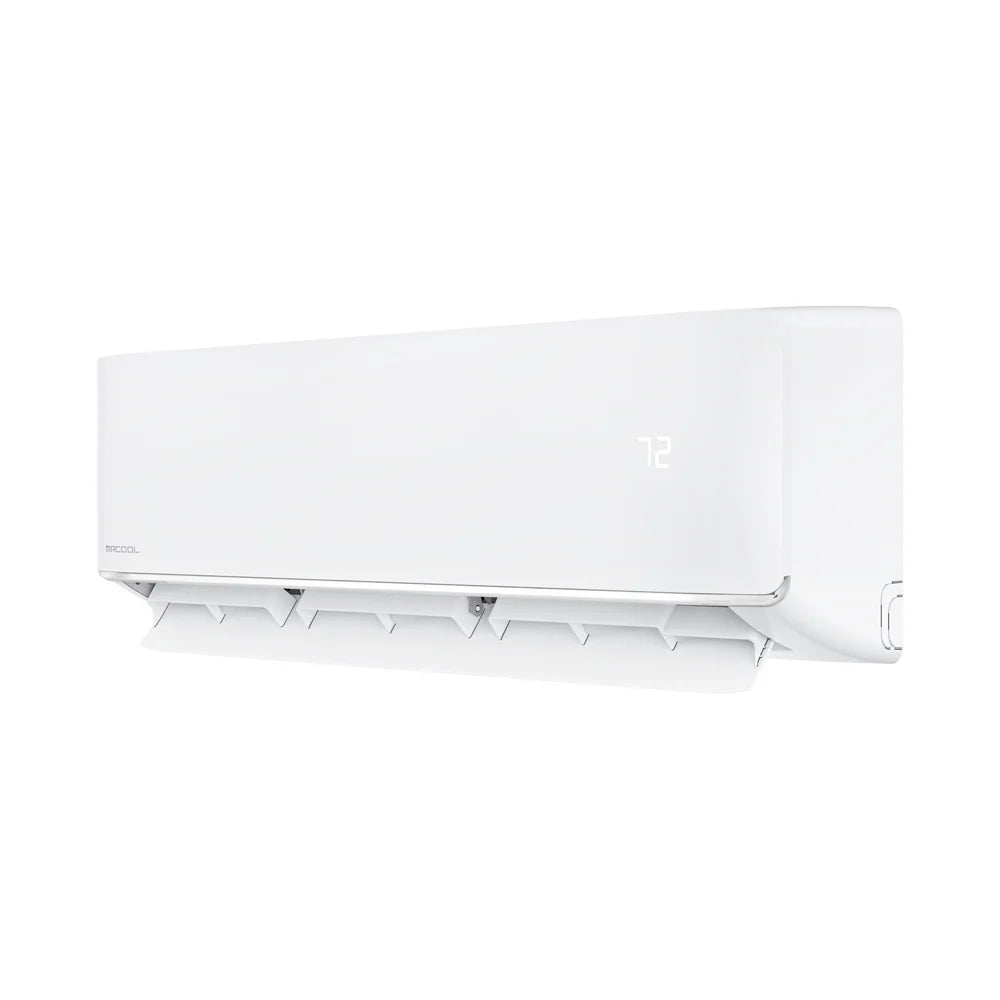

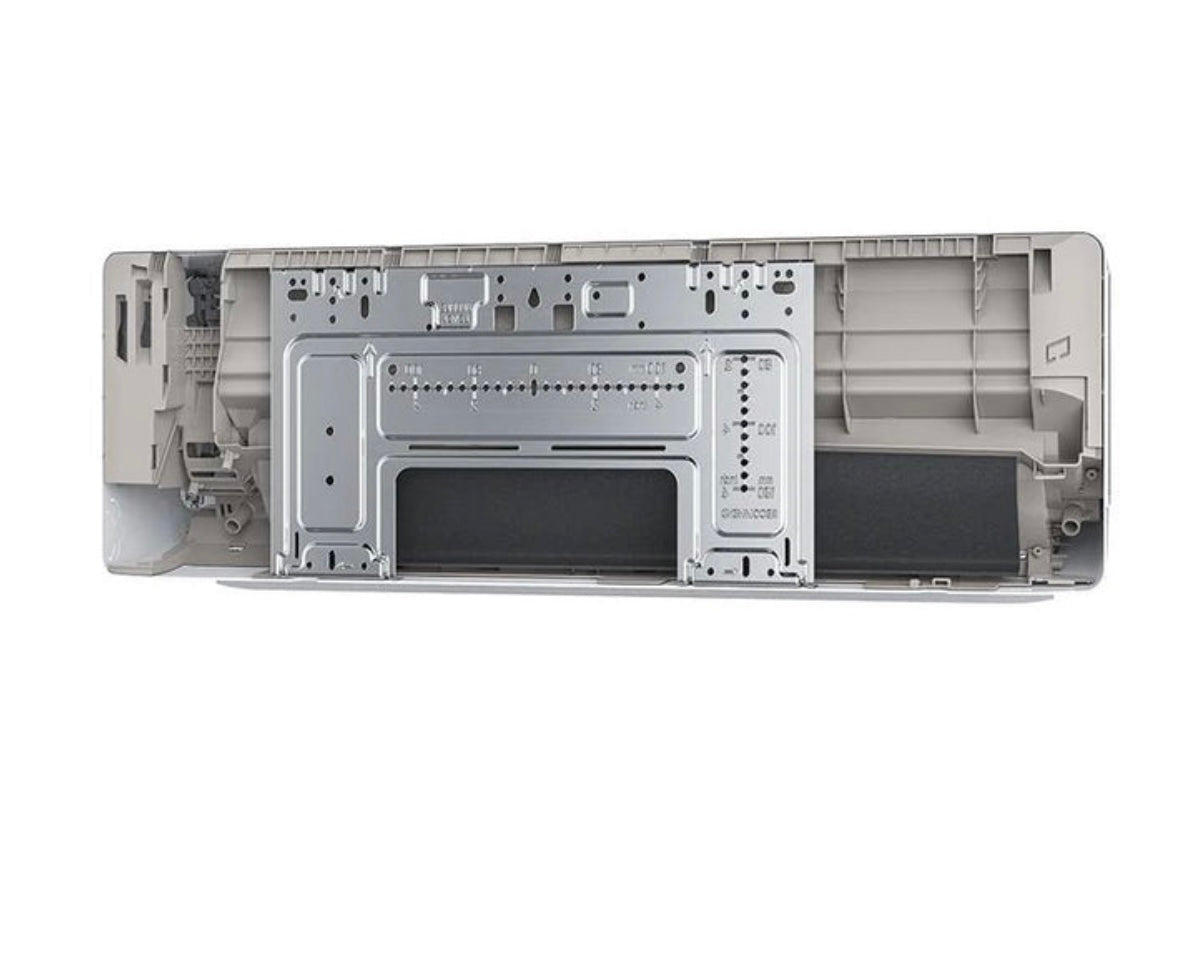

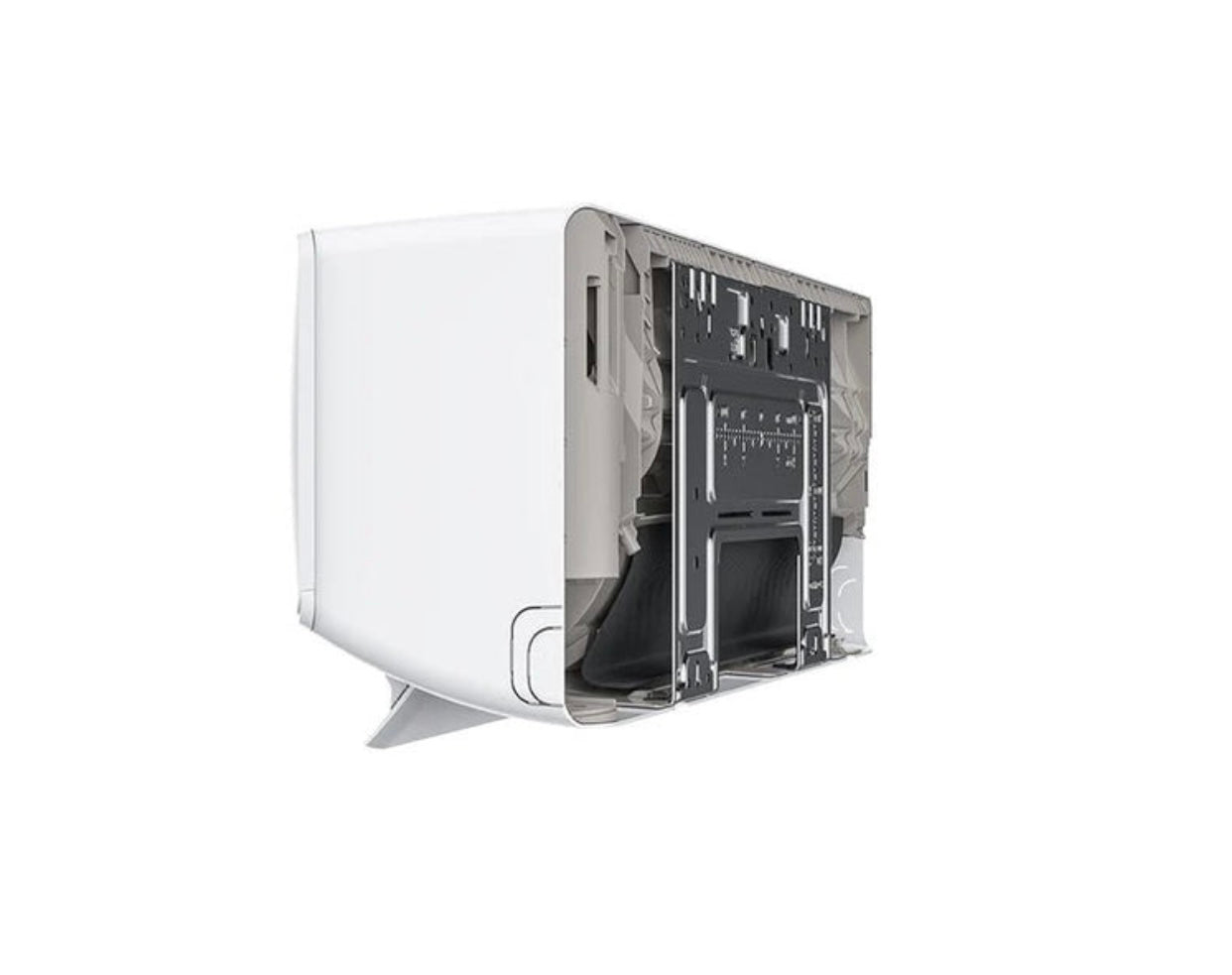

  • ✔ (2) 6,000 BTU Wall-Mounted Indoor Air Handlers
  • ✔ (1) 9,000 BTU Wall-Mounted Indoor Air Handler
  • ✔ (1) 24,000 BTU Wall-Mounted Indoor Air Handler
  • ✔ (3) 16-ft DIY® QuickConnect® Line Sets (1/4 × 3/8)
  • ✔ (1) 16-ft DIY® QuickConnect® Line Set (3/8 × 5/8)
  • ✔ DIYPRO® communication cable
  • ✔ Wireless remotes for each indoor unit
  • ✔ Mounting hardware & installation manuals

Frequently Asked Questions (FAQ's)

Can each zone be controlled separately?

Yes. Each indoor unit has independent temperature control.

Is professional HVAC installation required?

No. This system is designed for true DIY installation.

Why mix 6K, 9K, and 24K air handlers?

This ensures proper load matching for both small rooms and large living spaces.

Does it support smart home control?

Yes. Works with Alexa®, Google Home®, and the MRCOOL® Smart HVAC Controller® App.
