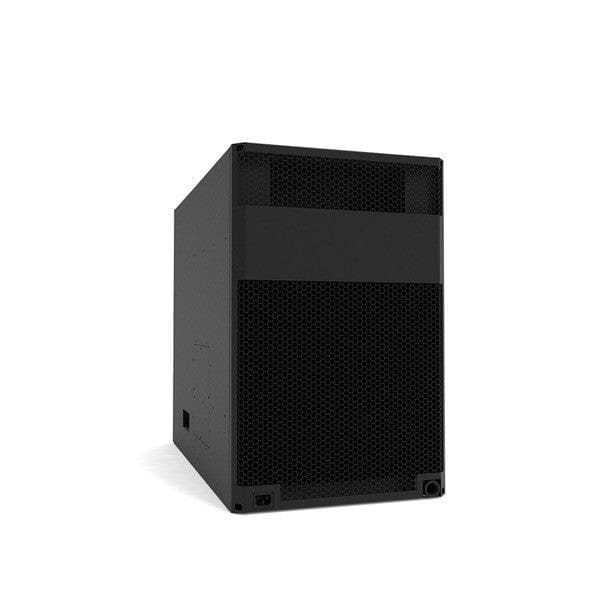

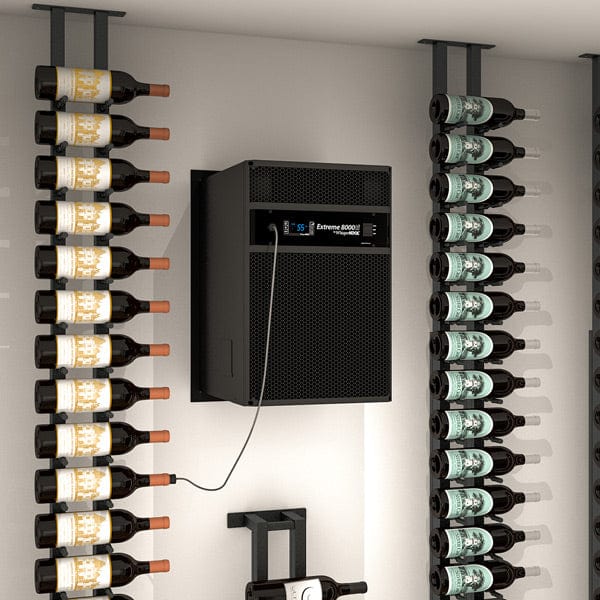

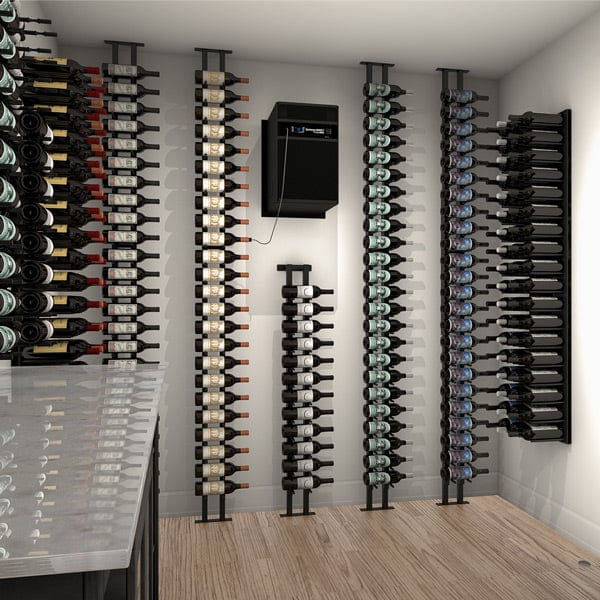

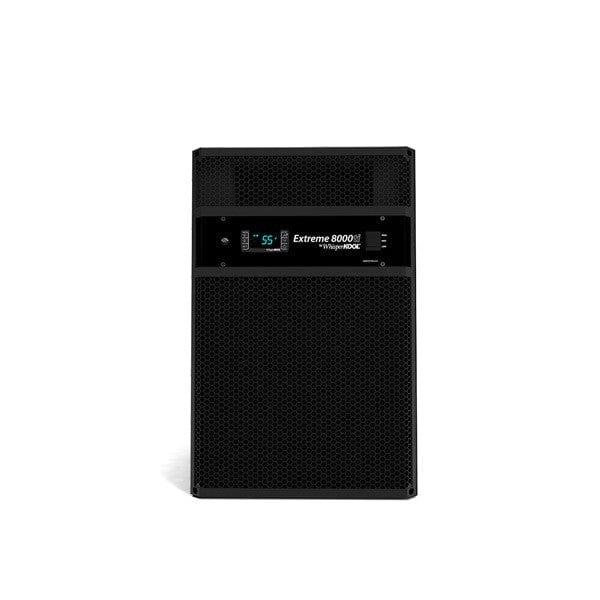

WhisperKOOL Extreme 8000ti Self-Contained Through-the-Wall Wine Cellar Cooling Unit

WhisperKOOL Extreme 8000ti Self-Contained Through-the-Wall Wine Cellar Cooling Unit

The WhisperKOOL Extreme 8000ti Self-Contained Cooling Unit is a high-capacity, through-the-wall system designed for wine cellars up to approximately 2,000 cubic feet. Built for powerful and reliable performance, this unit is ideal for collectors who require consistent temperature control in larger residential or commercial wine storage environments.

Engineered with variable-speed fan technology, the Extreme 8000ti delivers stable airflow and efficient cooling while minimizing temperature fluctuations. Its self-contained design allows for straightforward installation between standard wall studs, eliminating the need for complex split-system configurations.

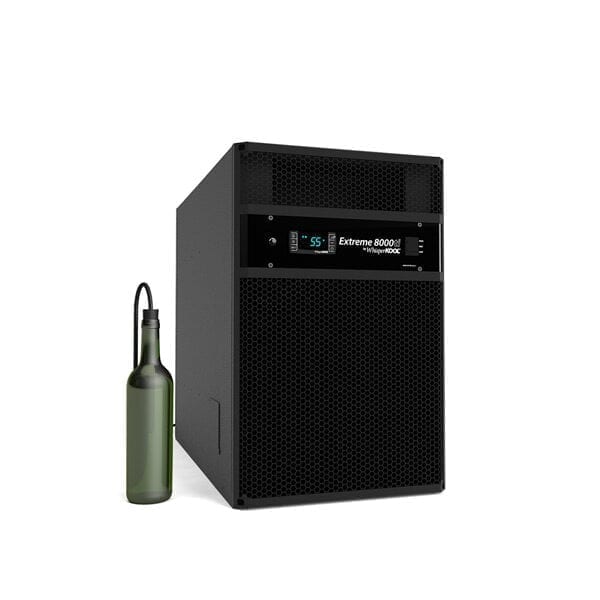

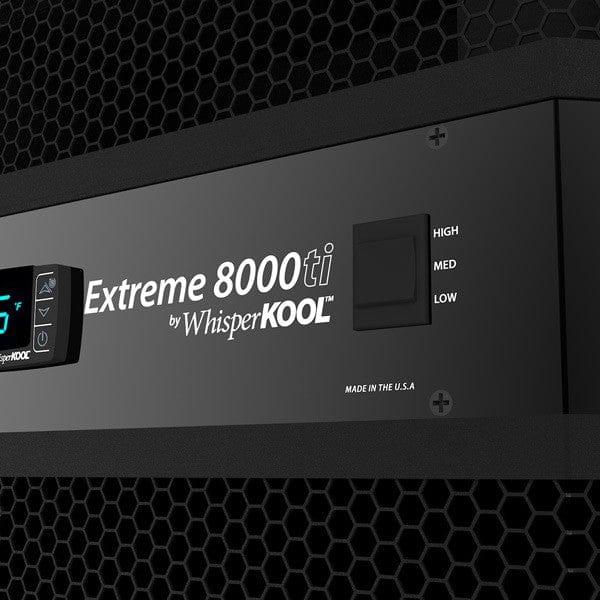

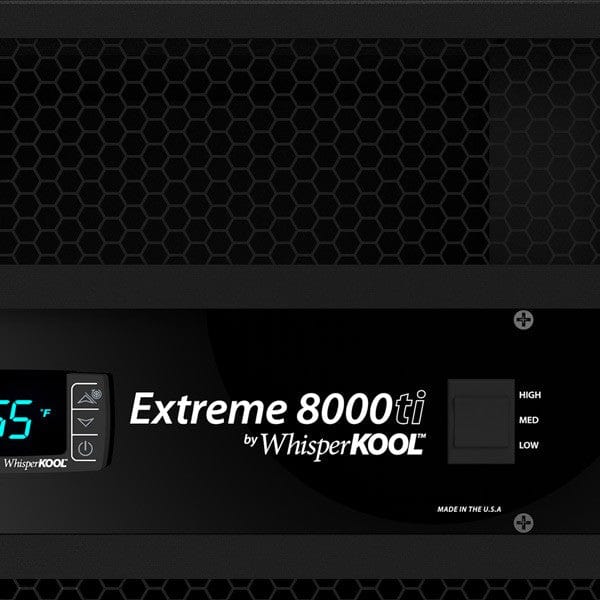

This system is capable of maintaining optimal cellar conditions at approximately 55°F, even when condenser air intake temperatures reach up to 110°F. The front-mounted digital controller and included liquid-temperature bottle probe provide accurate monitoring by measuring the actual temperature of the wine rather than just the ambient air.

Designed for flexibility, the unit supports optional ducting for the condenser side and can be installed in a variety of configurations. Its durable construction and high-performance output make it a dependable solution for long-term wine preservation in demanding environments.

Is the Extreme 5000ti Right for Your Cellar?

Best For:

• Fully insulated cellars up to 1,250 cu. ft.
• Through-the-wall installations between standard wall studs
• Residential wine rooms with ambient exhaust temperatures below 110°F
• Installations where remote thermostat placement is not required
• Homeowners seeking a self-contained system without split-system complexity

Not Recommended For:

• Glass-enclosed modern cellars without proper insulation
• Spaces without a vapor barrier
• Cellars exceeding 1,250 cu. ft.
• Locations where condenser air temperatures exceed 110°F
• Ultra-quiet luxury installations where split systems are preferred

Installation & Environmental Requirements

The 5000ti is rated at 1,250 cu. ft. under the following assumptions:

• R-19 wall insulation (minimum)
• R-30 ceiling insulation (minimum)
• Fully sealed construction
• Proper vapor barrier installed
• Minimal glass exposure

If insulation or sealing is below these standards, effective capacity will decrease and the unit may short cycle or fail to maintain 55°F.

Electrical Requirements

• 115V
• 20-amp dedicated circuit required
• 230V available (subject to availability)

Electrical installation must comply with local code.

Ventilation Requirements

The condenser side can:

• Exhaust directly into an adjacent space below 110°F
• Be vented outdoors (exterior grille recommended)
• Be ducted if ventilation space is restricted

If condenser air exceeds 110°F, performance will decline and compressor strain may occur.

Extreme Series Model Comparison

Manuals for WhisperKOOL Extreme 8000ti Self-Contained:

• Owner's Manual for WhisperKOOL Extreme 8000ti Self-Contained Cooling Unit
• Features & Specification Sheet
• Warranty Information

Important Sizing Notice

Each wine cellar has unique heat loads influenced by:

• Glass exposure
• Insulation quality
• Ceiling height
• Door type
• Ambient room temperature
• Lighting and occupancy

A formal heat load calculation is recommended before final system selection.

Oversizing can cause short cycling. Undersizing can prevent temperature stability.

Final Buying Guidance

Confirm the following before purchasing:

• Proper insulation and vapor barrier are installed
• Cellar volume does not exceed 1,250 cu. ft.
• Exhaust ventilation space remains below 110°F
• A dedicated 20-amp circuit is available

If these conditions are met, the Extreme 5000ti is an effective and straightforward cooling solution for mid-size residential wine cellars.
