The WhisperKOOL SC PRO 8000 Wine Cellar Cooling Unit is a self‑contained system engineered to deliver dependable cooling performance for wine cellars up to approximately 2,000 cubic feet. Its through‑the‑wall design provides straightforward installation with components housed in one unit, making it a practical choice for collectors who want efficient temperature control without the complexity of split systems.

Equipped with an easy‑to‑use digital controller, this unit maintains consistent cellar conditions and helps preserve the quality of your wine collection through precise temperature management. Its robust cooling capacity makes it well‑suited for garages, basements, and custom wine rooms where reliable operation is essential.

Designed with durability and long‑term performance in mind, the SC PRO 8000 operates quietly and efficiently. Its compact footprint maximizes usable wall space, while the built‑in condenser and evaporator help simplify installation and reduce service requirements.

Whether you’re cooling a larger residential cellar or a commercial space requiring dependable performance, the WhisperKOOL SC PRO 8000 offers reliable, user‑friendly operation that supports optimal wine storage conditions.

Who the SC PRO 8000 Is For

Best For:

• Residential wine cellars up to 2,000 cu. ft.
• Fully insulated rooms with vapor barrier installed
• Interior wall installations
• Homes where intake air stays at or below 85°F
• Collectors wanting a self-contained system (no outdoor condenser)

Not Ideal For:

• Large glass wine rooms without upgraded insulation
• Exterior installations in hot climates
• Commercial wine storage
• Rooms exceeding 2,000 cu. ft.
• Spaces where intake air exceeds 85°F

If your installation involves higher ambient temperatures or exterior exposure, WhisperKOOL’s Extreme Series or a split system may be more appropriate.

Environmental & Installation Requirements

Performance depends on the room being built correctly.

To maintain 55°F cellar temperature:

• Condenser intake air must not exceed 85°F
• Walls should be insulated to R19 or greater
• Ceiling should be insulated to R30 or greater
• A continuous vapor barrier must be installed
• A dedicated 115V, 20-amp circuit is required
• Exhaust air must be able to dissipate into a ventilated space

Failure to meet these requirements may result in:

• Inability to reach set temperature
• Continuous run cycles
• Excess humidity imbalance
• Premature compressor failure

Heat load calculations should always be performed before selecting a cooling unit.

How the SC PRO 8000 Performs

The SC PRO 8000 delivers:

• 4,241 BTU/h at 85°F condenser intake temperature

When properly matched to room conditions, this capacity supports wine cellars up to 2,000 cubic feet.

Performance can be affected by:

• Glass walls
• Stone or concrete construction
• High ambient heat
• Poor insulation
• Improper exhaust ventilation

Oversizing or undersizing a cooling unit can lead to humidity control problems and shortened system lifespan.

Key Features

• Centrifugal Blower Fans
  The SC PRO 8000 uses centrifugal blower fans instead of axial fans. These generate stronger static pressure, improving air distribution in deeper or taller wine rooms and reducing temperature stratification.
• Thermostatic Expansion Valve (TXV)
  The TXV dynamically regulates refrigerant flow based on cooling demand. This improves efficiency during ambient temperature fluctuations and reduces compressor strain compared to fixed metering systems.
• Condensate Evaporator
  The system can evaporate up to 3 ounces of condensate per hour. In moderate climates, this may eliminate the need for a drain line. However, in humid environments, installing a drain line is recommended as a safeguard.

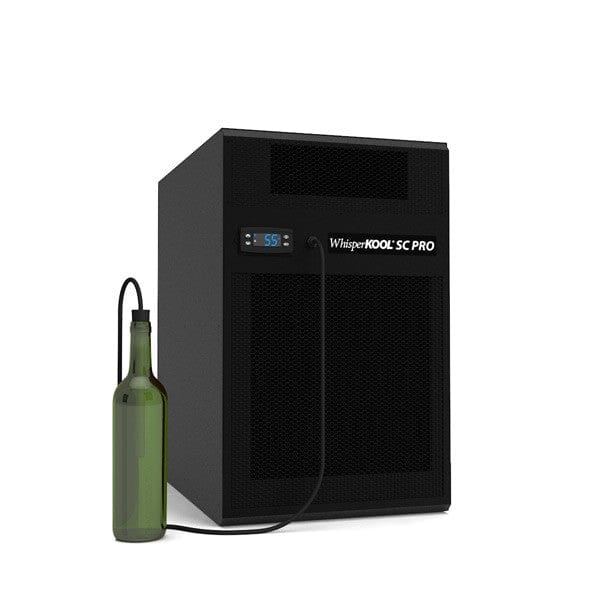

• Liquid-Temperature Bottle Probe
  Instead of measuring air temperature, the SC PRO 8000 measures liquid temperature using a bottle probe. This provides more stable and accurate wine storage conditions.

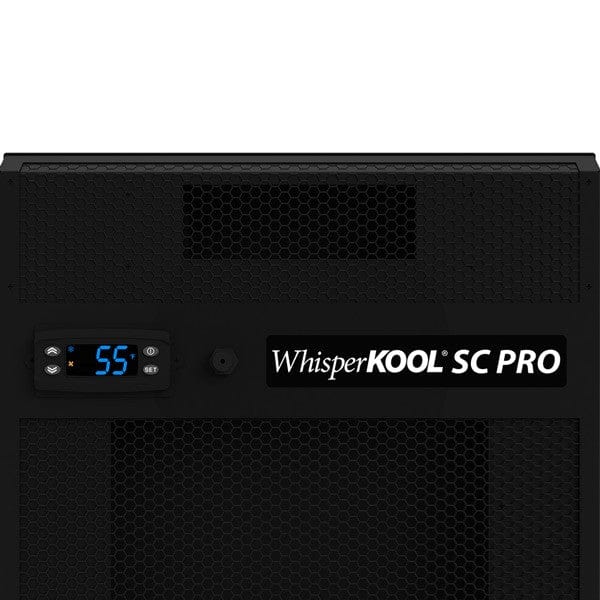

• Advanced Digital Controller
  The front-facing digital display includes system alerts and precise temperature adjustment capabilities.
• Coated Evaporator Coil
  The protective coating enhances durability and corrosion resistance in higher-humidity environments.
• Flexible Power Access
  Power can be connected from the front or rear of the unit, simplifying installation.
• Single-Piece Mounting Bracket
  Provides structural support and simplifies through-the-wall installation.

Technical Specifications — SC PRO 8000

*Capacity assumes fully insulated and sealed cellar with proper vapor barrier.

Manuals for WhisperKOOL SC PRO 8000:

• Owner's Manual for WhisperKOOL SC PRO 8000 Wine Cellar Cooling System
• Features & Specification Sheet for WhisperKOOL SC PRO 8000 Wine Cellar Cooling System
• Warranty Information for WhisperKOOL SC PRO 8000 Wine Cellar Cooling Unit

Optional Accessories — When They’re Necessary

• Exterior Grille
  Required if installing through an exterior wall to protect the exhaust side from outdoor exposure.
• Ducting Kit
  Recommended if the exhaust room cannot dissipate heat effectively.
• UV-C Lighting System
  Helps reduce microbial buildup inside the cooling unit and improve internal air quality.
• ThruWall™ Room-to-Room Fan
  Useful when redistributing exhaust heat to adjacent rooms.


When to Consider a Split or Ducted System Instead

You may need a different system if:

• Your cellar exceeds 2,000 cu. ft.
• Intake air regularly exceeds 85°F
• You require remote condenser placement
• You need ultra-quiet operation
• Your cellar includes extensive glass or unique construction materials
