Katool Two Post Asymmetrical Vehicle Lift 11000lbs Single Point Lock Release KT-AS110D

Katool Two Post Asymmetrical Vehicle Lift 11000lbs Single Point Lock Release KT-AS110D

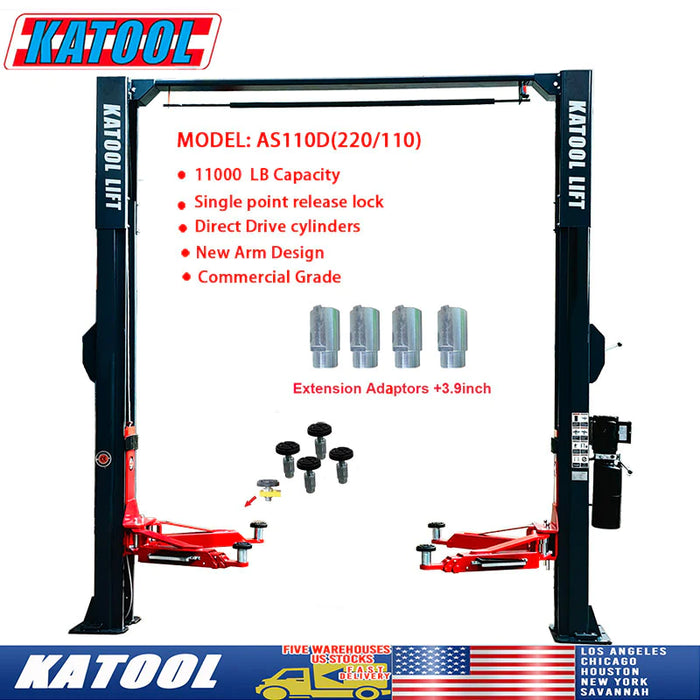

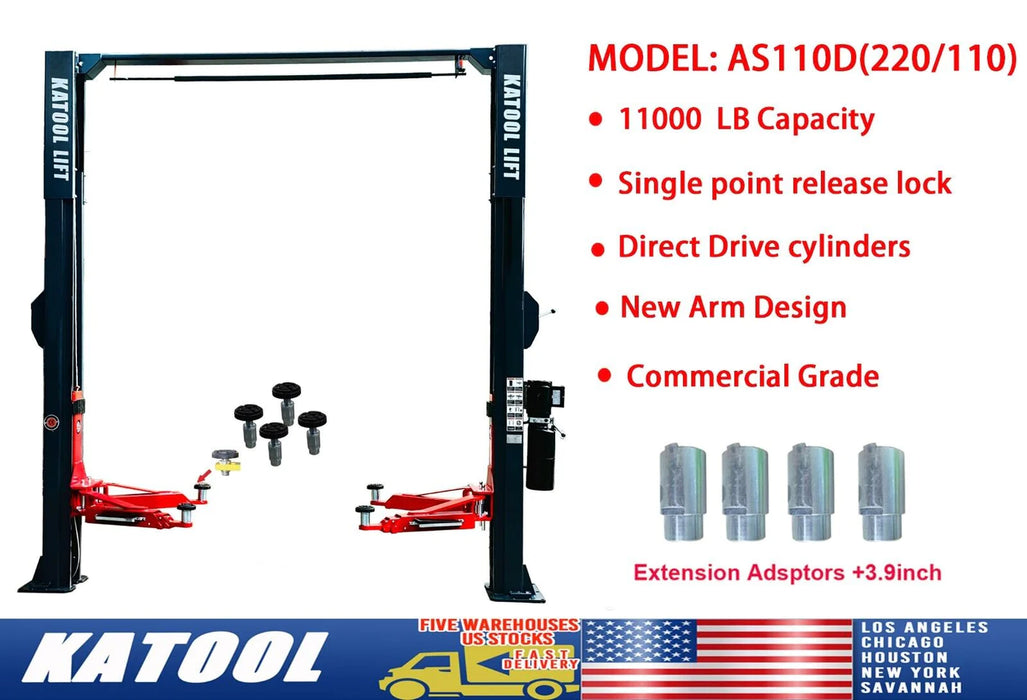

The Katool KT-AS110D is a heavy-duty 2-post asymmetrical vehicle lift with an 11,000-lb lifting capacity, designed for cars, SUVs, and light trucks. It is CE-certified and tested to meet strict dynamic and static load requirements, ensuring strong structural reliability and safe operation under demanding conditions.

This lift uses dual hydraulic direct-drive cylinders to deliver smooth and stable lifting performance. The asymmetrical arm configuration provides better access to vehicle doors and cabin areas, enhancing convenience during maintenance and repair work. A single-point lock release simplifies operation, while adjustable extended support adapters allow the lift to accommodate different vehicle frame heights.

The KT-AS110D also includes essential safety features for workshop environments. These include an overhead safety shutoff bar to prevent over-lifting, rubber door-opening protection to avoid vehicle damage, and feet-protection guardrails with a built-in toolbox. Its low pad height makes it suitable even for low-chassis vehicles, while the high maximum lifting height provides ample clearance for underbody servicing.

The lift’s overall height and width offer a spacious working area, with generous drive-through clearance and wide column spacing. Constructed with a heavy, stable frame, the KT-AS110D is engineered for frequent use in professional auto shops, service centers, and well-equipped home garages.

Elevate Your Garage: Katool KT-AS110D Asymmetrical 2-Post Lift (11,000 lbs)

Safe, Efficient Lifting for Cars, SUVs, and Light Trucks

The Katool KT-AS110D offers a powerful and versatile lifting solution for your workshop. This CE-certified lift boasts a hefty 11,000 lbs capacity and exceeds industry standards for safety and reliability.

Features

• 11,000 lbs Capacity: Easily handle most cars, SUVs, and light trucks.
• CE Certified & Exceeds Standards: Meets 115% dynamic and 150% static load capacity for peace of mind.
• Single-Point Release: Convenient operation with a secure locking system.

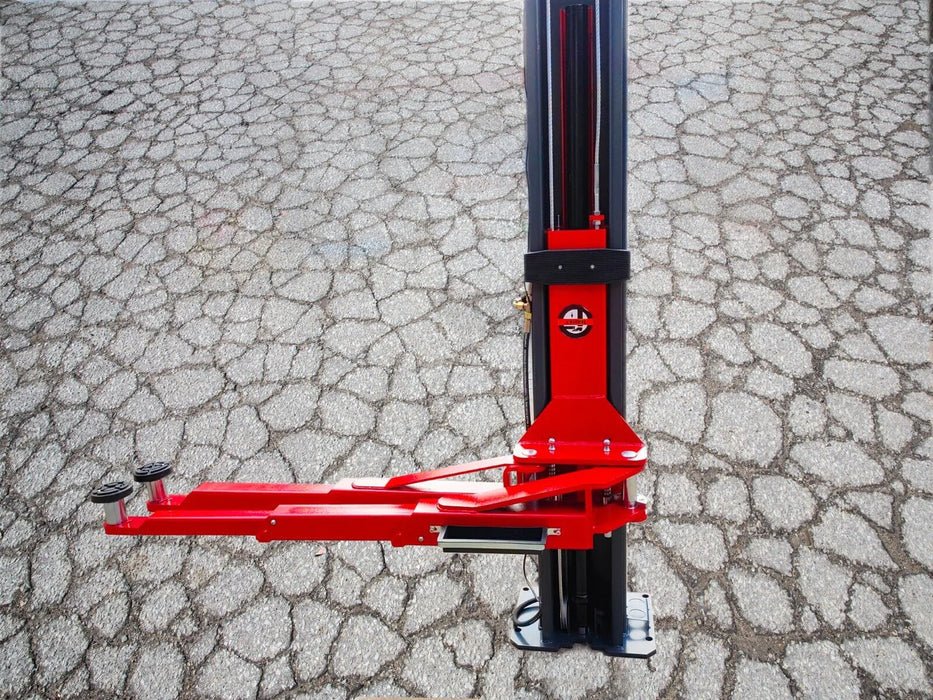

• Asymmetric Arms & Direct Drive Cylinders: Provide efficient lifting and maneuverability for various vehicles.
• Door Entry Protection: Rubber pads safeguard your vehicle during entry/exit.

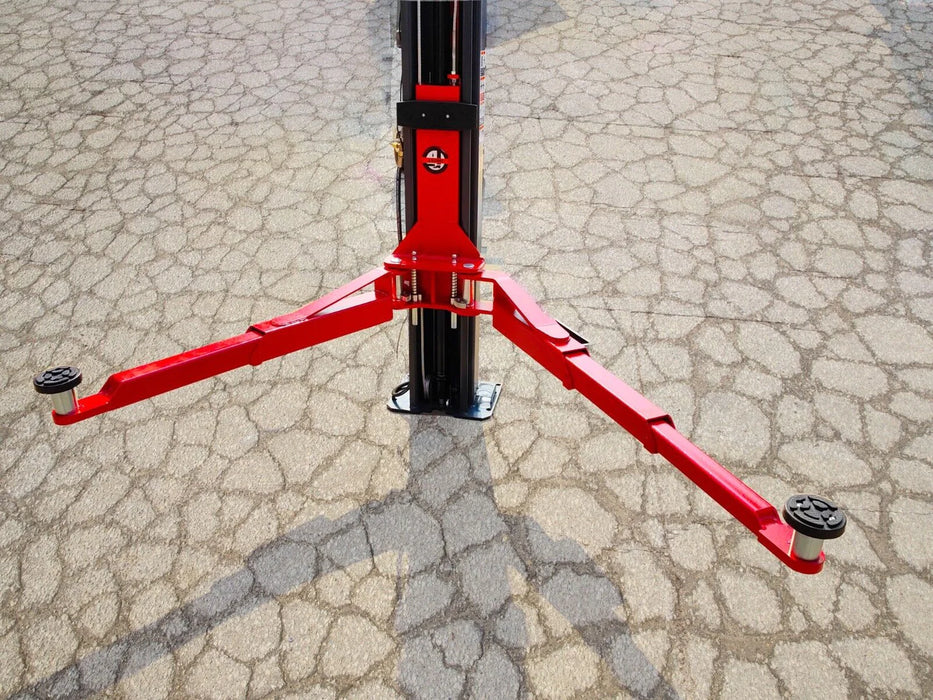

• Adjustable Arm Extensions: Accommodate a wider range of wheelbases.
• Overhead Safety Shutoff Bar: Stops operation instantly in case of contact.
• Safety Guardrails with Toolbox: Maximize workspace safety and organization.
• High-Quality Hydraulics: Choose between 110V or 220V operation for flexible power options.

The Katool KT-AS110D is ideal for professional mechanics and serious car enthusiasts who demand a reliable and versatile lifting solution.

Please note: Requires proper concrete installation (consult a professional).

12 Months All Parts Warranty

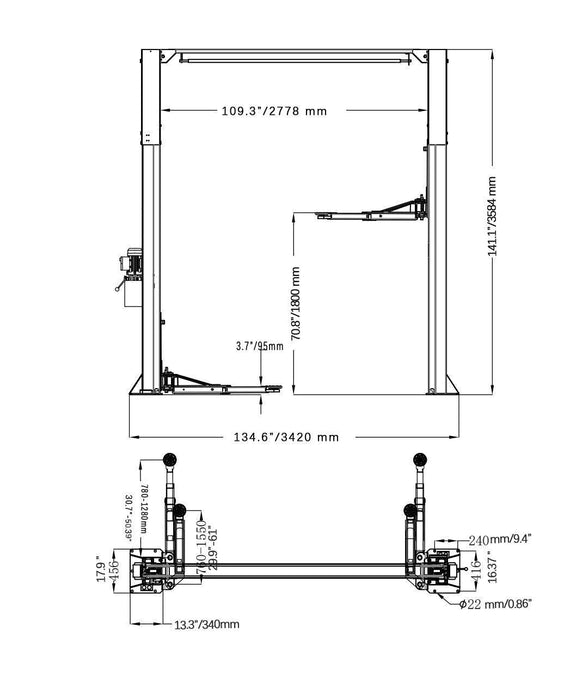

Specifications

• Lifting Capacity: 11,000 lbs (4,990 kg)
• Max Lifting Height: 70.75 in (1,800 mm)
• Min Lifting Height: 3.74 in (95 mm)
• Overall Height: 141.25 in (3,587 mm)
• Overall Width: 134.65 in (3,420 mm)
• Outside Column Height: 120.4 in (3,058 mm)
• Inside Column Height: 109.37 in (2,778 mm)

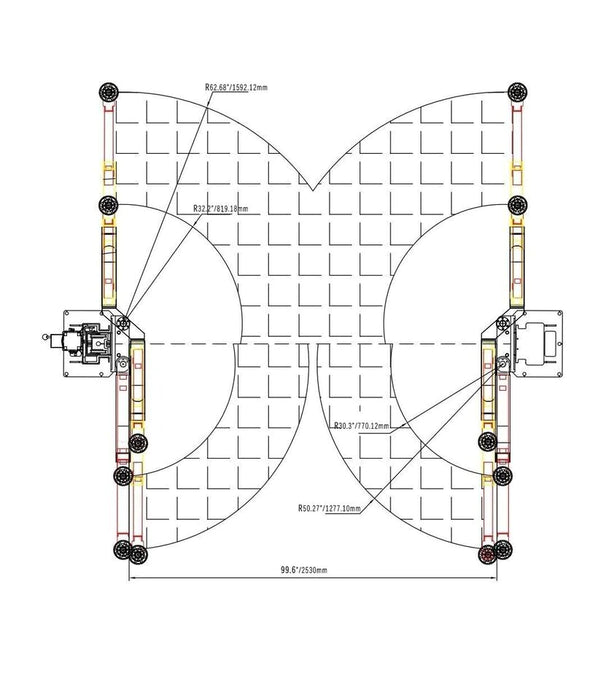

• Drive-Thru Clearance: 99.61 in (2,530 mm)
• Motor: 220V/60HZ/1PH (Optional: 110V/60HZ/1PH)
• Net Weight: 1,323 lbs (600 kg)

Understanding Two-Post Lift Weight Capacities

Two-post lifts are essential in automotive shops, but selecting the appropriate lift with the correct weight capacity is crucial for safety and equipment longevity.

Typical Weight Capacities

Two-post lifts generally have weight capacities ranging from 7,000 to 20,000 pounds, accommodating various vehicles from light-duty cars to heavy-duty trucks. It's important to note that each lift arm also has its own weight limit. For instance, a lift with a 10,000-pound total capacity may have each arm rated for 2,500 pounds. Therefore, if a vehicle's weight distribution exceeds this per-arm limit, the lift may not be suitable.

Calculating Required Lift Capacity

To determine the appropriate lift capacity:

1. Calculate Rear Axle Weight: Multiply the vehicle's total weight by the distance from the center of gravity to the front axle, then divide by the wheelbase.

2. Calculate Front Axle Weight: Subtract the rear axle weight from the total vehicle weight.

3. Determine Arm Capacity: Divide each axle's weight by two to find the load per arm.

For example, if a vehicle weighs 9,000 pounds with a 3,000-pound front axle and a 6,000-pound rear axle, each arm would need to support 3,000 pounds. In this case, a 10,000-pound lift with 2,500-pound arms would be insufficient.Opting for a 12,000-pound lift would be safer.

Importance of Choosing a Lift with Adequate Capacity

Selecting a lift with a capacity that exceeds the vehicle's weight requirements is advisable. This accounts for variables like vehicle modifications, additional equipment, or unexpected weight distributions. Many manufacturers recommend not exceeding 75% of a lift's rated capacity to maintain safety margins.

Safe Operating Practices

• Adhere to Weight Limits: Never exceed the lift's total or per-arm weight capacities.

• Proper Vehicle Positioning: Ensure the vehicle is centered and balanced on the lift to distribute weight evenly.

• Regular Maintenance: Follow the manufacturer's maintenance schedule and conduct routine inspections to identify potential issues.

By understanding and respecting the weight capacities and operational guidelines of two-post lifts, automotive shops can ensure safer working conditions and prolong the lifespan of their equipment.
