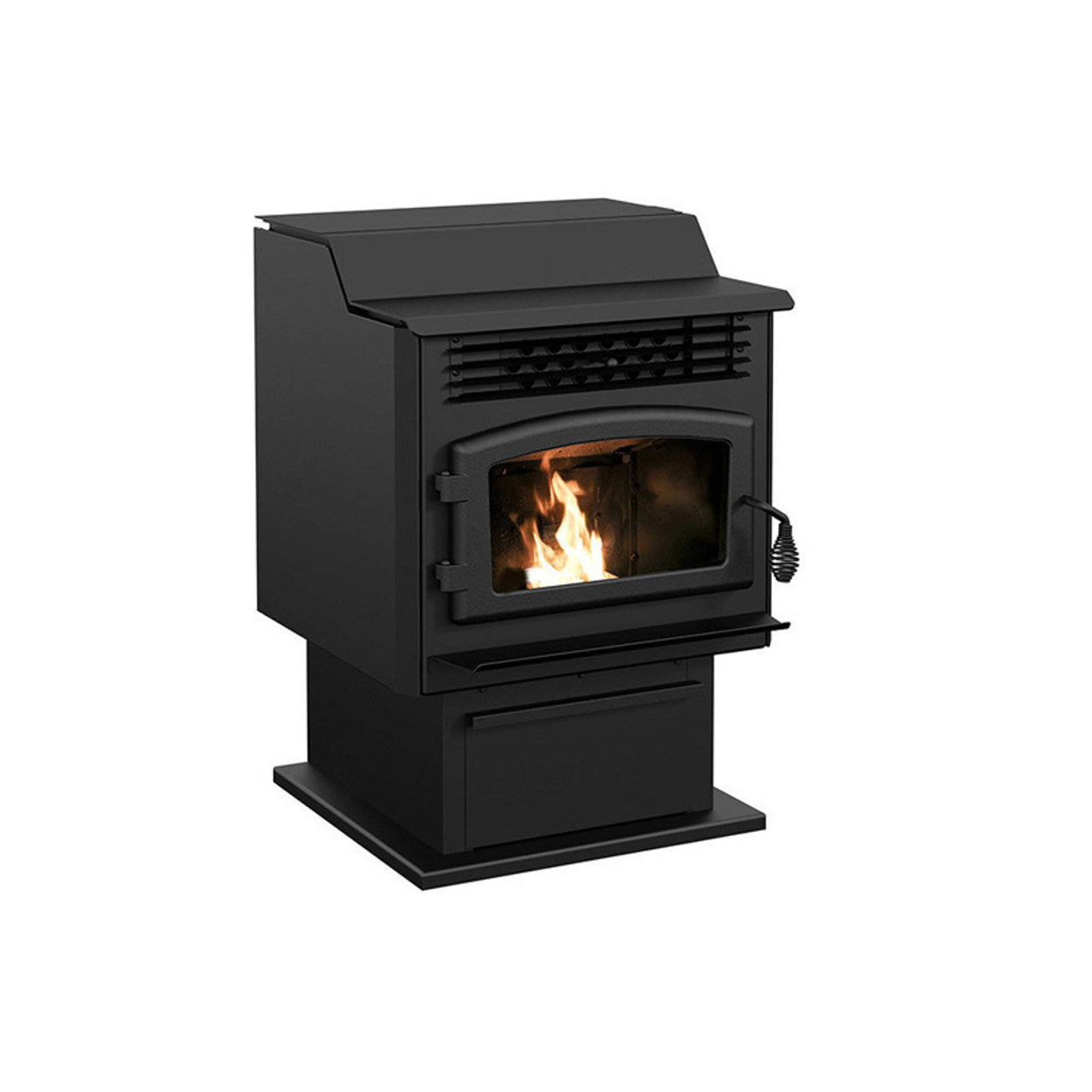

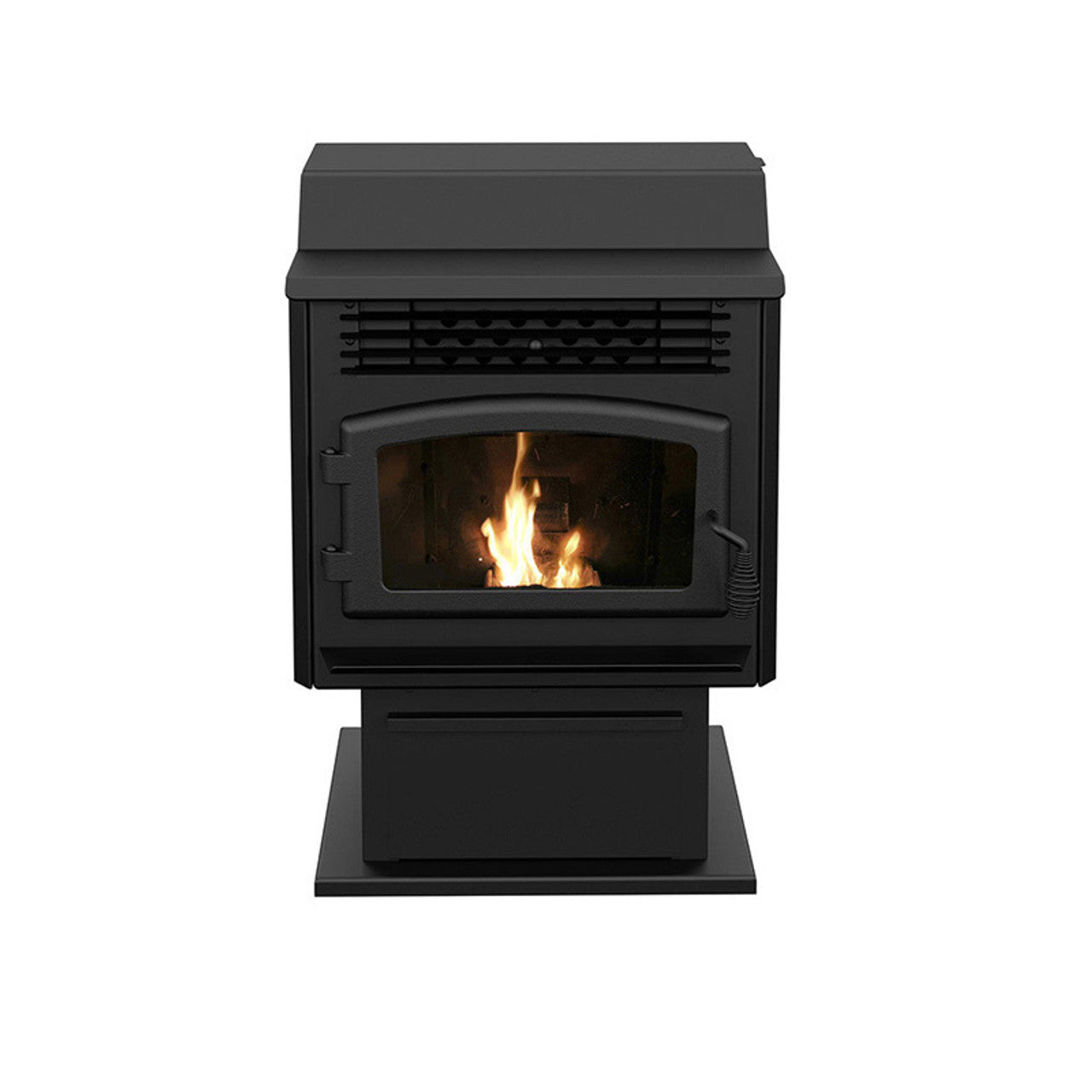

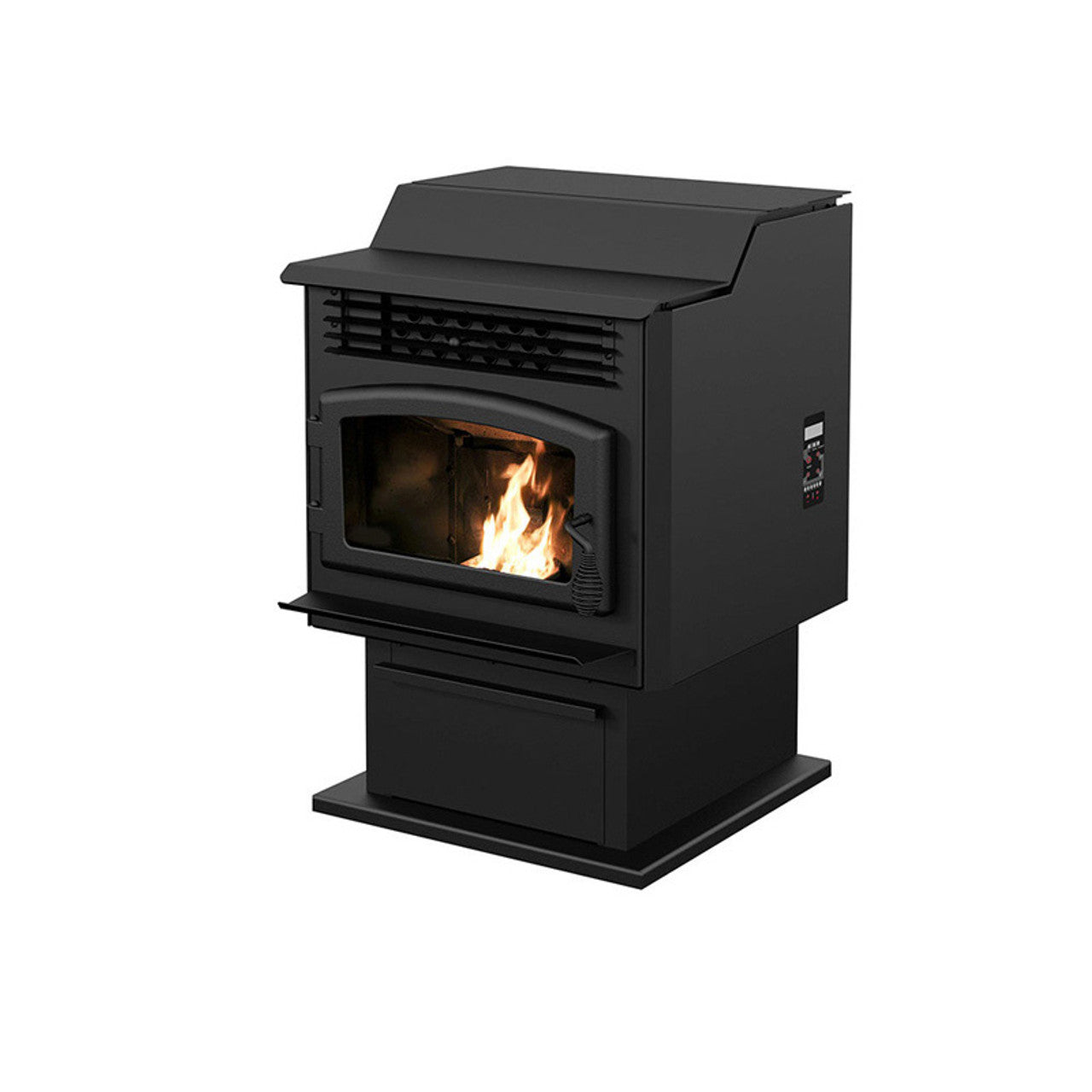

Ventis VB00022 Pellet Stove – 80 lb Hopper Capacity
The Ventis VB00022 Pellet Stove is a powerful, high-efficiency heating solution, expertly engineered in Canada. Combining modern design with advanced combustion technology, it delivers reliable, eco-conscious heat for a wide range of home environments.
Built with a durable black steel finish, this freestanding stove uses a top-feed burner system to ensure optimal fuel combustion, maximizing performance and minimizing waste. With a 2020 EPA certification, it meets the highest environmental standards, producing low emissions while achieving up to 78.4% optimum efficiency. It offers a maximum heat output of 28,540 BTU/h, with a burn time of up to 69 hours on the low setting—extendable to 120 hours with an optional hopper extension.
The large 80 lb hopper capacity means fewer refills, and the powerful 176 CFM blower ensures even heat distribution across spaces ranging from 500 to 2,000 ft². It’s equipped with electronic ignition for quick, dependable startups, and the 3" flue outlet makes installation simple.
Included With Your Stove
Optional Accessories (Sold Separately)
Key Features
-
Canadian-made for unmatched quality and performance
-
Top-feed combustion system for clean and efficient burning
-
80 lb hopper supports long burn times with minimal refilling
-
176 CFM blower distributes heat effectively across rooms
-
EPA 2020 certified, environmentally friendly with low emissions
-
Mobile home and alcove approved (with fresh air intake)
-
Electronic ignition ensures quick, reliable startups
-
3" flue outlet for easy, streamlined installation
-
Durable black finish and robust construction
-
Stainless steel baffle improves combustion efficiency
Technical Specifications
Specification |
Detail |
Fuel Type |
Premium-grade wood pellets |
Finish |
Black |
Ignition |
Electronic |
Hopper Capacity |
80 lbs |
Burn Time (Low Setting) |
Up to 69 hours |
Extended Burn Time (Optional Kit) |
Up to 120 hours |
Heating Area |
500 - 2,000 ft² |
Max Heat Input Rate |
39,260 BTU/h (11.5 kW) |
Max Heat Output |
28,540 BTU/h (8.36 kW) |
Min Heat Output |
6,648 BTU/h (1.95 kW) |
Overall Efficiency (LHV) |
Up to 75.8% |
Optimum Efficiency |
78.4% |
Overall Efficiency (HHV) |
Minimum 70.3% |
Viewing Glass Size (W x H) |
15 ¾" x 8 ⅛" |
Door |
Single ceramic glass, cast iron frame |
Installation Type |
Freestanding |
Flue Outlet |
3" diameter |
Chimney Compatibility |
ULC/ORD-C441, UL 641, CAN/ULC S609 (Type L) |
Baffle |
Stainless steel |
Emission Certification |
CSA B415.1-10, ASTM E2779 |
Safety Certifications (USA) |
ASTM E1509, UL 1482 |
Safety Certifications (Canada) |
ULC S627 |
Mobile Home Approved |
Yes (with fresh air intake) |
Alcove Installation Approved |
Yes |
Power Supply |
120VAC, 60Hz |
Ignition Power Draw |
3.02A |
Weight |
286 lbs |
Dimensions (W x H x D) |
25" x 36" x 29" |
Warranty Coverage
Component Category |
Parts |
Labor |
Firebox (welds only), castings, convector air-mate |
Lifetime** |
4 years |
Plating (manufacturing defects only)* |
Lifetime** |
N/A |
Ceramic glass (thermal breakage only)* |
Lifetime** |
N/A |
Firebox components (stainless steel, baffle, air tubes, etc.) |
5 years** |
3 years |
External parts (ash drawer, pedestal, trim, etc.) |
5 years |
N/A |
Carbon steel firebox components |
3 years |
2 years |
Electronics (blowers, switches, sensors, wiring, etc.) |
2 years |
1 year |
Paint, gaskets, insulation, ceramic fiber blanket |
1 year |
N/A |
Replacement parts (under warranty) |
90 days |
N/A |
*Subject to limitations
**Applicable to fireplace-only components
Important Installation Notes
Professional installation is strongly recommended to comply with local building codes and ensure peak performance. The Ventis VB00022 Pellet Stove is an excellent choice for eco-conscious homeowners seeking consistent, long-lasting heat with reduced maintenance.
