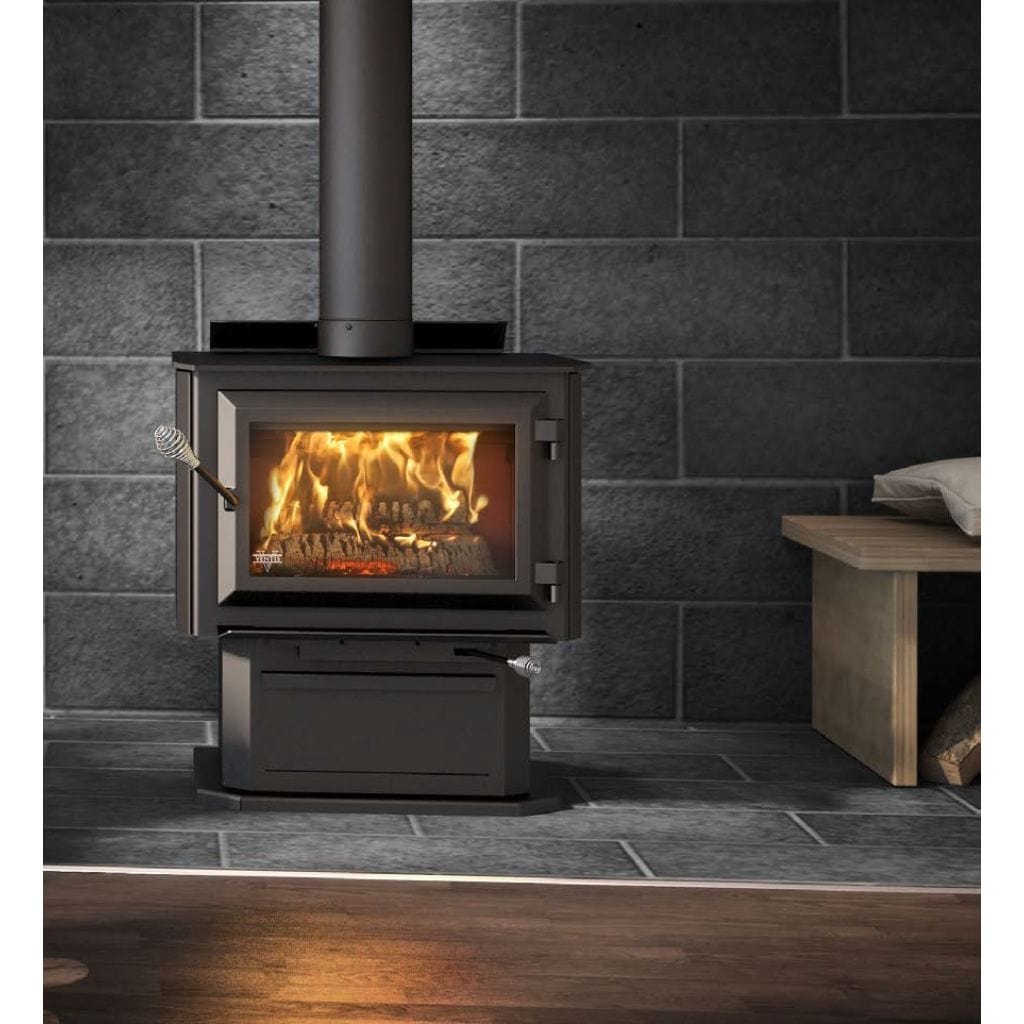

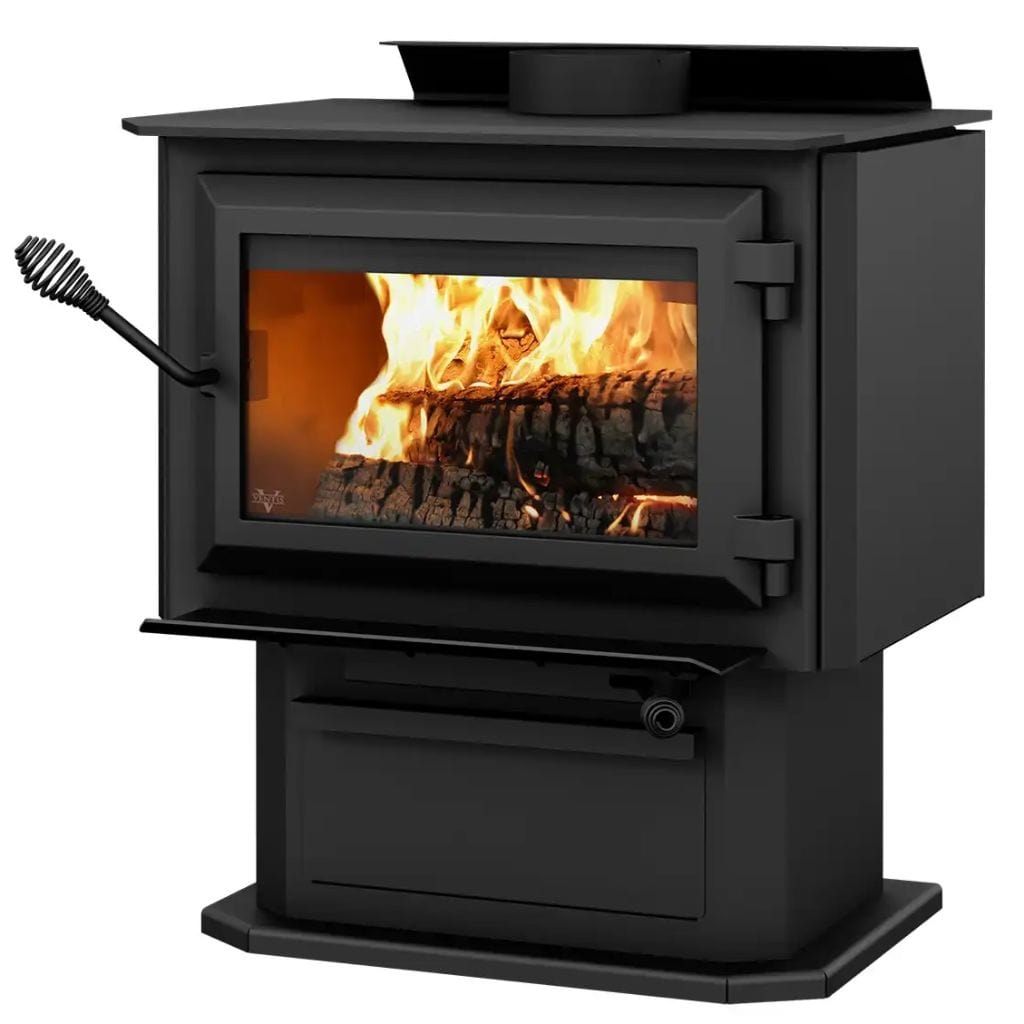

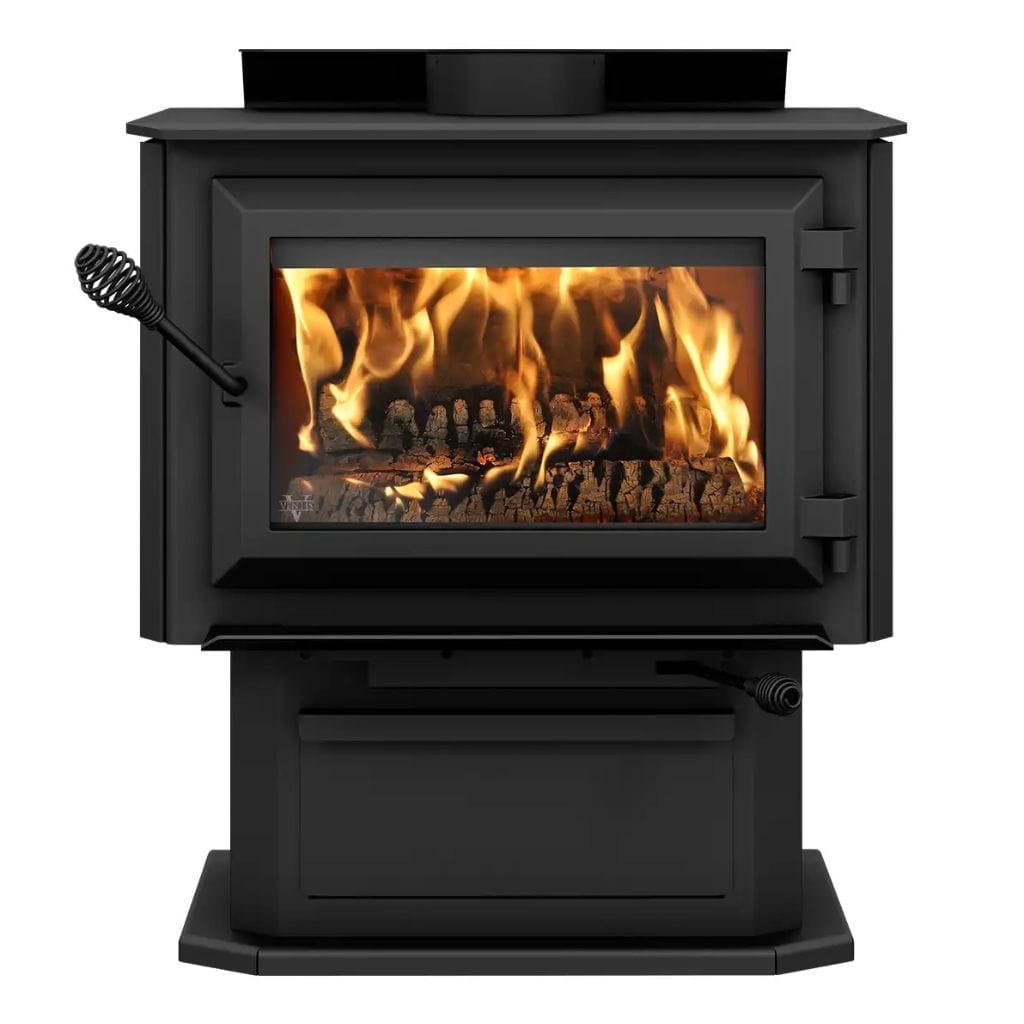

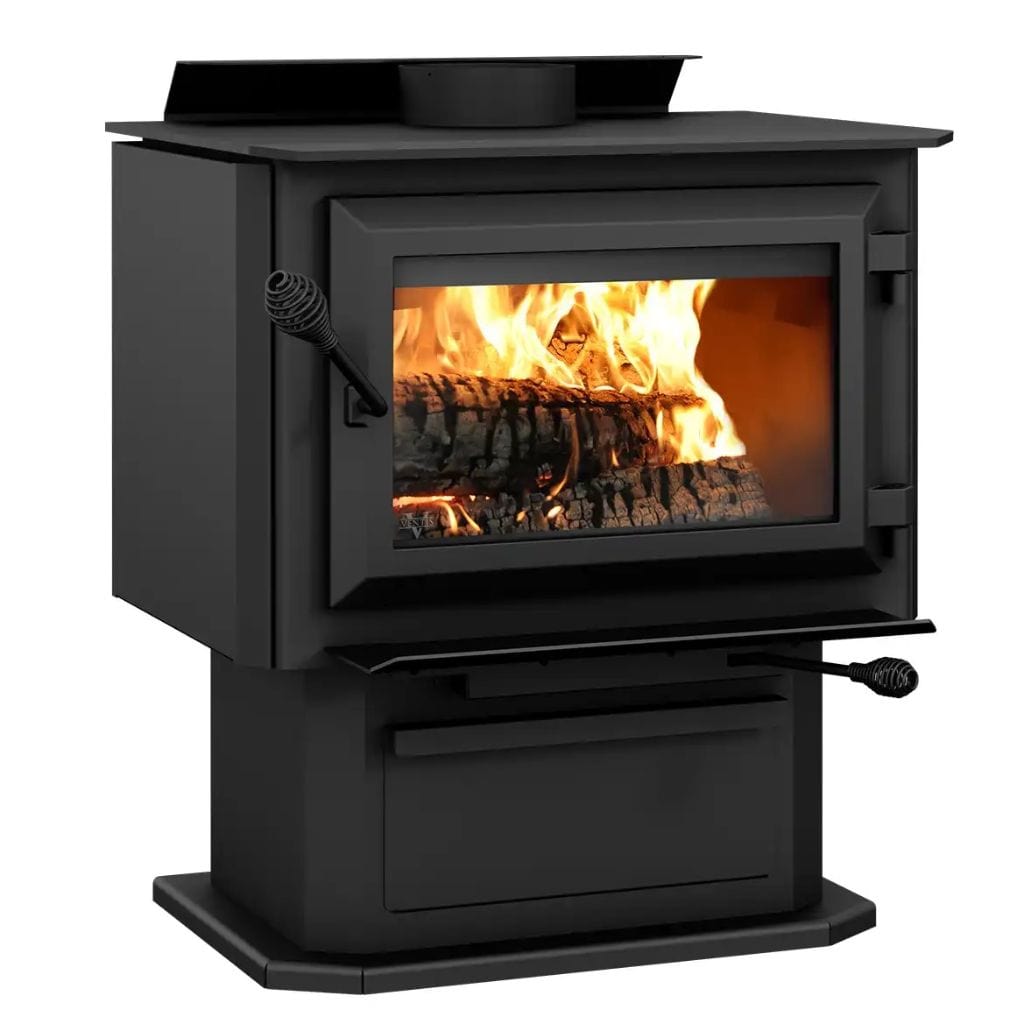

Ventis 25" HES170 Medium Black Wood Stove with Pedestal
The Ventis HES170 Medium Wood Stove is a high-performance, EPA 2020-certified heating solution ideal for homes between 500 and 1,800 sq. ft. It delivers up to 65,000 BTU/h of heat while maintaining low emissions of just 2.4 g/h. Engineered for both efficiency and reliability, it features a 1.86 ftÂł firebox lined with refractory bricks for improved heat retention and extended burn time of up to 7 hours.
Its non-catalytic combustion system and stainless-steel secondary-air system help maximize fuel efficiency, achieving an average efficiency of 68% (HHV) and 76% at optimum performance.
Sleek, Durable Design
Designed with both style and functionality in mind, this model features a sleek black finish, a sturdy pedestal base, and a large ceramic glass viewing window framed in cast iron, offering a clear and captivating view of the fire.
Safe and Versatile Installation
The HES170 is mobile home and alcove approved (with a fresh air intake), ensuring compatibility with a variety of home layouts. With a 6â flue outlet and compliance with CAN/ULC S629 and UL 103 HT (2100°F) chimney standards, it provides safe, reliable performance for years to come.
Whatâs Included:
-
HES170 wood stove
-
Cast iron door
-
Top heat deflector
-
Side panels
Sold Separately:
Key Features:
-
Medium pedestal wood stove
-
EPA 2020 Certified â 2.4 g/h emissions
-
Non-catalytic combustion
-
High-quality vermiculite baffle
-
Stainless-steel heat shield and secondary-air system
-
Sleek black finish with cast iron door
-
Ceramic glass window: 15 5/8" W x 9 1/4" H
-
Accommodates logs up to 18" (loading over depth)
-
Installation approved for alcove and mobile homes (with fresh air intake)
-
Installation allowed on Island of Montreal
Performance Specifications:
Parameter |
Details |
Fuel Type |
Dry cordwood (16" recommended) |
Heating Area |
500 â 1,800 ft² |
Firebox Volume (Total / EPA) |
1.86 ftÂł / 1.44 ftÂł |
Max Burn Time |
7 hours |
Max Heat Output |
65,000 BTU/h |
Heat Output Range |
9,800 â 52,200 BTU/h |
Efficiency (HHV / LHV / Optimal) |
68% / 73% / 76% |
Particulate Emissions |
2.4 g/h |
CO Emissions |
103 g/h |
General Specifications:
-
Model: HES170
-
Ignition: Manual
-
Certified: CAN/USA accredited labs
-
Combustion: Non-catalytic
-
Flue Diameter: 6"
-
Chimney Type: CAN/ULC S629, UL 103 HT (2100°F)
-
Min. Chimney Height: 12"
-
Steel Thickness (Body / Top): 3/16" / 5/16"
-
Glass Type: Ceramic
-
Door Type: Single, with cast iron frame
-
Firebox Lining: Refractory bricks
-
Log Positioning: Loading over depth
-
High-Efficiency Certified: EPA 2020
-
Safety Standards: ULC S627 (Canada), UL 1482 & UL 737 (USA)
-
Shipping Weight: 328 lb (149 kg)
Dimensions:
Component |
Size |
Overall (W x H x D) |
25" x 29" x 23" |
Firebox (W x H x D) |
20" x 12" x 13" |
Door Opening (W x H) |
17" x 8" |
Warranty Summary:
Component |
Parts |
Labor |
Combustion chamber, castings, convector air-mate |
Lifetime |
4 years |
Ceramic glass (thermal breakage only) |
Lifetime |
N/A |
Stainless components, vermiculite baffle, secondary air tubes, handles |
5 years |
3 years |
Steel legs, trim, pedestal, heat shields, ash drawer |
5 years |
N/A |
Carbon steel firebox components |
3 years |
2 years |
Blowers, electronics, sensors, wiring |
2 years |
1 year |
Paint, gaskets, insulation, fire bricks, ceramic blankets |
1 year |
N/A |
All warranty replacement parts |
90 days |
N/A |
Tax Credit Eligibility (2023â2032)
This model qualifies for the 30% Residential Clean Energy Credit, up to $2,000 annually, based on the full cost (purchase + installation). To claim:
-
File IRS Form 5695
-
Retain purchase and installation receipts
-
Provide the manufacturer's certification
-
Must be 75%+ HHV efficient (this stove qualifies)
