Description

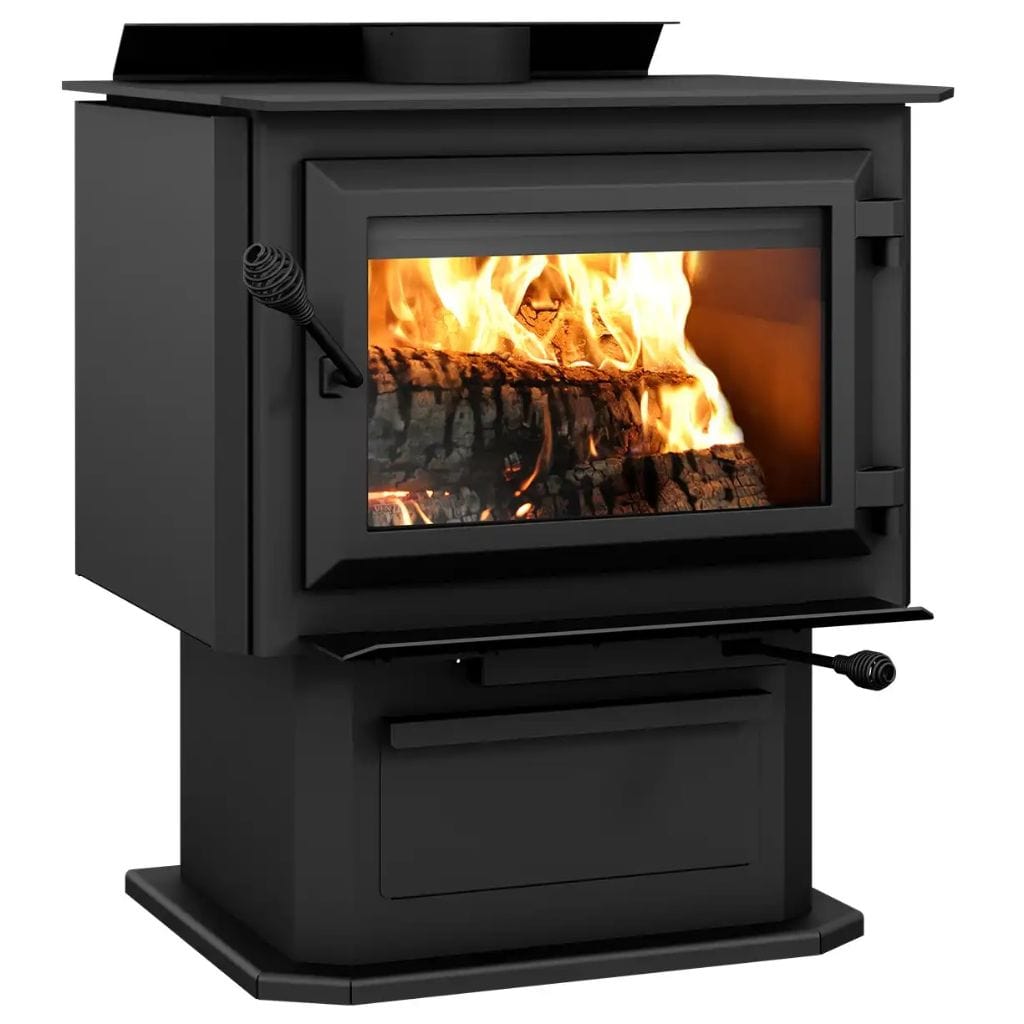

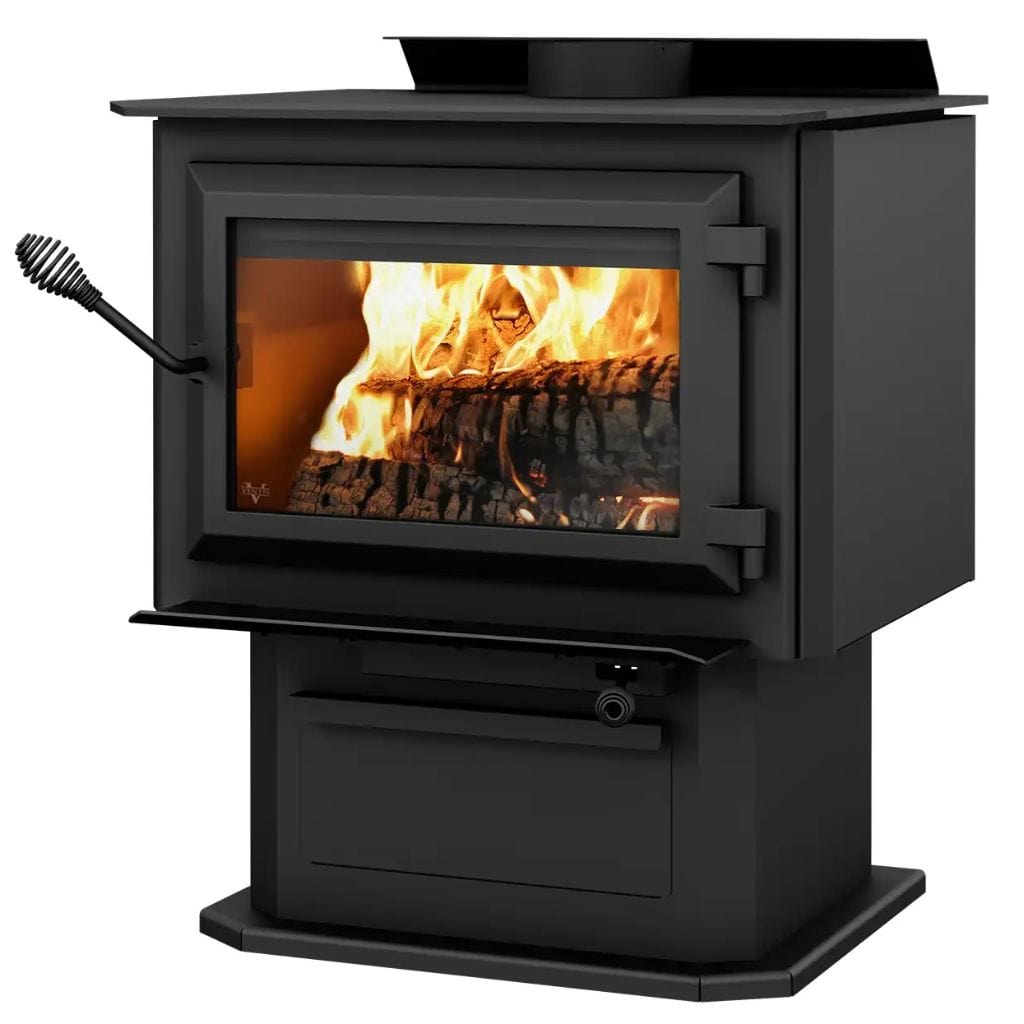

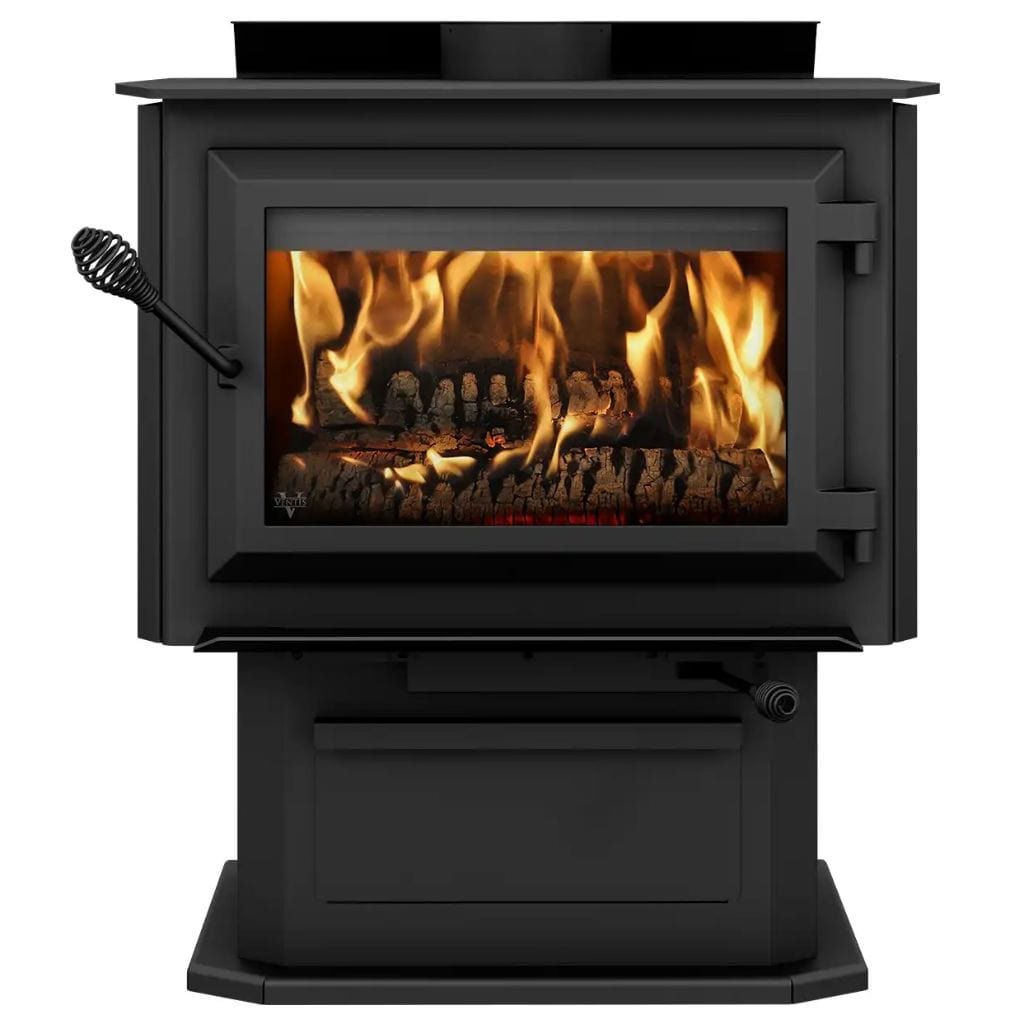

Ventis HES240 27" Large Black Wood Stove with Pedestal
The Ventis HES240 is a high-performance, EPA 2020-certified wood stove built to deliver dependable, eco-friendly heating for homes ranging from 500 to 2,100 sq. ft. With a robust maximum heat output of 75,000 BTU/h and a long 8-hour burn time, this stove is ideal for homeowners seeking both power and efficiency.
Its large 2.4 ft³ firebox, lined with high-quality refractory bricks, ensures optimal heat retention and performance. The non-catalytic combustion system and stainless-steel secondary-air system work together to maximize fuel efficiency while keeping emissions low at just 2.3 g/h. With an average efficiency of 72% (HHV) and up to 79% optimum efficiency, the HES240 offers both cost savings and eco-conscious heating.
Aesthetically designed with a sleek black finish and a pedestal base, the HES240 features a large ceramic glass window with a cast iron frame, offering an expansive view of the flames. It accommodates logs up to 20 inches, loaded over the width for easier operation. The optional 130 CFM blower (with thermodisc) further enhances heat distribution throughout the space.
What's Included
-
Ventis HES240 wood stove
-
Cast iron door
-
Top heat deflector and side panels
Sold Separately
-
130 CFM blower with thermodisc
-
5"Ø fresh air intake kit
-
Rigid fire screen
Key Features
-
Large-capacity wood stove with pedestal base
-
EPA 2020 certified: clean burning at 2.3 g/h
-
High-efficiency (up to 79%) non-catalytic combustion
-
Firebox lined with durable refractory bricks
-
Cast iron door with ceramic glass window
-
Stainless steel heat shield and secondary-air system
-
Approved for mobile home and alcove installations (with fresh air intake)
-
Manual ignition system
-
Sleek black finish and durable construction
-
Installation approved on the Island of Montreal
Performance Specifications
| Feature | Detail |
|---|---|
| Fuel Type | Dry cordwood (16" recommended) |
| Heating Area | 500 – 2,100 ft² |
| Firebox Volume | 2.4 ft³ (EPA: 1.95 ft³) |
| Maximum Burn Time | 8 hours |
| Max Heat Output | 75,000 BTU/h |
| Min Heat Output | 14,200 BTU/h (4.16 kW) |
| Max Overall Output | 44,500 BTU/h (13.04 kW) |
| Average Efficiency (HHV) | 72% |
| Average Efficiency (LHV) | 77% |
| Optimum Efficiency | 79% |
| Heat Transfer Efficiency | 76% |
| Particulate Emissions | 2.3 g/h |
| Average CO Emissions | 69 g/h |
Construction & Design
| Feature | Detail |
|---|---|
| Model | HES240 |
| Ignition Type | Manual |
| Combustion Technology | Non-catalytic |
| Stainless-Steel Secondary-Air System | Yes |
| Mobile Home Approved | Yes (with fresh air intake) |
| Alcove Installation Approved | Yes |
| Flue Outlet Diameter | 6" |
| Recommended Chimney Diameter | 6" |
| Min Chimney Height | 12" |
| Chimney Type | CAN/ULC S629, UL 103 HT (2100 °F) |
| Door Type | Single ceramic glass, cast iron frame |
| Glass Viewing Area (W x H) | 16 7/8" x 10 1/4" |
| Max Log Length | 20" |
| Log Loading | Over width |
| Firebox Lining | Refractory bricks |
| Baffle Type | High-quality vermiculite |
| Steel Thickness (Body/Top) | 3/16" / 5/16" |
| High-Efficiency Certified Appliance | Yes, EPA 2020 certified |
Dimensions & Weight
| Type | Measurement |
|---|---|
| Overall Dimensions | 27" W x 32" H x 27" D |
| Firebox Dimensions | 21" W x 12" H x 17" D |
| Door Opening Size | 17" W x 9" H |
| Shipping Weight | 375 lb (170 kg) |
Warranty Coverage
| Component Category | Parts | Labor |
|---|---|---|
| Firebox welds, castings, convector air-mate | Lifetime** | 4 years |
| Ceramic glass (thermal breakage only)* | Lifetime** | N/A |
| Firebox internals (SS components, baffle, air tubes, etc.) | 5 years** | 3 years |
| External parts (pedestal, trim, heat shields, ash drawer) | 5 years | N/A |
| Carbon steel firebox components | 3 years | 2 years |
| Electronics (blower, switches, wiring, sensors, etc.) | 2 years | 1 year |
| Paint, gaskets, insulation, fiber blanket, refractory bricks | 1 year | N/A |
| Warranty replacement parts | 90 days | N/A |
*Subject to limitations
**For fireplace components only
30% Federal Tax Credit Eligible
This wood stove qualifies for the 30% Residential Clean Energy Tax Credit (IRS Form 5695).
-
76% HHV Efficiency
-
Applies to installations from Jan 1, 2023 – Dec 31, 2032
-
Credit includes stove + installation costs
-
Up to $2,000 annually
-
Must be 75%+ HHV efficient to qualify
Customers must retain a copy of the manufacturer’s certificate and purchase invoice. Consult a qualified tax professional to confirm eligibility.
