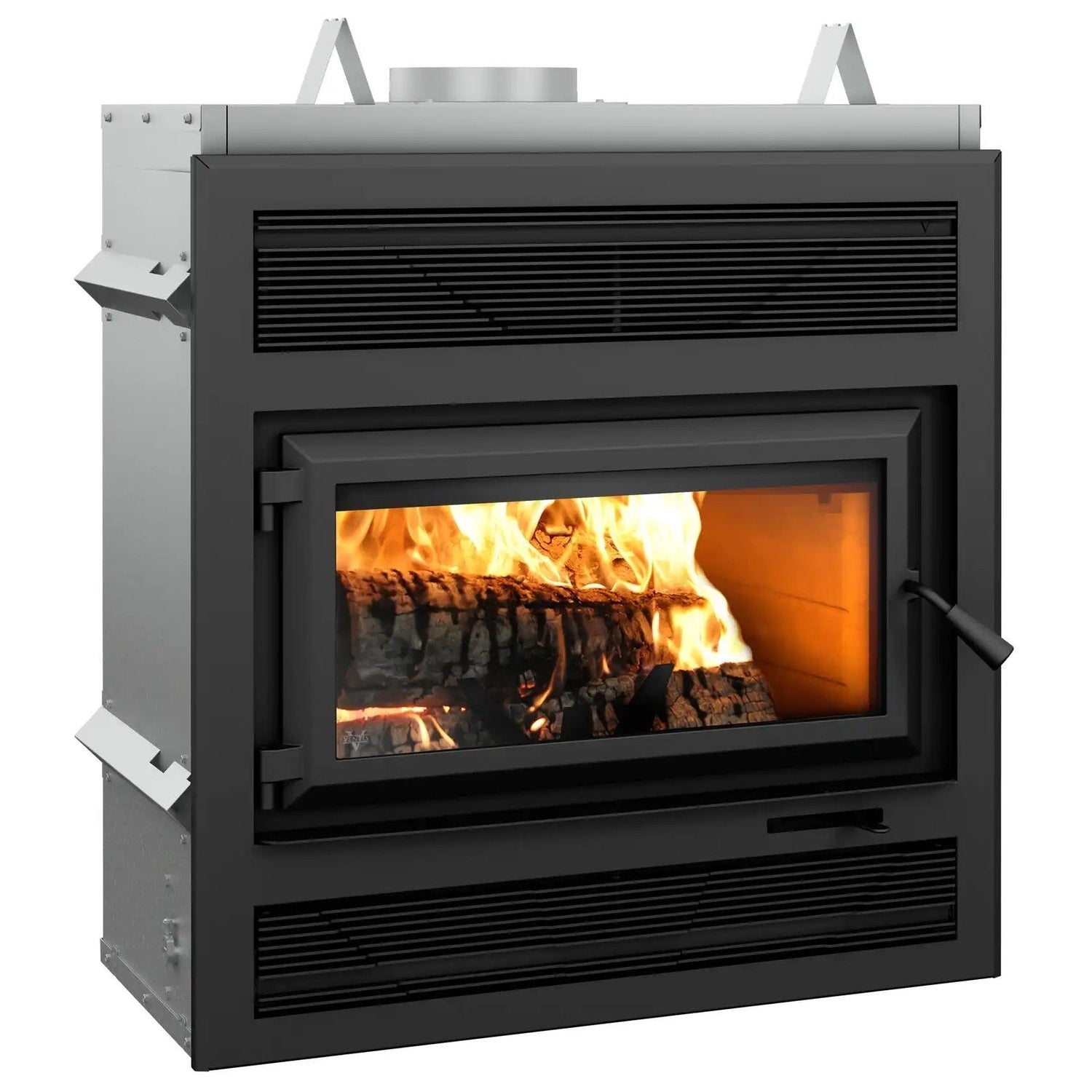

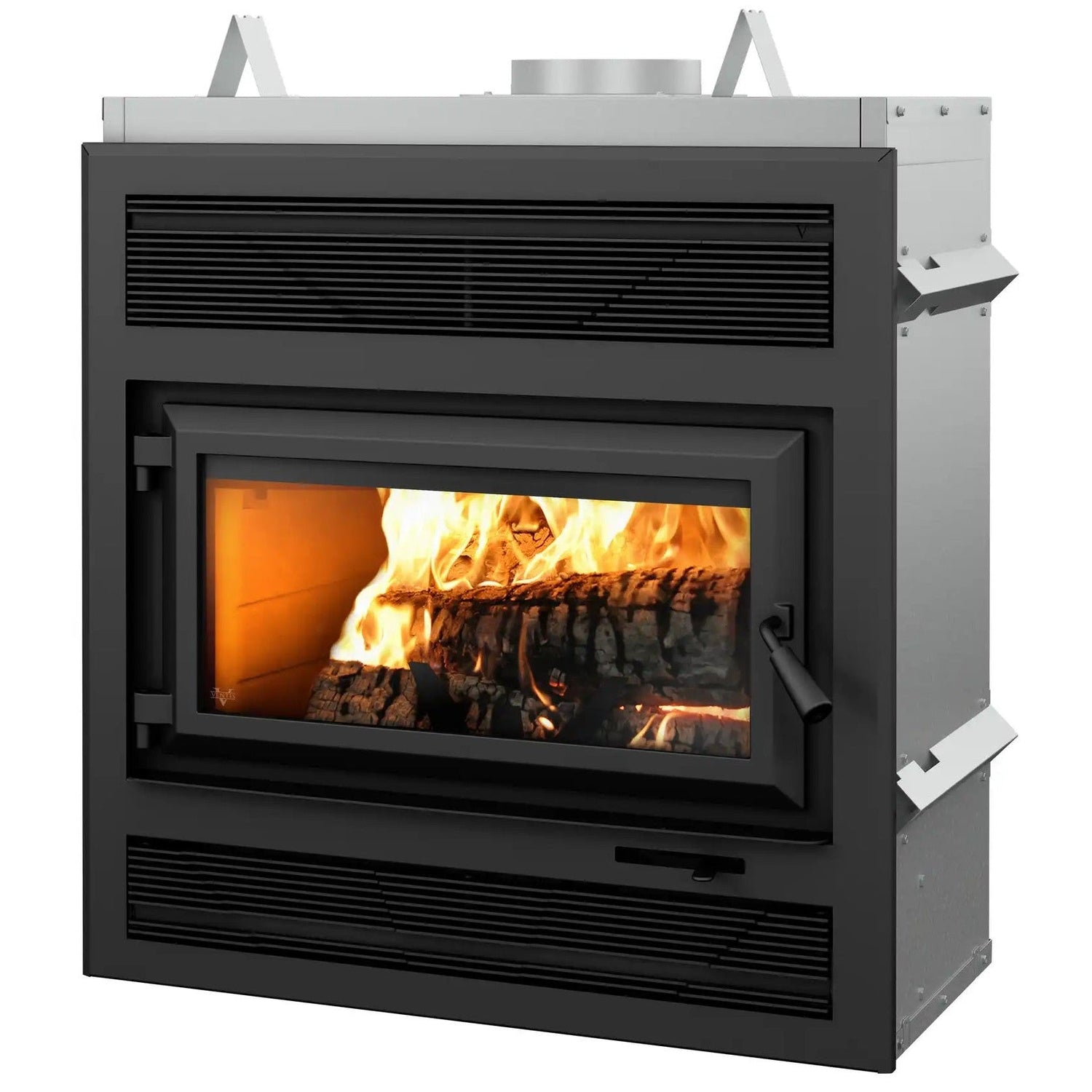

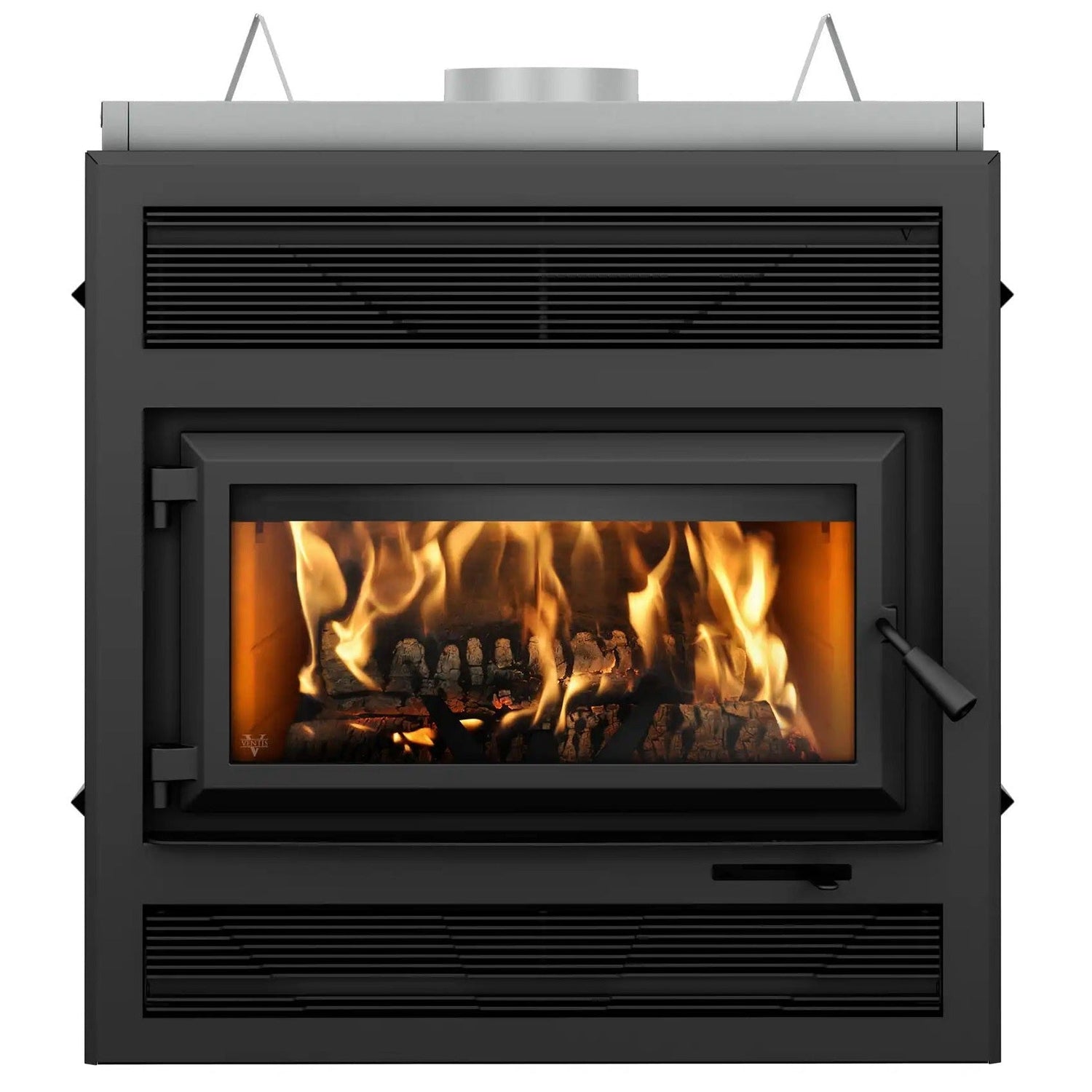

Ventis HE250R Large Classic Wood Burning Fireplace
The Ventis HE250R is a premium, large-format wood-burning fireplace engineered to deliver both timeless design and exceptional performance. Designed for spaces up to 2,200 sq. ft., it features a spacious 2.5 ftÂł firebox, making it ideal for homeowners seeking consistent warmth, clean combustion, and traditional aesthetics.
This EPA 2020-certified fireplace uses non-catalytic combustion technology to provide high-efficiency heating while keeping emissions to a minimumâjust 1.2 g/h. A powerful 176 CFM blower ensures effective heat circulation throughout your space, while the molded refractory stone interior enhances thermal efficiency and maintains lasting heat.
Built with durability and safety in mind, the HE250R includes a stainless steel secondary air system, high-density insulation firestop, and a 6" Ventis stainless steel anchor plate. Its high-quality construction meets both Canadian and U.S. safety and emissions standards, and it is authorized for installation on the Island of Montreal.
Aesthetically, this fireplace stands out with a single cast iron door and large 24" wide ceramic glass window, offering an expansive and captivating view of the fire. The Ventis distinctive louvers give it a refined, classic look that suits both rustic and contemporary interiors. It accommodates logs up to 20" long, loaded over the width of the firebox, for convenient operation and extended burn times of up to 8 hours.
Whatâs Included
-
HE250R Large Classic Fireplace
-
Cast Iron Single Door
-
176 CFM Blower
-
Durable C-Cast Baffle
-
Fresh Air Intake Adapter
-
Ventis Distinctive Louvers
-
Molded Refractory Bricks
-
6" Ventis Stainless Steel Anchor Plate
Sold Separately
-
Black Modern Faceplate (required to complete installation)
-
Firescreen Door
-
Carrying Handles
-
Forced Air Kit
-
Heat Shield for Shelf/Mantel
-
Hot Air Gravity Kit â Traditional
-
Hot Air Gravity Kit â Modern with Adjustable Pipes
-
6" x 25' Insulated Flex Pipe for Forced Air Kit
-
4" Fresh Air Intake Register with Airtight Damper
Key Features
-
Large classic wood-burning fireplace
-
Designed primarily for whole-home heating
-
Certified to EPA 2020 environmental standards
-
Non-catalytic combustion system for ease of use and efficiency
-
High-density insulated firestop for safety and performance
-
Distinctive Ventis-style louvers
-
176 CFM blower included
-
Molded refractory stone firebox liner
-
Fresh air intake adapter included
-
6" stainless steel anchor plate for secure installation
-
Installation approved on the Island of Montreal
Performance & Specifications
Heating Capacity: 750 â 2,200 ft²
Fuel Type: Dry cordwood (16" recommended)
Firebox Volume (Overall): 2.5 ftÂł
EPA Loading Volume: 1.94 ftÂł
Maximum Burn Time: 8 hours
Maximum Heat Output: 80,000 BTU/h
Heat Output Range: 12,700 â 60,700 BTU/h
Average Efficiency (HHV): 64%
Optimum Efficiency: 70%
Particulate Emissions: 1.2 g/h
Average CO Emissions: 98 g/h
General Features
Model: HE250R
Combustion Technology: Non-catalytic
Ignition Type: Manual
Blower: 176 CFM (included)
Glass Type: Ceramic (24" W x 10 5/8" H)
Door Type: Single, glass with cast iron frame
Maximum Log Length: 20"
Log Loading Orientation: Over width
Flue Outlet Diameter: 6"
Recommended Chimney Type: CAN/ULC S629 or UL 103 HT (2100°F)
Minimum Chimney Height: 15"
High-efficiency Certified: Yes (EPA 2020)
Canadian Emission Standard: CSA B415.1-10
Canadian Safety Standard: ULC S610
USA Emission Standard: EPA
USA Safety Standard: UL 127
Shipping Weight: 495 lb (225 kg)
Dimensions
Overall Dimensions:
-
Width: 37"
-
Height: 37"
-
Depth: 29"
Firebox Size:
-
Width: 20"
-
Height: 12"
-
Depth: 13"
Door Opening Size:
Warranty Overview
Component |
Parts |
Labour |
Combustion chamber (welds), castings, convector air-mate |
Lifetime** |
4 years |
Ceramic glass (thermal breakage only) |
Lifetime** |
N/A |
Stainless steel firebox parts, baffles, air tubes |
5 years** |
3 years |
Heat shields, ash drawer, trim, pedestal |
5 years |
N/A |
Carbon steel firebox components |
3 years |
2 years |
Blowers, sensors, wiring, electronics |
2 years |
1 year |
Paint, gaskets, insulation, bricks, ceramic fiber |
1 year |
N/A |
Parts replaced under warranty |
90 days |
N/A |
