Welcome To The Imperial Luxe (855-799-1672)
Please note: This insert is eligible for tax credits.

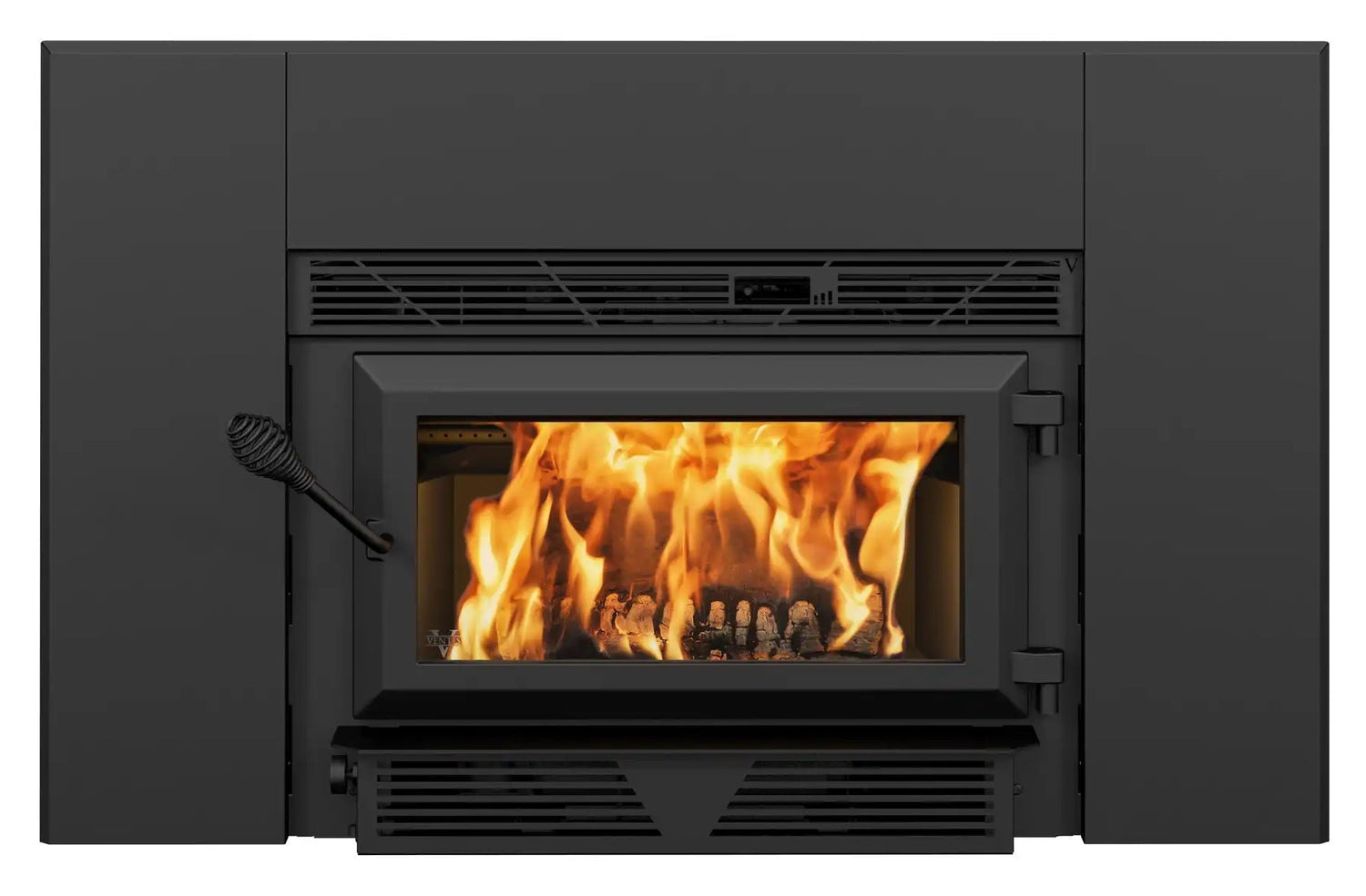

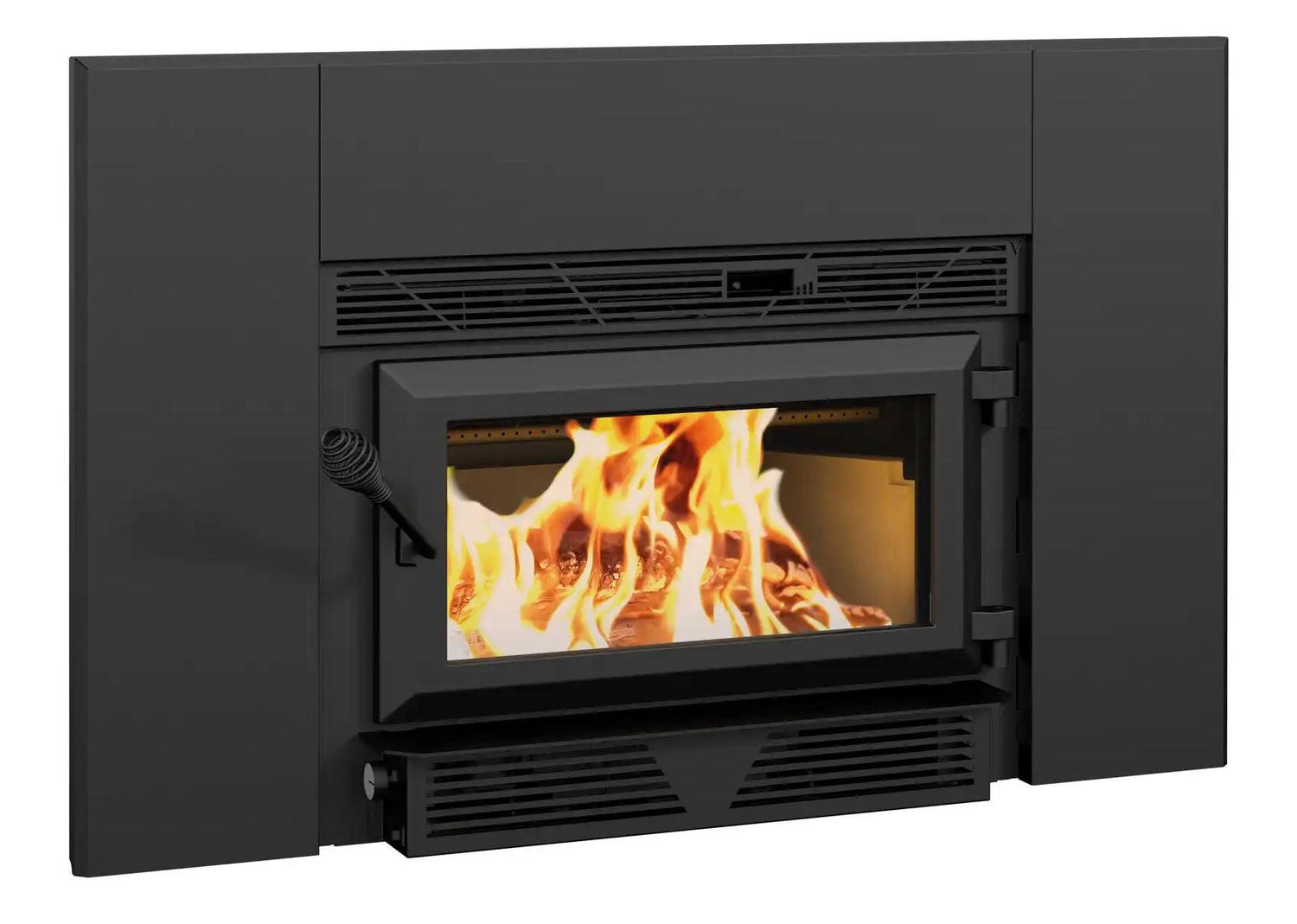

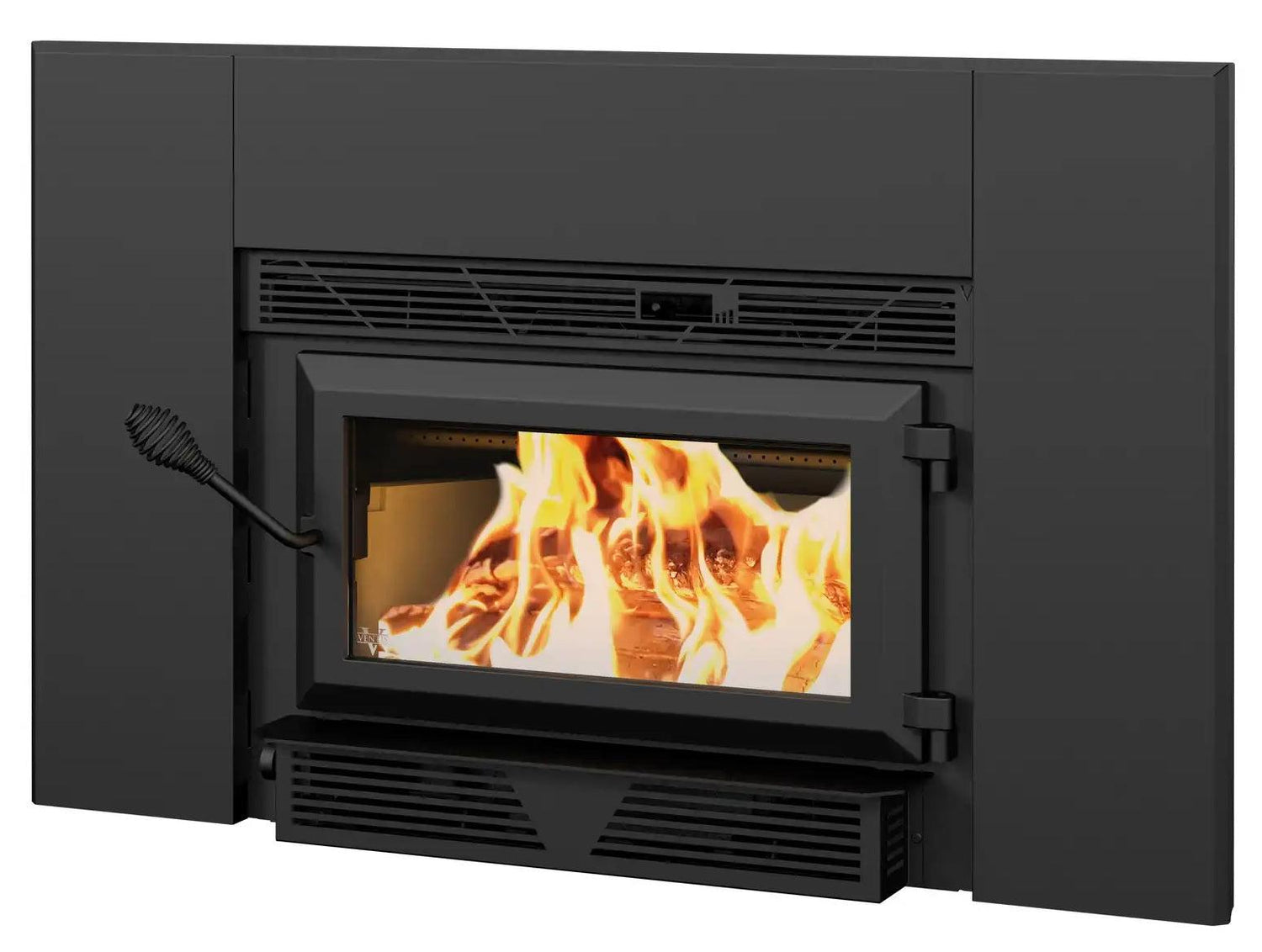

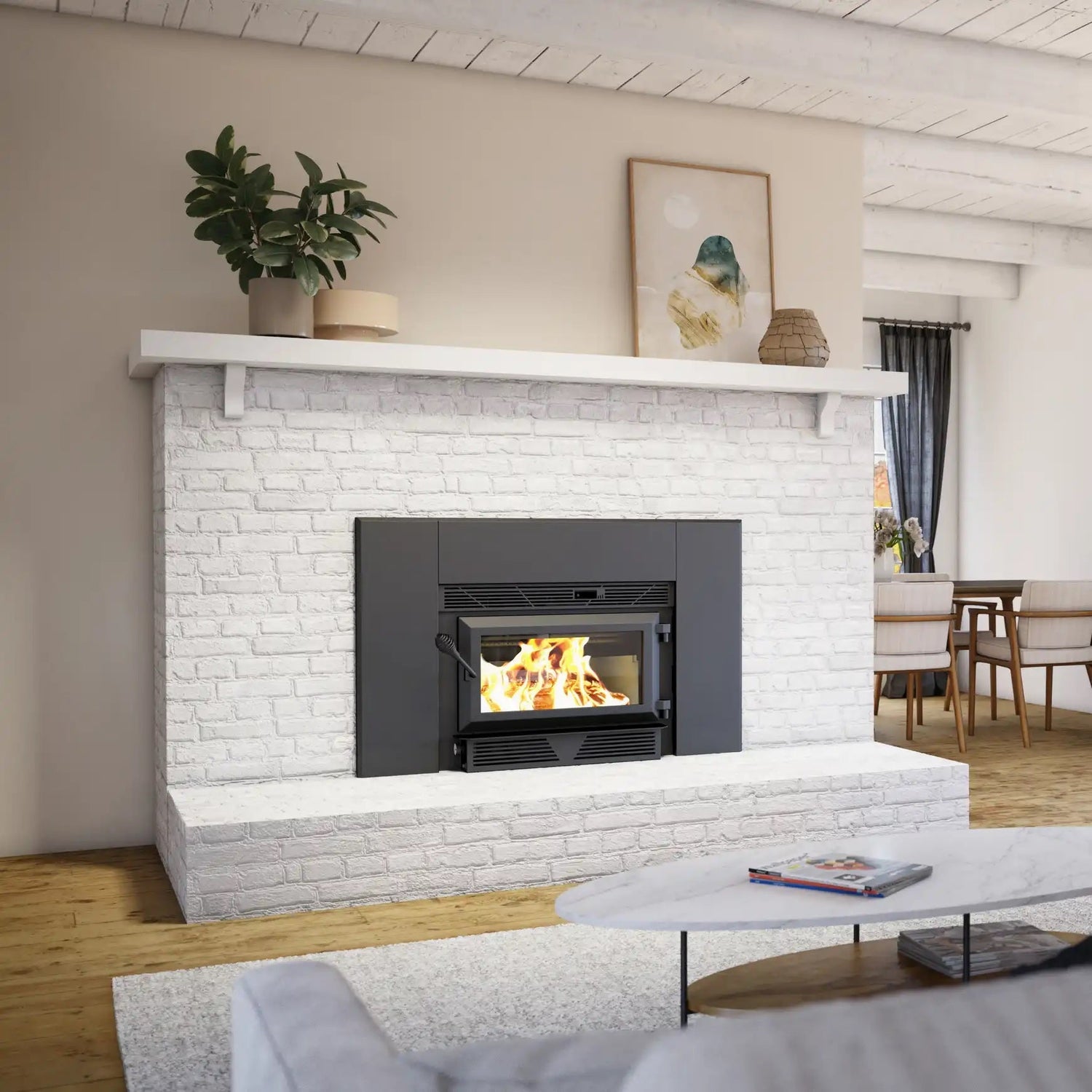

The Ventis HEI90 is expertly designed to deliver high-efficiency, environmentally responsible heating specifically tailored for smaller spaces and compact masonry hearths. Its smart tapered design, featuring narrowed top and sides, simplifies installation in tight or custom-built openings without sacrificing performance or style. The sleek black finish coupled with a durable cast iron door adds a timeless aesthetic appeal, making it a perfect fit for upgrading existing fireplaces or creating a cozy, warm nook in your home.
HEI90 Wood Fireplace Insert
Cast Iron Door
90 CFM Blower with Right/Left Powercord
26" x 42" Regular Faceplate (Required)
Firescreen Door
Hook Up Liner System
Offset Liner Adaptor
5"Ø Fresh Air Intake Kit
5"Ø Fresh Air Intake Register with Airtight Damper
4' Insulated Flex Pipe for 5"Ø Fresh Air Intake
Note: The regular faceplate is required to complete this unit.
Small-sized wood insert designed for tight or compact spaces
Tapered shape on top and sides simplifies installation in small masonry hearths
EPA certified at an ultra-low emission rate of just 1.5 g/h particulate matter
High-performance combustion system delivering 75% efficiency (HHV)
Solid construction ensures long-lasting durability and reliability
C-Cast heat shield incorporated at the firestop for added protection
Non-catalytic combustion technology provides clean, efficient heat
Authorized for installation on the Island of Montreal
Classic cast iron door for durability and refined aesthetics
90 CFM blower with flexible power cord orientation (right or left)
Parameter | Details |
---|---|
Fuel Type | Dry cordwood |
Recommended Heating Area | 250 - 1,200 ft² |
Overall Firebox Volume | 1.1 ft³ |
EPA Loading Volume | 1.03 ft³ |
Maximum Burn Time | 7 Hours |
Maximum Heat Output (Dry Cordwood) | 45,000 BTU/h |
Minimum Heat Output Rate | 8,471 BTU/h (2.48 kW) |
Maximum Heat Output Rate | 31,700 BTU/h (9.29 kW) |
Average Efficiency (HHV) | 75% |
Average Efficiency (LHV) | 80% |
Optimum Efficiency | 82% |
Optimum Heat Transfer Efficiency | 78% |
Average Particulate Emission Rate | 1.5 g/h |
Average Carbon Monoxide Emission (CO) | 34 g/h |
Feature | Description |
---|---|
Model | HEI90 |
Ignition Type | Manual |
Mobile Home Approved | No |
Blower Included | 90 CFM |
Certification | CAN/USA-accredited laboratory |
Combustion Technology | Non-catalytic |
Stainless Steel Secondary Air System | Yes |
Flue Outlet Diameter | 6" |
Recommended Chimney Diameter | 6" |
Chimney Types | ULC-S635, CAN/ULC-S640, UL 1777 |
Minimum Chimney Height | 12" |
Door Type | Single, glass with a cast iron frame |
Glass Type | Ceramic glass |
Glass Dimensions (W x H) | 17 7/8" x 8" |
Steel Thickness (Body / Top) | 3/16" / 3/16" |
Maximum Log Length | 17" (16" recommended) |
Log Positioning | Loading over the width |
Firebox Lined With Refractory Bricks | Yes |
Baffle Type | C-Cast or equivalent |
High-Efficiency Certified Appliance | Yes, EPA 2020 certified |
Canadian Emissions Standard | CSA B415.1-10 |
USA Emissions Standard | EPA |
Canadian Safety Standard | ULC S628 |
USA Safety Standard | UL 1482, UL 737 |
Shipping Weight | 287 lb (130 kg) |
Category | Width | Height | Depth |
---|---|---|---|
Overall Unit Dimensions | 28" | 20" | 20" |
Firebox Size | 17" | 9" | 12" |
Minimum Fireplace Opening | 25" | 19" | 15" |
Door Opening Size | 18" | 8" | — |
Description | Parts | Labour |
---|---|---|
Combustion Chamber (welds only), Castings, and Convector Air-mate | Lifetime** | 4 years |
Plating* (defective manufacture) | Subject to limitations above | — |
Ceramic Glass (thermal breakage only*) | Lifetime** | N/A |
Stainless Steel Firebox Components, Vermiculite, C-Cast or Equivalent Baffle*, Secondary Air Tubes*, Glass Retainers and Handle Assembly | 5 years** | 3 years |
Surrounds, Heat Shields, Ash Drawer, Steel Legs, Pedestal and Trim (Aluminum Extrusions) | 5 years | N/A |
Carbon Steel Firebox Components | 3 years | 2 years |
Blowers, Heat Sensors, Switches, Rheostat, Wiring and Electronics | 2 years | 1 year |
Paint (peeling*), Gaskets, Insulations, Refractory Bricks (fireplace only**) and Ceramic Fibre Blankets | 1 year | N/A |
All Parts Replaced Under Warranty | 90 days | N/A |
This wood stove qualifies for the 30% federal tax credit for highly efficient wood or pellet stoves and larger residential biomass heating systems. Valid for appliances installed between January 1, 2023, and December 31, 2032, this credit is capped at $2,000 annually and applies to the full cost of purchase and installation.
