Katool 8500lbs Heavy Duty 4 Post Storage Car Lift KT-4H850

Katool 8500lbs Heavy Duty 4 Post Storage Car Lift KT-4H850

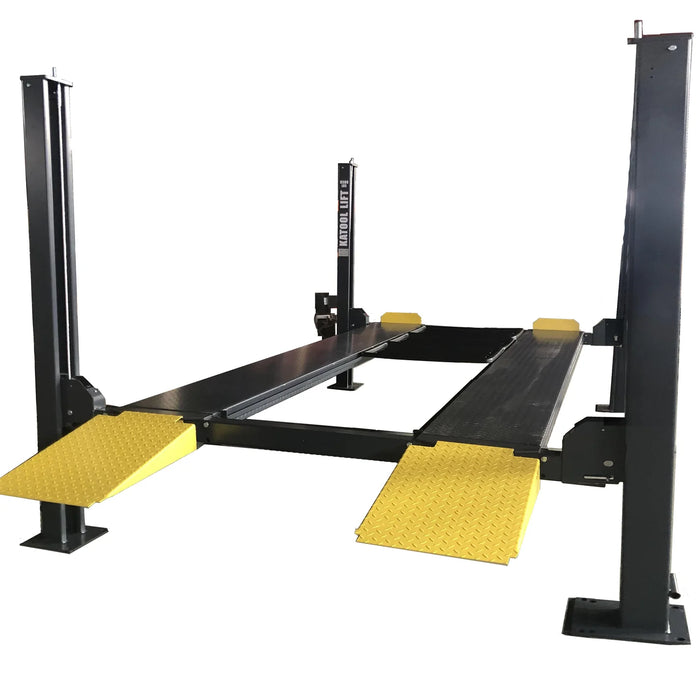

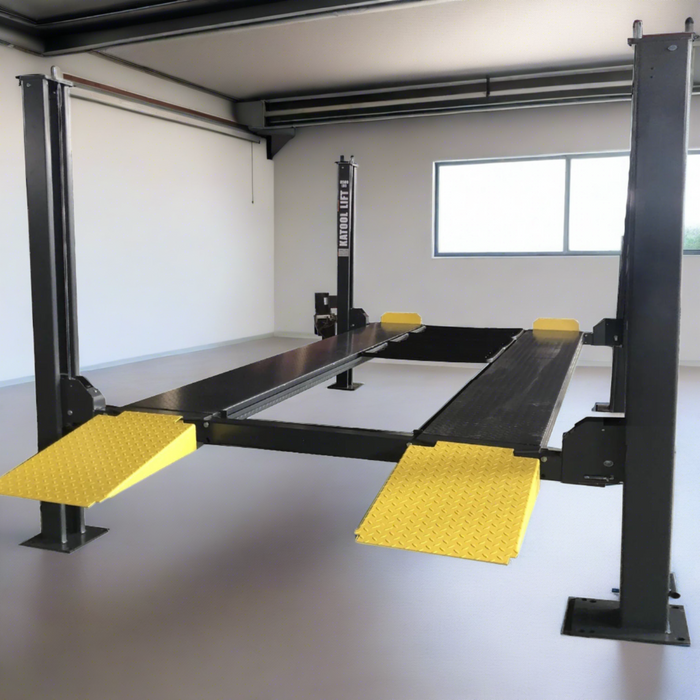

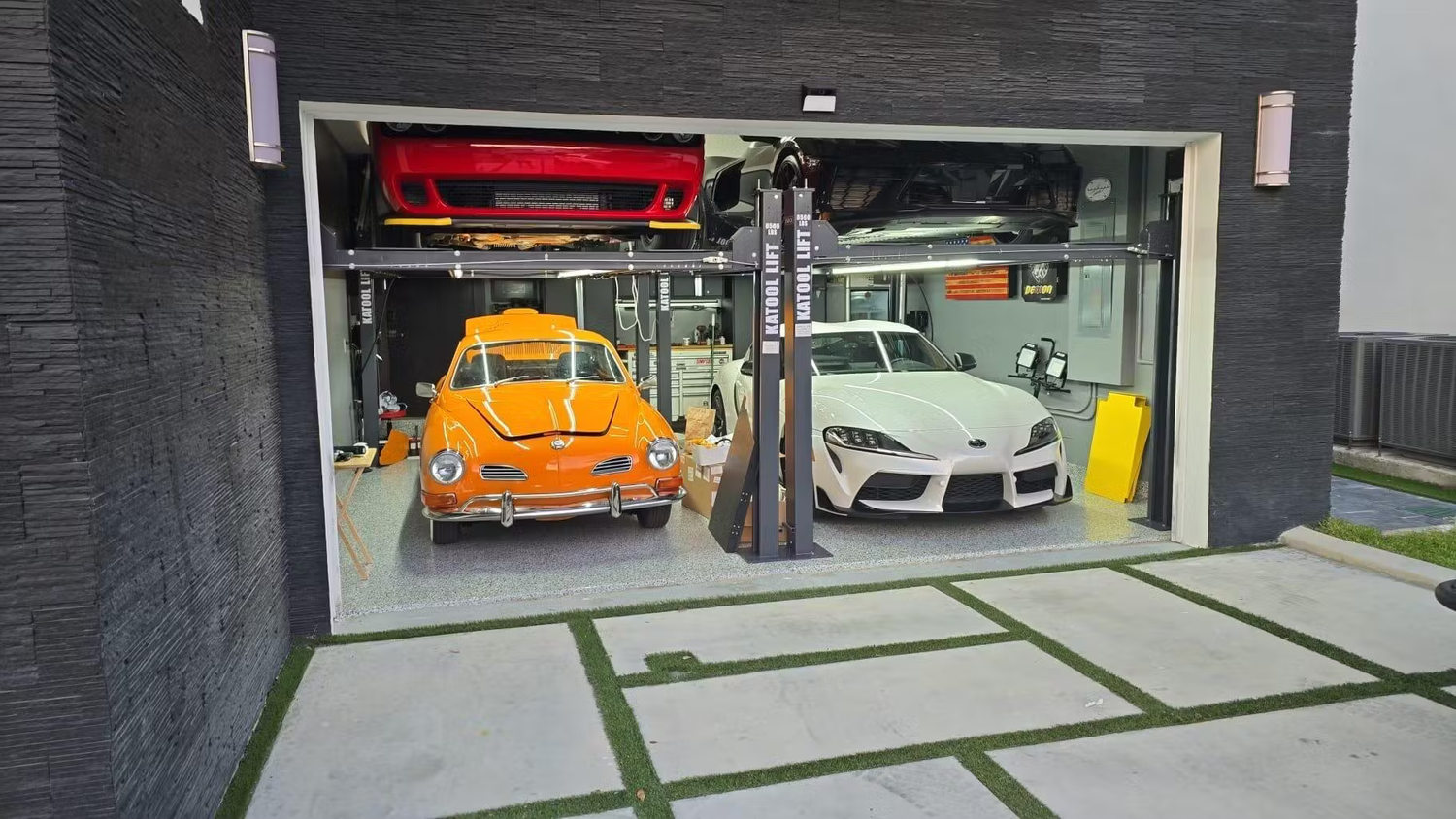

The Katool 8500lbs Heavy Duty 4 Post Storage Car Lift KT-4H850 is a robust 4-post car lift designed to handle up to 8,500 lbs, making it suitable for cars, SUVs, and light trucks. With a maximum lift height of 70.87 inches, it provides generous undercarriage access for maintenance, repairs, or long-term vehicle storage. Its strong construction and user-friendly setup make it ideal for both professional service shops and home garages.

Engineered with strict safety standards, the KT-4H850 is CE-certified and has undergone rigorous capacity testing. It features a single-point manual safety-lock release system paired with four mechanical locking devices, including primary and secondary locks, ensuring stable and secure lifting at all times. The adjustable safety-lock ladders and non-skid diamond-plate runways further enhance operator confidence and convenience.

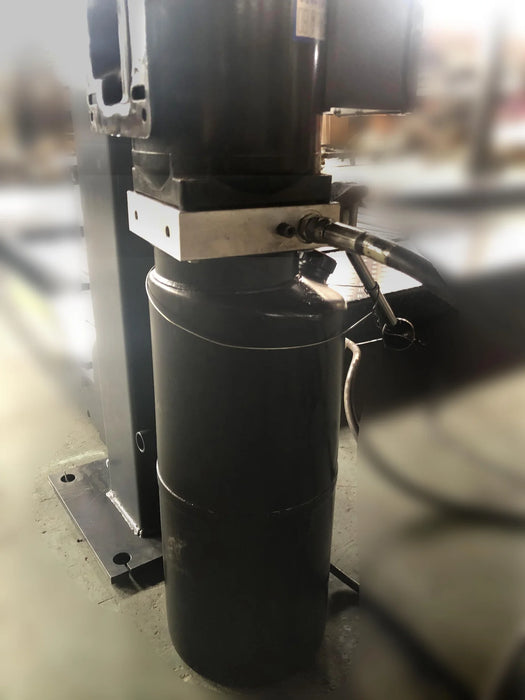

The lift operates on a dependable hydraulic system compatible with 110V single-phase power, with an option for 220V. It provides efficient lifting performance with a full-rise time of approximately 75 seconds and a lowering time of around 40 seconds. The power-side column is reversible, allowing installation on either side to fit various workshop layouts.

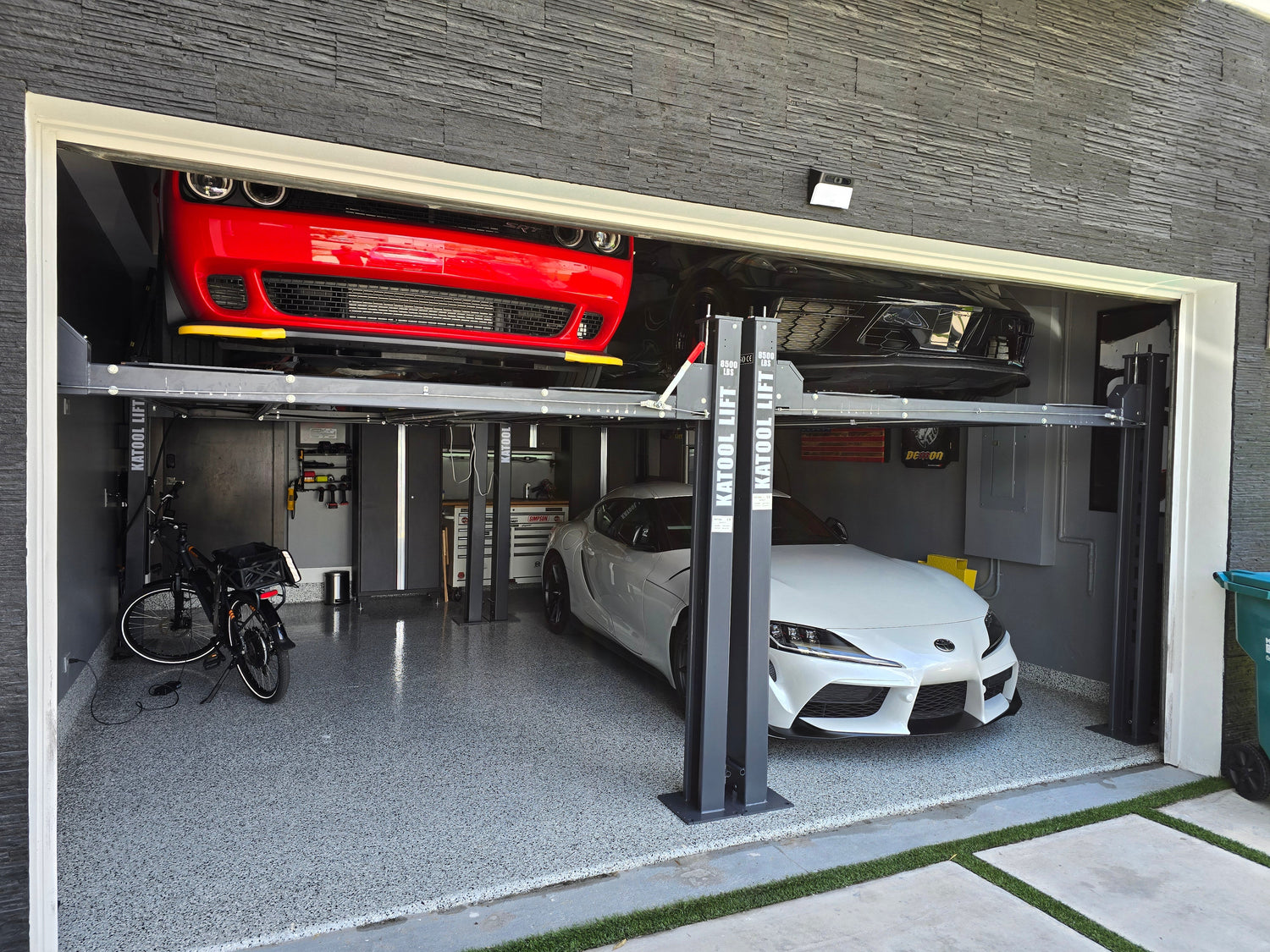

For added functionality, the KT-4H850 includes a caster kit for mobility, drip trays to manage fluid leakage, and a jack tray for additional service tasks. Combining capacity, safety, and versatility, this 4-post lift is an excellent solution for vehicle maintenance and parking optimization.

Features

• 8,500 lbs lifting capacity—ideal for cars, trucks, and SUVs

• CE certified and tested at 115% dynamic and 150% static load capacity

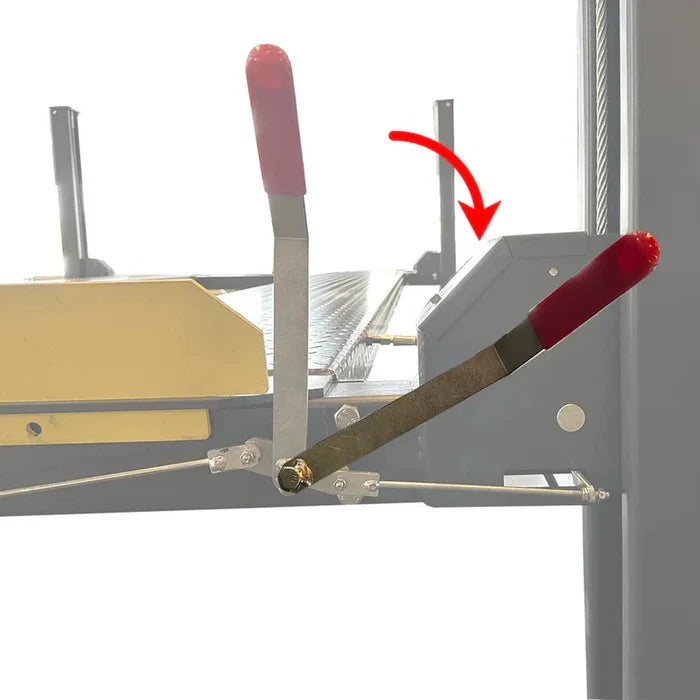

• Single-point manual lock release for smooth operation

• Four mechanical locks with dual safety system

• Power column can be positioned front or rear, left or right

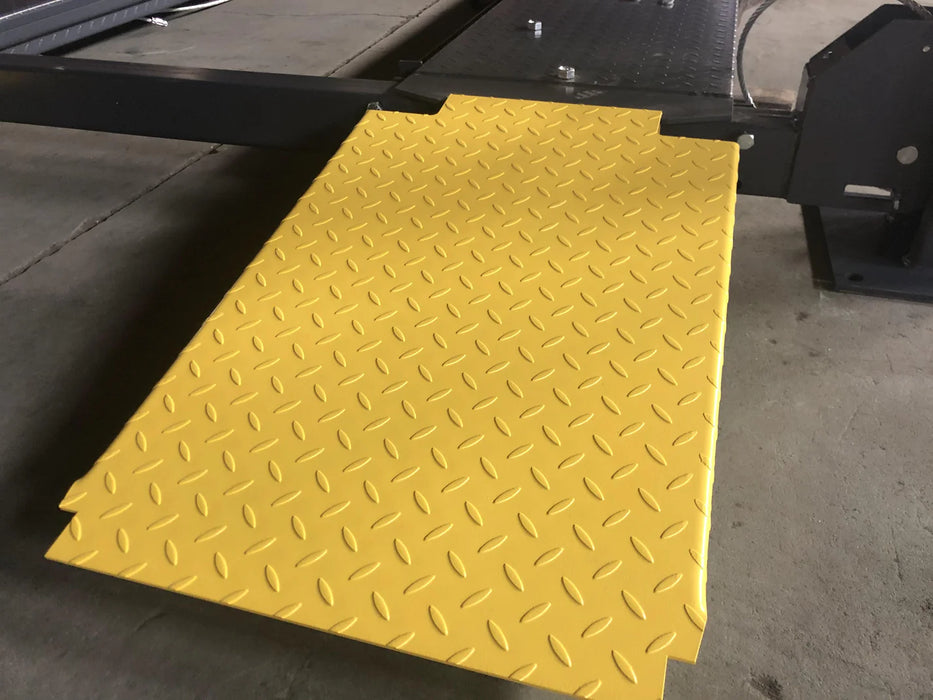

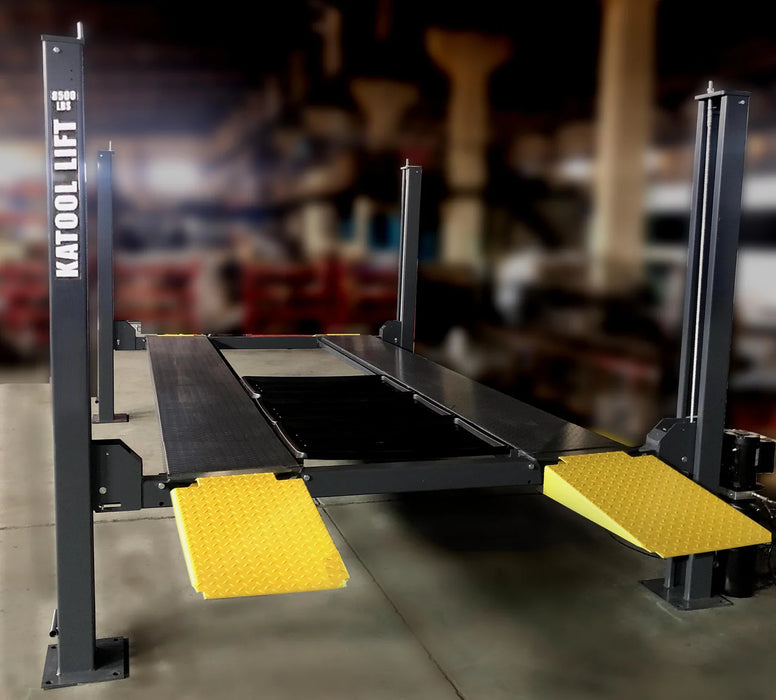

• Non-slip diamond plate runways with adjustable lock ladders

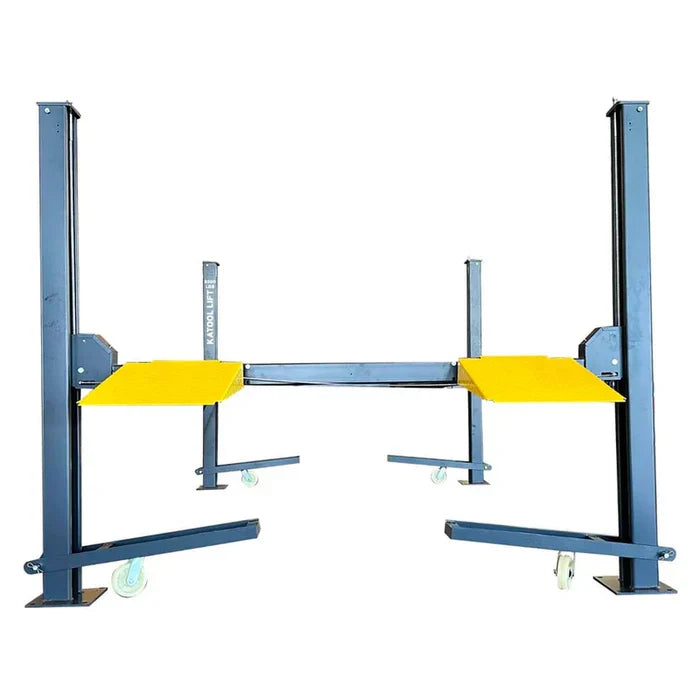

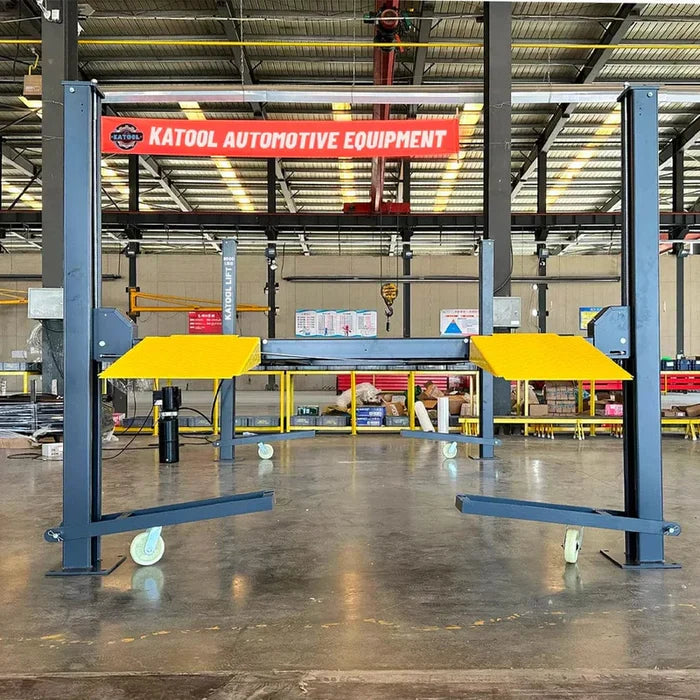

• Caster kit included for easy repositioning

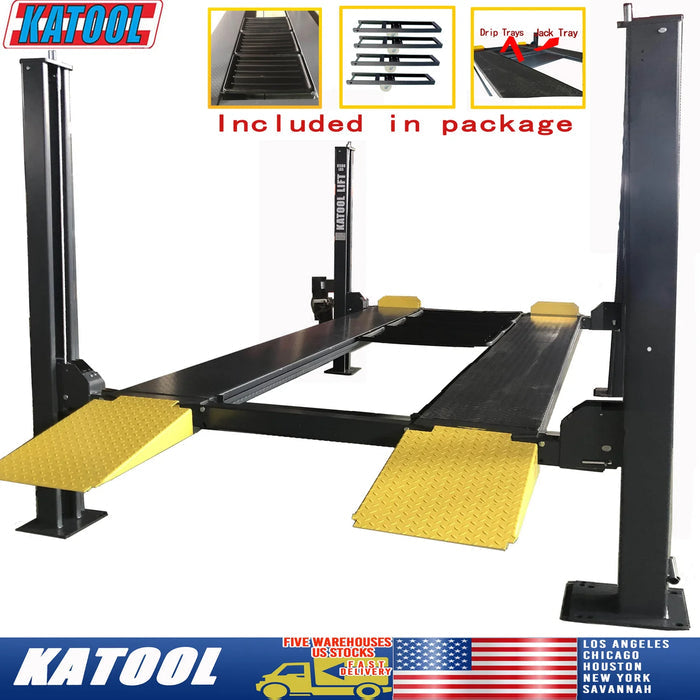

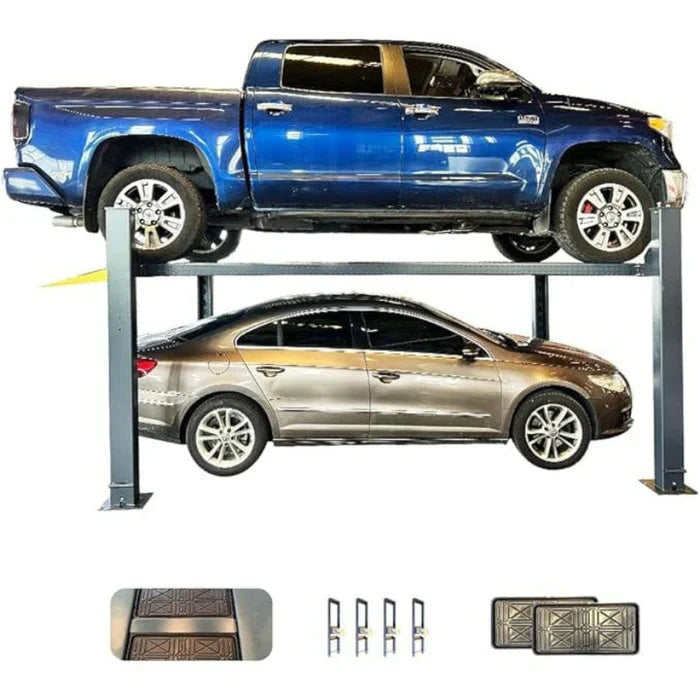

• Two drip trays and one jack tray included for cleaner workspace

• High-performance hydraulic system (110V standard, 220V optional)

• 12-month all-parts warranty

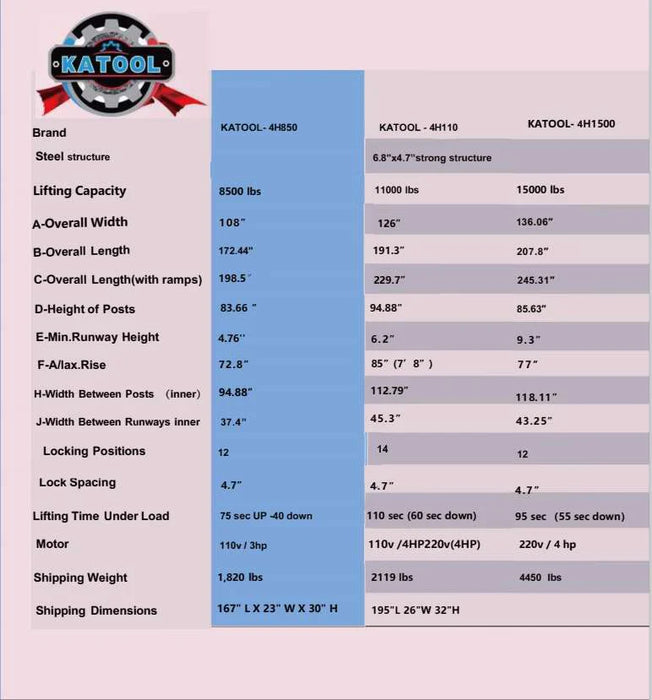

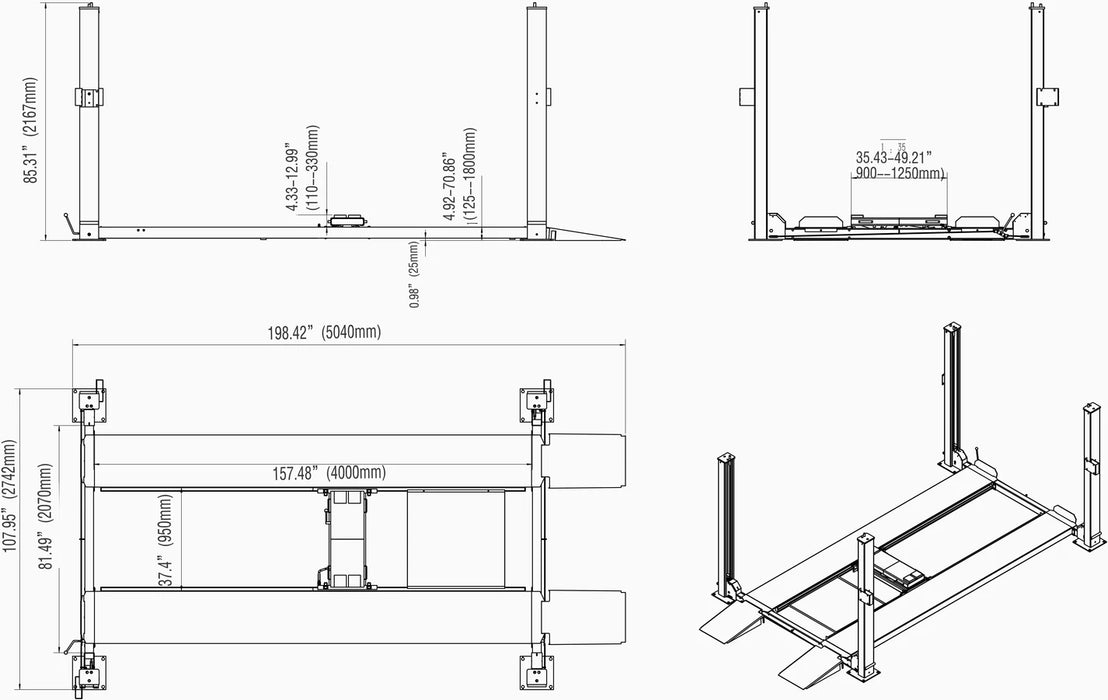

Specifications

• Lifting Capacity: 8,500 lbs (3,850 kg)

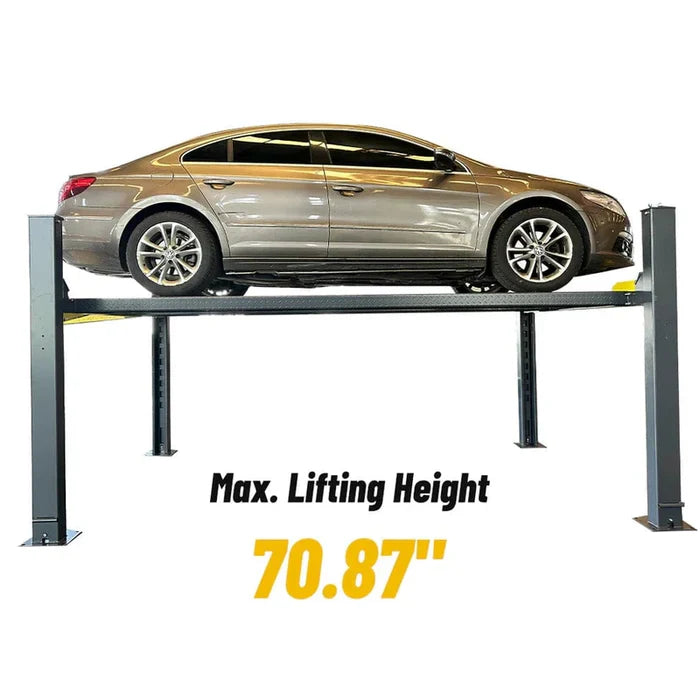

• Max Lift Height: 70.87 in (1,800 mm)

• Lifting Time: Up – 75 sec | Down – 40 sec

• Post Height: 83.66 in (2,125 mm)

• Overall Width: 107.95 in (2,742 mm)

• Overall Length (with ramps): 198.43 in (5,040 mm)

• Inside Column Width: 94.72 in (2,406 mm)

• Minimum Runway Height: 4.76 in (121 mm)

• Motor: 110VAC/60HZ/1PH (220V optional)

• Net Weight: 1,820 lbs (826 kg)

*Concrete thickness must be at least 3.93” (100 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.
